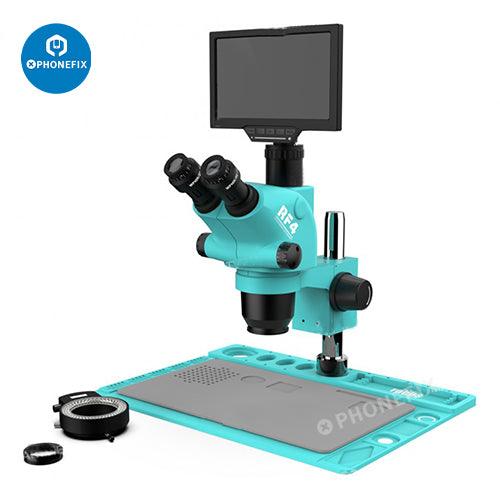

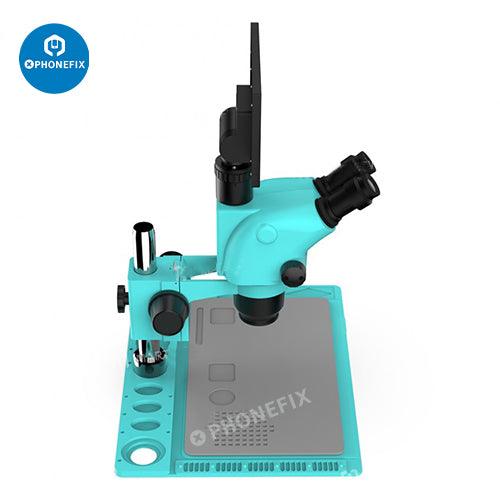

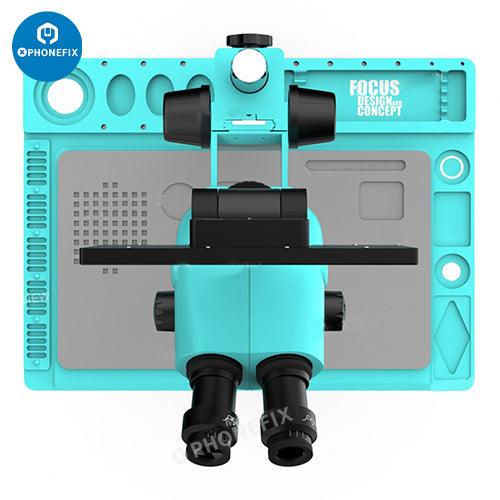

RF4 RF6565TVD2/ RF7050TV-YS010W 6.5-65X 7-50X Synchronous zoom trinocular stereo microscope workbench with 10-Inch HD Camera Monitor for smart phones and tablets repair tool.
Features:

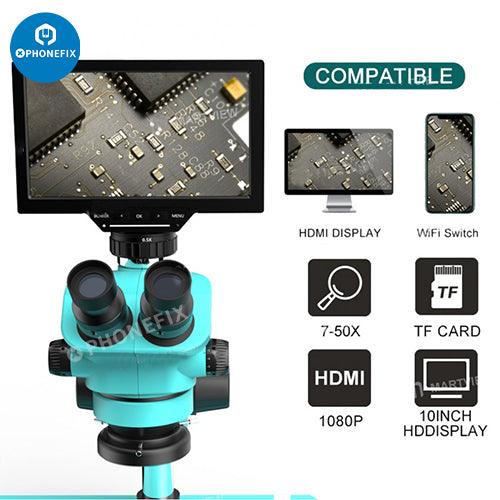

New generation 10-inch large display with a built-in camera, built-in wifi transmitter.
You can rotate it by 90 degrees, the mobile phone can be connected to wifi, synchronous observation.
The ultra-long working distance is conducive to spot welding by mobile phone maintenance, circuit board inspection, etc.
Remote button remote control/External fill light/Free reflector.
Large wide-angle lens/continuous zoom/adjustable LED/diopter adjustment
10x high-definition wide-angle eyepiece, large diameter, wide field of view, long-term use is not easy to fatigue.
The optical components are coated with a special film for clearer observation.
Adjustable ring LED light, adjustable brightness, and strong focusing type, do not affect the operating space.
Comes with dust-proof, oil-proof, and high-temperature lens to prevent eyepiece pollution, safe and durable.
Both eyes support diopter adjustment, adapt to people with different eye distances, and can observe clearly even if you take off your glasses, which is in line with ergonomic design.

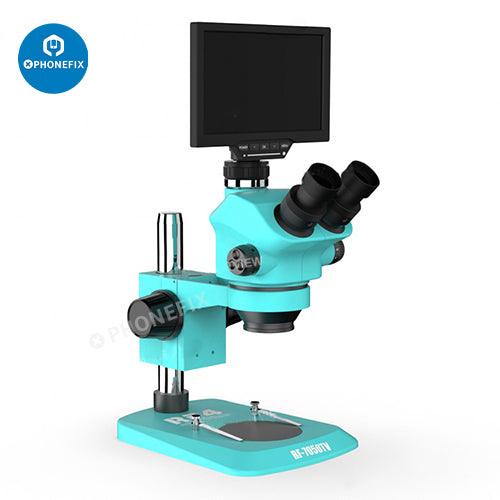

RF7050TV-YS010W
7-50X trinocular microscope with camera monitor 10-Inch
Magnification: 7-50X
Light source: 144 LED ring light
Eyepiece: 10X/22
Working distance: 100mm
Monitor output: HD/USB
Monitor Pixel: 16MP
Model Number: YS101W
Resolution: 1080P
Aspect ratio: 16:10
IPS display resolution: 1280*800
Output port: HDMI
Panel brightness: 400cd/m2
Contrast: 1300:1 (Min.)(transmission)
Viewing angle: IPS full view
Display area: 215*121mm
WIFI distance: Ten meters
Display mode: IPS, always black display, transmissive
Package includes:
1 x Microscope
1 x LED Ring Lamp
1 x Microscope Base
1 x Display monitor(without battery)
RF-6565TVD2-YS010W
6.5X-65X trinocular microscope 10-inch monitor with 16MP HDMI camera
