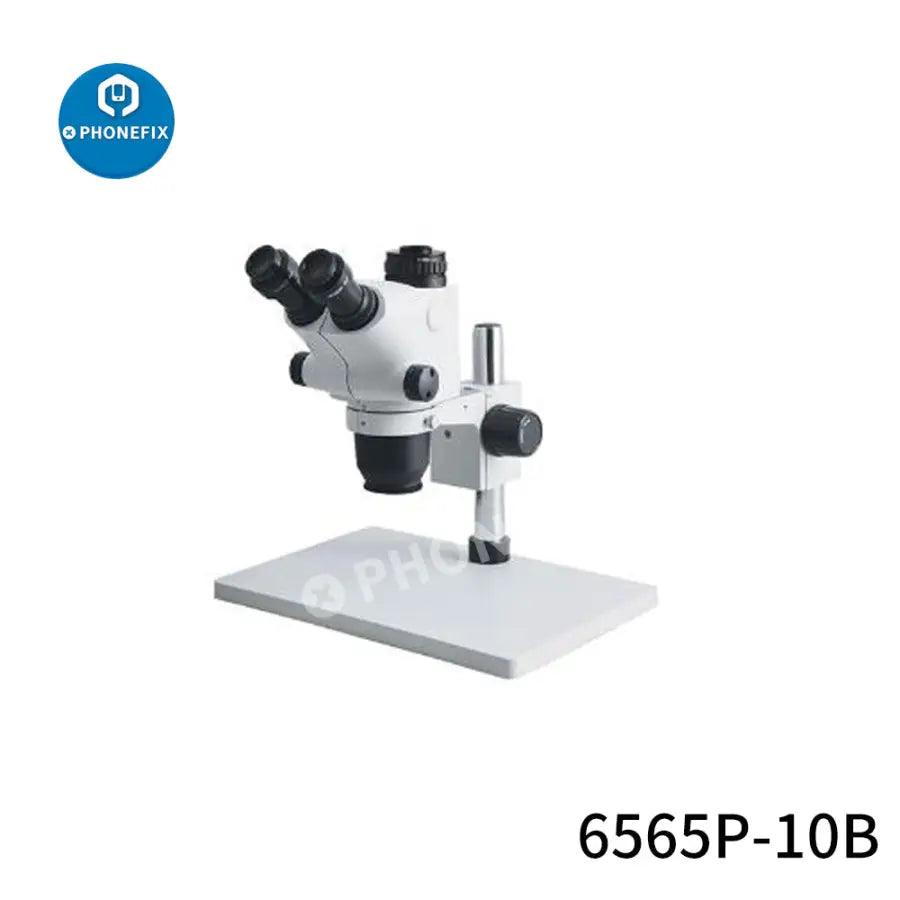

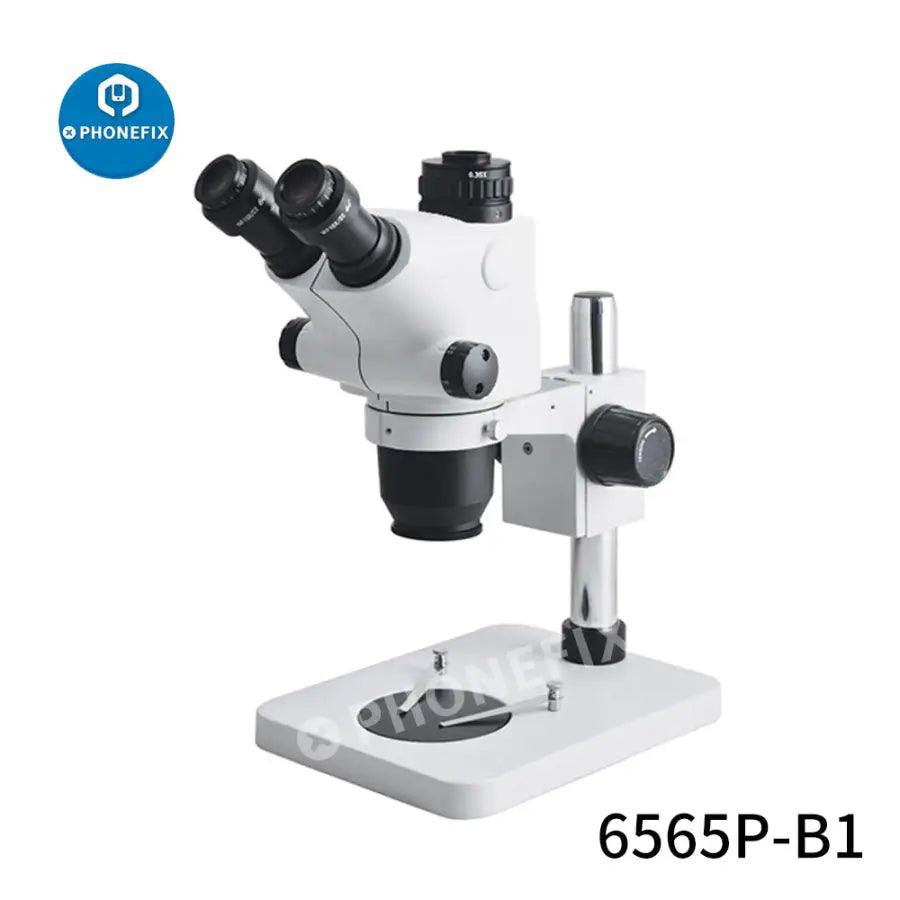

6.5X-65X 6565P-B1/ 6565P-10B Trinocular Stereo Zoom Industrial Microscope for Mobile Phone Motherboard Repair.
Features:
1. 0.65X-6.5X Zoom Range objective ensures image alignment
2. 6.5X-65X high point wide field settings provide upright images with clear depth-of-field and a wide view for hands-on applications.
3. Optional and auxiliary lenses can be extended to 2X-260X. Support continuous doubling.
4. LED ring-light produces an encompassing field of bright light with reduced shadows for use with any application.
5. Provide convenience for observers wearing glasses, and ideal for laboratories, repair shops, and engravers.
Specification:

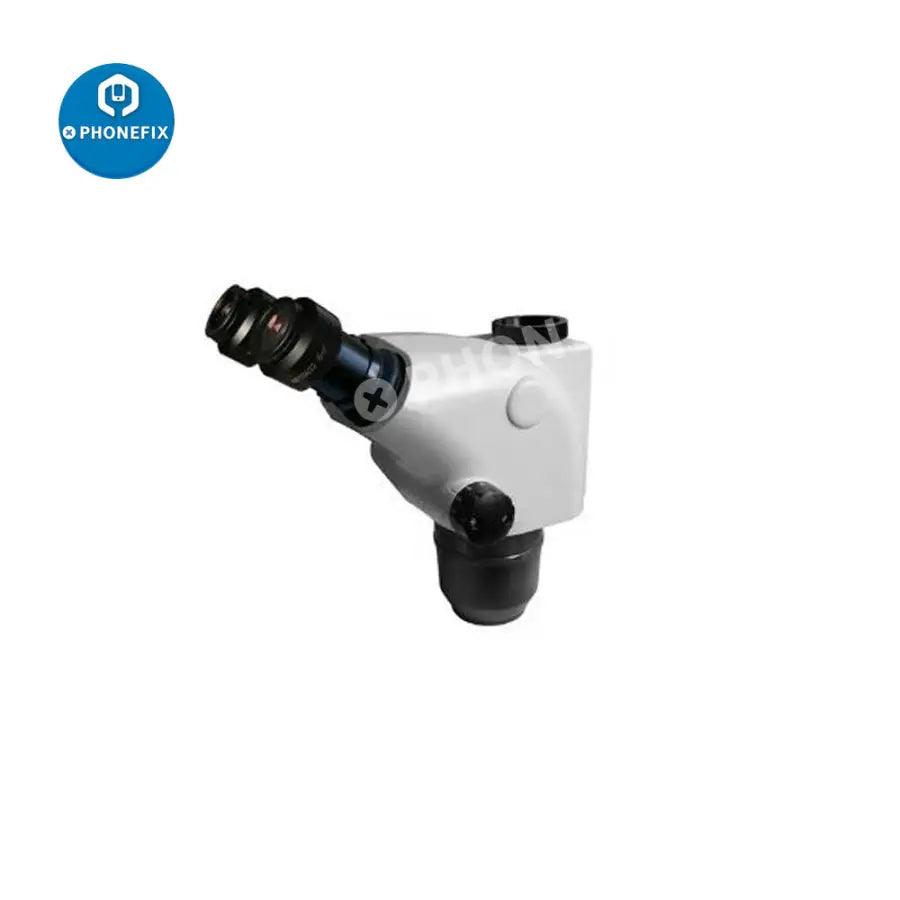

Observation Head: trinocular microscope head, 360 degrees rotatable, 45 degrees inclined
Bilateral Visual Adjustment: ±5
Pupil Distance: 54-76mm
Adjustable Eyepiece：WF20X12mm(standard). High Point Wide Field Eyepiece
Optional Eyepiece: WF10X22，WF20X12mm
Objective：0.65X-6.5X continuous zoom range
Objective zoom ratio: 10:1: 10:1
Auxiliary Lens(Optional): 0.3X，0.5X，0.7X，1X，2X
Magnification: 6.5X-65X(Standard), optional and auxiliary lenses can be extended to 2X-260X,Continuous doubling
Working Distance: 110mm
Focus Arm: 76mm Inner Diameter,32mm Pole Size
Plate: Black/White Plate
Base: B1 Column Type Small Flat Base
Illumination: LED Ring Light Optional
Photographic eyepiece(C-Mount adapter): 1/2CTV，1/3CTV，0.35XCTV，0.5XCTV，1XCTV
Outward Size: 320mm(w)x260mm(d)x274mm(h)
