3.5X-180X Simul-focal Green Trinocular Zoom Stereo Microscope Head

7X-45X 3.5X-180X Simul-Focal Trinocular Microscope Zoom Stereo Microscope Head,7X-45X Simul-Focal Trinocular Stereo Microscope Head With Lens,2022 Best Simul-focal Green Trinocular Zoom Stereo Microscope Repair Tools for Beginners
Start Your Own phone PCB soldering Repair Business

Packing List :

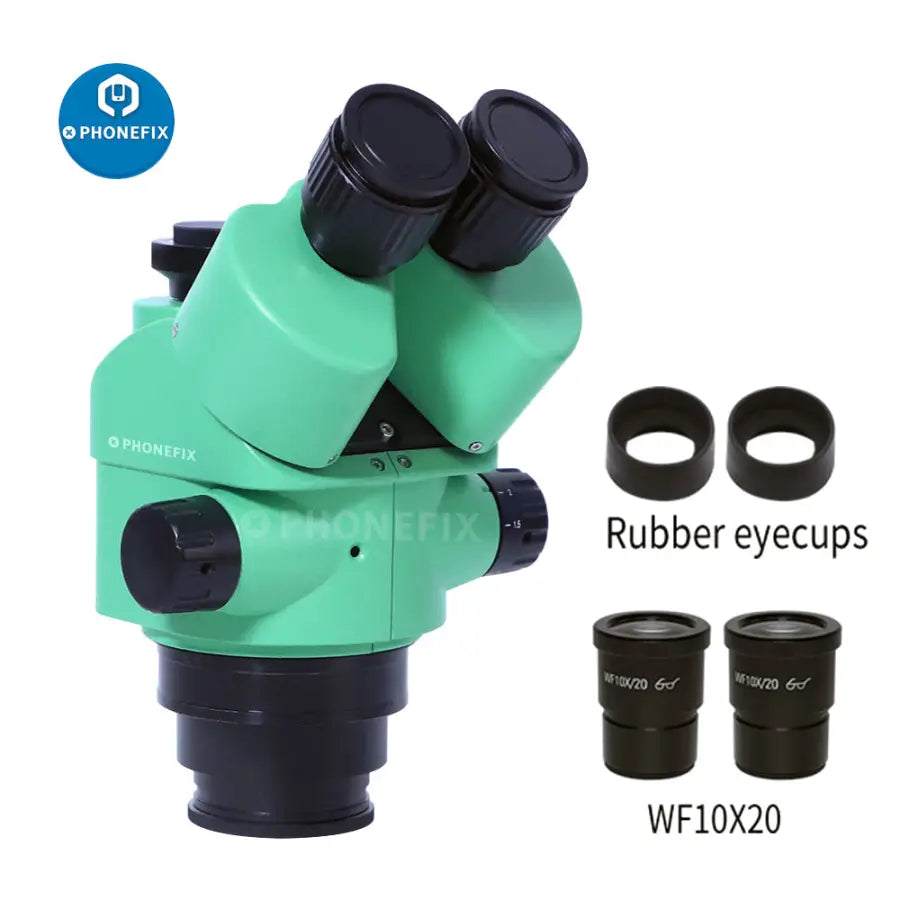

Option 1 include: (MS745-G2 Standard Head   )
1X 7X-45X Green Trinocular Stereo Microscope Head
1 x A pair Rubber eyecups
1 x A pair WF10X20 Microscope Eyepiece

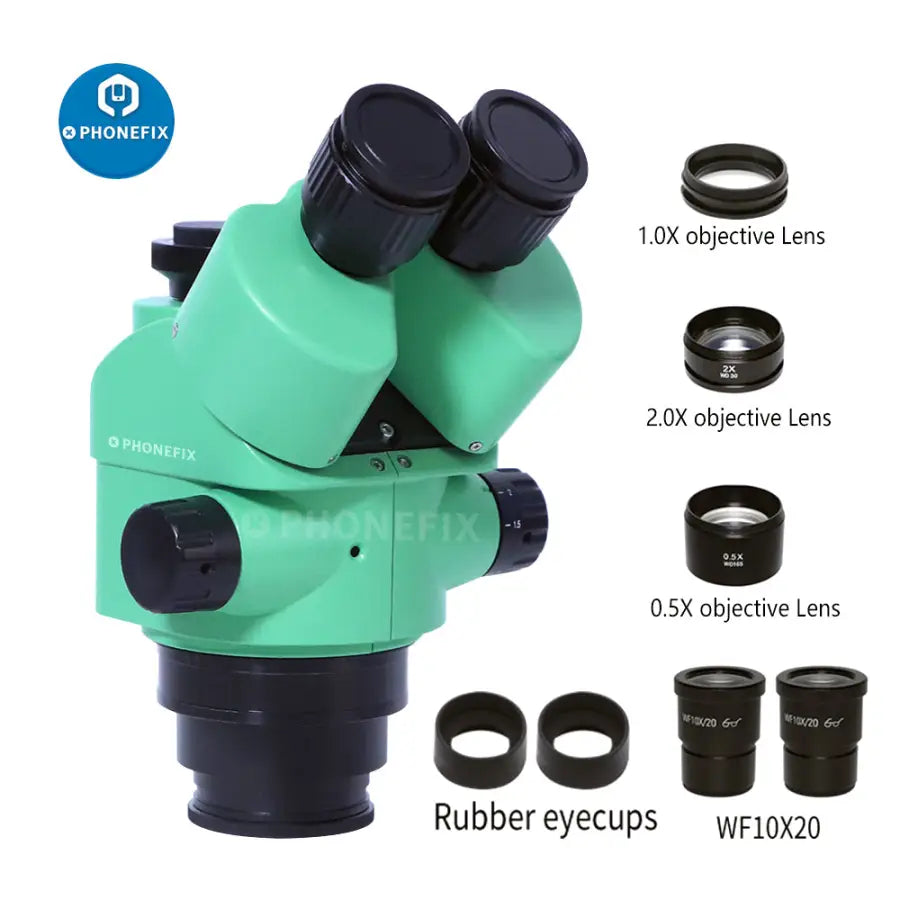

Option 2 include:( A style Head)
1X 3.5X-90X Green Trinocular Stereo Microscope Head
1X 1.0X Objective lens(Protection function)
1X 2.0X Objective lens(Working Distance 40 mm)
1X 0.5X Objective lens (Working Distance 160 mm)
1 x A pair WF10X20 Microscope Eyepiece
1 x A pair Rubber eyecups

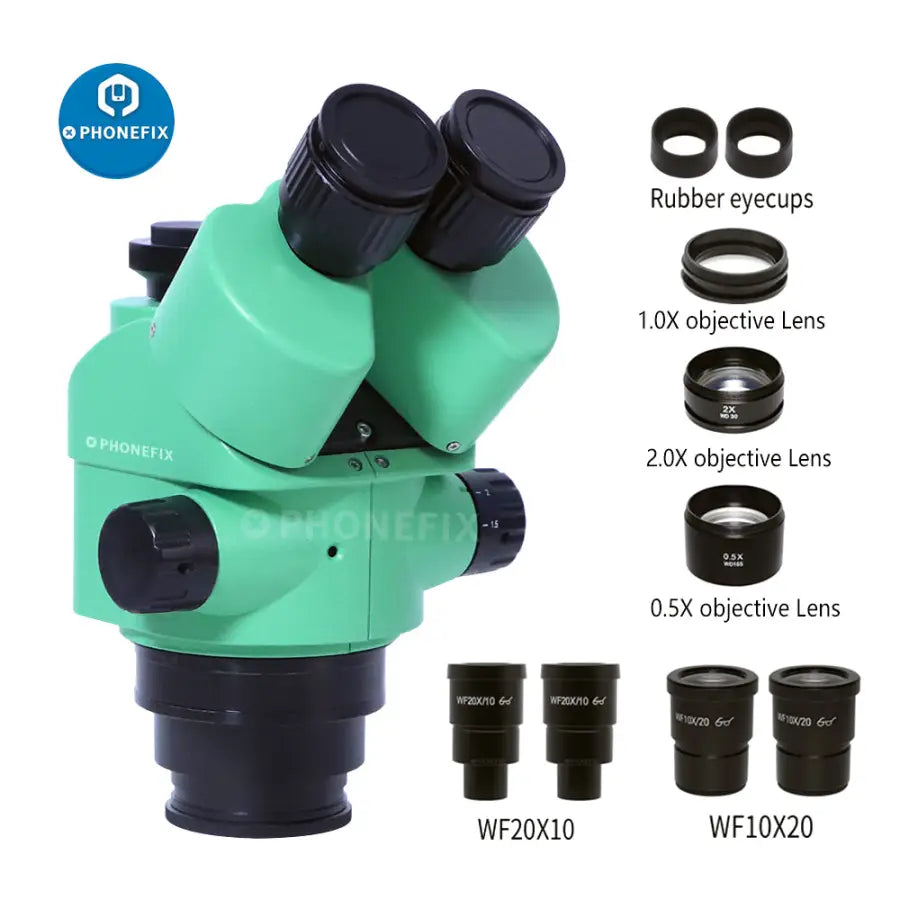

Option 3 include:(B style Head)
1X 3.5X-180X Green Trinocular Stereo Microscope Head
1X 1.0X Objective lens(Protection function)
1X 2.0X Objective lens(Working Distance 40 mm)
1X 0.5X Objective lens (Working Distance 160 mm)
1 x A pair WF10X20 Microscope Eyepiece
1 x A pair WF20X10 Microscope Eyepiece
1 x A pair Rubber eyecups

7X-45X simul-focal trinocular stereo microscope head continuous zoom WF10X/20/WF20X/10 eyepiece auxiliary objective lens, 7-45X continuous zoom trinocular stereo microscope head with HD camera interface, This design removes the need to disable an ocular port to use the photo port, instead routing the image continously to your imaging system. It includes a pair of focusable 10X high-eyepoint, super wide-field eyepieces. View sharp, erect stereo images over a wide zoom range.

7X-45X Simul-Focal Trinocular Zoom Stereo Microscope Head with Super Wide-Field Eyepieces

Features:
7X - 45X Continuous Zoom Magnification Power
45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 20mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Large Working Distance
Accurate Alignment Ensuring a Fatigue-Free Viewing
Full Optical Glass Elements
Precise Ground Glass Lens
All Metal Mechanical Components
Adjustable Interpupillary Distance
Manufactured under ISO 9001 Quality Control Standard

Specifications:
Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8" to 3"(54-76mm)
Field of View: 1-1/4" (33mm)

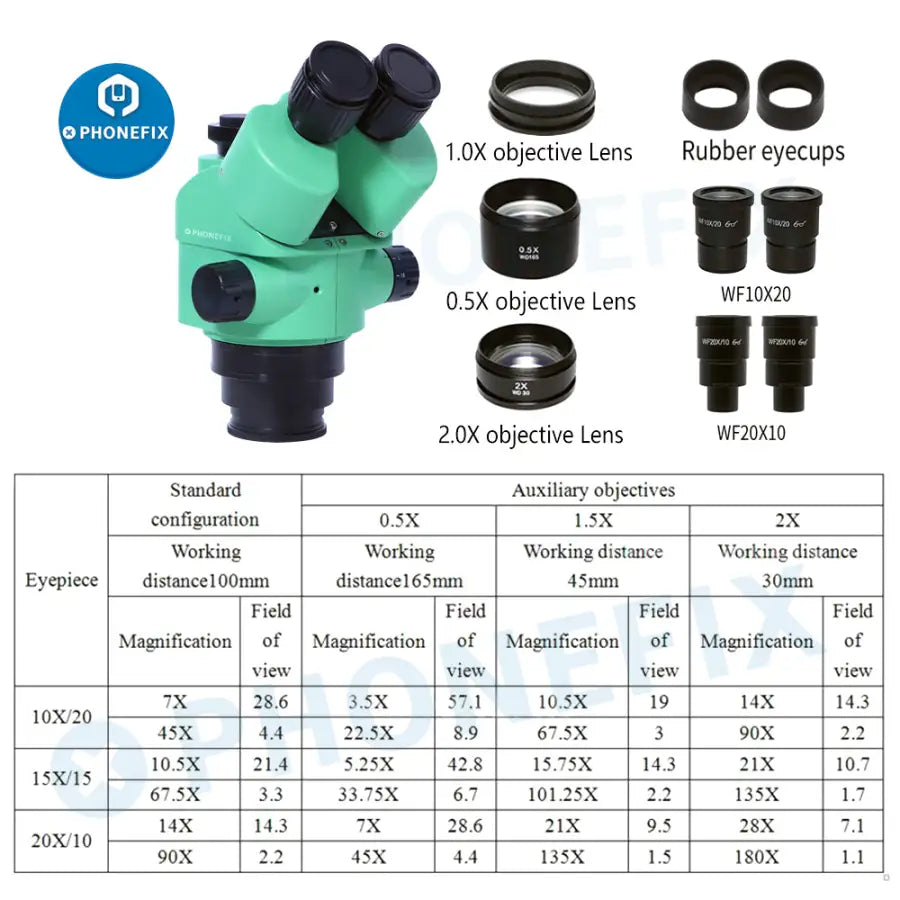

Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3" (76mm) diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) diameter
