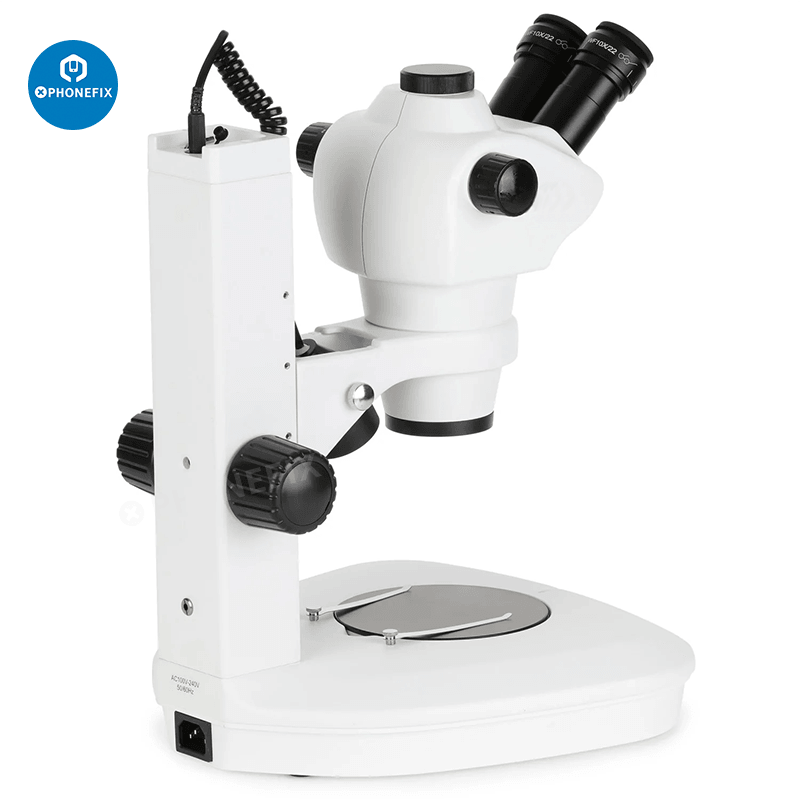

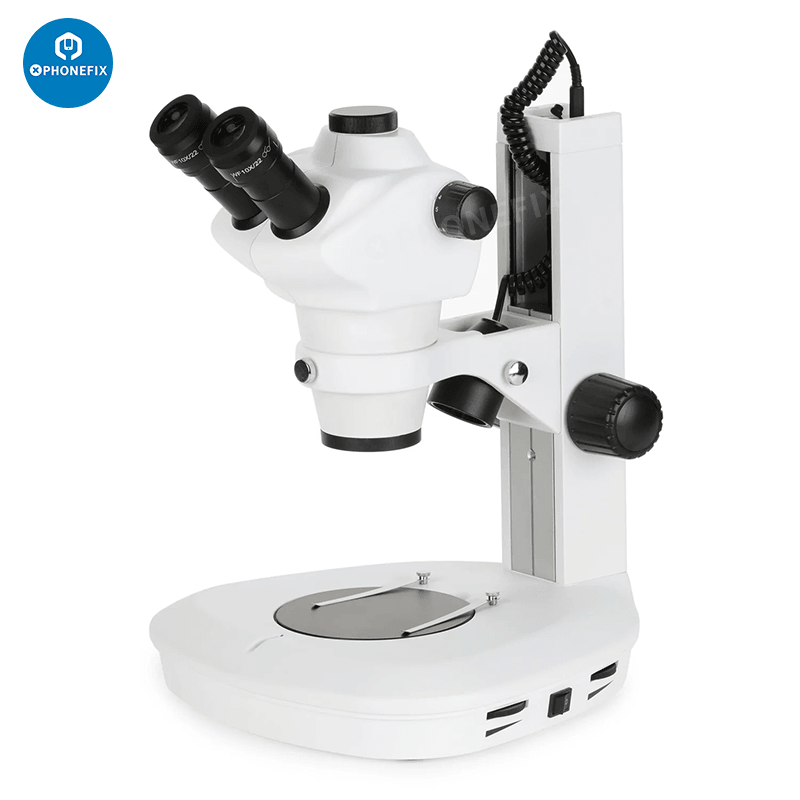

8X-50X Track Stand Stereo Zoom Trinocular Microscope with Top and Bottom LED Lights for Smart Phone Tablet PC Laptop Repair Tool.
Note: The 8-50X parfocal trinonolic microscope with orbital stand and upper and lower two LED lights is the same as AmScope microscope, but the microscope in this link is without any brand.
8X-50X Track Stand Stereo Zoom Parfocal Trinocular Microscope has:
- Extreme widefield optics.
- Both top and bottom LED lighting systems.
- Convenient track stand for easy focusing.
- Large zoom magnification range of 8x-50x.
- The parfocal feature provides ample room for various sample sizes.
- 360 degree swiveling head and 45-degree ocular tubes for a comfortable user experience.
- Suitable for organic or temperature-sensitive applications due to the lack of heat emission.
- Ideal for industrial, educational, and professional applications in research labs, hospitals, schools, and veterinary offices.
- Can be equipped with a ring light or gooseneck illuminator for opaque sample viewing.
- Provides all the features of a high-quality laboratory instrument at an affordable price.
Features:
- 8X-50X Continuous trinocular parfocal zoom magnification power
- Extreme widefield optics offering crisp clear stereo images
- Focusable extreme widefield eyepieces
- 4.5" Working Distance with large 1-1/4" field of view
- Sturdy track stand with built-in top & bottom LED lights
- A great microscope with erect sharp stereo images and low heat releasing

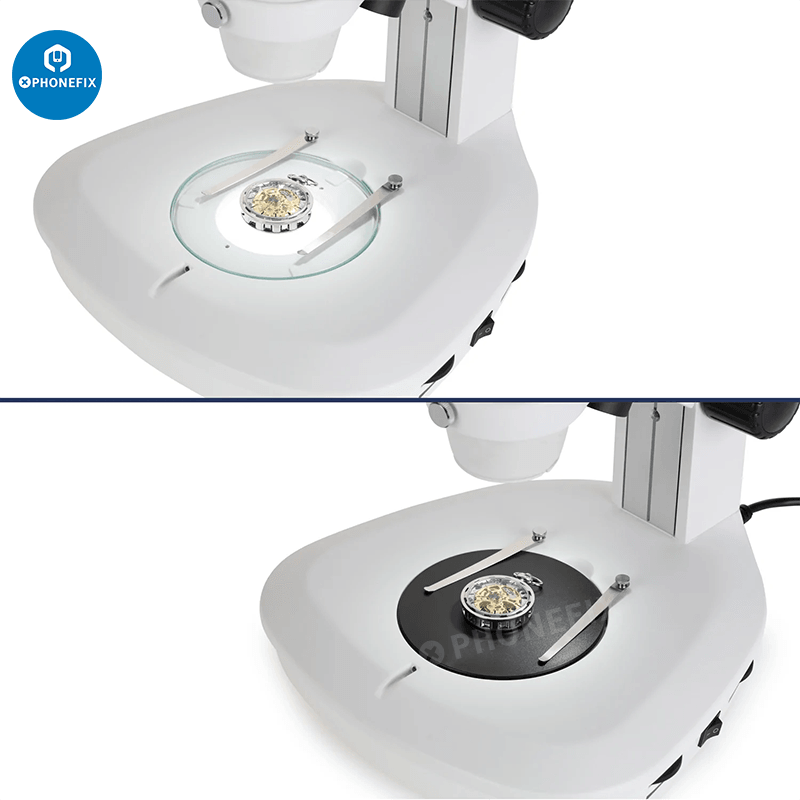

- Contemporary brightness-adjustable LED top & bottom illumination
Specifications:

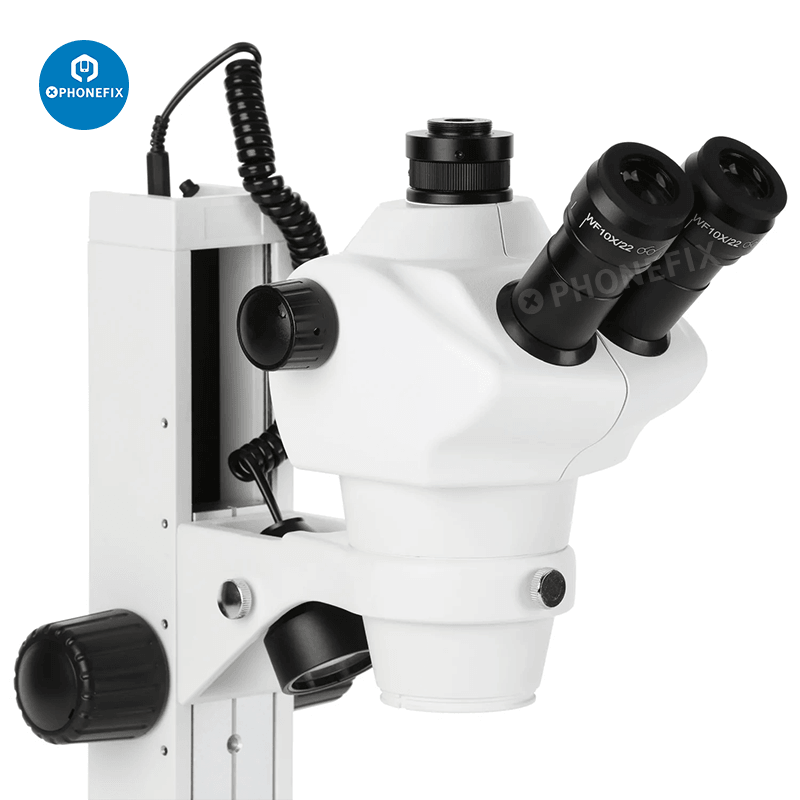

- Head: 45 degrees inclined 360 degrees swiveling binocular
- Eyepiece: 30mm extreme widefield focus-adjustable 10X/22
- Objective: 0.8X-5.0X
- Diopter Adjustment: +/-5dp
- Interpupillary Distance: 2-0" - 2-15/16"(52-75mm)
- Working Distance: 4.5" (115mm)
- 0.4X reduction lens
- LED Plate (Bottom) Illuminator: 2-3/4" (70mm in diameter) LED
- Shipping Weight: 18 lbs

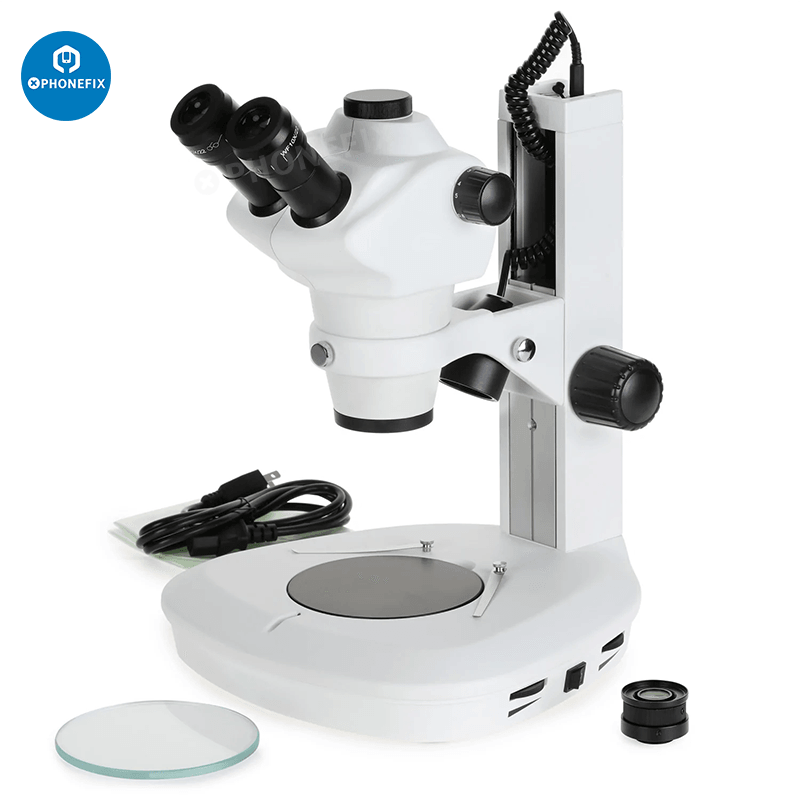

Packing List:
- 1x Trinocular Stereo Zoom Head
-
1x Pair of Extreme Widefield Focusable 10X Eyepieces
-
1x Track Stand with LED Plate and Focusing Rack
-
1x Pair of Clips
-
1x Power Cord
