B830L LCD digital multimeter intelligent current resistance voltage tester test meter multi AC DC digital meter, A830L AC DC voltage current tester digital multimeter for mobile phones repair

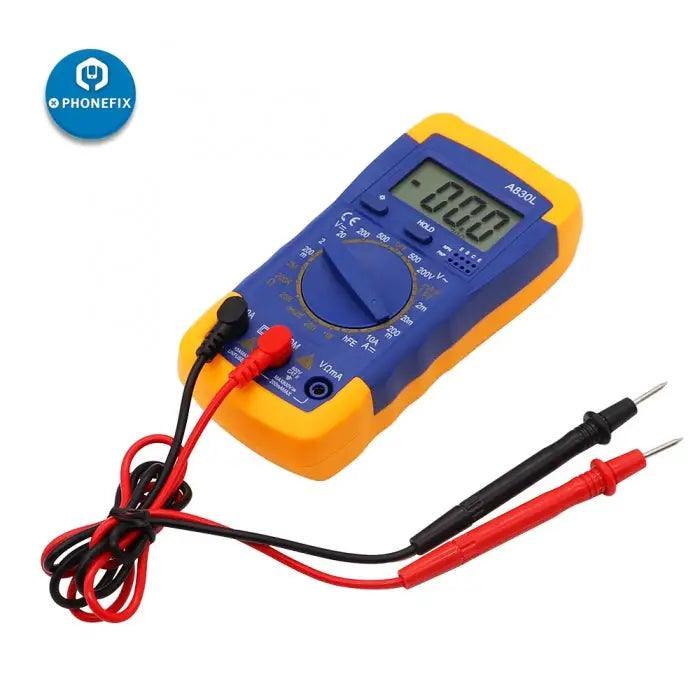

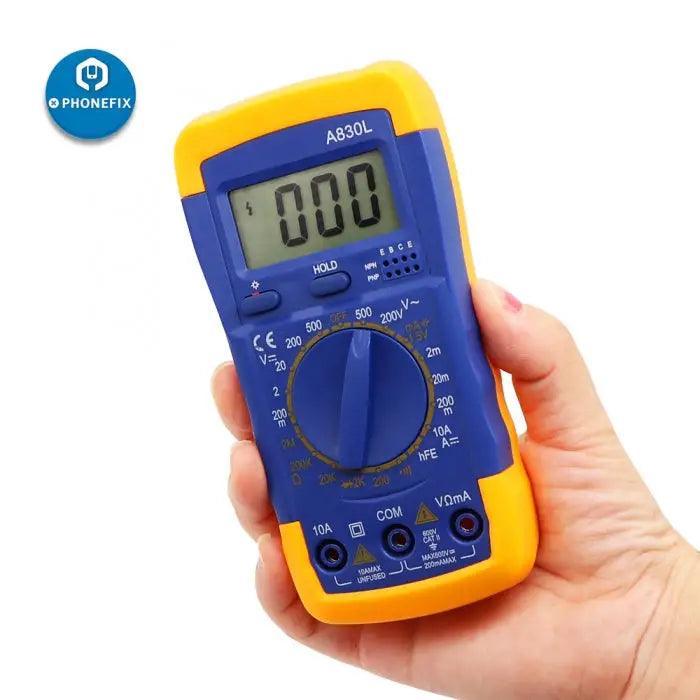

A830L AC DC OHM Volt Current Tester Digital Multimeter Voltmeter AmmeterProduct Features :
- Multifunctional: Can accurately measure DC/AC voltage, DC current, resistance.
- Diode, transistor, HFE, audible continuity test.

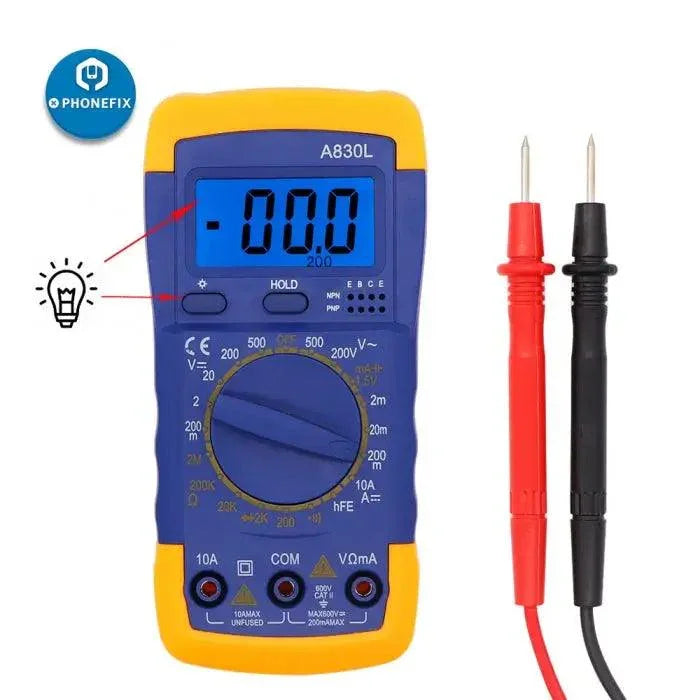

- With LCD backlight display, convenient to read data in dark.
- More advantages: Manual range, data hold.
- Widely use: It's a perfect tool for the laboratory, factory and home.

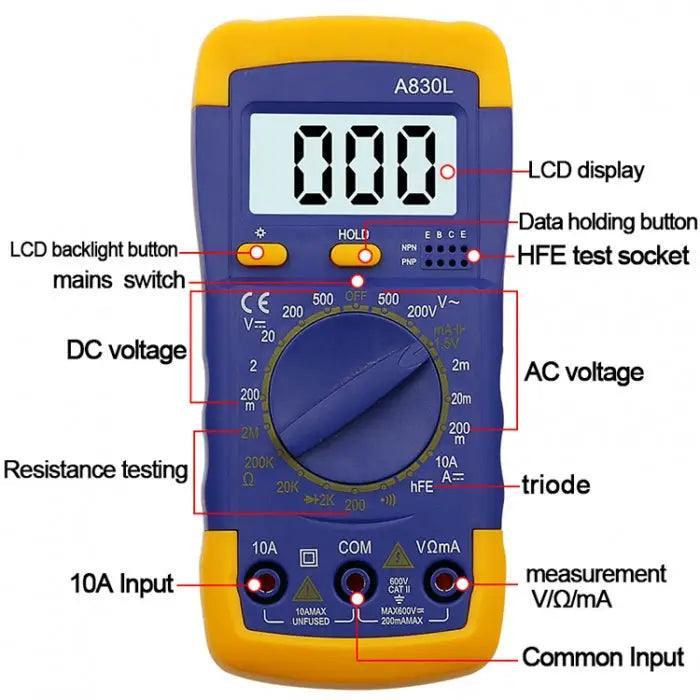

Product introduced :
- Vibration cover, streamline design, comfortable feel.
- Large screen display, clear fonts.
- Metal shield plate, magnetic, strong anti-interference performance.
- Full protection, anti-high voltage circuit design.
- Self-recovery fuse protection circuit design.
Product Features :
- Large screen fluorescent display legible, simulation of bars and unit symbol display.
- Table pen jack exquisite workmanship, smooth and fastened into the table pen.
- Dial stalls accurate, durable, rotating stall completely positioned to the stall, accurate positioning. Feel comfortable, strong sense of pause between stalls.
Specifications :
- Model: A830L
- Display Count: 2000
- DC Voltage Range: 200mV/2V/20V/200V/600V
- DC Voltage Resolution: 100uV/1mV/10mV/100mV/1V
- AC Voltage Range: 200V/600V
- AC Voltage Resolution: 100mV/1V
- DC current: 2mA/20mA/200mA/10A
- Resistance Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
- Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ
- Backlight: Y
- Manual Ranging: Y
- Data Hold: Y
- Power Supply: 9V Battery(not included)
- Item weight: 103g
- Item size: 140x66x32 mm
Package includes :
- 1pcs x A830L Multimeter
- 1pcs x Test Cable
Note: Battery is not included in the package!!
