Adjustable Magnification 130X 200X 250X 20mm Zoom C Mount Lens For HDMI VGA USB BNC Industrial Video Microscope Camera
Specification:

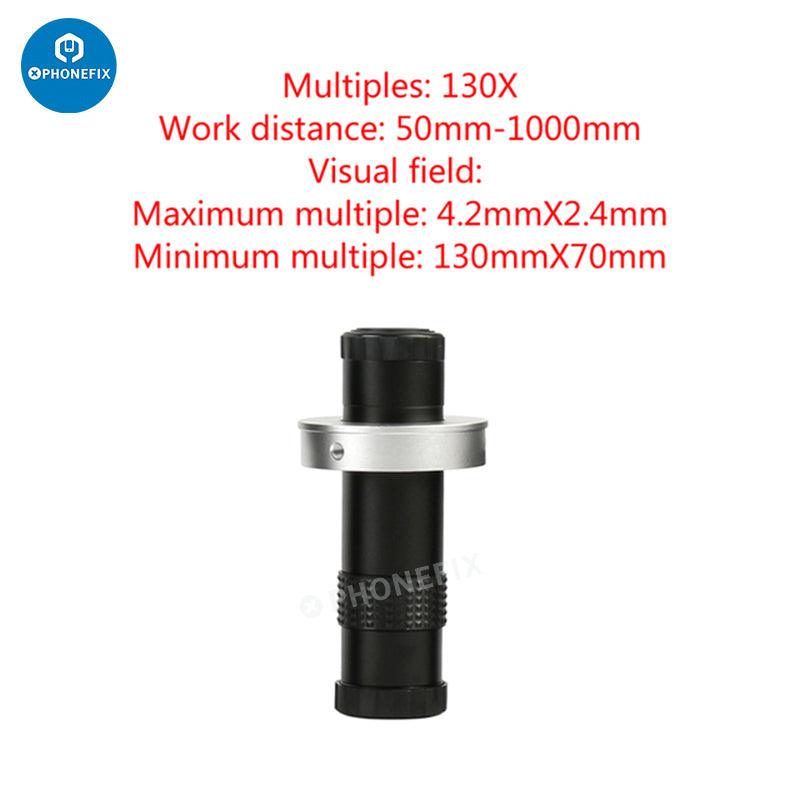

1X-130X C-MOUNT Lens: Working distance: 50mm-1000mm zoom ratios: 1 : 15 Magnification Power by 0.13- 2X (about 1 - 130X on the display) view field of Max multiple : 4.2mm*2.4mm view field of Min multiple : 130mm*70mm Size: 30mm(diameter) * 99mm(length) Weight: 195g

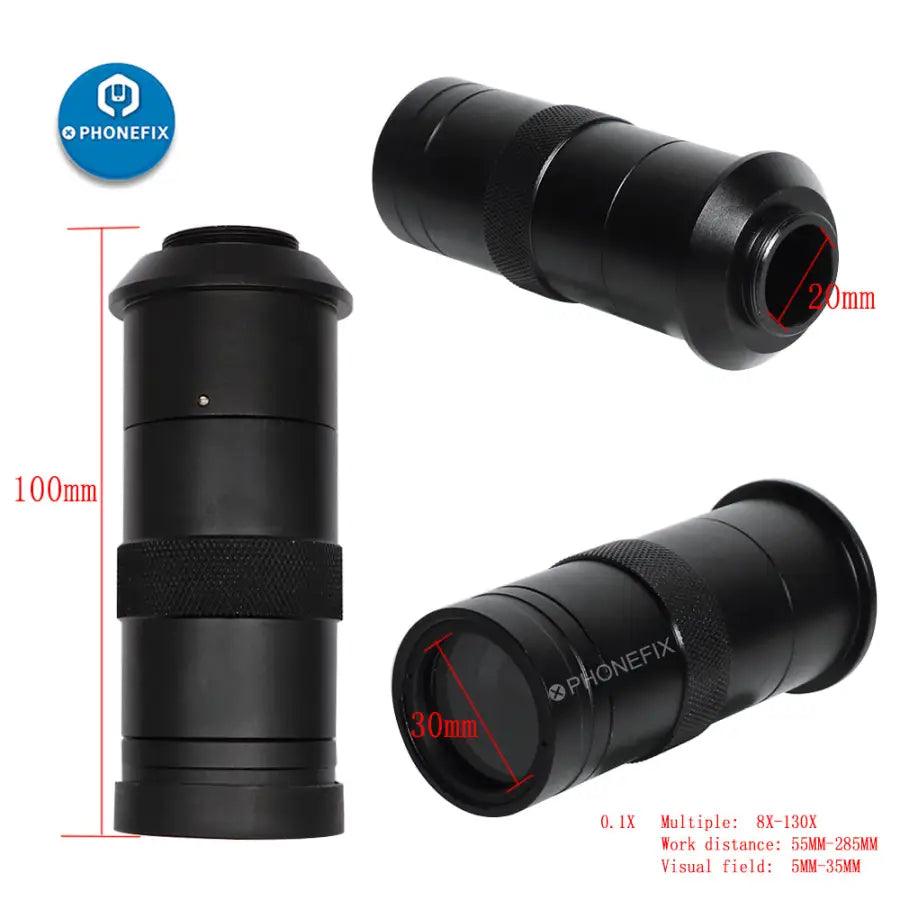

Zoom C-MOUNT Lens ( 8X-130X ) 0.1X : Working distance: 55~285mm Magnification Power by 8X~130X Size: 110 mm(L) * 38 mm(DIA) Visual field: 5mm-35mm

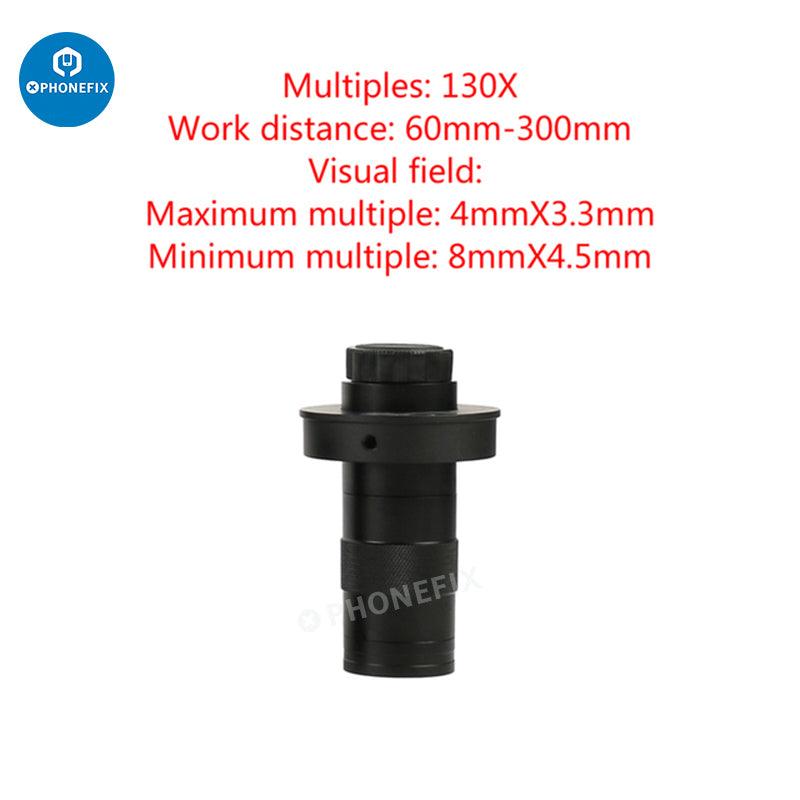

10X-130X C-MOUNT Lens: Working distance: 60mm-300mm zoom ratios: 1 : 11 Magnification Power by 0.1 - 1.3X (about 10 - 130X on the display) view field of Max multiple : 8mm*4.5mm view field of Min multiple : 40mm*33mm Size: 30mm(diameter) * 84mm(length) Weight: 180g

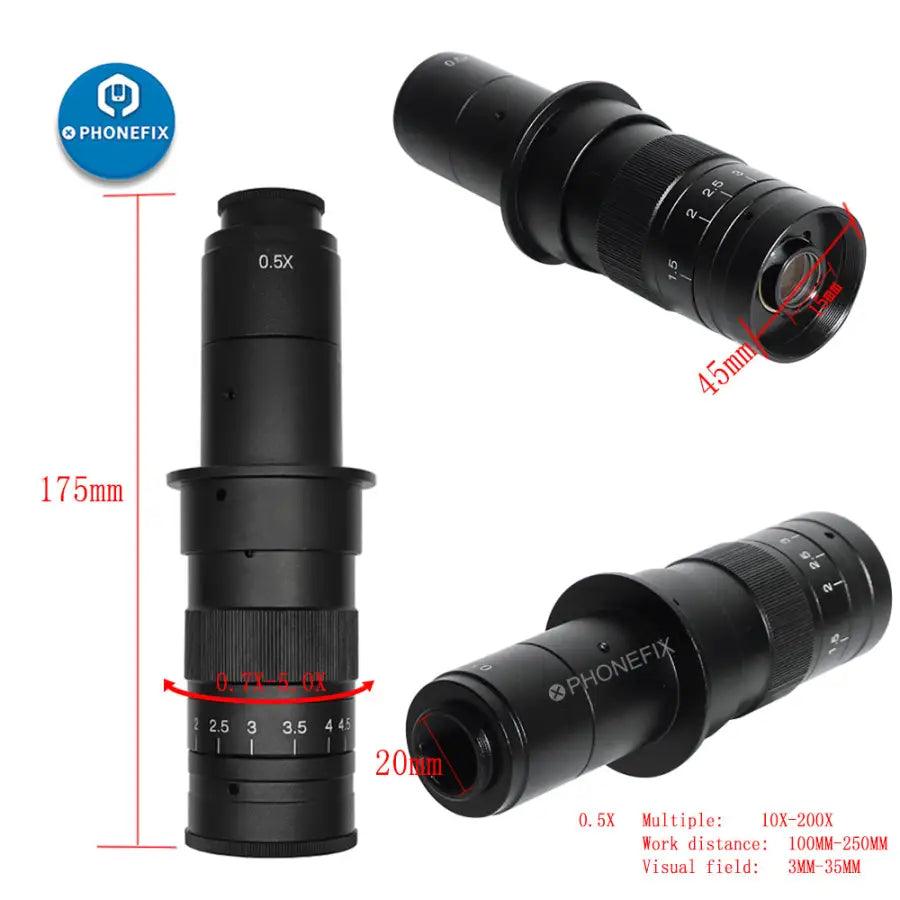

Zoom C-MOUNT Lens ( 10X-200X ) 0.5X : Working distance: 100~200mm Magnification Power by 10X~200X Size: 110 mm(L) * 38 mm(DIA) Visual field: 3mm-35mm

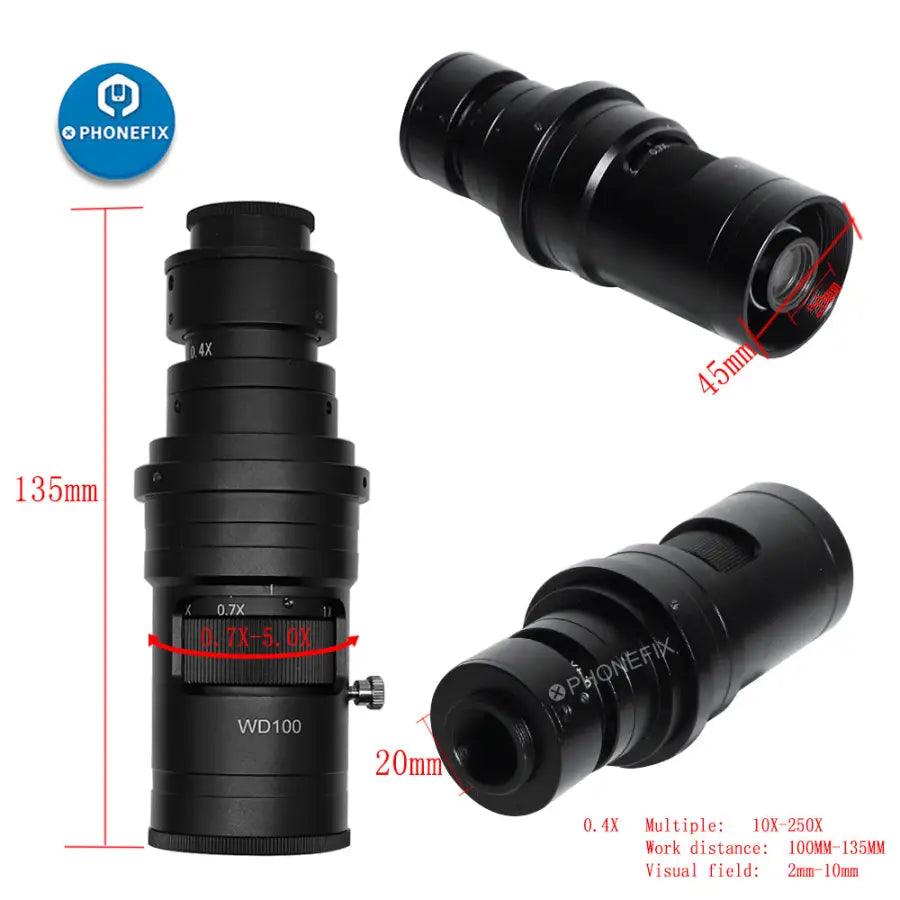

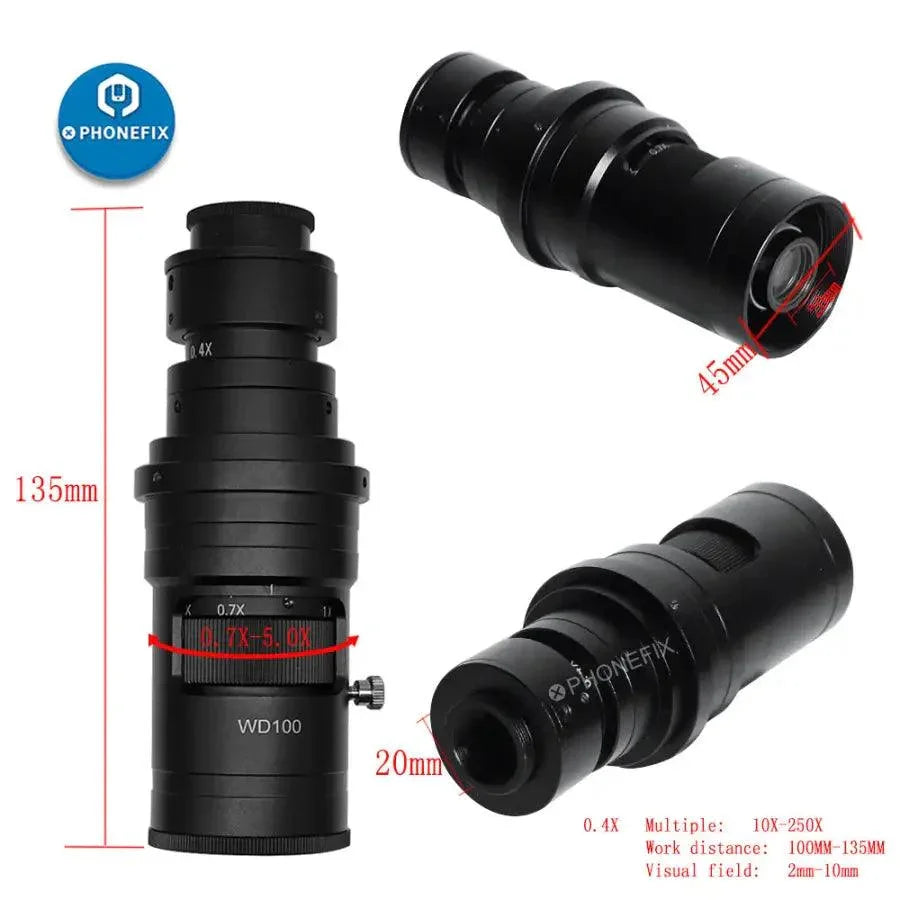

Zoom C-MOUNT Lens ( 10-250X ) 0.4X : Working distance: 100~135mm Magnification Power by 10X~200X Size: 110 mm(L) * 38 mm(DIA Visual field: 2mm-10mm
