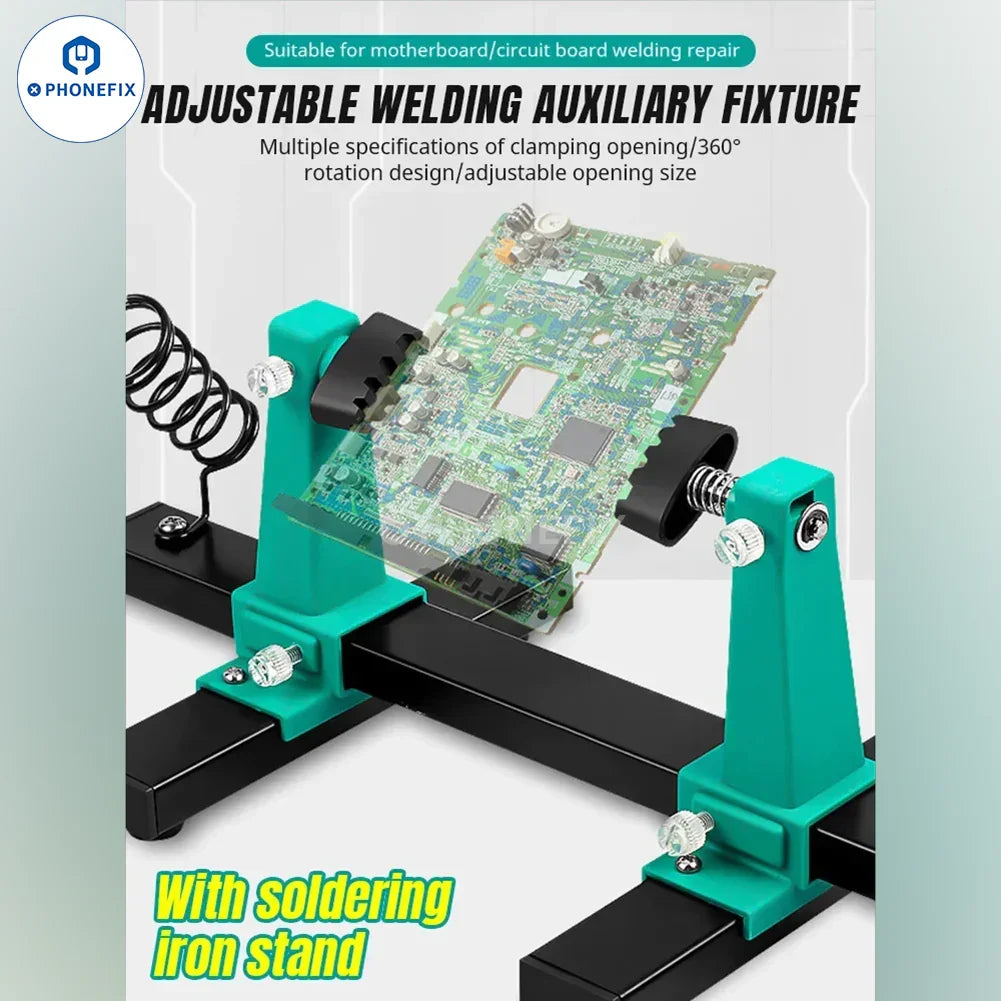

Adjustable welding auxiliary repair fixture for component welding, various sizes of motherboards repair, precision instrument repair, circuit board soldering etc.. 360 ° Rotation Printed Circuit Board Jig for must soldering iron pen.
Option:
Blue Basic Style

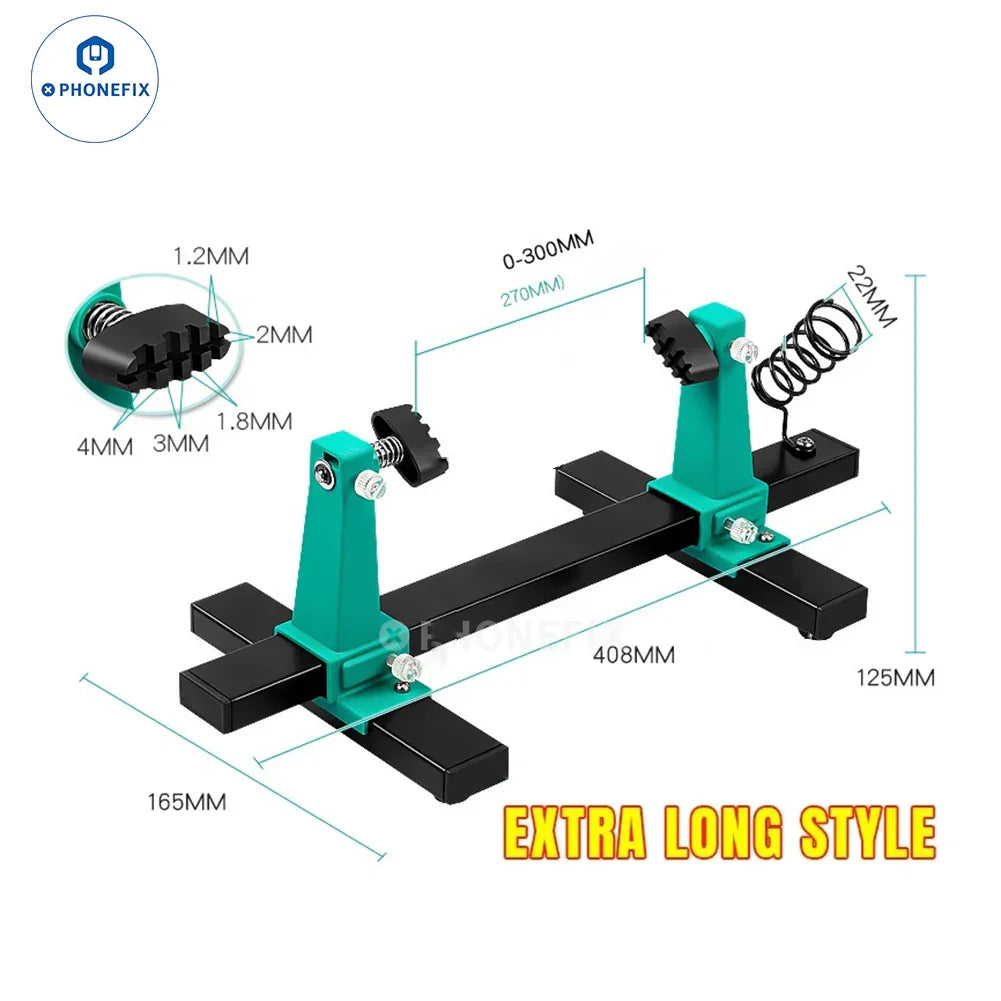

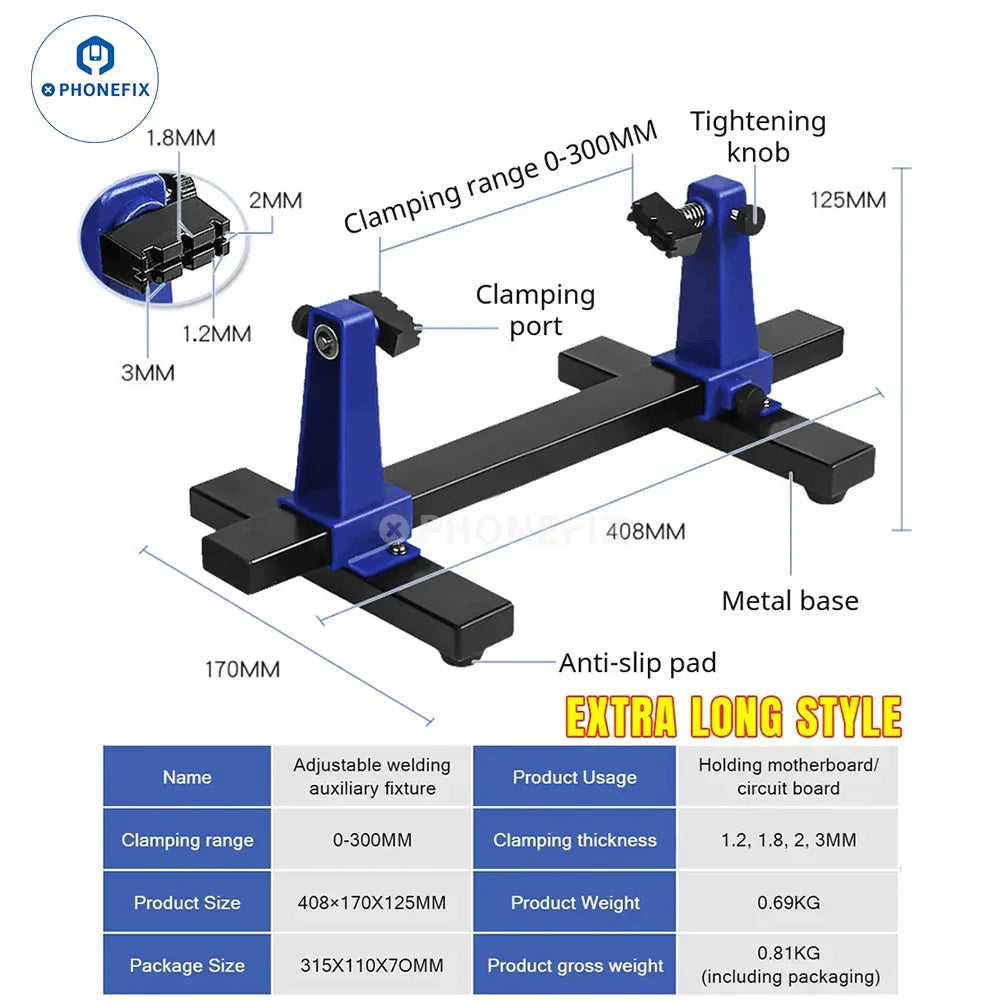

Blue Extra Long Style
Green Basic Style with soldering iron stand
Green Extra Long Style with soldering iron stand
Fixture:
1. Multiple specifications of clamping ports correspond to motherboards of different thicknesses, and the clamping is firm, ensuring that the motherboard does not deviate during use.

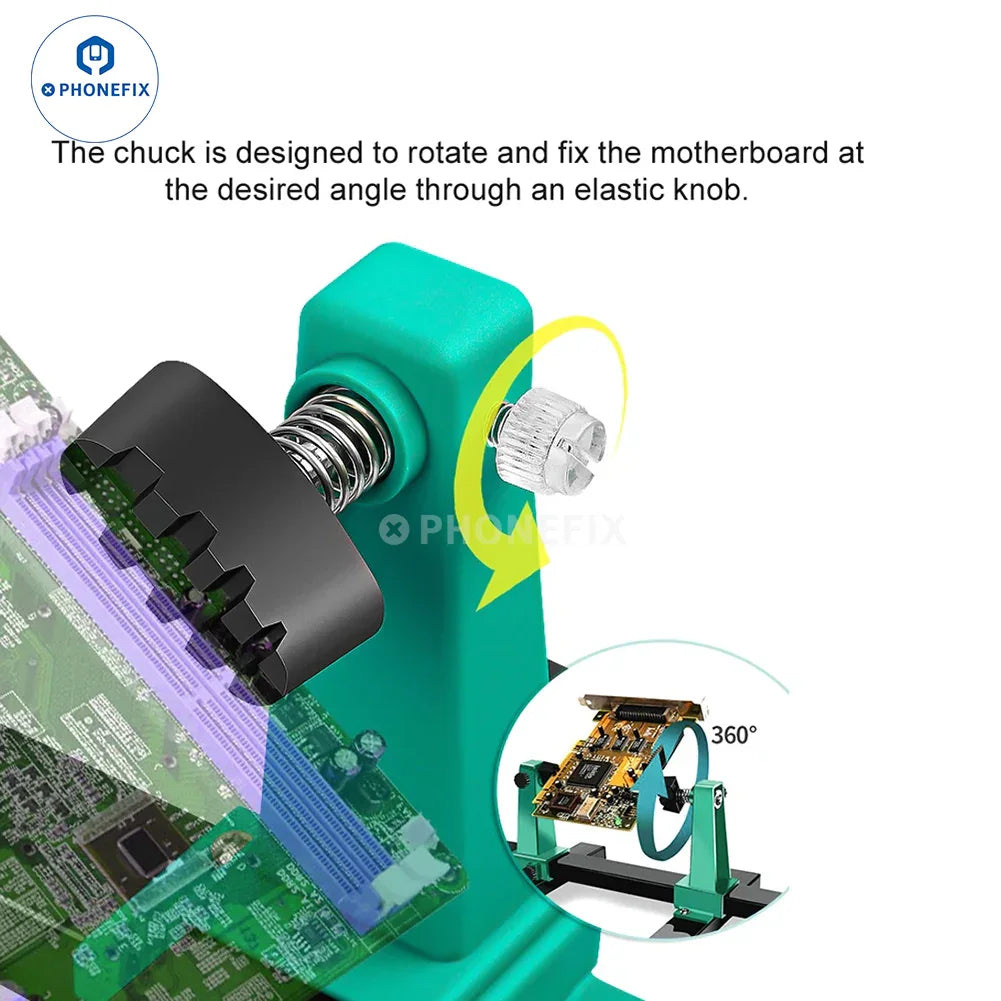

2. The chuck is designed to rotate and fix the motherboard at the desired angle through an elastic knob.

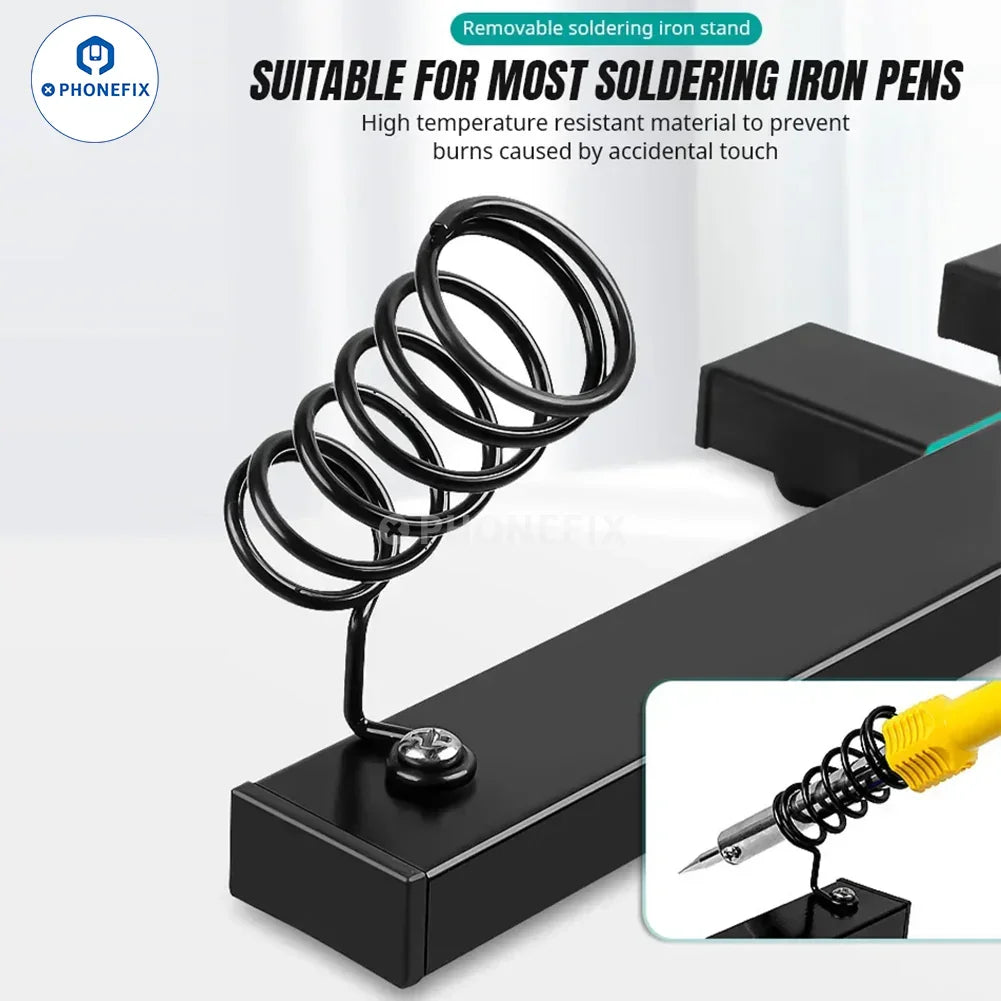

3. Removable soldering iron holder, suitable for placing soldering iron pens, made of high-temperature resistant materials to prevents accidental contact and scalding. Removable design, convenient in use.

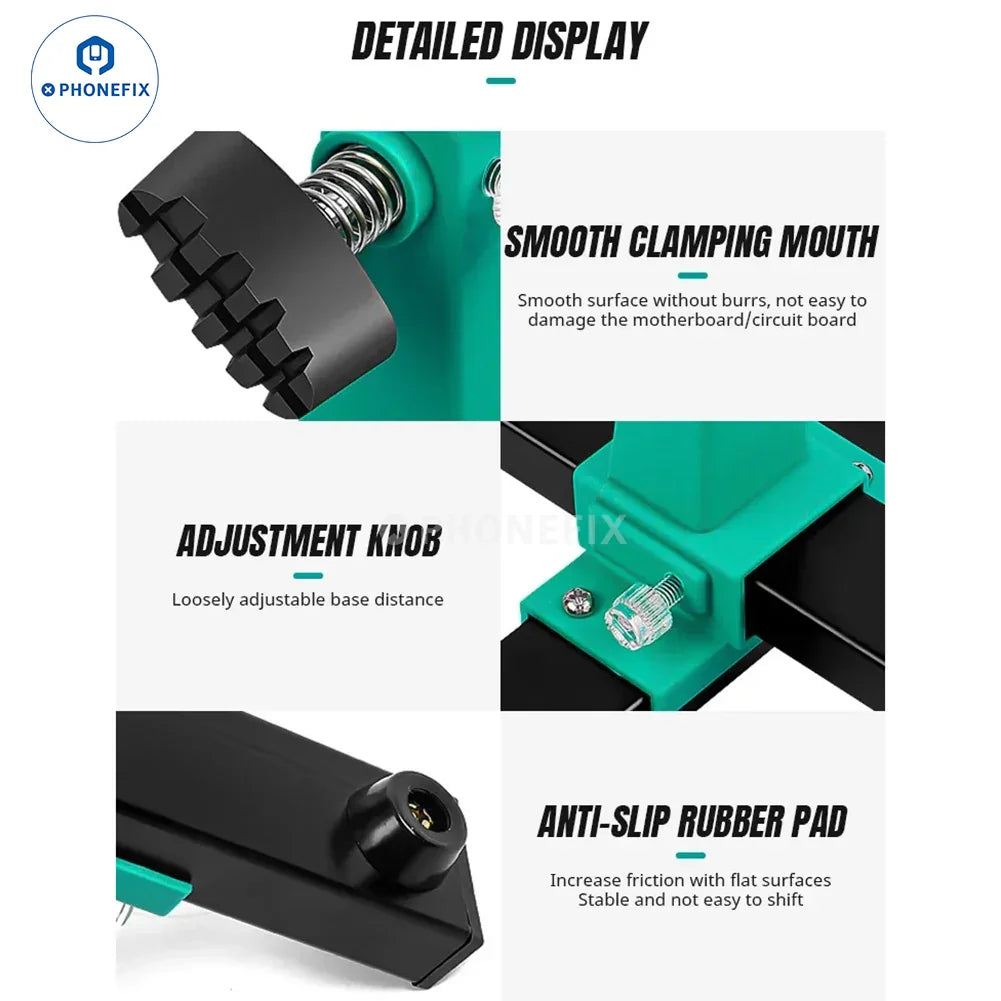

4. The surface of the clamping port is flat and free of burrs, which is not easy to damage the motherboard/circuit board.
5. Bottom antiskid rubber pad, stable and not easy to move.

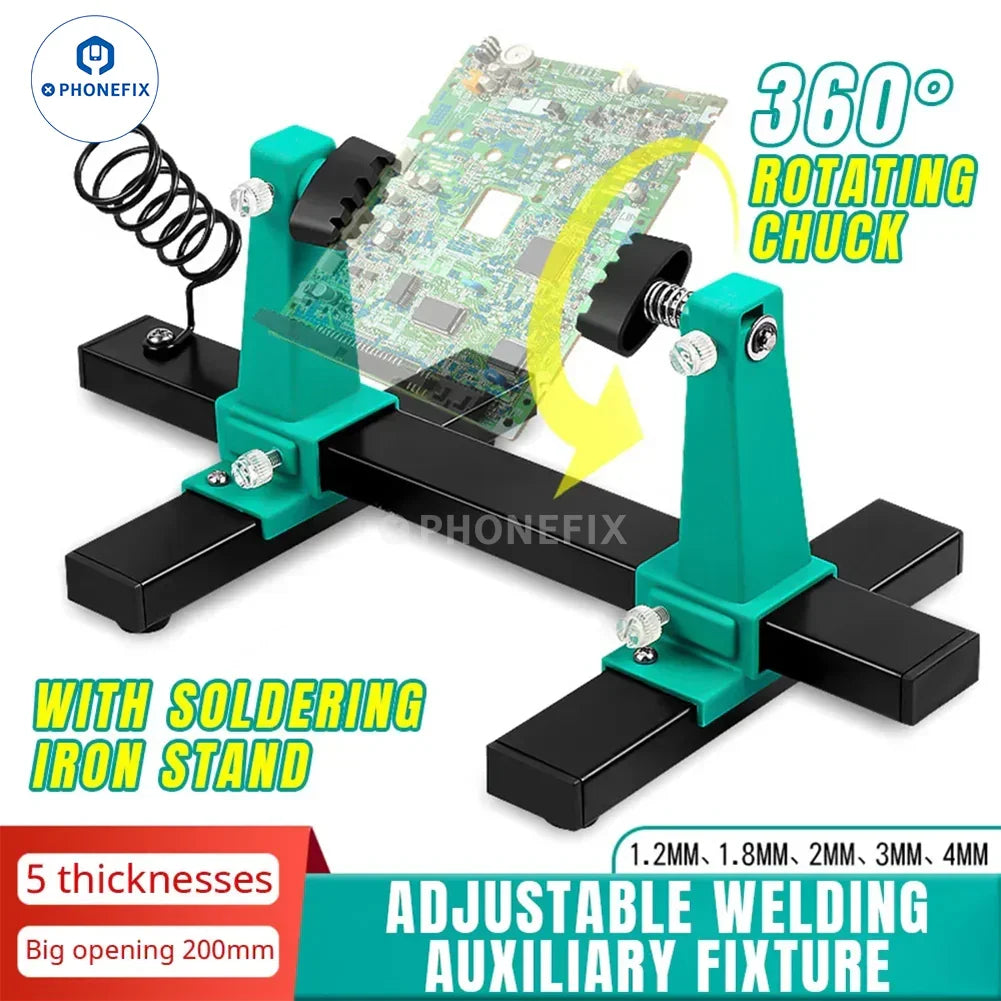

6. Solid metal base and ABS arm with sping-loaded clamp support 360 degree rotation easy to flip the board.
7. Equipped with 4 rubber feet under the base ensure stability avoid sliding around on your bench.

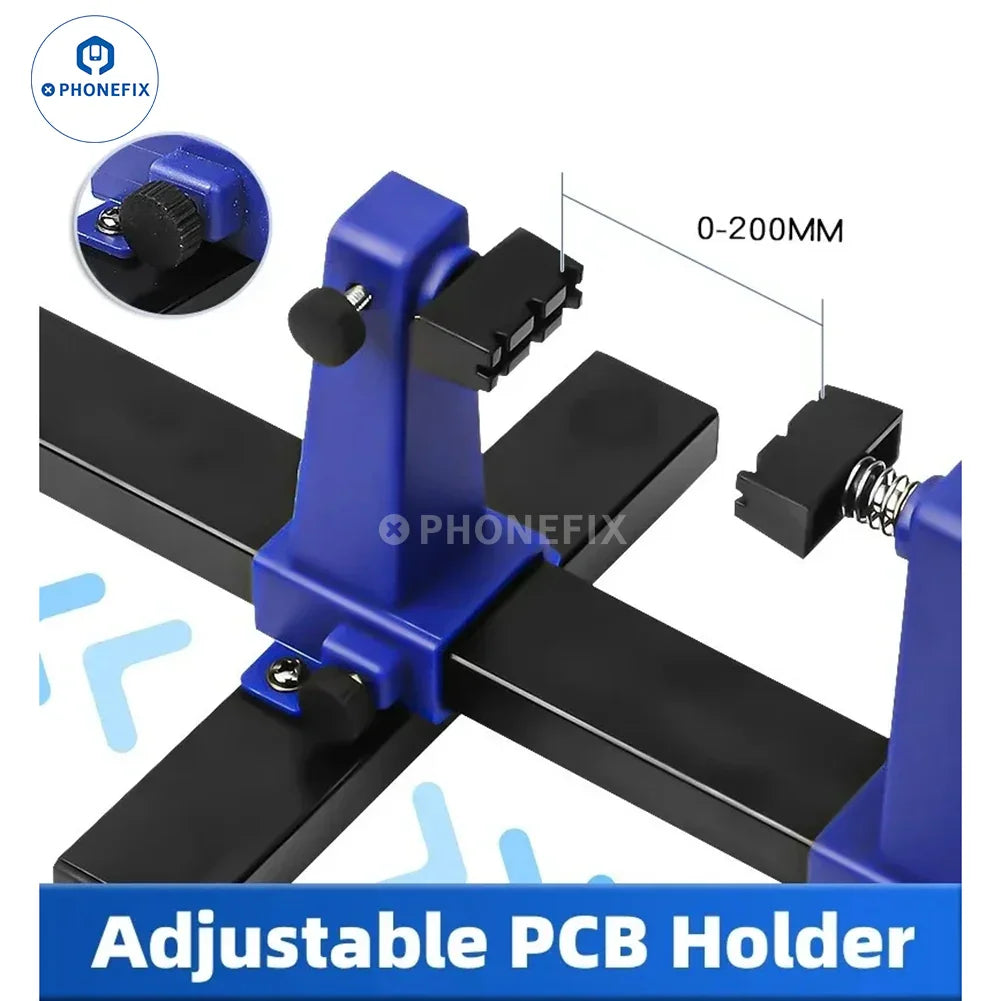

8. Adjustable width and 4 clamping thickness size to accommodate various board sizes up to 200mm wide and up to 3mm thick.

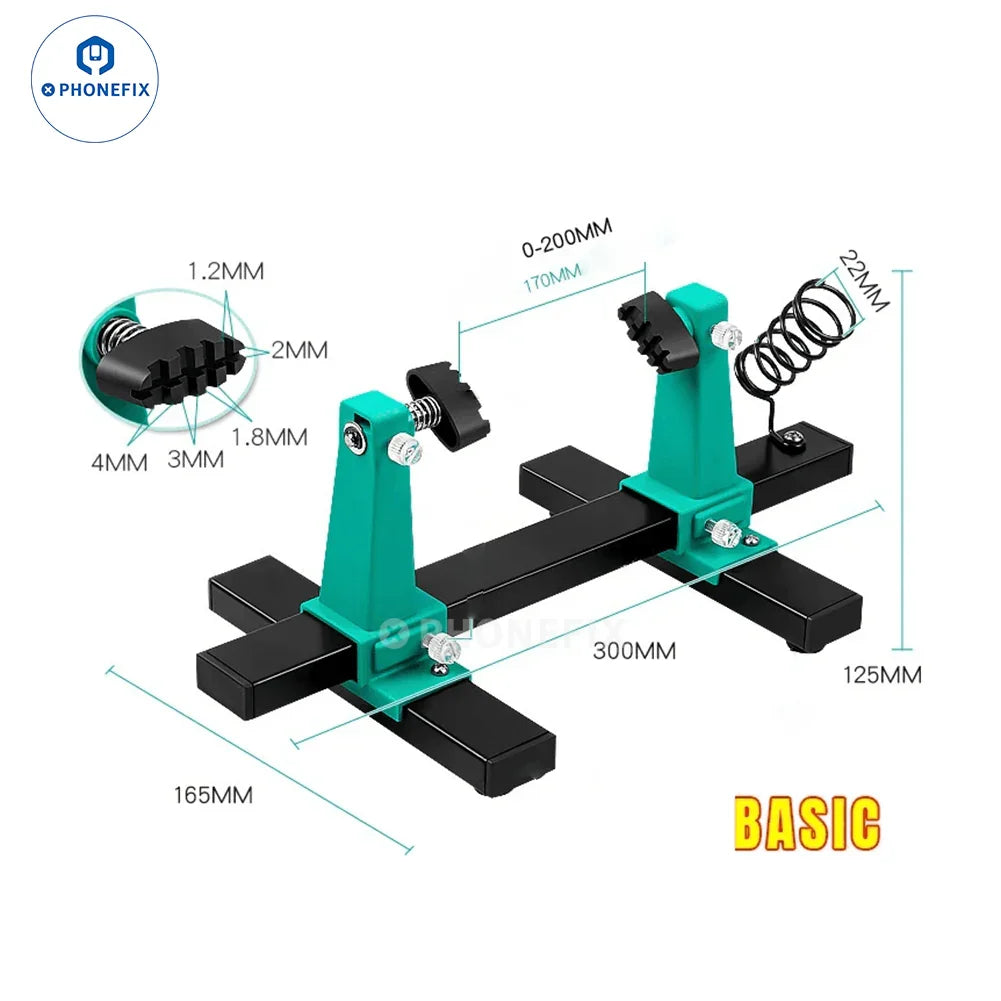

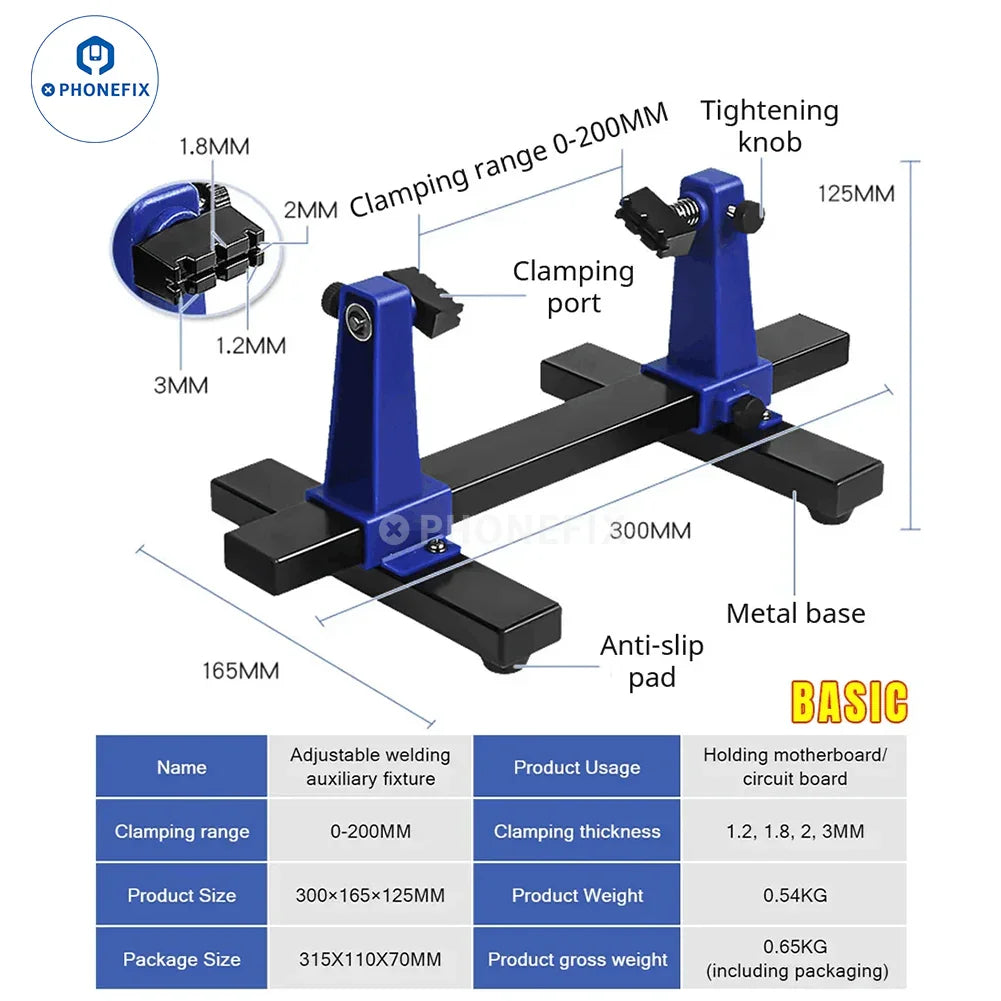

Specifications:
Color: Black+Green, Black+Blue
Clamp range: 0-200mm
Clamp thickness: 1.2m, 1.8mm, 2.0mm, 3.0mm, 4.0mm
Material: Plastics+Metal
PCB Holder Size: 30 X 16.5 X 12.5cm/11.81 X 6.50 X 4.92(L*W*H)
Packing List:
1 * Circuit Board Fixture
