High quality 100X 130X 180X 200X 300X 360X 500X Zoom 25mm C-mount glass lens adapter for industry digital microscope camera, 10A 10B 10C C-mount auxiliary objective glass lens for industry video microscope camera.
Zoom C-mount Glass Lens Adapter for Industry Digital Microscope Camera

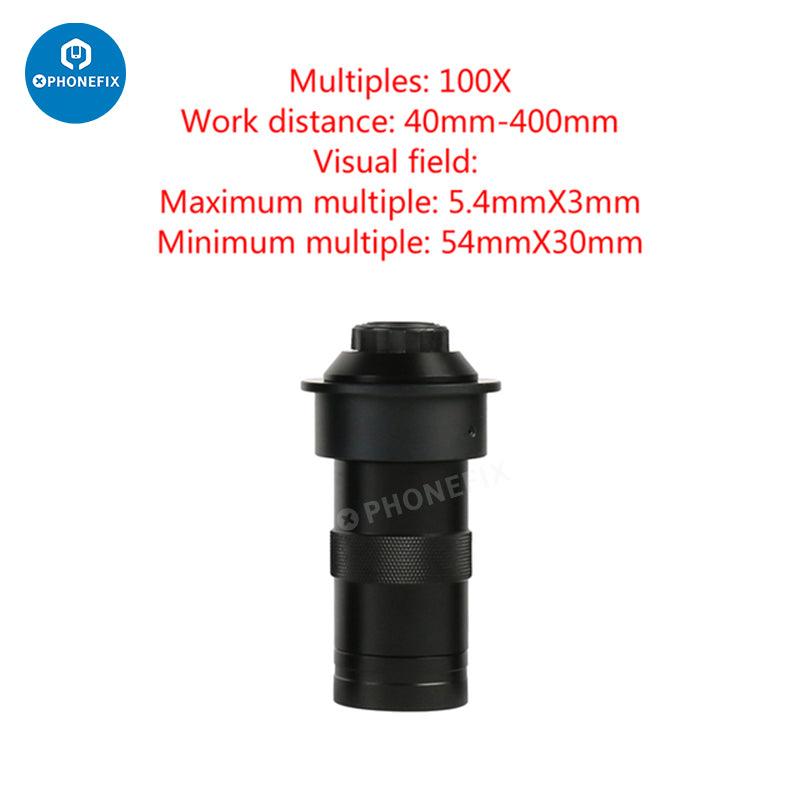

8X-100X Zoom C-mount Lens:Work distance: 40mm-400mm
Zoom ratios: 1:17
Magnification Power by 0.12 - 2X (about 8X - 100X on the Monitor)
view field of Max multiple: 5.4mm*3mm
view field of Min multiple: 54mm*3mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g

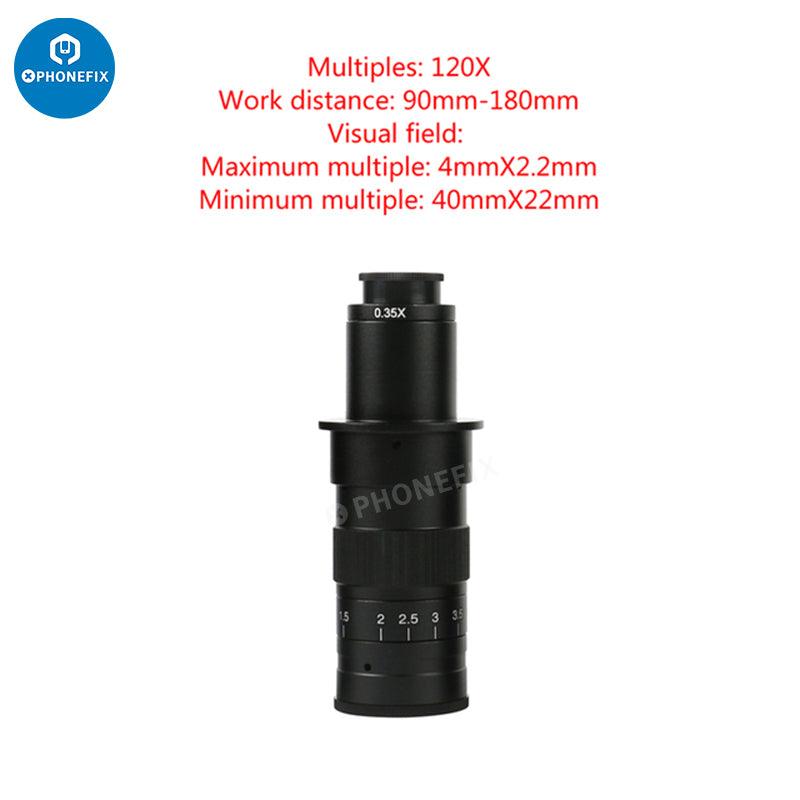

10X-120X C-MOUNT Lens:Working distance: 90-180mm
Zoom ratios: 1:6.5
Magnification Power by 0.7 - 4.5X(about 10 - 120X on the display)
view field of Max multiple: 4mm*2.2mm
view field of Min multiple: 40mm*22mm
Eyepiece Lense: 0.35X
Size: 155mm(L) * 50mm(DIA)
Weight: 570g

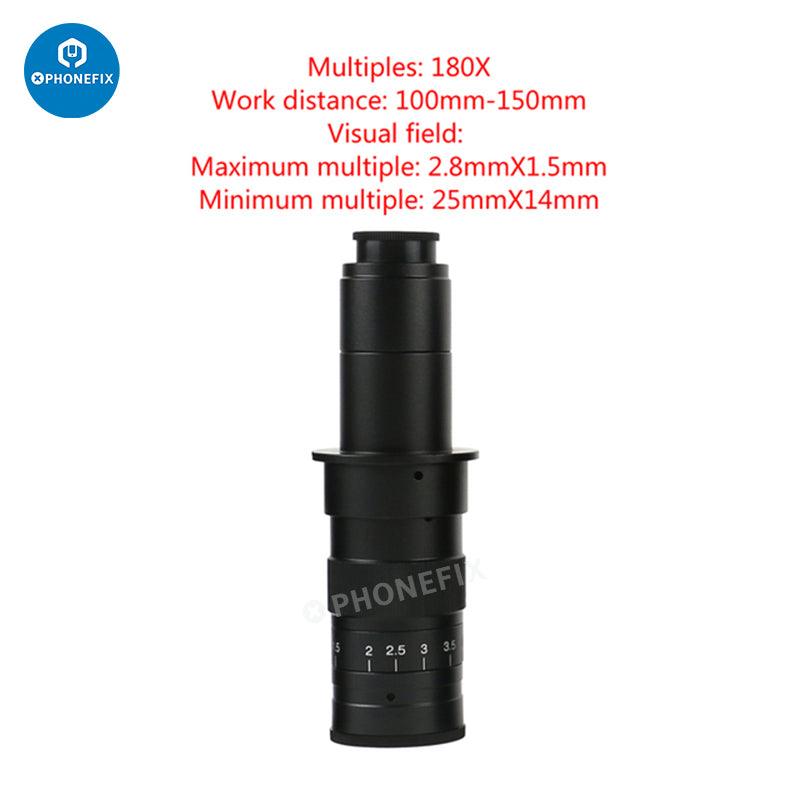

10X-180X C-MOUNT Lens:Working distance: 90-150mm
Zoom ratios: 1:6.5
Magnification Power by 0.7 - 4.5X(about 15 - 180X on the display)
view field of Max multiple: 2.8mm*1.5mm
view field of Min multiple: 25mm*14mm
Eyepiece Lense: 0.5X
Size: 168mm(L) * 50mm(DIA)
Weight: 600g

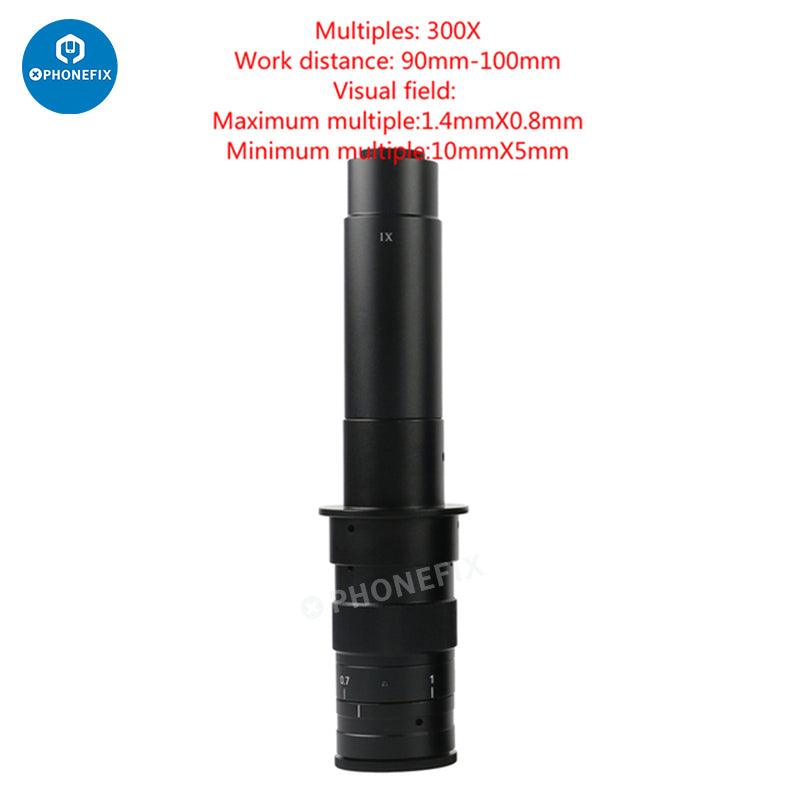

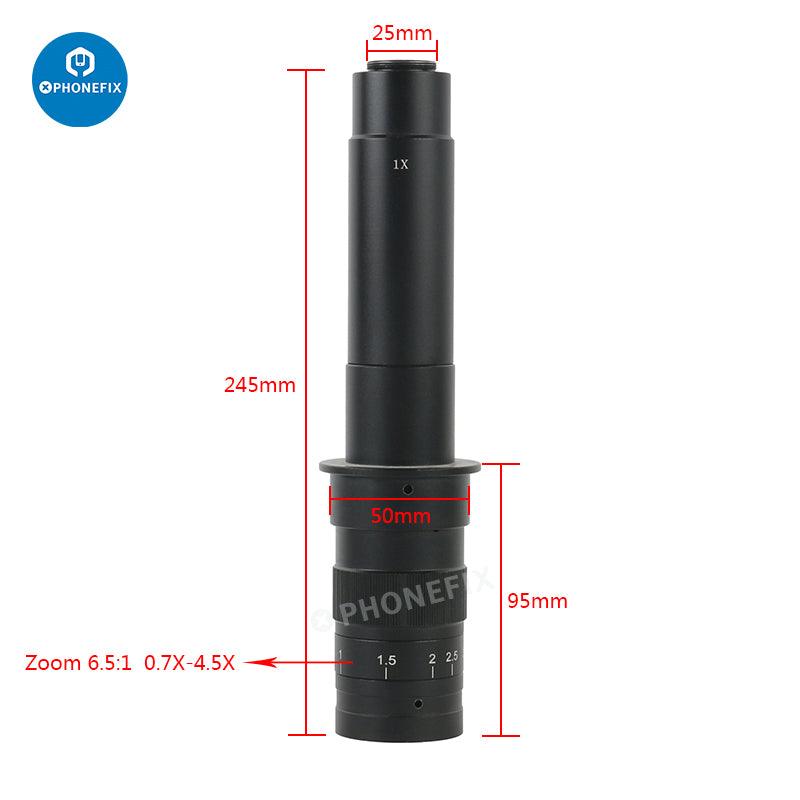

20X-300X C-MOUNT Lens:Working distance: 90-100mm
Zoom ratios: 1:6.5
Magnification Power by 0.7 - 4.5X(about 20 - 300X on the display)
view field of Max multiple: 1.4mm*0.8mm
view field of Min multiple: 10mm*5mm
Eyepiece Lense: 1X
Size: 245mm(L) * 50mm(DIA)
Weight: 630g

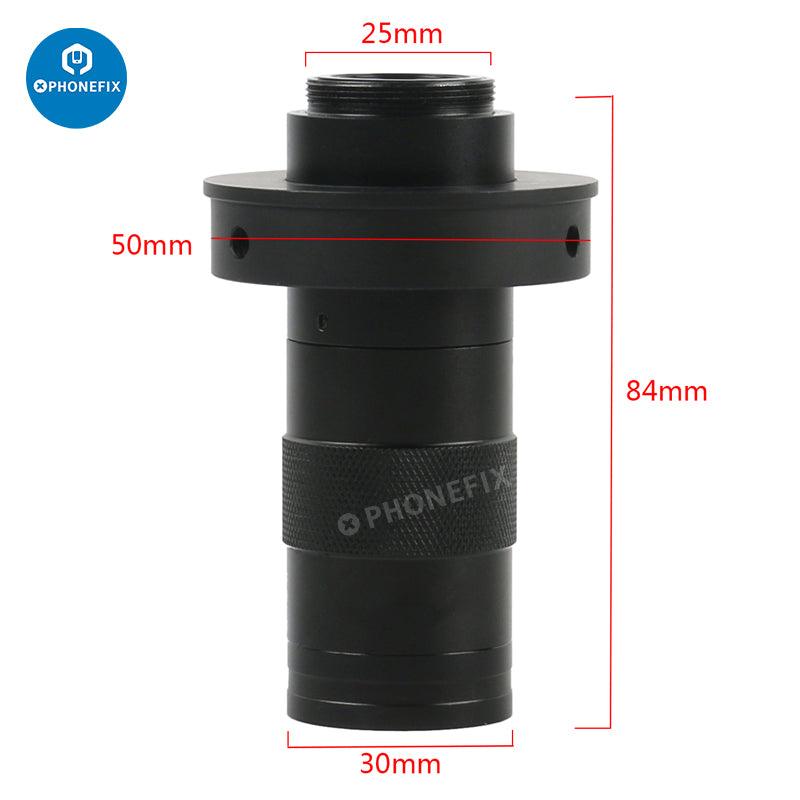

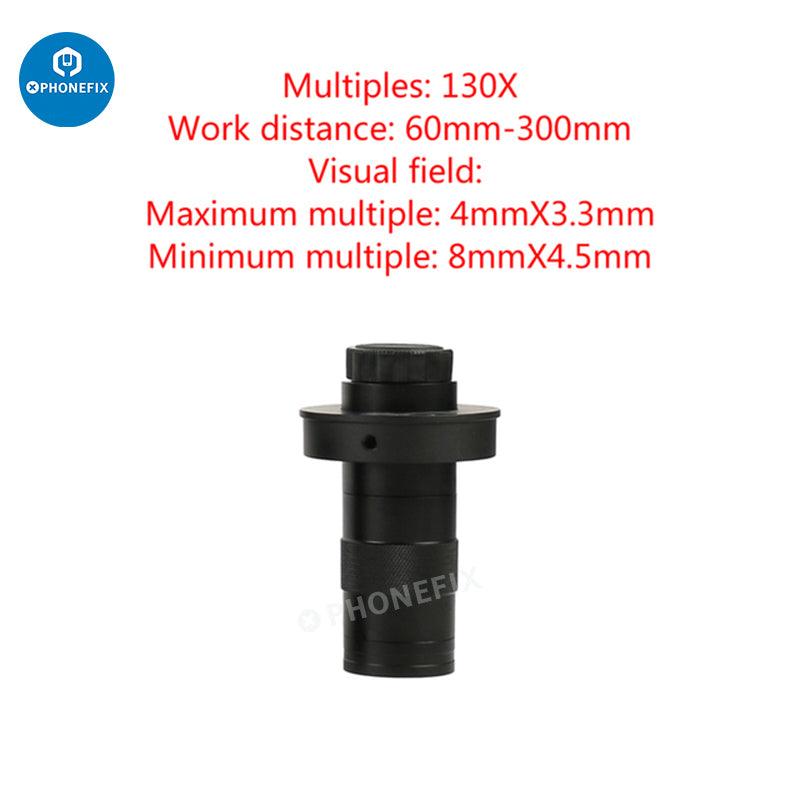

10X-130X C-MOUNT Lens:Working distance: 60mm-300mm
zoom ratios: 1: 11
Magnification Power by 0.1 - 1.3X (about 10 - 130X on the display)
view field of Max multiple: 8mm*4.5mm
view field of Min multiple: 40mm*33mm
Size: 30mm(diameter) * 84mm(length)
Weight: 180g

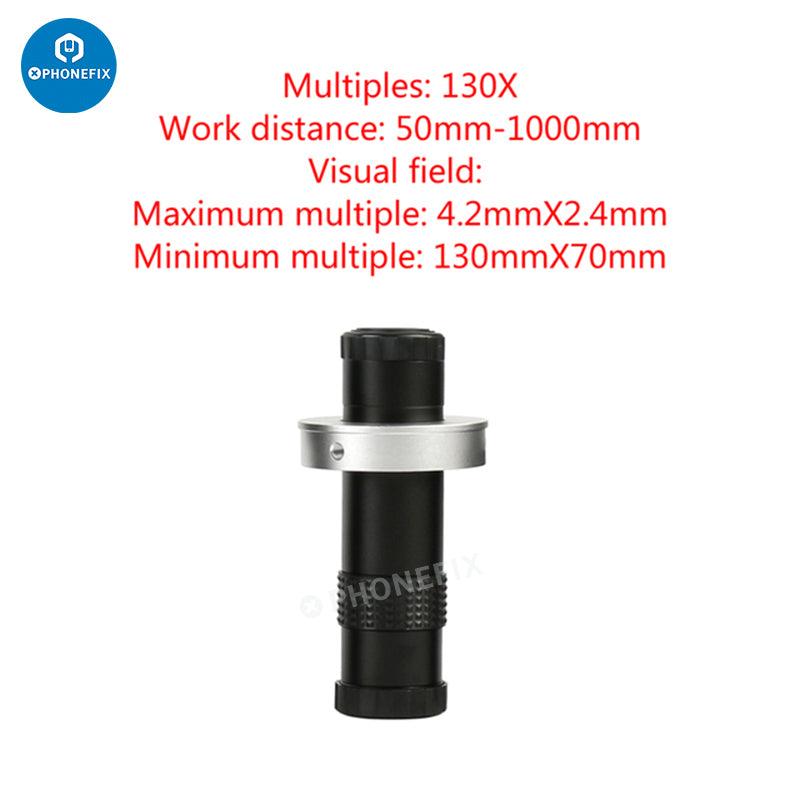

1X-130X C-MOUNT Lens:Working distance: 50mm-1000mm
zoom ratios: 1: 15
Magnification Power by 0.13- 2X (about 1 - 130X on the display)
view field of Max multiple: 4.2mm*2.4mm
view field of Min multiple: 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

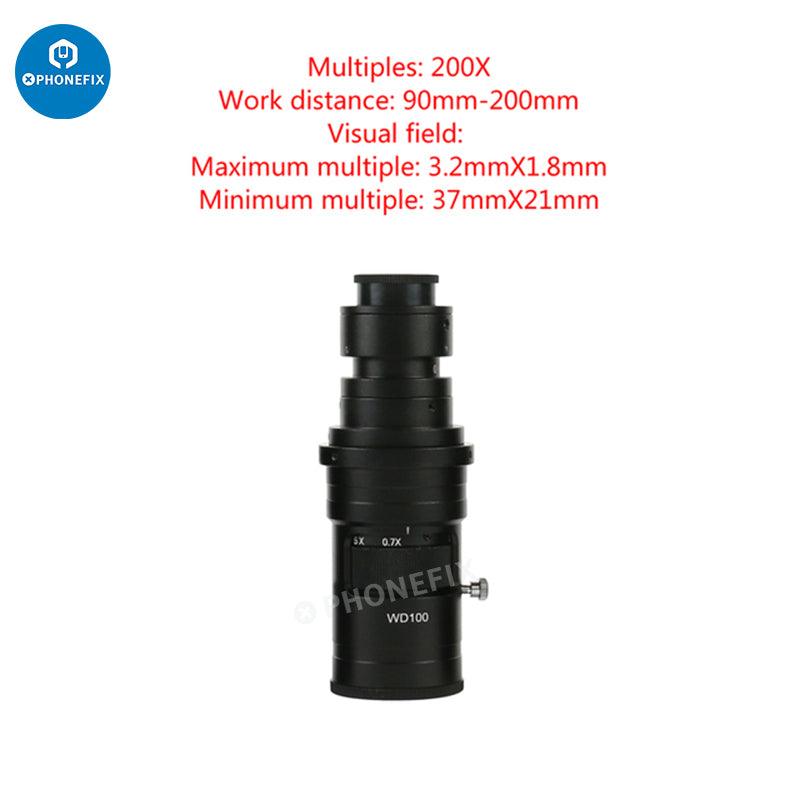

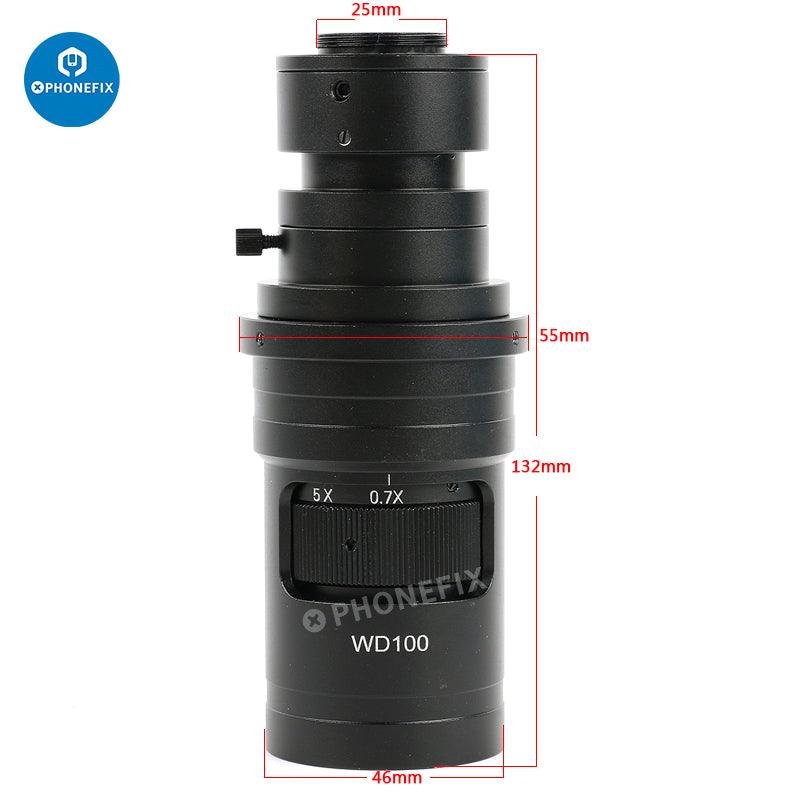

10X-200X C-mount Lens:Working distance: 90MM-200MM
zoom ratios: 1: 7.2
Magnification Power by 0.7- 5X (about 10 - 200X on the display)
view field of Max multiple: 3.2mm*1.8mm
view field of Min multiple: 37mm*21mm
Eyepiece Lense: 0.4X
Size: 55mm(diameter) * 132mm(length)
Weight: 455g

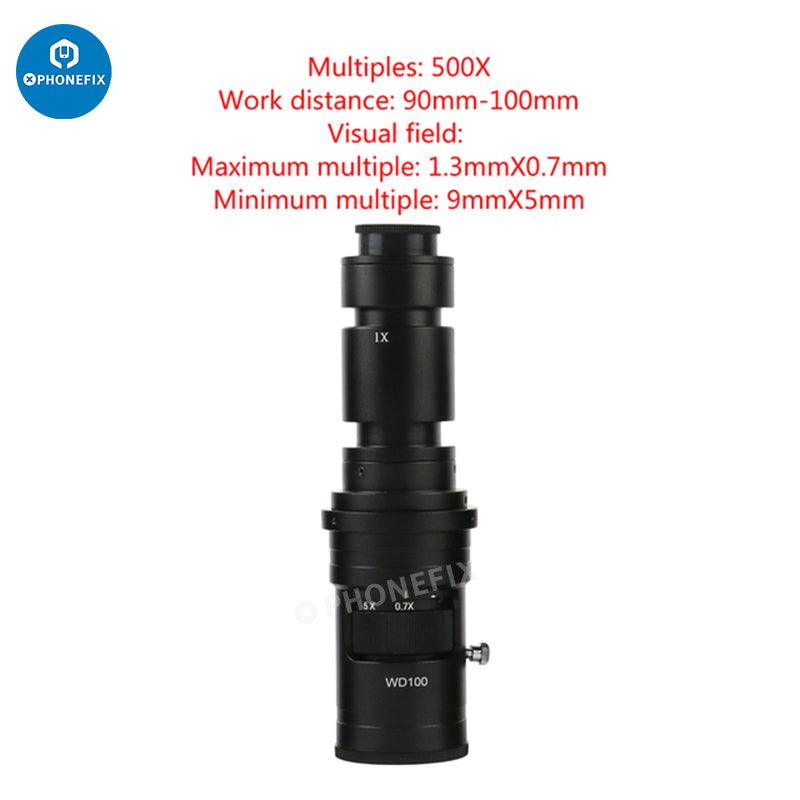

25X-500X C-mount Lens:Working distance: 90MM-100MM
zoom ratios: 1: 7.2
Magnification Power by 0.7- 5X (about 25 - 500X on the display)
view field of Max multiple: 1.3mm*0.7mm
view field of Min multiple: 9mm*5mm
Eyepiece Lense: 1X
Size: 55mm(diameter) * 175mm(length)
Weight: 510g

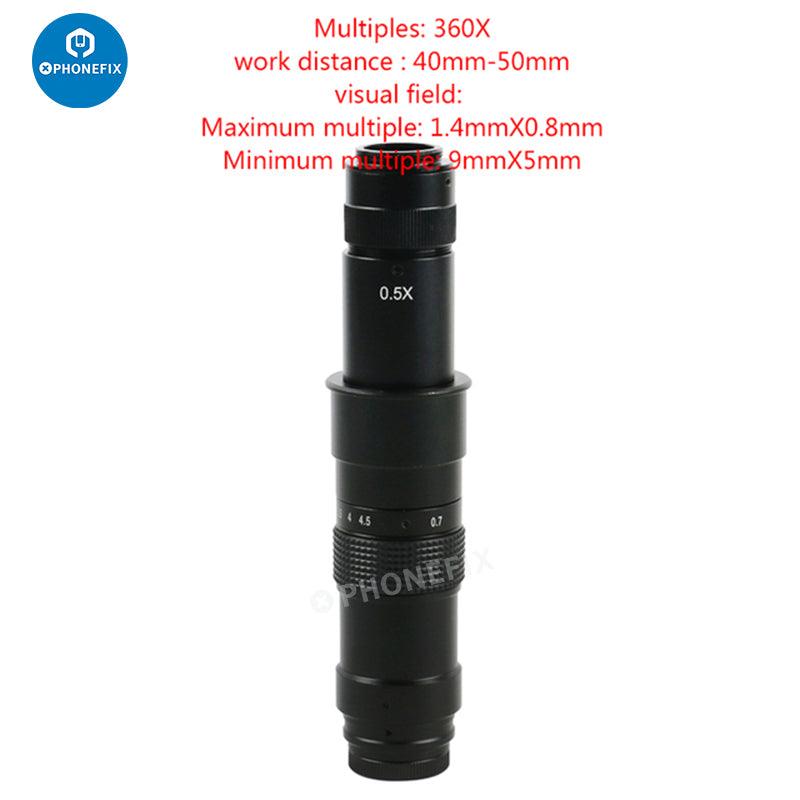

30X-360X C-mount Lens:Working distance: 40MM-50MM
zoom ratios: 1: 6.5
Magnification Power by 0.7- 4.5X (about 30 - 360X on the display)
view field of Max multiple: 1.4mm*0.8mm
view field of Min multiple: 9mm*5mm
Eyepiece Lense: 0.5X
Objective lens: 2X
Size: 42mm(diameter) * 182mm(length)
Weight: 380g

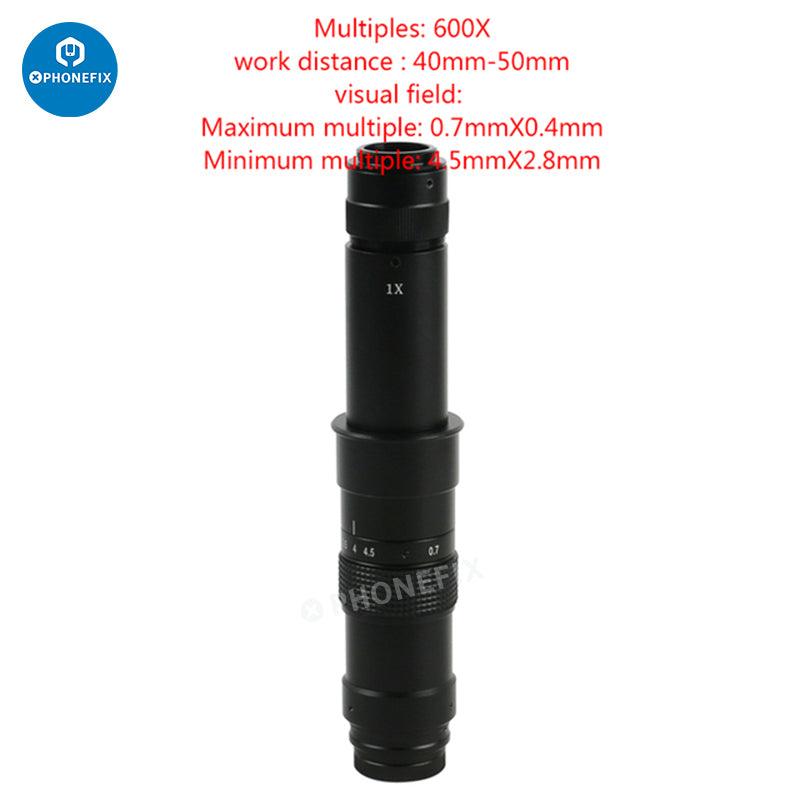

60X-600X C-mount Lens:Working distance: 40MM-50MM
zoom ratios: 1: 6.5
Magnification Power by 0.7- 4.5X (about 30 - 360X on the display)
view field of Max multiple: 0.7mm*0.4mm
view field of Min multiple: 4.5mm*2.8mm
Eyepiece Lense: 1X
Objective lens: 2X
Size: 42mm(diameter) * 182mm(length)
Weight: 380g

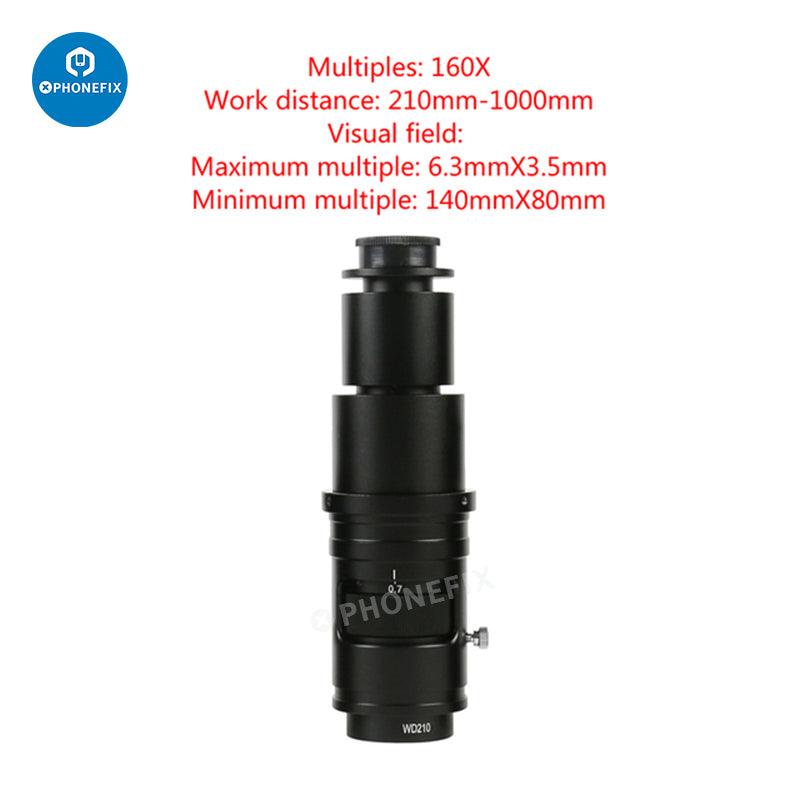

16X-160X c-mount Lens:Working distance: 210mm - 1000mm
Magnification Power by 0.7 - 5X
Zoom ratios: 1: 7.2
About 16 - 160X on the 21-inch LCD display (by 1/2.5-inch CDD)
view field of Max multiple: 6.3mm*3.5mm
view field of Min multiple: 140mm*80mm
Eyepiece Lense: 0.4X
Objective lens: WD210 0.5X
Size: 59mm(diameter) * 166mm(length)
Weight: 380g

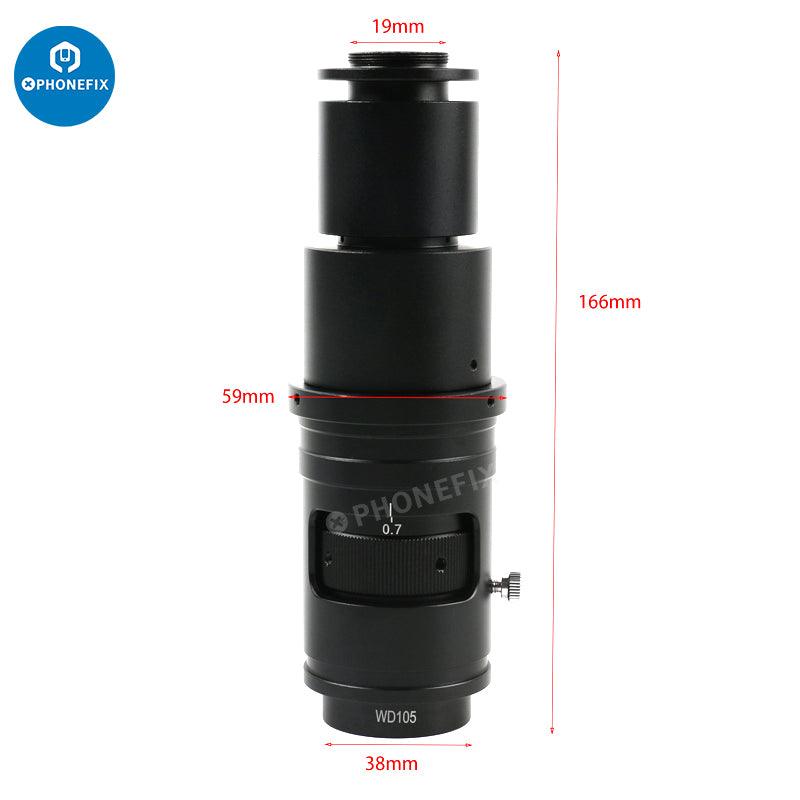

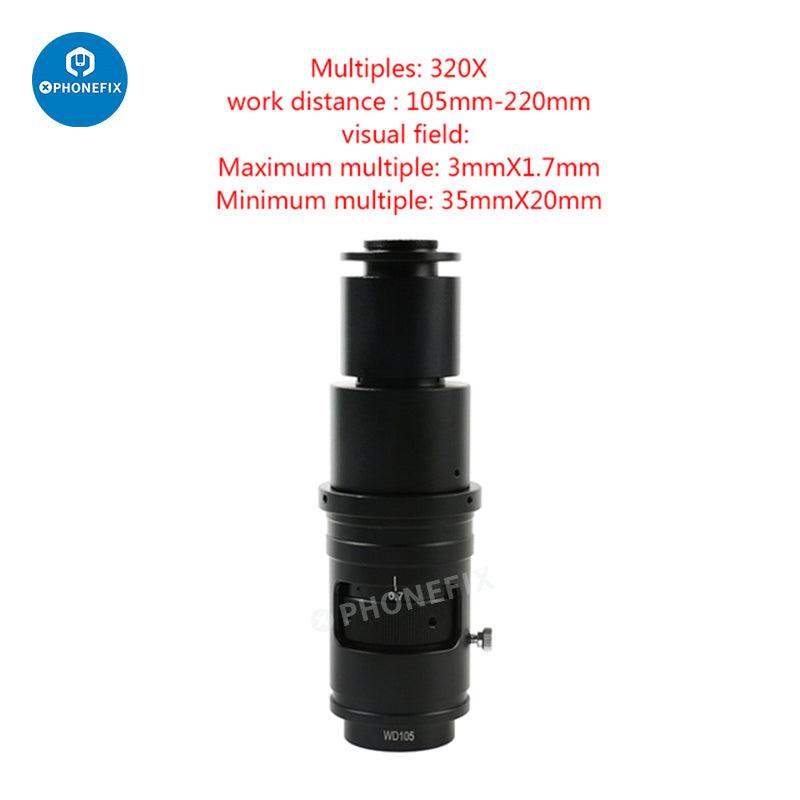

32X-320X c-mount LensWorking distance: 105mm - 220mm
Magnification Power by 0.7 - 5X
Zoom ratios: 1: 7.2
About 32 - 320X on the 21-inch LCD display (by 1/2.5-inch CDD)
view field of Max multiple: 3mm*1.7mm
view field of Min multiple: 35mm*20mm
Eyepiece Lense: 0.4X
Objective lens: WD105 1X
Size: 59mm(diameter) * 166mm(length)
Weight: 380g
Note: 1.Please do not touch the lens with your hands, it causes the lens to be scratched. If you need to handle it, please wipe it with professional camera cloth.2.Please note that all test data is based on Eakins 37MP 1080P Microscope Camera. If you use other cameras, the data will be biased.
Packing Includes:
- 1pc x Microscope Camera Len
