AIXUN F3000 9V 3A farad capacitor spot welder with battery fixture and capacitor welding probe pen for iPhone battery cells spot welding repair. Aixun F300 battery spot welder with no nickel converted mode, high output power mode, and convert aluminum to nickel mode for mobile phone battery replacement and phone camera frame soldering repair.
Features:

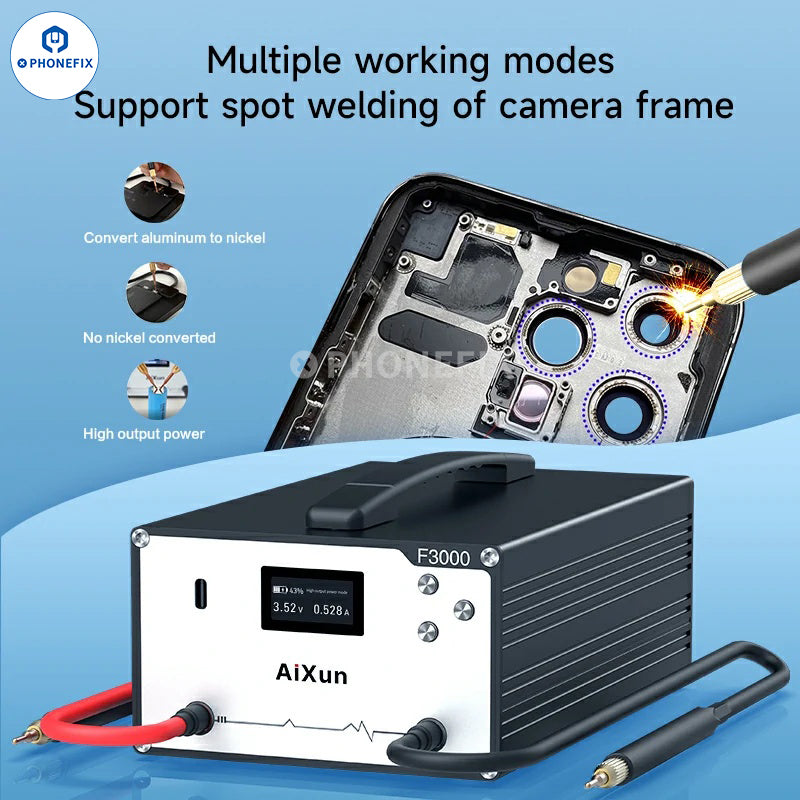

1. F3000 farad capacitor spot welder with its one-key switch, it offers three shortcut operation modes: no nickel converted mode, high output power mode, and convert aluminum to nickel mode.

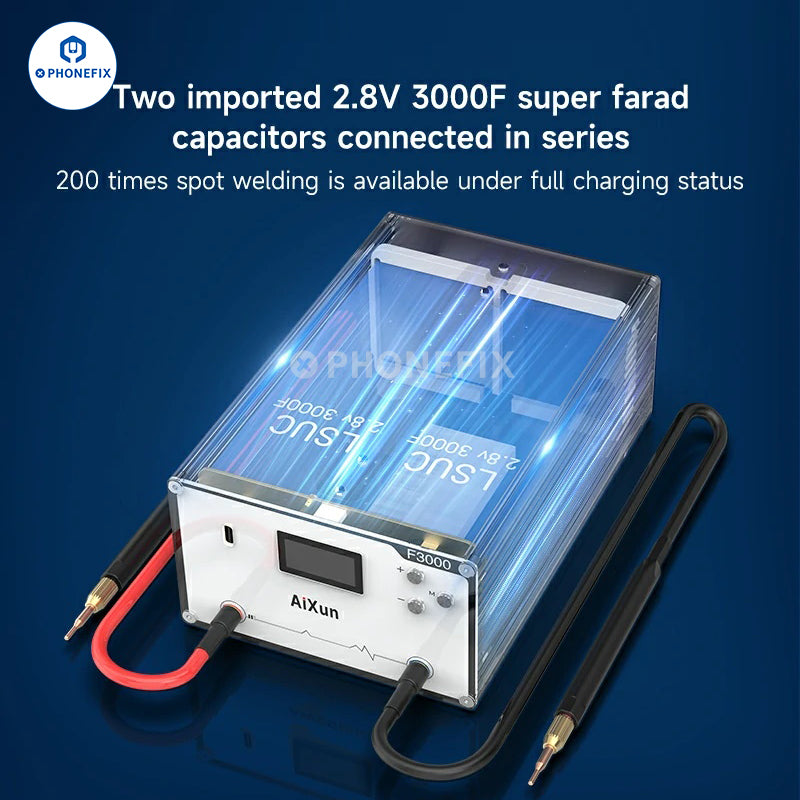

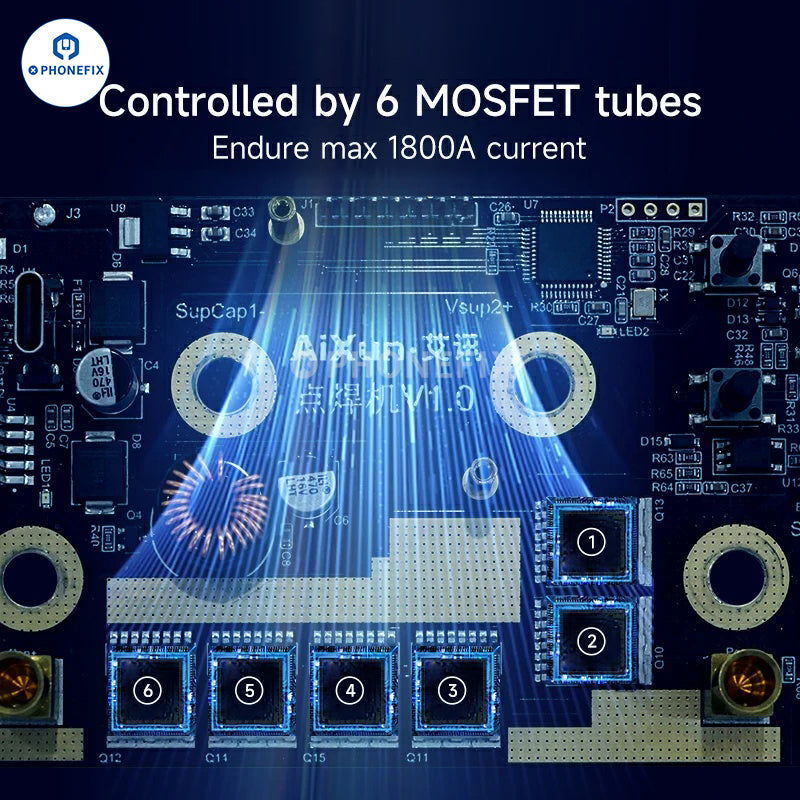

2. Two imported 2.8V 3000F super farad capacitors are connected in series, controlled by 6 MOSFET tubes, and the theoretical maximum current is 1800A.

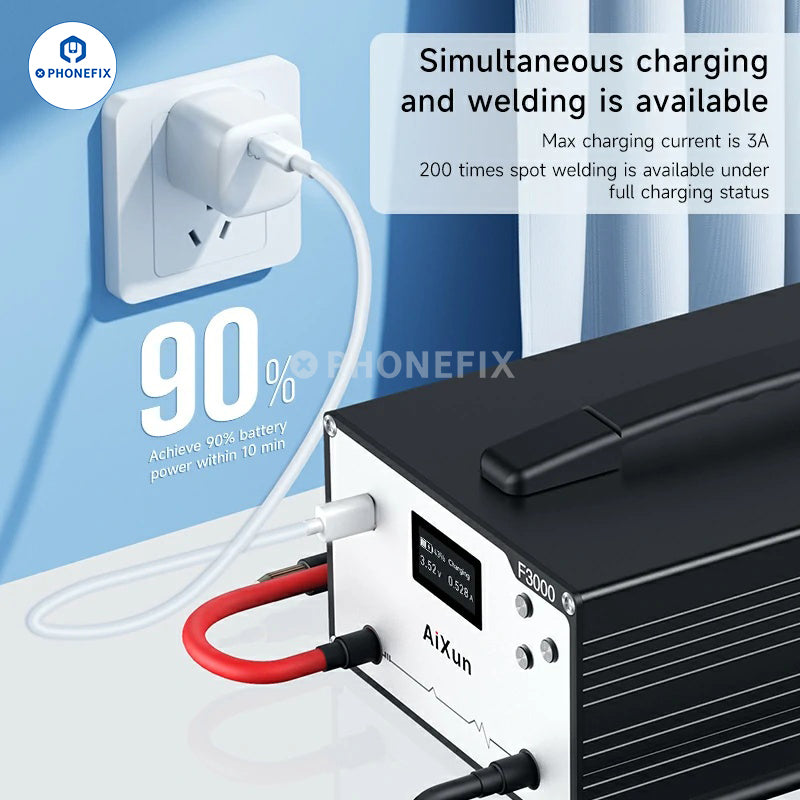

3. It achieves approximately 90% battery power within 10 minutes, enabling around 200 spot welds on a full charge. Additionally, it allows for remote upgrading on PC to add new soldering programs. It is an ideal choice for efficient spot welding tasks.

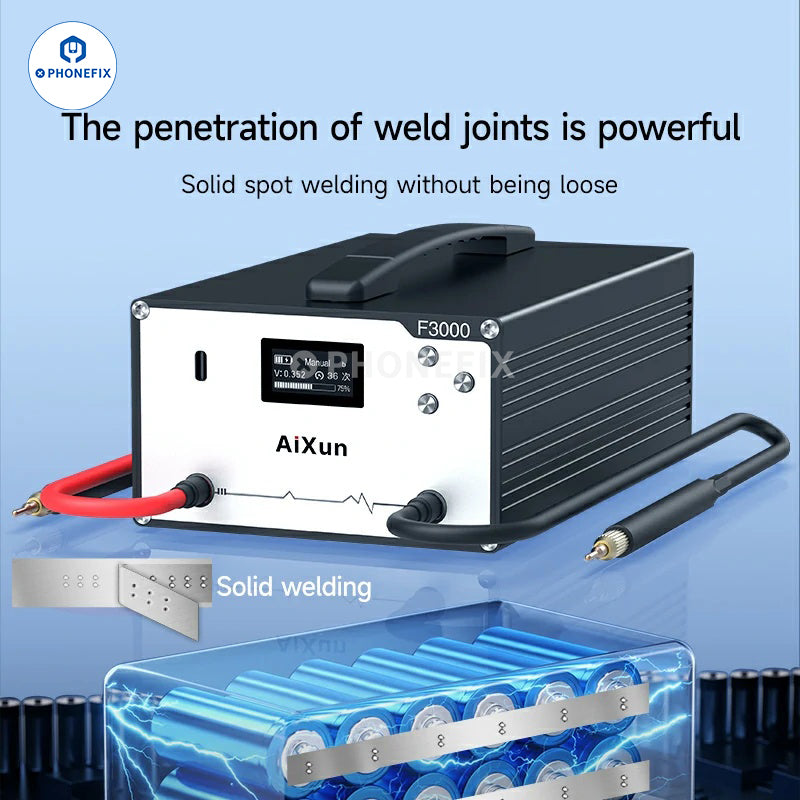

4. Automatic/manual dual working mode, strong welding point penetration, firm spot welding without loosening.
5. It can be charged while welding, maximum charging current 3A, support PC remote upgrade, add new welding program.
6. Support to upgrade on PC remotely, continuous update on parameters of spot welding mode, adjust parameter settings flexibly through the AiXun platform.
Specifications:
Model: Aixun F3000 Farad Capacitor Spot Welder.
Charging voltage: 9V.
Max. current: 3.0A.
Material: Aluminum shell + stainless steel plate.

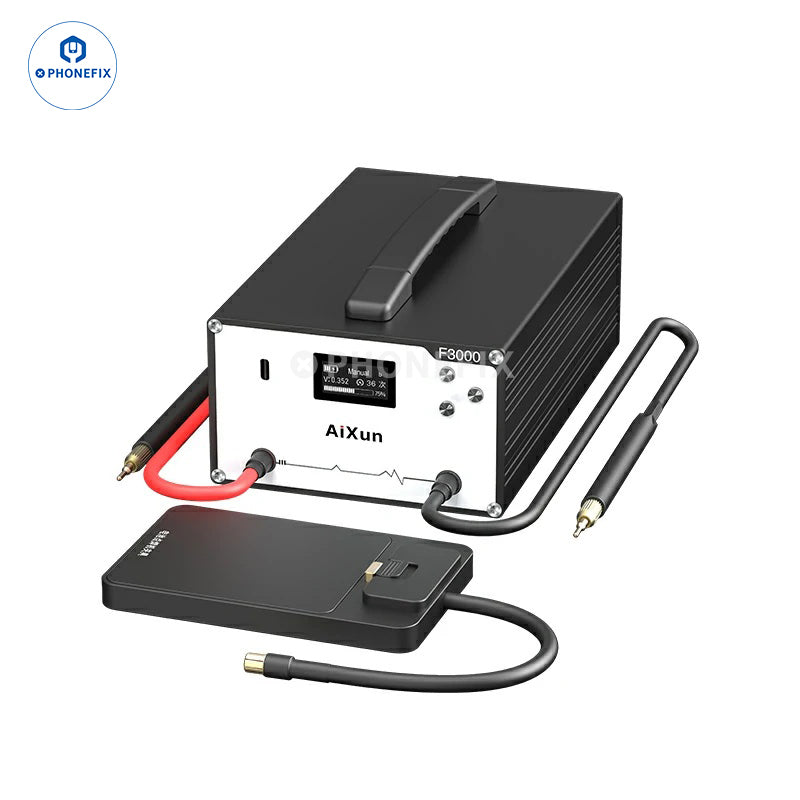

Accessories: Spot welder fixture for battery+Capacitor spot welder probe 495mm*2.
Size: 203*127*86mm.

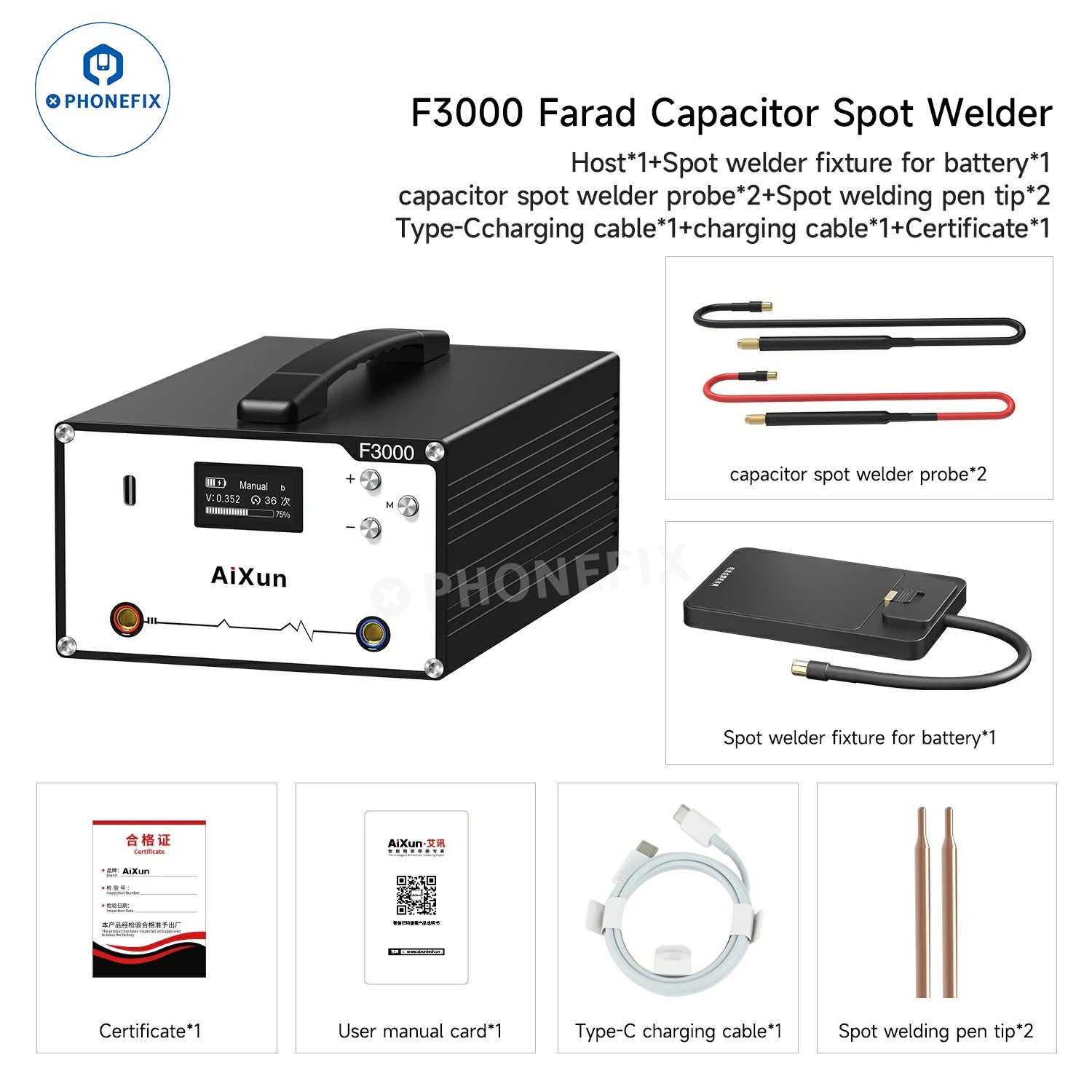

List of Packing:
Spot welder fixture for battery x 1
Capacitor spot welder probe x 2
Type-C charging cable x 1
Spot welding pen tip x 2
Charging cable x 1
Certificate x 1
Host x 1
