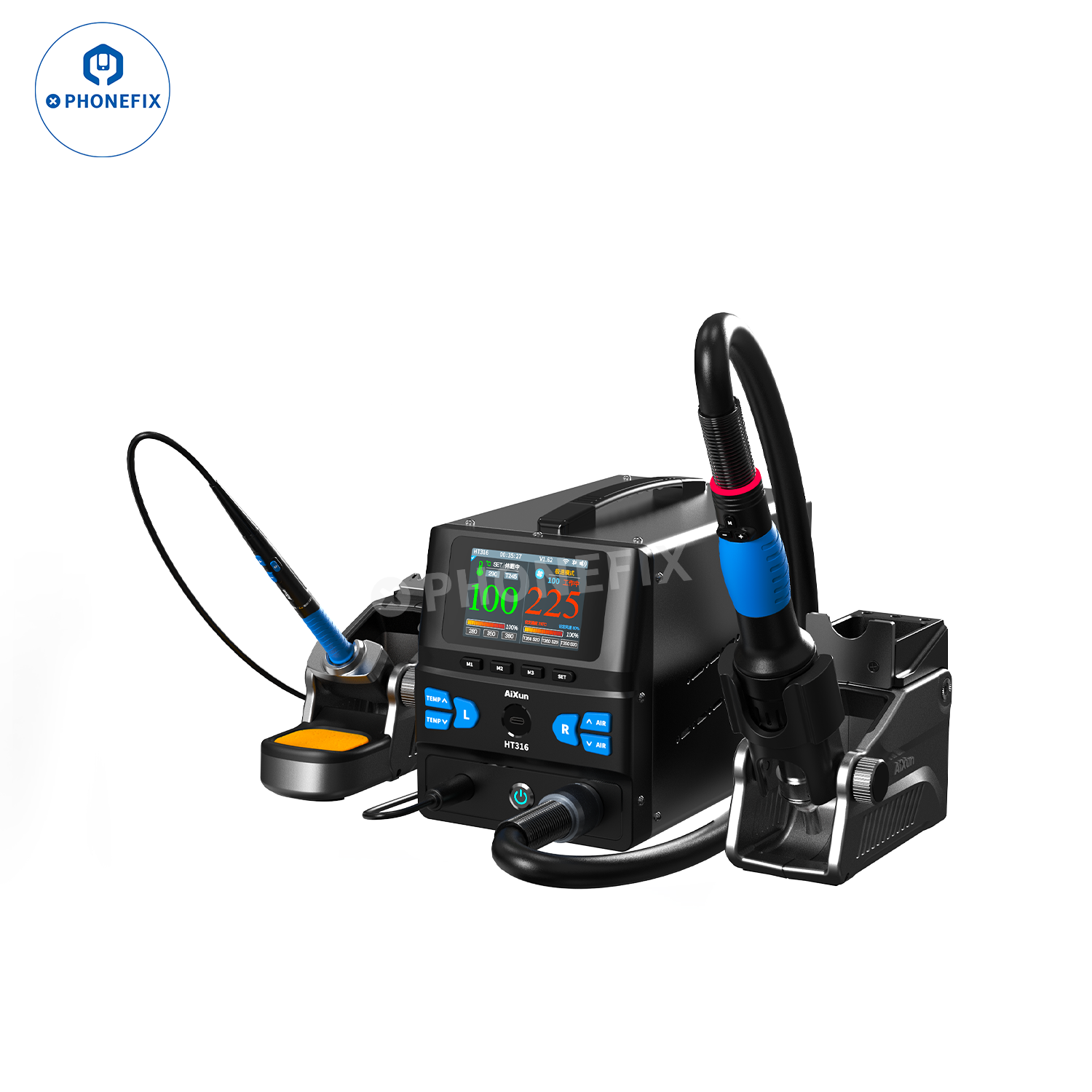

AiXun HT316 1400W Intelligent Digital Hot Air Gun Soldering Iron 2-In-1 BGA Rework Station for Mobile Phone Repair. T225 and HK14 dual channel handles. Soldering station channel compatible with C030 (30W) C080 (80W) C150 (150W) iron tips. Hot air rework station with removable heating core and straight air nozzles for mobile phone/PC PCB board BGA chip soldering, desoldering and repair.
Features:

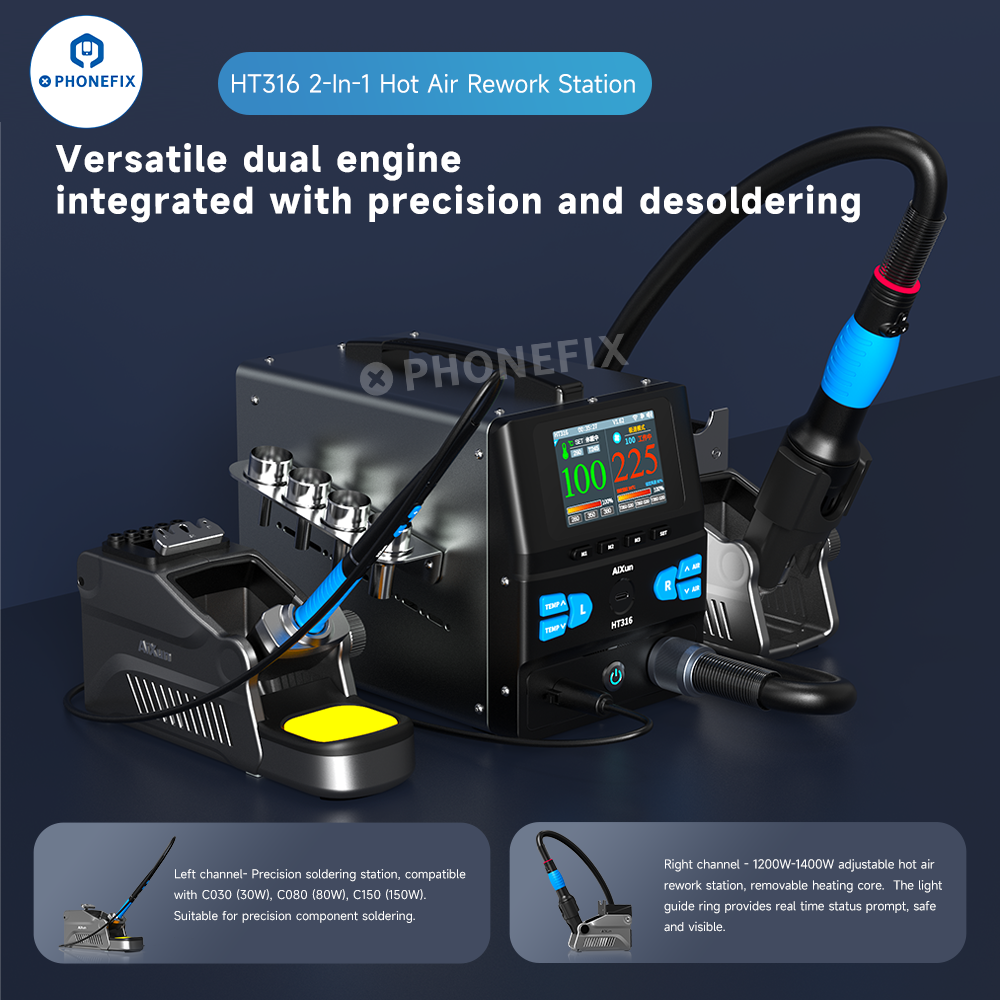

1. Dual-channel design: The left channel is a precision soldering station with a standard T225 handle and compatible with C030 (30W), C080 (80W), and C150 (150W) heaters; the right channel is a hot air desoldering station with a standard HK button handle and supports 1200W–1400W detachable heaters.

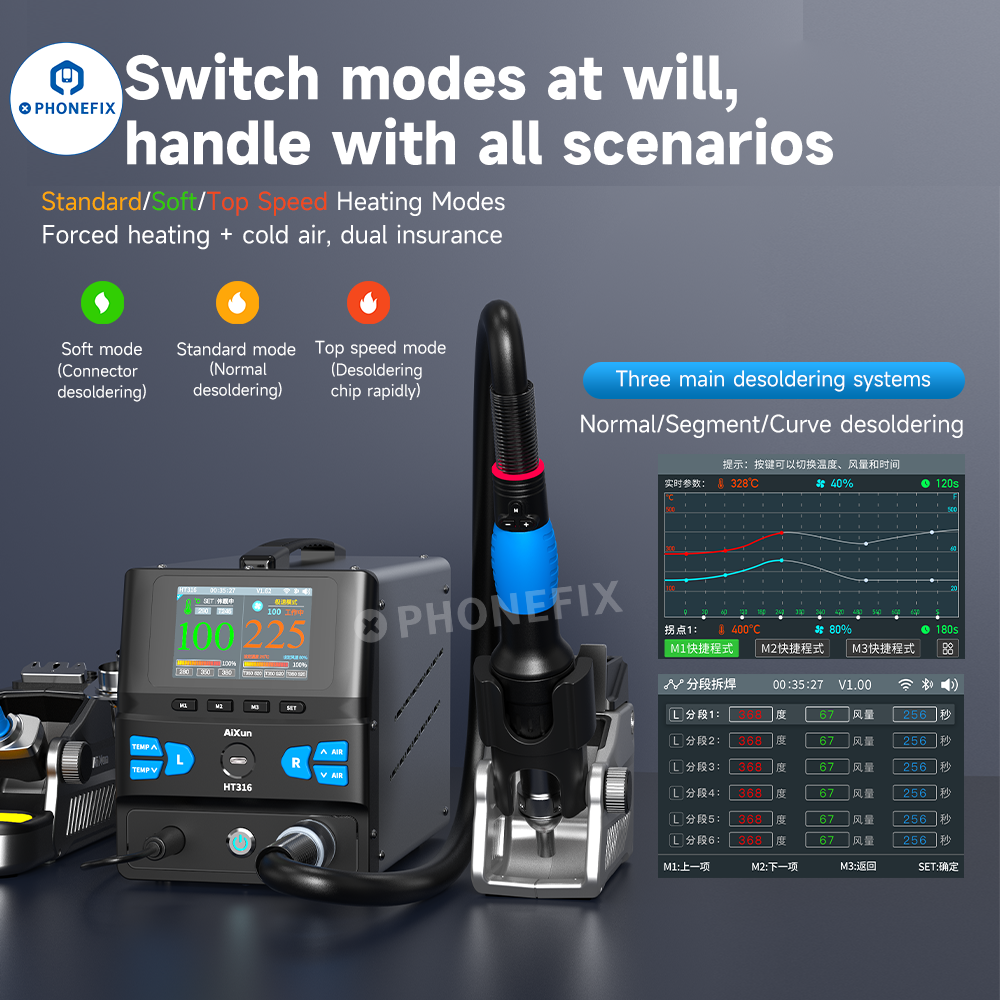

2. Equipped with an intelligent temperature control system, it offers three professional heating modes: Gentle mode is designed for desoldering precision connectors; Standard mode meets daily desoldering needs; and Speed mode quickly completes chip desoldering, significantly improving work efficiency.
3. The system features a dual-safety mechanism combining forced heating and cold air, ensuring stability and safety even under high-intensity operations, meeting various professional repair needs.
4. It offers three desoldering modes: conventional desoldering, segmented desoldering, and curved desoldering.

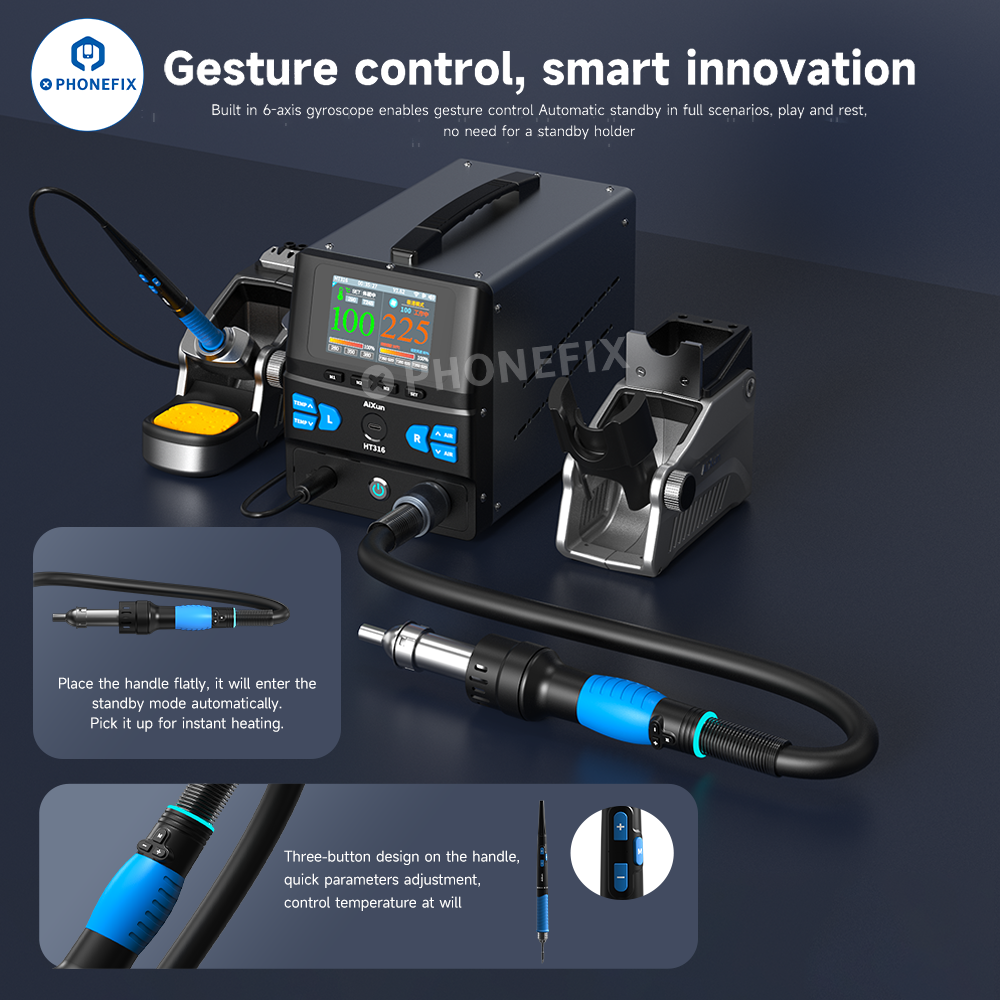

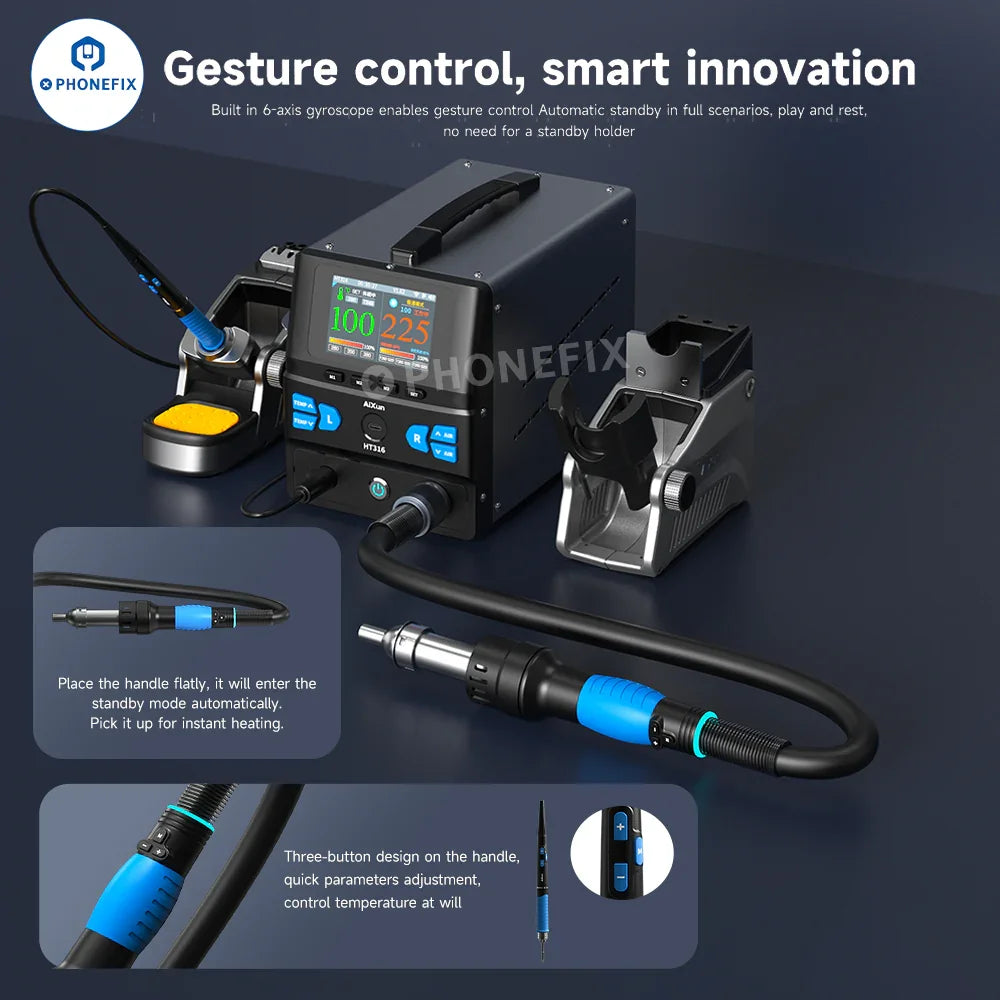

5. A built-in 6-axis gyroscope supports gesture control, automatic sleep and heating start (sleep when put down, power on when picked up). A three-button controller allows for quick parameter adjustment and precise temperature control, improving repair efficiency.
6. It features tri-mode intelligent connectivity, supporting USB, 5G Bluetooth, and Wi-Fi communication, OTA wireless updates, and remote data transfer. It can also be linked to the AiXun BS08 voice control system for voice control.

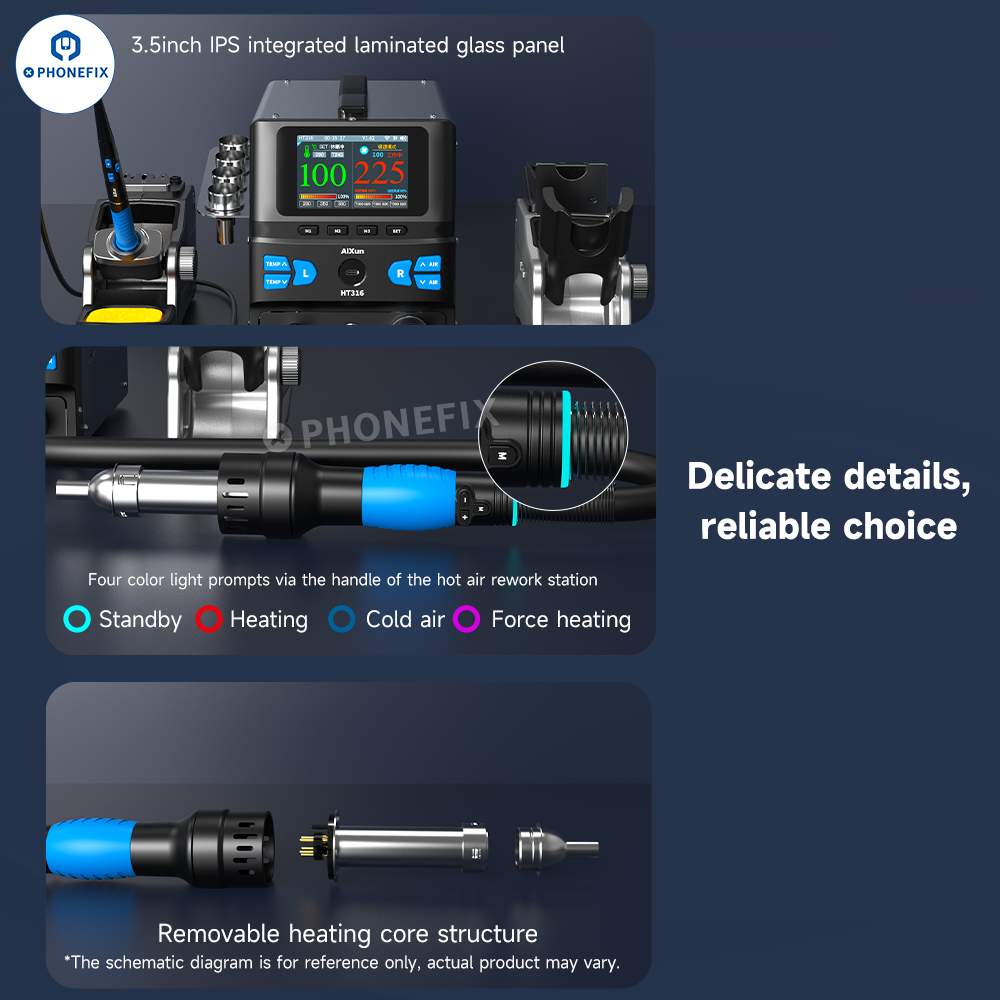

7. Features a 3.5-inch IPS integrated laminated glass panel, a hot air handle with a four-color status indicator light, and a removable heater core for easy replacement and maintenance. A light guide ring indicates operating status for enhanced safety.
Specifications:
Product Name: AiXun H316 2-in-1 Hot Air Desoldering Station
Display Type: 3.5-inch LCD
Input Voltage: 230V-50Hz
Material: Plastic + Sheet Metal Paint
Communication: USB/Bluetooth/Wi-Fi
Standard: T225 handle
Standard: HK button handle
Standard Heater: 1400W
Weight: 9.38kg
Dimensions: 360x270x345mm

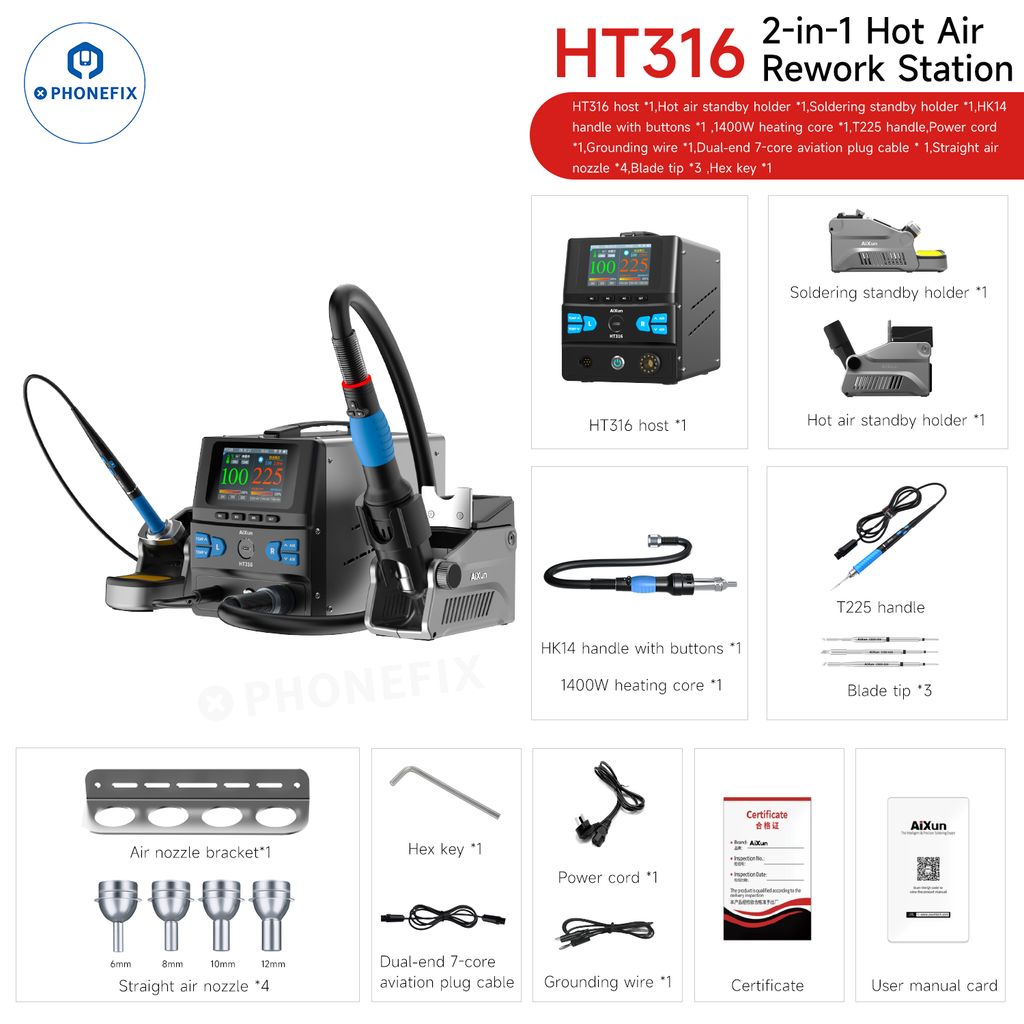

Package list:
1 x HT316 Host
1 x Hot Air Standby Holder
1 x Soldering Standby Holder
1 x 1400W Heating Core
1 x T225 Handle
1 x HK14 Handle with Buttons
1 x Power Cord
1 x Grounding Wire
1 x Dual-End 7-Core Aviation Plug Cable
4 x Straight Air Nozzle
1 x Air Nozzle Bracket
3 x Blade Tip
1 x Hex Key
