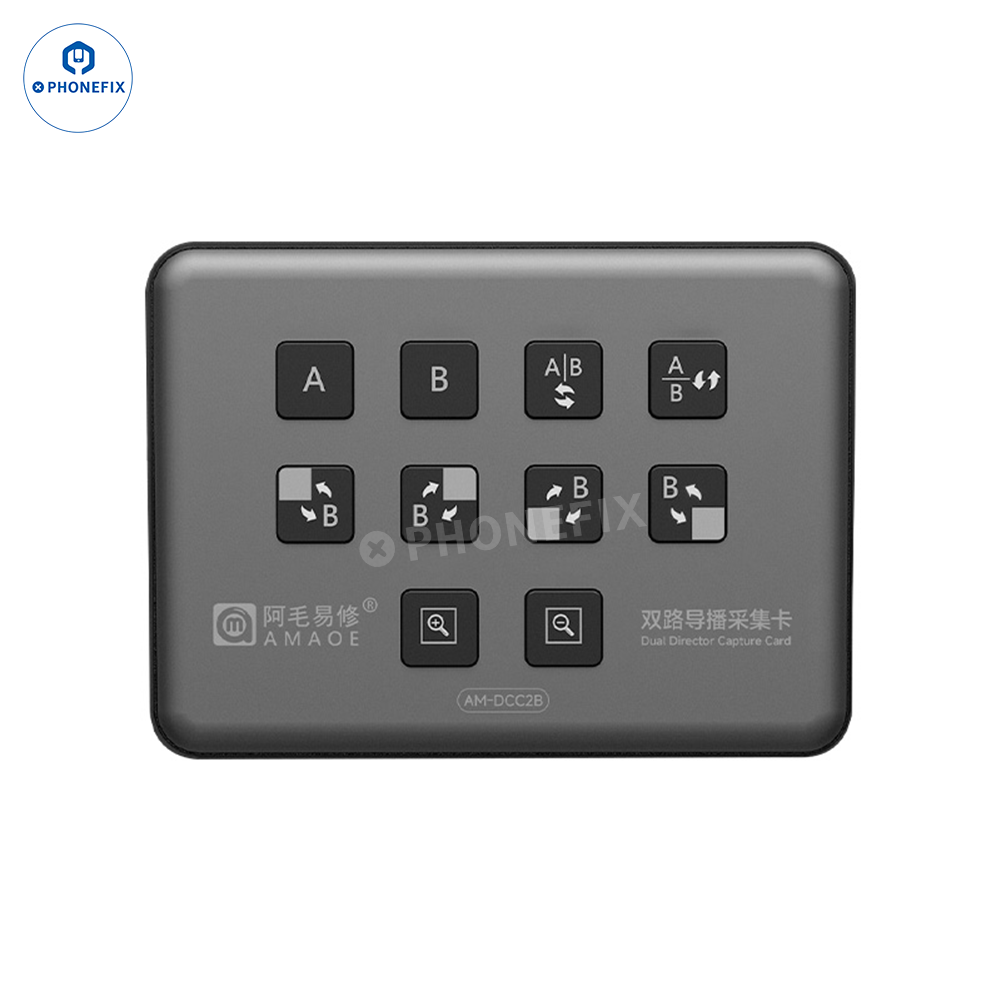

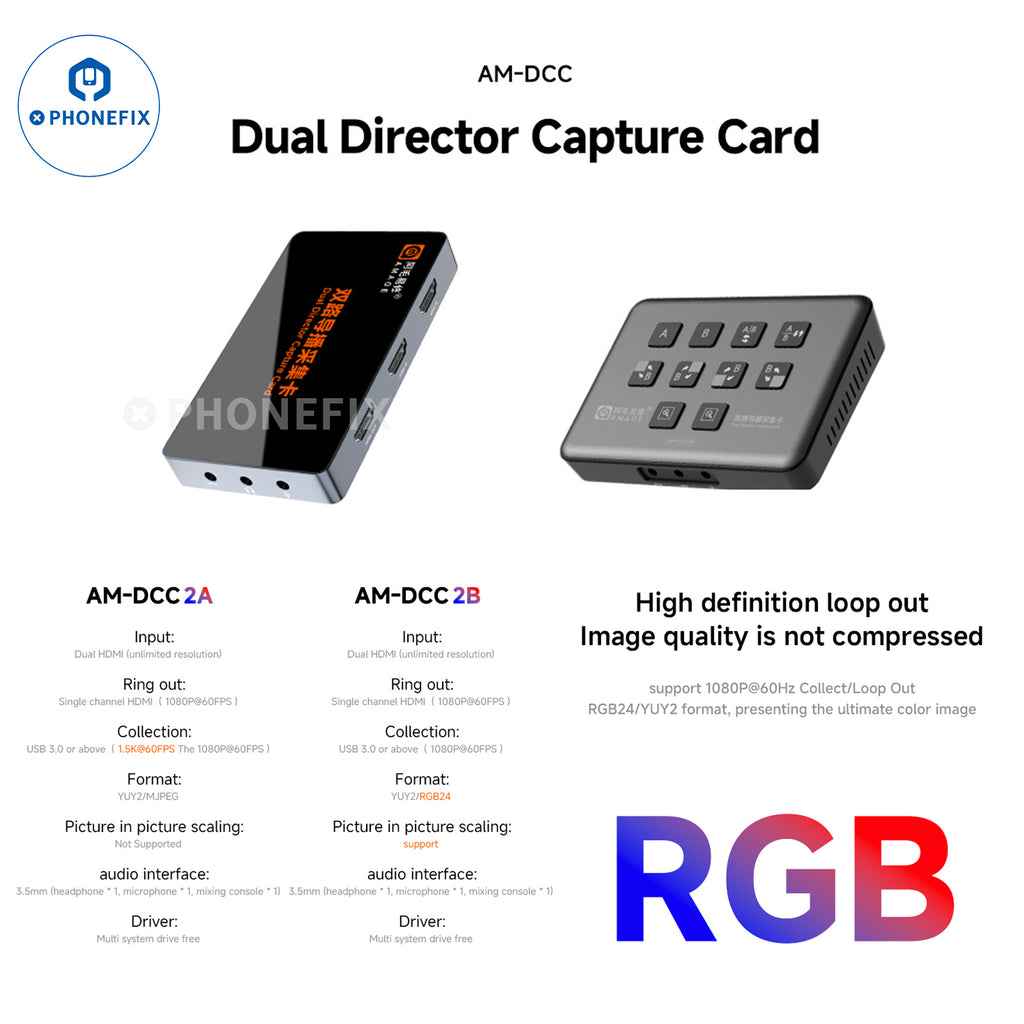

Amaoe AM-DCC2B AM-DCC2A Dual-Channel HDMI Production Capture Card for Broadcast Live Streaming. Amaoe AM-DCC2B Broadcast Capture Card Supports 4K and Picture-in-Picture, seamless switching between multi-screen live streams with built-in picture-in-picture/multi-screen switching, it can connect to external devices such as microphones, headphones, mixing consoles, cameras, monitors, and computers.
Option:
1. Amaoe AM-DCC2B Broadcast Capture Card (support picture in picture scaling.)

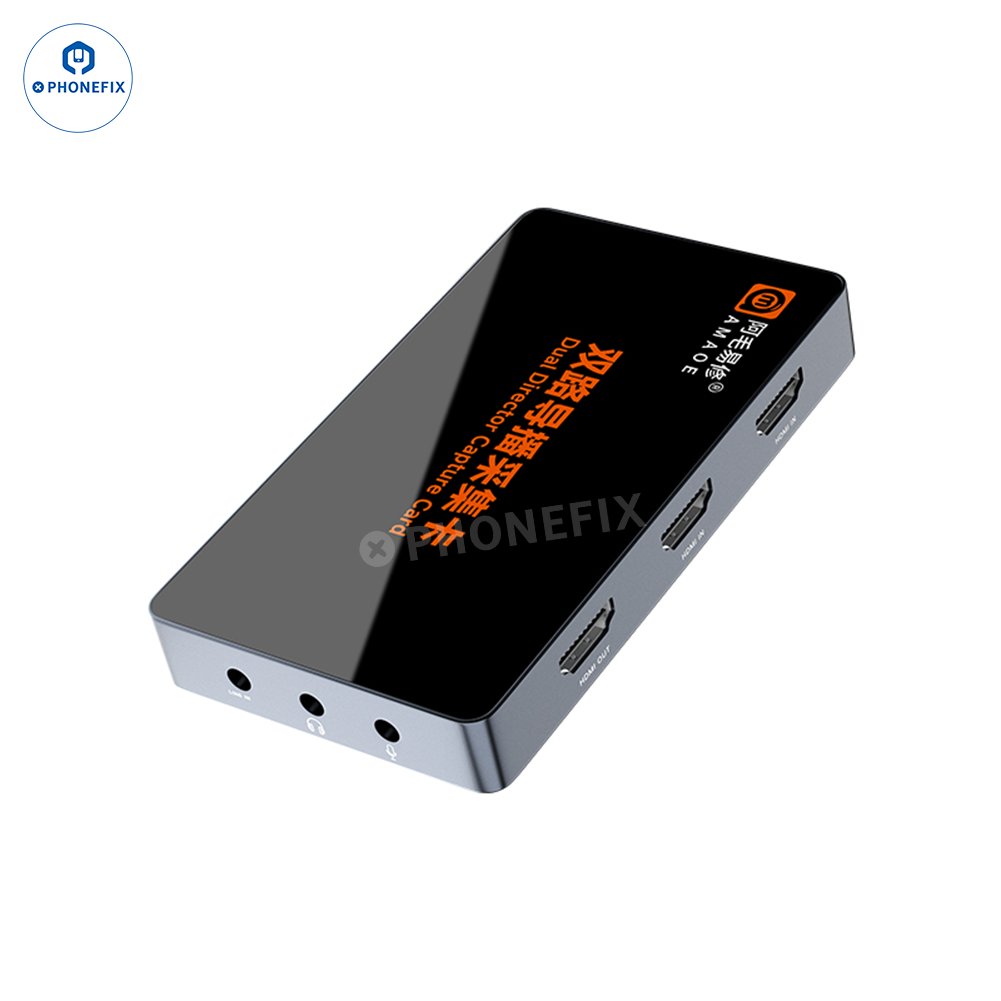

2. Amaoe AM-DCC2A Broadcast Capture Card (not support picture in picture scaling.)
Amaoe AM-DCC2B Features:
Dual HDMI inputs for simultaneous multi-angle capture: Supports simultaneous input and capture of two HDMI signals from devices like cameras and camcorders

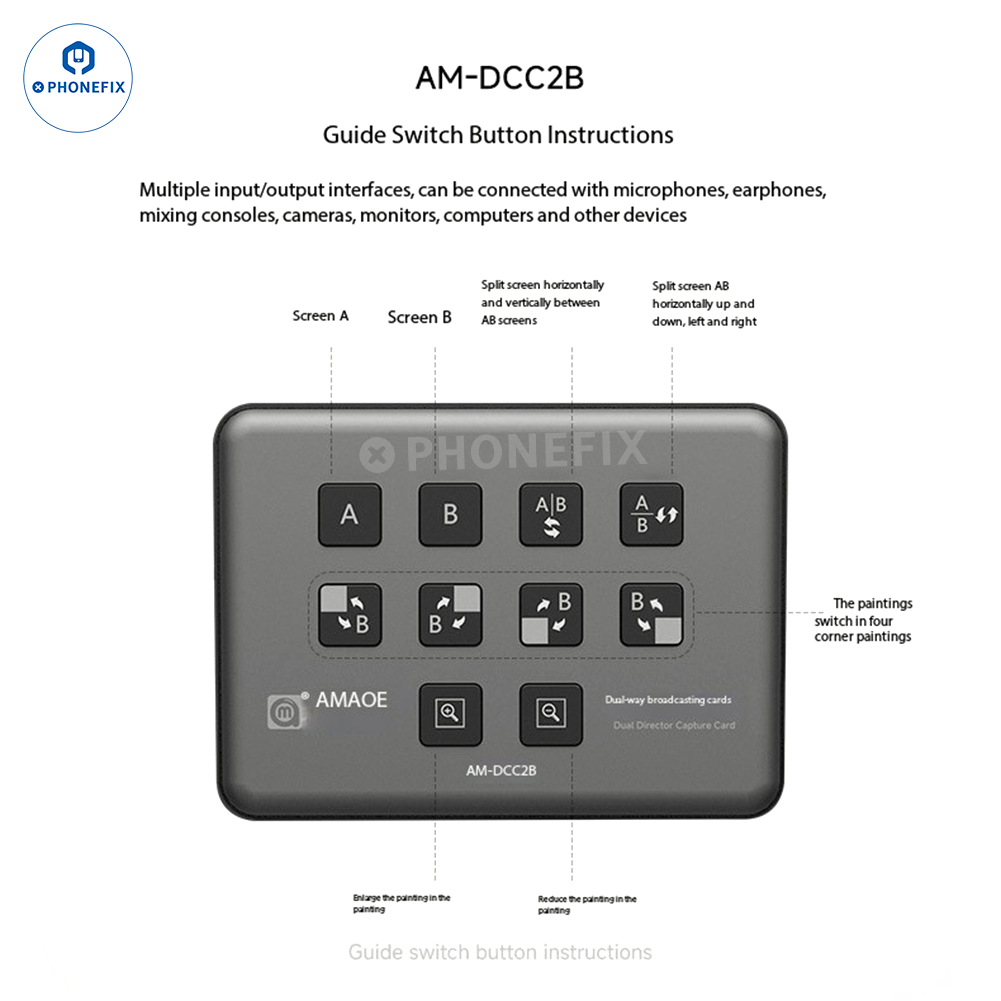

Director mode: Seamless switching between multi-screen live streams with built-in picture-in-picture/multi-screen switching

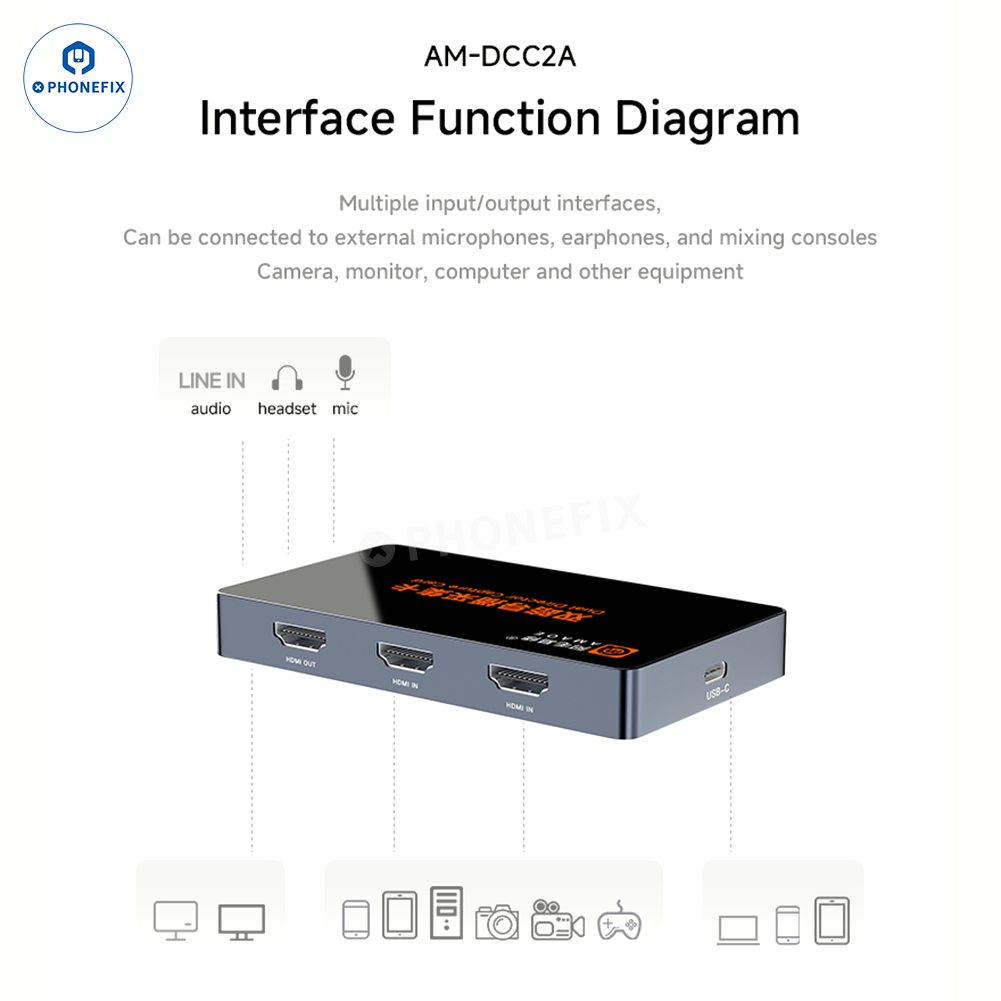

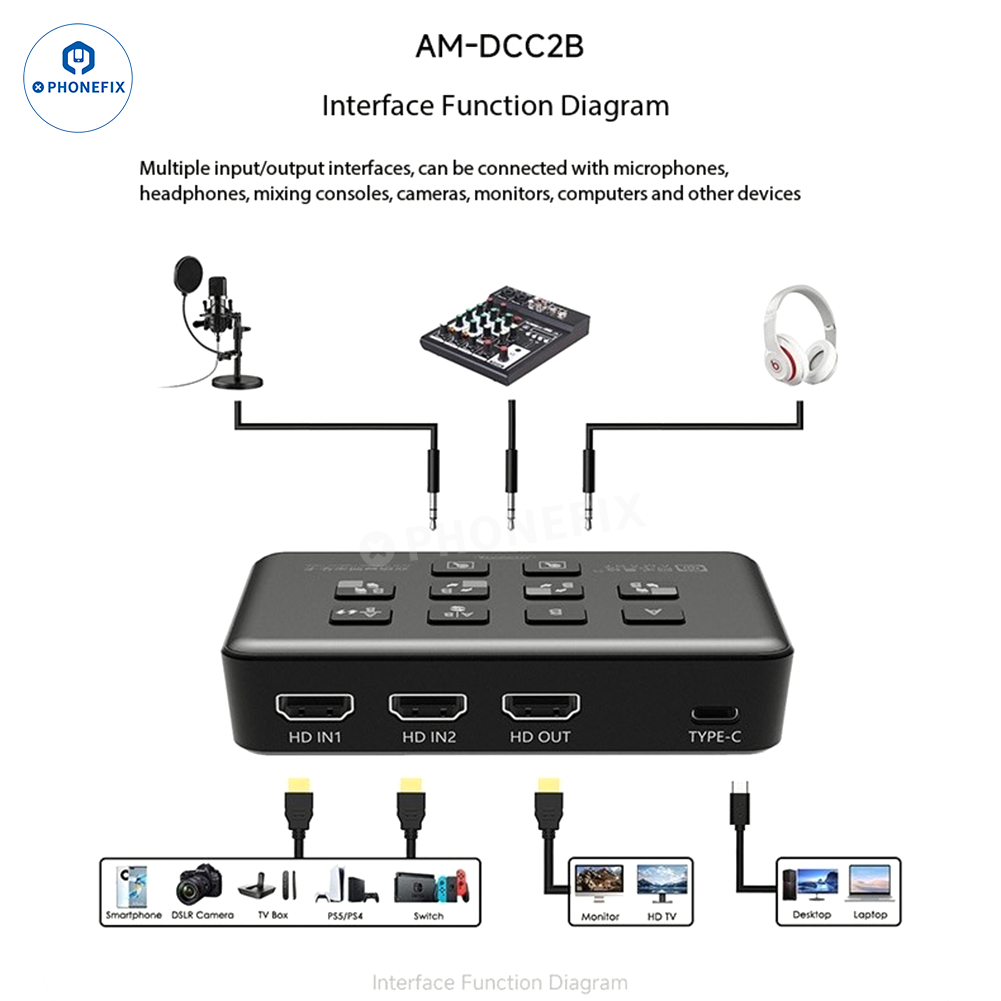

Multiple input/output ports for connecting external devices, including microphones, headsets, mixing consoles, cameras, monitors, and computers
Driver-free operation compatible with Windows, Linux, and Mac OS systems
Input Interfaces: 2 HDMI video inputs, 1 line-in audio input, 1 microphone audio input
Output Interfaces: 1 HDMI video loop-out output, 1 Type-C PC capture output, 1 audio monitoring output
USB 3.0 Capture Video Format: RGB24 6i-near, uncompressed high color, 1080P/60fps, backward compatible; YUY 216-bit, 1080p/60fps, backward compatible
Input Resolutions: 480p, 576p, 720p, 1080p/60, 4K/30fps, 4K/60fps
HDR: Supports HDR capture. Color Depth: Backward compatible
Split-screen mode support: Left-right split, top-bottom split dual-view
Picture-in-picture mode support: Top-left, bottom-left, top-right, bottom-right corners; PIP can be zoomed; dual-view split
HDCP support: Supports Xbox, PS4, PS5, Switch, Blu-ray, etc.
Operating system support: Windows 7/8/8.1/10/11, Linux OS, and Mac OS
Compatible Development Interfaces: DirectShow (Windows) and standard UVC interfaces
Power Consumption: 3.5W
Operating Temperature: 0°C to 70°C
Product Dimensions: 112*82*25mm
Net Weight: 172g
