Amaoe BGA Reballing Stencil EMMC EMCP UFS Positioning Platform

Amaoe Nand BGA reballing stencil pamphlet EMMC / EMCP / UFS positioning platform steel plate for nand rework tool kit, EMMC/EMCP/UFS positioning platform + adjustment steel plate, iPhone baseband CPU NAND BGA reballing tin net stencils with magnetic base positioning fixture, Amaoe EMMC EMCP UFS BGA Reballing Stencil for BGA153 BGA162 BGA169 BGA186 BGA221 BGA254 0.15mm Reballing Jig Platform

EMMC/EMCP/UFS Positioning Platform + Adjustment Steel Plate For BGA153/162/169/ 186/221/254 for Android NAND Rework Tool

Amaoe EMMC EMCP UFS BGA Reballing Platform for BGA153/162/169/186/221/254 NAND Font

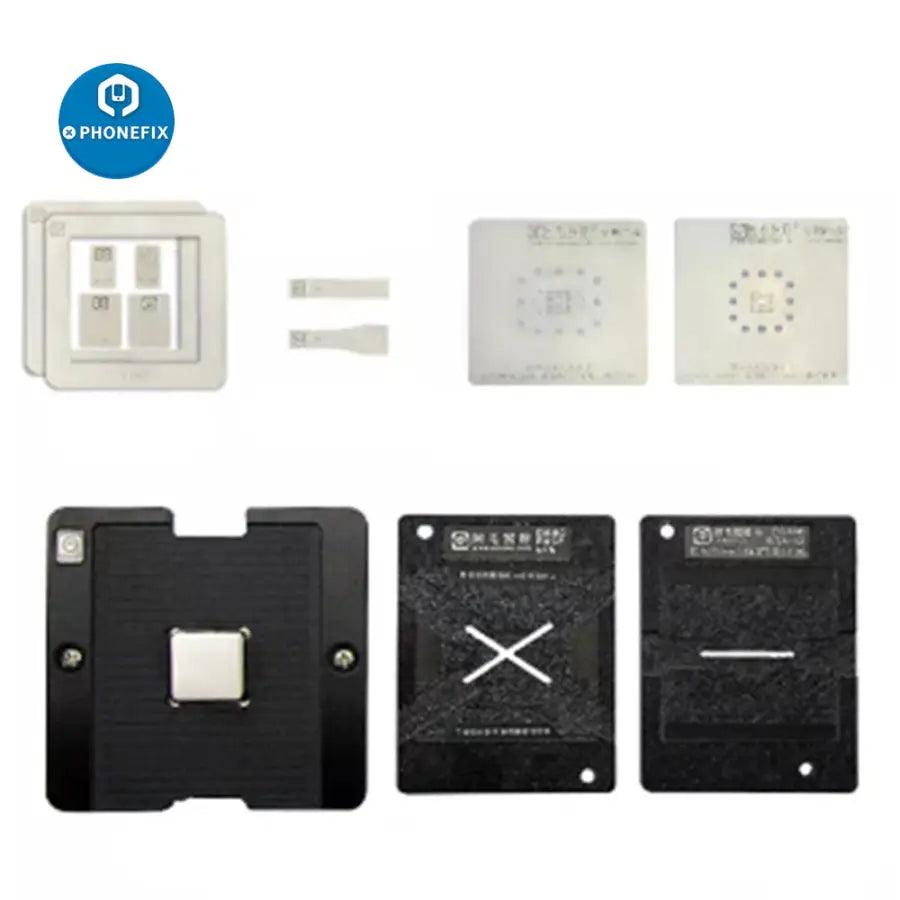

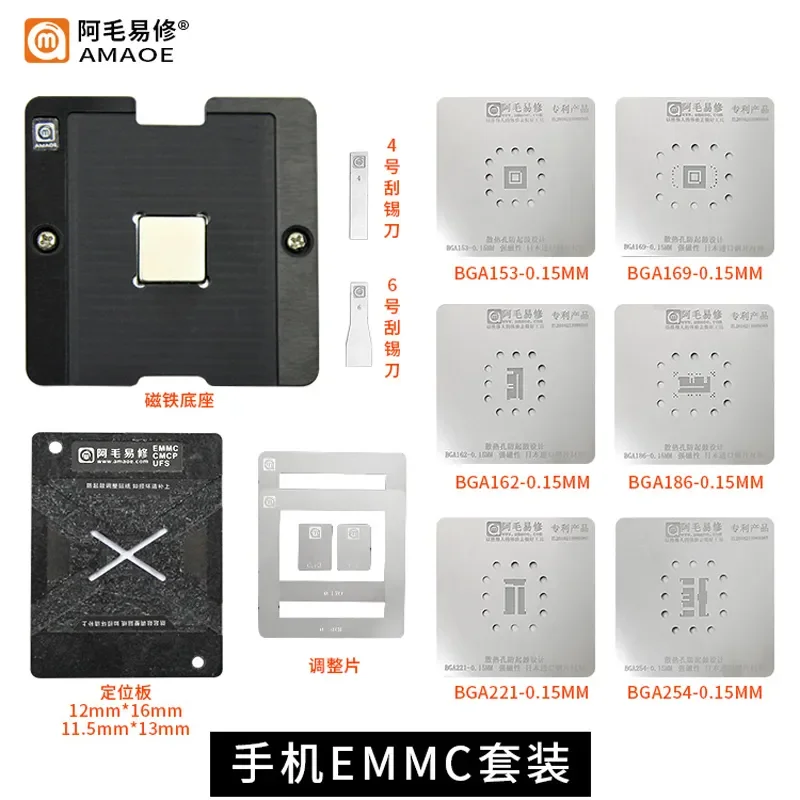

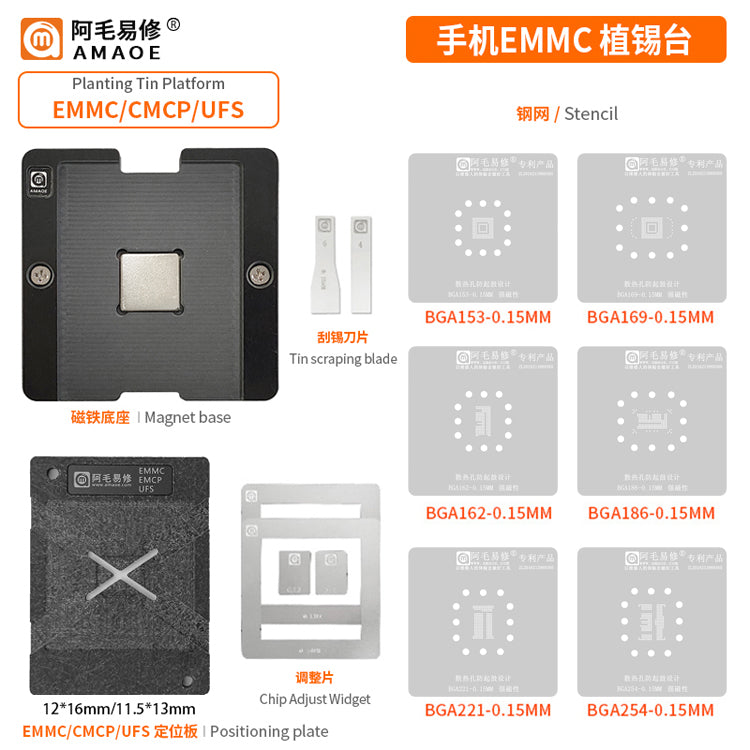

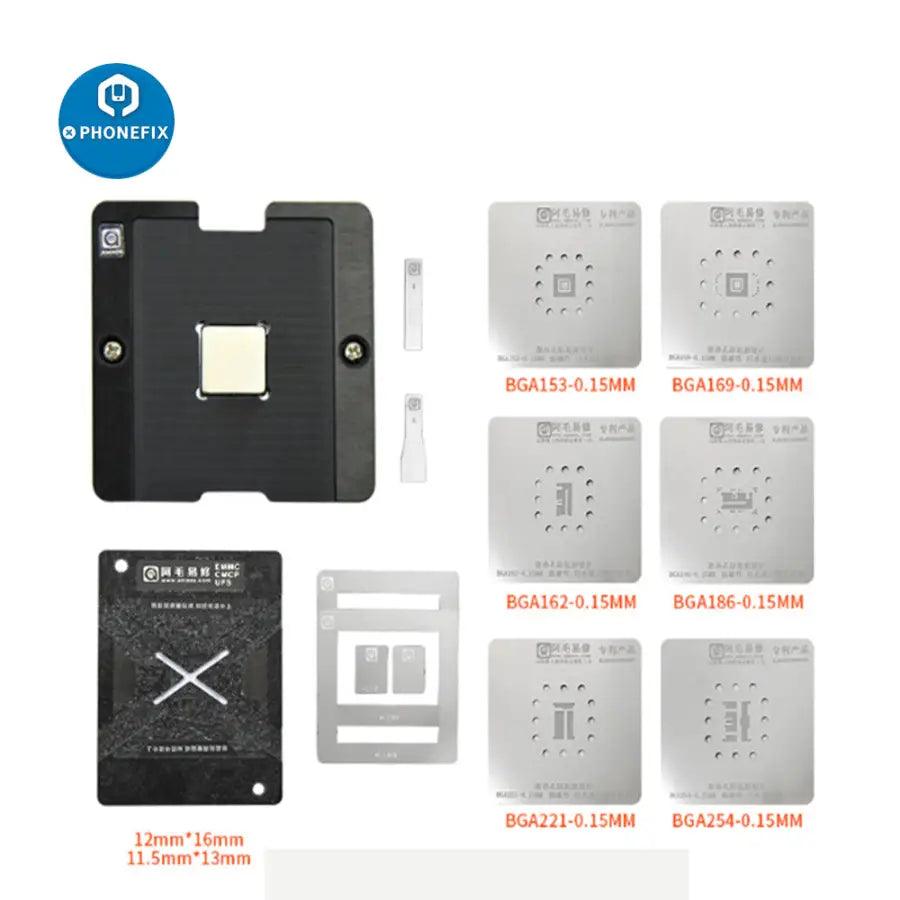

[ Optional Types ] :

• BGA153-0.15mm
• BGA169-0.15mm
• BGA162-0.15mm
• BGA186-0.15mm
• BGA221-0.15mm
• BGA254-0.15mm
• Positioning platform
• Position Kit

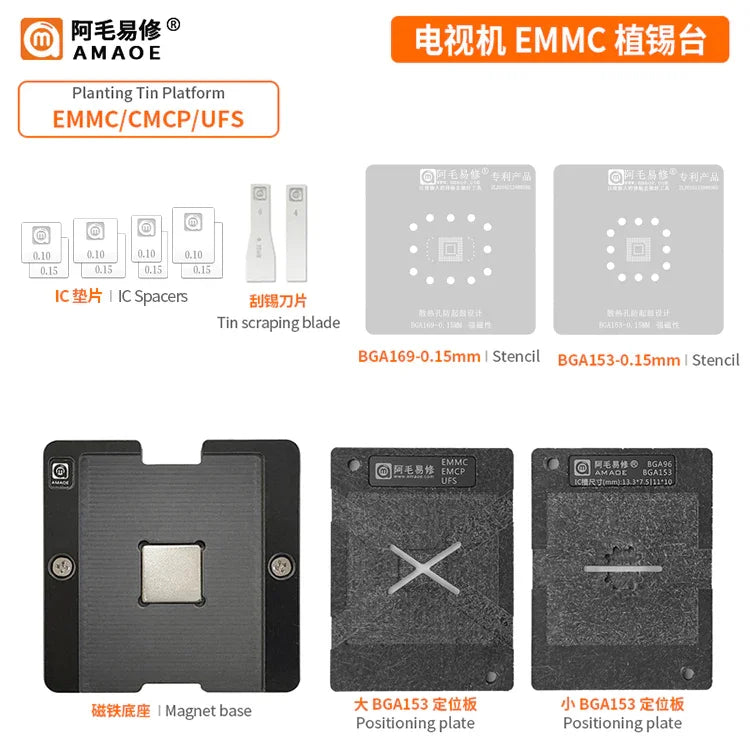

• TV EMMC Set
• Phone EMMC Set

EMMC / EMCP / UFS

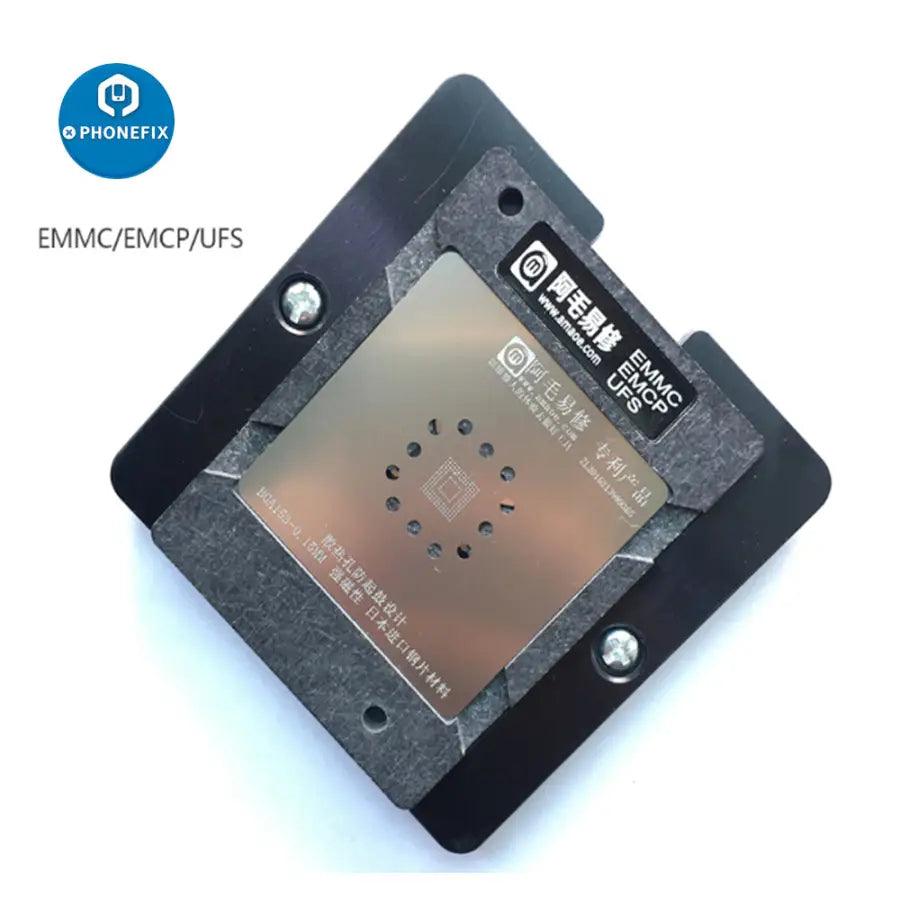

Font library universal positioning plate + adjustment steel mesh

Positioning board data :

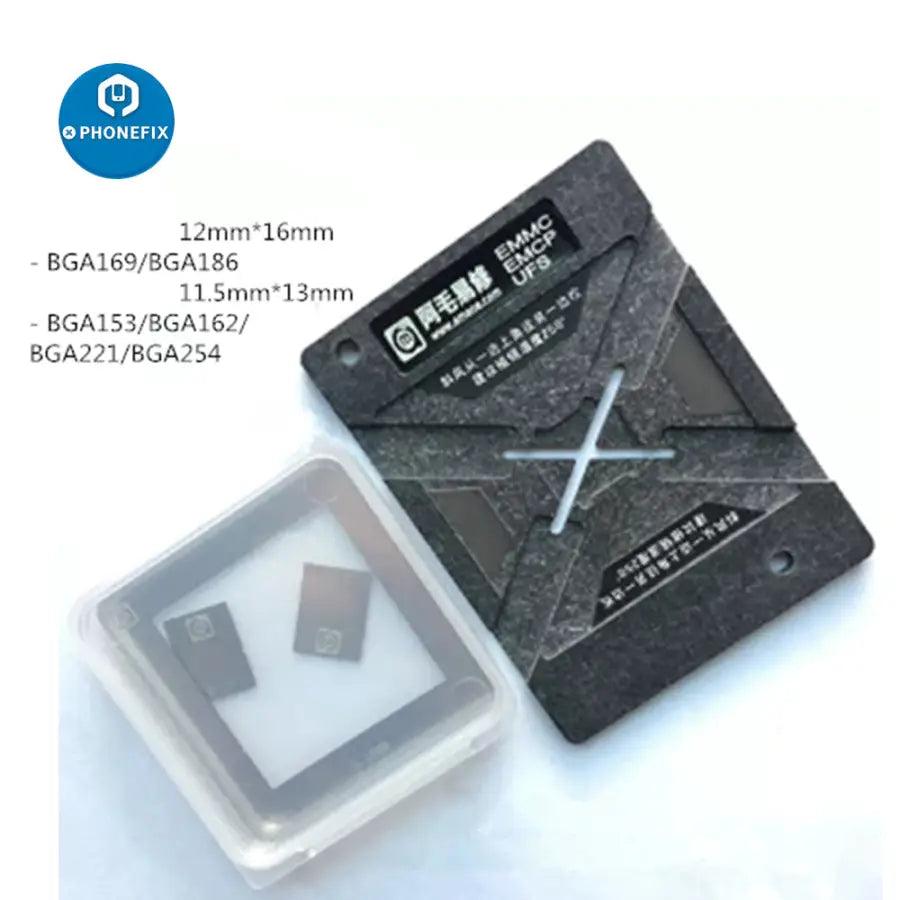

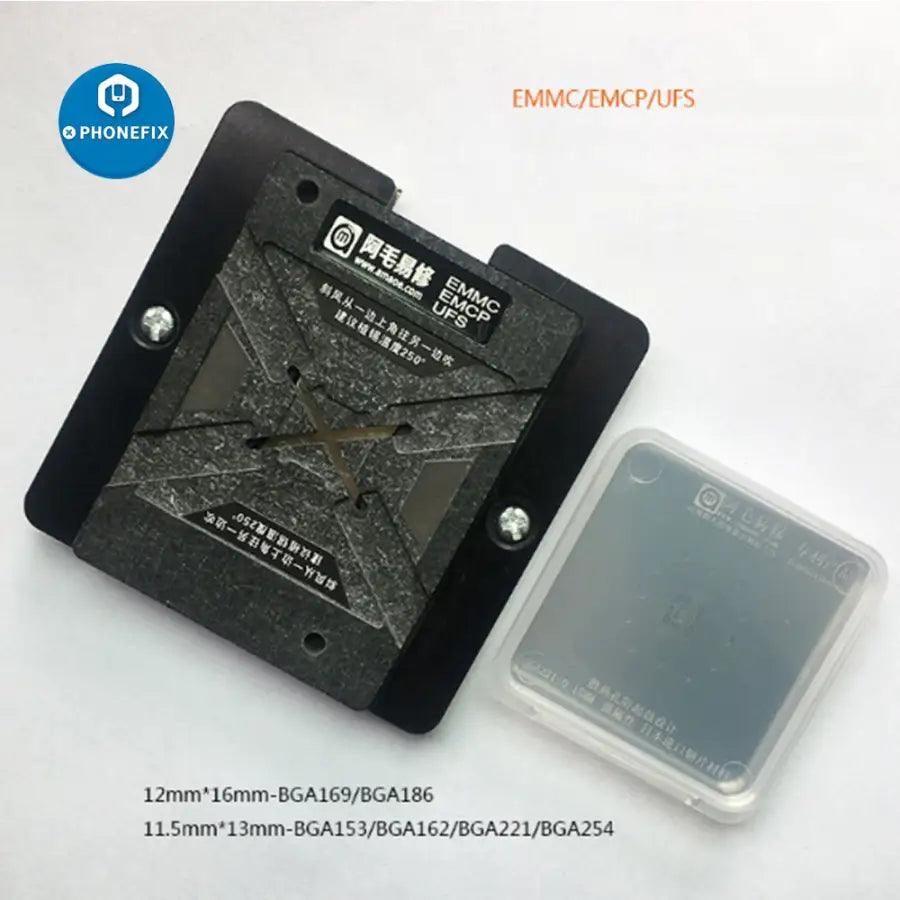

• Horizontal chip slot: 12mm * 16mm (BGA169 / BGA186)
• Vertical chip slot: 11.5mm * 13mm (BGA153 / BGA162 / BGA221 / BGA254)

The positioning plate is matched with the adjustment steel sheet to be compatible with more fonts of different thicknesses, so it need be sold as a set.

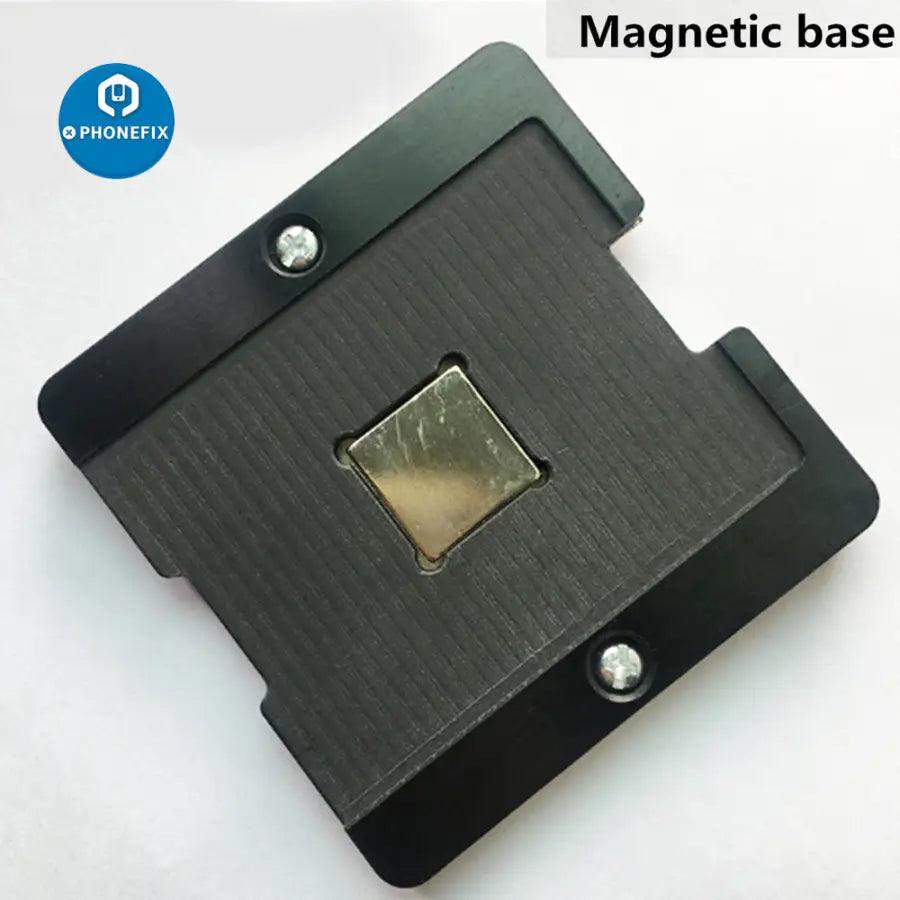

Note : The first purchase requires a matching magnet base. If you already have Amaoe’s magnetic base, you don’t need to buy it again.
