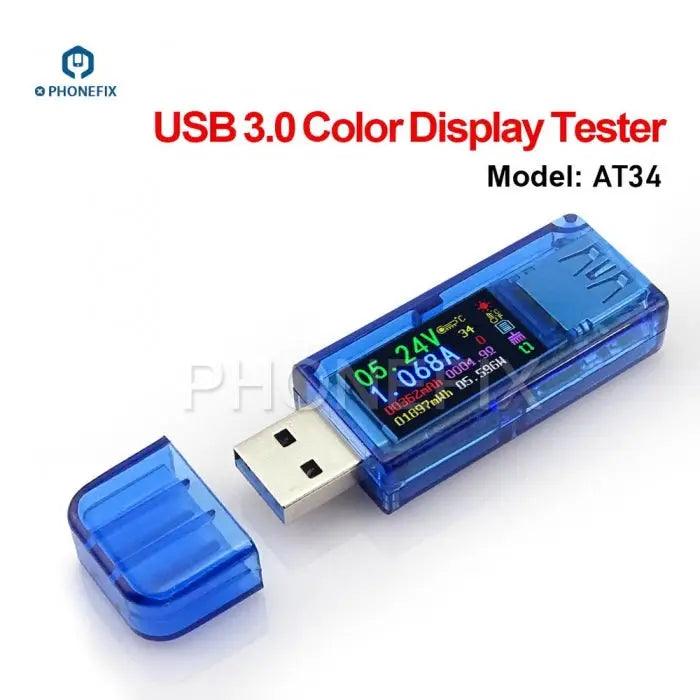

AT34 USB 3.0 Color LCD Display Voltage Current Meter Tester Multimeter USB Tester, Mobile Phone Quick Charger Battery Power Bank Detector Repair Assistant.
Application :
Testers are widely used in the quality inspection of 3C digital peripheral products, and are the first choice for digital gamer and electronic enthusiasts.
Real-time detection of the state of charge of the appliance, voltage, current, power and other indicators at a glance.
Technical Parameter :
- Product Model: AT34

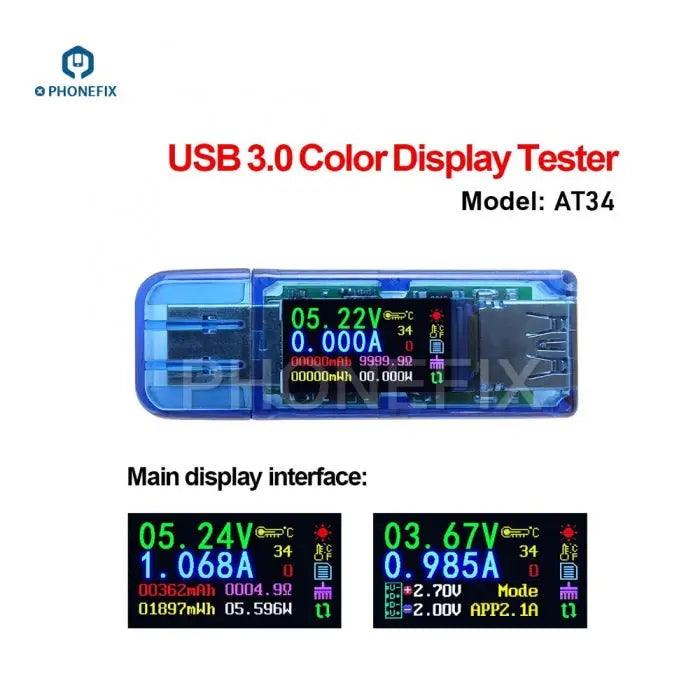

- Display screen: 1.44 Inch color LCD display
- Voltage measurement range: 3.70-30.00V
- Voltage measurement resolution: 0.01V
- Current measurement range: 0-4.000A
- Current measurement resolution: 0.001A
- Capacity accumulation range: 0-99999mAh
- Voltage measurement accuracy: ±(0.8％+4digits under 25℃)
- Energy accumulation range: 0-99999mWh 999.99W
- Current measurement accuracy: ±(1％+4 digits, under 25℃)
- Load impedance range: 1Ω-9999.9Ω
- Power measurement range: 0-120W
- Temperature range: -0℃~80℃/32℉~176℉
- Temperature measurement error: ±3℃/±6℉
- Working temperature range: 0~45℃
- Refresh rate: 2Hz

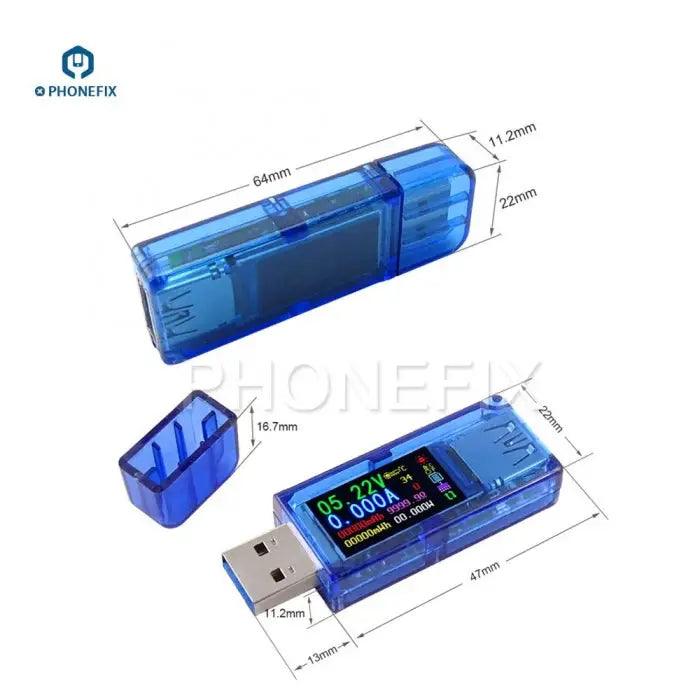

- Product size: 64mm x 22mm x 12mm
- Product weight: 140g( with packaging 280g)
Quick charge recognition mode : QC2.0, QC3.0, APPLE 2.4A / 2.1A / 1A / 0.5A, Android DCP, Samsung
Note :
-
User Manual : http://www.mediafire.com/folder/77ueo252py4vc/AT34
-
Description Video : https://www.youtube.com/watch?v=nkL_pofkd10

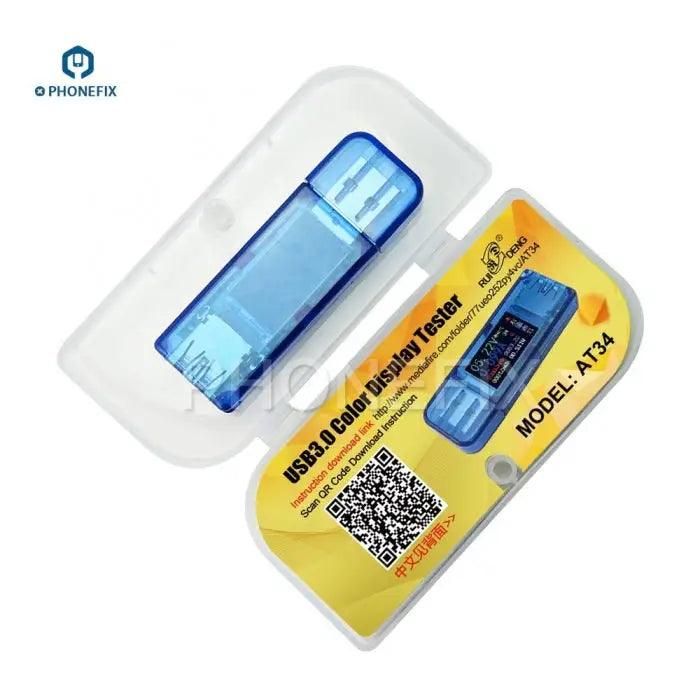

Package List :
- 1 x AT34 USB 3.0 Color LCD USB Tester
