ATTEN GT-1028 (GT-8102A) and ATTEN GT-8100A (GT-8106A) programmable intelligent 1300W Hot Air Gun BGA Rework Station with Digital Display for Mobile Phone/electronic PCB motherboard BGA SMD chip soldering desoldering repair.
Atten GT-1028 Features:

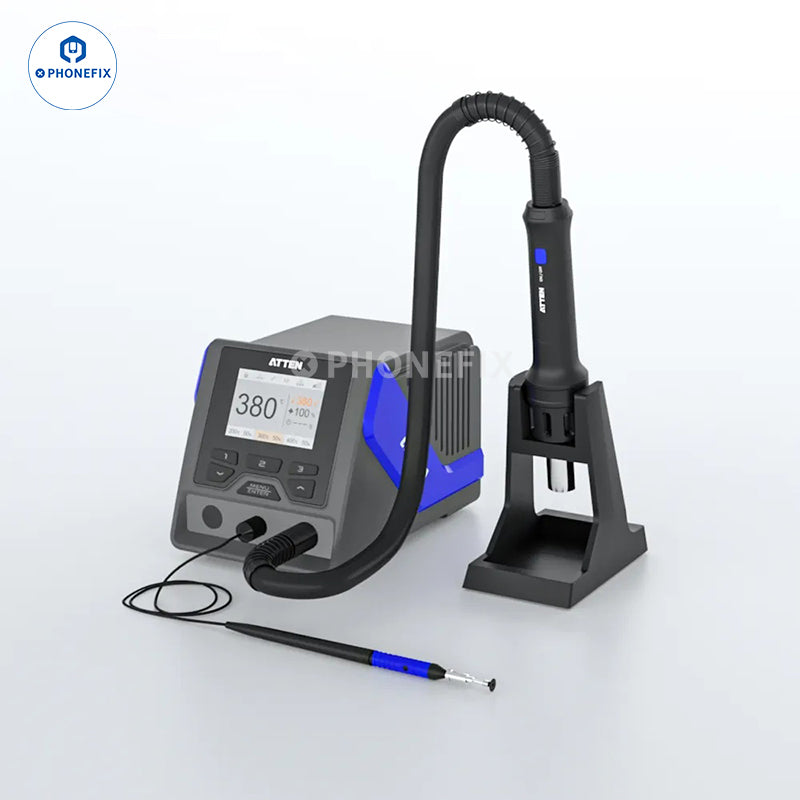

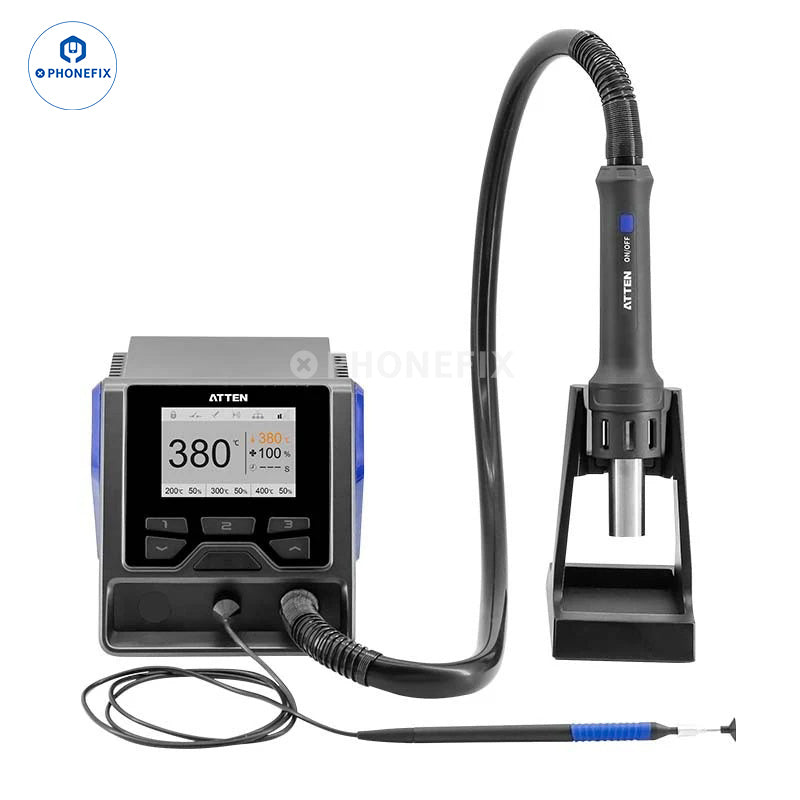

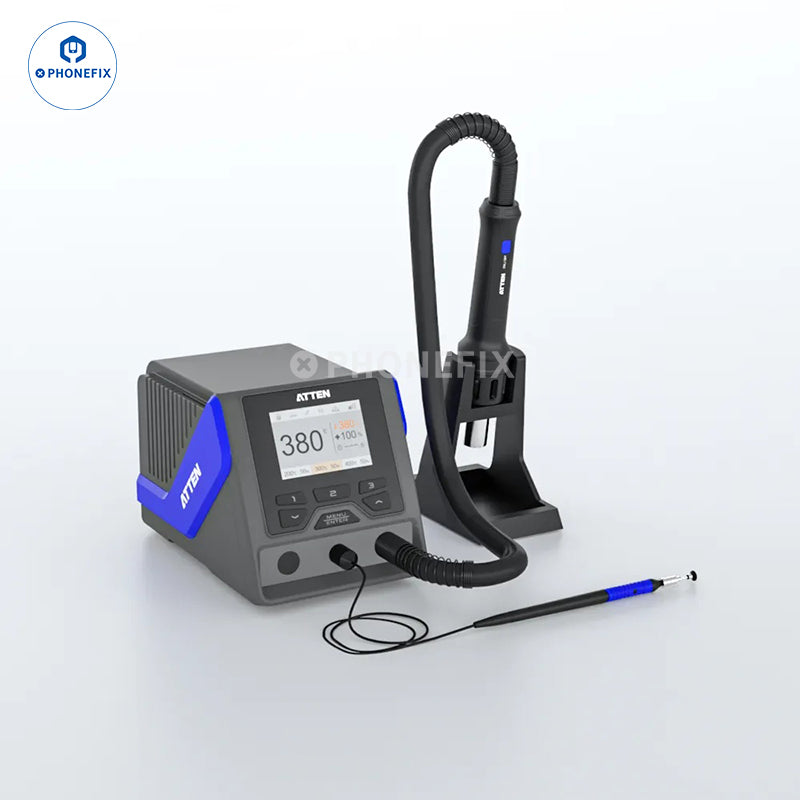

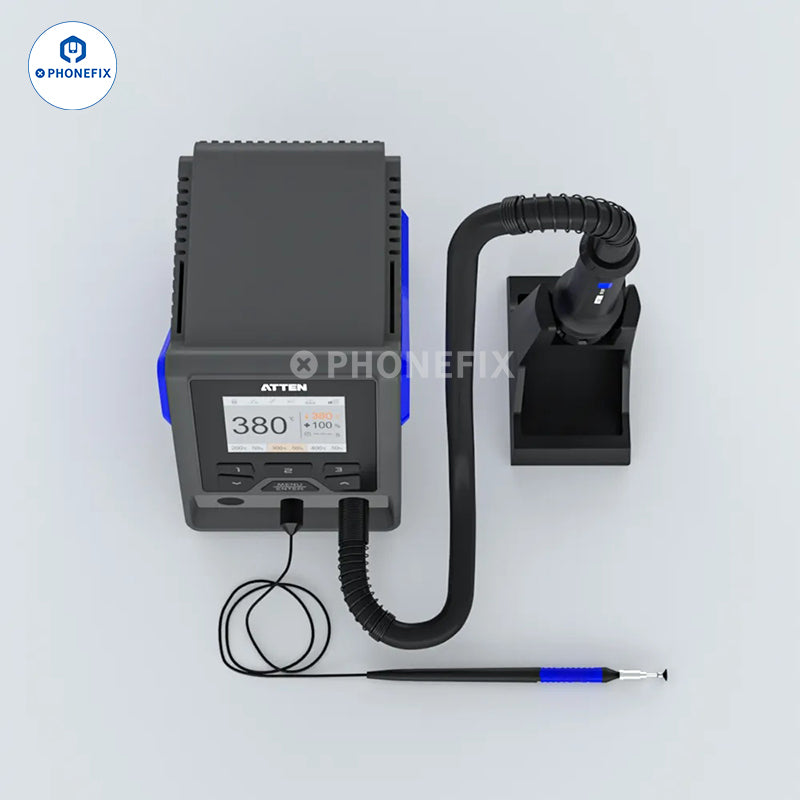

1. Atten GT-1028/GT-8102A 1300W Hot Air Desoldering Station is a professional intelligent rework station with vacuum pick-up tool.
2. 1300W pluggable ceramic heater, heating fast, PID algorithm temperature control, accurate, and stable temperatur.
3. Infrared temperature calibration function,temperature curve setting function.
4. 3 sets of shortcut air volume/temperature to simplify operations, it can be controlled by an external pedal. Built-in RS-485 communication interface, supports Iot functions.
4. Large TFT color screen, more convenient to set and monitor parameters.
5. Components can be extracted after desoldering, built-in brushless fan, long use life, and low noise.
6. Support control the switch on and off of the smoke purifier.

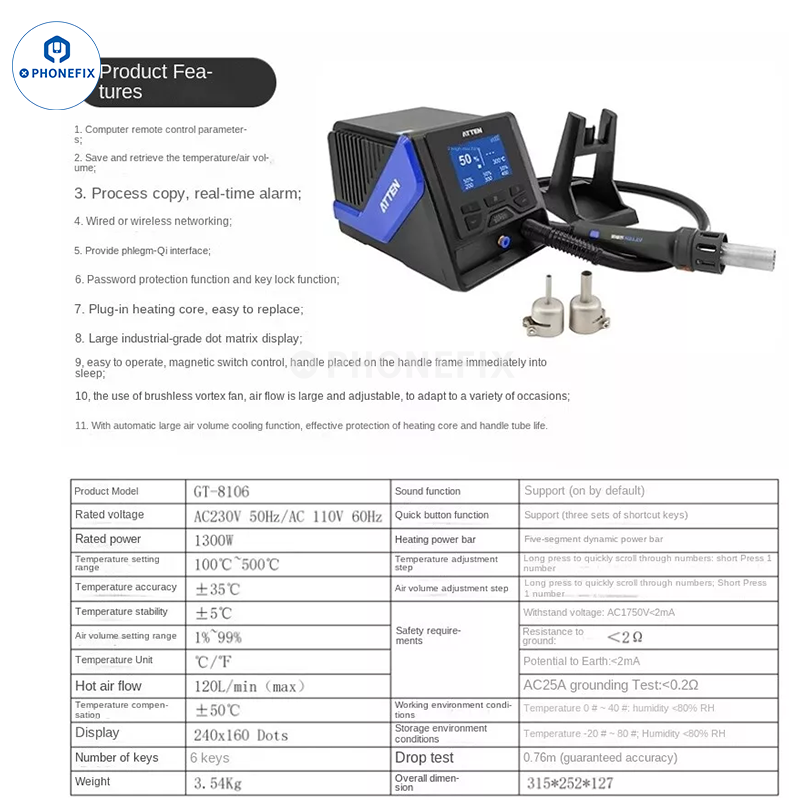

GT-8100A/GT-8106A Features:

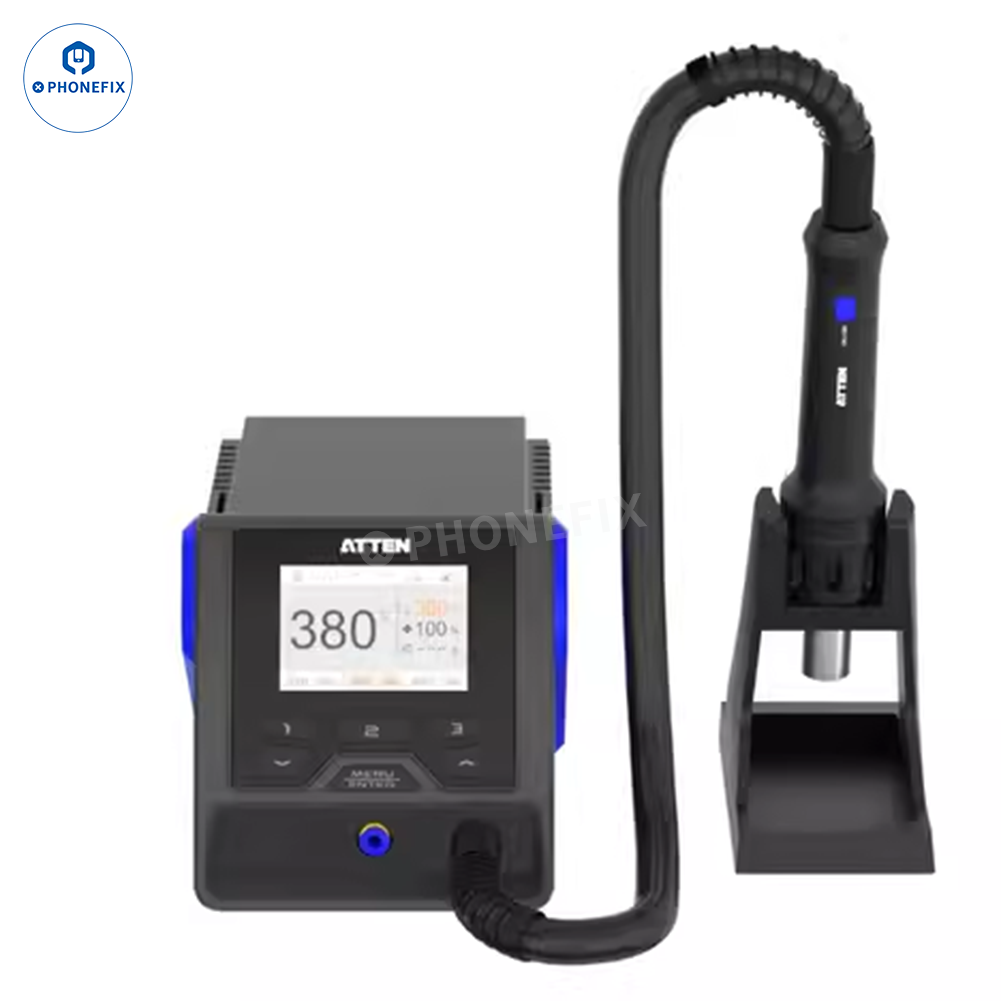

1. ATTEN GT-8100A/GT-8106A 1300W Pluggable Ceramic Heater: Equipped with a 1300W pluggable ceramic heater, this station heats up swiftly, enhancing your work efficiency.
2. Built-in Brushless Fan: Equipped with a long-lasting, low-noise built-in brushless fan, ensuring consistent airflow during operation.
3. Infrared Temperature Calibration Function: Includes an infrared temperature calibration function for accurate temperature readings, vital in precise soldering.
4. PID Algorithm Temperature Control: Features PID algorithm temperature control for precise and stable heating, ensuring optimal soldering conditions.
5. Rapid Heating: rapid heat-up and various features including temperature calibration, 3 button shortcuts, etc.
6. RS485 Communication Interface: With RS485 communication interface, the GT-8100A supports IoT function, enabling remote monitoring and control.

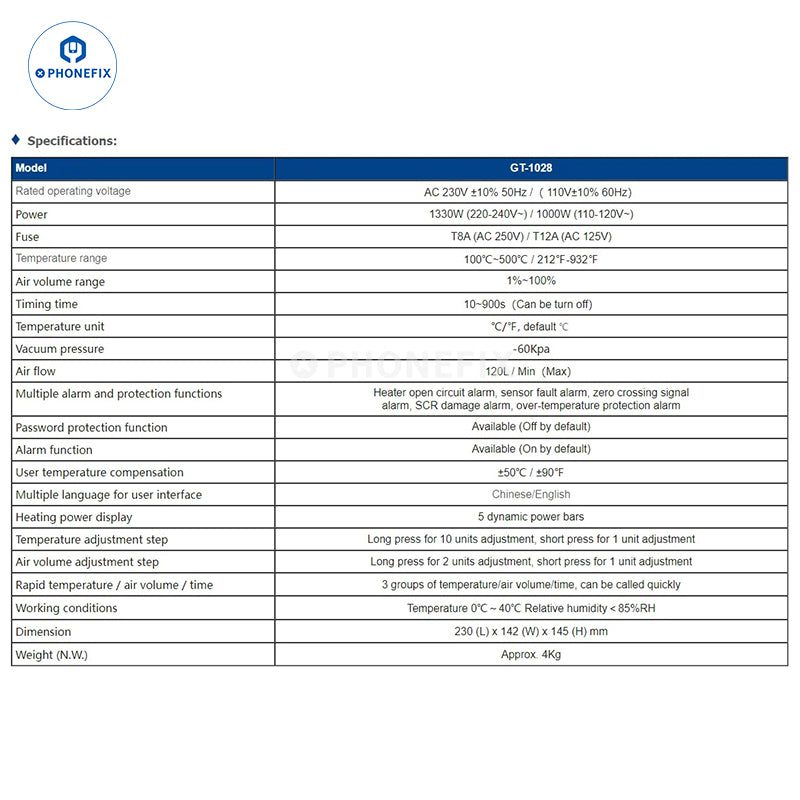

Specification:
Model: Atten GT-1028/GT-8102A.
Rated operating voltage: AC 110V/220V.
Power: 1330W(220-240V)/1000W(110-120V).
Fuse: T8A(AC 250V)/T12A (AC 125V).
Temperature Range: 100℃~500℃/212℉~932℉.
Air Volume Range: 1%~100%.
Timing Time: 10~900s (Can be turned off).
Temperature unit: ℃/℉, default ℃.
Vacuum pressure: -60Kpa.
Airflow: 120L/Min (Max).
Multiple alarm and protection functions: Heater open circuit alarm, sensor fault alarm, zero crossing signal alarm, SCR damage alarm, over-temperature protection alarm.
Password protection function: Available (Off by default).
Alarm function: Available (On by default).
User temperature compensation: ±50℃/±90℉.
Multiple languages for user interface: Chinese/English.
Heating power display: 5 dynamic power bars.
Temperature adjustment step: Long press for 10 units adjustment, short press for 1 unit adjustment.
Air volume adjustment step: Long press for 2 units adjustment, short press for 1 unit adjustment.
Rapid temperature air volume time: 3 groups of temperature/air volume/time, can be called quickly.
Working conditions: Temperature 0℃~40℃; Relative humidity<85%RH.
Dimension: 230*142*145mm.
