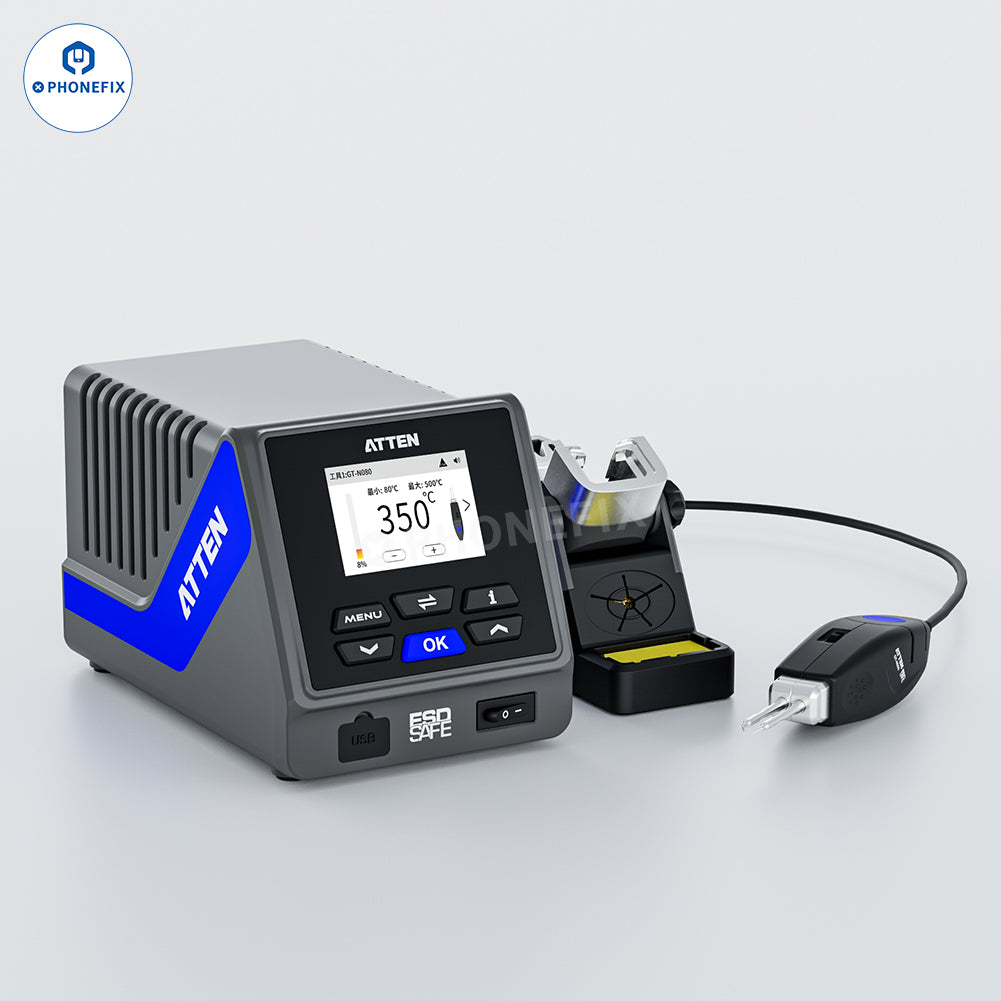

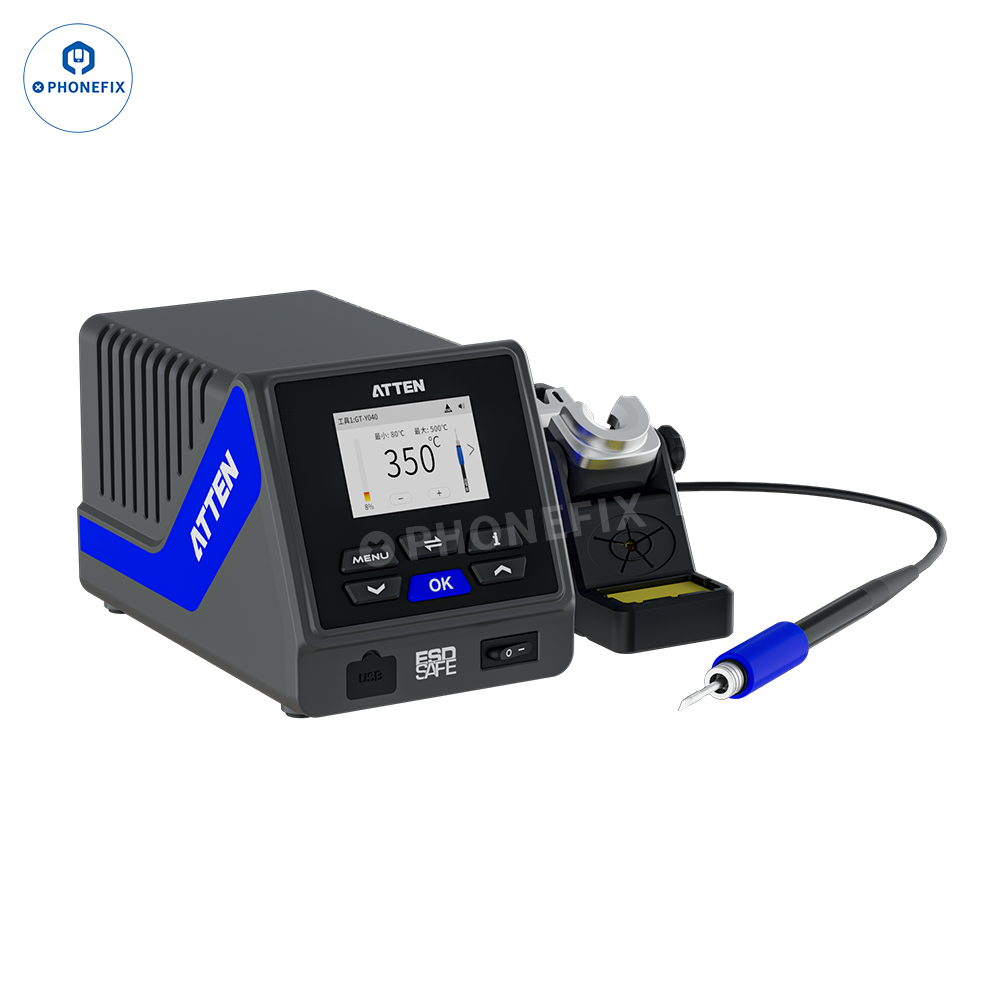

Atten GT-6090 High-Precision Soldering Station features a large TFT color screen with an intuitive and clear interface, displaying real-time temperature and power curves. It supports RS-485 and USB communication interfaces and allows for parameter configuration and data management via host computer software. It is suitable for intelligent repair workstations and industrial-grade welding applications.

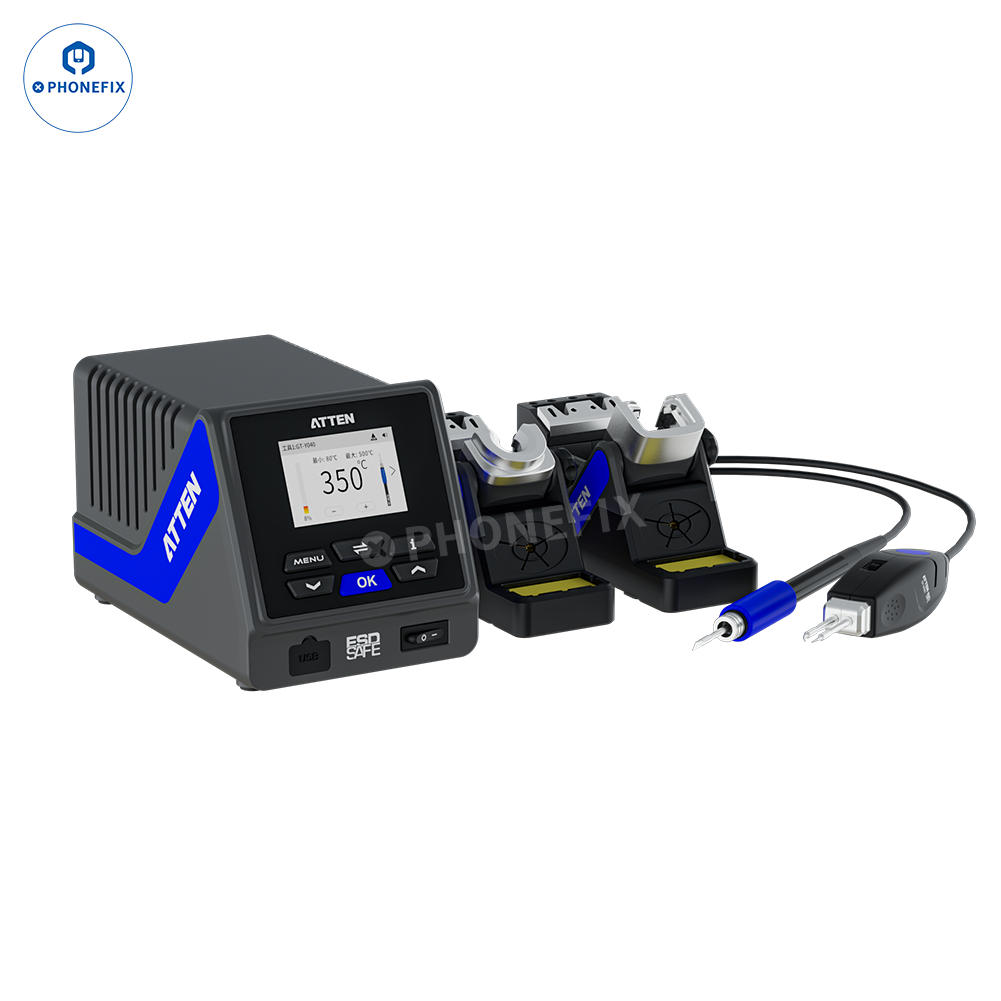

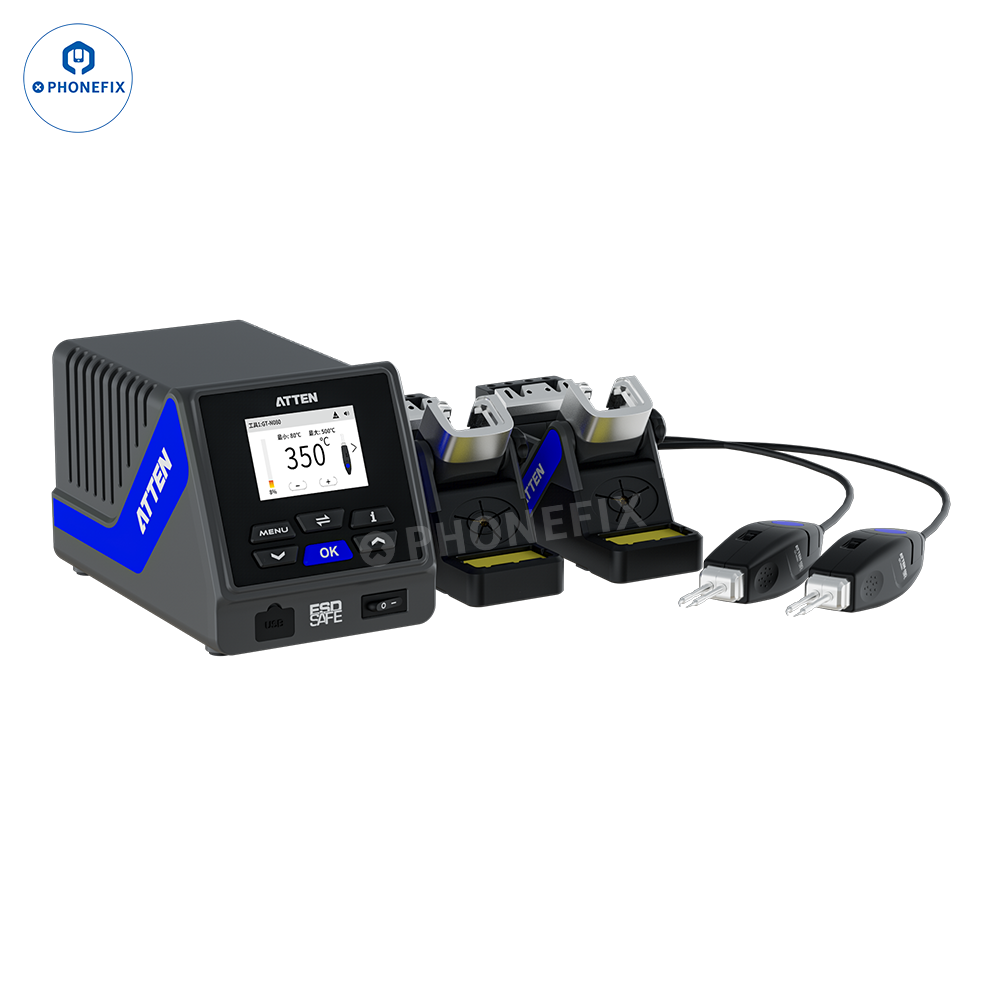

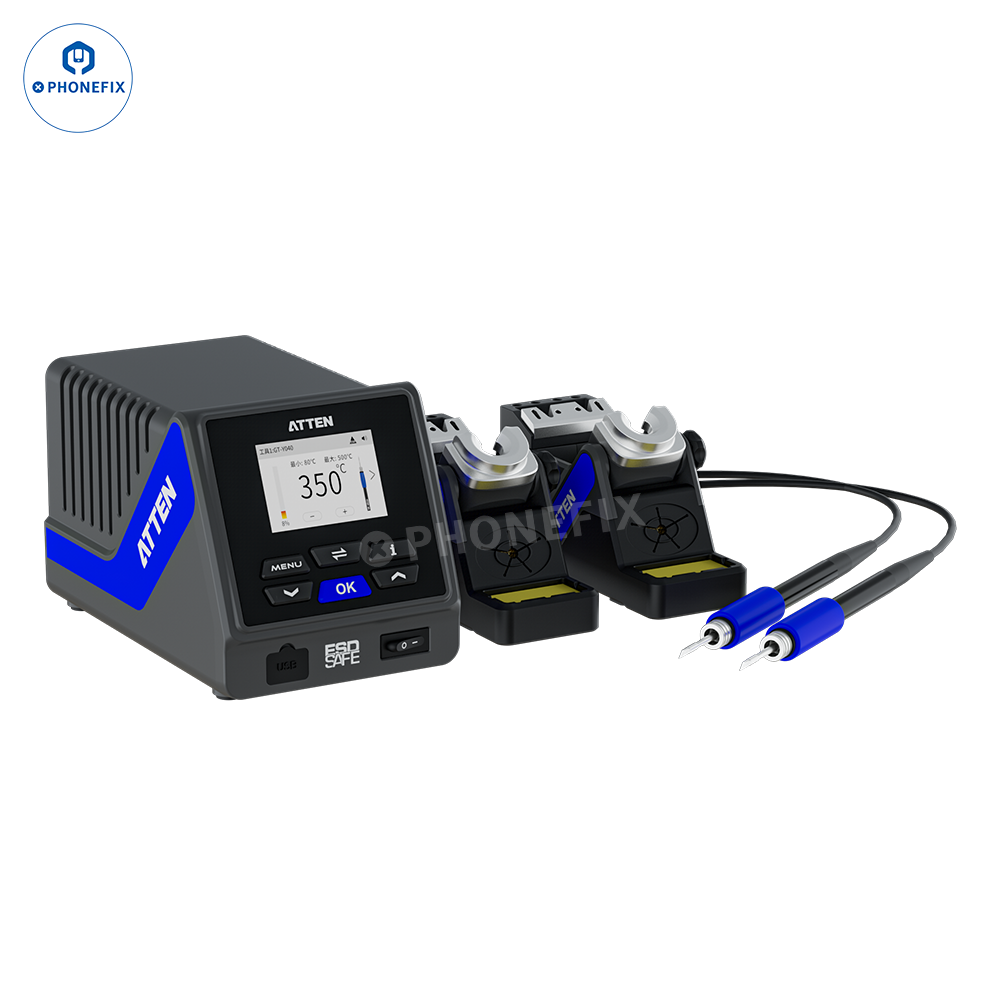

Atten GT-6120 High-Precision Soldering Station supports simultaneous operation of two tools, significantly improving repair efficiency. It also features a large TFT color screen with graphical data display, allowing real-time viewing of welding temperature and power curves. It is suitable for complex motherboard repair, dual-station operations, and professional repair centers.
Option
1. GT-6090A
2. GT-6090B
3. GT-6120A
4. GT-6120B
5. GT-6120C
GT-6090 Feature
1. The GT-6090 adopts a single-channel design, suitable for precision welding operations. Its precise and stable temperature control meets the needs of mobile phone repair, chip repair, and precision electronic welding.
2. Equipped with a high-definition TFT display screen, the graphical interface is more intuitive, allowing real-time viewing of operating status such as temperature and power, making operation more efficient.
3. The equipment can automatically identify the welding nozzle model and upload the corresponding parameters, reducing manual setting steps and improving work efficiency and welding consistency.
4. Supports real-time monitoring of the current tool temperature and power curves, helping users accurately grasp the welding process and improve repair success rate.
5. Built-in RS-485 and USB communication interfaces allow connection to host computer software for parameter setting, data management, and intelligent control.
6. The welding nozzle's resistance to ground is ≤2Ω, and its potential to ground is ≤2mV, effectively reducing damage to precision components caused by static electricity.
GT-6120 Feature
1. The GT-6120 adopts a dual-channel design, allowing simultaneous connection of two welding tools, suitable for high-efficiency repair and multi-tasking welding scenarios.
2. The overall power is increased to 130W, resulting in faster heating and stronger temperature recovery, suitable for high-load continuous welding operations.
3. It uses a high-definition TFT graphic display interface, enabling real-time monitoring of temperature, power, and operating status, making operation more intuitive
4. It automatically identifies the welding nozzle and synchronously uploads parameters, reducing manual setting time and improving welding stability.
5. It supports real-time acquisition of temperature and power curves, helping maintenance personnel to accurately control the welding status.
6. It can be connected to host computer software to achieve parameter management, device networking, and intelligent control.
7. The welding nozzle's resistance to ground is ≤2Ω, and its potential to ground is ≤2mV, effectively protecting precision chips and electronic components.
GT-6090 product parameters
Model (Host): GT-6090
Power: 90W
Input voltage: AC 220V-240V~ 50Hz/60Hz / AC 110V-120V~ 60Hz
Tool Channel: Single Channel
Temperature range: 80°C~500°C / 176°F~932°F
User temperature compensation: ±50°C / ±90°F
IoT Function: RS485
Tip to Ground Resistance: ≤2Ω
Tip-to-ground Potential: ≤2mV
Dimensions: 105(L) x 170(W) x 110(H) mm
Product weight(Host): ≈2.4kg
GT-6120 product parameters
Model (Host): GT-6120
Power: 130W
Input voltage: AC 220V-240V~ 50Hz/60Hz / AC 110V-120V~ 60Hz
Tool Channel: Dual-Channel
Temperature range: 80°C~500°C / 176°F~932°F
User temperature compensation: ±50°C / ±90°F
IoT Function: RS485
Tip to Ground Resistance: ≤2Ω
Tip-to-ground Potential: ≤2mV
Dimensions: 105(L) x 170(W) x 110(H) mm
Product weight(Host): ≈2.4kg
