Atten GT-6301 Medium Power Soldering Station is a single-channel, high-stability soldering station that balances high precision, intelligent recognition, and multi-station efficiency optimization. It features a TFT high-definition graphical interface, supports real-time monitoring of soldering temperature and power curves, and has an automatic soldering tool recognition function. Combined with RS-485/USB communication interfaces, it is suitable for precision repair and standard repair workstations.
Atten GT-6302 Medium Power Soldering Station is a dual-channel, high-power flagship version that supports simultaneous operation of two tools, significantly improving repair efficiency. It also features a TFT high-definition graphical interface, supports real-time monitoring of soldering temperature and power curves, and has an automatic soldering tool recognition function. Combined with RS-485/USB communication interfaces, it is suitable for complex motherboard repair and professional repair centers.
Atten GT-6301 Feature
1. Large TFT screen with graphical display of temperature, power, and operating status for intuitive and clear operation.
2. Automatically identifies soldering tools and uploads corresponding parameters, reducing manual settings and improving work efficiency.
3. Allows real-time viewing of soldering tool temperature and power curves, enabling precise heat output control, preventing overheating damage to components, and improving repair success rates.
4. 150W medium-power design balances stability and heating efficiency, suitable for various electronic repair scenarios.
5. Supports RS-485 and USB interfaces, allowing connection to host computer software for parameter setting and device management.
Atten GT-6302 Feature
1. Supports simultaneous operation of two tools, significantly improving repair efficiency and suitable for high-frequency repair scenarios.
2. Enhanced heating capacity and rapid temperature recovery capability, suitable for complex soldering and continuous operation.
3. Supports real-time monitoring of tool temperature and power curve changes, making the soldering process fully visible, precisely controlling thermal shock, and improving the success rate of BGA and IC repairs.
4. Automatically identifies soldering station tools and synchronizes parameter configuration, reducing operation steps.
5. Supports multiple tool combinations including soldering irons, desoldering guns, and tweezers, adaptable to different repair station needs.
6. Supports host computer control and data management, suitable for standardized repair shops and training systems.
Option
1.GT-6301A
2.GT-6301B
3.GT-6301C
3.GT-6302A
4.GT-6302B
5.GT-6302C
Product parameters
Model (Host): GT-6301
Power: 150W
Input voltage: AC 220V-240V~ 50Hz/60Hz / AC 110V-120V~ 60Hz
Tool Channel: Single Channel
Temperature range: 80°C~500°C / 176°F~932°F
User temperature compensation: ±50°C / ±90°F
IoT Function: RS485
Tip to Ground Resistance: ≤2Ω
Tip-to-ground Potential: ≤2mV
Dimensions: 230(L) x 142(W) x 145(H) mm
Product weight(Host): ≈4.5kg
Model (Host): GT-6302
Power: 260W
Input voltage: AC 220V-240V~ 50Hz/60Hz / AC 110V-120V~ 60Hz
Tool Channel: Dual-Channel
Temperature range: 80°C~500°C / 176°F~932°F
User temperature compensation: ±50°C / ±90°F
IoT Function: RS485
Tip to Ground Resistance: ≤2Ω
Tip-to-ground Potential: ≤2mV
Dimensions: 105(L) x 170(W) x 110(H) mm
Product weight (Host): ≈2.4kg
Product list

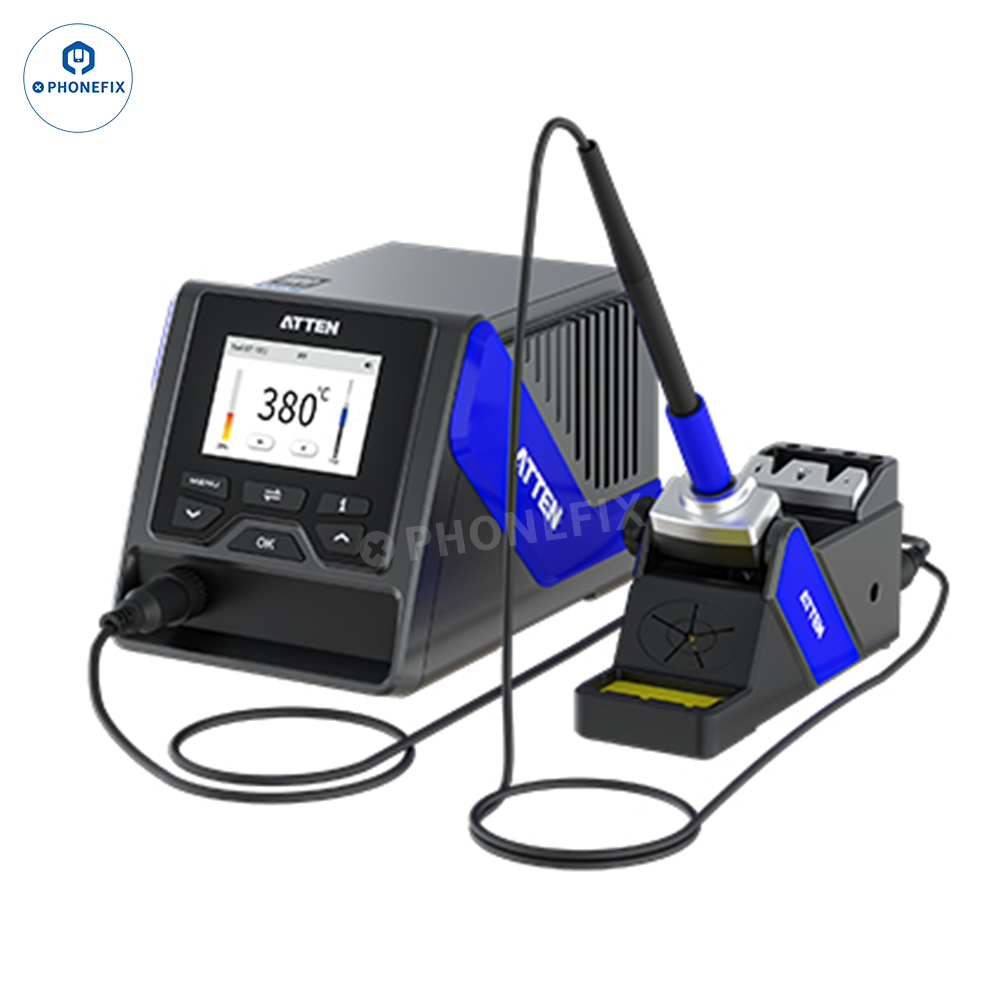

GT-6301A contains components:
GT-6301 Host x1
S-28 Soldering Iron Stand x1
GT-Y151 Soldering Iron Handle x1

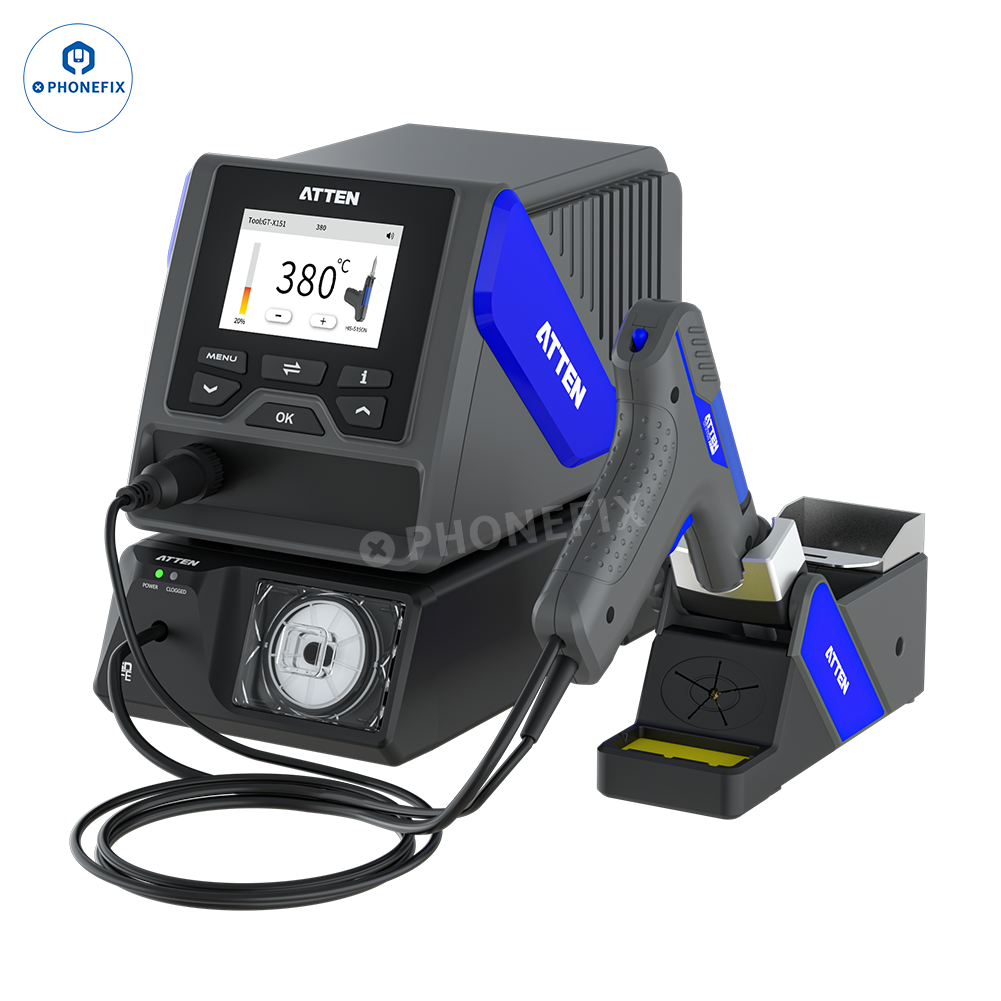

GT-6301B Includes:
GT-6301 Host x1
S-21 Soldering Iron Stand/with Desoldering Pump x1
GT-X151 Gun-type/Desoldering Pump Handle x1
GT-6301C Includes:
GT-6301 Host x1
S-27 Soldering Iron Stand x1
GT-N080 Soldering Iron Handle x1

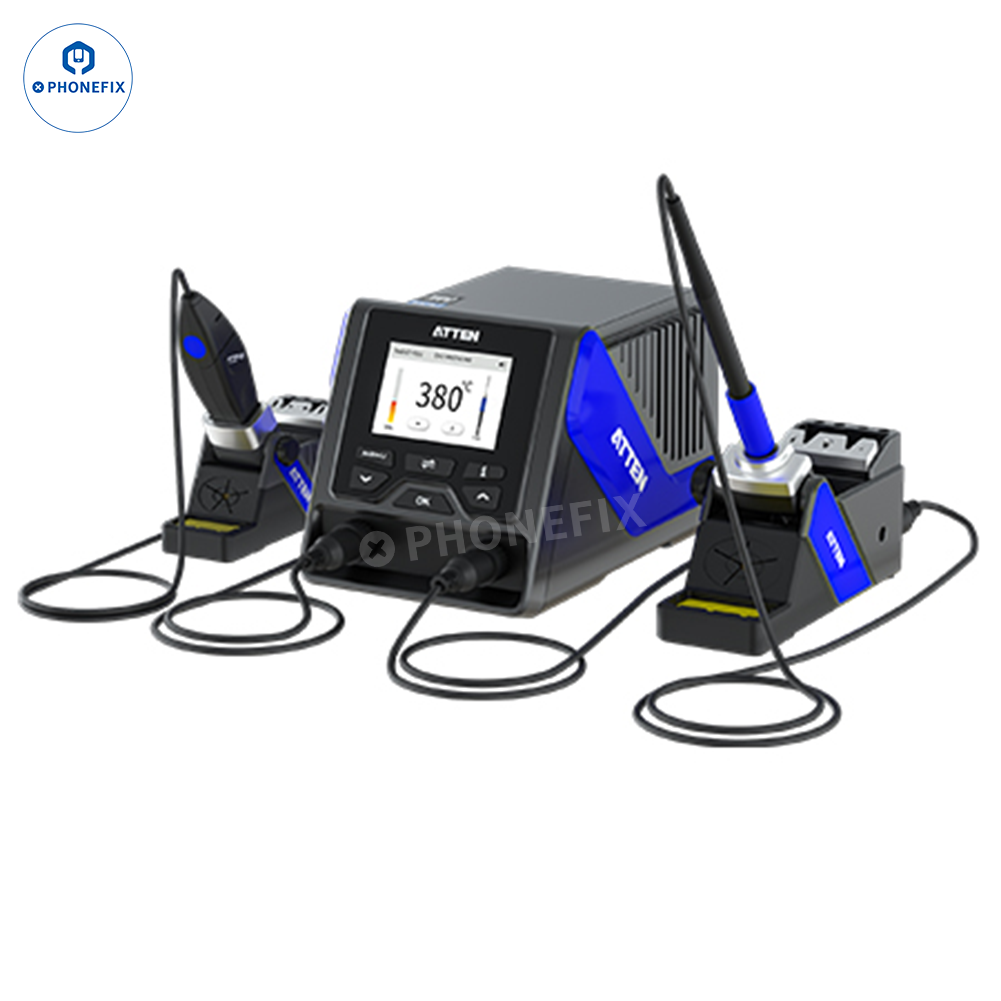

GT-6302A Includes:
GT-6302 Host Dual-Channel Host x1
S-28 Standard Lightweight Soldering Iron Stand x1
GT-Y151 High-Power Large Soldering Iron Handle x1
S-27 Miniature Soldering Iron/Tweezers Stand x1
GT-N080 Precision Soldering Tweezers Handle x1

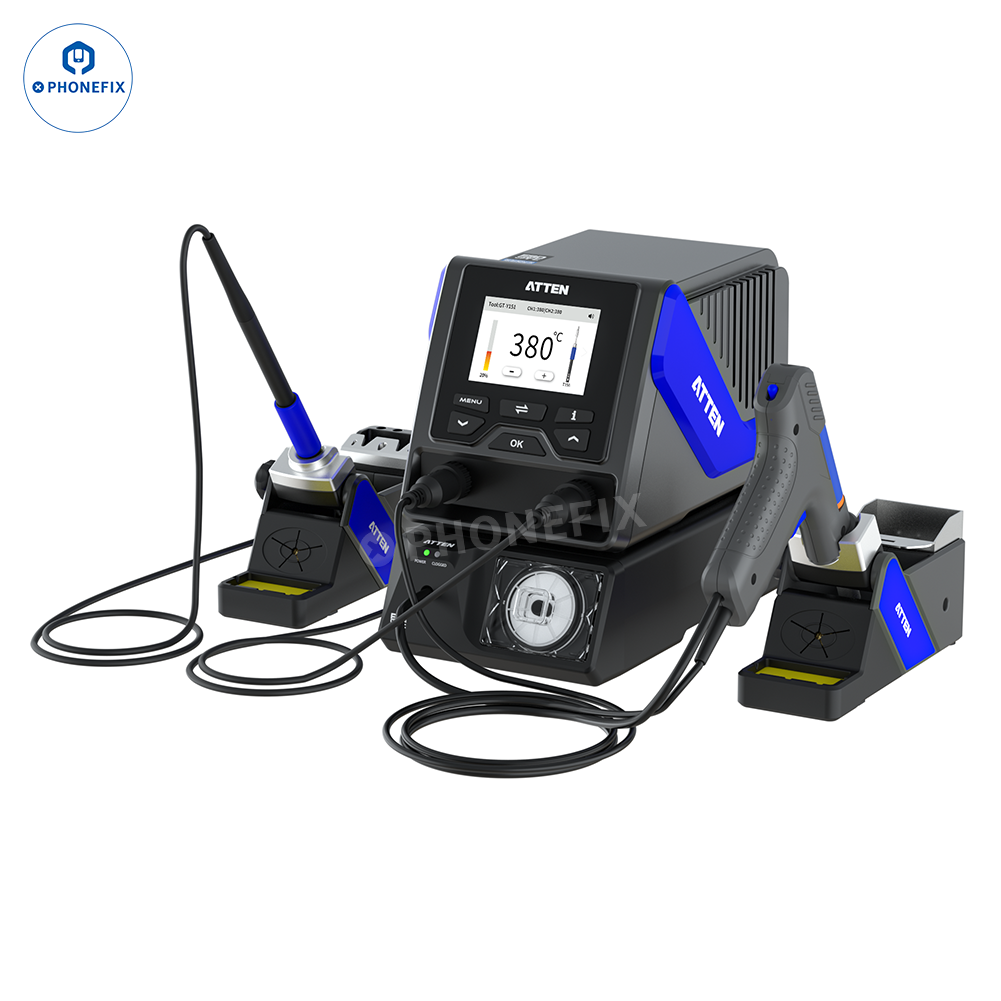

GT-6302B (Desoldering Pump + High-Power Soldering Iron Combination)
GT-6302 Host Dual-Channel Host x1
S-21 Integrated Desoldering Pump Stand with Soldering Gun Holder x1
GT-X151 Desoldering Gun Handle x1
S-28 Standard Lightweight Soldering Iron Stand x1 GT-Y151 High-Power Large Soldering Iron Handle x1

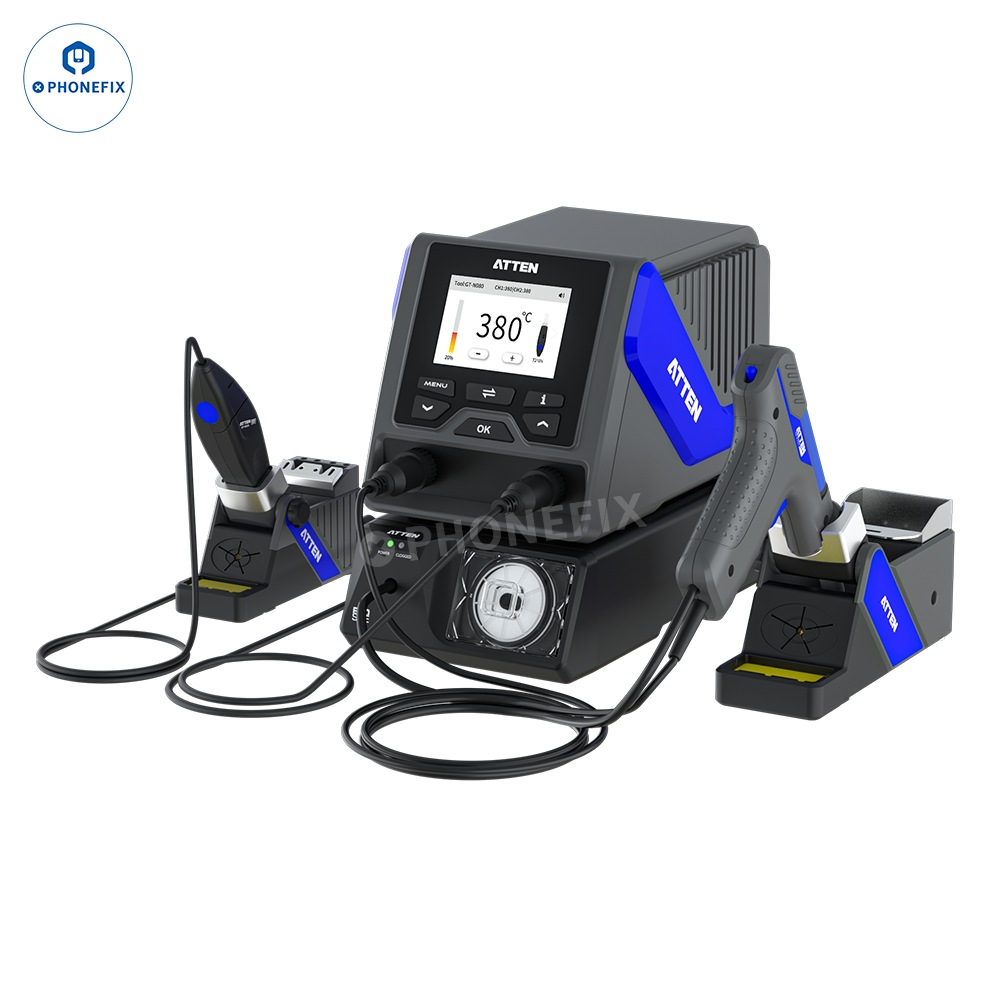

GT-6302C (Desoldering Gun + Precision Tweezers Combination)
GT-6302 Host Dual-Channel Main Unit x1
S-21 Integrated Desoldering Pump Stand with Soldering Gun Holder x1 GT-X151 Desoldering Gun Handle x1
S-27 Miniature Soldering Iron/Tweezers Stand x1
GT-N080 Precision Soldering Tweezers Handle x1
