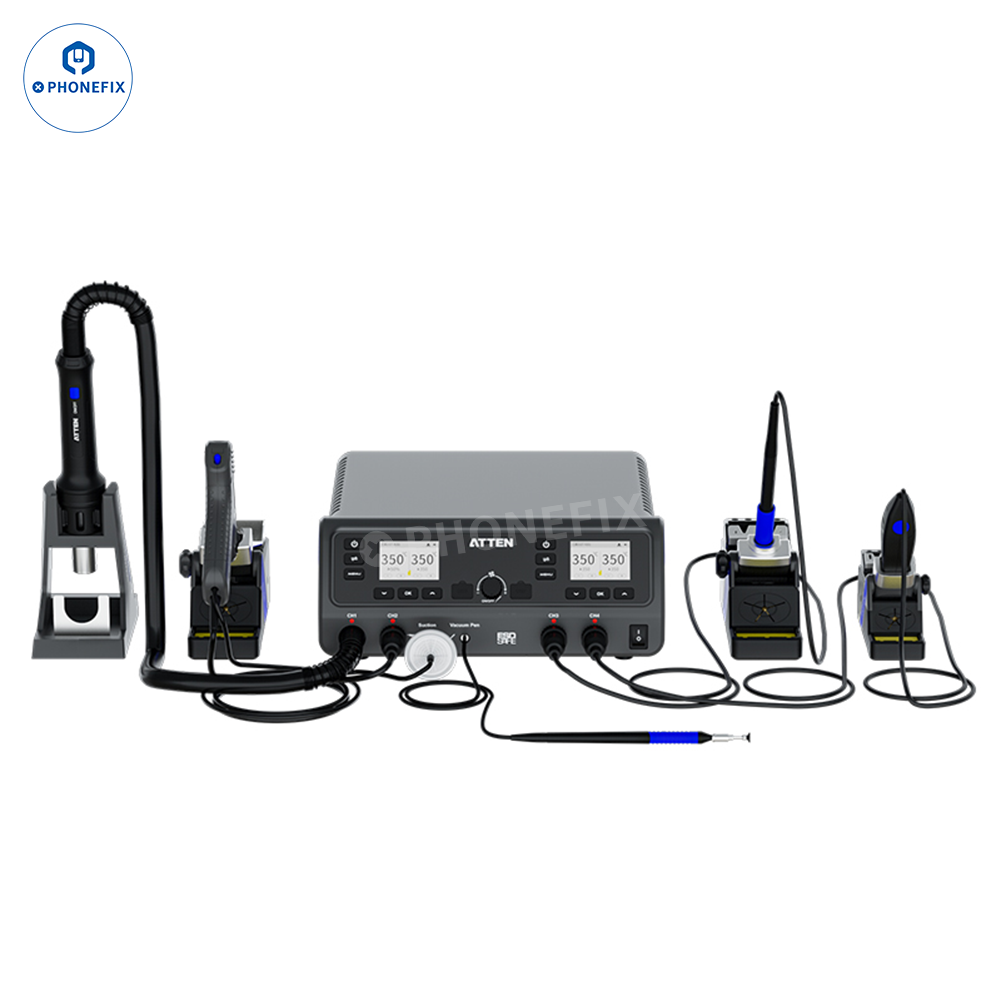

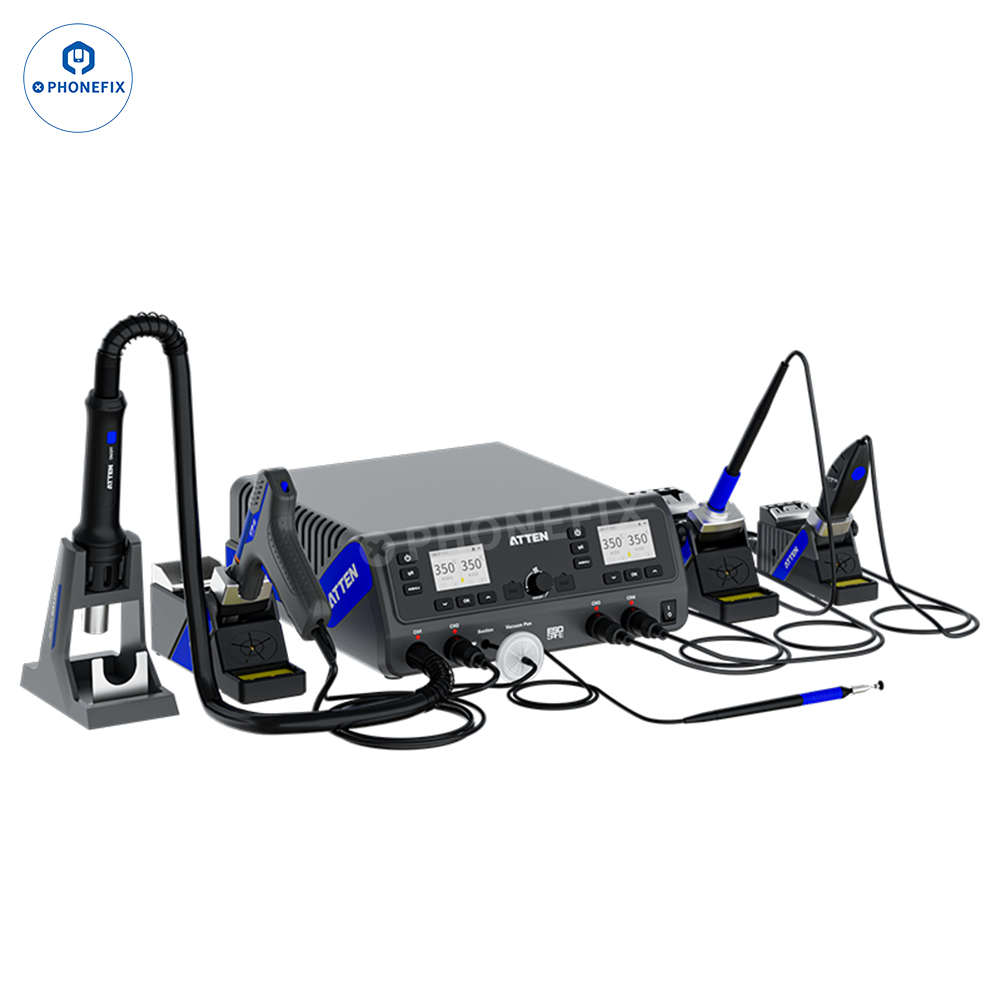

Atten MS-1600 4-in-1 Intelligent Rework Station integrates soldering iron, hot air gun, desoldering gun, and heated tweezers. It features high-precision MCU control and a TFT color screen, supporting four independent synchronous channels, suitable for professional electronics repair and industrial rework scenarios.
Feature
1. Four-channel independent control design allows for simultaneous performance of multiple desoldering operations without interference.
2. Automatically identifies soldering tools and loads parameters for precise temperature control and efficient repair.
3. Built-in vacuum generator and suction pen for quick removal of electronic components after desoldering.
4. Supports RS-485 and USB communication, with computer control, standby/sleep mode, and password protection functions.

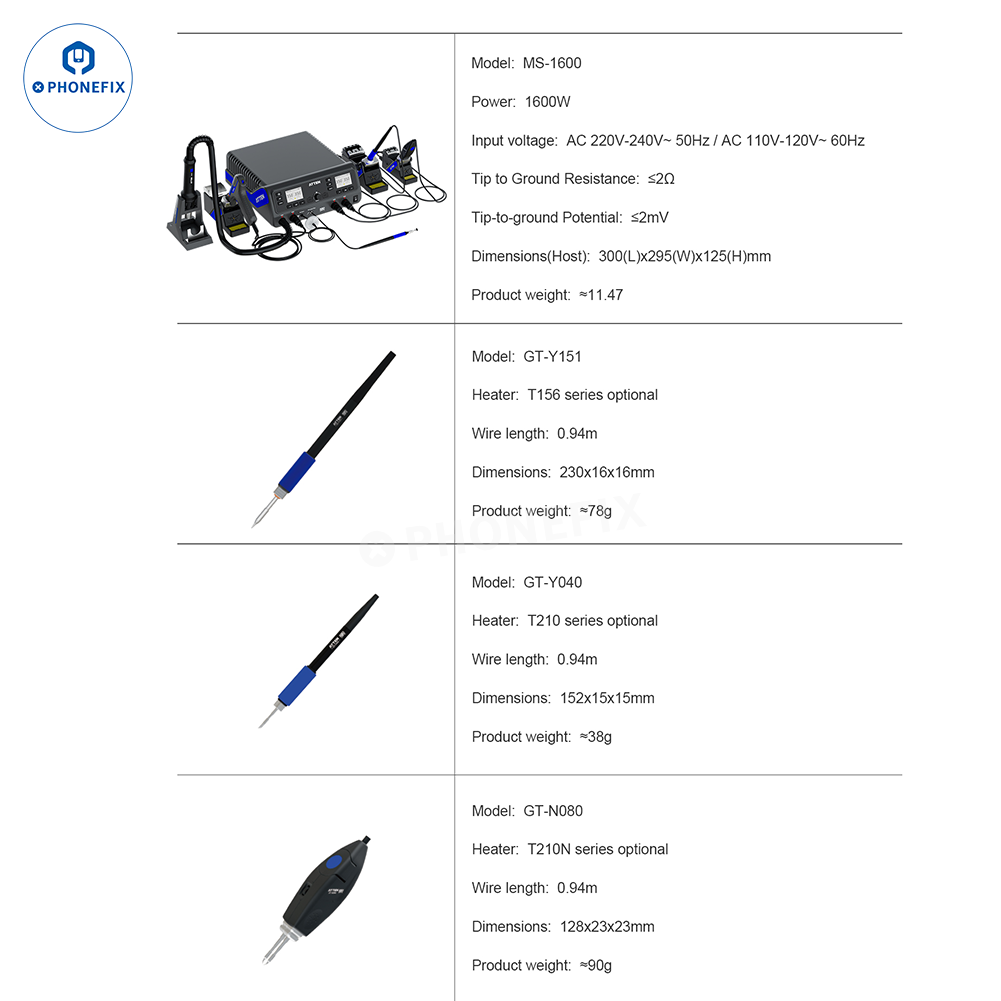

Product Specifications
Model: MS-1600
Name: 4-in-1 Repair System
Total Power: 1600W
Input Voltage: AC 220V-240V~ 50Hz / AC 110V-120V~ 60Hz
Control System: High-precision MCU control
Tool Channels: 4 independent control channels
Display: TFT color display
Vacuum System: Built-in vacuum generator
Communication Interface: RS-485/USB
Soldering Tip Resistance to Ground: ≤2Ω
Soldering Tip Potential to Ground: ≤2mV
Main Unit Dimensions: 300x295x125 mm
Main Unit Weight: ≈11.47kg
Package List
Host unit x1
GT-Y151 Soldering Iron Handle x1

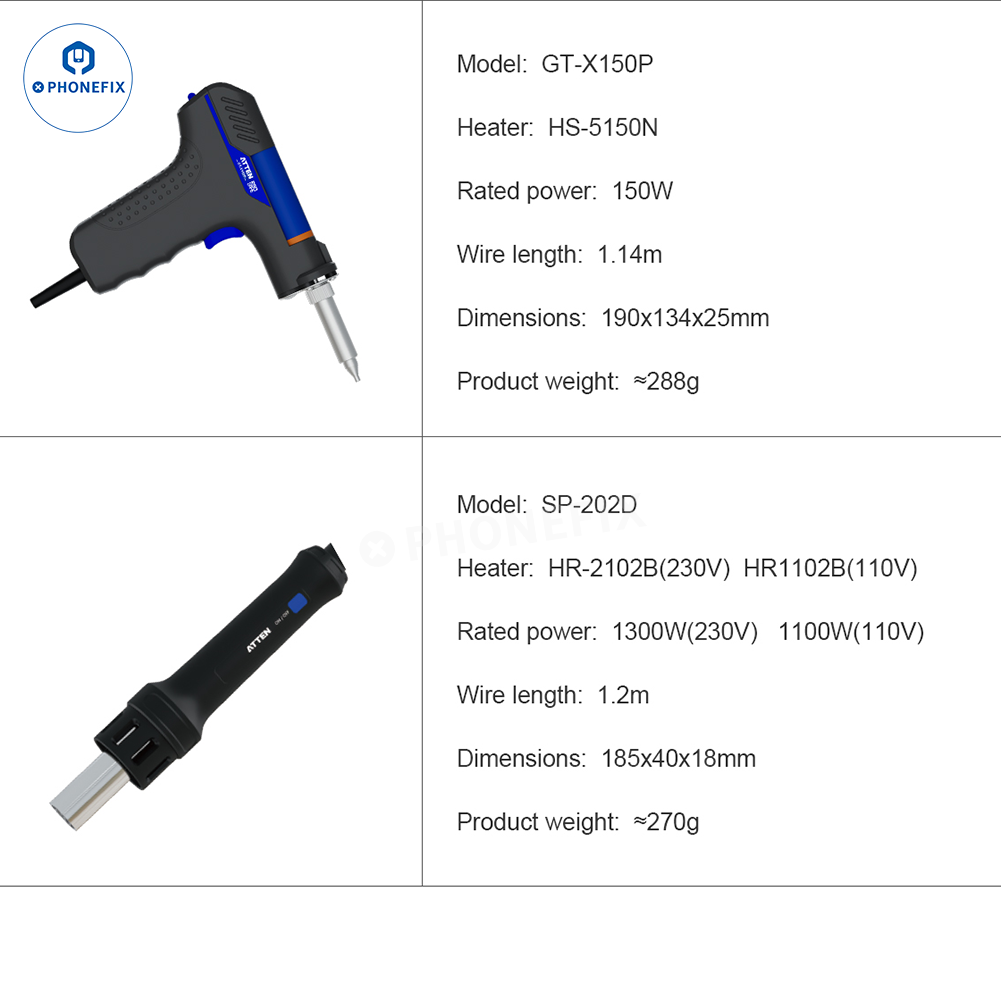

GT-X151 Desoldering Gun x1
SP-202D Hot Air Gun x1
GT-N080 Electric Tweezers x1
