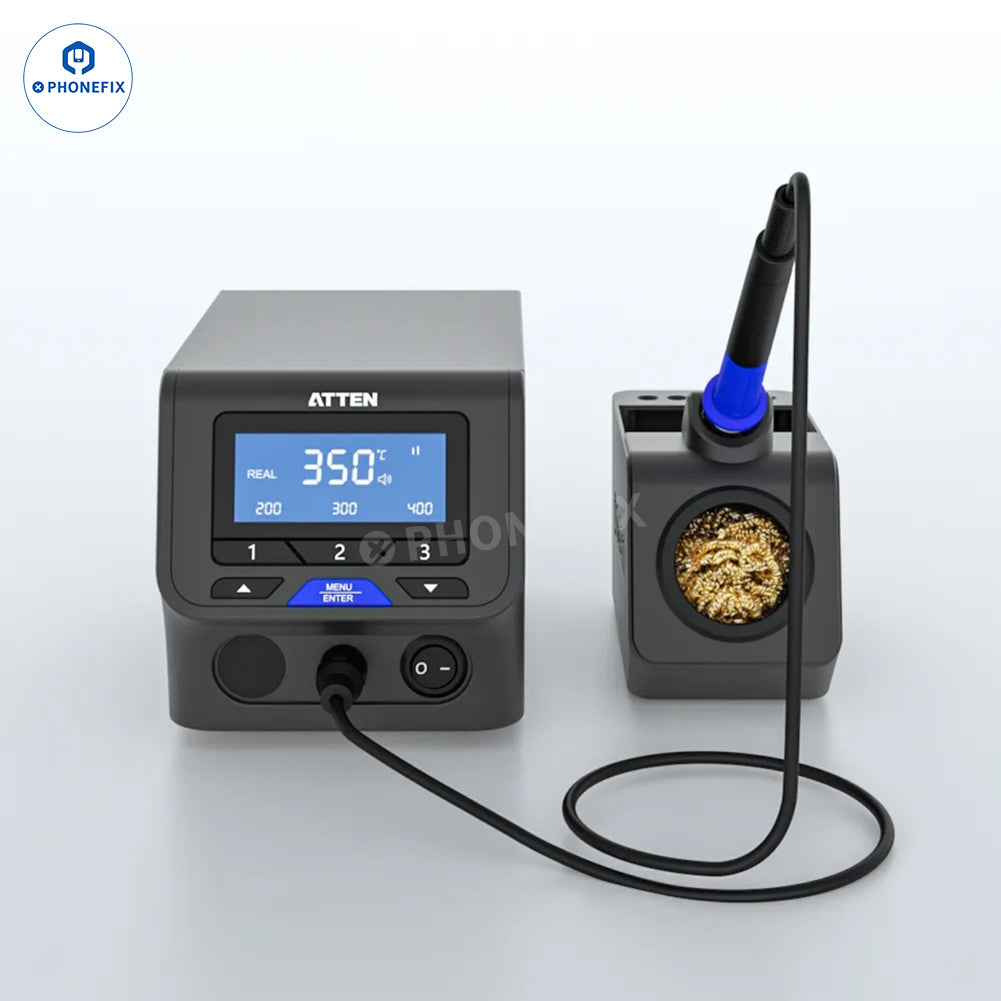

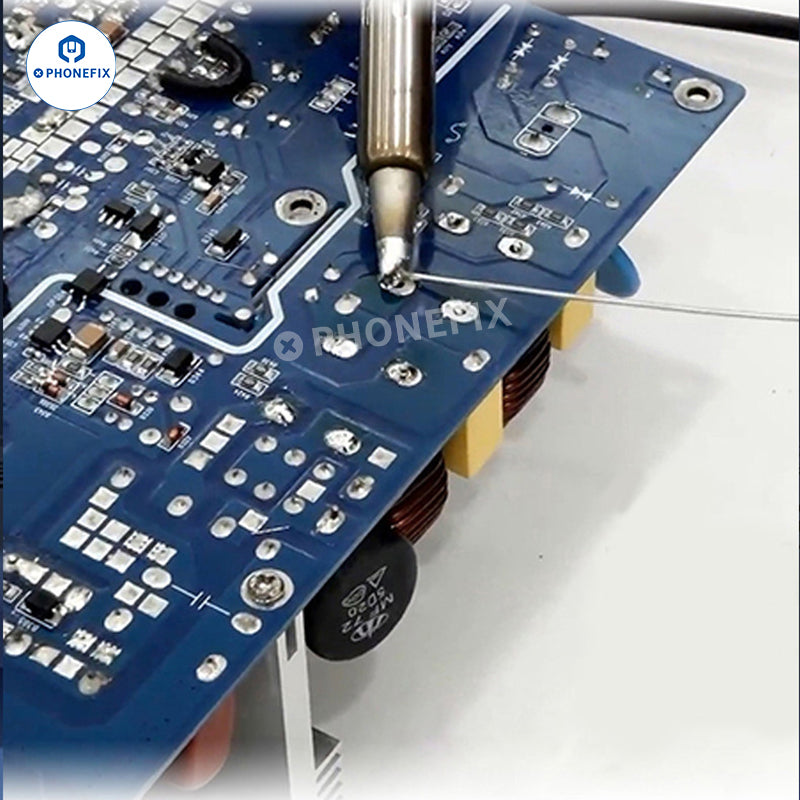

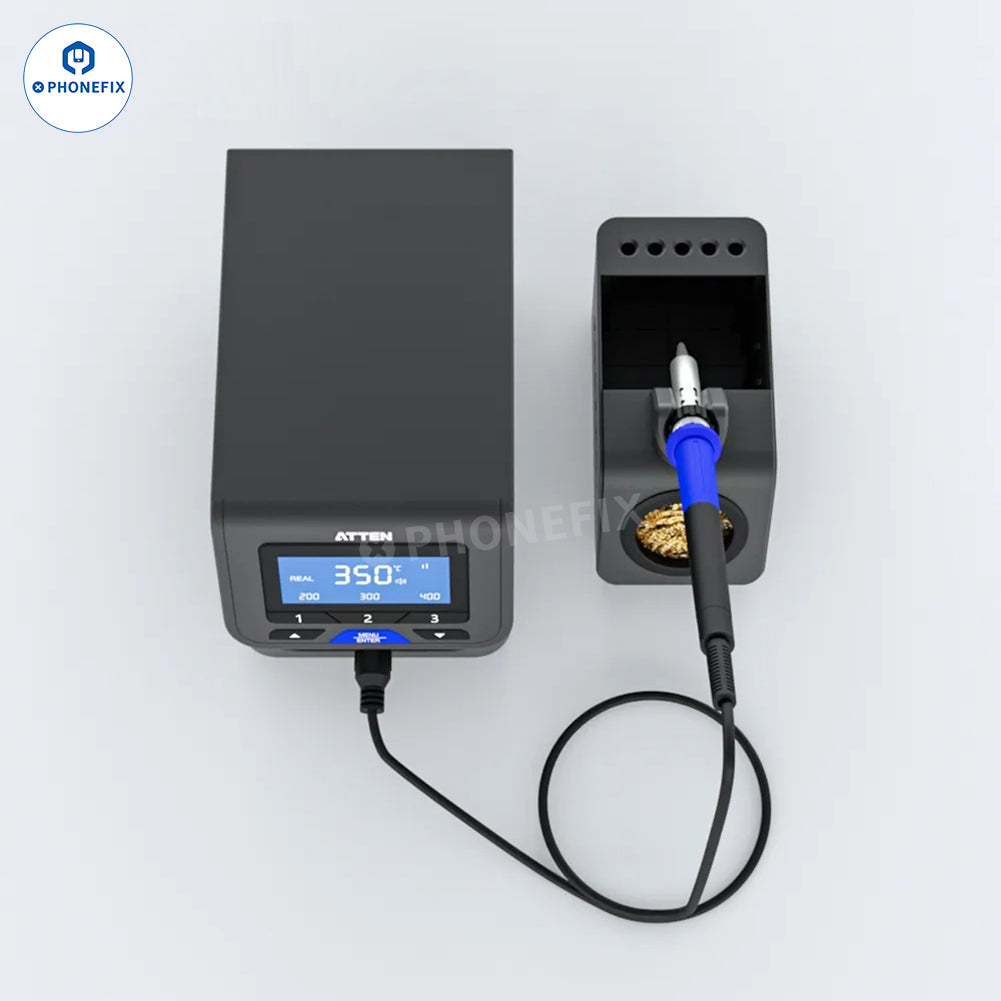

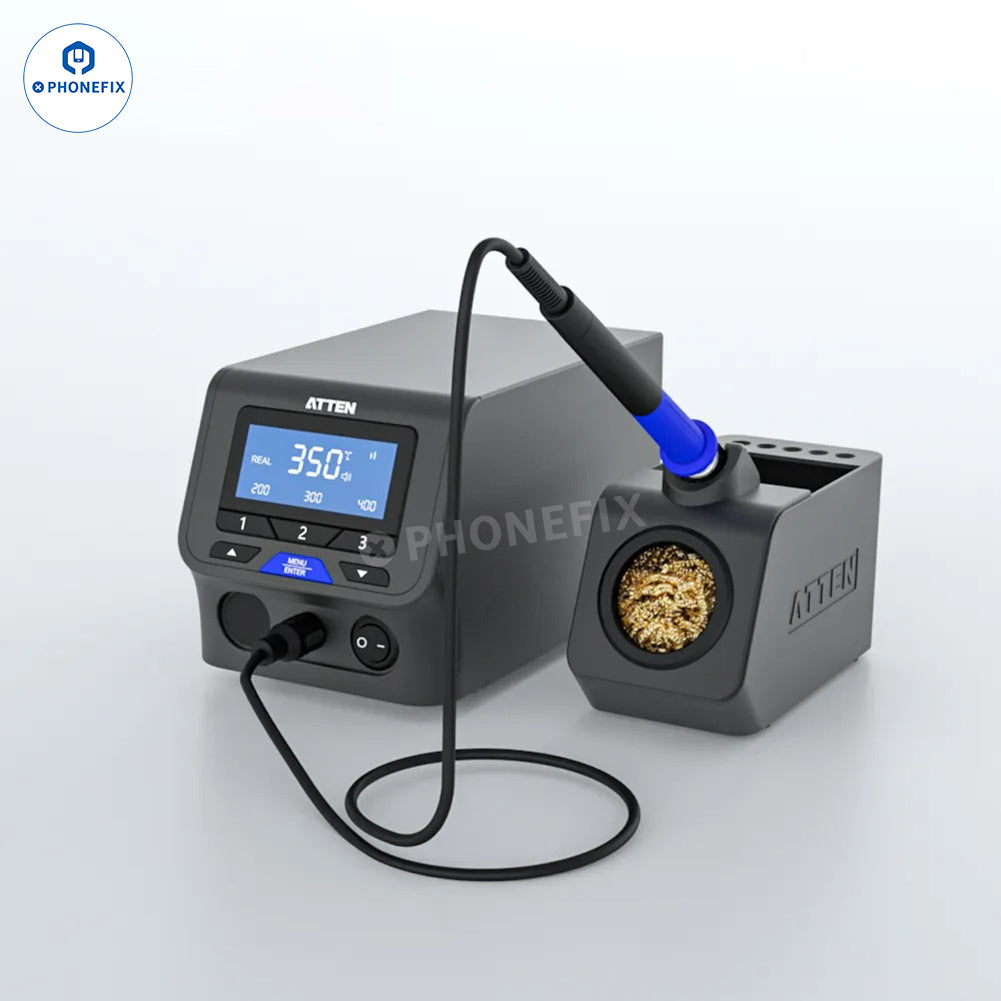

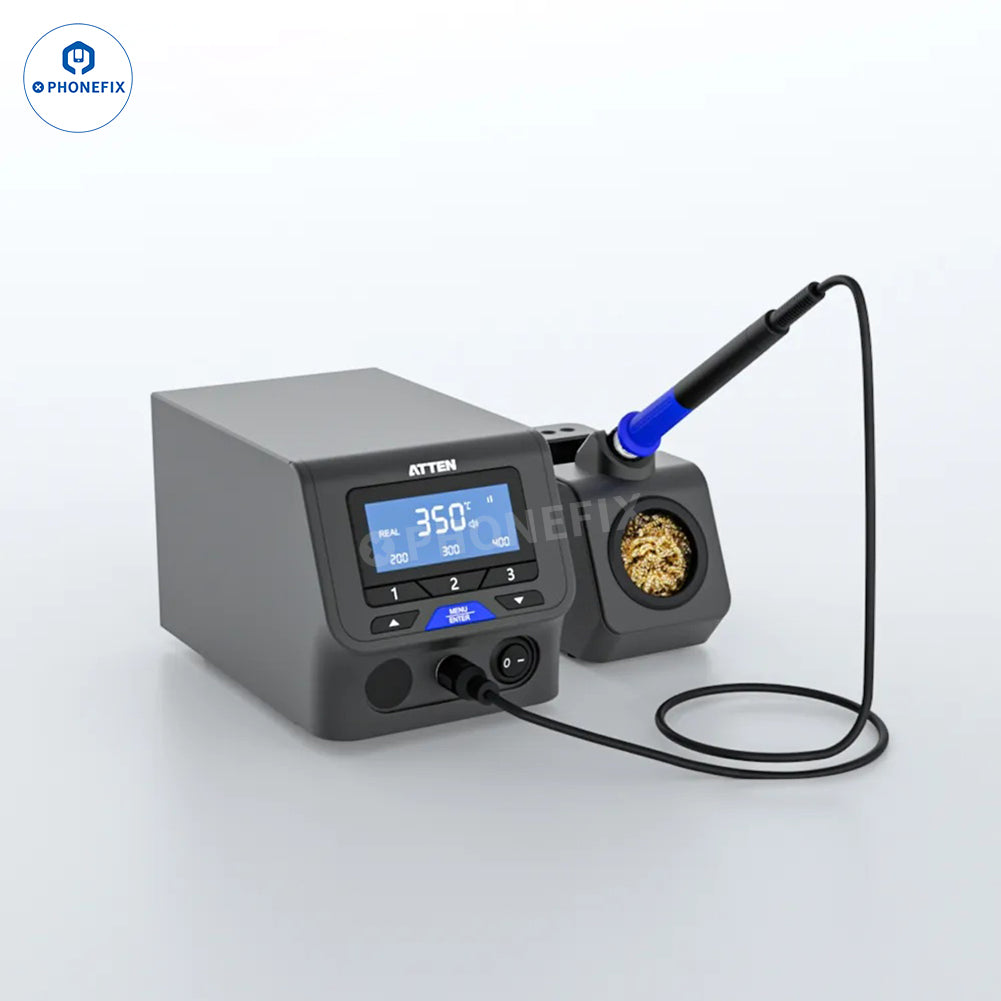

ATTEN ST-3150 ST-3150D ST-3090D ST-3120D ST3300D intelligent IoT high-frequency 110W-150W high power BGA soldering station with digital display, suitable for welding and desoldering of large solder joints in industrial products, widely used in production lines of various enterprises, such as mobile phone repair, electronic motherboard BGA SMD chip soldering desoldering repair, etc.
Option:
1. ATTEN ST-3150: 150W.
2. ATTEN ST-3150D/ST-1503D: 150W, supports RS485.
3. ATTEN ST-3090D/ST-9003D: 110W, supports RS485.
4. ATTEN ST-3120D/ST-1203D: 150W, supports RS485.
5. ATTEN ST-3300D/ST-3003D: 320W, supports RS485.
Features:
1. High-frequency eddy current heating, intelligent distribution of output power, ST-3150, ST-3150D, ST-3120D maximum power is not less than 150W, ST-3090D maximum power is not less than 110W, ST3300D maximum power is not less than 320W.
2. Sensor front design, extremely fast temperature recovery, accurate temperature; three sets of quick temperature settings to meet the process parameters of different products.
3. Infrared one-button temperature calibration function, convenient for daily temperature inspection of production line; password protection function and key lock function.
4. Ultra-fine silicone handle line, anti-scalding and anti-folding, no fatigue after long-term use.
5. Plug and unplug the heating core, easy to replace; shelf silicone ring, anti-knock, safer.
6. Intelligent standby and shutdown functions, extend the life of consumables and save energy.
7. Real-time monitoring of ESD grounding function, ESD abnormal prompt function.
8. High and low temperature alarm function, welding quality.
9. The maximum temperature of ST-3150, ST-3150D, ST3300D can be set to 600 degrees, and the maximum temperature of ST-3090D, ST-3120D can be set to 500 degrees.

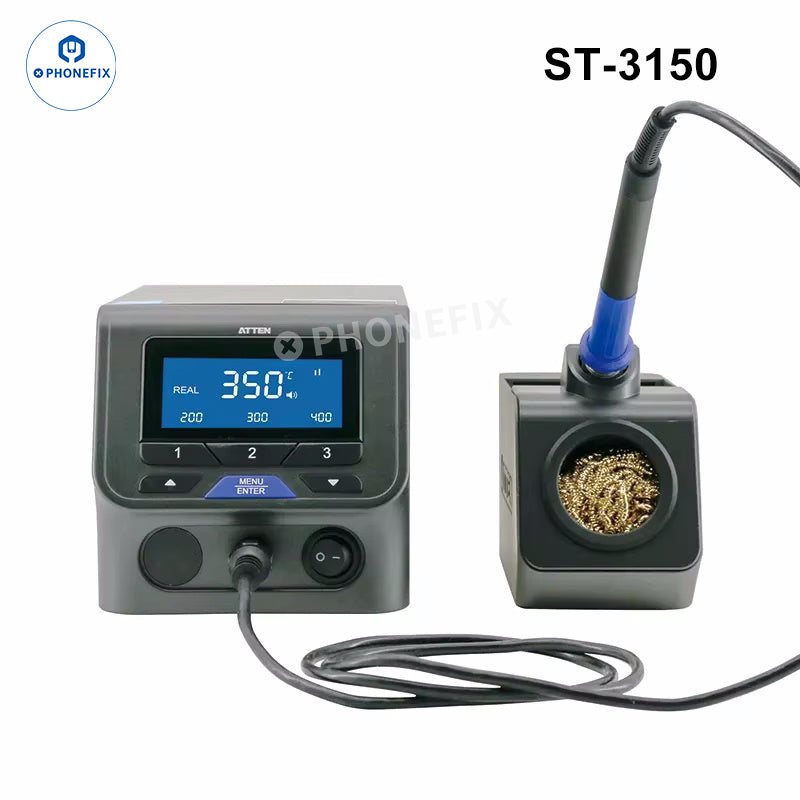

ST-3150 Specifications:
Model: ST-3150.
Host power: 150W.
Temperature range: 80°C~600°C.
Heating principle: High-frequency eddy current heating.
Communication interface: Not supported.
Product size (host): 200X125X120mm.
Weight (host): ≈3.72kg.

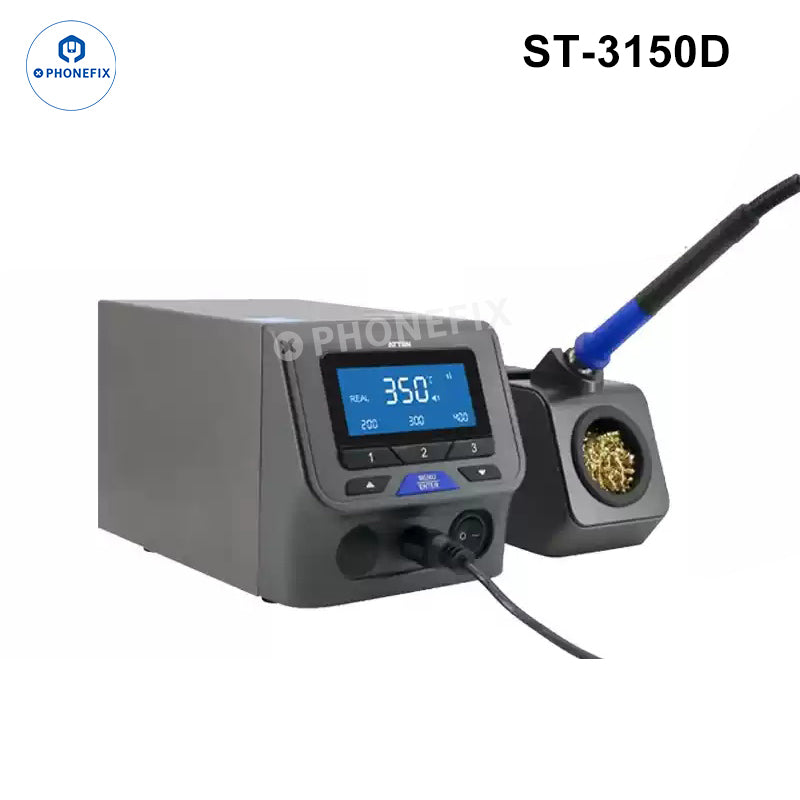

ST-3150D/ST-1503D Specifications:
Model: ST-3150D (ST-1503D).
Input voltage: AC230V±10% 50Hz, AC110V±10% 60Hz.
Power: 150W.
Temperature range: 80°C- 600°C.
Temperature stability: ±2°C (static no load).
Heating core: HS-3150H.
Heating method: High-frequency eddy current heating.
Handle model: SP-H150.
Tip-to-ground resistance: <20.
Tip-to-ground voltage: <2mV.
Weight: 5038g
Dimensions: 195x1 24x124mm
Communication interface: Support (RS485).

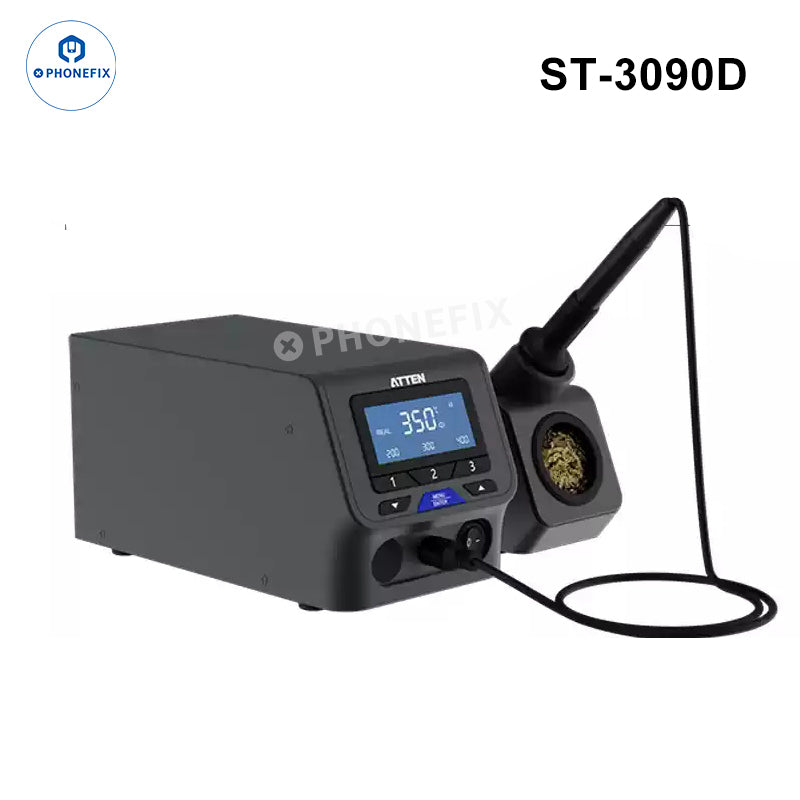

ST-3090D/ST-9003D Specifications:
Model: ST-3090D (ST-9003D).
Input voltage: AC 220-240V~50/60Hz /(AC 110V~60Hz).
Power: 110W.
Temperature range: 80°C~500°C, 176°F~932°F.
Standby function: Default 10 minutes (1~60 minutes adjustable).
Sleep function: Default 30 minutes (1~60 minutes adjustable).
ESD grounding detection: Support.
Communication interface: Support (RS485).
Working environment: Temperature 0°C~40°C humidity <85%RH.
Dimensions: 200 (L)x125(W)x120(H) mm.
Product weight: ≈3kg

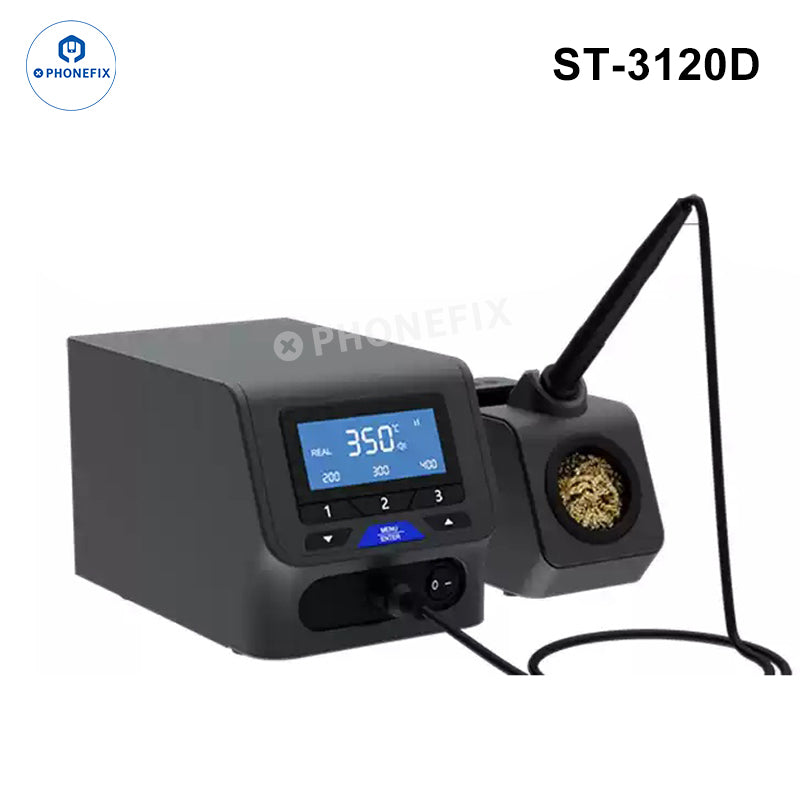

ST-3120D/ST-1203D Specifications:
Model: ST-3120D (ST-1203D).
Input voltage: AC 220-240V~ 50/60Hz/(AC 110V~ 60Hz).
Power: 150W.
Temperature range: 80°C~500°C 176°F~932°F.
Standby function: default 10 minutes (1~60 minutes adjustable).
Sleep function: default 30 minutes (1~60 minutes adjustable).
ESD grounding detection: support (RS485).
Working environment: temperature 0°C~40°C humidity <85%RH.
Dimensions: 200 (L) x125 (W)x120 (H) mm.
Product weight: ≈3.3kg.

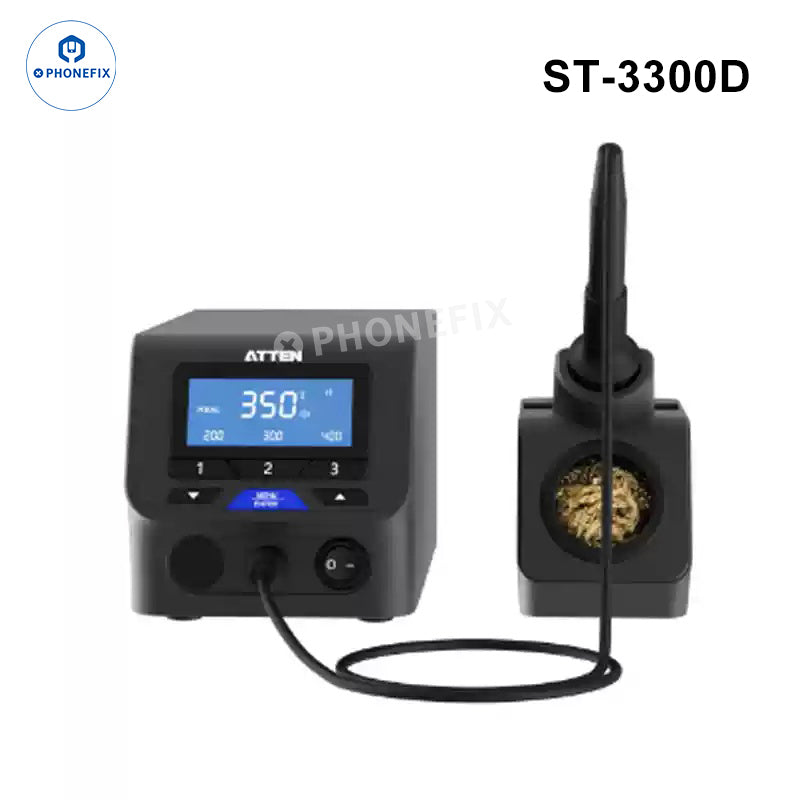

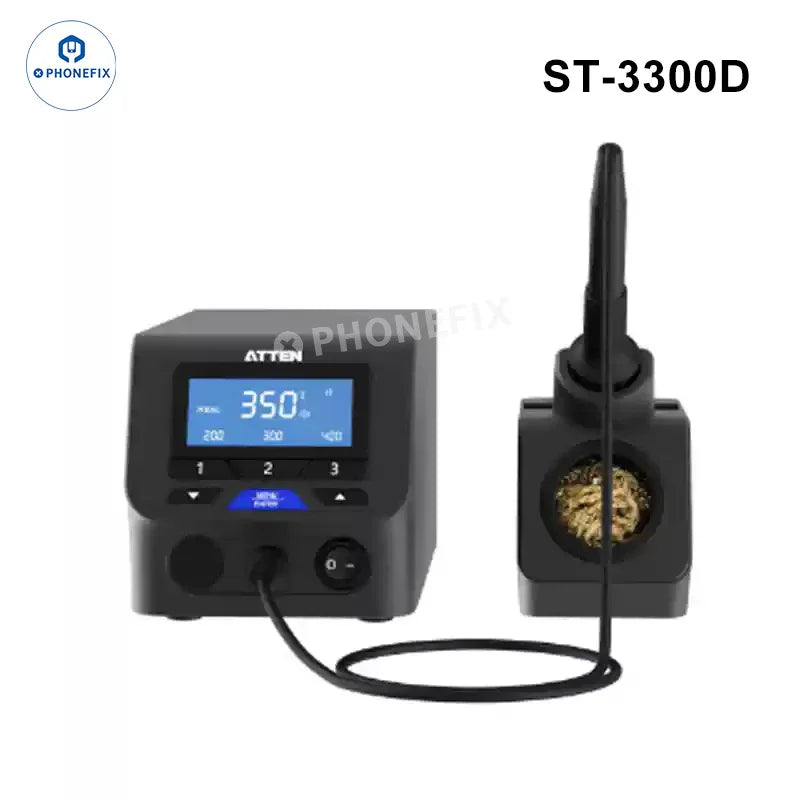

ST-3300D/ST-3003D Specifications:
Model: ST-3300D (ST-3003D).
Host power: 320W.
Temperature range: 80°C~600°C.
Heating principle: high-frequency eddy current heating.
Communication interface: support (RS485).
Product size (host): 240X125X120mm.
Weight (host): ≈2.3kg.
