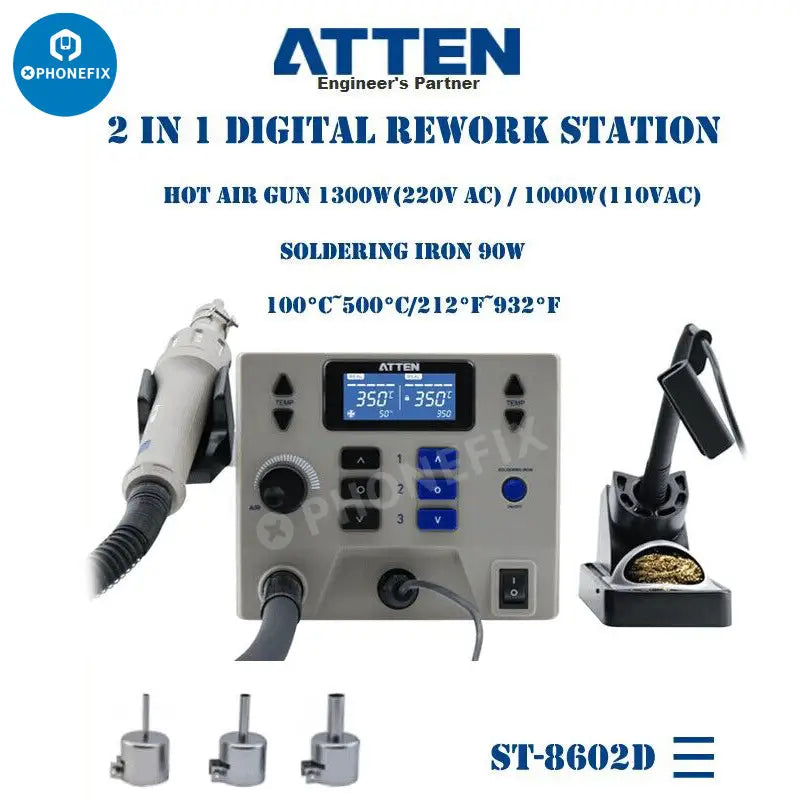

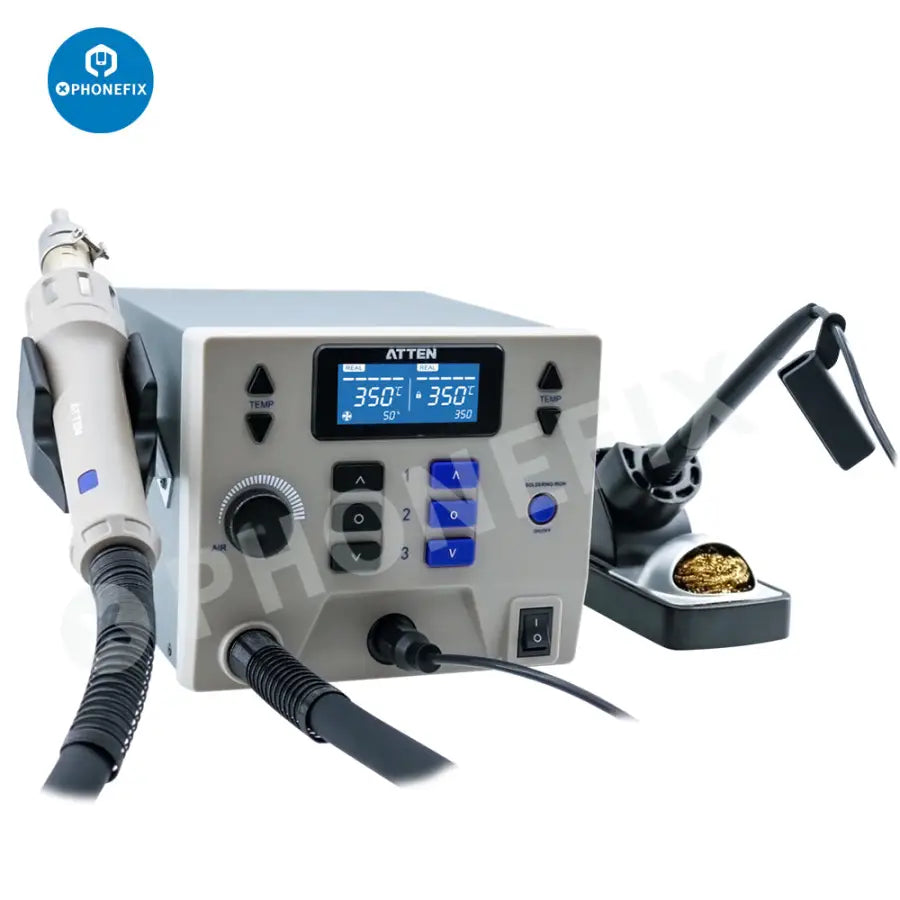

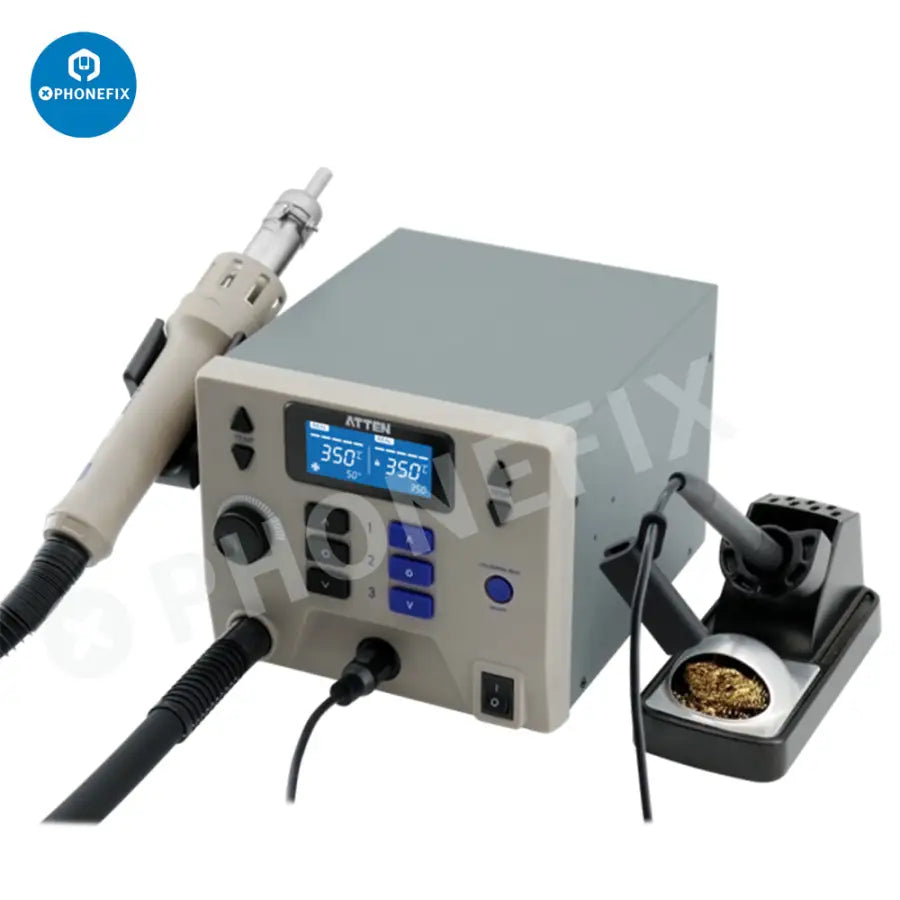

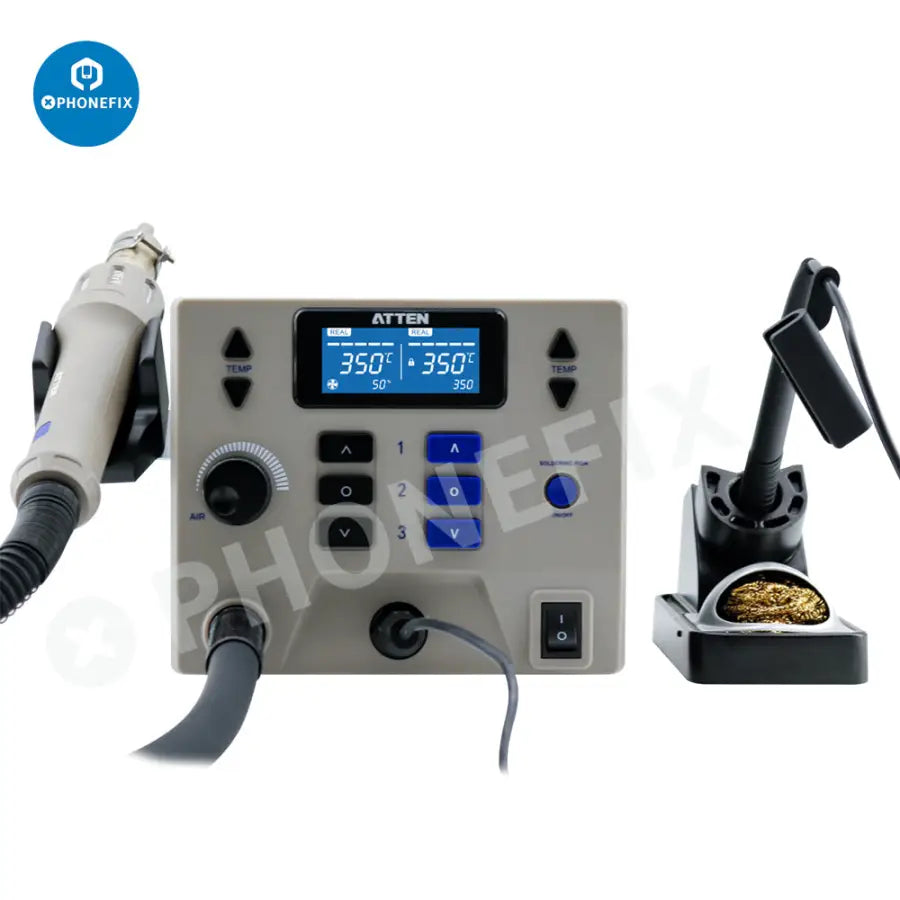

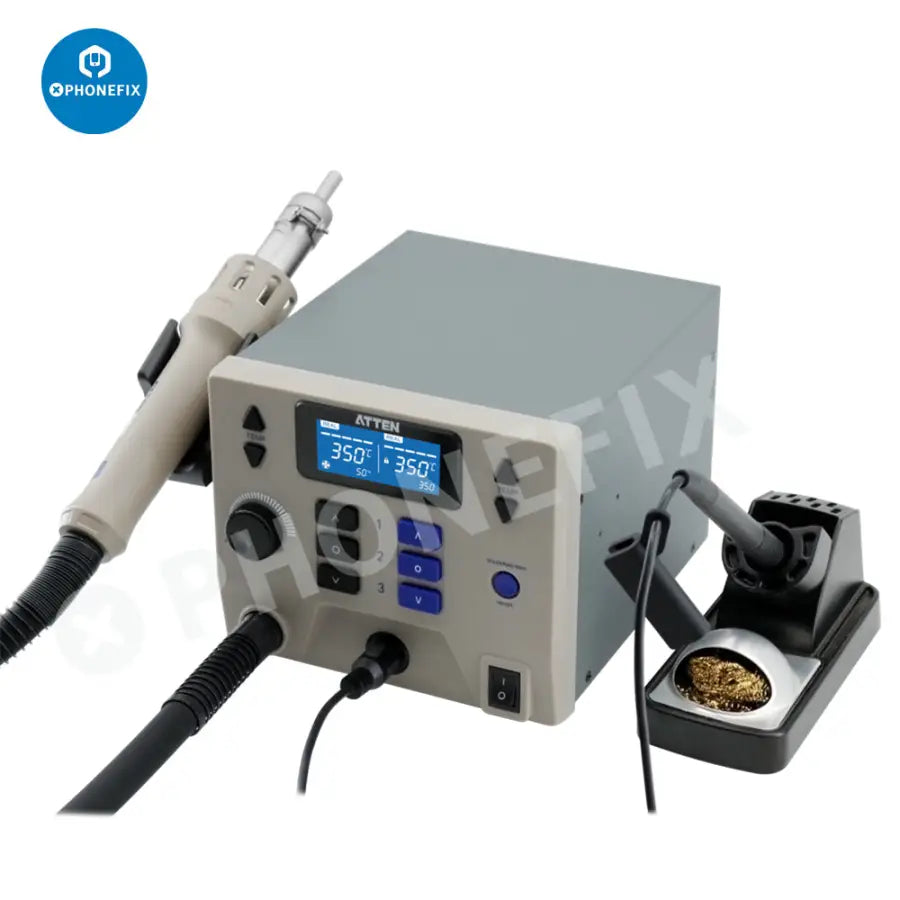

ATTEN ST-8602D 1300W 2-in-1 desoldering station with hot air gun and soldering iron, which is the upgraded version of ST-862D rework station. ATTEN ST-8602D digital hot air soldering rework station for PCB motherboard soldering desoldering repair. ATTEN ST-8602D Digital Rework Station Hot Air Gun for mobile phone repair.
The ATTEN ST-8602D is the model for mainland China and operates only on 220V; the model for overseas markets is the ST-8902D (110V).
Features:
1. 1300W high-power design of the hot air gun(1300W(230V AC) / 1000W(110V AC), rapid heating and high efficiency.
2. 90W soldering iron station, the principle of using an integrated heating core is similar to that of T12. Rapid heating and returns quickly, easy to replace, and high working efficiency.

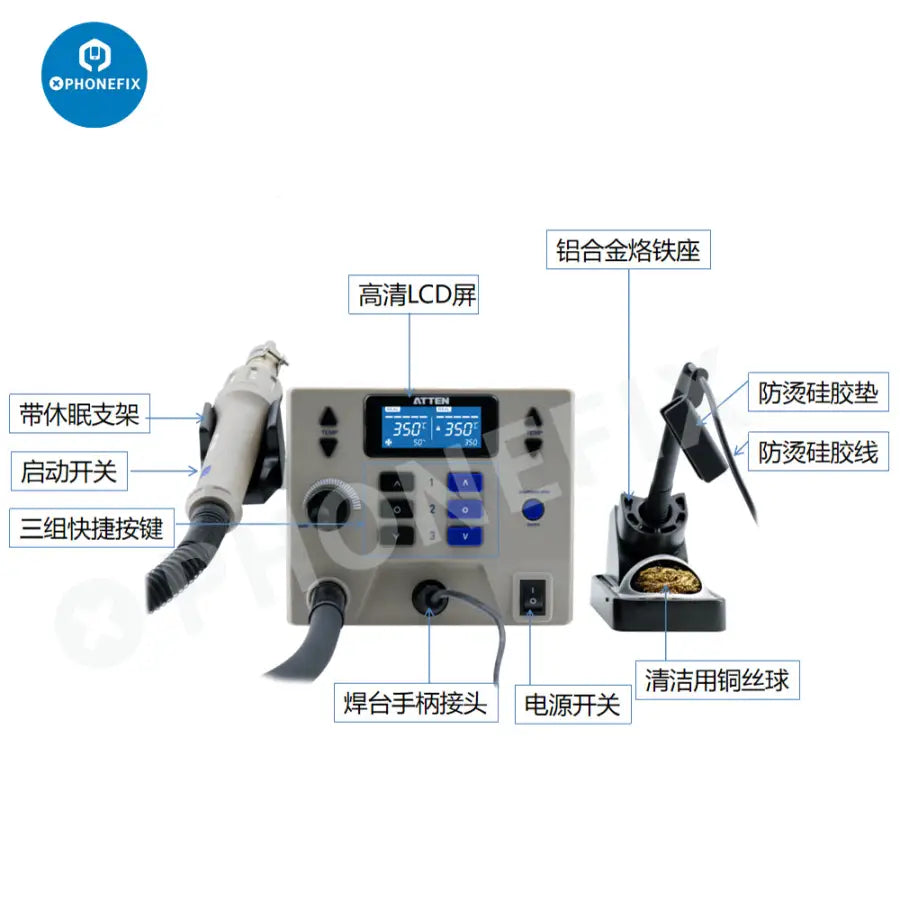

3. LCD digital display, one screen dual display, independent digital display and parameter setting of hot air gun and soldering iron.
4. Hot air gun and soldering iron 2 in 1 design, which can work independently.
5. The hot air gun uses a brushless eddy current fan to supply air, and the air volume is soft and adjustable.
6. Smart standby, smart hibernation, energy saving and safer.
7. Slim handle and comfortable grip, which can ensure long-term holding work.
8. The soldering iron is equipped with an high temperature mat, which can easily replace the heating core of the soldering iron.
9. The hot air gun handle has a switch button, and the user can interrupt or start the heating at any time.
Application areas:
1. Suitable for soldering and desoldering of personal consumer electronics, home appliance industry, and industrial product PCBs.
2. Research and development technology center, the first choice for engineers in the maker center.
3. Widely used in the production operations of large and medium-sized and branded enterprises.
4. Suitable for education and teaching in colleges and universities.

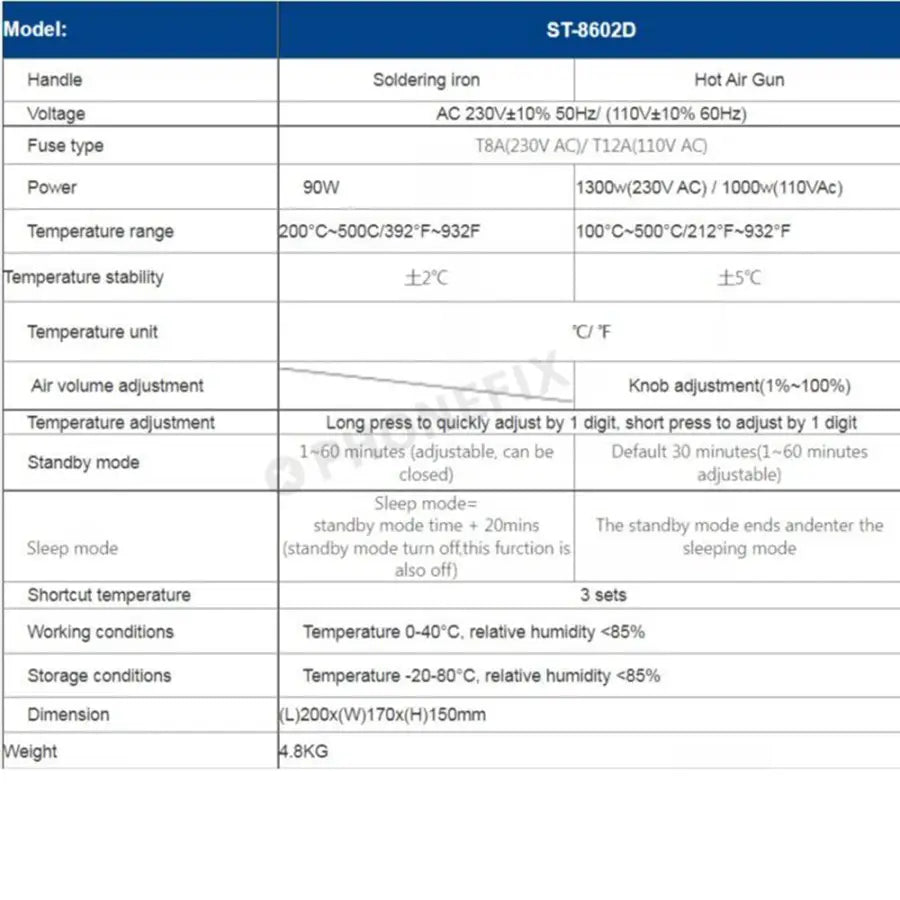

ATTEN ST-8602D Parameter:
Model: ATTEN ST-8602D

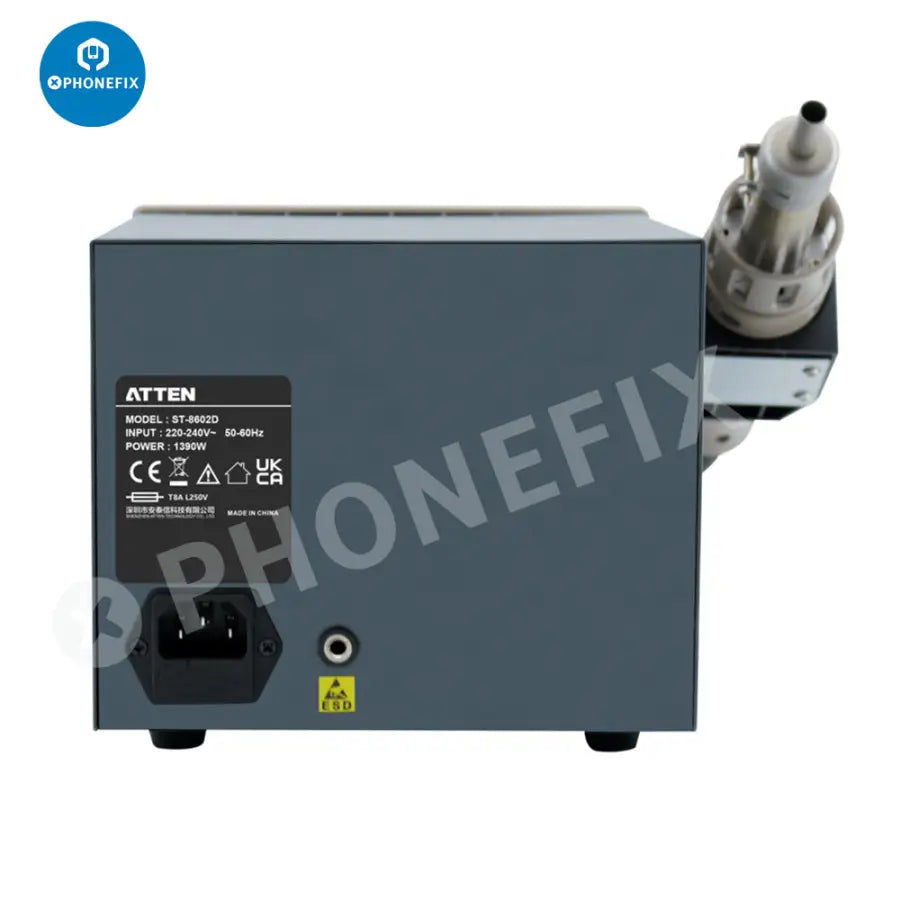

Input voltage: AC 220V 50Hz/110V 60Hz.
Working conditions: temperature 0-40℃, relative humidity:<80%RH.
Storage Conditions: Temperature -20-80℃, Relative Humidity:<80%RH.
Product size: L200xW170xH150mm.
weight: about 4.8KG.
Hot air gun parameter:
Power: 1300W(220V)/1000W(110V).
Air volume: ≤120L/min.
Temperature range: 100-500℃/202-932℉
Temperature Stability: 土2℃（Still Air, No Load).
Standby function: Yes.
Sleep function: Sleeps after 30 minutes of standby. (standby mode turned off,this function is also off).
Quick function: 3 sets.
Handle model: SP-102E(110V), SP-202E(220V).

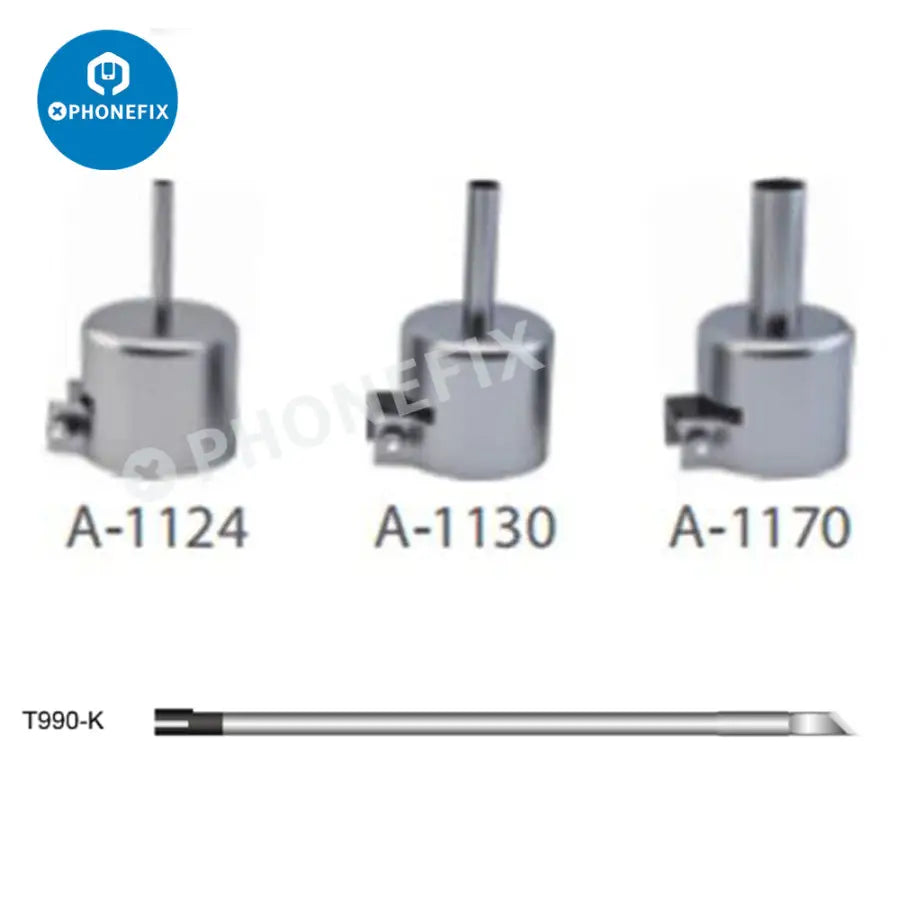

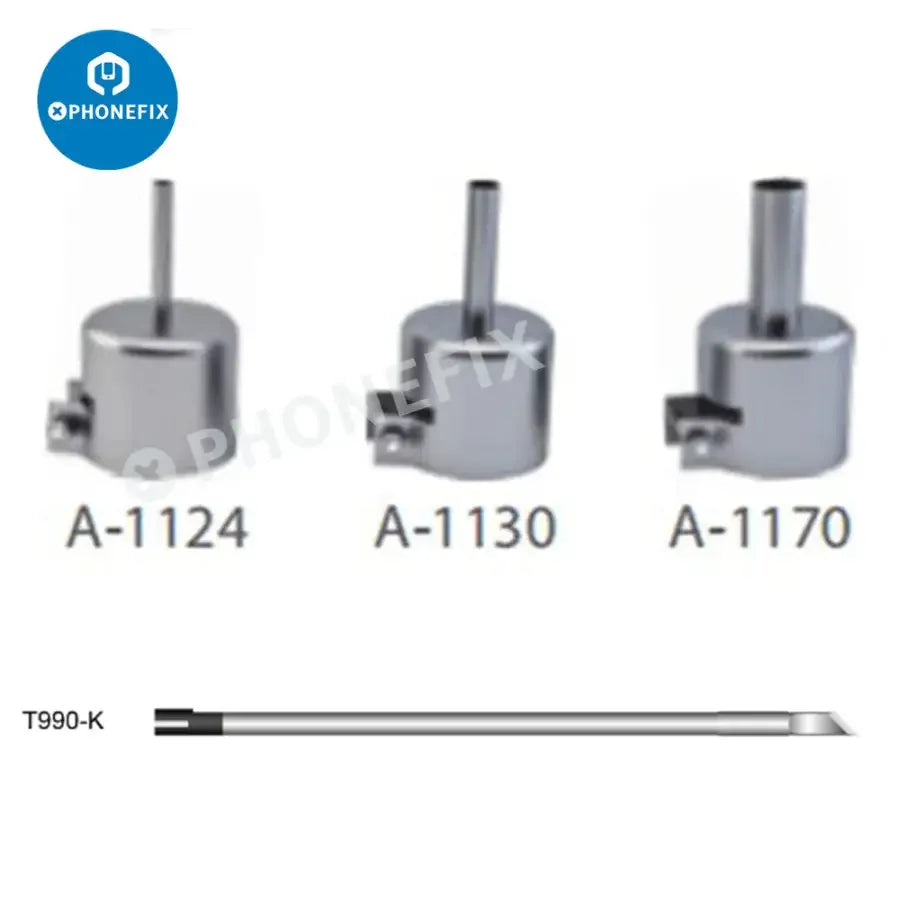

Air nozzle(standard): A1124, A1130, A1170.
Soldering iron parameter:
Power: 90W.
Temperature range: 200-500℃/392-932℉
Temperature Stability: 土2℃（Still Air, No Load).
Standby function: 0-60 minutes adjustable (200℃）
Sleep function: Sleeps after 20 minutes of standby. (standby mode turned off,this function is also off).
Quick function: 3 sets.
Handle model: SP-900
Air nozzle(standard): T990-K.
Package list:
1x ST-8602D host.
1x hot air gun handle.
1x hot air gun holder.
1x soldering iron handle.
1x soldering iron holder.
3x nozzles.
1x soldering iron tips.
1x power cable.
1x ground wire.
1x anti-scalding mat.
