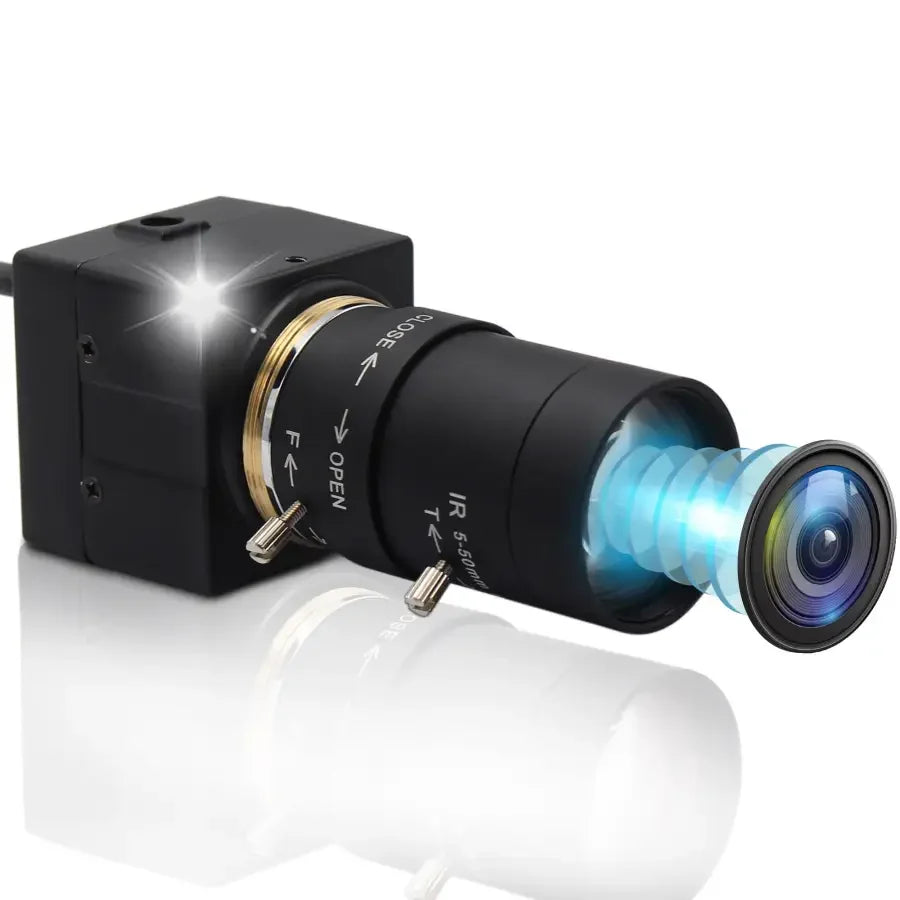

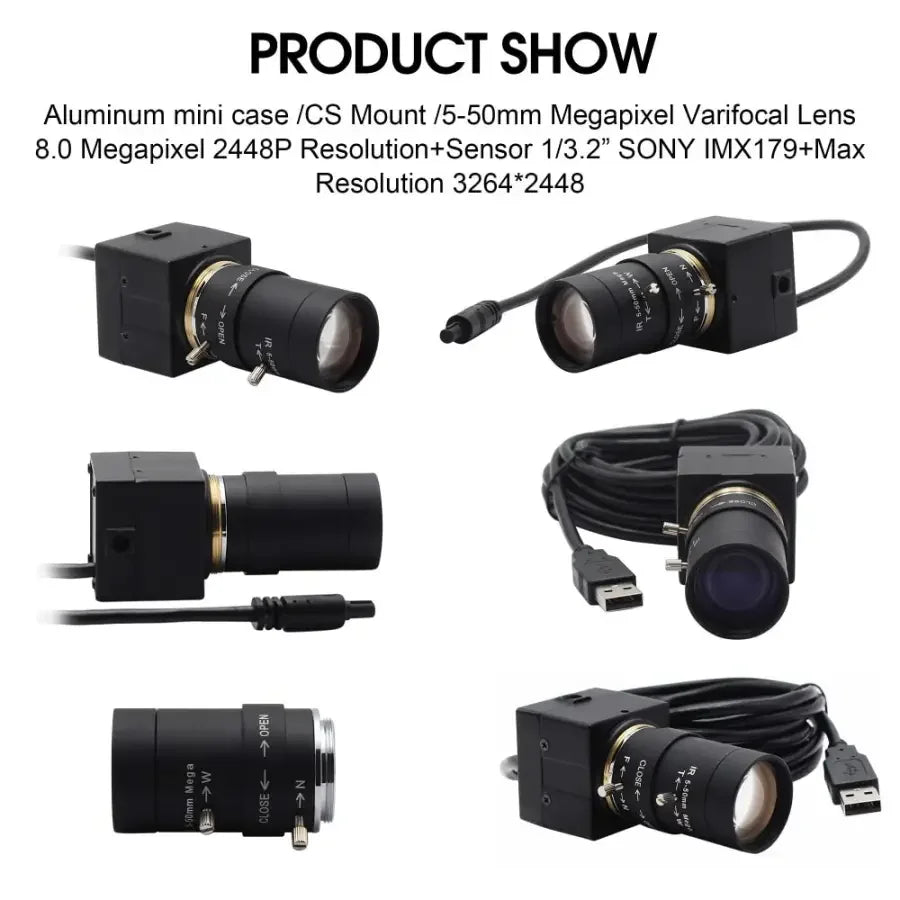

High Resolution SONY IMX179 8MP USB Webcam for PC Computer, Indurstrial USB Video Camera with Surveillance CCTV 5-50mm Varifocal Lens
Features:
1) 8mp High resolution , suitable for document capture, video capture
2) Advanced Sony (1/3.2'' ) image sensor .
3) High quality 5-50 mm varifocal lens
4) Support OS: Win XP\Win7\Win8\Android\Linux , support raspberry pi
5) Compression : MJPEG&YUY2
Specification:

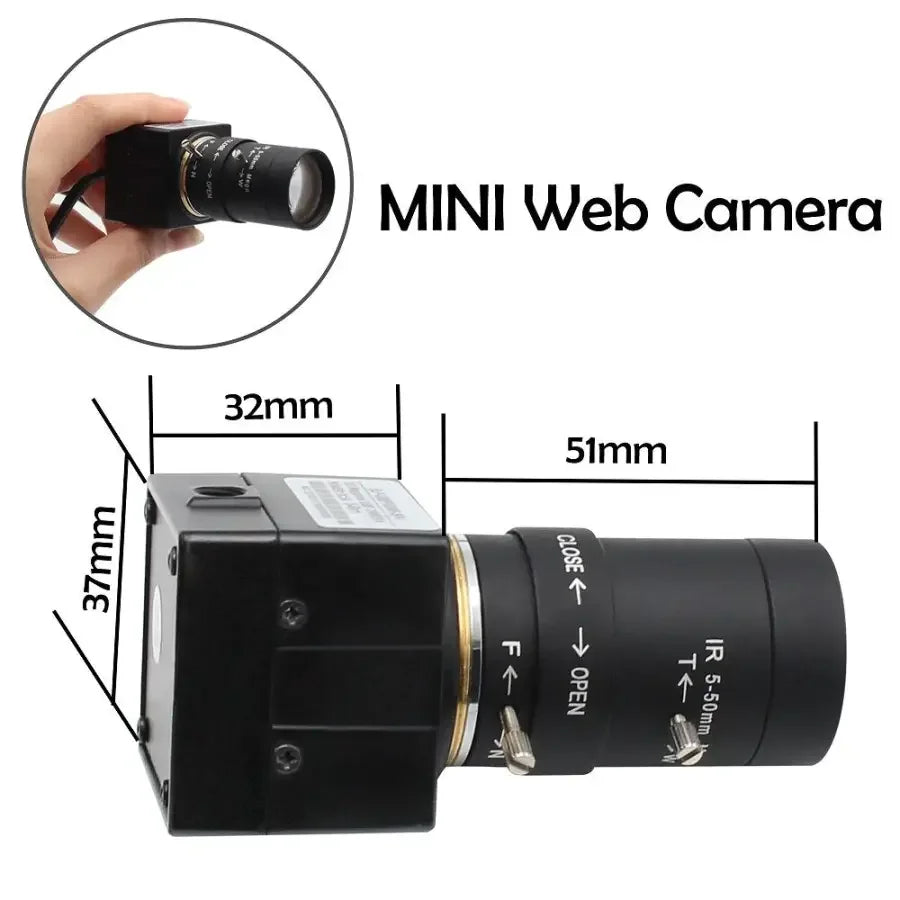

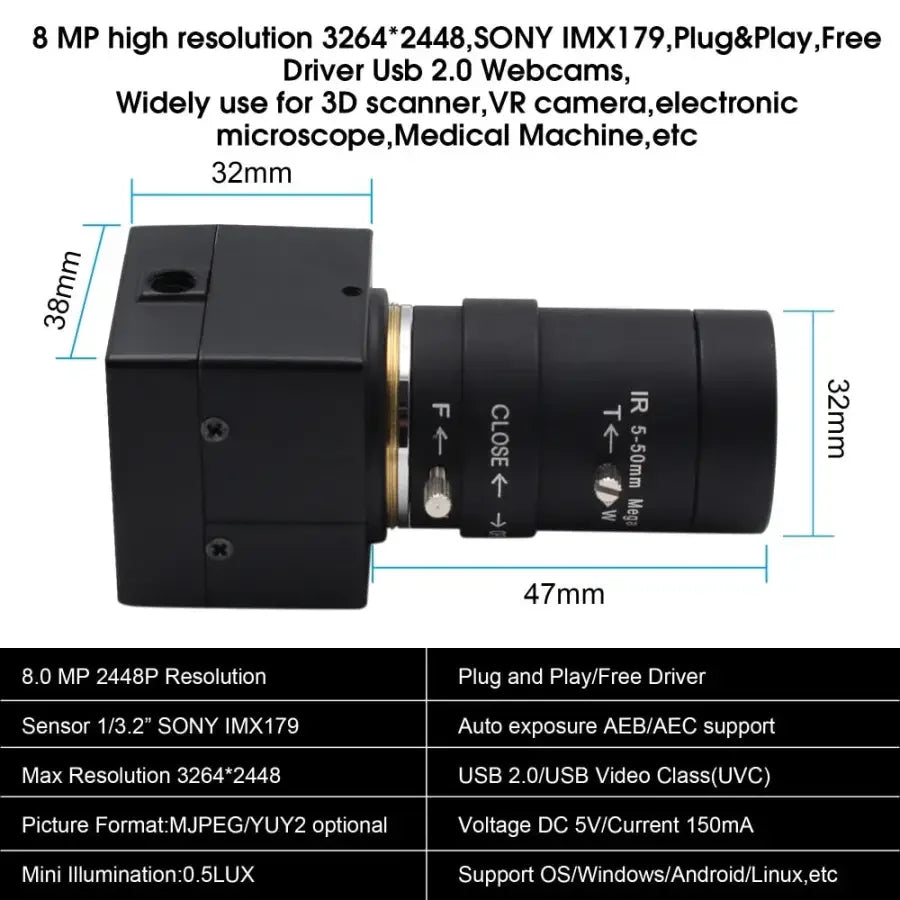

Module Size : 38mm * 38mm 32mm * 32mm
Temperature (Operation) : -20degree to 70 degree
Temperature (Stable Image): 0 degree to 60°degree
Camera Board Assembly technique : SMT (ROSH)
Focus : Manual
Object distance: 5CM-100M

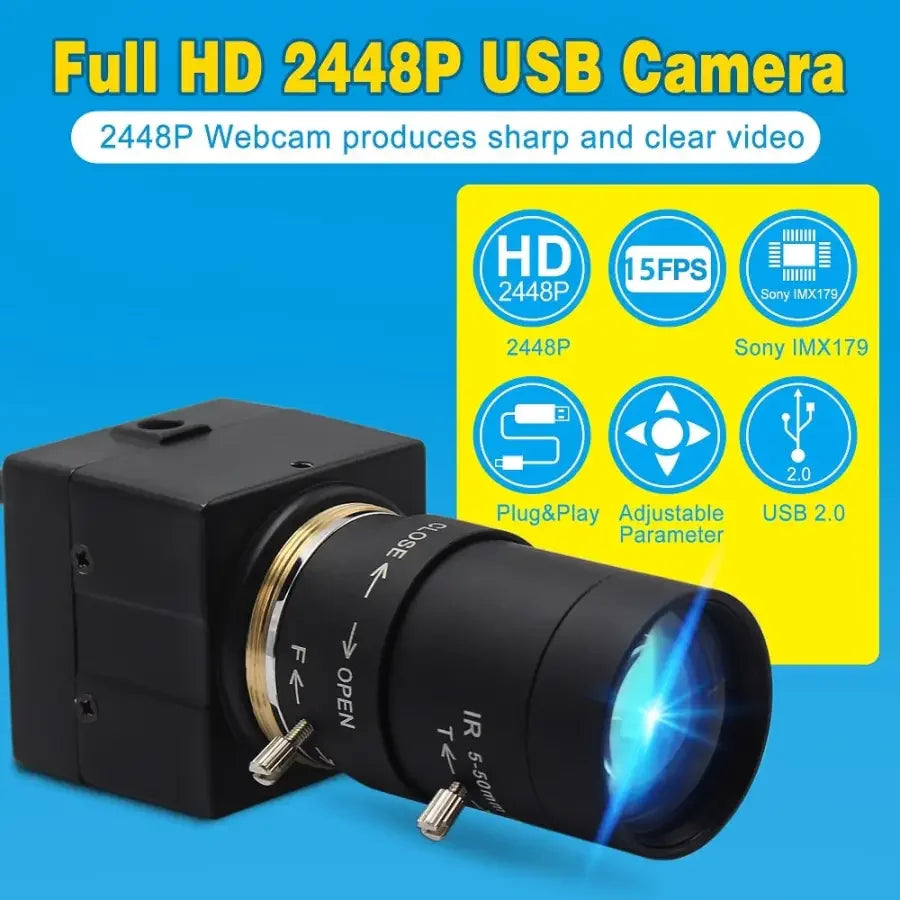

Resolution : 3264(H) X 2448(V) 8Megapixel
interface :USB 2.0 High Speed
protocol : USB Video Class(UVC)
Power : USB bus power

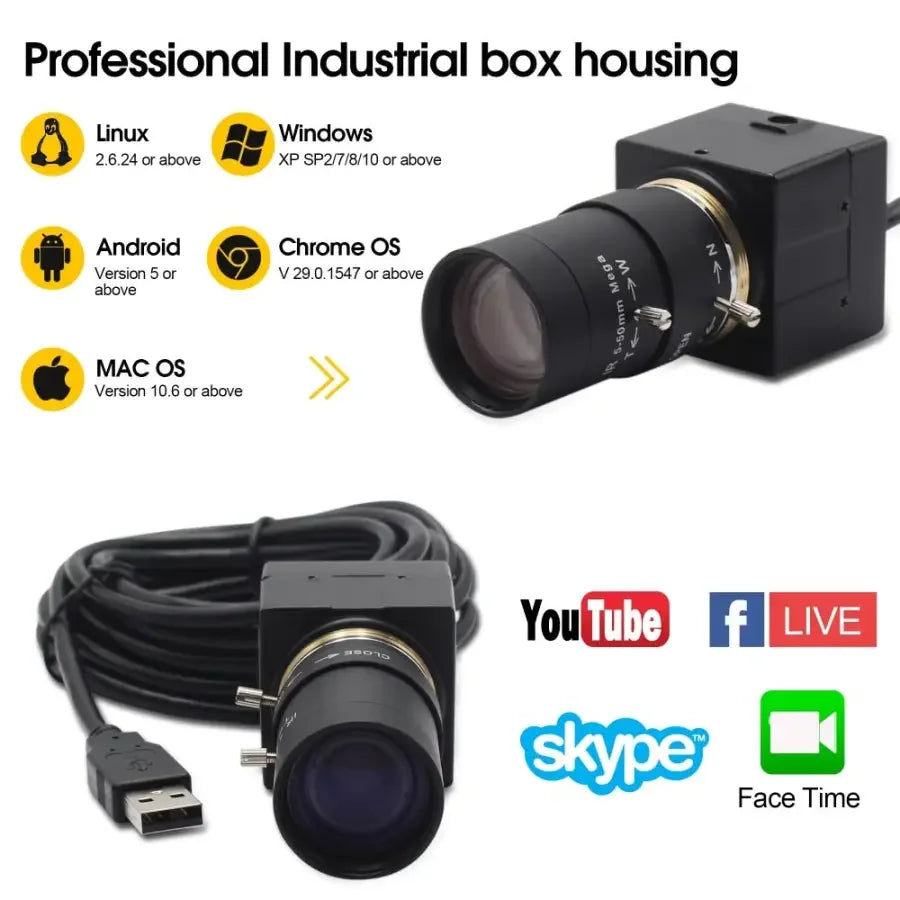

Operating system request: Win XP\Win7\Win8\Android\Linux\Mac OS
Certifications : FCC and CE
Sensor Type: Sony (1/3.2'' )
Active Array Size : 3264X2448
Minimal illumination : 0.5Lux
Maximum Image Transfer Rate :
3264X2448 MJPG 15fps YUY2 2fps
2592X1944 MJPG 15fps YUY2 3fps
2048X1536 MJPG 20fps YUY2 3fps
1600X1200 MJPG 20fps YUY2 10fps
1280X960 MJPG 20fps YUY2 10fps
1024X768 MJPG 30fps YUY2 10fps
800X600 MJPG 30fps YUY2 30fps
640X480 MJPG 30fps YUY2 30fps
S/N Ratio : 44dB
Dynamic Range : 83.5dB
Shutter : Rolling shutter/ frame exposure

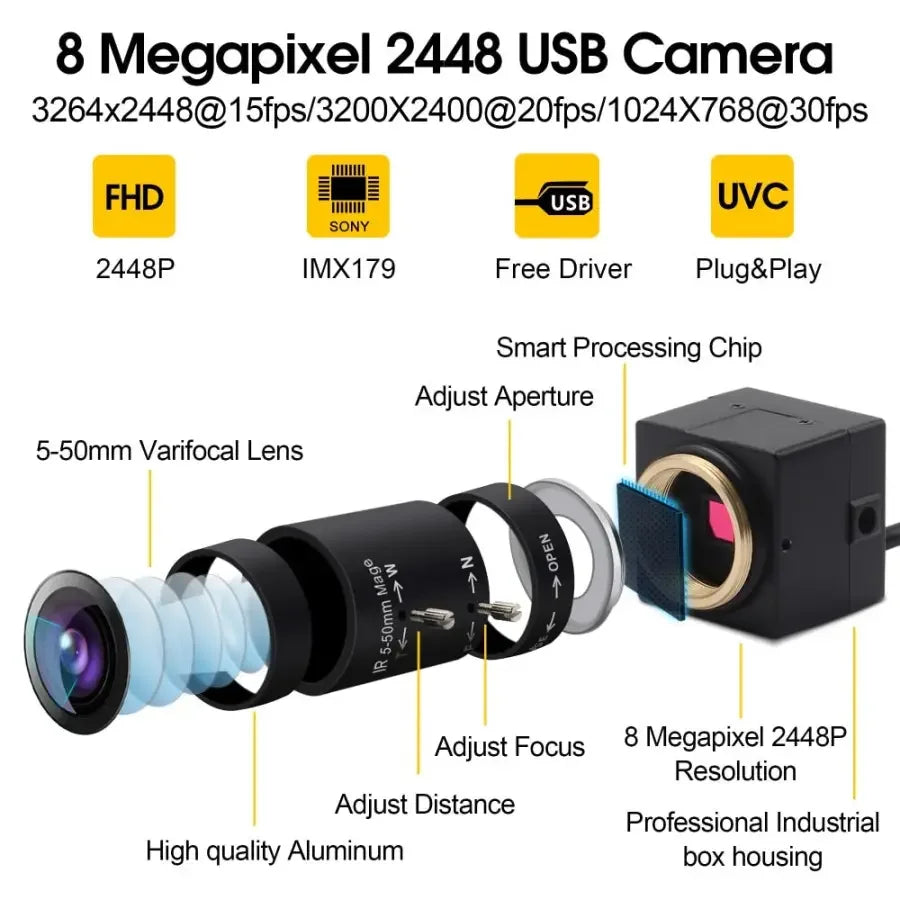

Lens Type :5-50mm varifocal lens
Lens Construction : 5G+IR

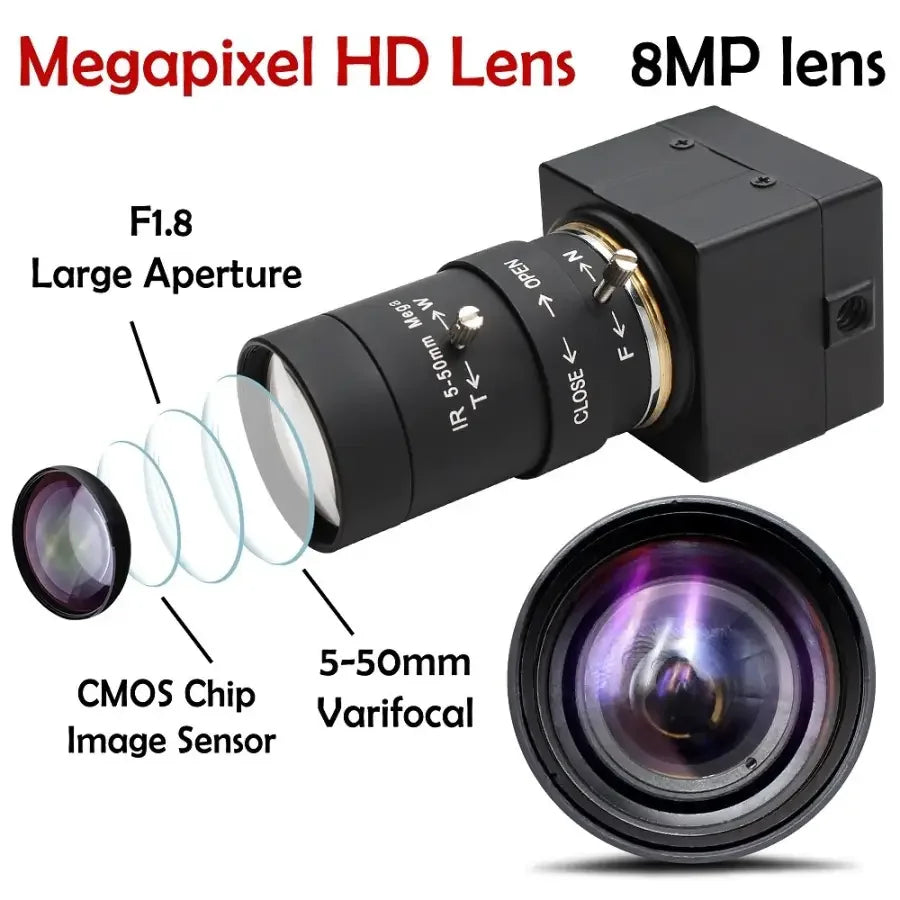

F/No : 1.8
BFL(Optical): 6.5mm
FOV: depends on different lens
IR Filter : 650±10nm
AGC/AEC/AWB/ABF : Auto
Output Formats : YUYV/MJPEG
IR CUT SUPPORT
Adjustable parameters Brightness Contrast Hue Saturation Sharpness Gamma White
Balance Exposure Focus
