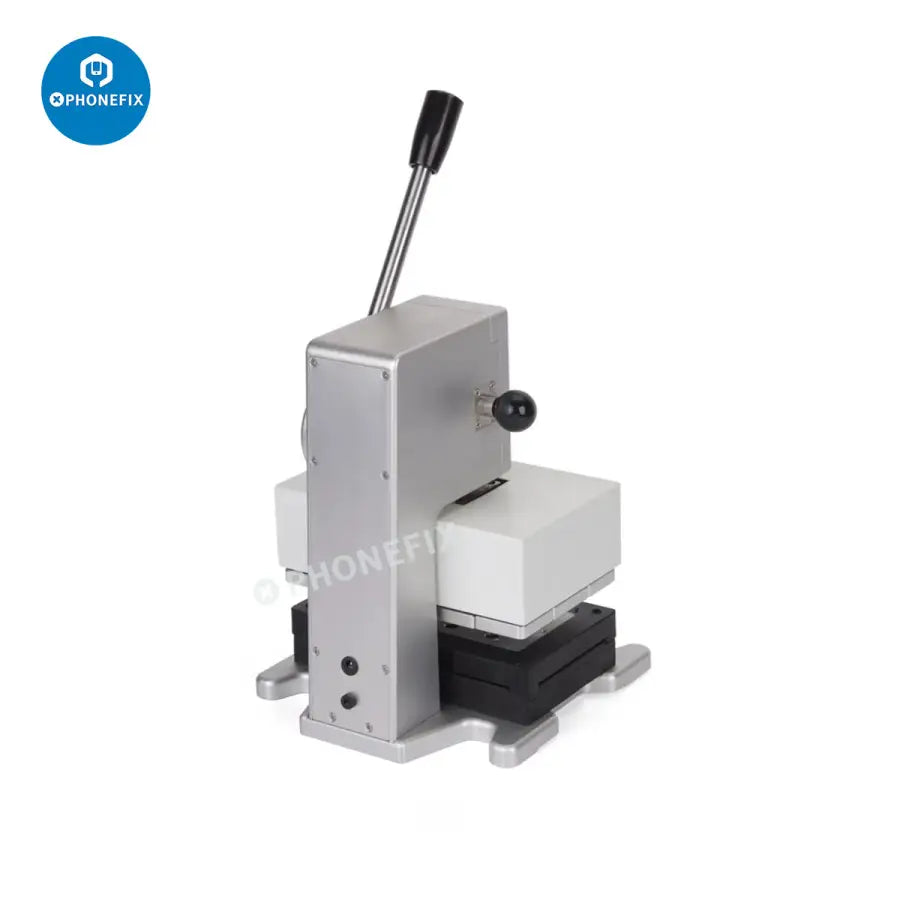

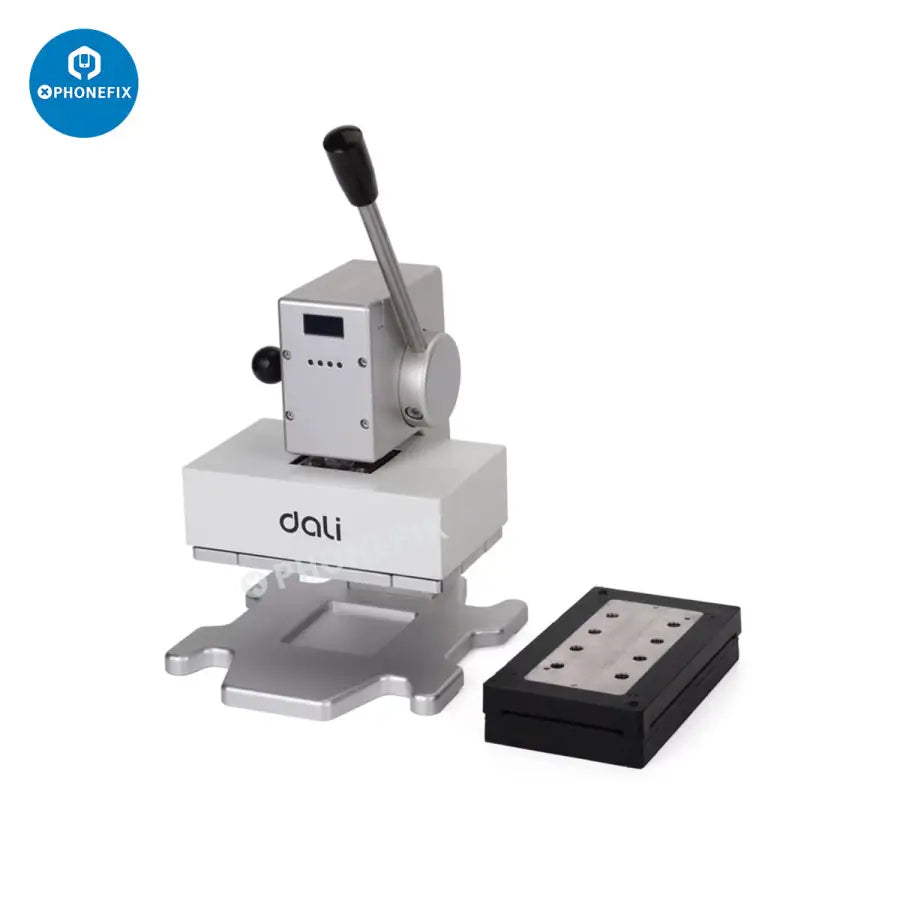

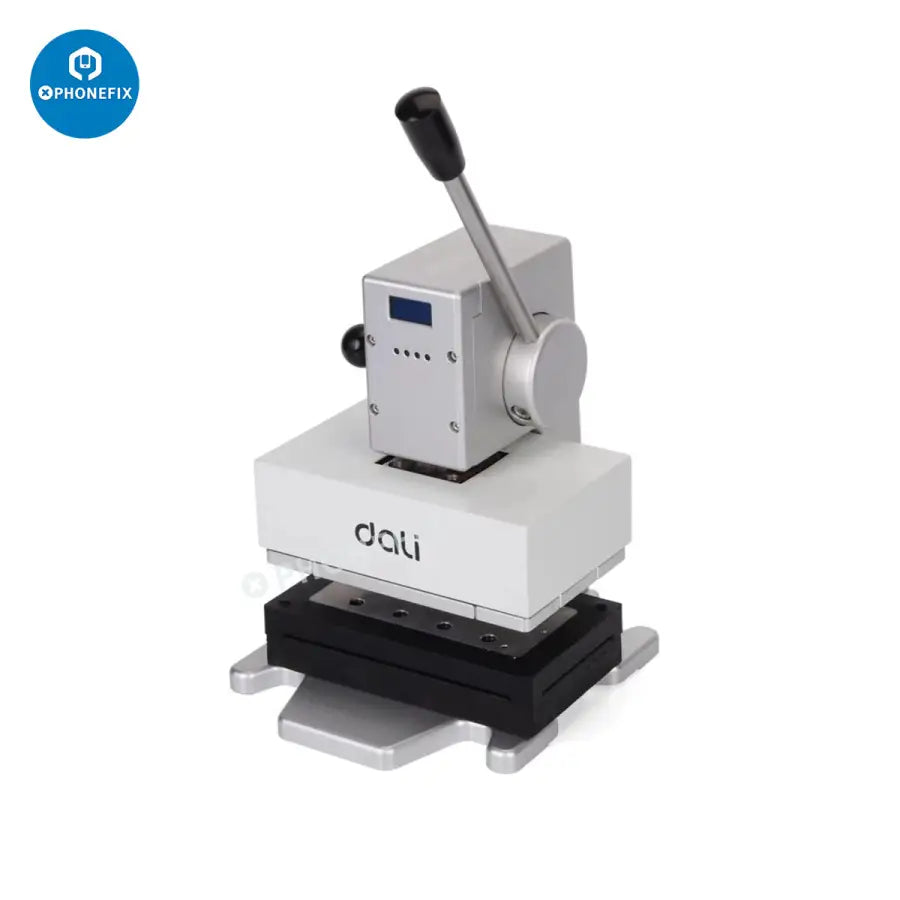

DALI K168 Pressing Machine Phone Screen Battery 2 In 1 Pressure Tool For iPhone 14 13 12 11 X Series, Samsung, Huawei and other Android Phone. DALI K168 Phone Screen Battery 2 In 1 Pressing Machine For Mobile Phone Screen Back Cover Battery Replacement Repair.
Features:
1. DALI K168 2-In-1 professional screen/battery pressure maintaining machine is a professional equipment for mobile phone screen/battery repair.
2. Equipped with a plastic pressing mold, suitable for a variety of straight screen/curved screen, and ensure safety while pressing your mobile phones and prevent the phone from scratching.
3. Powerful voltage and electric power help facilitate your phone screen refurbishing job efficiently.
4. Manufactured with an effortless structure, it is absolutely easy to operate.
5. Simple structure, easy to operate, fast, convenient, and efficient lamination of the cell phone screen and back shell pressed together.
6. According to the thickness of different cell phones, rotate the handle to different gears, and you can start the pressure work at "800 ~ 1000N" pressure when the most ideal pressure, lamination, can achieve the original waterproof effect.
7. Anti-slip handle, the rotating pressing handlebar simplifies phone screen pressing. Constant pressure and good pressure maintaining effect.
8. Made of aluminum alloy, it is strong and durable.
DALI K168 User Guide: https://drive.google.com/file/d/1HroZygxWOmgEMFIHq6E-4L7-bLM8Y1Vw/view?usp=drive_link
Option:

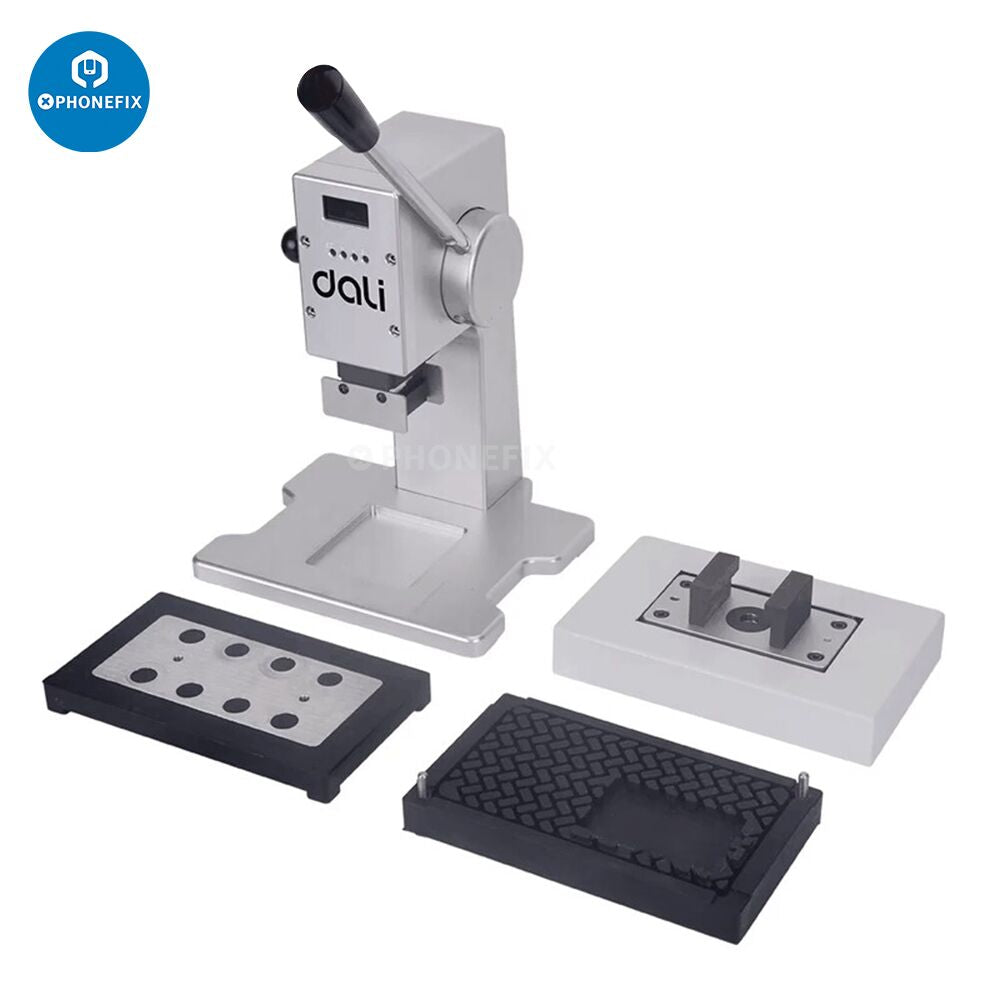

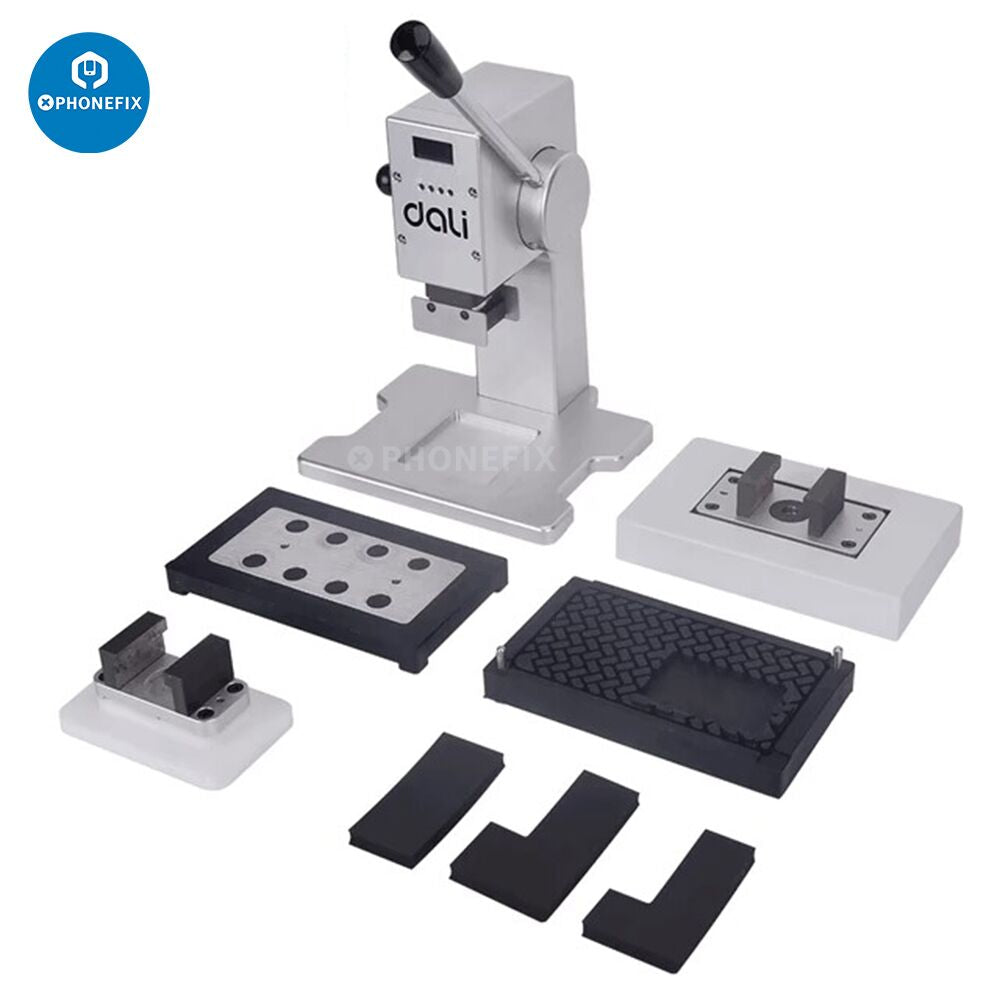

1. DALI K168 Screen Battery Pressing Set.
2. DALI K168 Screen Pressing Set.

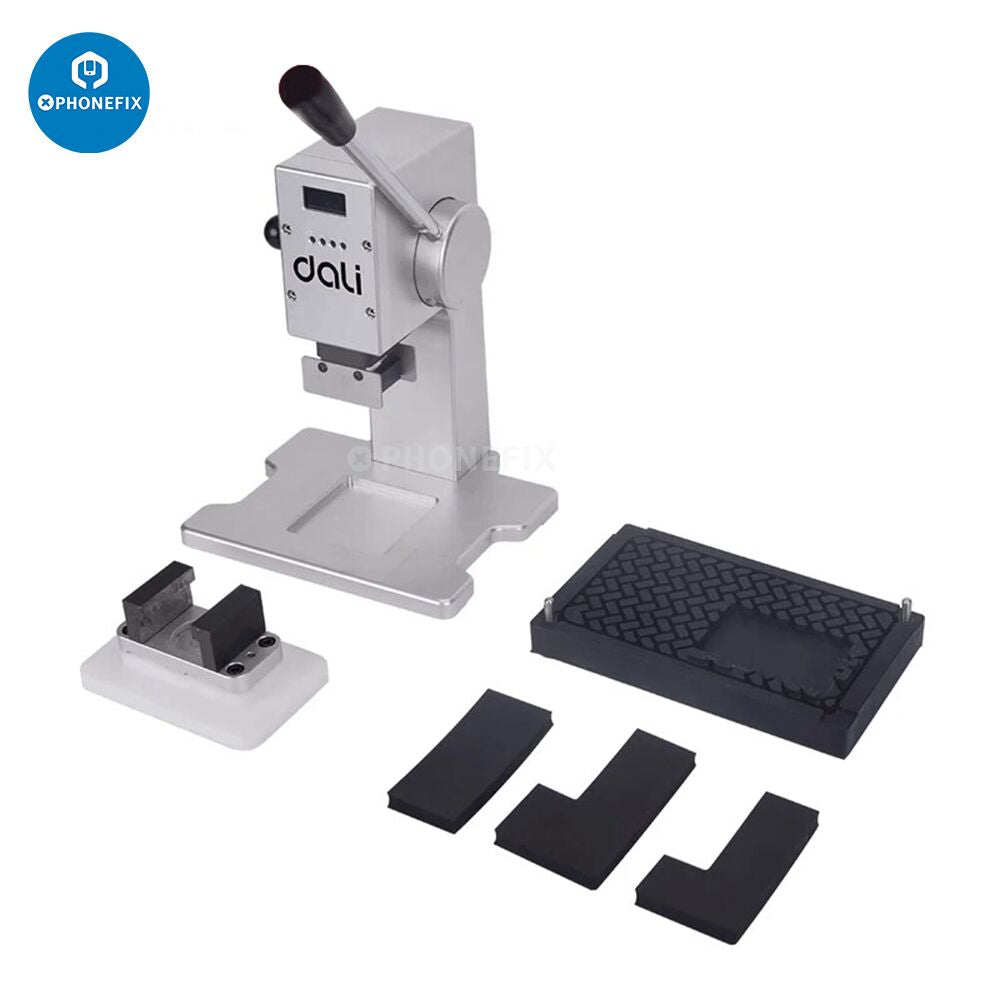

3. DALI K168 Battery Pressing Set.
Applicable:
Screen pressure-holding: Mobile phone screen pressing; Mobile phone back cover pressing.
Battery pressure maintaining machine: Mobile phone battery pressing.
Specification
Model: DALI K168.
Name: Phone Screen Battery Pressing Machine.
Power Supply: DC 24V / 1.5A.
Power: 48W.
Pressure Range: 800~1000N (Ultimate pressure: 1100N).
Time Setting Range: 0~900S.
Product Size: 23*28*29cm.
Gross Weight: 12.3kg.
Holding time setting instructions:
1. Press the "SET" button and wait until the numbers on the display flash to set the time;
2. Adjust the holding time by adjusting the “+” and “-” buttons at the bottom of the display screen;
3. After the adjustment is completed, press the "EN" key to complete the time setting.
Operation:
1. Turn on the power, and the display will light up, indicating that the device is powered on normally.
2. Press the mobile phone:
- Place the mobile phone to be pressed into the bottom mold of the silicone mold.
- Then cover the upper silicone mold on the mobile phone screen, and then put the whole Designated position of the laminating machine base plate;
3. Pressed battery:
- Place the mobile phone battery to be pressed into the bottom of the silicone mold
- Then select a suitable battery pad to cover the battery, and then place it as a whole enter the designated position on the bottom plate of the press;

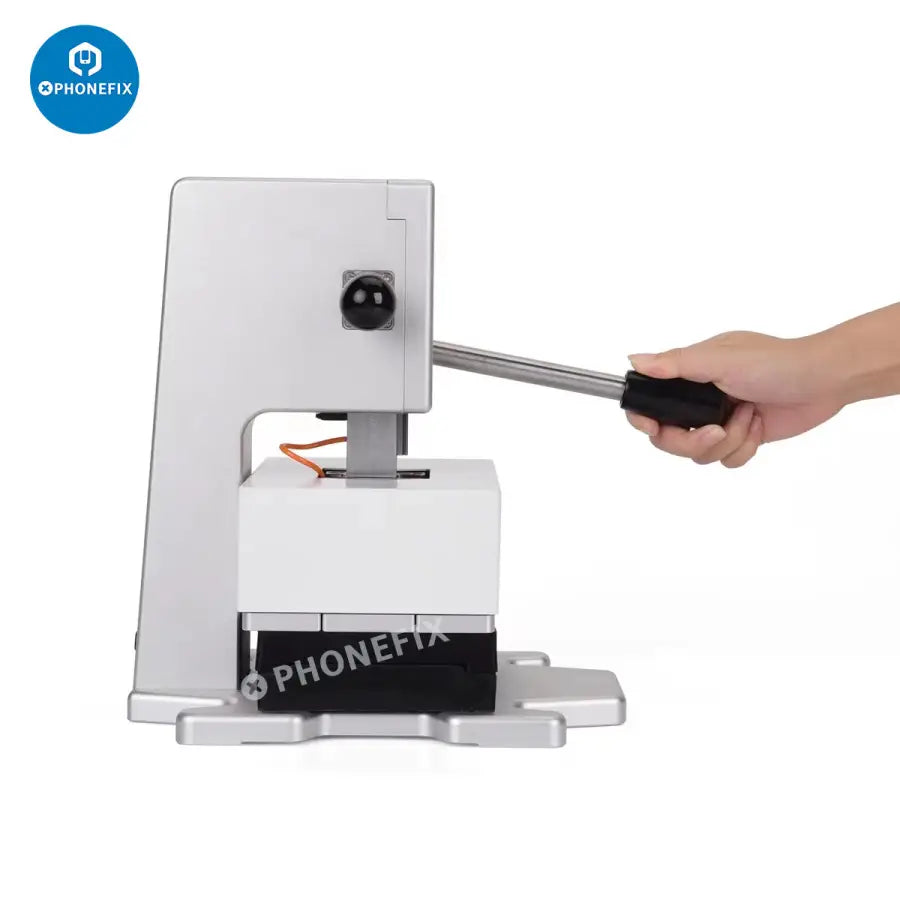

4. Install the handle, hold the handle with your hand, rotate and press down, and then press the mold together live silicone mold/battery pad.

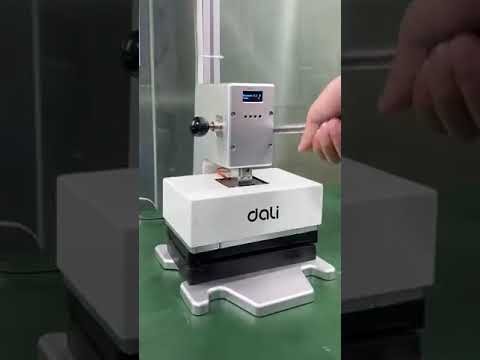

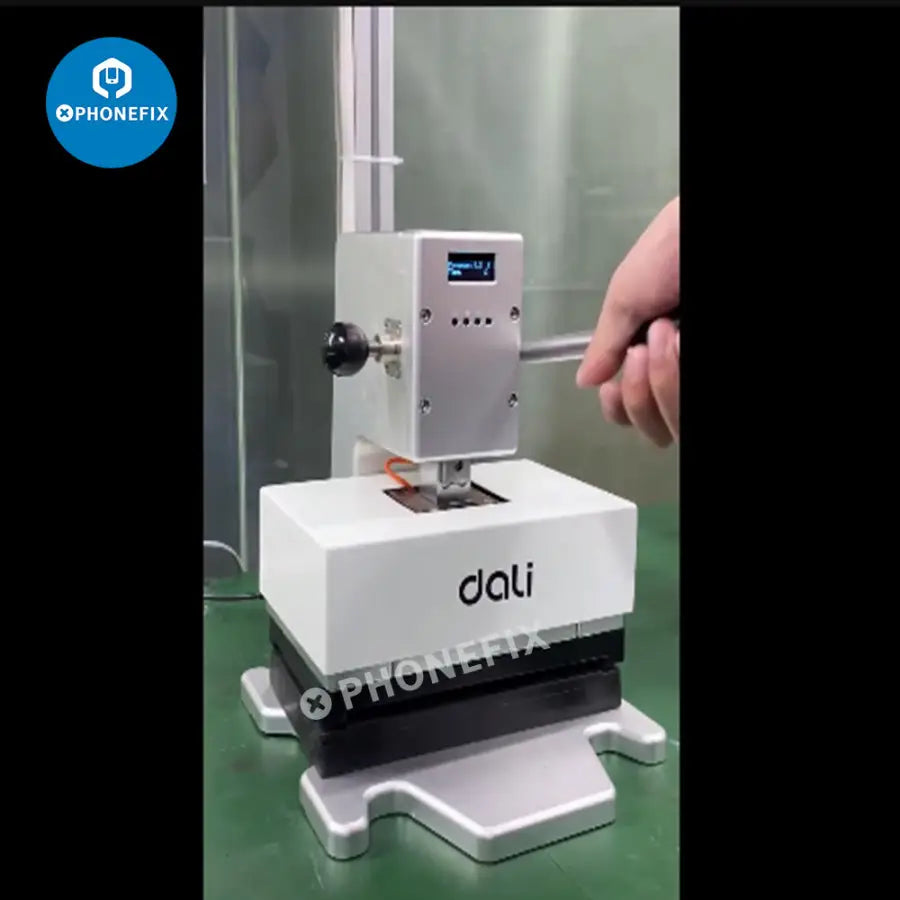

5. If Pressure on the screen: Rotate the handle and press down. When the display shows, when the pressure is between "800~1000N", the pressing will stop and the pressure holding time will start.
6. If Press the battery pressure: Rotate the handle and press down. When the display shows that the pressure is "40~150N", the press will stop and the pressure maintenance time will start;
7. When the pressure holding time is up, the buzzer sounds.
8. Pull out the ball handle switch on the left, and then the pressing mold pops up to its original position.
9. Take out the silicone mold and then take out the mobile phone.
Precautions:
1. The socket must be installed with a leakage protection switch while the power adapter is 220V.
2. Before use, please connect the grounding wire to the back of the pressing platform.
3. Make sure the power cable is properly inserted into the jack on the back of the device to prevent false connections.
4. Do not press the display with external force in case of any damage.
5. Remember to cut off the power if the device is stored or it will be unused for an extended period of time.
6. Do not dismantle the device and change the internal parameter settings without authorization.
