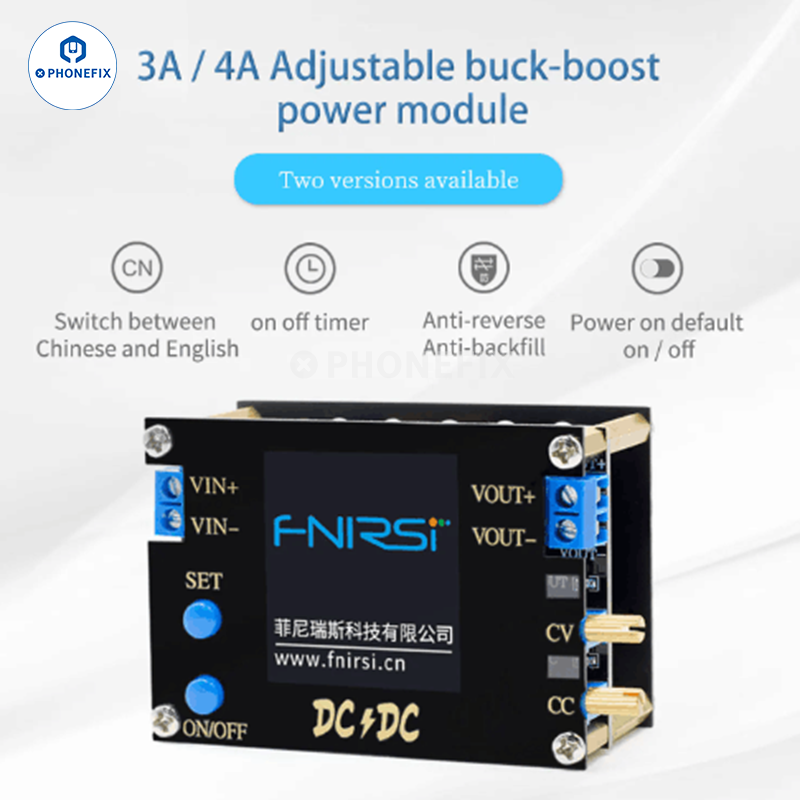

DC DC automatic boost / buck converter CC CV power module 0.5-30V 3A 35W / 4A 50W adjustable regulated power supply voltmeter. stable power supply, high power output, intelligent temperature control, user-friendly interface, multi-functional power management. LCD has a large volume heat sink, optional fan, with housing protection.
Feature:
1. DC automatic boost / step-down converter is a multi-functional power module that provides a wide input voltage range from 7V to 32V, and an output voltage range from 0.5V to 32V.

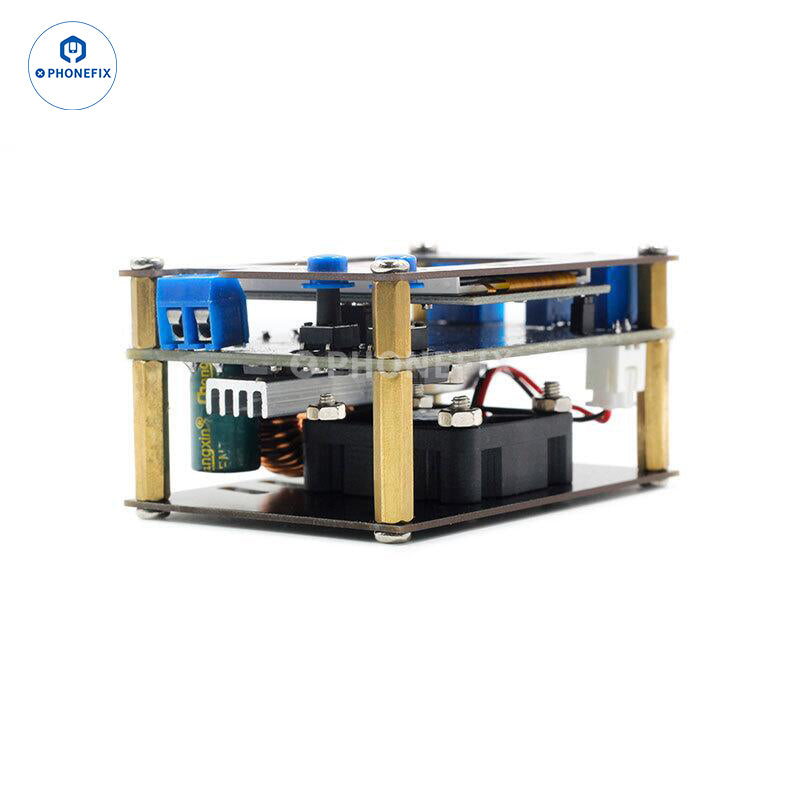

2. Equipped with a large-capacity radiator and optional fan to achieve excellent heat dissipation, provides a fanless design to ensure silent operation in specific scenarios.
3. Prevent reverse connection, and there is no risk of burnout, it has an output anti-backflow design, and there is no need to use an anti-backflow diode when charging.

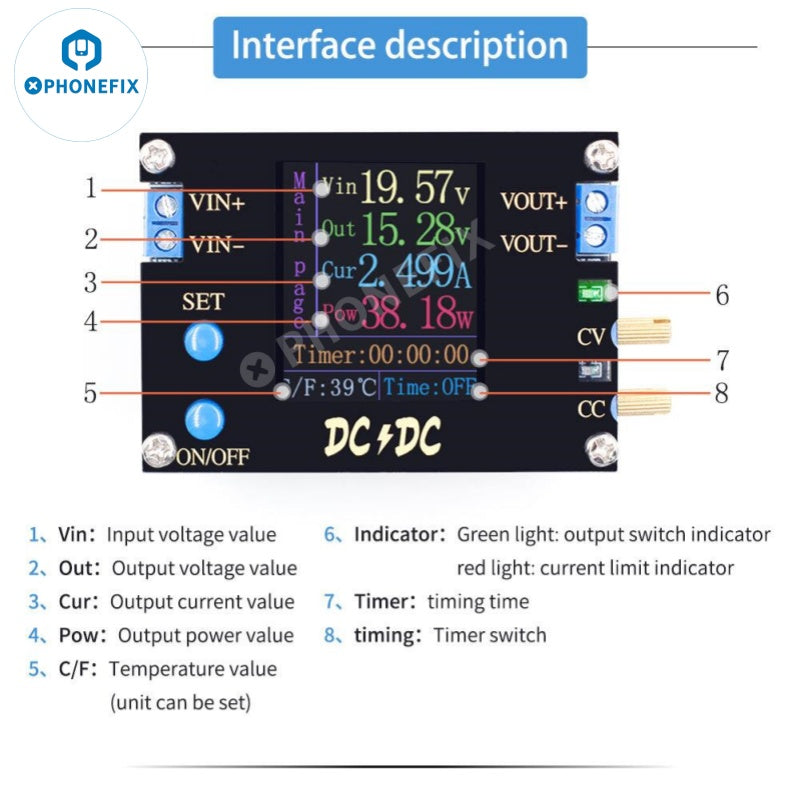

4. The user-friendly interface includes an LCD screen that displays basic information such as input voltage, output voltage, and output current.
5. Intuitive interface with easy-to-use knobs for adjusting output voltage and current.

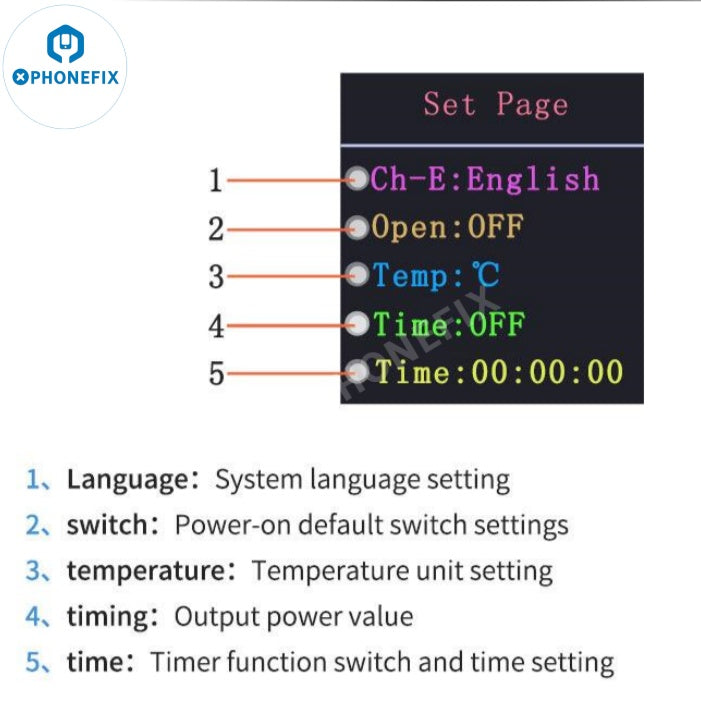

6. Provides a variety of settings, including a timer switch, which can be set to turn on or off by default, and the ability to switch between Chinese and English.
7. Compact design and lightweight construction make it a convenient choice for a variety of applications, from hobbyist projects to professional setups.

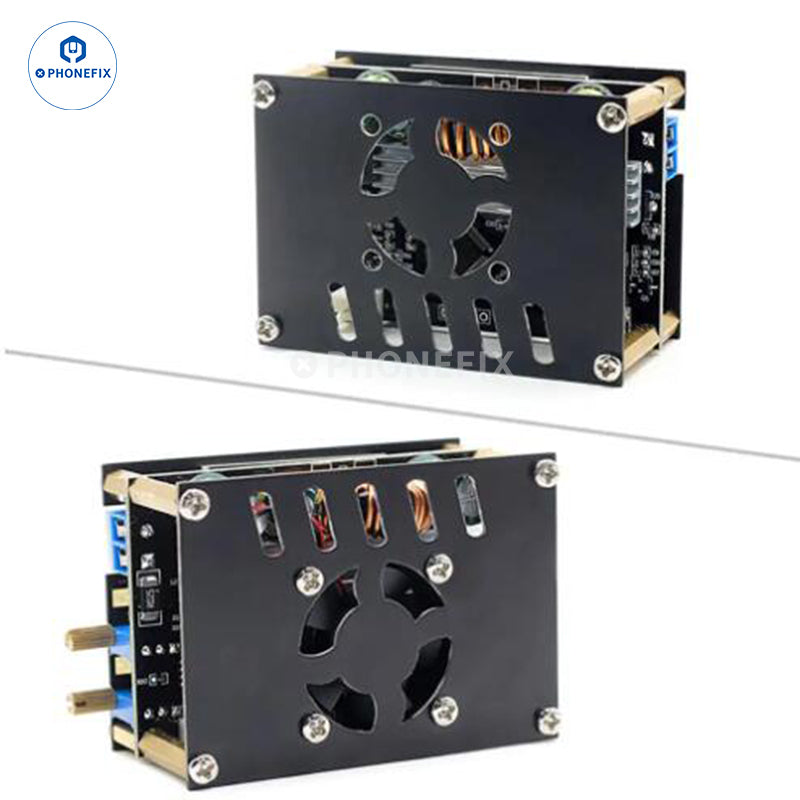

8. 4A NC lifting and adjustable power module LCD, has a large volume heat sink, optional fan, with housing protection.
Specifications:
Brand: FNIRSI.
Input Voltage Range: 7V-32V.
Output Voltage Range: 0.5V-32V (weak output capability below 1.8V).
Output Current Range: 3A (natural cooling) / 4A (enhanced cooling).
Output Power Range: 35W (natural cooling) / 50W (enhanced cooling).
Voltage Resolution: 0.01V.
Current Resolution: 0.001A.
