DES 560B 560W precision manufacturing concentrated desoldering station, German brand DES 560W handheld digital hot air gun soldering station for mobile phone repair tool, 560B digital hot air gun / turbo cyclone / dormancy concentrated desoldering station
DES 560B Precision Handheld Digital Hot Air Gun De-Soldering StationOptional Package :
- DES 560B without handle bracket

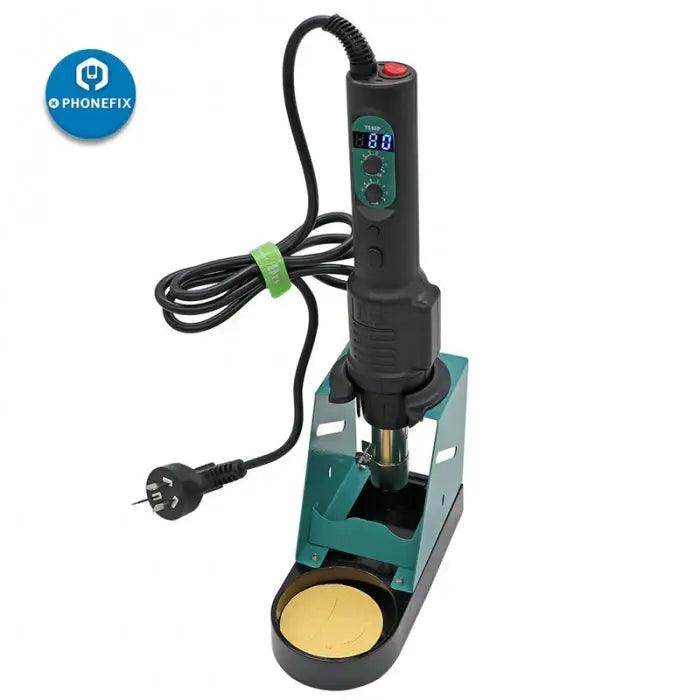

- DES 560B with handle bracket
Product Features :
- Original German famous brand DES. 100% original brand new
- Fast heating speed and anti-static protection
- German MCH long time span heating element
- Brushless motor, auto sleeping and cooling function
- whirlwind blow, the heating is more uniform
- Micro control and no noise
- Digital temperature display
- Small volume, saving working space with the new design
- It is new vortex design for exit, deccreasing anomaly temperature
- Small body volume, saving working space, portable handle domiation

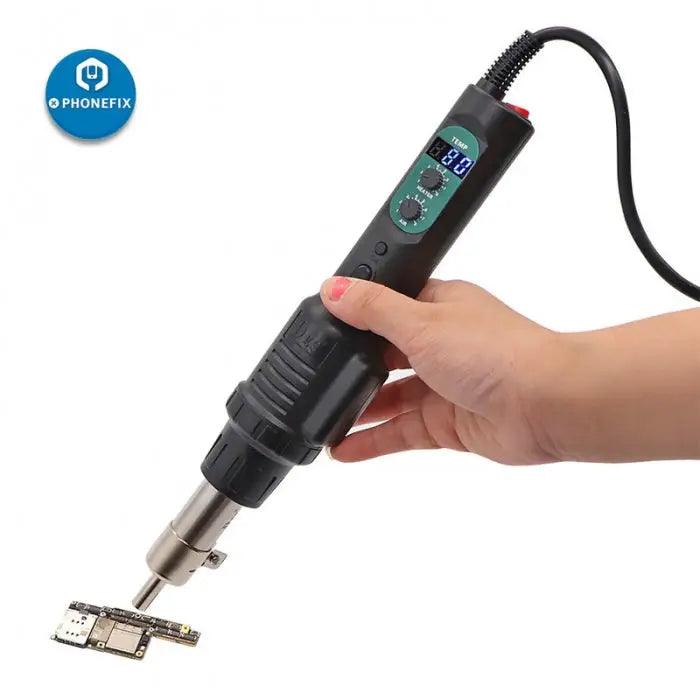

- Adjustable air volume & temperature, adapting to de-soldering chips of QFP, SOP, PLCC & SOJ
- Setting Cooling function, turning off the power, the system continues sending cool air until the temperature is lower down to 80℃, protecting the elements from high temperature damage
- Inside temperature sensor setting, ensuring stable temperature for different air volume
- Static elimination design that is safe for sensitive elements

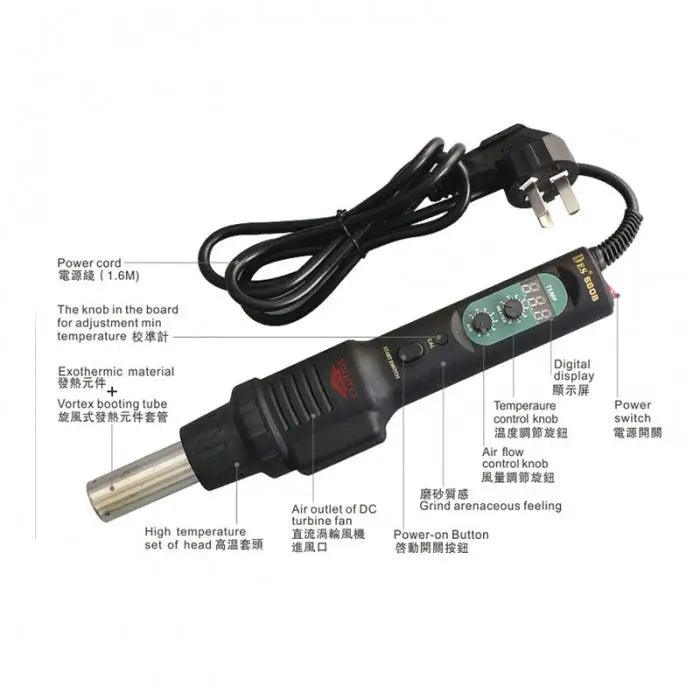

Product Specification :
- Name: DES 560B
- Display: Digital display
- Power consumption: 560W
- Temperature Range: 80-600℃
- Air-volume: level 1-8
- DC turbine fan: 5V/8300 Rotation
- High temperature set of head: GP6/GP6 (Purchase additionally)
- Exothermic material: 220V/A1526 110V/A1525
- Cord length: 1.6m
- Total length (without cord): 250 (L) mm
- Weight: 0.6KG
- Packing size:320*205*60mm
- Power Supply: AC 110V/60Hz AC 220V/50Hz

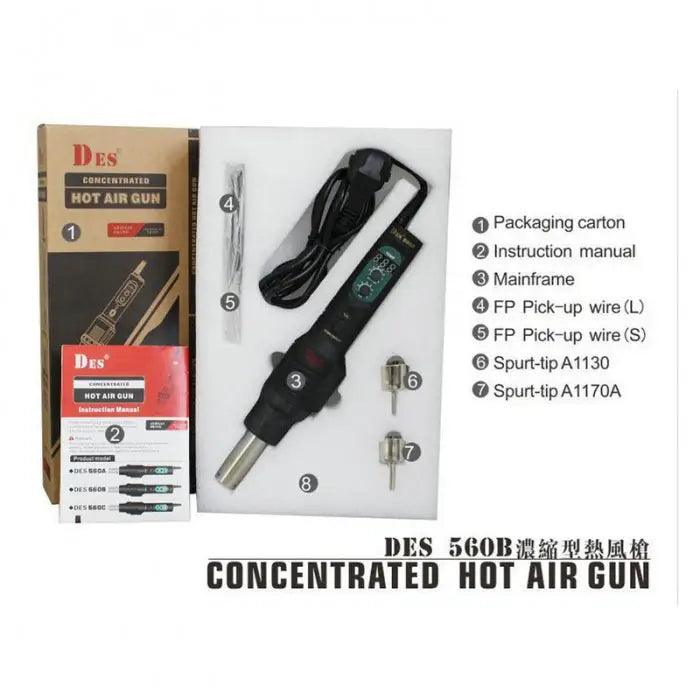

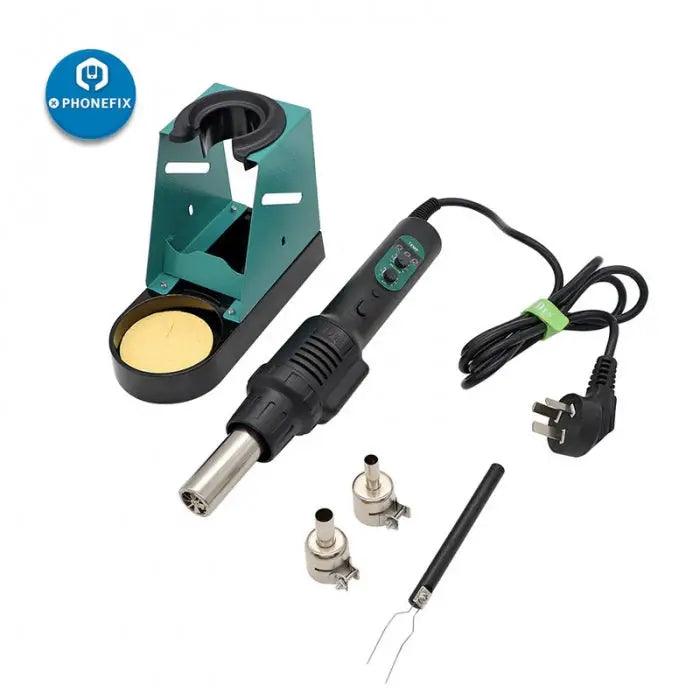

Package includes :
- 1pcs x Packaging cwrton
- 1pcs x Instruction manual
- 1pcs x Mainframe
- 1pcs x FP Pick-up wire (L)
- 1pcs x FP Pick-up wire (S)
- 1pcs x Spurt-tip A1130
- 1pcs x Spurt-tip A1170A
