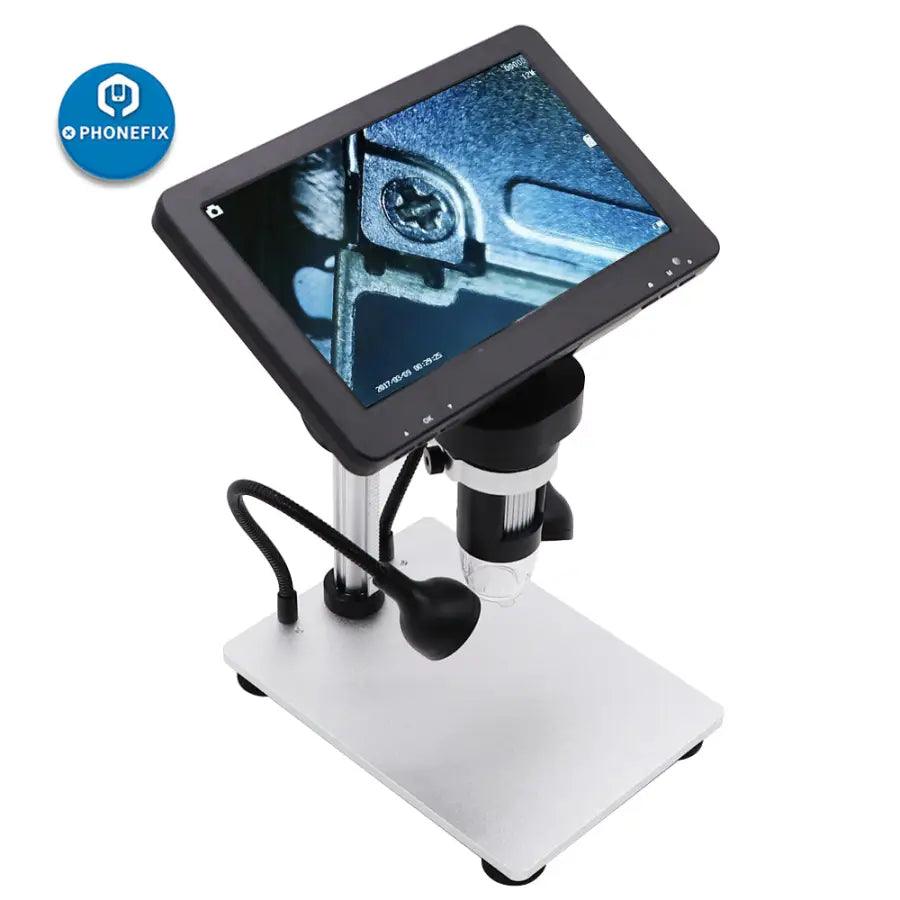

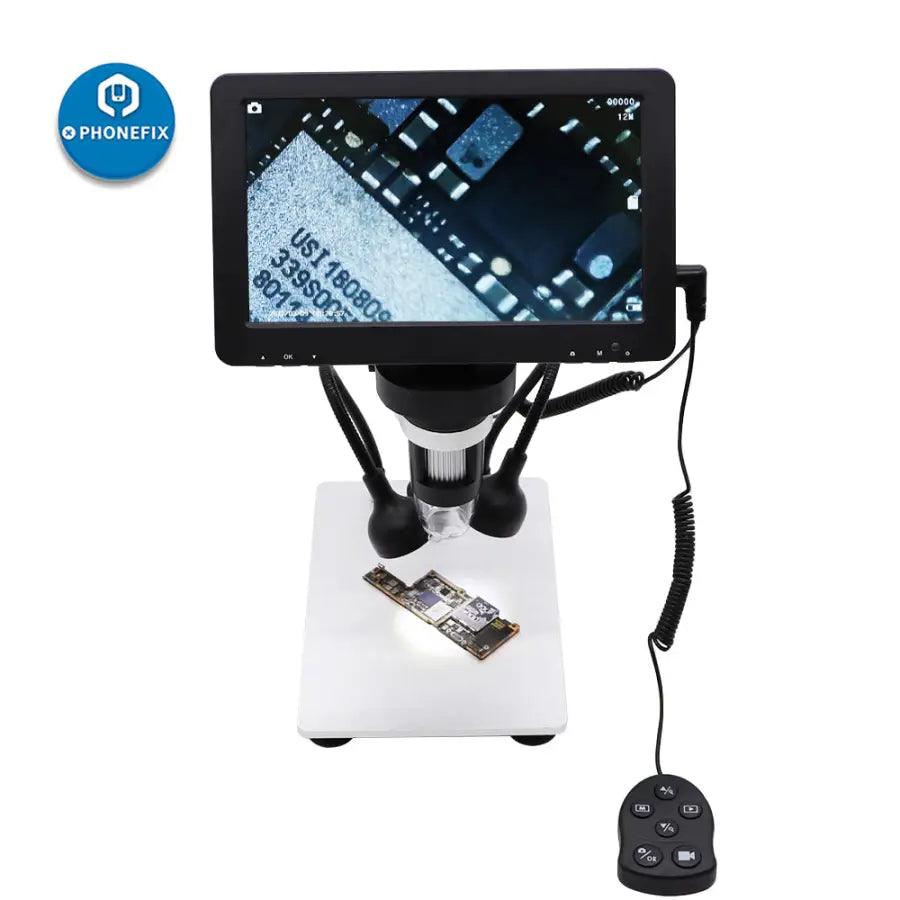

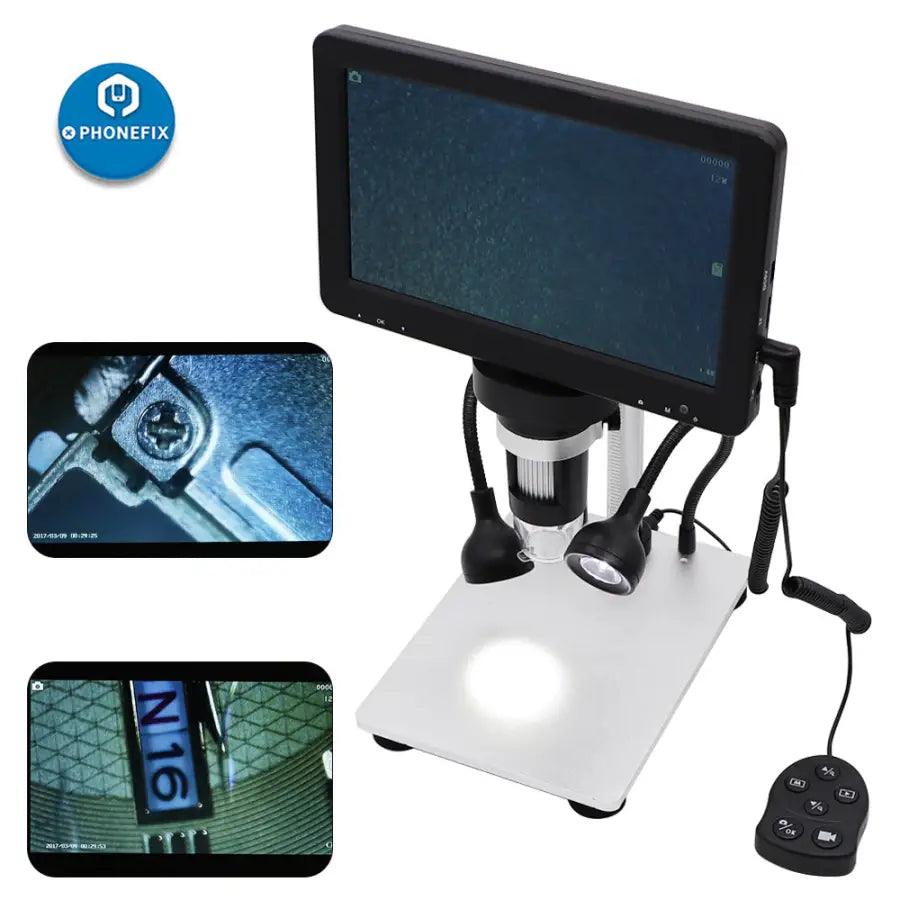

DM9 1200X 12MP USB Digital Microscope with 7 Inch Display Screen

DM9 1200X 12MP USB digital microscope with 7 inch HD display screen and metal bracket and LED light for cell phone welding repair, DM9 high-definition 1200X USB digital Microscope, 1200X 12MP electronic endoscope magnifier microscope for mobile phone PC PCB soldering inspection repair

DM9 High-definition 1200X USB Digital Microscope Camera Endoscope Magnifier with 7 inch Display Screen, Metal Bracket and LED Light For Industrial Inspection Repair

Product Features :
Complete functions, clear imaging, exquisite workmanship, large screen display, external remote control, easy operation, external LED fill light, self-replaceable battery, can be connected to a computer, support up to 12 languages, etc.

Note: Use 18650 rechargeable specifications battery, please use charger to activate the device when the battery is first installed and replaced

Product Specifications :

• Product model: DM9
• Maximum video pixel: 1080FHD
• Lens optical size: 1/4"
• Camera resolution: 12M, 10M, 8M, 5M, 3M
• Video resolution: 1080FHD, 1080P, 720P
• Video format: AVI
• Focus mode: manual
• Picture format: JPG
• Magnification: 1200X
• Digital zoom:not support
• Light source: 8 LED lights (adjustable brightness)
• Focusing range: 10~40mm (you can watch the distant view)
• PC resolution and image transfer rate: 1280*720/30fps
• White balance: automatic
• Exposure: automatic
• PC operating system: windows xp, win7 ,win8.1, win 10, mac os x 10.5 or higher
• Support languages: 12 languages
• Lens structure: 2G+IR
• Aperture: F4.5
• Lens angle of view: 16°
• Interface and signal transmission method: Micro/usb2.0
• Operating temperature: -20°C ~ +60°C
• Working humidity: 30%~85%Rh
• Working current: 390mA
• Power consumption: 1.95w

Application :

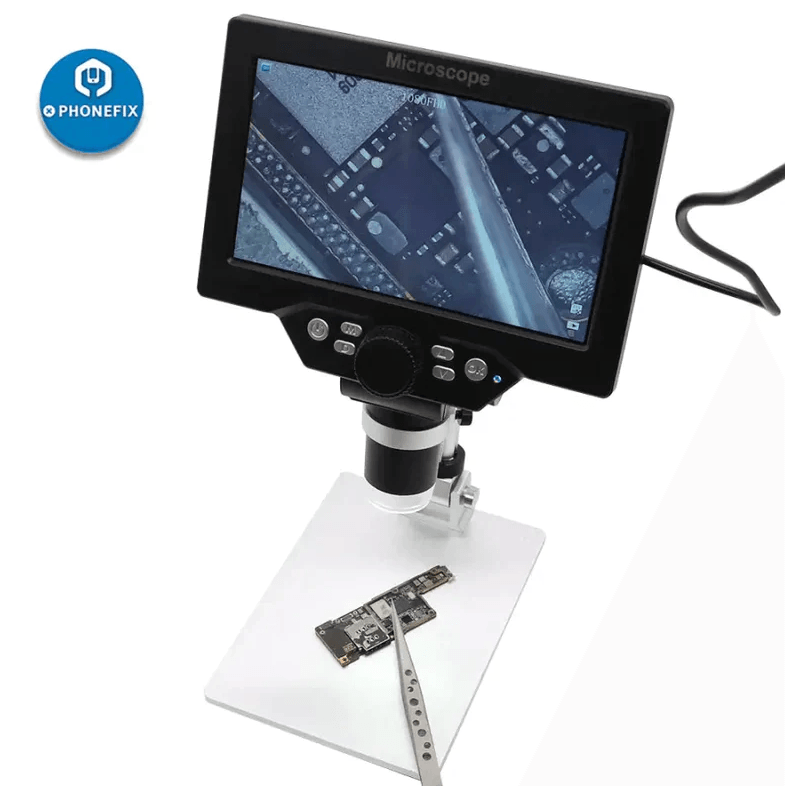

Electronic circuit board inspection, industrial inspection, textile inspection, watch and mobile phone repair, skin inspection, scalp inspection, planing experiment test, printing inspection, teaching and research tools, magnification and measurement of precision objects, reading assistance, hobby research, etc.

Function Description :

1. Video resolution: There are 3 formats to choose from: 1080FHD, 1080P, 720P.
2. Camera resolution: There are 5 formats to choose from: 12M, 10M, 8M, 5M, 3M.
3. Continuous shooting: After turning on this option, you can take 5 photos continuously.
4. Image quality: There are 3 choices of high quality, standard and economic.
5. Sharpness: There are 3 options for strong, standard and soft.
6. ISO: There are 3 options for automatic, 100, and 200.
7. Exposure compensation: There are 13 kinds of exposure compensation values from +2.0 to -2.0 to choose from.
8. Date label: After selecting the date or date/time, the photos and videos are marked with the date or date and time.
9. Playback mode: Users can view the photos or video files they need according to their needs. Long press the menu button on the device or the switch button on the remote control to switch modes.

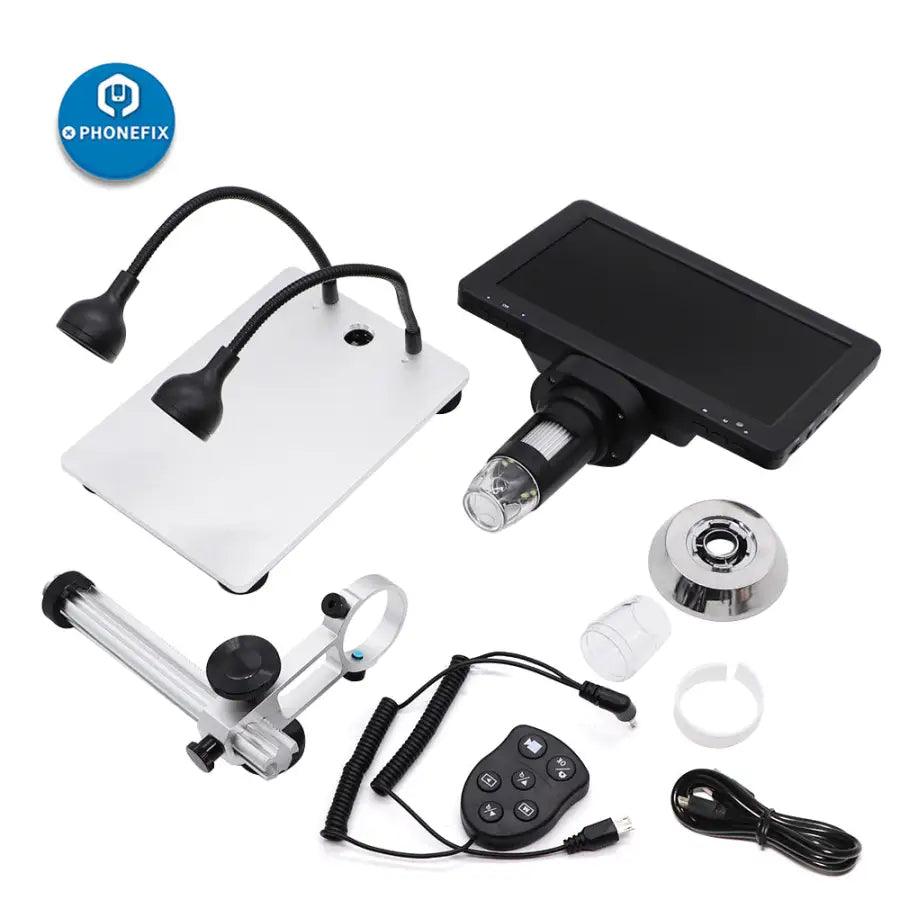

Package List :

• 1pcs x Microscope (Not Including Battery)
• 1pcs x Bracket

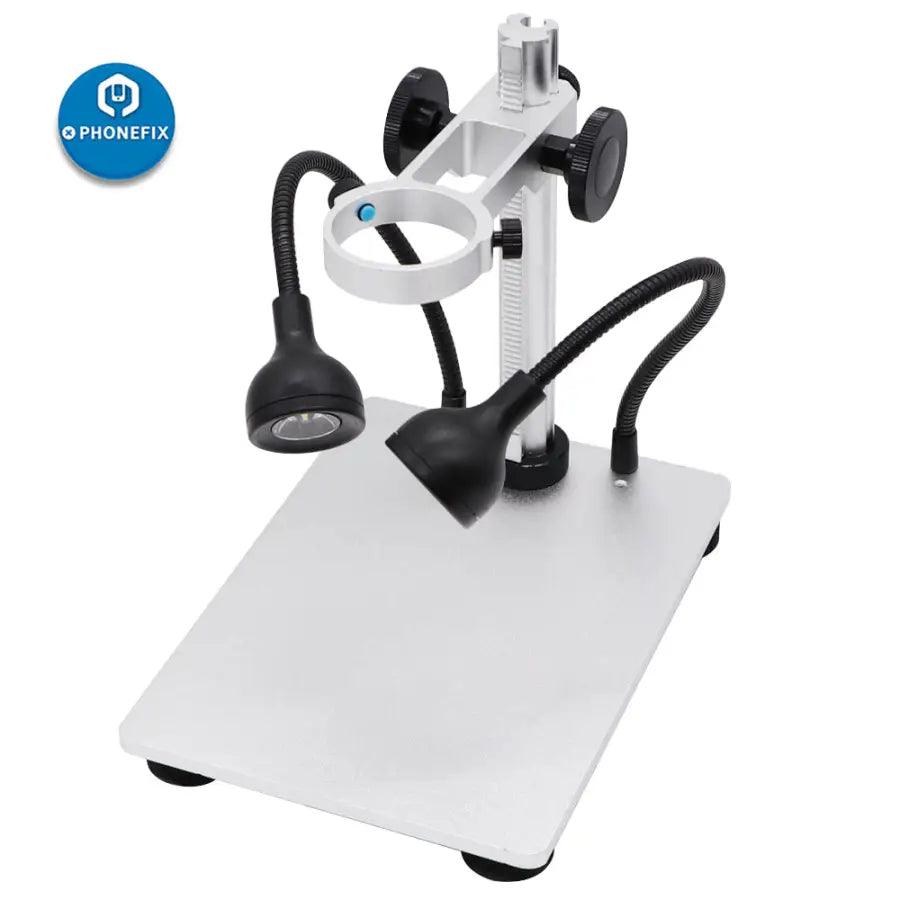

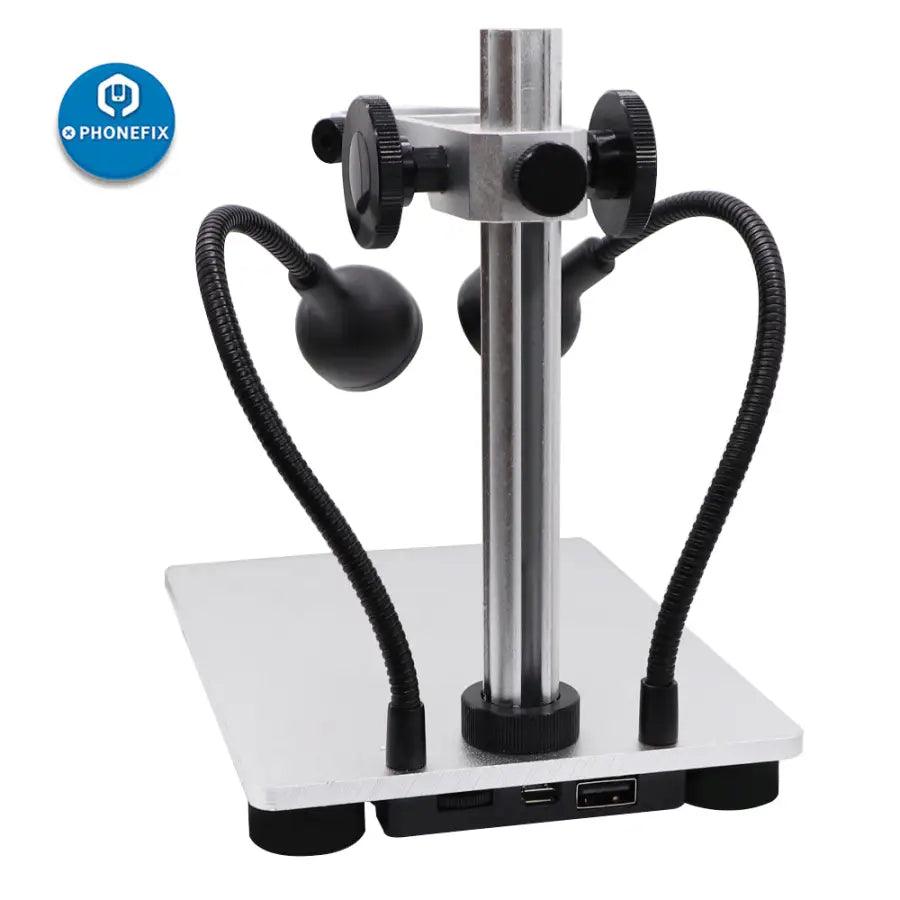

• 1pcs x Base with Light
• 1pcs x USB Cable

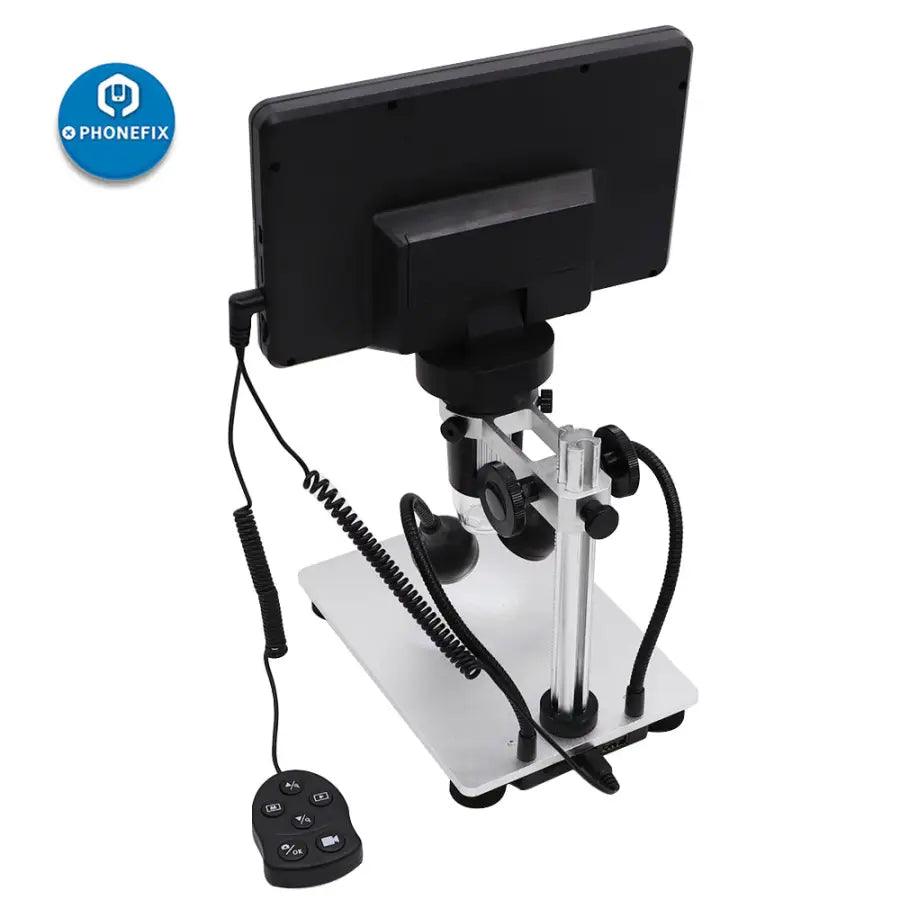

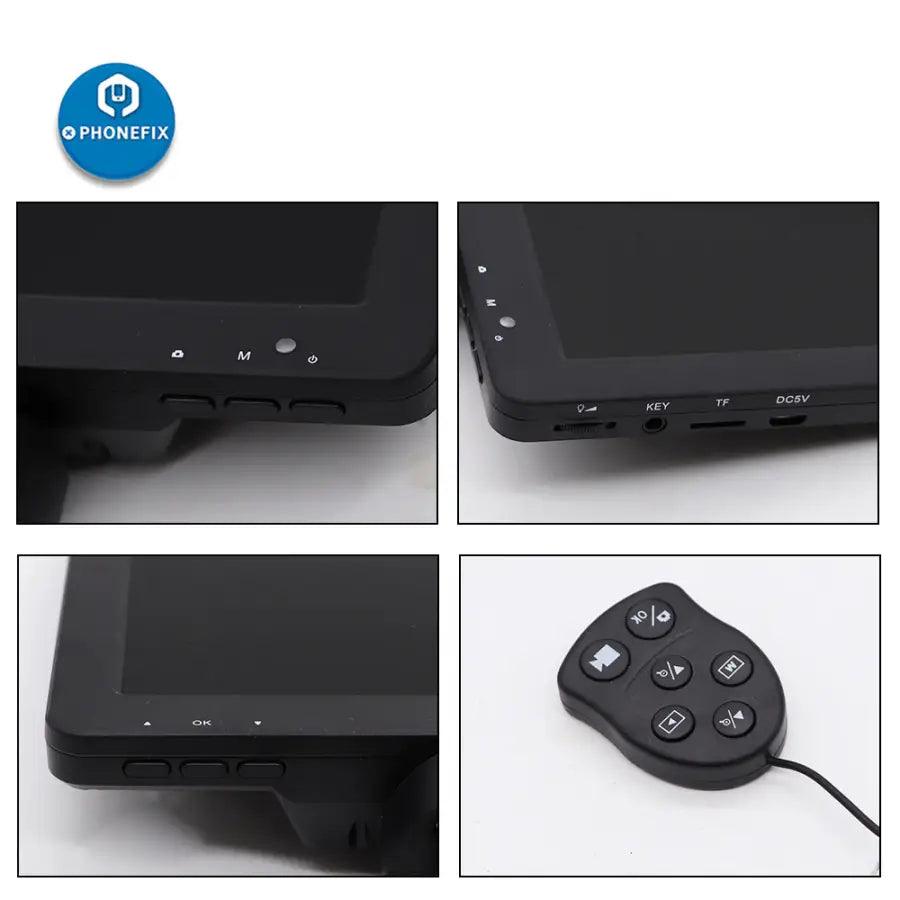

• 1pcs x Wired Remote Control
• 1pcs x Reflector
• 1pcs x CD
• 1pcs x Manual
