Please Noticed: This microscope is 25KG with detail package.

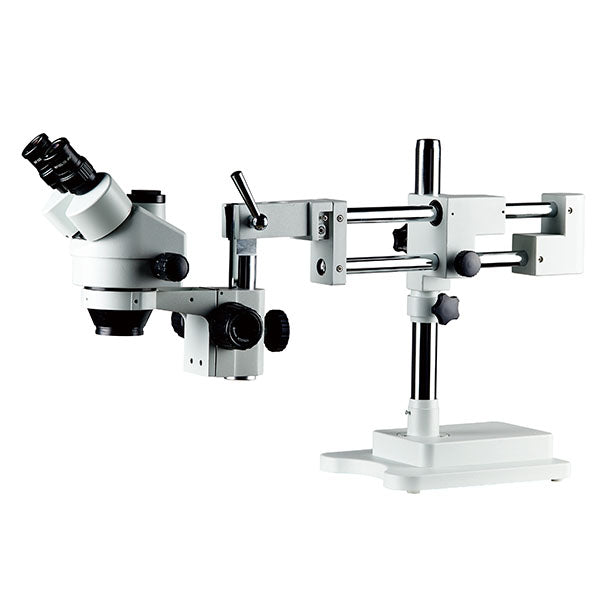

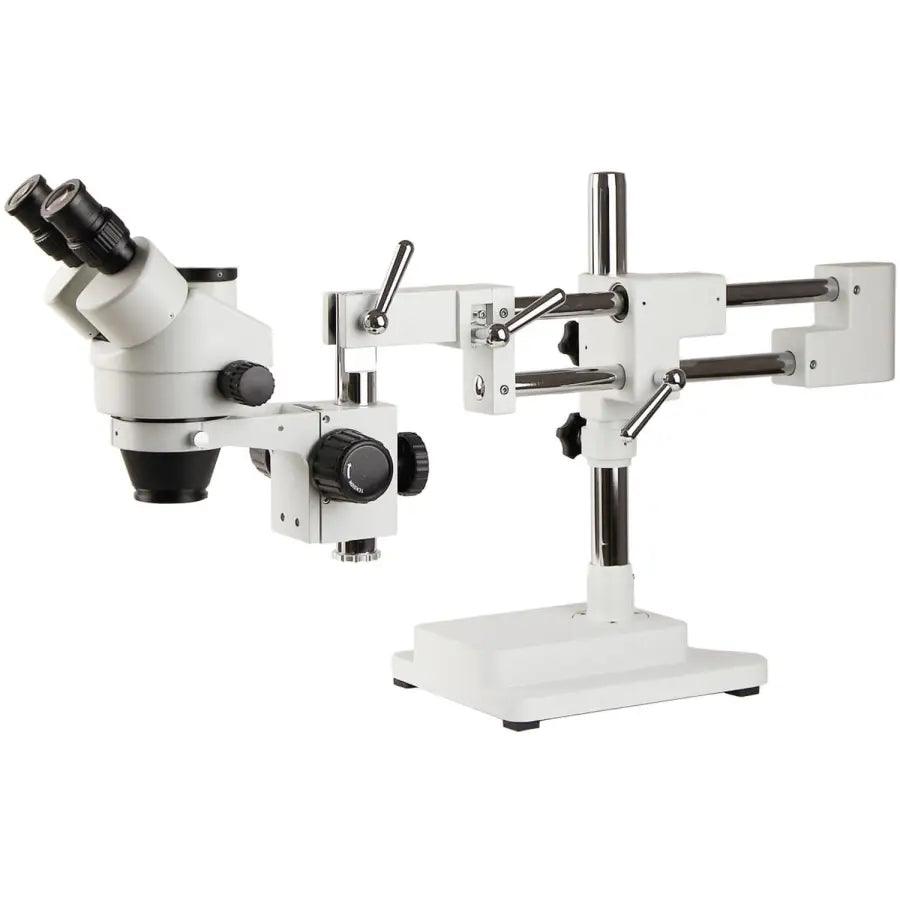

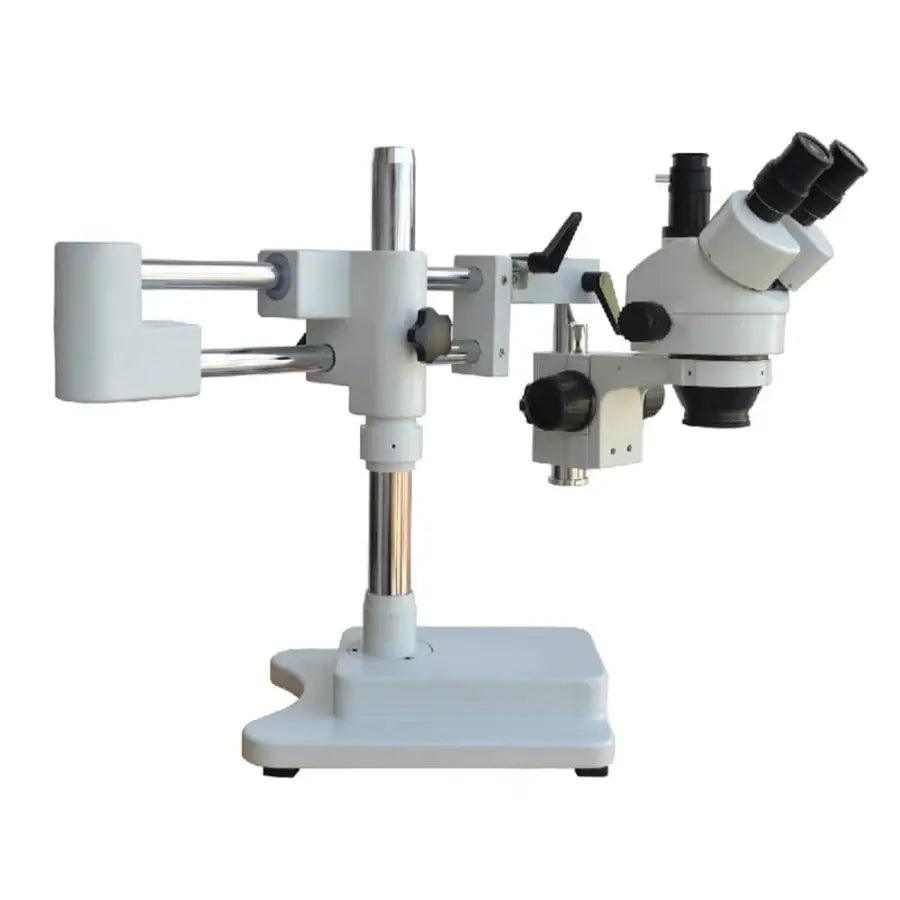

This is a trinocular 7X-45X zoom stereo microscope that gives crystal clear sharp images. It comes with a trinocular head with 30mm super widefield, high-eyepoint 10X eyepieces and a double-arm heavy-duty boom stand. The 45 degree inclined trinocular and high-eyepoint design ensures an easy observation, especially for eyeglass wearers. The rubber eyeguards provide further comfort. The trinocular port enables to add photographic or video capability. The double-arm boom stand allows you to turn the microscope head around three different axes (x, y, and z), allowing you to point the microscope head toward to ANY direction. This microscope offers high resolution, super widefield of view, 6.5:1 magnifying zoom range and 4" (100mm) working distance. It is an ideal instrument for research labs, gemologists, engravers, collectors and anyone in semiconductor and/or electronic industry. This stereo zoom microscope is made by the same technicians and on the same production line as optical instruments for Leica, Zeiss, Nikon and Olympus. It comes brand new in factory sealed boxes.
Feature :
- 7X-45X zoom magnification power with crisp sharp images
- Super widefield high-eyepoint optics
- widefield of view
- 4" (100mm) working distance
- Sturdy all-metal pillar stand
- Powerful 56-LED ring light with dimmer
- This stereo microscope has a 56-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.
- An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
- 7x-45x super wide zoom magnification power
- Bright cool light 56-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable interpupillary distance
- Rubber eye-guards included
- Weight: 25KG
Specification:
- Zoom Range of Zoom Body: 0.7X-4.5X
- Zoom Ratio: 1: 6.5
- Max. Optic Magnification: 2.1X-270X
- Field of View: 1mm-95.2mm
- Working Distance: 30mm-165mm
- Working Distance with Built-in 1X Lens: 100mm
- Interpupillary Adjustment: 54mm-75mm
- Eyetube Inclination: 45ð
- Eyepiece Diopter Correction: ñ5 Diopter
- 360ðRotatable Microscope Head
- Optional Eyepieces: 10X, 15X, 20X, 25X and 30X
- Optional Auxiliary Lenses: 0.3X, 0.5X, 0.75X, 1.5X and 2X
- Optional Video Couplers: 0.3X and 0.5X (For Trinocular Body)
- Head: 45 degree inclined 360 degree swiveling trinocular
- Eyepieces: 30mm super widefield high-eyepoint WF10X/20
- Objective: 0.7-4.5X
- Zoom Range: 6.5:1
- Maximum Field of View: 1-1/4" (33mm)
- Minimum Field of View: 3/16" (4.75mm)
- Diopter Adjustment: +/-5dp
- Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
- Working Distance: 4" (100mm)
- Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base

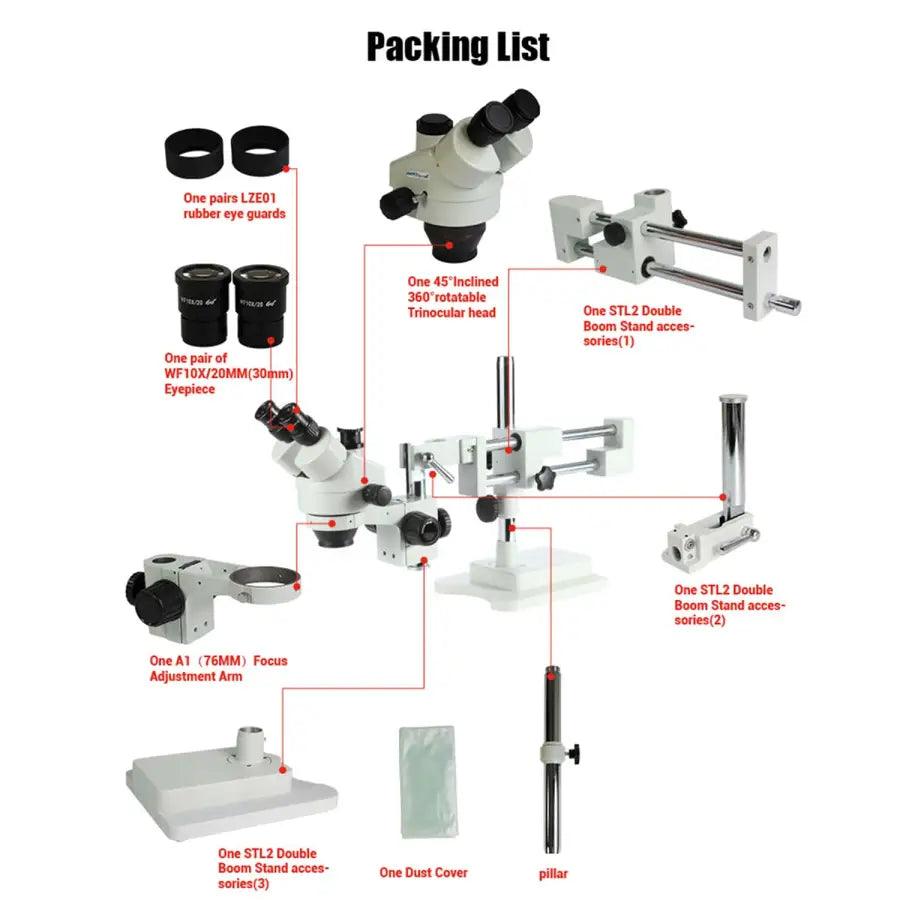

- Accessories: eye-guar
