Flash64 F64 Ultra NAND Programmer allows the use of UFS, eMMC, Nano Memory Cards, MicroSD, etc. F64 Ultra with eMM 4 IN 1 + UFS153/UFS254/UFS297 is designed to revolutionize the way repair shops and technicians handle managed NAND storage solutions. It's a versatile tool for managed NAND programming, recovery, repair and testing. Flash64 Programmer is a must-have for repair shops dealing with managed NAND storage in smartphones, TV boxes, gaming consoles and IoT devices.
Flash64 Key Features:
1. UFS: Fully compatible with versions 1.0 to 4.1, achieving HS-Gear speeds up to 420 MB/s
2. eMMC: Versions 4.1 to 5.1, 8-bit HS200 speeds up to 200 MB/s.
3. Nano Memory Card (NM): Up to 4-bit 90 MB/s.
4. MicroSD: UHS-I speeds up to 104 MB/s for SDSC, SDHC, SDXC, and SDUC.
Special UFS/EMMC IC Programming Board For F64 Ultra/Lite Box, it supports UFS/eMMC chip programming, helps repair boot failures, and is used for data recovery and flashing. The chip connection is stable and reliable, reducing the risk of chip damage during operation. It is easy for mobile phone repair technicians to use.
Option:

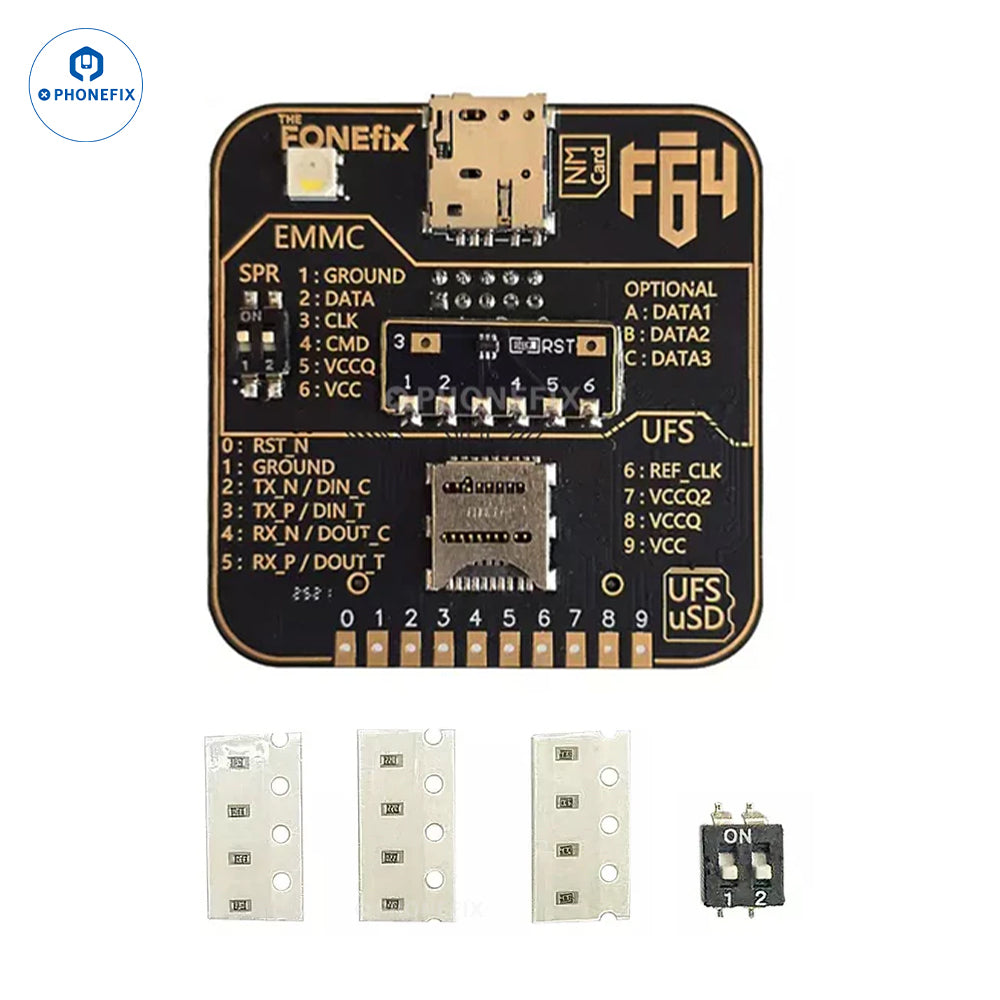

1. Flash F64 Ultra Set.
2. Flash F64 Lite Set.

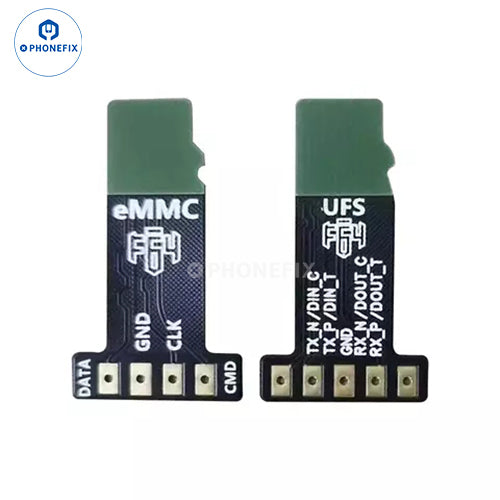

3. Flash 64 eMMC/UFS 2 in 1 Flex Cable Set.
4. Flash 64 eMMC 4 in 1 BGA Socket Adapter.
5. Flash 64 UFS 153 BGA Socket Adapter.
6. Flash 64 UFS 254 BGA Socket Adapter.
7. Flash 64 UFS 297 BGA Socket Adapter.

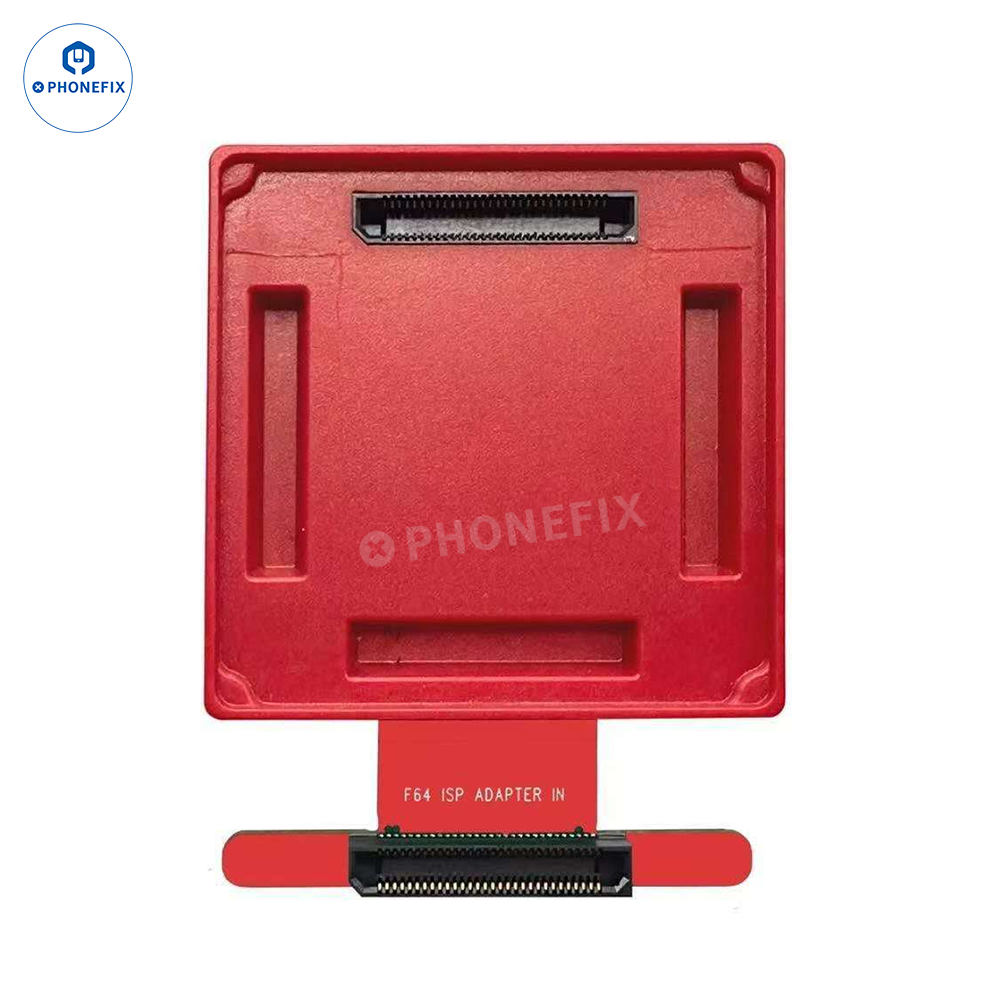

8. Flash 64 ISP Adapter.

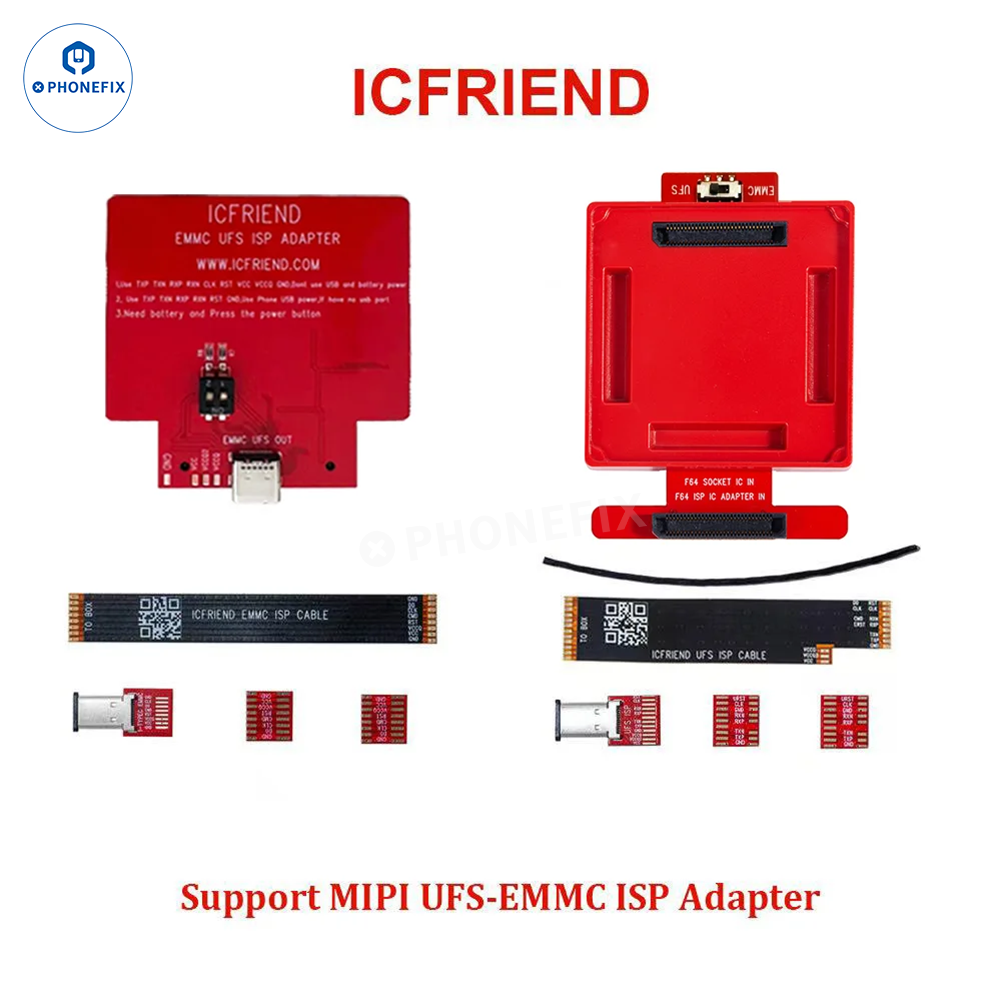

9. F64 ISP IC Adapter+ICFRIEND EMMC UFS ISP Adapter.

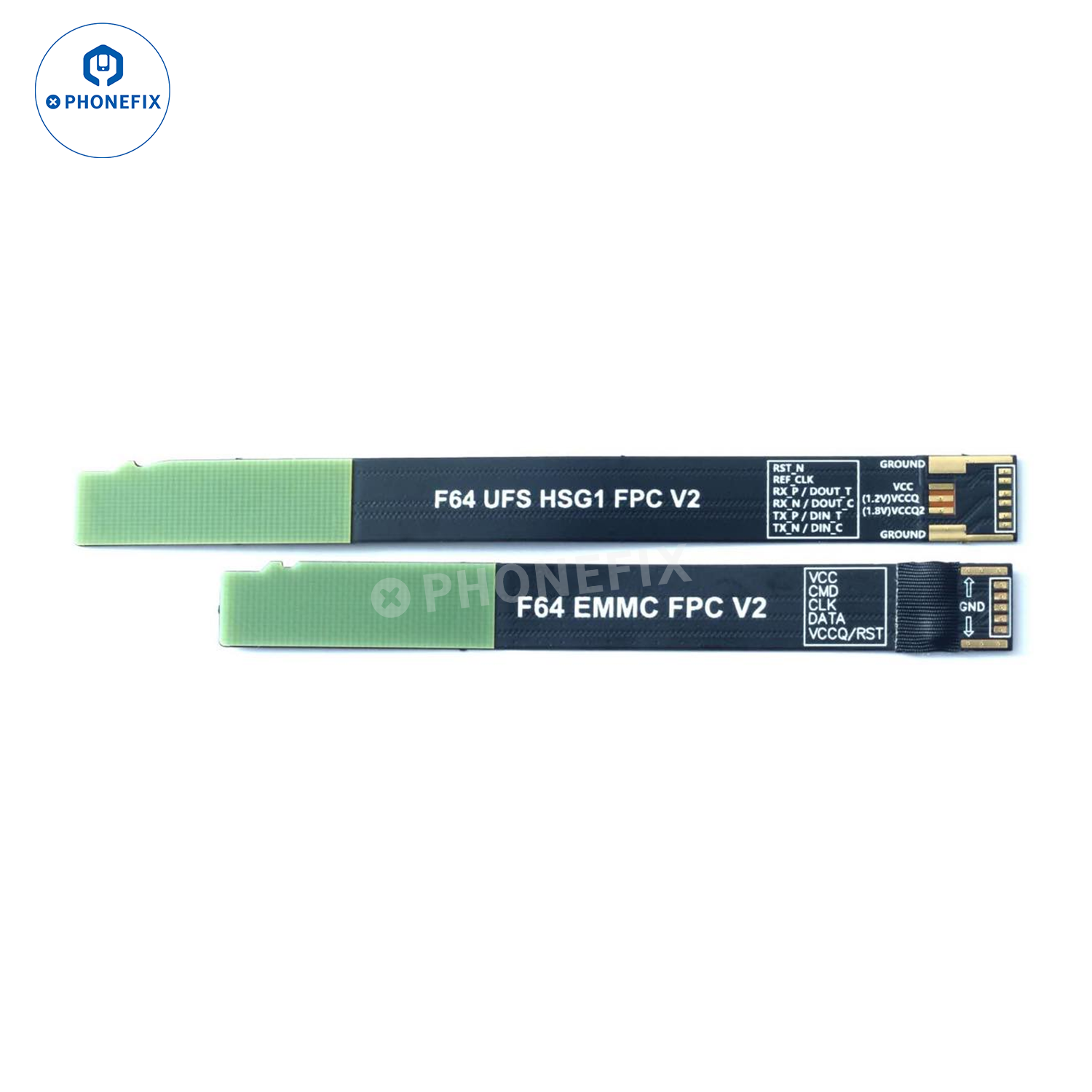

10. F64 UFS HSG1 FPC V2 Cable + F64 EMMC FPC V2 Cable Set.

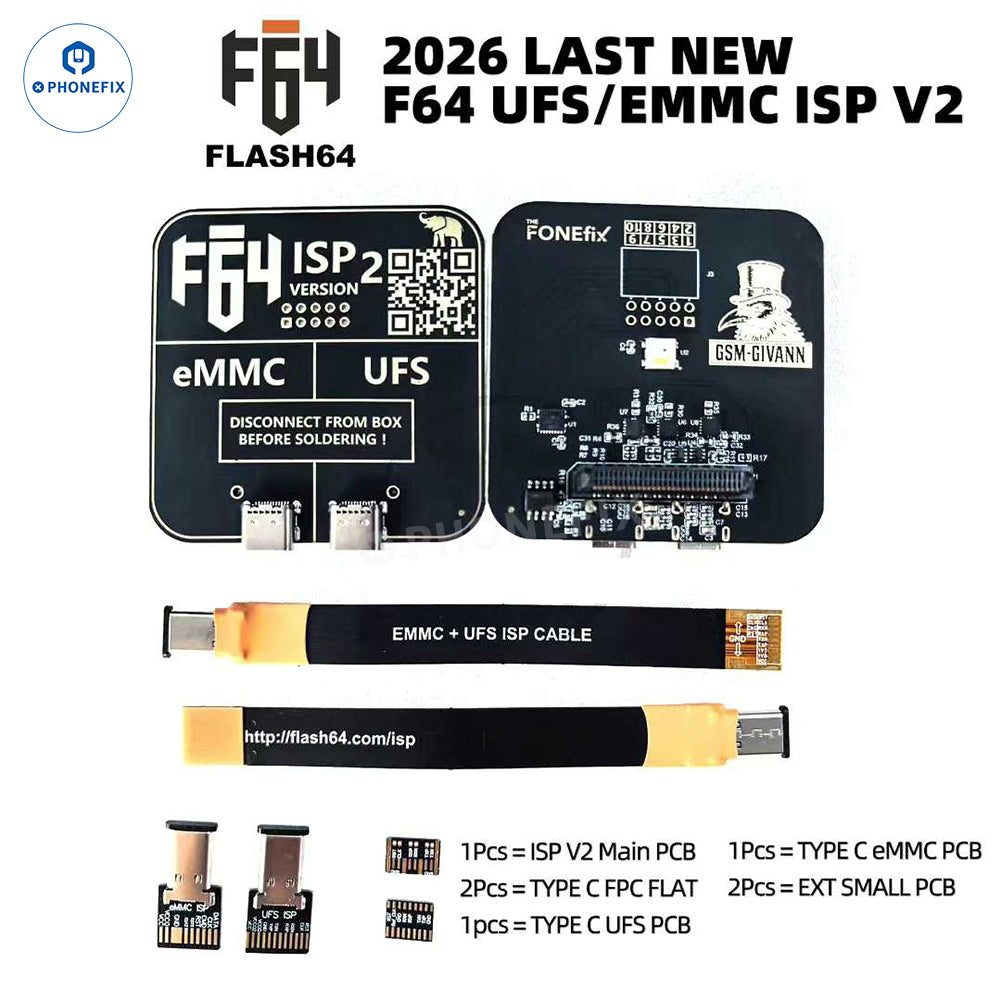

11. Flash 64 F64 UFS/EMMC ISP V2 Adapter with flex cable set.

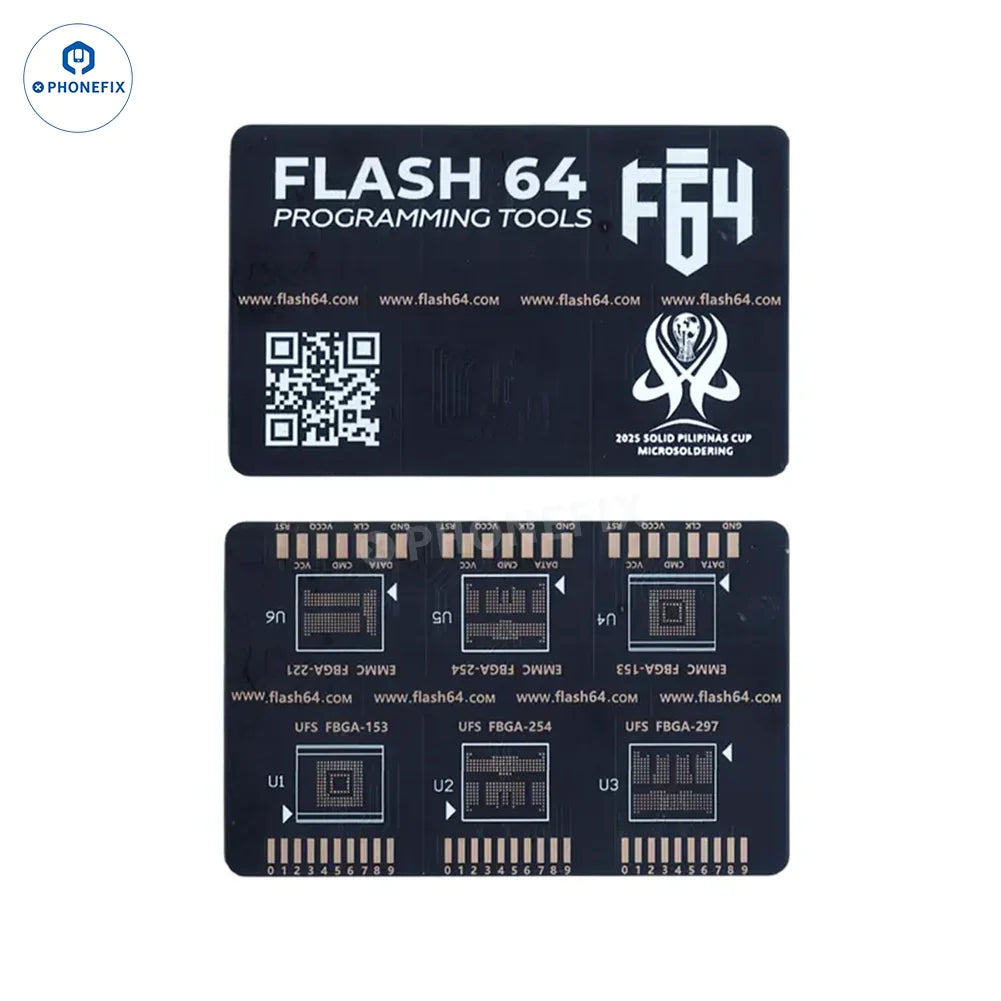

12. Special UFS/EMMC IC Programming Board.
Features:
1. Flash64 Ultra Nand Programmer adopts a dual-core SoC + ASIC design to eliminate system bottlenecks and achieve ultra-fast data transfer speeds of up to 420 MB/s through compatibility with ICs such as UFS 3.x and UFS 4.x.
2. Flash64 Ultra also supports major modern interfaces such as RFFE, JTAG, SPI, I2C, and UART, which can be used to further diagnose problems found in modern electronics.
3. Dual USB 3.2 Gen 1 and USB 2.0 interfaces for fast and reliable connections.
4. Wireless BLE 5.0 and WiFi 4 for added convenience.
5. NFC-based warranty tracking for seamless service management.
6. A vibrant 1.69-inch IPS TFT LCD display for real-time monitoring.
7. Customizable RGB lighting to suit your workspace aesthetic.
8. Supports operating systems Windows 8, 10, 11.
Flash 64 Lite/Flash 64 Ultra Specifications:
CPU: Xtensa LX7 MCU @ 240 MHz.
External SRAM: 8 MB.
Internal SRAM: 512 KB.
Flash Memory: 16 MB.
Wi-Fi Module: 2.4 GHz Wi-Fi (802.11 b/g/n).
The software enables both high-level and low-level access to managed NAND storage:
1. High-Level Access: Read / write Android OS partitions.
2. Low-Level Access: works directly with RAW partitions, logical units, and RPMBs.
The F64 Ultra Suite offers unparalleled control over UFS ICs and eMMC configurations:
1. UFS: access and configure descriptors, attributes, and flags to ensure proper IC setup.
2. eMMC: full access to the Extended CSD for deep-level customization and low-level repartitioning.
Flash 64 Ultra Packing List:
1x Flash64 Lite Set.
1x eMMC 4 in 1 Adapter.
1x UFS-FBGA-153 Adapter.
1x UFS-FBGA-254 Adapter.
1x UFS-FBGA-297 Adapter.
Flash 64 Lite Packing List:
1 x Flash64 Lite Set.
