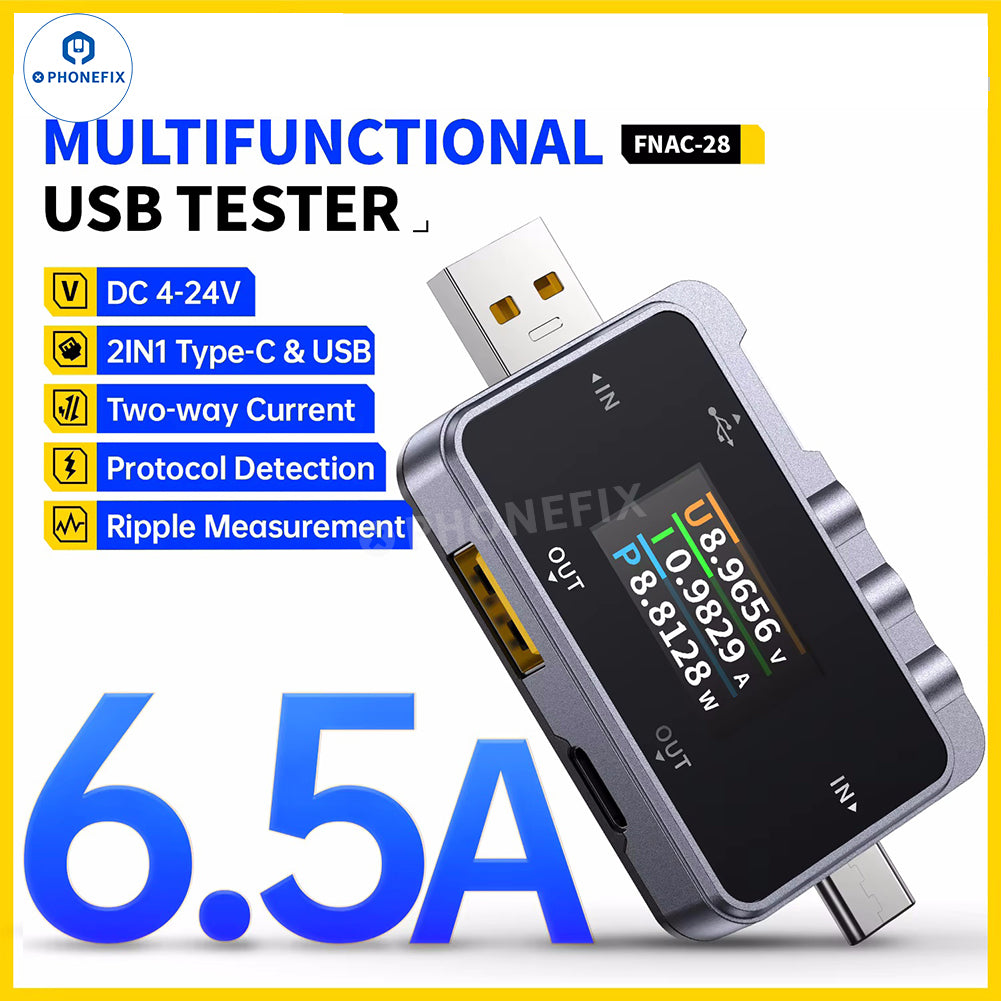

FNIRSI FNAC-28 Multifunctional 2 in 1 Type-C USB Tester Digital Voltmeter Ammeter Amperimetor Voltage Current Power Meter. FNIRSI FNAC-28 ripple monitoring tester digital voltage and current meter supports 6.5A bidirectional current detection, compatible with USB-A / Type-C interface, supports QC2.0/QC3.0, FCP/SCP, AFC, VOOC/WARP, SVOOC 1.0/SVOOC2.0 trigger.
Multifunctional FNAC-28 Type-C & USB tester voltage and current meter, can measure the power supply or power consumption of USB interface, mobile phone charger, USB drive and other products. Measure the charging power of mobile phone, input and output of mobile power supply, and perform fast charging protocol test on charger.
Features:

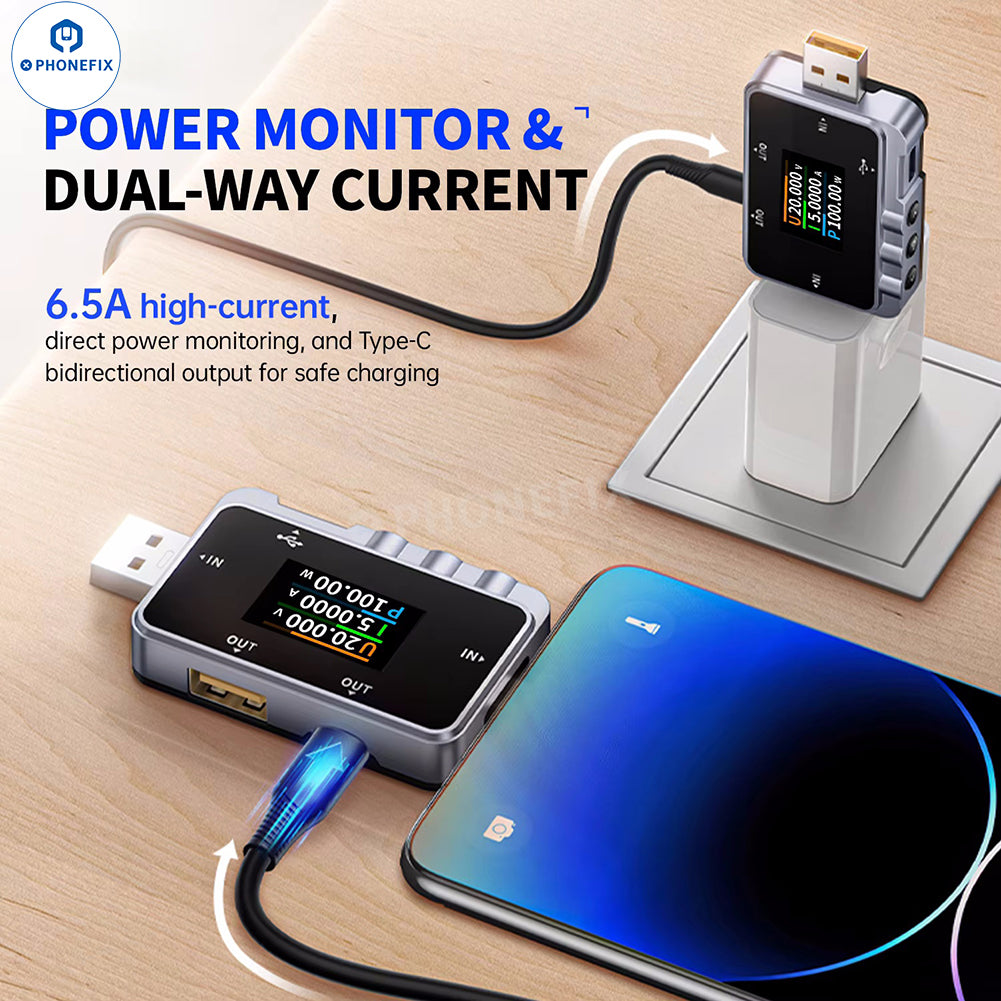

1. Multifunctional USB Amperemeter USB Tester supports 6.5A bidirectional current detection, compatible with USB-A / Type-C interface, super fast charging, plug and play, and high measurement accuracy.
2. Adopts full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Type-C male and female and other interfaces, wide compatibility.
3. The USB power meter uses an external 16-bit ADC to ensure accurate measurement of voltage and current data, effectively reduce the error range, and improve the professionalism of the test.

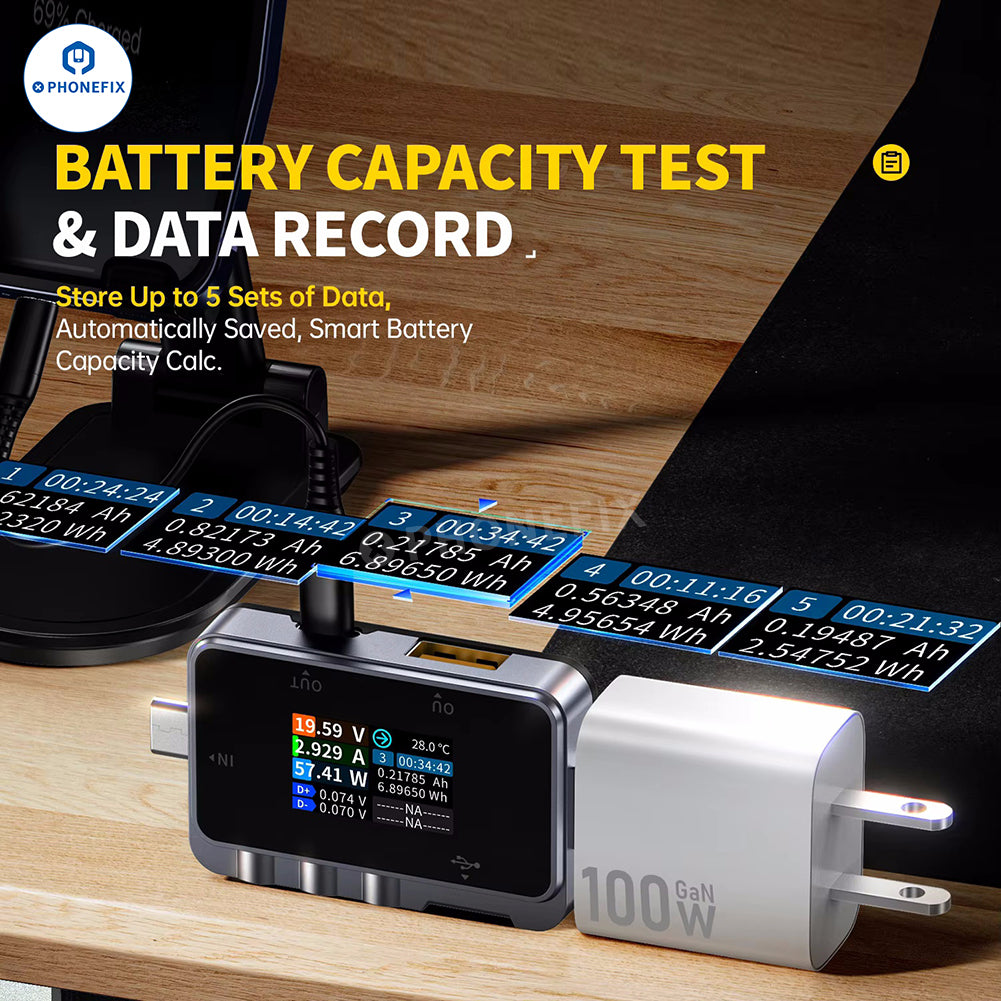

4. The USB cable tester supports battery capacity testing and stores 5 sets of data; supports curve display, waveform pause, adjustable time base range, and careful observation of data.
5. Diversified curve detection modes: real-time voltage and current curve detection; D+D- voltage curve detection; high-speed voltage and current curve detection
6. Fast charging protocol support: the voltage tester supports QC2.0/QC3.0, FCP/SCP, AFC, VOOC/WARP, SVOOC 1.0/SVOOC2.0 trigger.

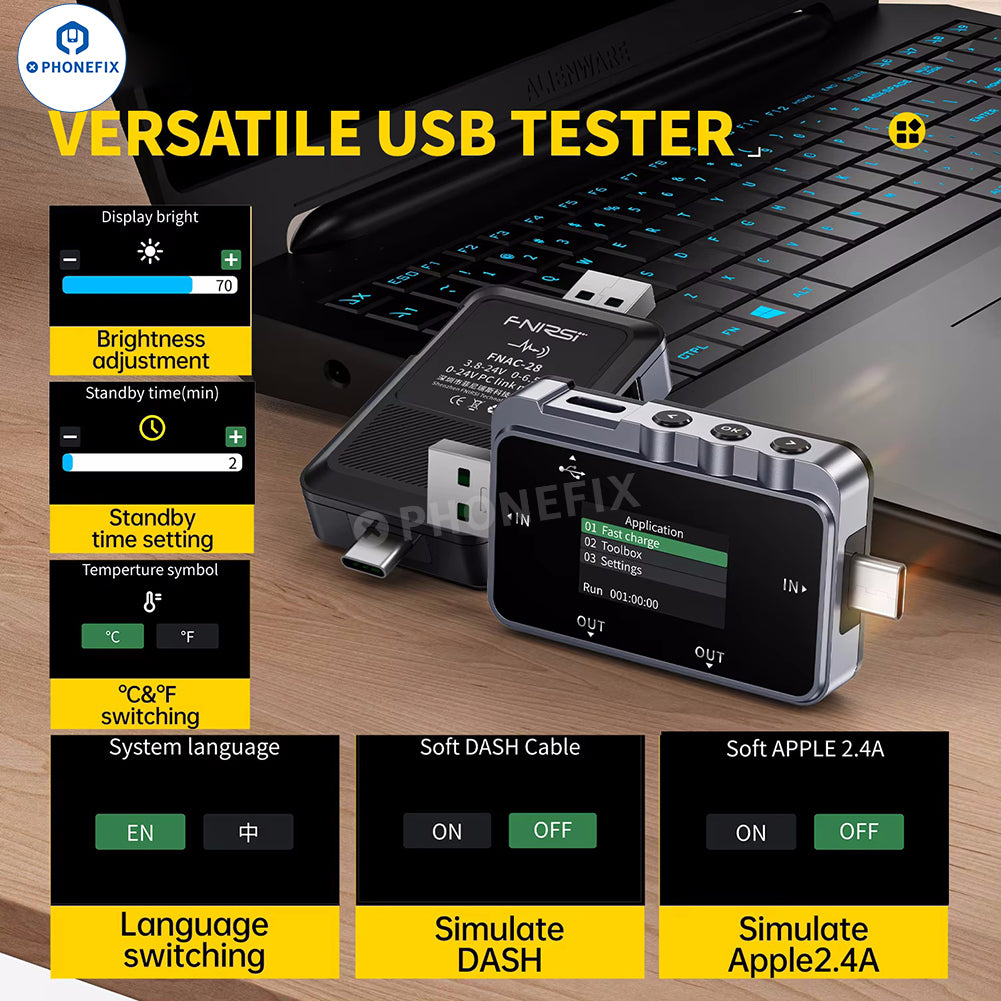

7. Fully functional: adjustable brightness, custom standby time, temperature symbol switching, language switching, simulated DASH, simulated Apple 2.4A, etc.
8. The USB tester uses the differential pressure method to measure the internal resistance of the wire, simulates APPLE 2.4A, DASH fast charging, and reads DASH wire information.

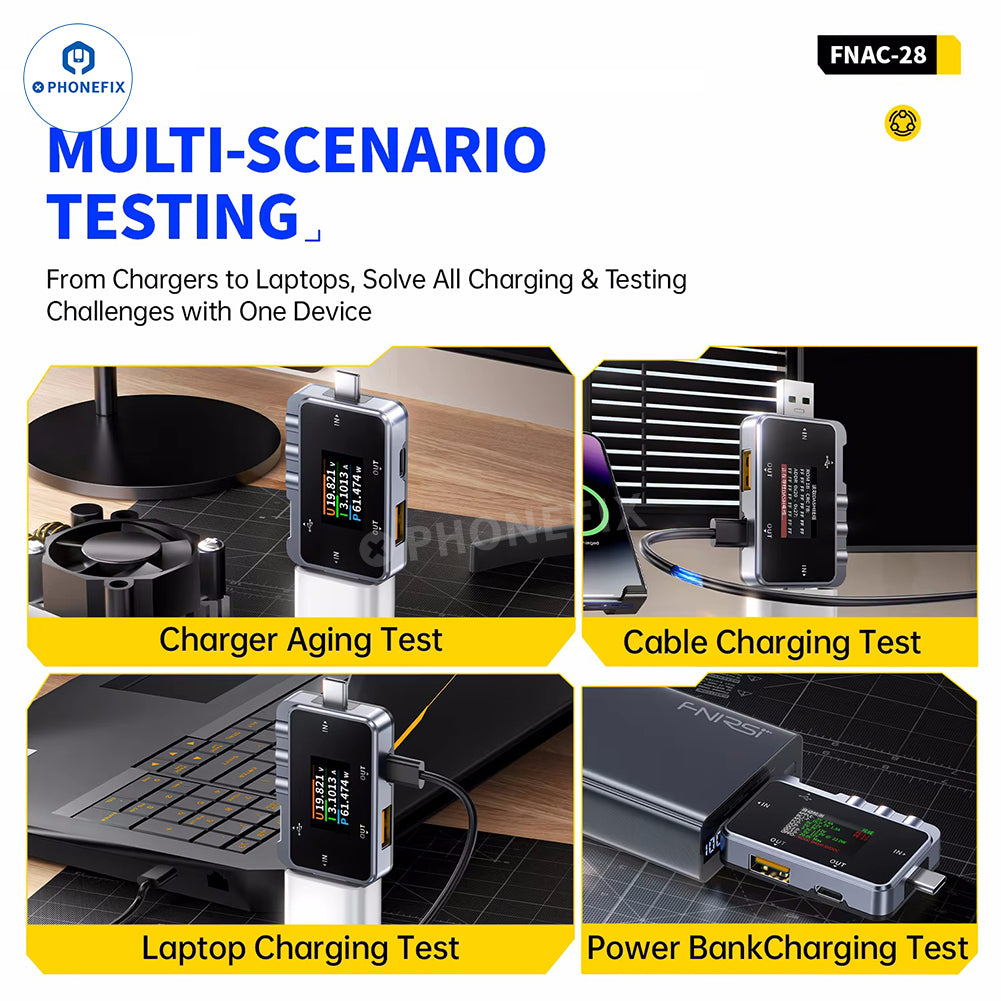

9. Comprehensive coverage of chargers, various data cables, power banks, and laptop charging tests, with interface performance clearly displayed.
Specification:
Model: FNAC-28.
Screen: 1.06 inch.
Monitor voltage: 4~24V 0.001V ±(0.2%+2).
Monitor current: 0~6.5A 0.001A ±(0.2‰+2).
Monitor power: 0~156W 0.001W ±(0.2‰+2).
Detecting temperature: ℃, 1℃, ±(1.2%+3); °F, 1°F, ±(1.2%+4).
Response time: 1 second.
Dimensions: 73*36*12mm.
Net Weight: 21g.
Package includes:
1 x USB Tester.
