FNB38 FNIRSI-C1 trigger Voltmeter ammeter Current and Voltmeter USB tester fast charging protocol capacity test. Multifunction USB C Tester Voltmeter Ammeter PD Trigger Fast Charging Protocol Test QC 2.0 QC 3.0 PD 3.0 Battery Capacity Tester. FNIRSI-C1 USB Tester Voltage Ammeter Fast Charge Charging Power Meter Type-C.FNB38 Multifunction Current And Voltage Meter USB Tester for Fast Charging Protocol Test.
FNB38 current and voltage meter USB tester test meter supports QC4+ PD3.0 2.0 PPS fast charging protocol capacity, compatible with multiple interfaces, USB-A, Micro-USB, Type-C interface, using external 16-bit ADC, PD protocol physical chip .

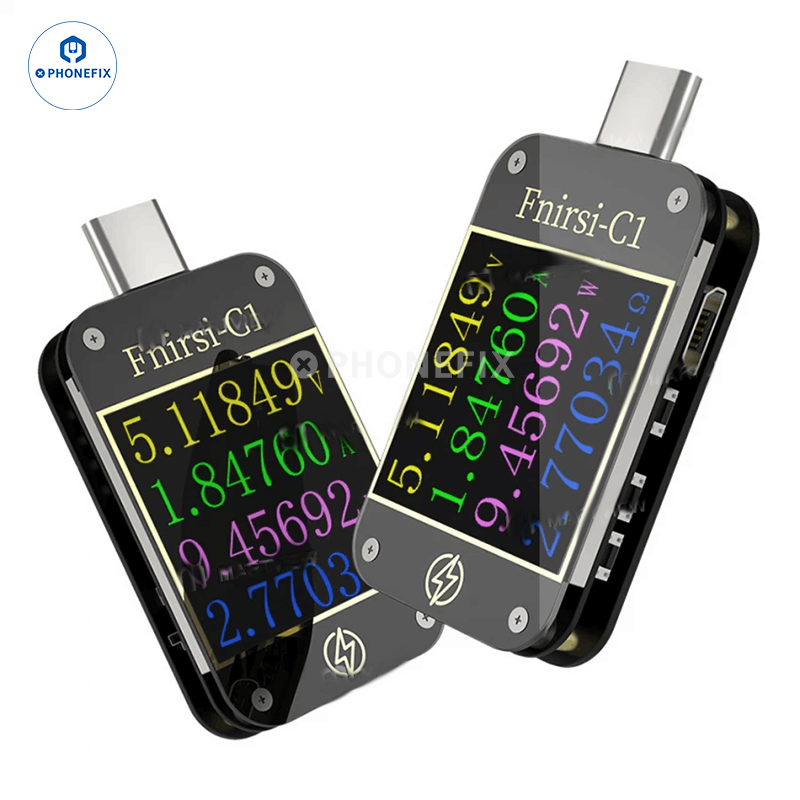

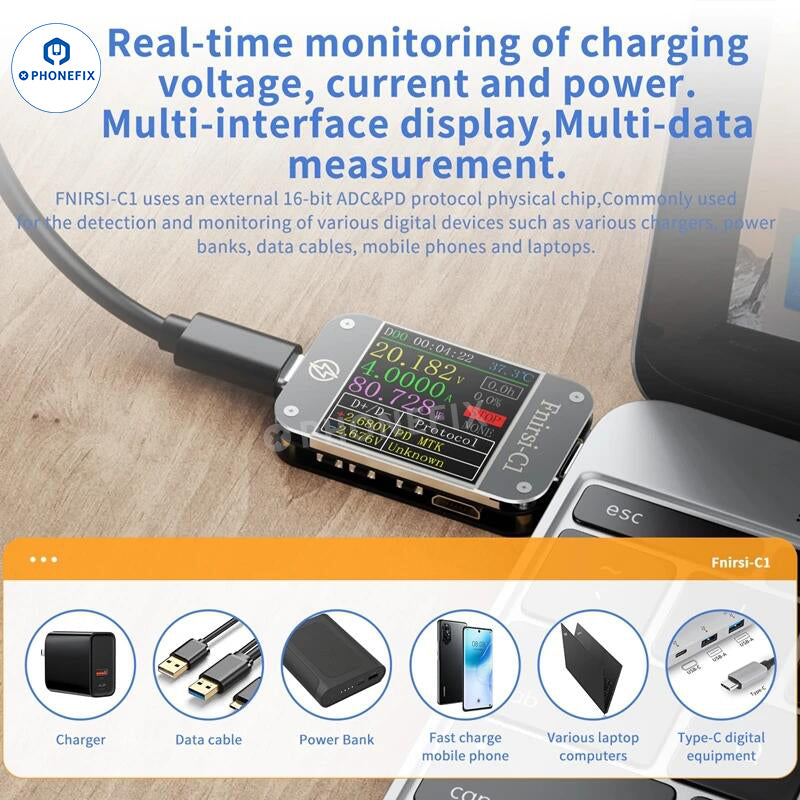

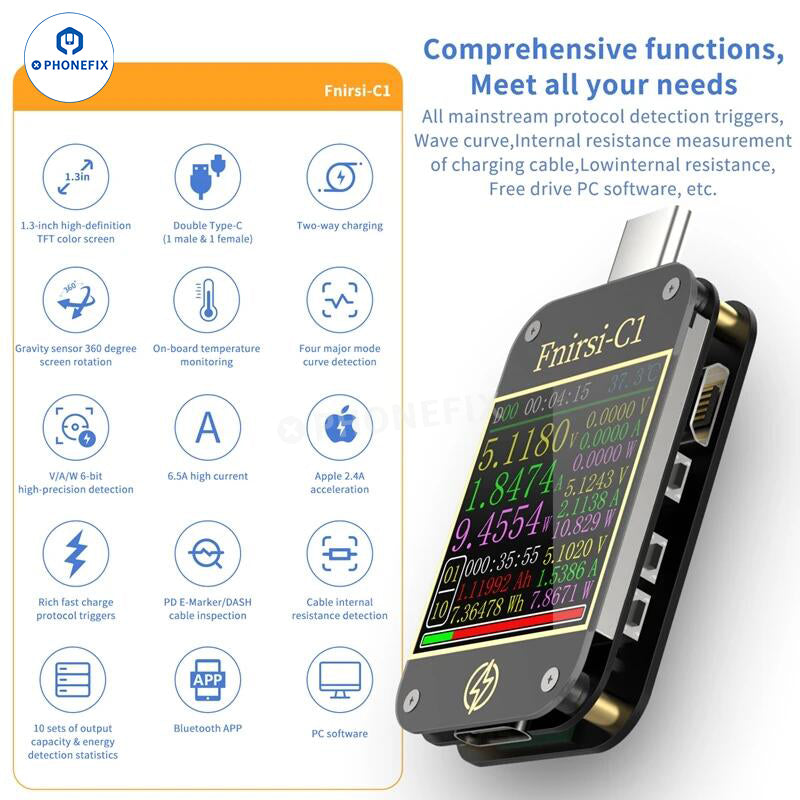

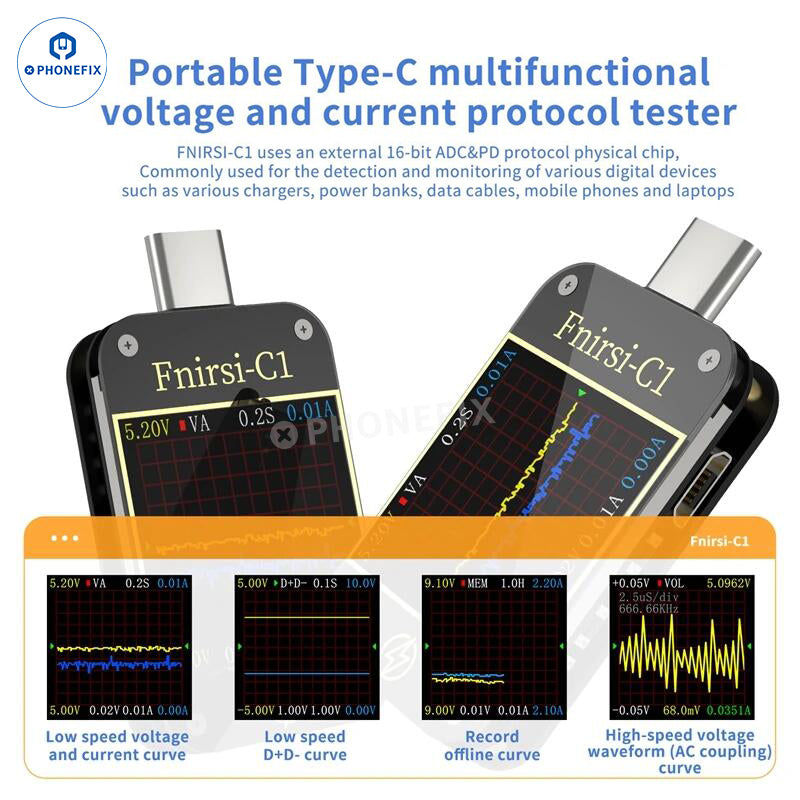

FNIRSI-C1 USB tester voltage ammeter fast charging charging power detection PD decoder is used for the detection and monitoring of various digital devices such as various chargers, power bank data cables, mobile phones and laptops, all mainstream protocol detection & triggering/waveforms Curve/line resistance measurement/low internal resistance/drive-free host computer upgrade, etc.

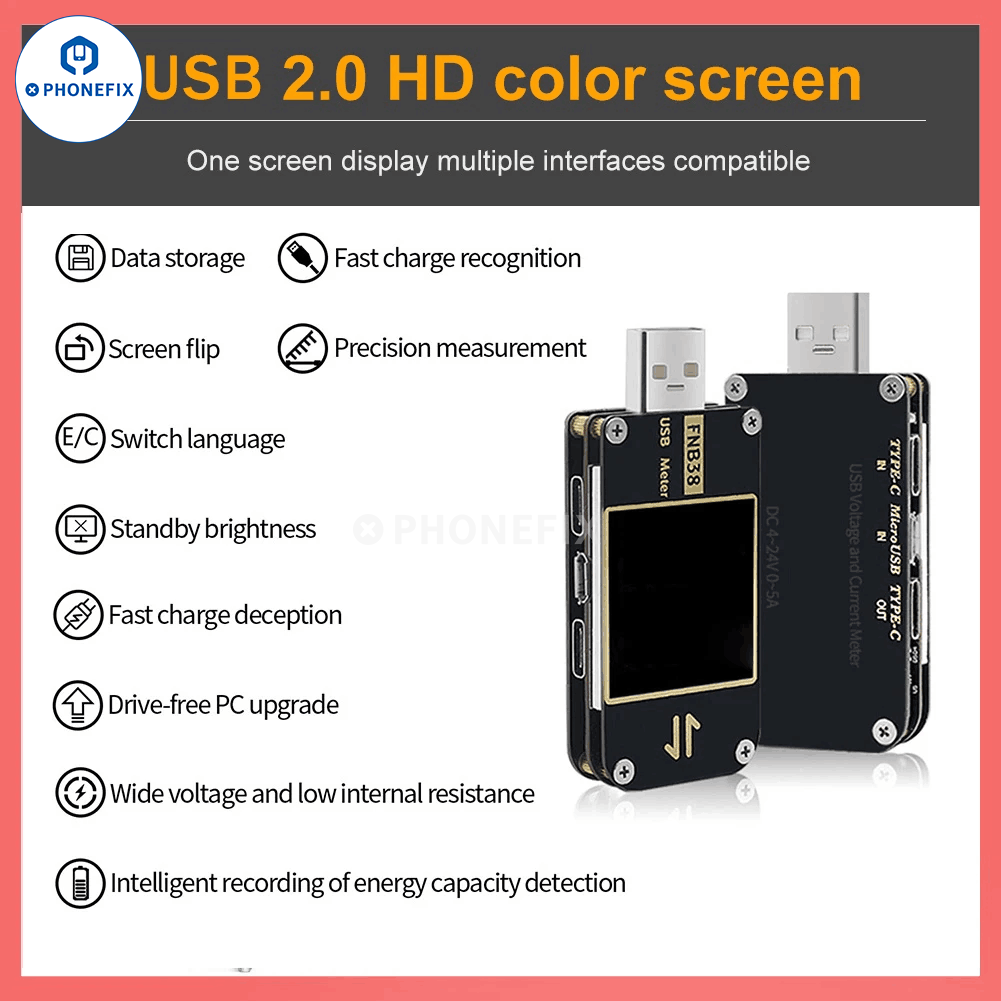

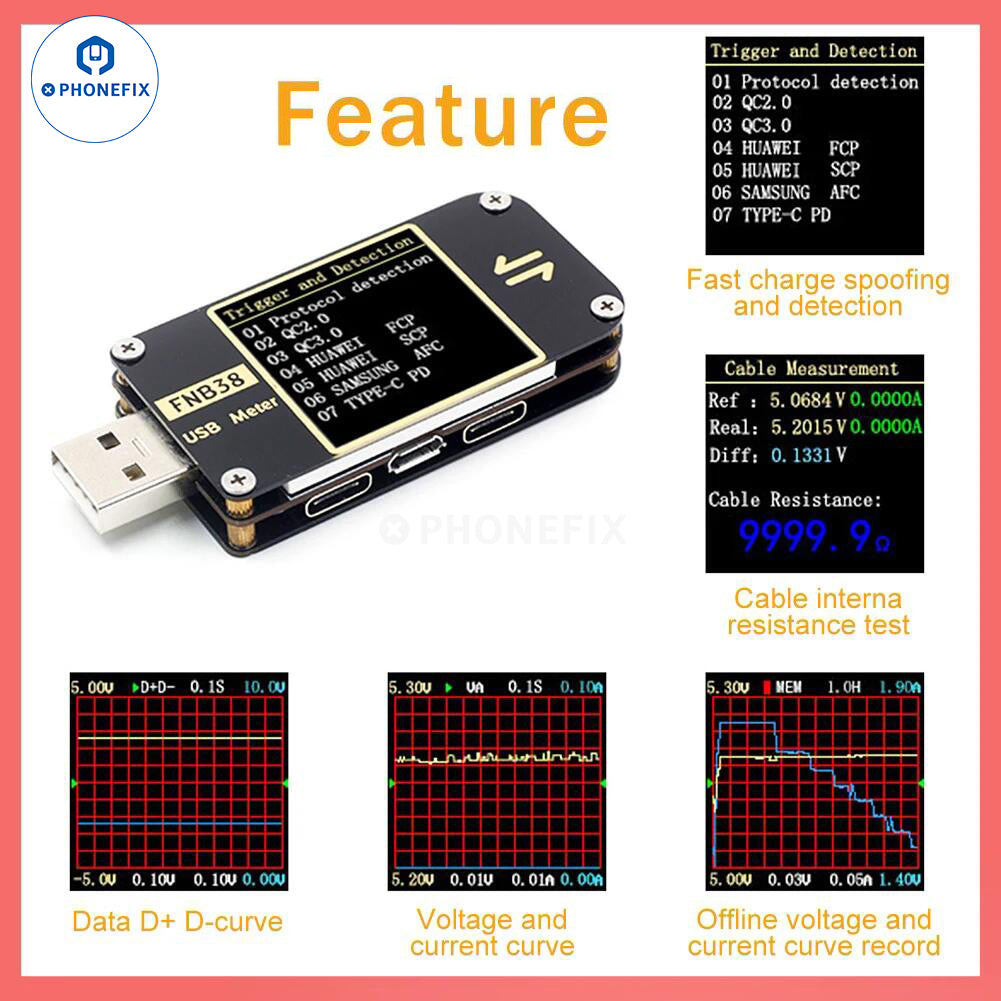

FNB38 Features:
- It is a USB tester with high reliability and security for detecting the USB voltage and current as well as a mobile communication terminal with fast charge triggers.

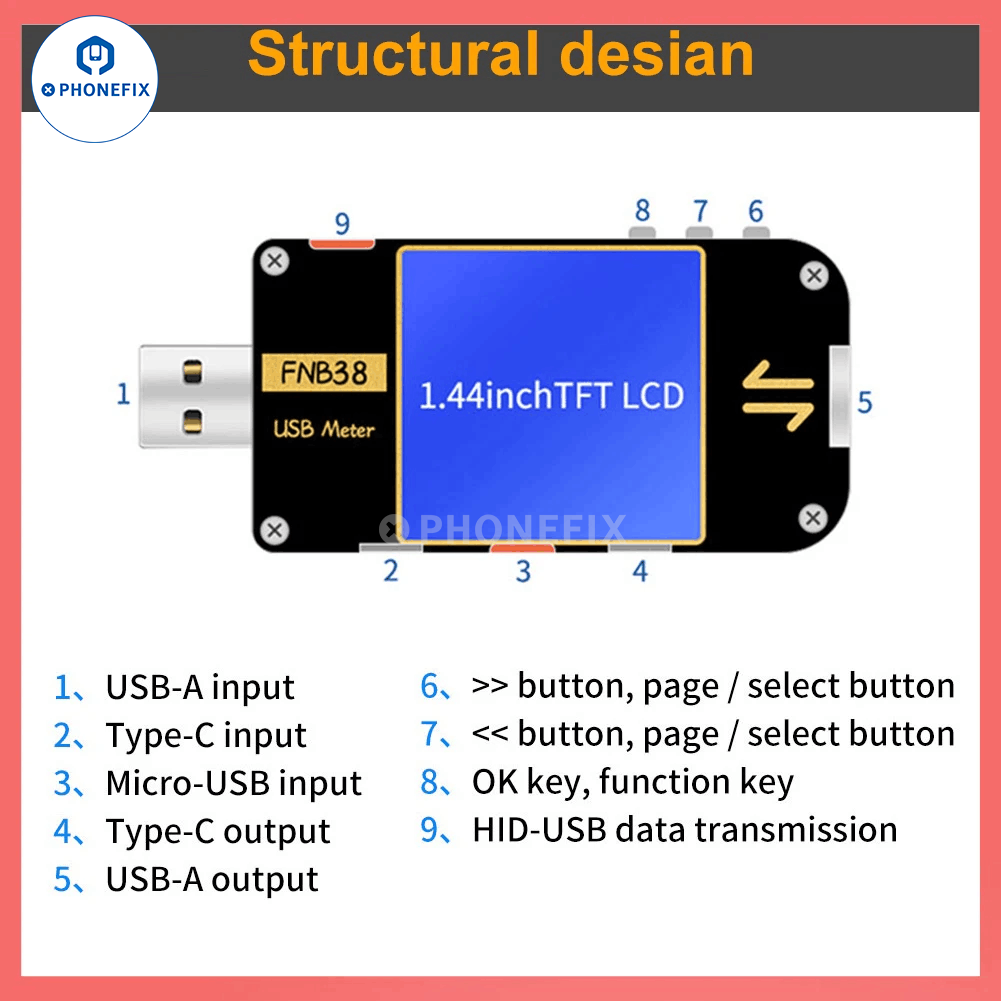

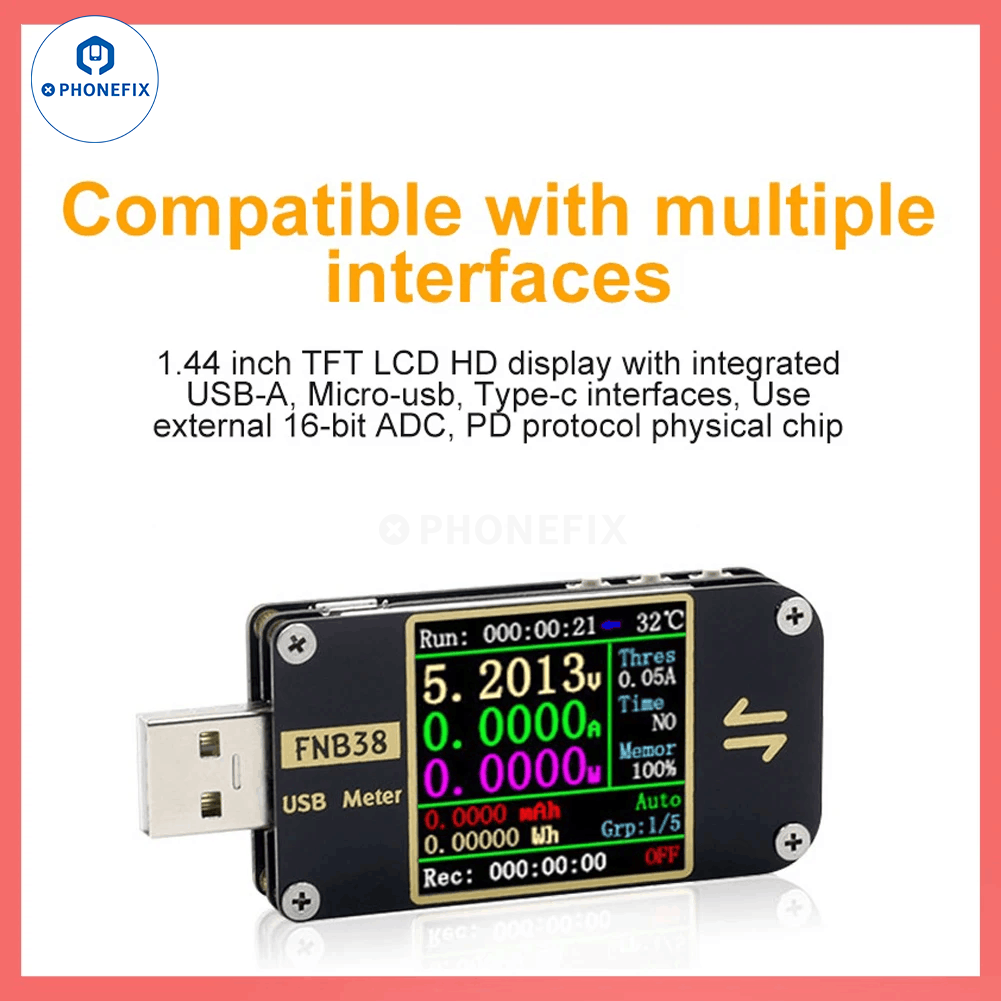

- USB 2.0 interface, 1.44 inch TFT LCD high definition display with integrated USB-A, Micro-USB, Type-C interfaces, use external 16-bit ADC, PD protocol physical chip.
- Drive-free PC upgrade, PD E-Marker read, fast charge recognition, fast charge deception.
- PD protocol monitoring, PD protocol conversion, precision measurement.
- Data storage, intelligent recording of energy capacity detection.
- One screen display, multiple interfaces compatible.

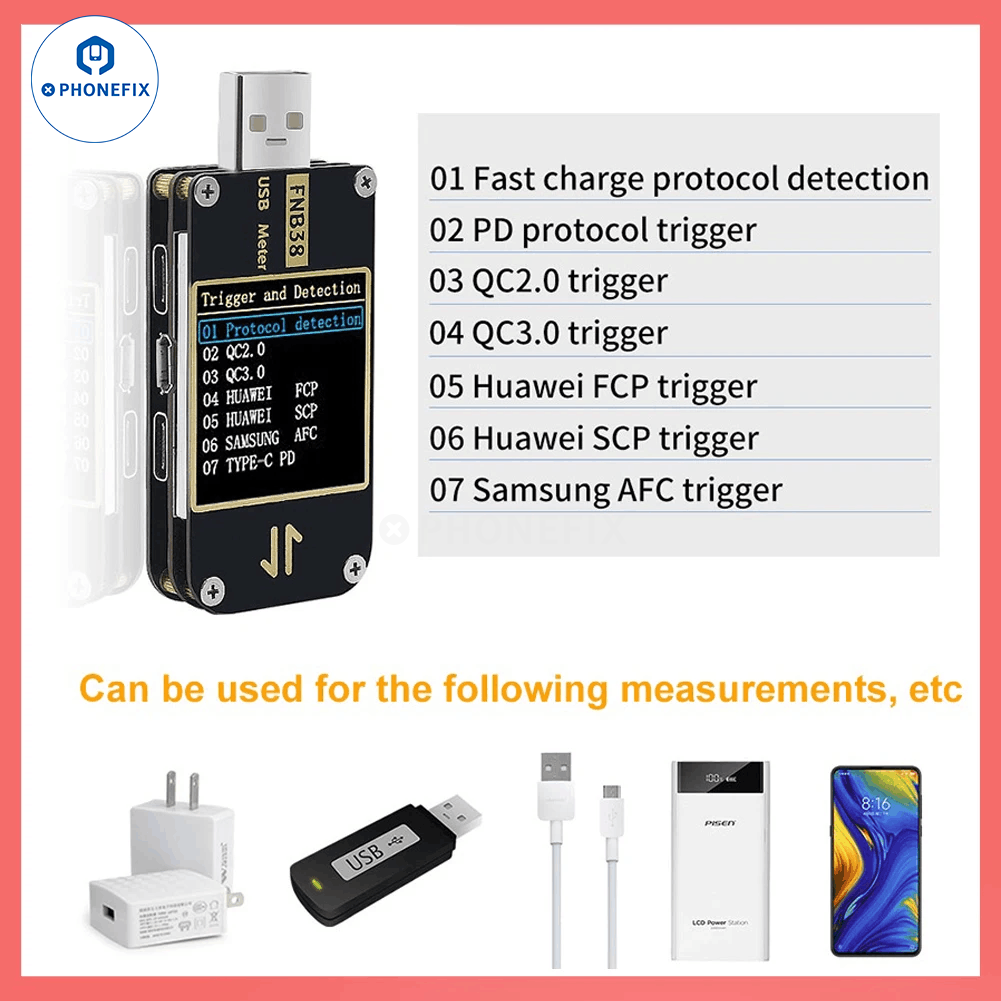

- Can be used for fast charge protocol detection, QC2.0 trigger, QC3.0 trigger, for Huawei-FCP trigger, for Huawei-SCP trigger, for Samsung-AFC trigger, PD protocol trigger, and so on.
FNB38 Specification:Material: ABS
Color: black
Input voltage: 4~24V
Resolution: 0.1mV
Accuracy: ±(0.2‰+2)
Input current: 0~5A
Resolution: 0.1mA
Accuracy: ±(0.5‰+2)
Input power: 0~120W
Resolution: 0.1mW
Accuracy: ±(0.5‰+2)
Load equivalent internal resistance: 0~9999.9Ω
Resolution: 0.1mΩ
Accuracy: ±(0.5‰+2)
D+/D- voltage: 0~3.3V
Resolution: 0.01V
Accuracy: ±(1.0%+2)
Equipment temperature:℃, ℉
Capacity: 0~9999.9mAh
Resolution: 0.0001mAh
Accuracy: for reference
Energy used: 0~9999.99Wh
Resolution: 0.00001Wh
Accuracy: for reference
Cable internal resistance: 0~9999.9Ω
Resolution: 0.0001Ω
Accuracy: for reference
Equipment runtime:
Range: 999 hours 59 minutes 59 seconds
Resolution: 1 second
Accuracy: 5 seconds / hour
Record time:
Range: 999 hours 59 minutes 59 seconds
Resolution: 1 second
Accuracy: 5 seconds / hour

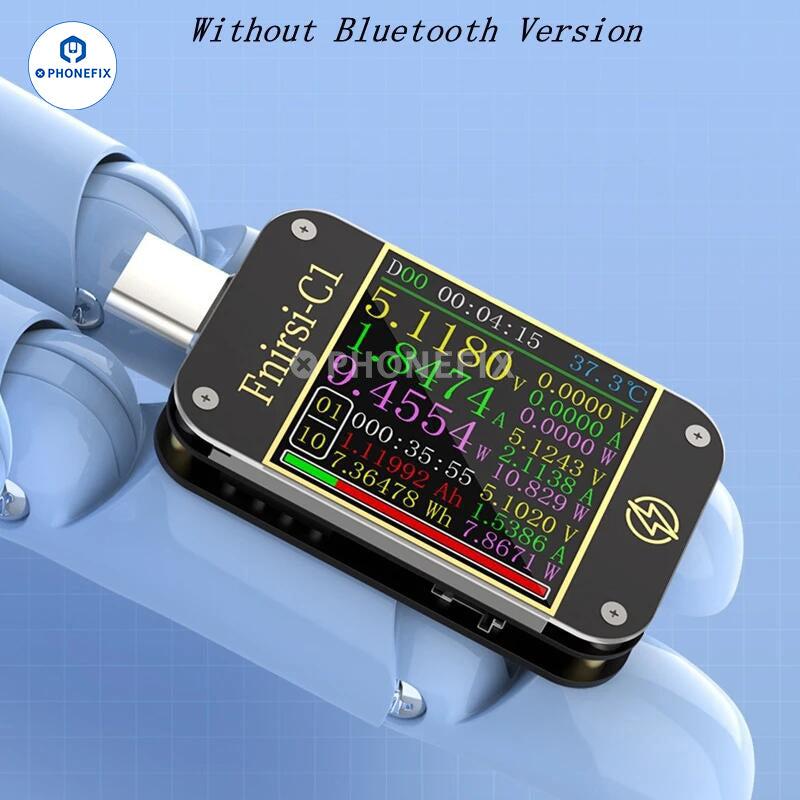

FNIRSI-C1 Specification:Monitoring voltage: 4~24V
Monitor voltage resolution: 0.00001V
Monitoring voltage accuracy: ±(0.2‰+2)
Monitoring current: 0~6.5A
Display current resolution: 0.00001A
Monitoring current accuracy: ±(0.5‰+2)
Display power: 0~130W
Display current resolution: 0.00001W
Monitoring current accuracy: ±(0.5‰+2)
Load equivalent resistance: 0~9999.9Ω
Load equivalent resistance resolution: 0.0001Ω
Load equivalent resistance accuracy: ±(0.5‰+2)
Capacity: 0~9999.99Ah
Use energy: 0~9999.99Wh
Cable resistance: 0~9999.9Ω
D+/D- voltage: 0~3.3V
D+/D- voltage resolution: 0.001V
D+/D- voltage accuracy: ±(1.0%+2)
Equipment temperature: ℃/℉

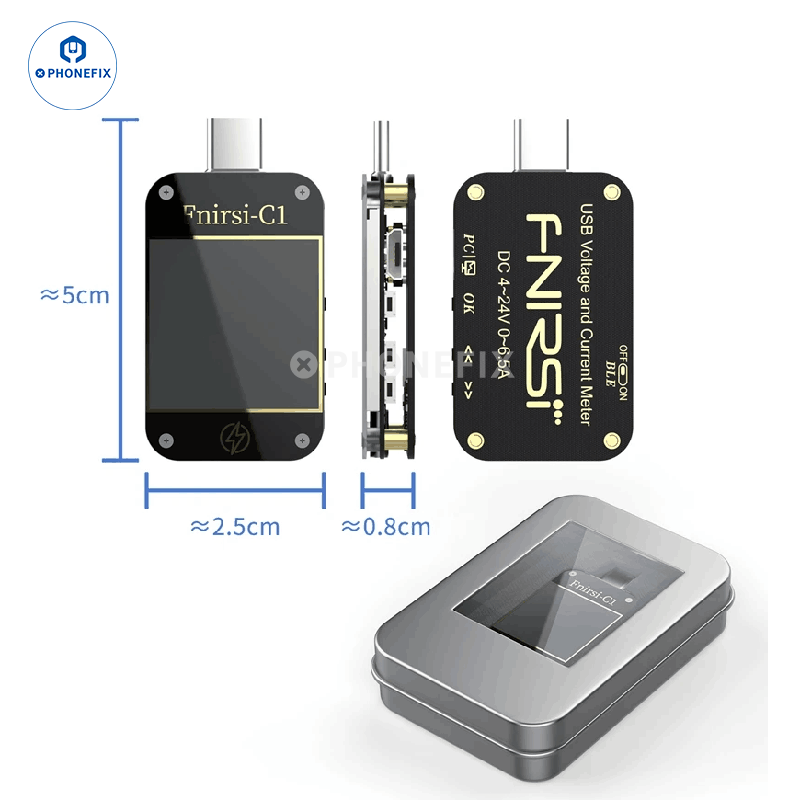

Package size: 50*25*8mm / 1.97* 0.98 * 0.31in
Notes!! Compatibility Issues:There may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.

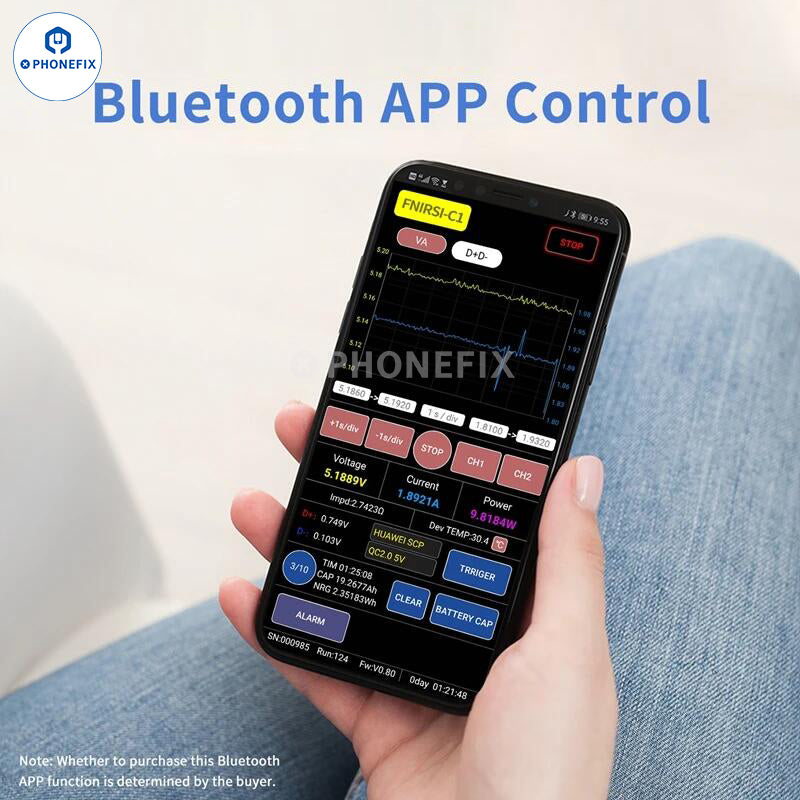

There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install and test the APP before buying the product.
If you don't test the PC software and APP function before buying and find that the products work fine except the PC software or APP, we refuse to refund.
Please do install and test the APP if you use Samsung mobile phone.
