FNIRSI DLA-16 Plus and DLA-32 Plus are professional USB 3.0 high-speed logic analyzers engineered for embedded engineers, electronics developers, and repair technicians. Featuring a 1GHz real-time sampling rate, 4Gbit deep memory, and 170+ protocol decoders. Ideal for FPGA, MCU, and embedded debugging.
Option:

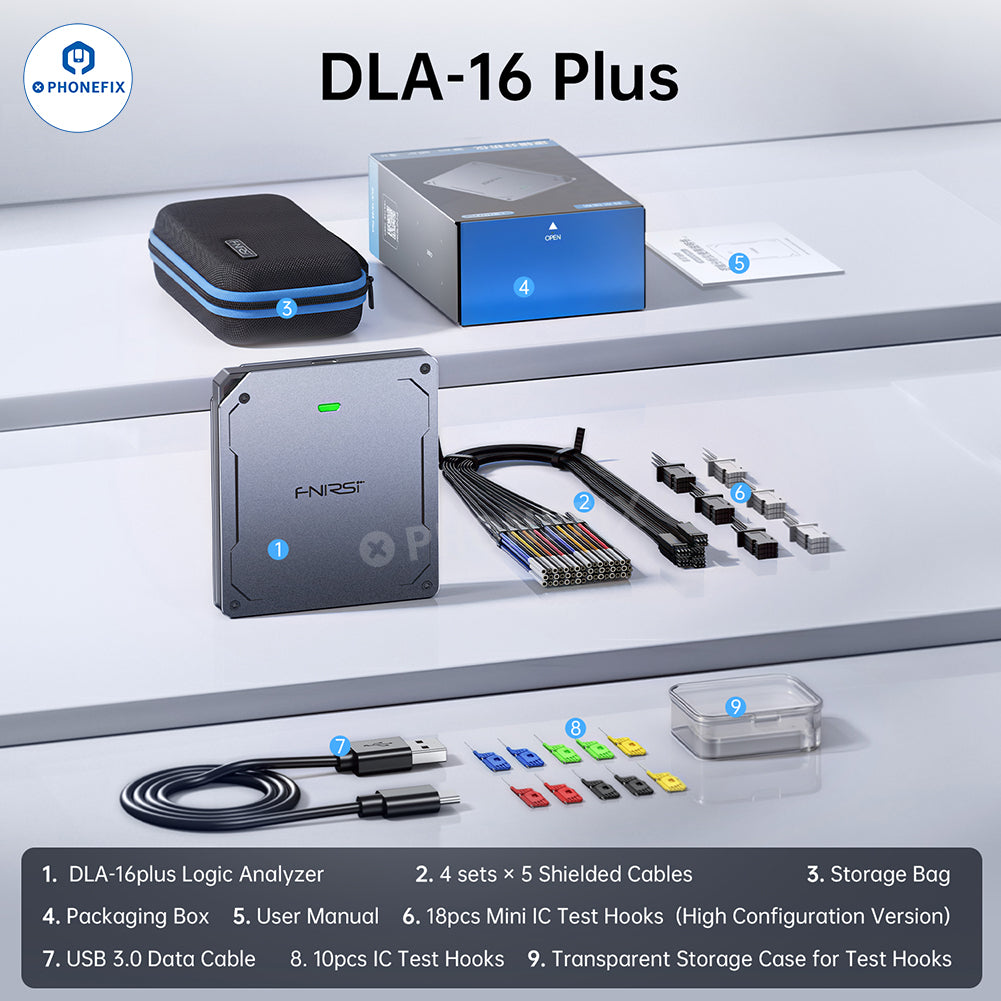

1. DLA-16 Plus: DLA-16 Plus Logic Analyzer ×1, 4 sets × 5 Shielded Cables, Storage Bag ×1, Packaging Box ×1, User Manual ×1, 18pcs Mini IC Test Hooks (High Configuration Version), USB 3.0 Data Cable ×1, 10pcs IC Test Hooks, Transparent Storage Case for Test Hooks ×1

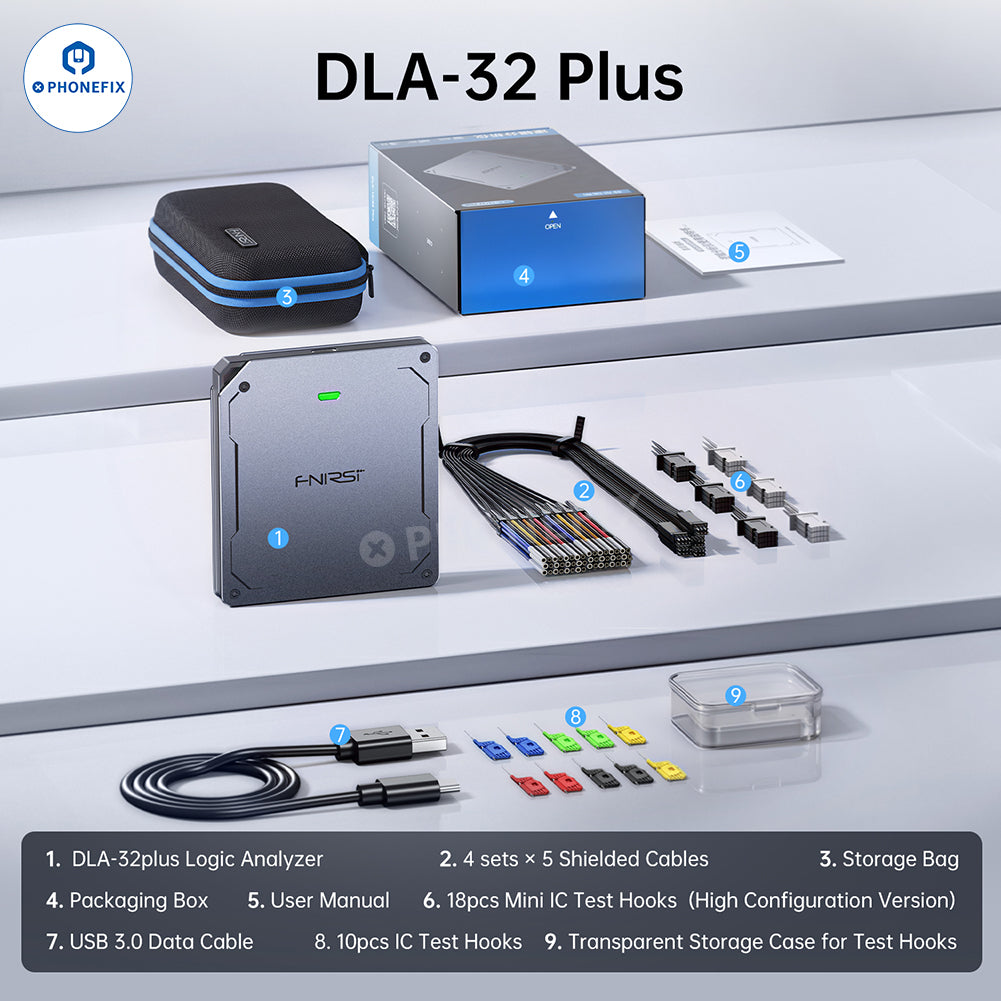

2. DLA-32 Plus: DLA-32 Plus Logic Analyzer ×1, 4 sets × 5 Shielded Cables, Storage Bag ×1, Packaging Box ×1, User Manual ×1, 18pcs Mini IC Test Hooks (High Configuration Version), USB 3.0 Data Cable ×1, 10pcs IC Test Hooks, Transparent Storage Case for Test Hooks ×1
Features:
1. Supports over 170 communication protocols, including XFP, AC'97, ADE77XX, AD79X0, TIMING, UDP, and more, meeting diverse signal analysis needs.

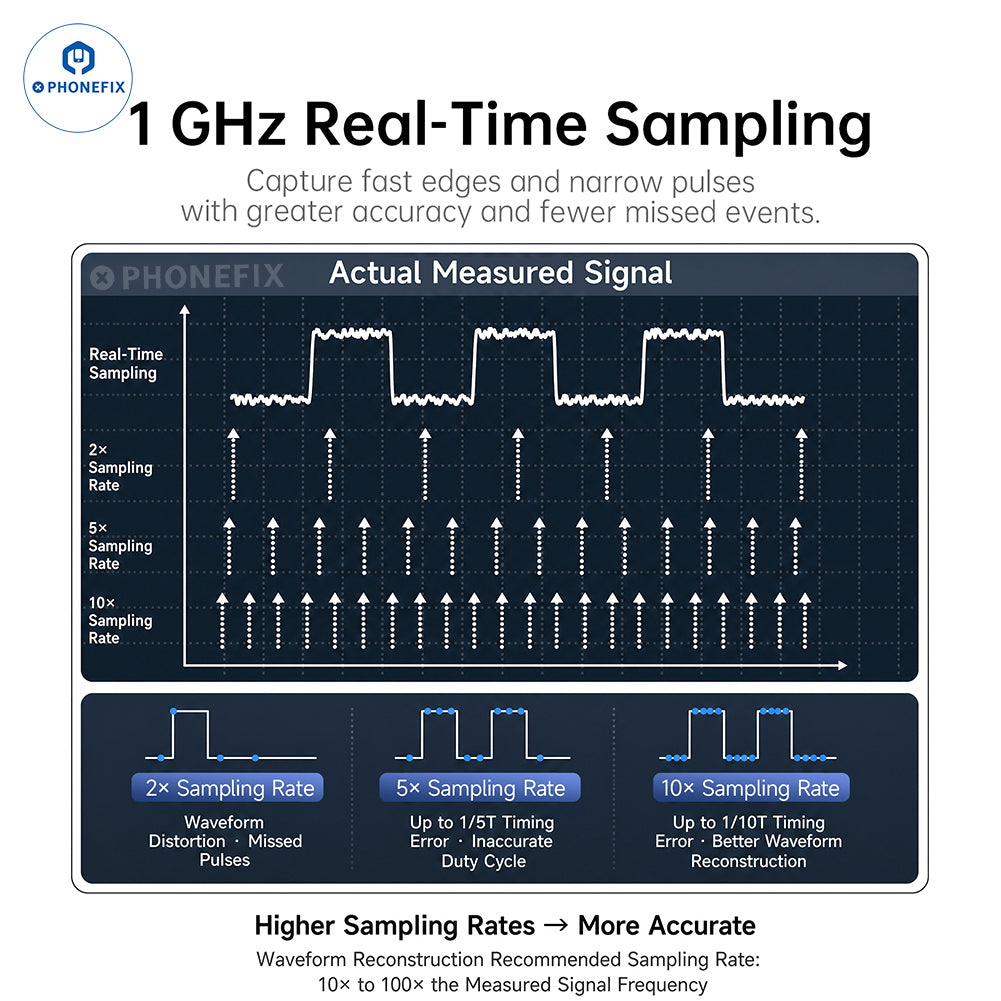

2. Features a 1GHz real-time sampling rate and wide threshold voltage range, accurately capturing transient signals with reduced waveform distortion and missing pulses.
3. Equipped with a USB 3.0 high-speed interface delivering transfer rates up to 81MB/s, ensuring rapid data upload to a computer for analysis.

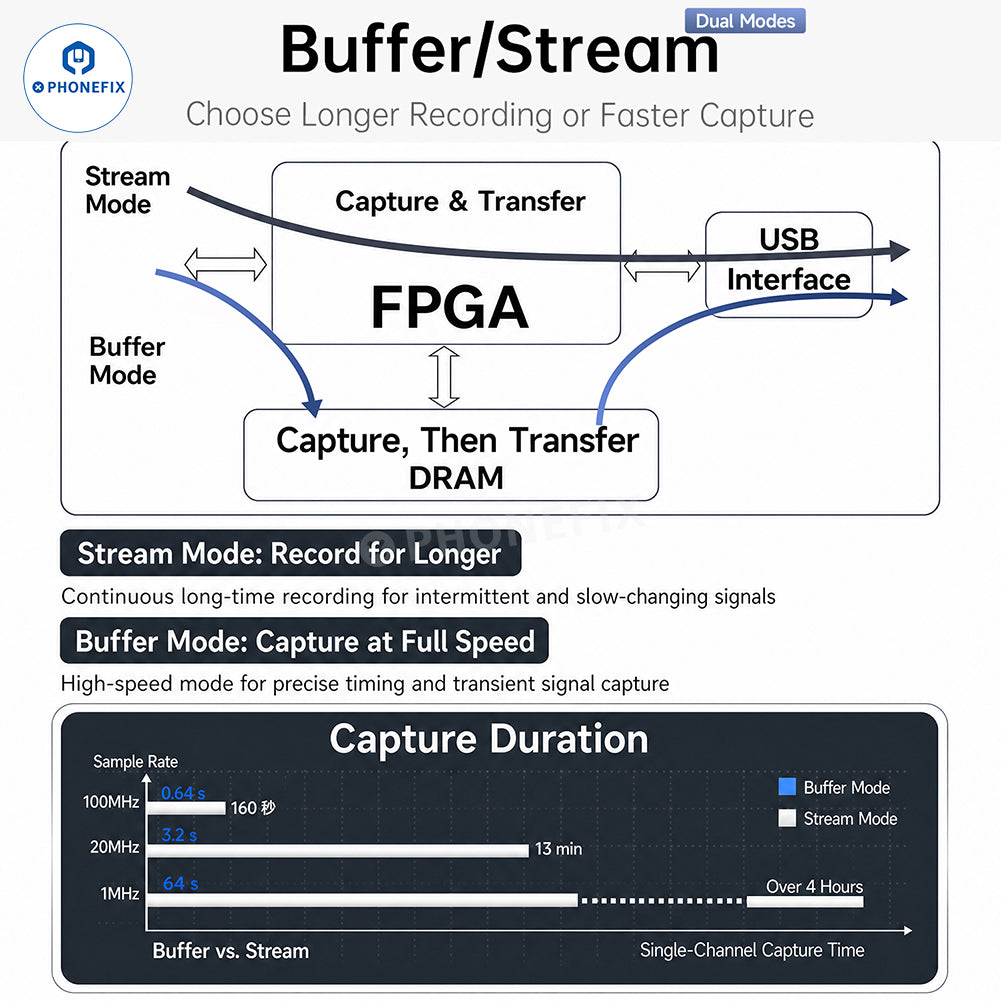

4. Built-in 4Gbit DRAM and 128Mb Flash memory, supporting Buffer and Stream capture modes. Buffer mode captures at full speed, while Stream mode enables continuous recording for hours.

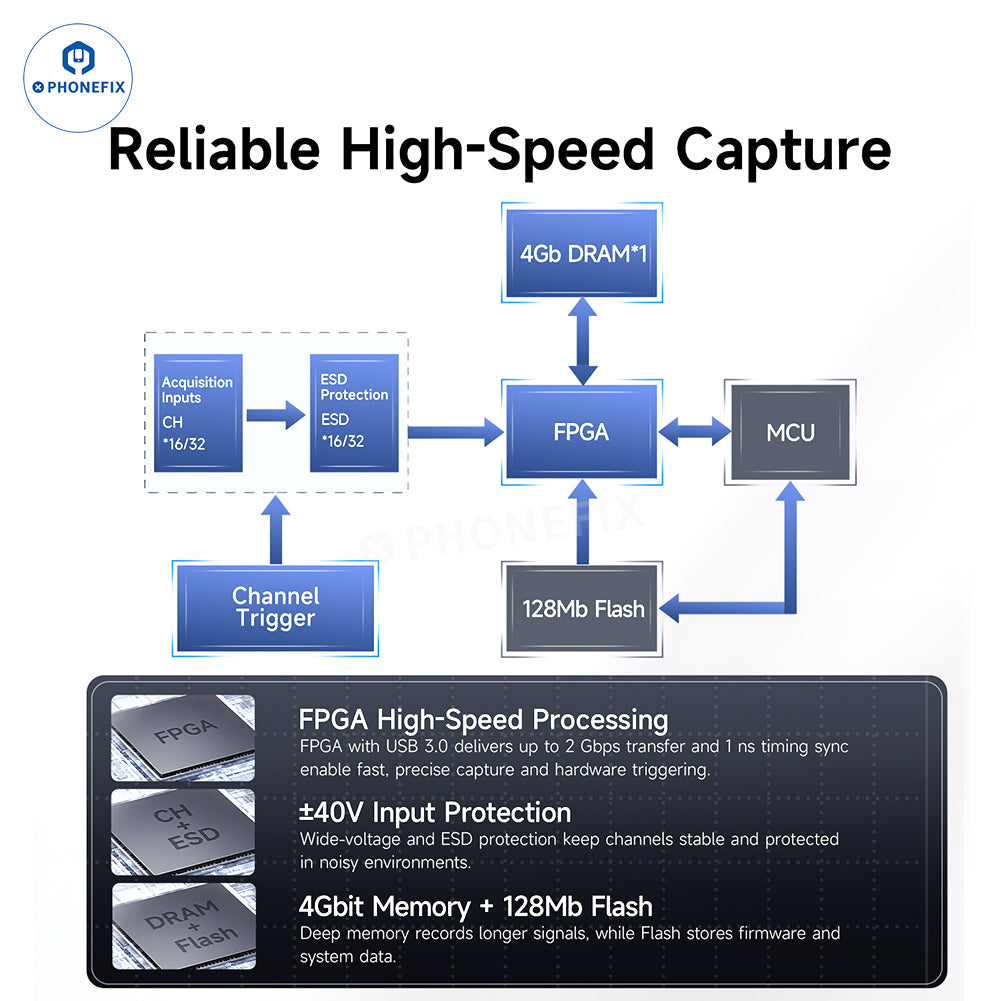

5. Provides ±40V input protection and ESD safeguarding, combined with FPGA high-speed processing for 2Gbps transfer and 1ns timing synchronization, ensuring stable and reliable operation.
6. DLA-16 Plus: 16 channels, 1CH/1G, 8CH/1G, 16CH/500M Max Sampling Rate (Buffer), 1CH/1G, 2CH/1G, 4CH/500M, 8CH/250M, 16CH/125M Max Sampling Rate (Stream).
7. DLA-32 Plus: 32 channels, 1CH/1G, 8CH/1G, 16CH/500M, 32CH/250M Sampling Rate (Buffer), 1CH/1G, 2CH/1G, 4CH/500M, 8CH/250M, 16CH/125M, 32CH/50M Max Sampling Rate (Stream).
Product Parameters:
Brand: PHONEFIX
Model: DLA-16 Plus / DLA-32 Plus
Channels: 16 / 32
Sampling Rate: 1GHz
Protocol Support: 170+ communication protocols
Transfer Interface: USB 3.0 (up to 81MB/s)
Memory: 4Gbit DRAM + 128Mb Flash
Input Protection: ±40V, ESD protection
Capture Modes: Buffer / Stream / Roll
Timing Sync: 1ns
FPGA Transfer Rate: 2Gbps
Package Dimensions: 198mm × 126mm × 68mm
Weight: 434g
