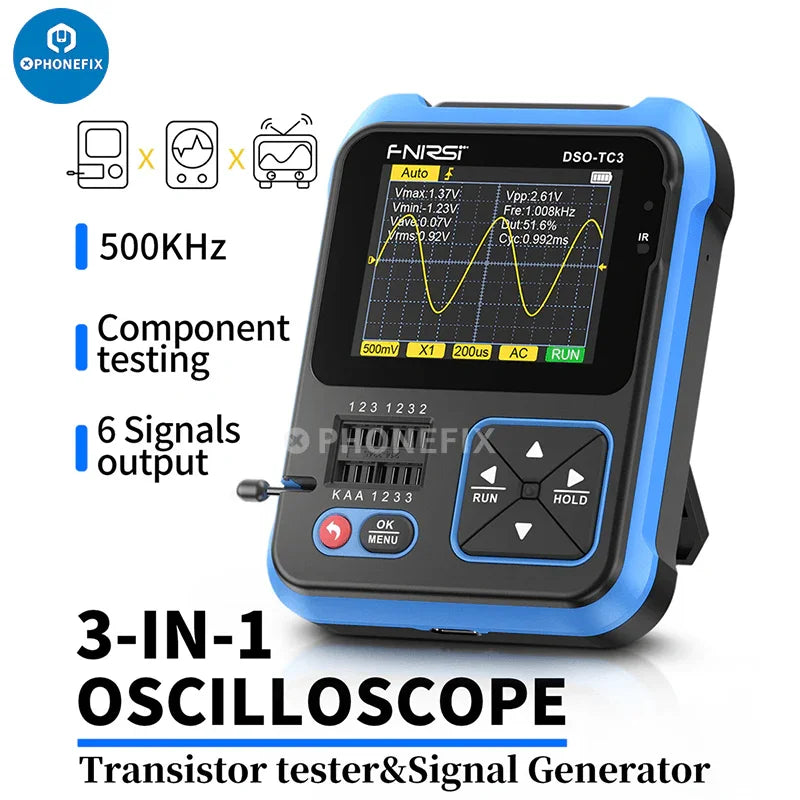

FNIRSI DSO-TC3 Digital Oscilloscope Portable Handheld 3 in 1 Diode LCR Transistor Tester with upgraded signal generator 500kHz bandwidth 10MS/s sampling rate. DSO-TC3 Digital Oscilloscope Transistor Tester Signal Generator 3 in 1 multifunction tester.
Features:

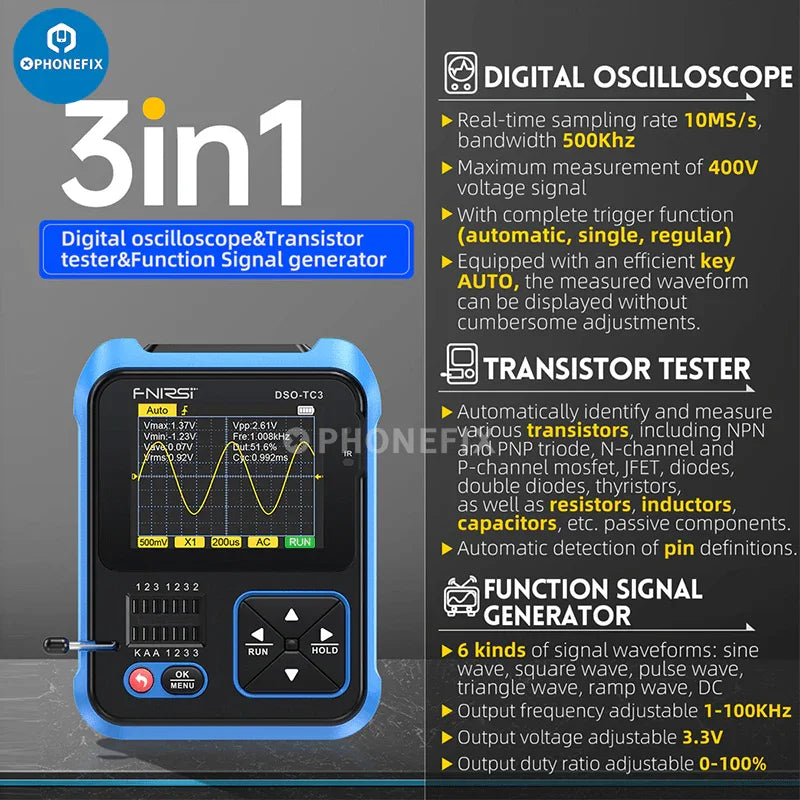

- Three-In-One Multi-Function Oscilloscope: Arbitrary switch, one to complete multi-signal analog calibration, transistor tester: automatically identify and detect various transistors. Oscilloscope: Simple operation, It has complete trigger function (automatic, single, conventional).

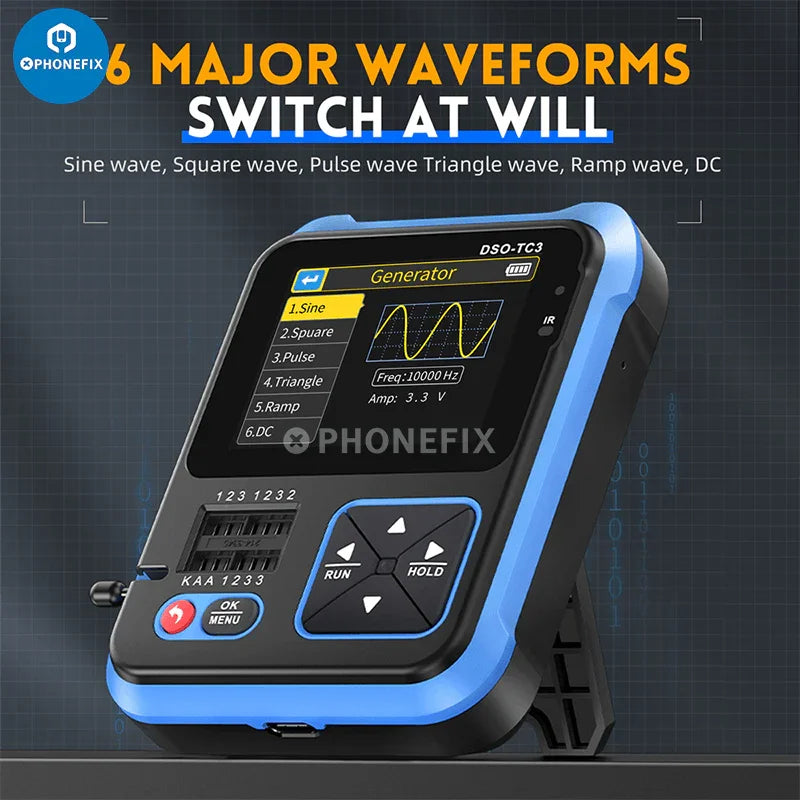

- Signal generator: 6 signal waveforms: sine wave, square wave, pulse wave, triangle wave, oblique wave, DC.
- Long Power Consumption Time: Type-C carging interface, durable life, polymer lithium battery, 240min durable life, continuous operation without isolation transformer, safer use.
- Careful Details: Simple operation interface, 6-key to complete all operations, easy to use, ABS anti-falling shell, concave anti-slip design around the body, high elastic feel, 2.4 inch high-resolution display screen, anti-perspective color screen, so that you can read clearly in strong light.
- Compact And Easy To Carry: Compact body, simple shape, easy to take and use, built-in invisible support, stable placement and support, not occupying space, meet your daily needs of every palm measurement.
- Widely Used: Can apply novice DIY learning, on-site debugging, home appliance maintenance, power testing.
Specifications:Name: 3in1 Digital Oscilloscope.
Material: ABS.
Type: standard configuration, high configuration (optional).
Display: 2.4 inches TFT color screen。
Battery: Built-in 1500mah rechargeable lithium battery (included).
Charging interface: USB Type-C, +5V.
Digital Oscilloscope: 10MSa/s.
Real-time sample rate: 500Khz.
Analog Bandwidth: 1ΜΩ.
Input resistance: Alternating Current/Direct Current.
Coupling method: 400V.
Test voltage ranges: 10mV-10V.
Vertical Sensitivity (x1): 1us-10s.
Horizontal time base ranges:
Trigger mode: Auto / Normal / Single.
Trigger type: Rising edges / Falling edges.
Waveform Freeze: Yes.
Automatic measurement: Yes.

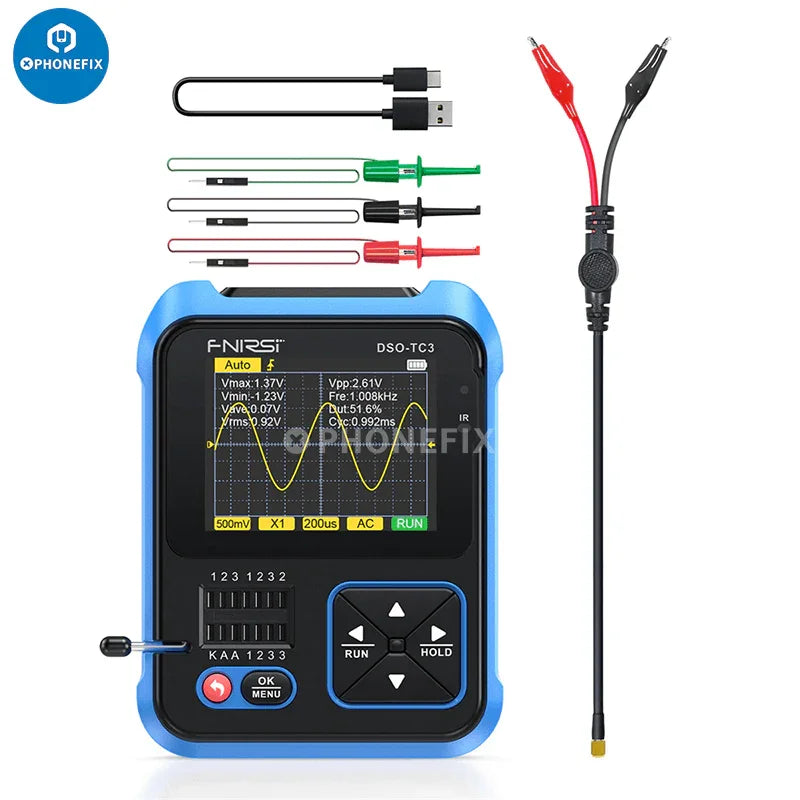

Packing List (Standard ):1x 3in1 Digital Oscilloscope.
3x Test Hook.
1x Probe.
1x Type-C Cable.
1x Manual.

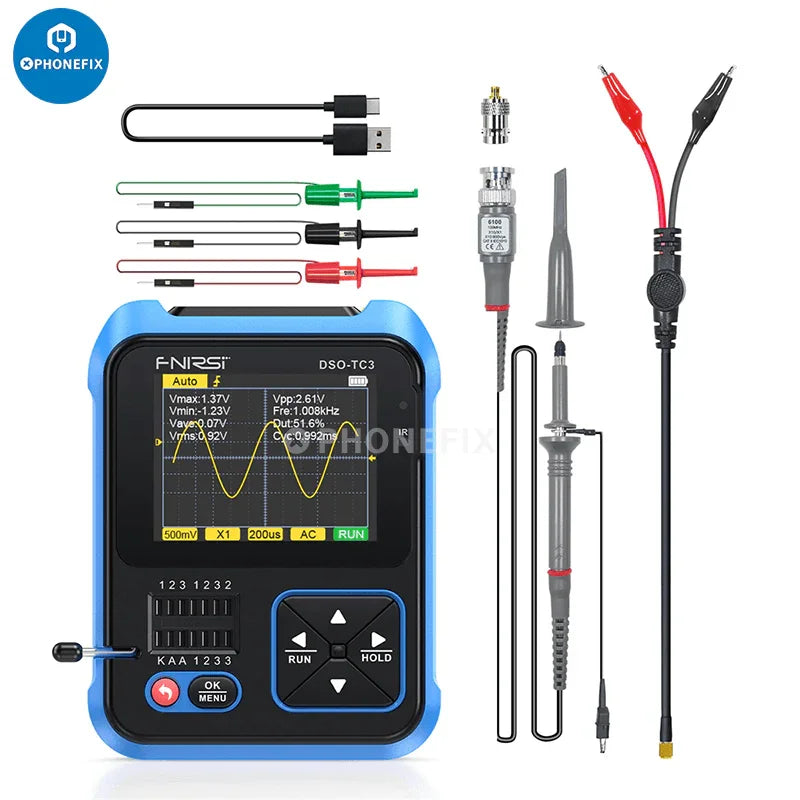

Packing List (High version):1x 3in1 Digital Oscilloscope.
1x Adaptor.
1x Probe.
1x High Pressure Probe.
3x Test Hook.
1x Type-C Cable.
1x Manual.
