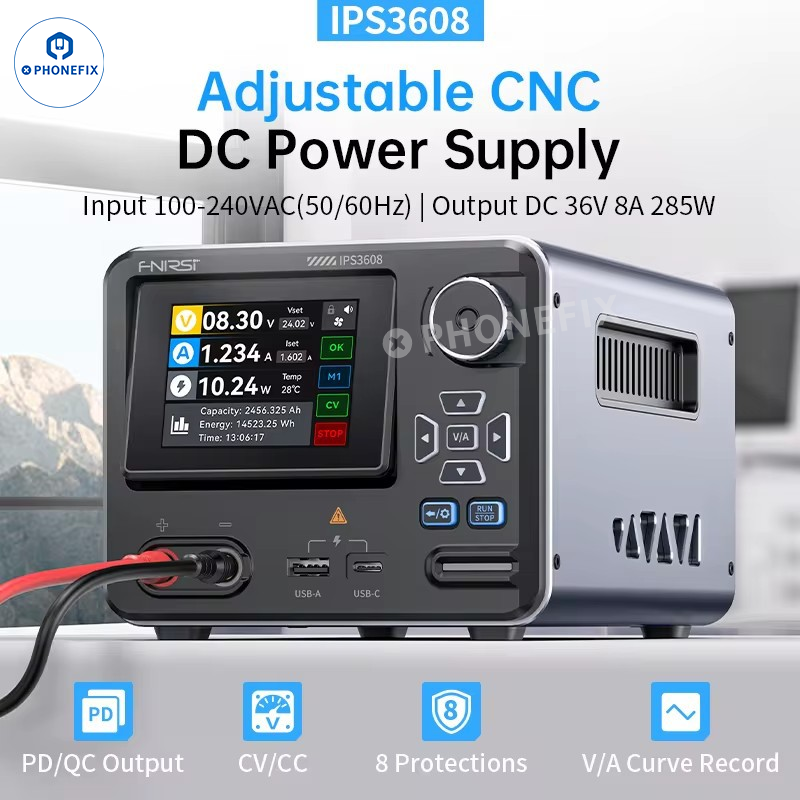

FNIRSI IPS3608 285W High Power AC-DC Power Supply 36V 8A CNC Adjustable Voltage Regulator with Intelligent Digital Control and Uplink Function for Mobile Phone Repair. Ultra-low ripple and multi-protocol fast charging output, real-time current and voltage curve recording, constant voltage and constant current output, multiple protection. Suitable for mobile phone, laptop, tablet and other electronic repairs.
Features:

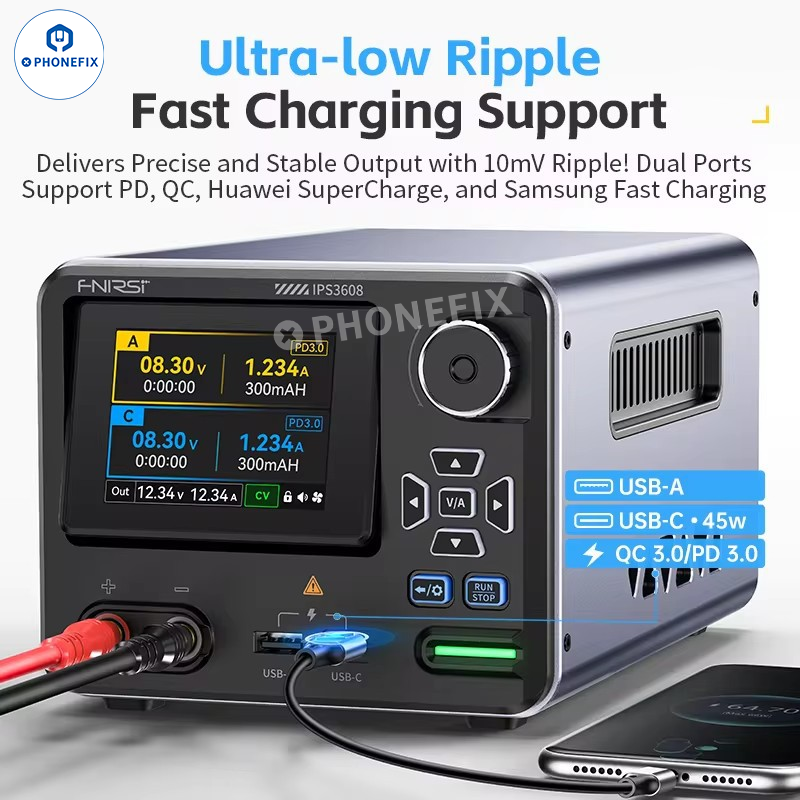

1. Ultra-low ripple output: Ripple as low as 10mV, stable output, ensuring the safety of sensitive electronic devices.
2. Multi-protocol fast charging support: Dual output ports are compatible with mainstream fast charging protocols such as PD, QC, Huawei, and Samsung.
3. Constant voltage and constant current output: Precisely controls output voltage and current to meet various power supply requirements.

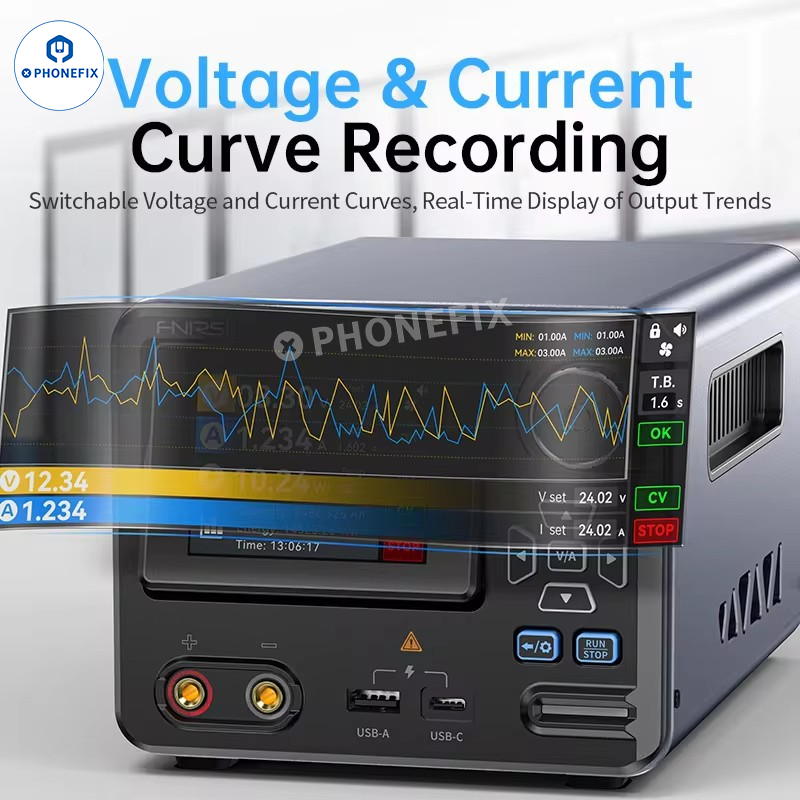

4. Real-time voltage and current curve display: Switchable curve modes allow for intuitive viewing of output trends.

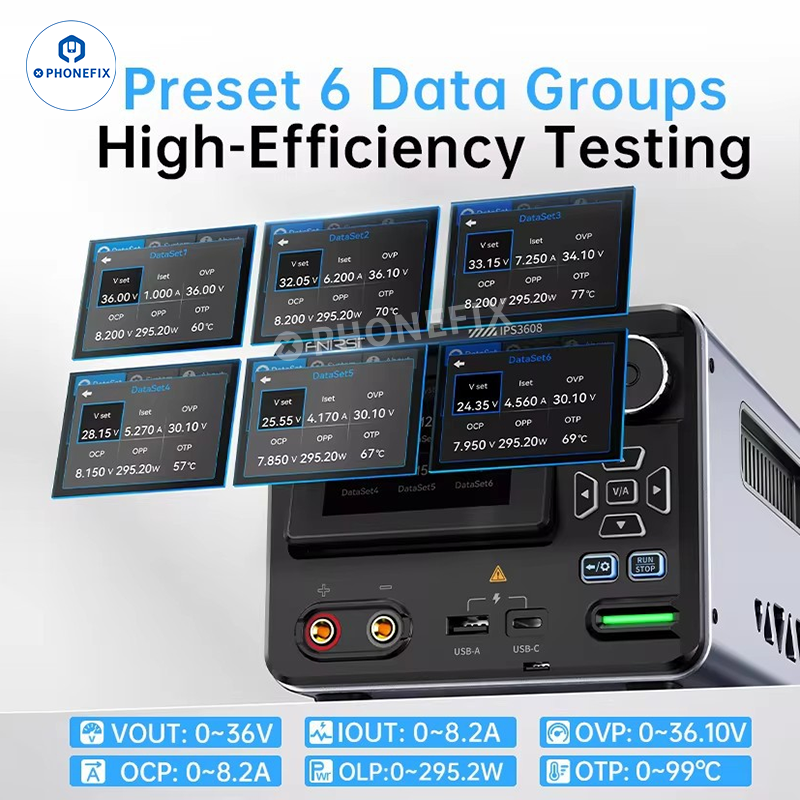

5. Six preset output data sets: Quickly switch between commonly used output parameters to improve efficiency.

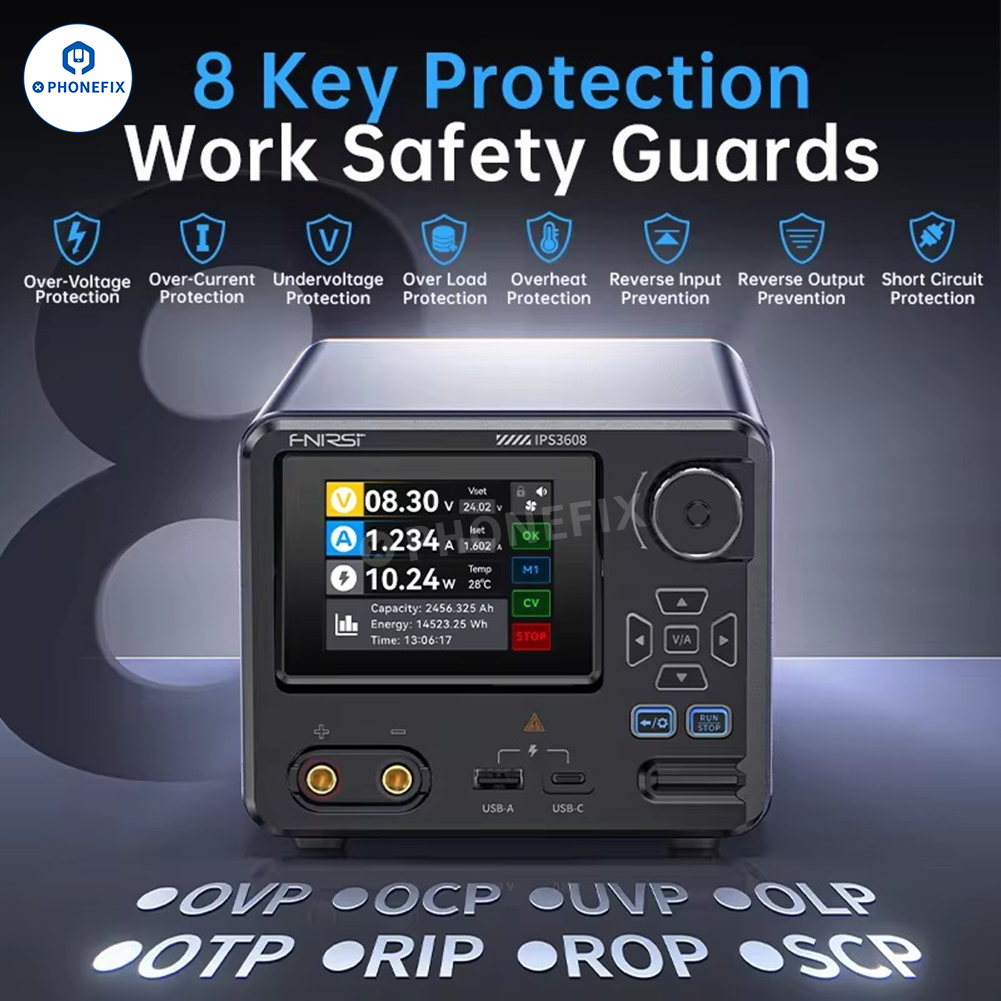

6. Eight-layer safety protection: Comprehensive protection against overvoltage, overcurrent, overpower, and overtemperature.

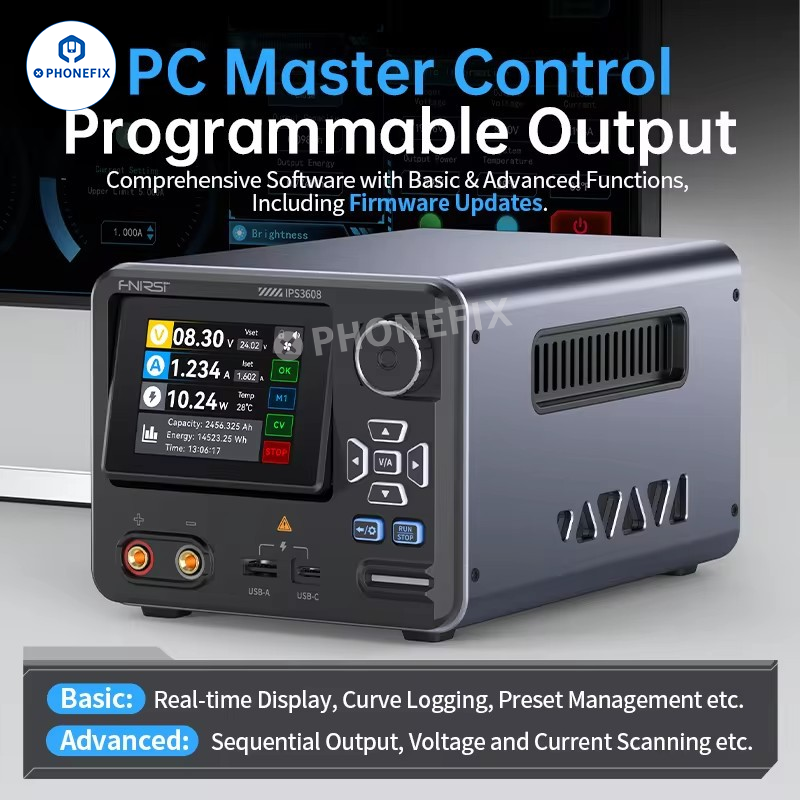

7. PC support: Supporting software provides basic and advanced functions, including firmware upgrades and programmable output.
8. Advanced control functions: Supports automated control such as sequence output, voltage sweep, and current sweep.
Fast Charging Protocol:
USB-C: PD3.0
USB-A: HUAWEI FCP, HUAWEI SCP, AFC, QC2.0, QC3.0
Dose Current Rate: 0.00-10000uSv/h (10mSv/h)
Cumulative Dose Equivalent: 0.00uSv-500.0mSv
Battery Parameters:
Input: Voltage Range: AC100~240V (50/60Hz)
Output: Voltage: DC 0-36V; Current: 0-8A; Power: 0-285W
Load Regulation Rate: ±(0.2%+2 bits)
Readback Value Accuracy: Output Voltage: ±(0.3%+3 bits); Output Current: ±(0.15%+5 bits)
Setting Resolution: Voltage: 0.01V; Current: 0.001A
Operating Environment: -10℃~40℃, 0%~75%RH
Protection Mechanism: Overvoltage, Overcurrent, Overpower, Overtemperature, Undervoltage, Short circuit, Input reverse connection, Output reverse injection protection
Accuracy calculation method: one byte is the minimum resolution, such as 5V, the error is ±(5 x 0.3% + 3 x 0.01), that is, 5 ± 0.045V
IPS3608 Basic Parameters:
Model: IPS3608 DC power supply.
Screen Material: 2.8-inch color screen
Backlight: Adjustable backlight brightness
Language: Chinese, English
Product Size: ≈138*214*115mm
Product Weight: ≈1539g

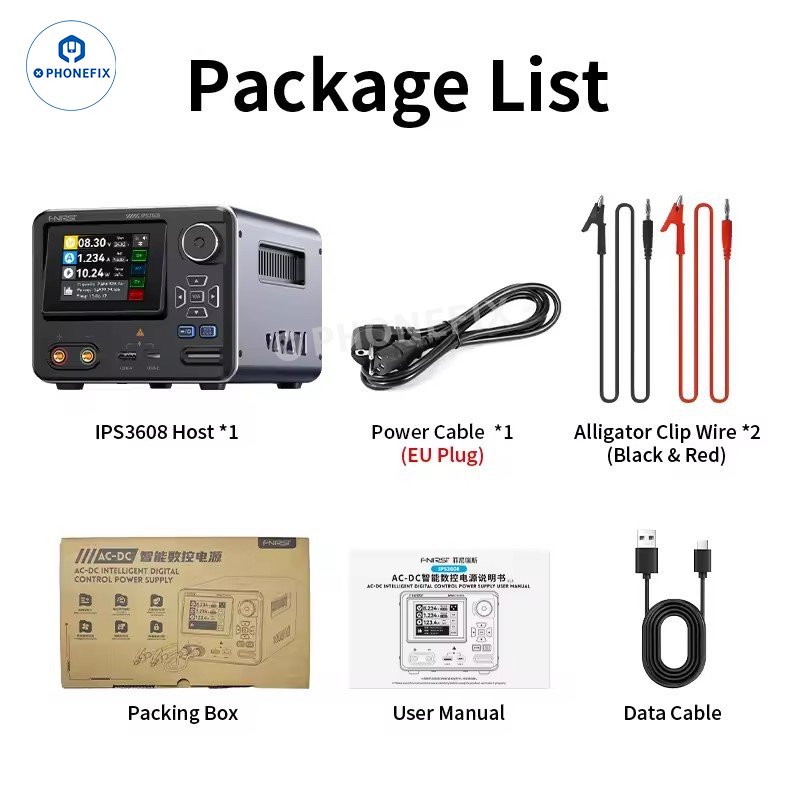

Product Contents
Main Unit x1
Power Cord x1
Alligator Clip Cables (Black/Red) x2
Instruction Manual x1
Packaging Box x1
Data Cable x1
