FNIRSI LCR-ST2 100K dual-mode digital bridge LCR meter that supports both tweezer and Kelvin-clip testing, ideal for components of any size. 2-In-1 Digital Tweezers Bridge accurately measures resistance, capacitance, inductance, diodes, and voltage, supporting voltage testing up to 30V. It features five adjustable frequencies, a 1.47-inch high-definition display, and multiple intelligent functions, suitable for testing components of various sizes, and supports tweezers and Kelvin clip testing.
Features:

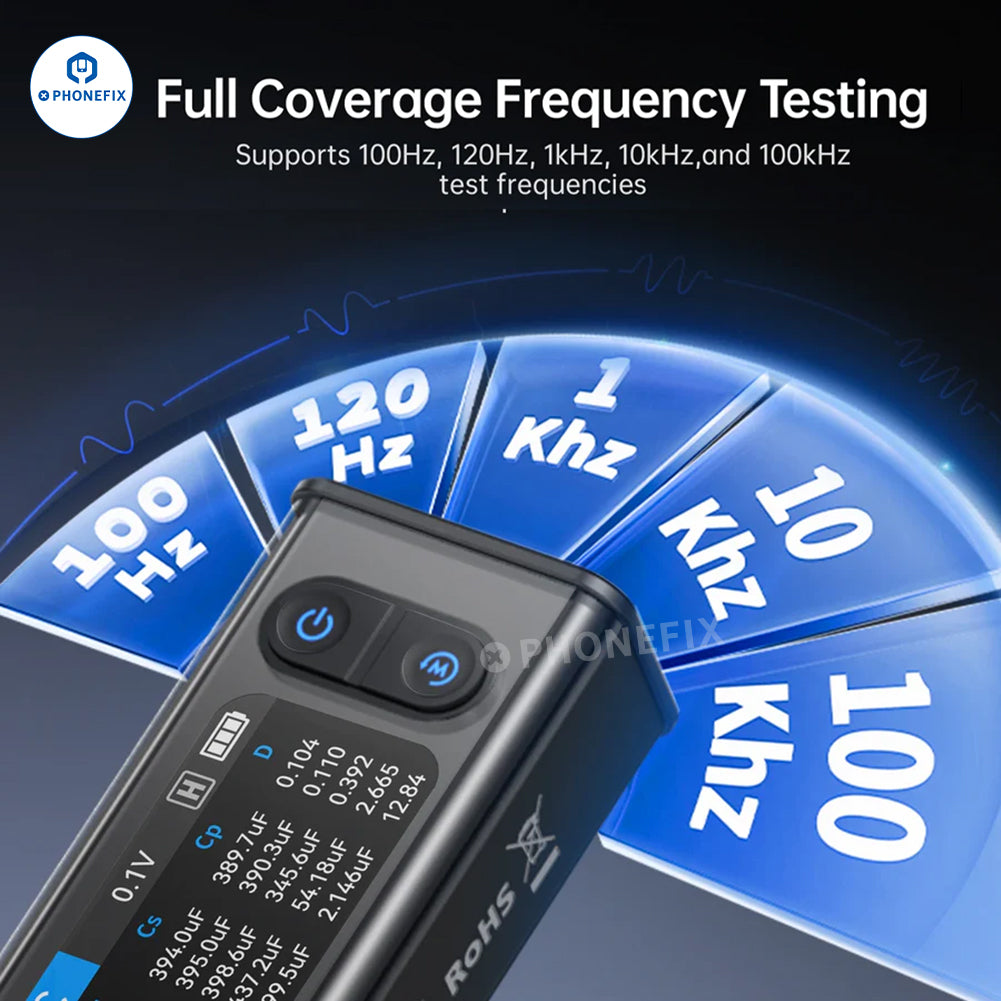

1. Multi-frequency testing: Supports five test frequencies: 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz, meeting the needs of different components and applications.
2. Four RMS test levels: Adjustable excitation levels (0.1V / 0.3V / 0.6V / 1.0V) optimize measurement stability.

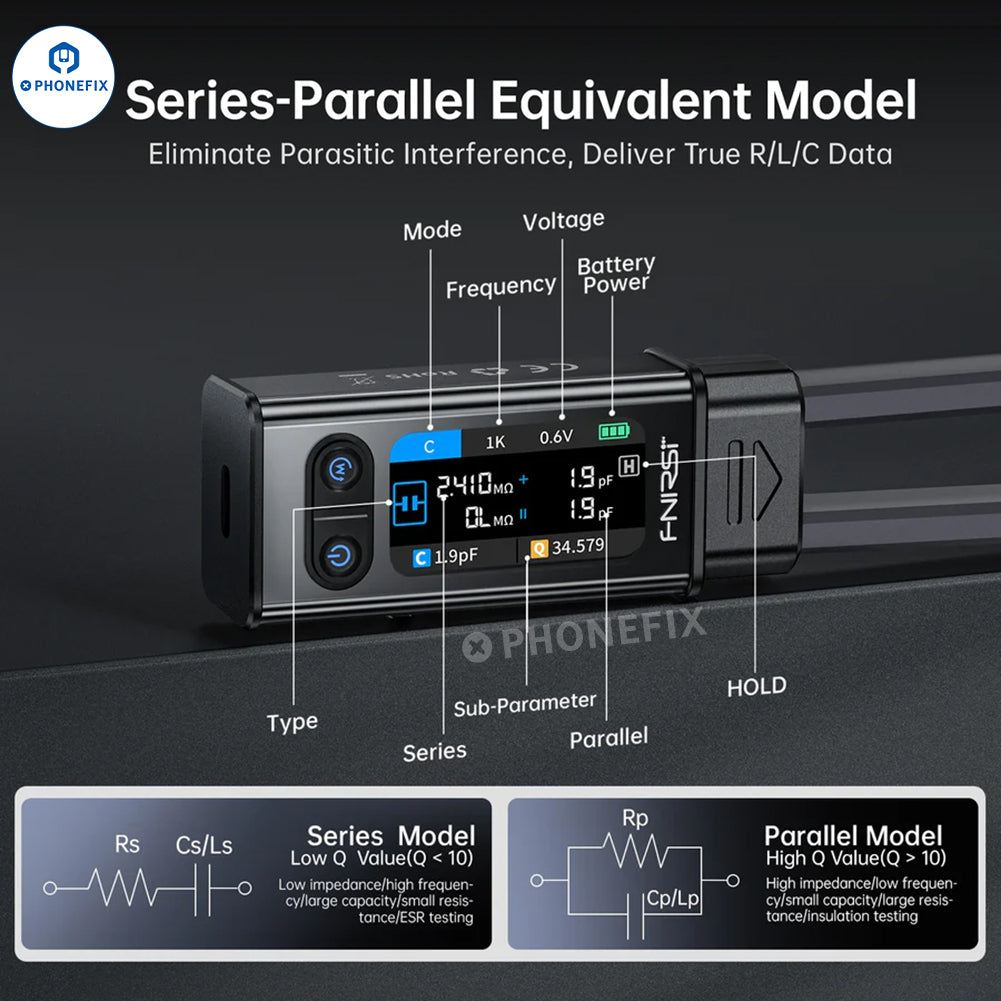

3. Dual Series/Parallel Equivalent Comparison: Simultaneously displays series and parallel equivalent values, improving measurement accuracy and reducing interference.
4. Full-Band Scan Mode: Supports full-band scanning from 100Hz to 100kHz, providing detailed analysis of component frequency response.

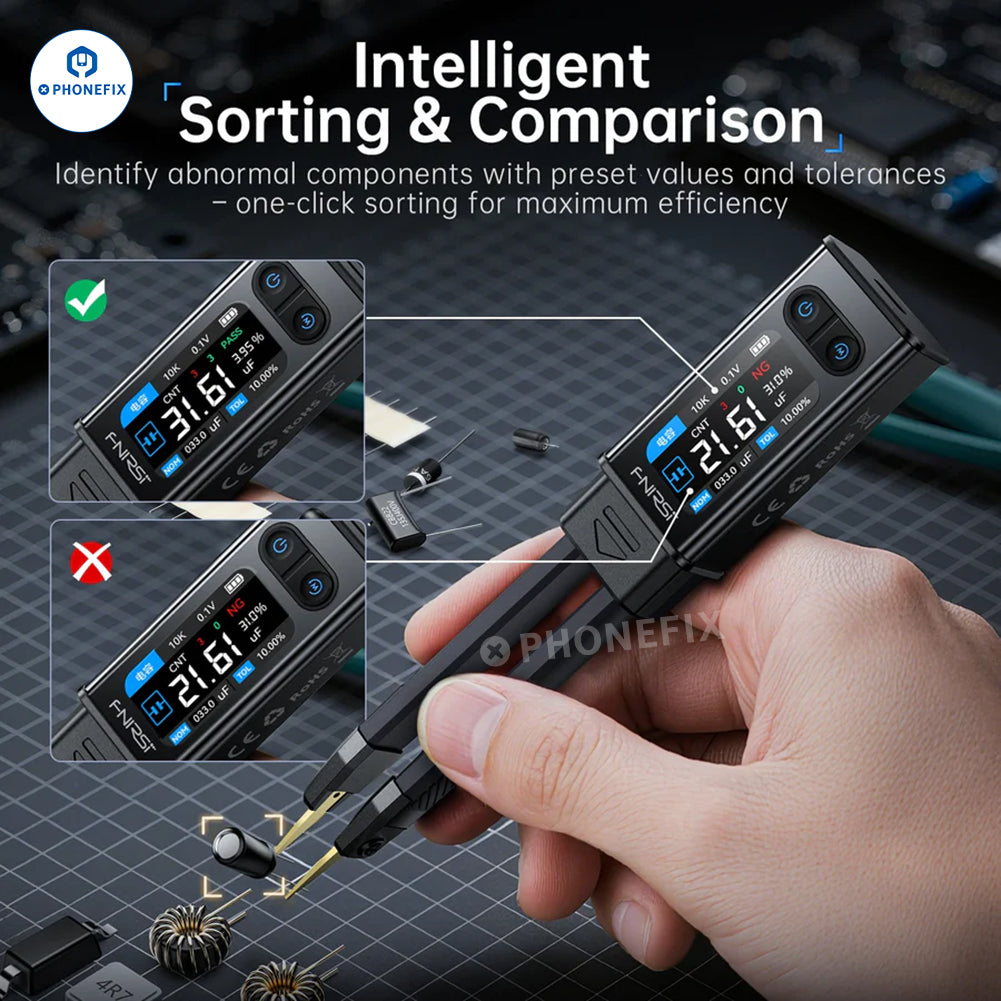

5. Intelligent Sorting and Tolerance Grading: Automatically evaluates component qualification and filters based on nominal values and tolerances.

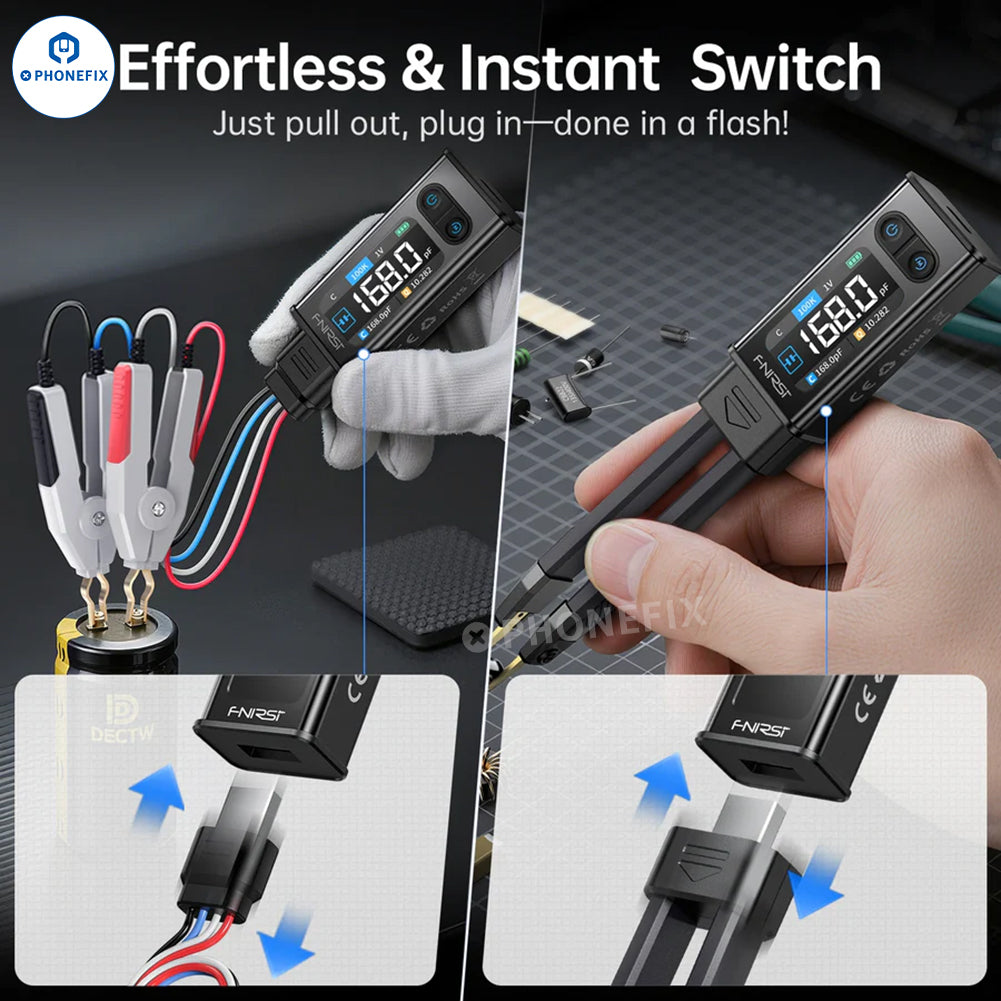

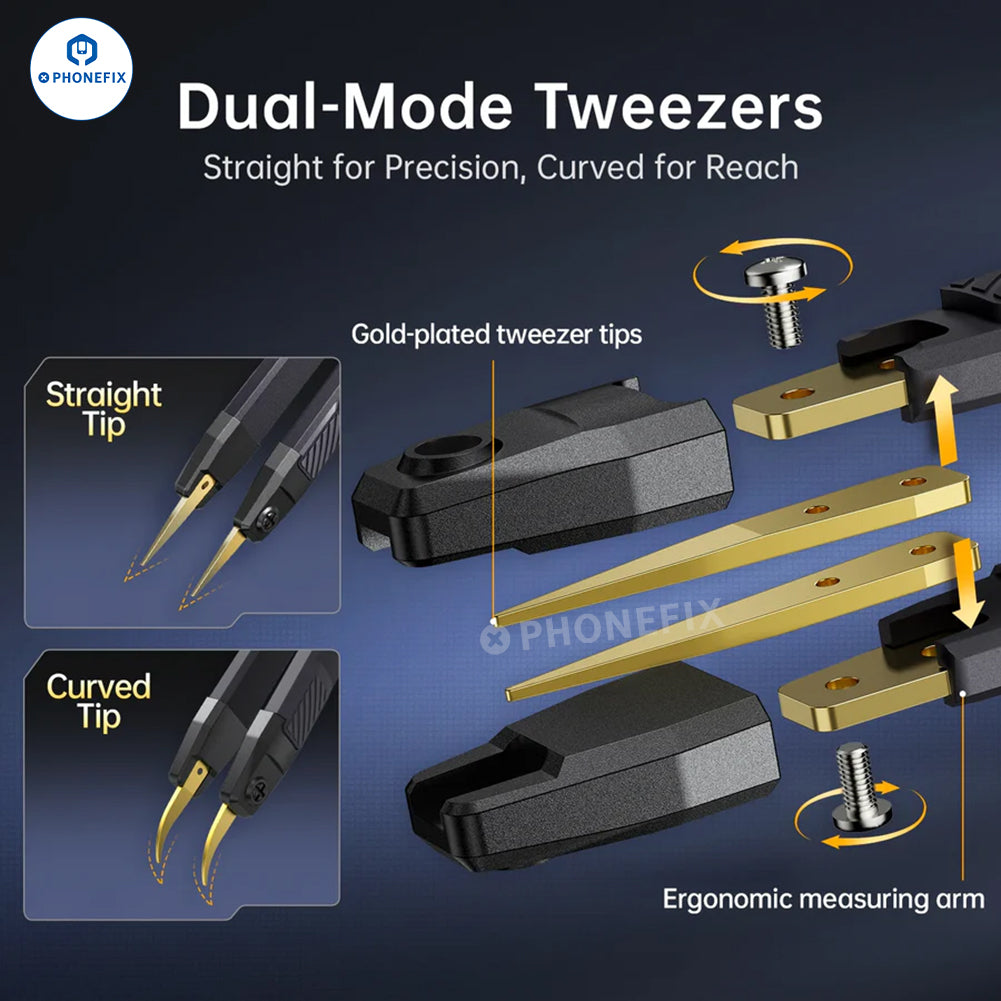

6. Dual-Shape Testing: Offers flexible component measurement solutions with both tweezers tip and Kelvin clip testing modes.
7. Intelligent Recognition and Display Function: Automatically identifies R/C/L components, providing dual-parameter display and adjustable settings.
8. Automatic Rotation Direction: Supports automatic screen rotation for easy left- and right-handed operation.
9. Portable Magnetic Design: Equipped with a magnetic attachment for easy storage and retrieval, suitable for rapid on-site operation.
10. High-Definition Display: A 1.47-inch color high-definition display provides clear, high-contrast data visualization.
11. Long-lasting battery and charging: Equipped with a 300mAh lithium battery, supports Type-C charging, and provides up to 3 hours of continuous use.
Product Specifications:
1. Measurement Range:
· Resistance: 10 mΩ–10 MΩ
· Capacitance: 1 pF–22 mF
· Inductance: 1 μH–10 H
· Voltage: ±30 V
· Diode: ≤0.7 V
2. Test Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
3. Excitation Voltage: 0.1V / 0.3V / 0.6V / 1.0V
4. Display: 1.47-inch HD color screen
5. Battery: 300mAh lithium battery, supports Type-C charging
6. Battery Life: Approximately 3 hours of continuous use
7. Automatic screen rotation: Supports left-handed/right-handed operation
