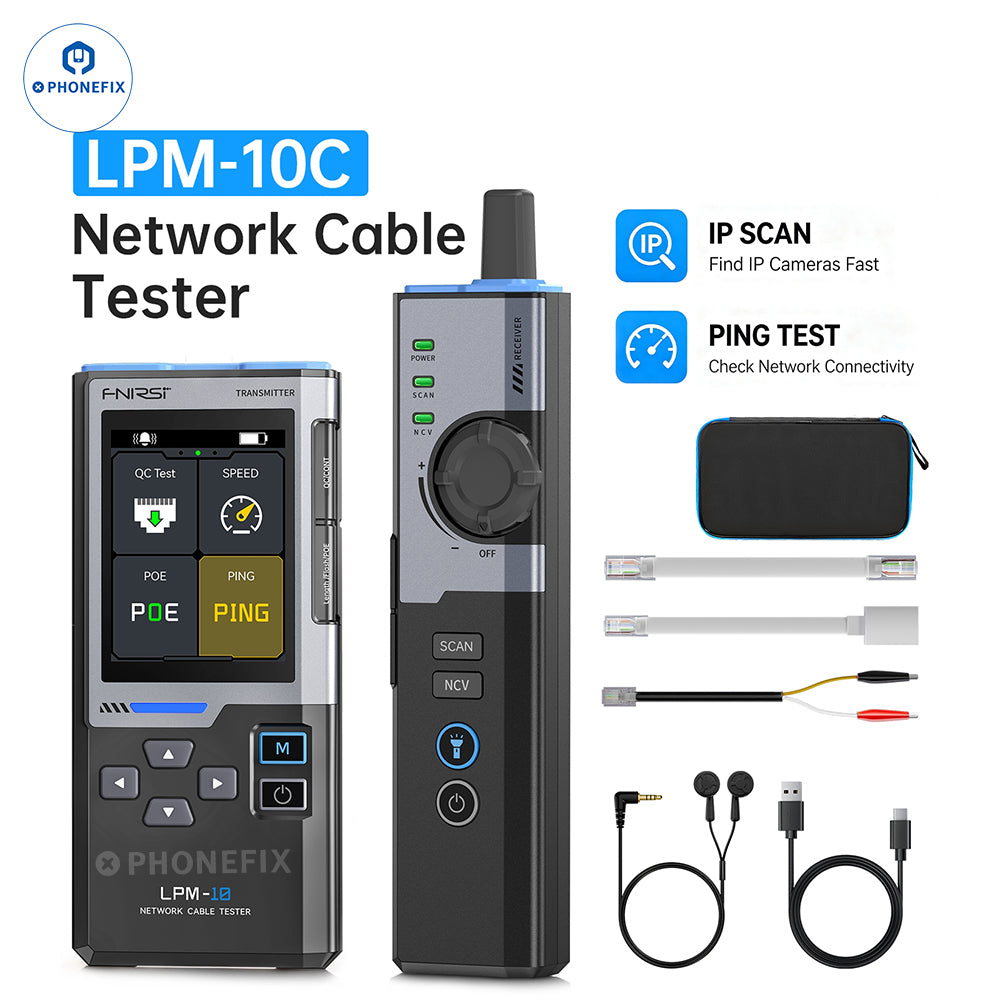

FNIRSI LPM-10C Anti-interference Network Cable Tracer is a professional diagnostic tool designed for network installers, IT technicians, and maintenance professionals. Featuring IP Scan and PING Test capabilities. Equipped with core cable testing functions such as cable tracing, wire mapping, length measurement, quality testing (QC), PoE testing, port flashing, continuity testing, and link speed detection—it is a portable device that also integrates comprehensive LAN diagnostic capabilities. Whether you're troubleshooting complex wiring environments or verifying PoE power for IP cameras and access points, the LPM-10C is built to handle the job with precision and efficiency.
Features:

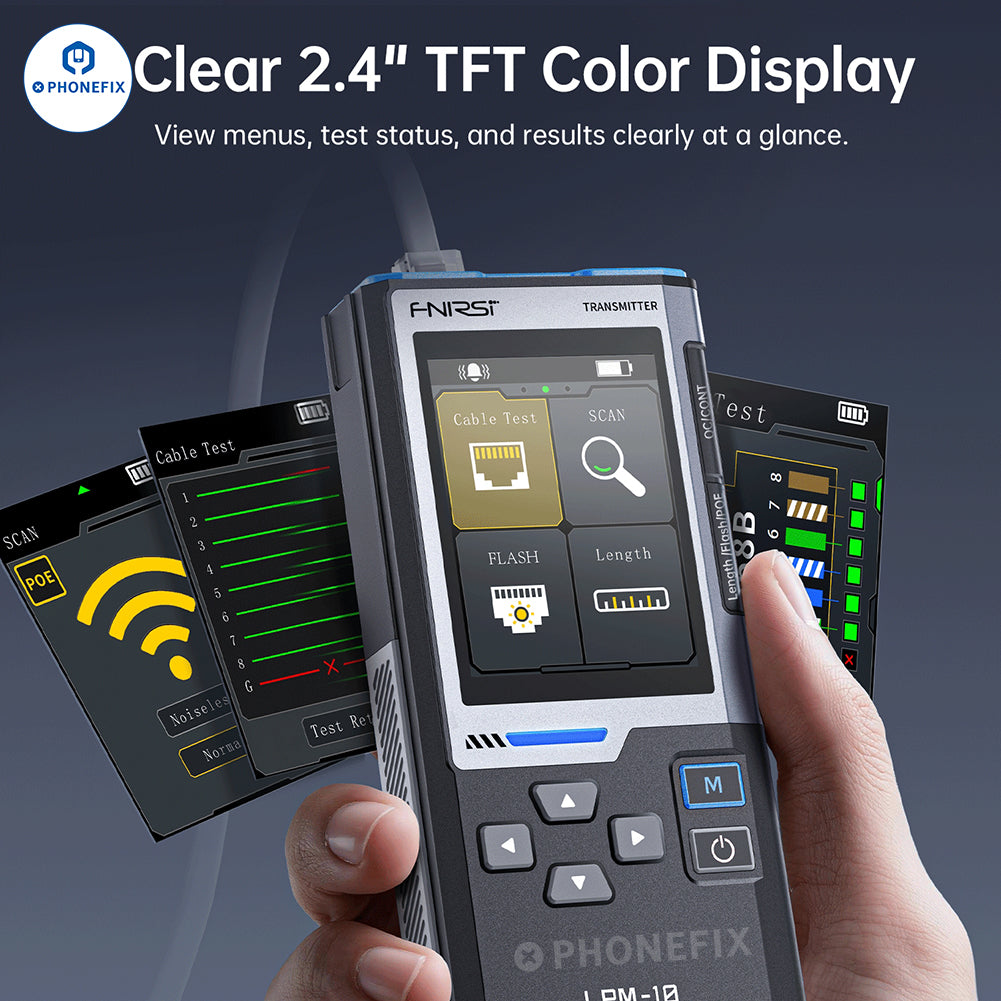

1. Equipped with a 2.4" TFT color display with adjustable backlight, presenting menus and test results clearly and intuitively.

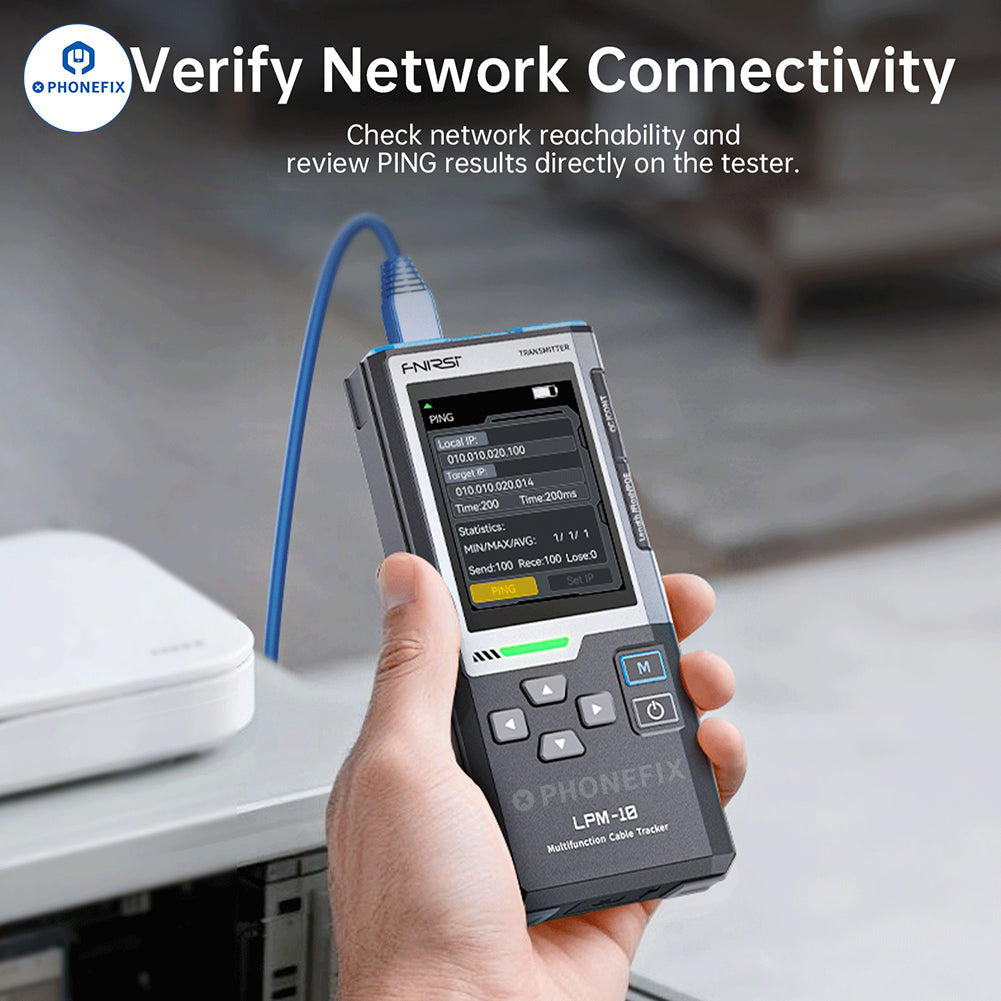

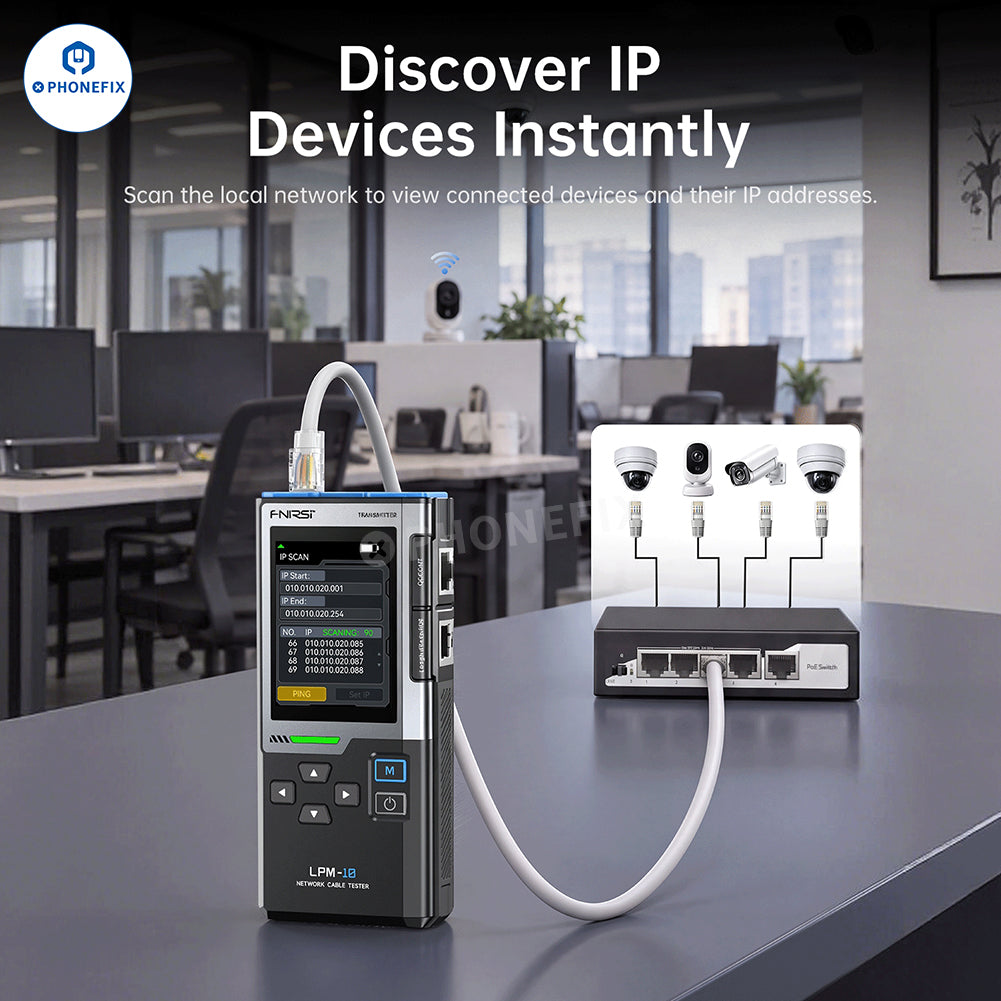

2. Supports IP Scan and PING Test to quickly discover LAN devices and verify network connectivity.

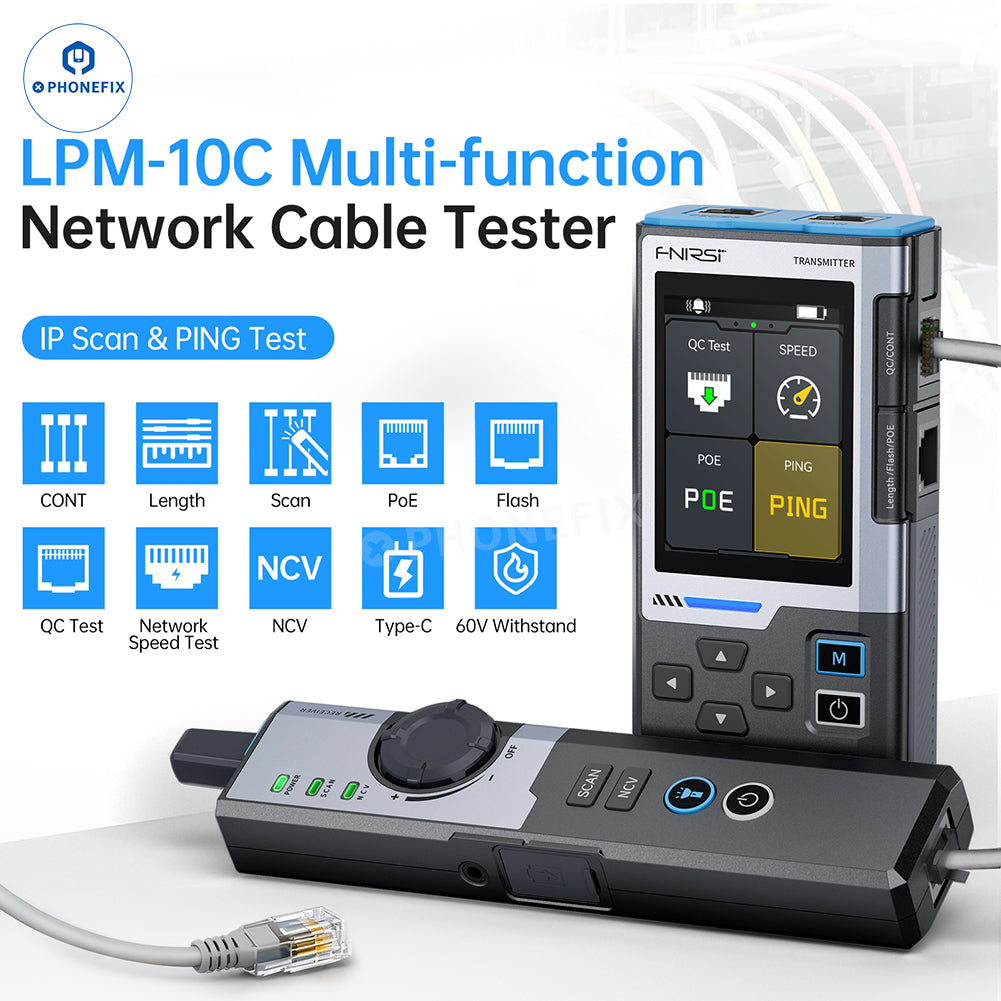

3. Provides multiple functions including Cable Scan, Wiremap, Cable Length, PoE Test, Port Flash, Link Speed Test, QC Test, and NCV Detection.
4. Built-in flashlight for use in dark or confined working environments.
5. Supports sensitivity adjustment, allowing the receiver to be fine-tuned for precise cable tracing.
6. Both transmitter and receiver feature rechargeable lithium batteries with Type-C charging and adjustable auto power-off.
7. Offers 60V protection to ensure safe operation.
8. Supports Chinese and English languages.
9. Built-in rechargeable lithium battery and Type-C charging.
Product Parameters:
Brand: FNIRSI
Model: LPM-10C
Display: 2.4" TFT Color Screen
Backlight: Adjustable Backlight
Power Supply: USB Type-C (5V/1A)
Battery Capacity: 1500mAh (Transmitter), 3000mAh (Receiver)
Languages: Chinese/English
Product Size: ≈ 152 × 68 × 31mm
Color box dimensions: 23 x 12.8 x 5.2 cm
Receiver Functions: Sensitivity Adjustment, Cable Trace Modes, Wire Sequence Comparison, NCV Detection, Built-in Flashlight, Low Voltage Warning, Headphones Support

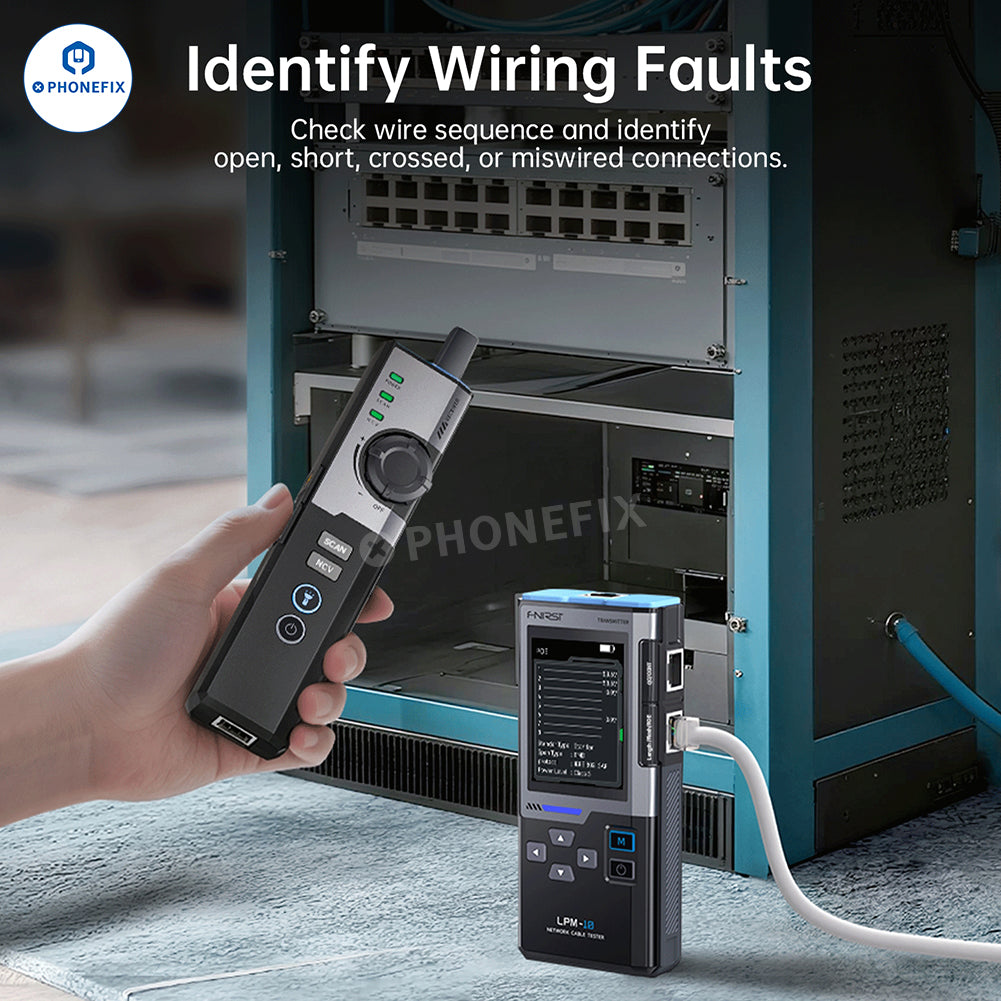

Network Cable Continuity Test: RJ45 interface, Cable Pairing Check, Wiring Sequence & Fault Detection, Error Indication

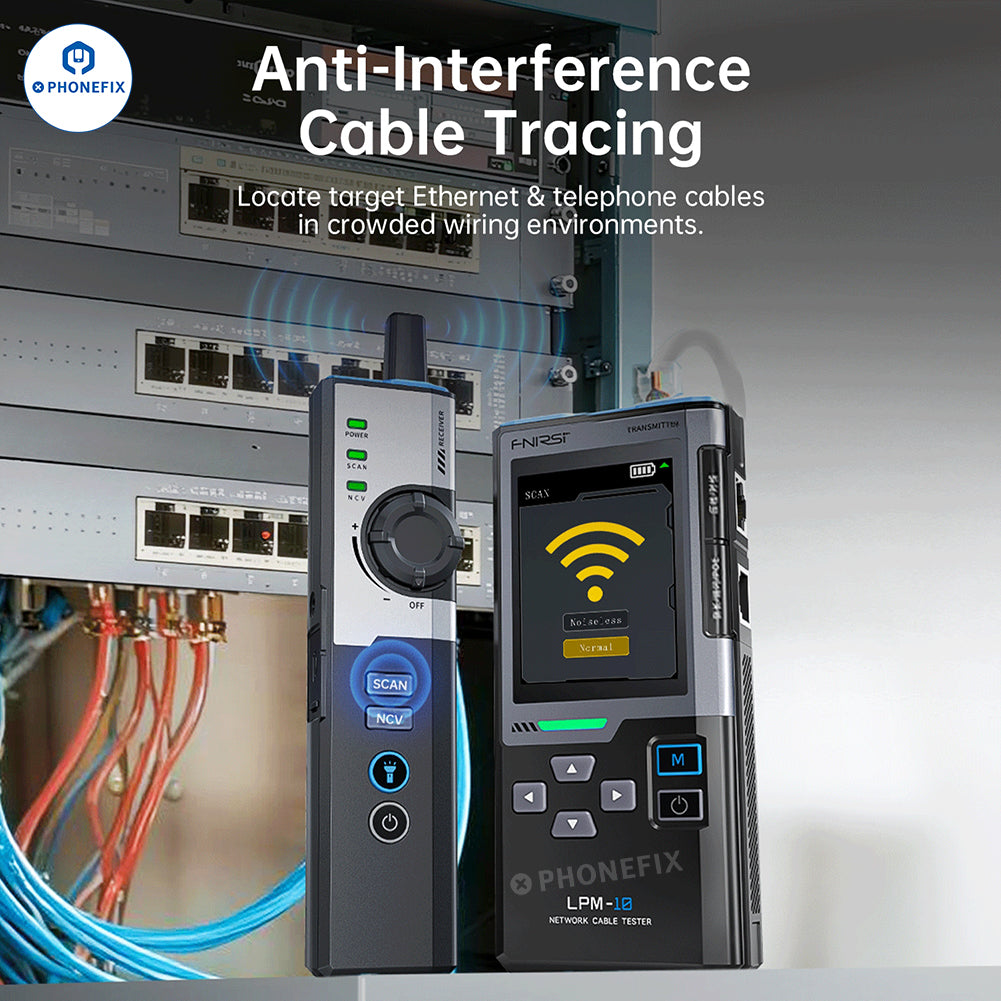

Cable Tracing: Normal Model, Anti-interference Model
Port Flash (Auto Detection): Full-Duplex/Half-Duplex, Auto-Negotiation/Fixed Mode
Network Cable Speed Test: 10/100/1000 Mbps, Full Duplex/Half Duplex

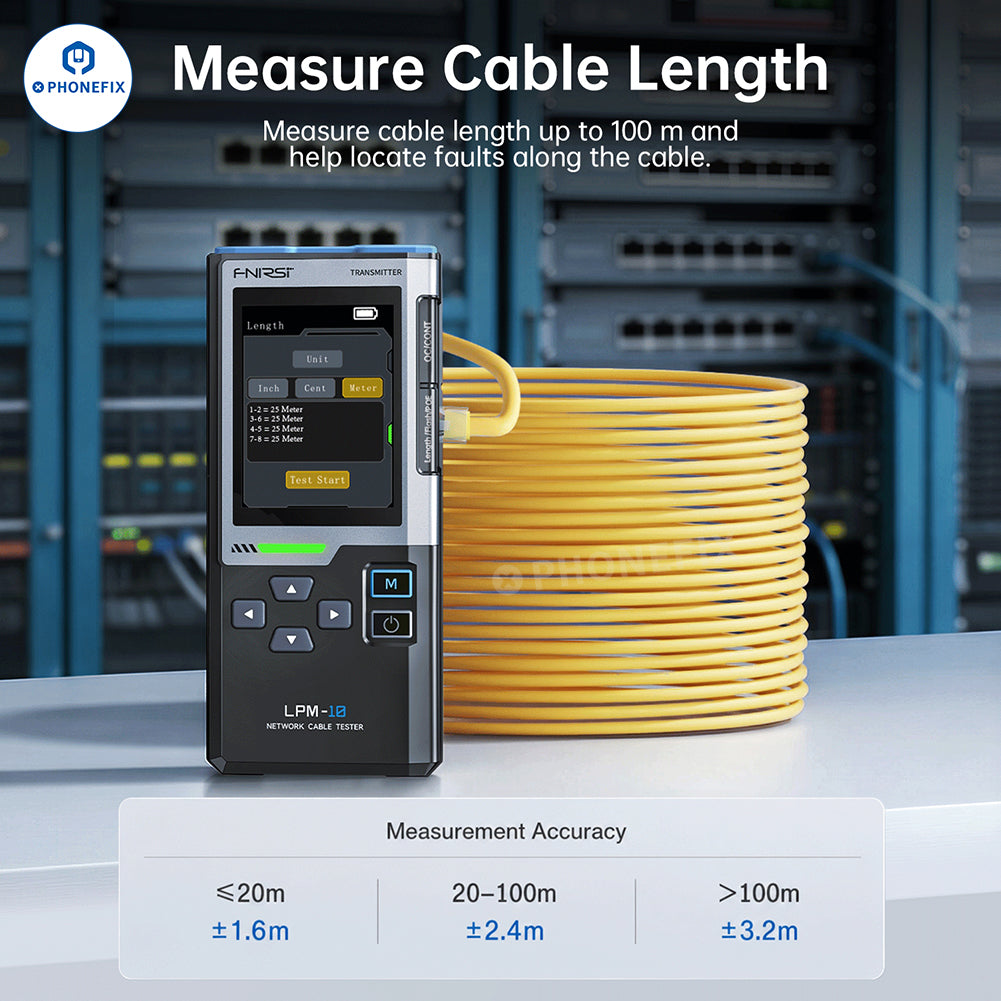

Cable Length Measurement: <20m: ±1.6m; 20–100m: ±2.4m; >100m: ±3.2m

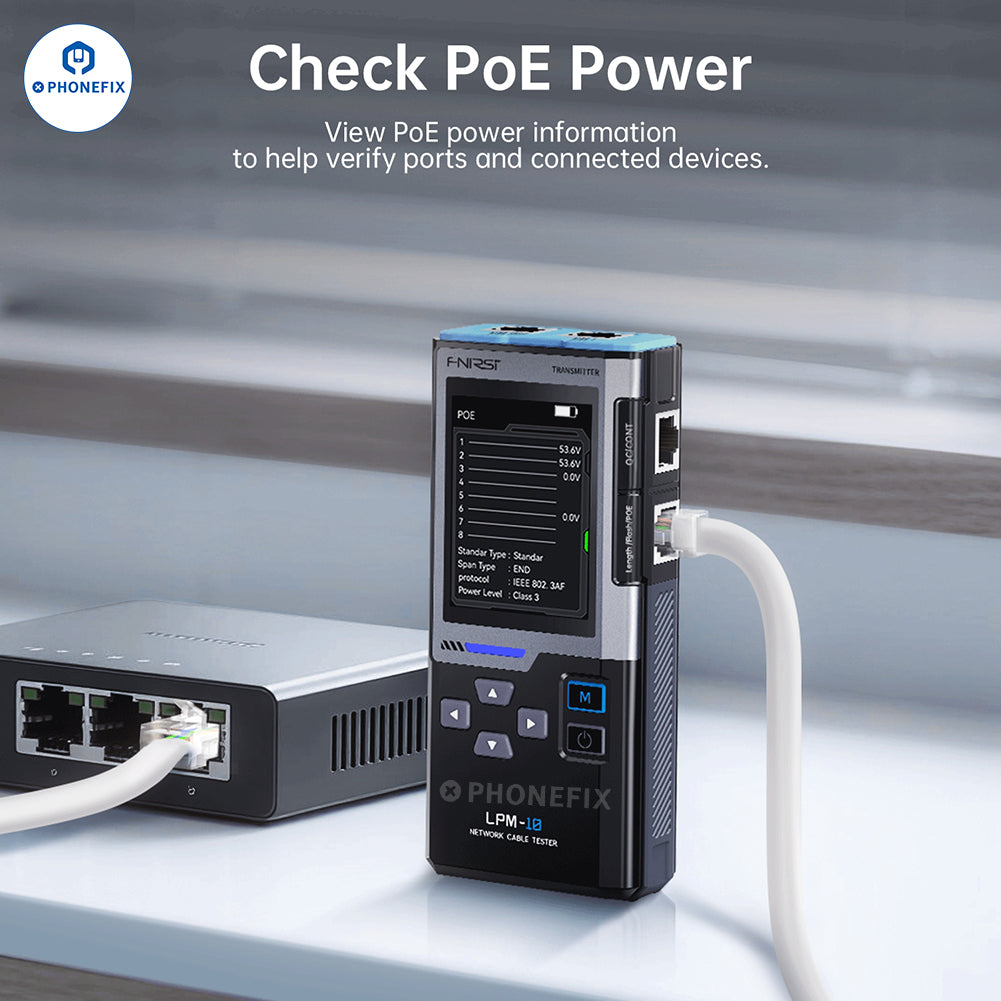

PoE Testing (Auto Detection): End-Span/Mid-Span/8-Pin Power, Standard/Non-Standard PoE, Automatic Identification, Power Supply Mode, Power Level
Auto Power-Off: 5/10/15 min adjustable
Protection: 60V Protection
