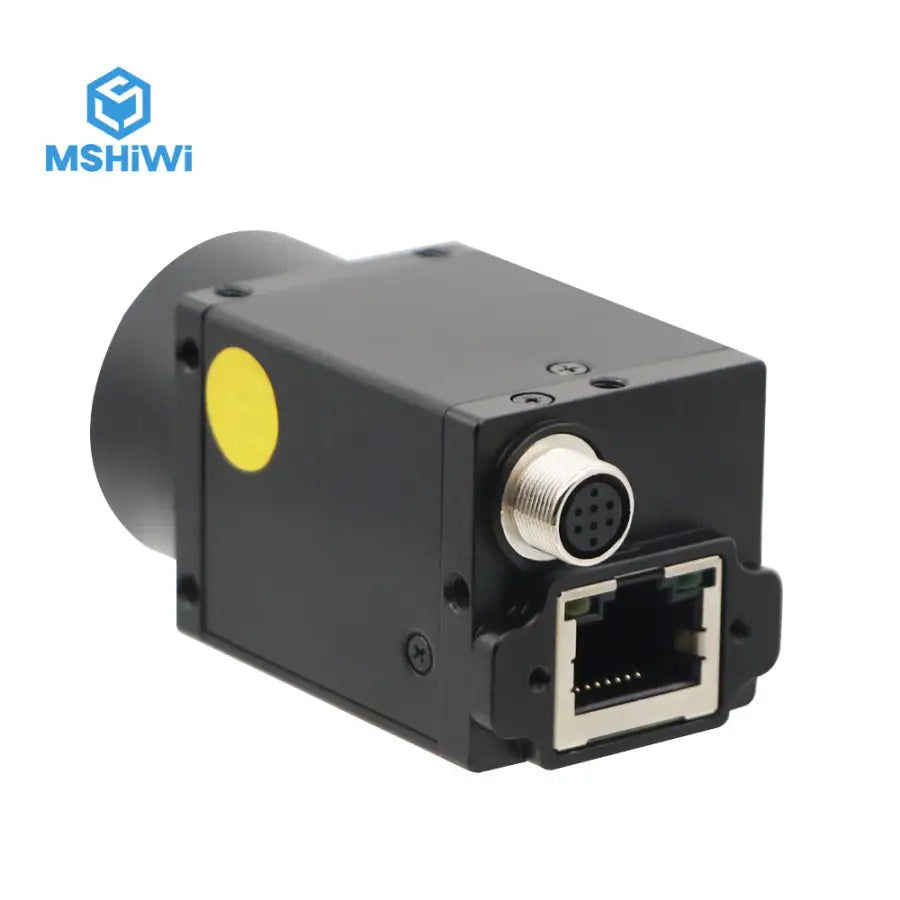

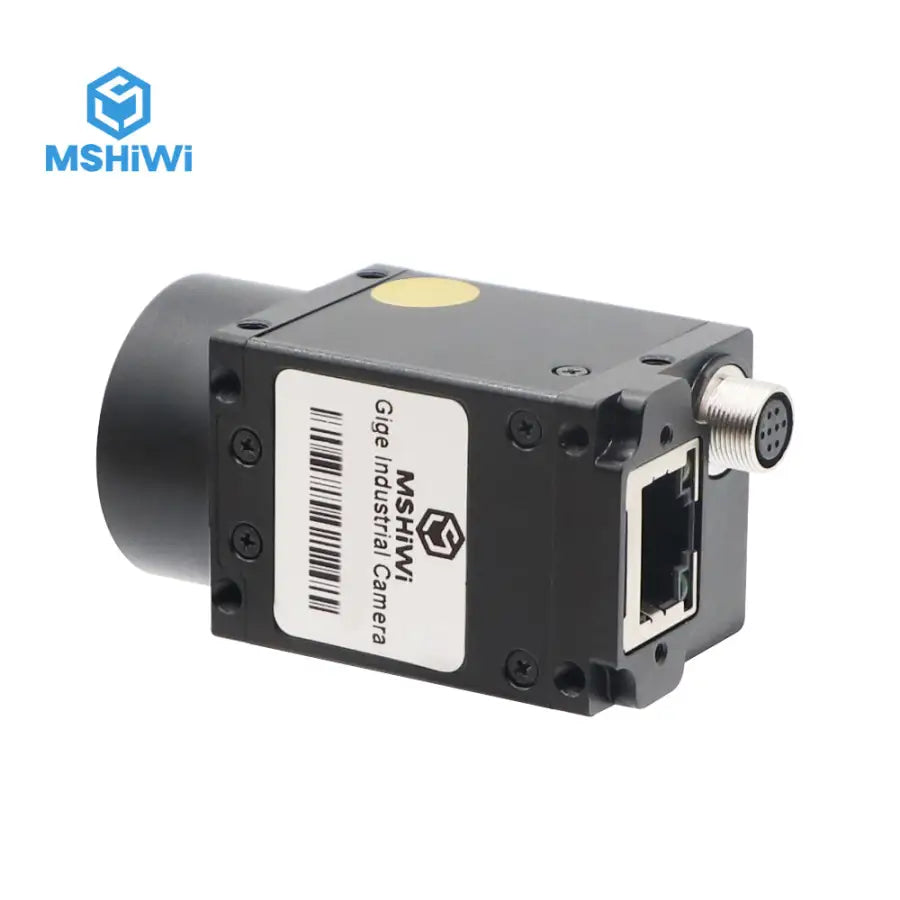

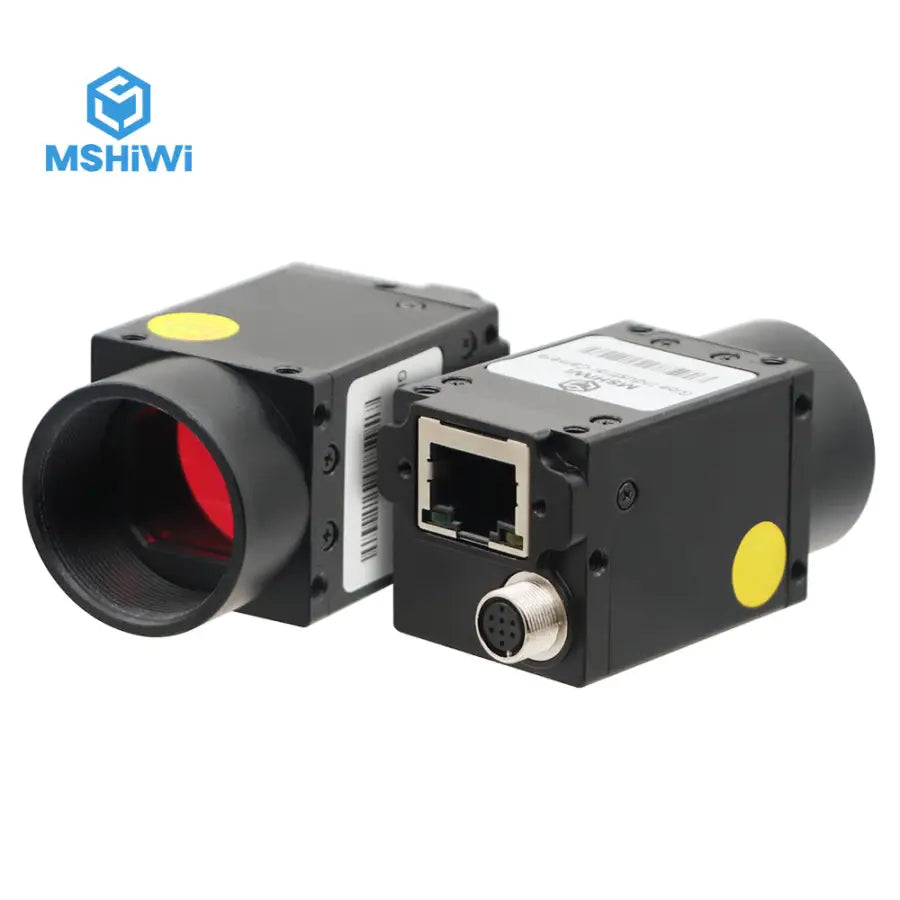

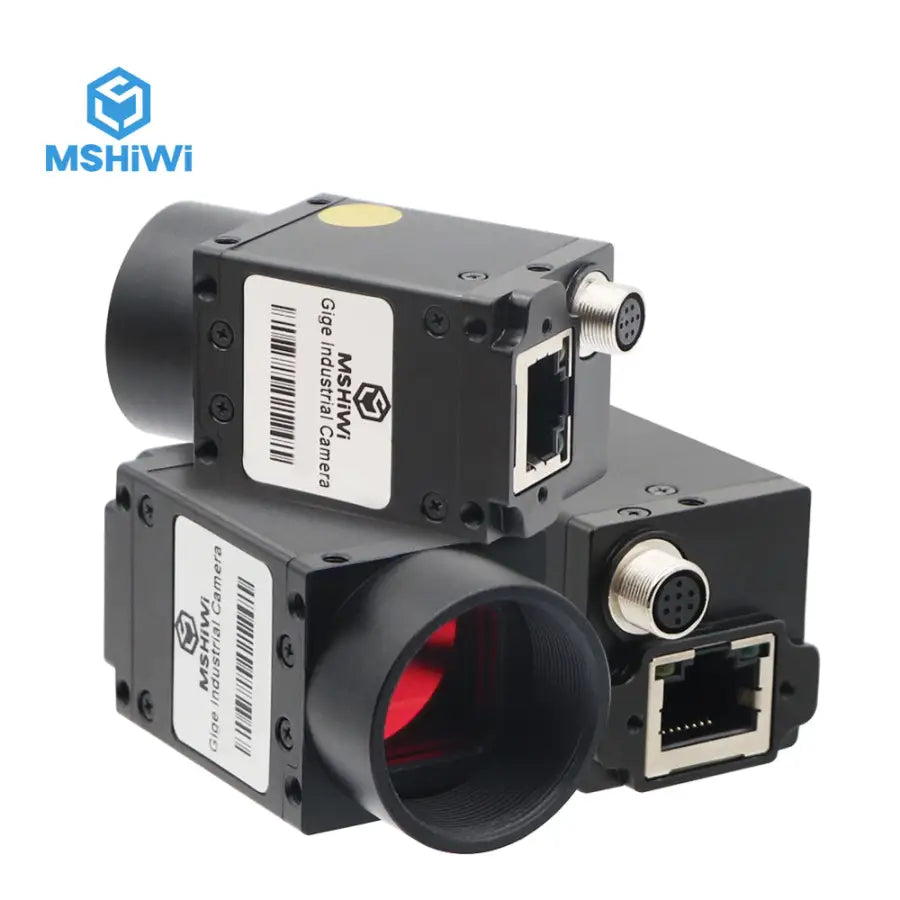

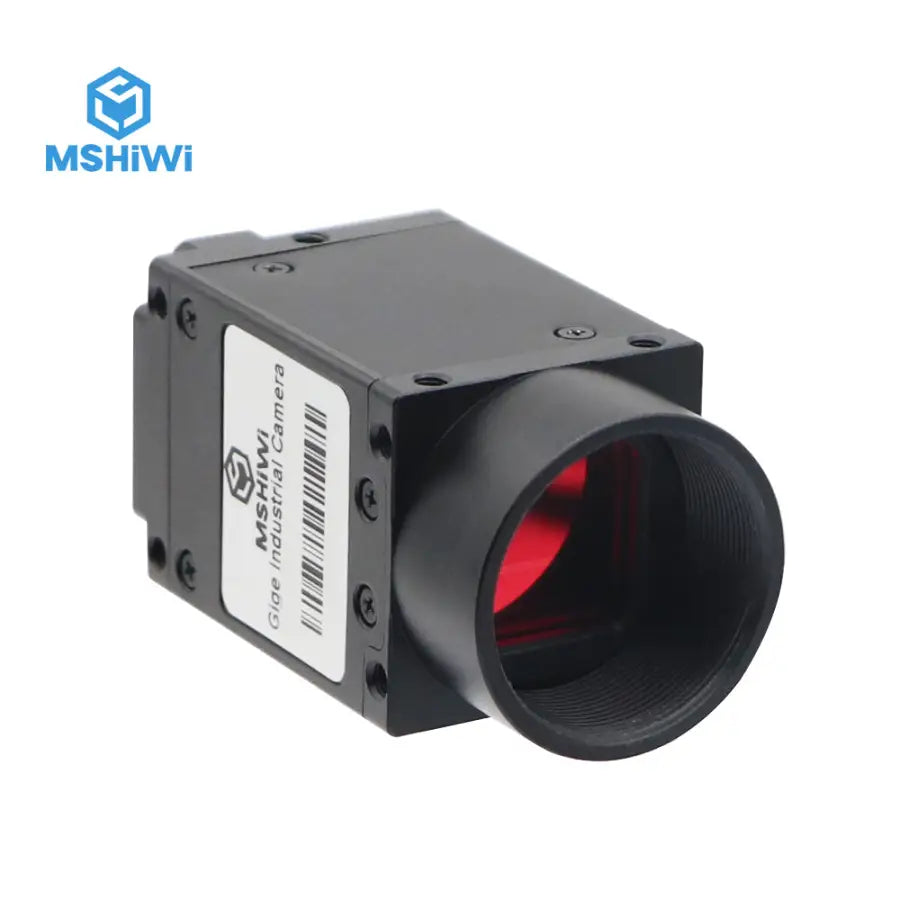

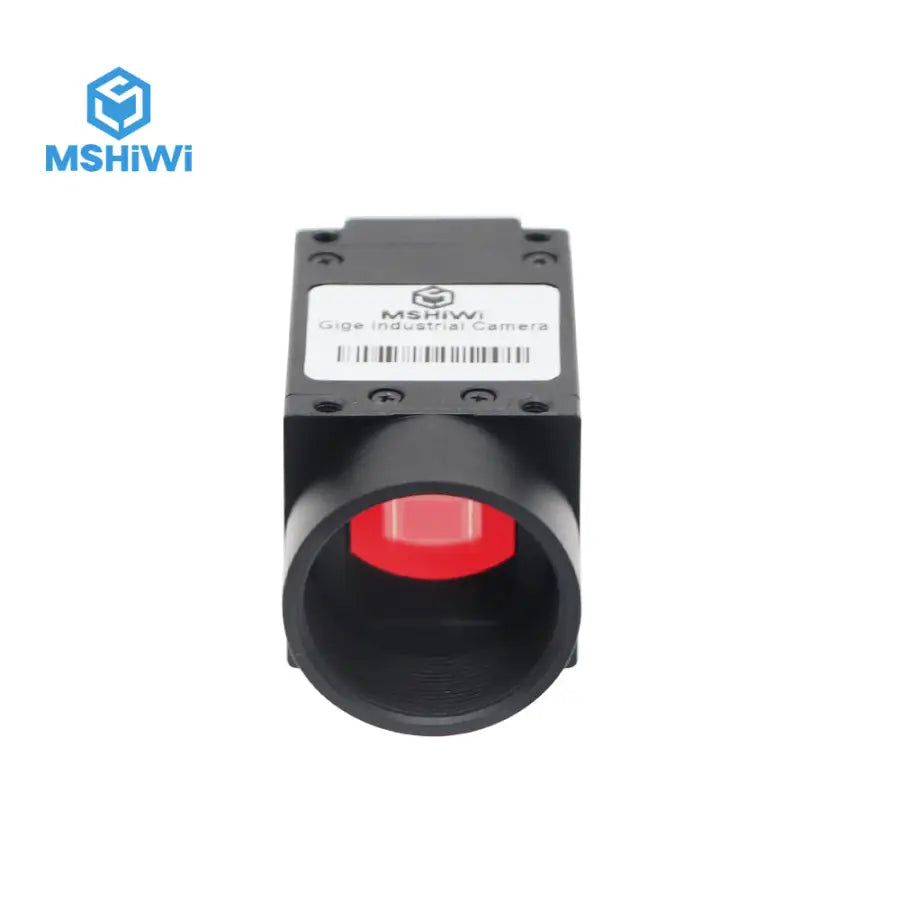

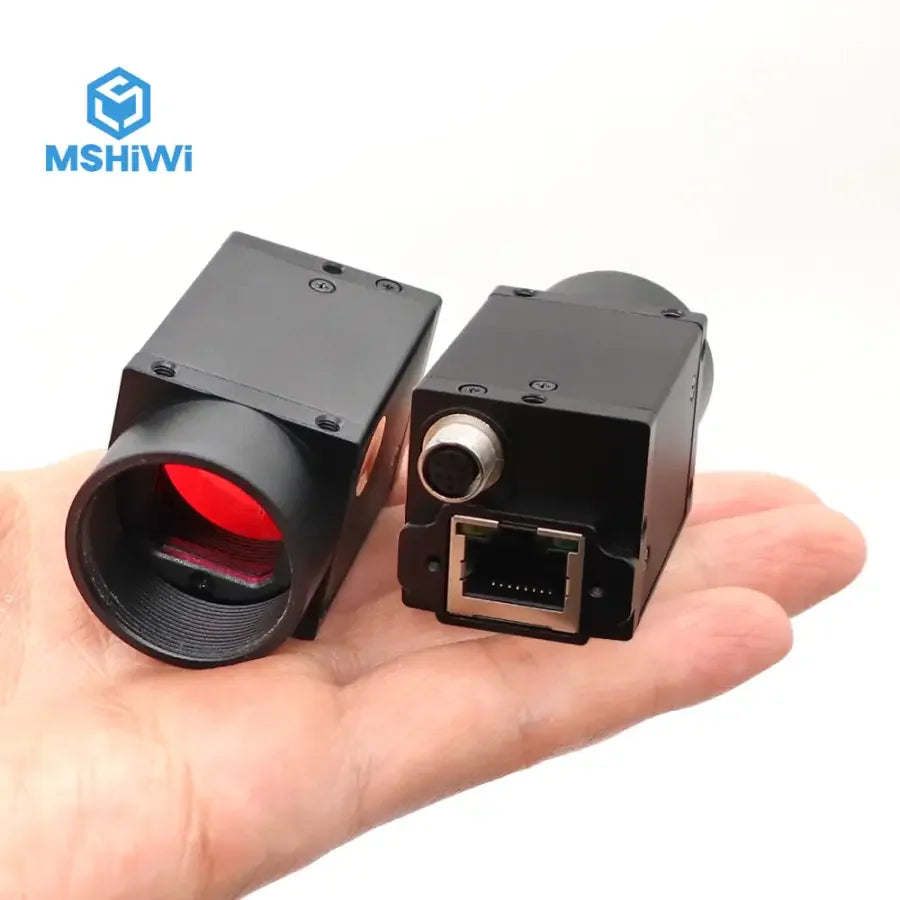

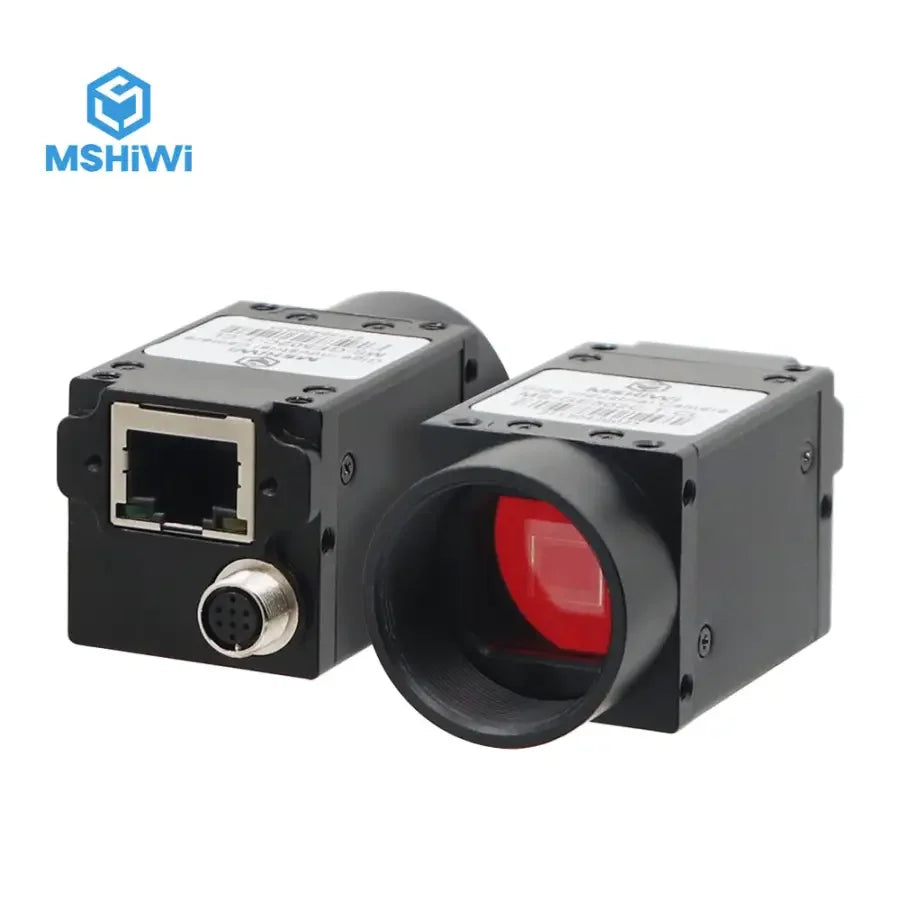

GigE Vision Industrial Camera 2.3MP 1/1.2 CMOS Color 40FPS

Roll over image to zoom in Click on image to zoom

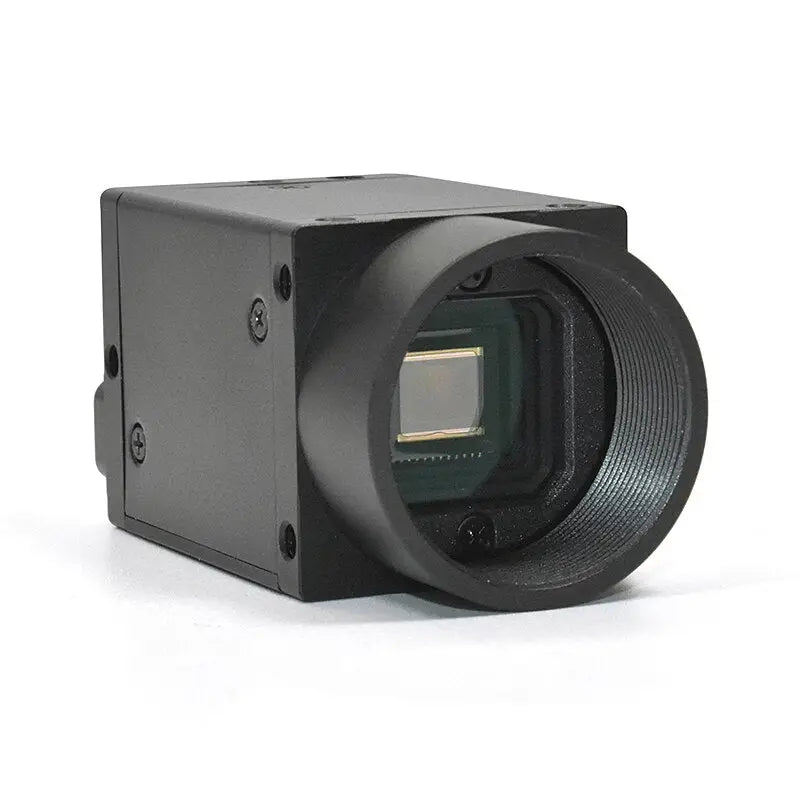

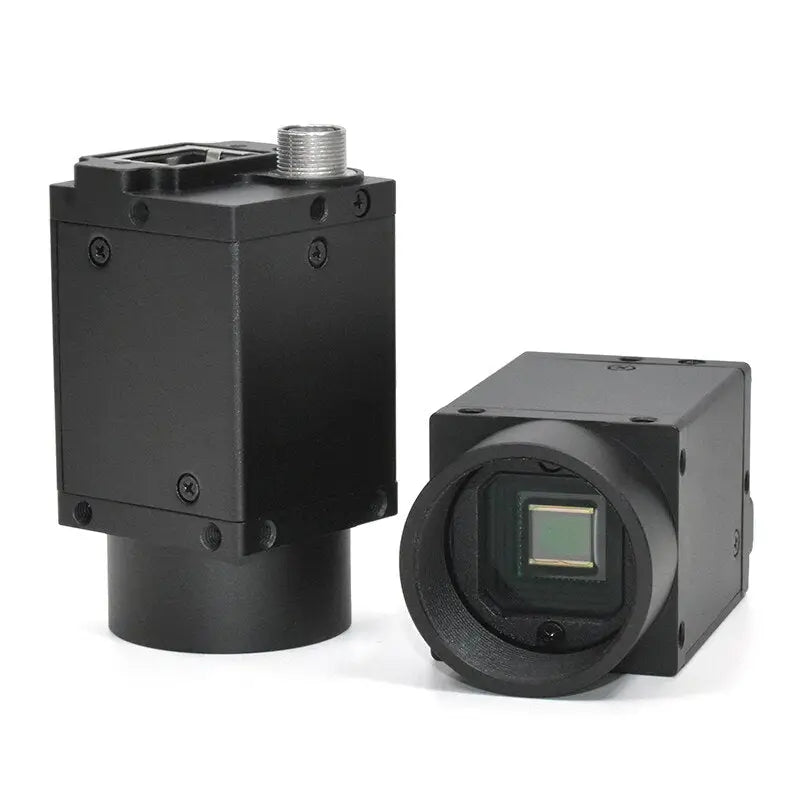

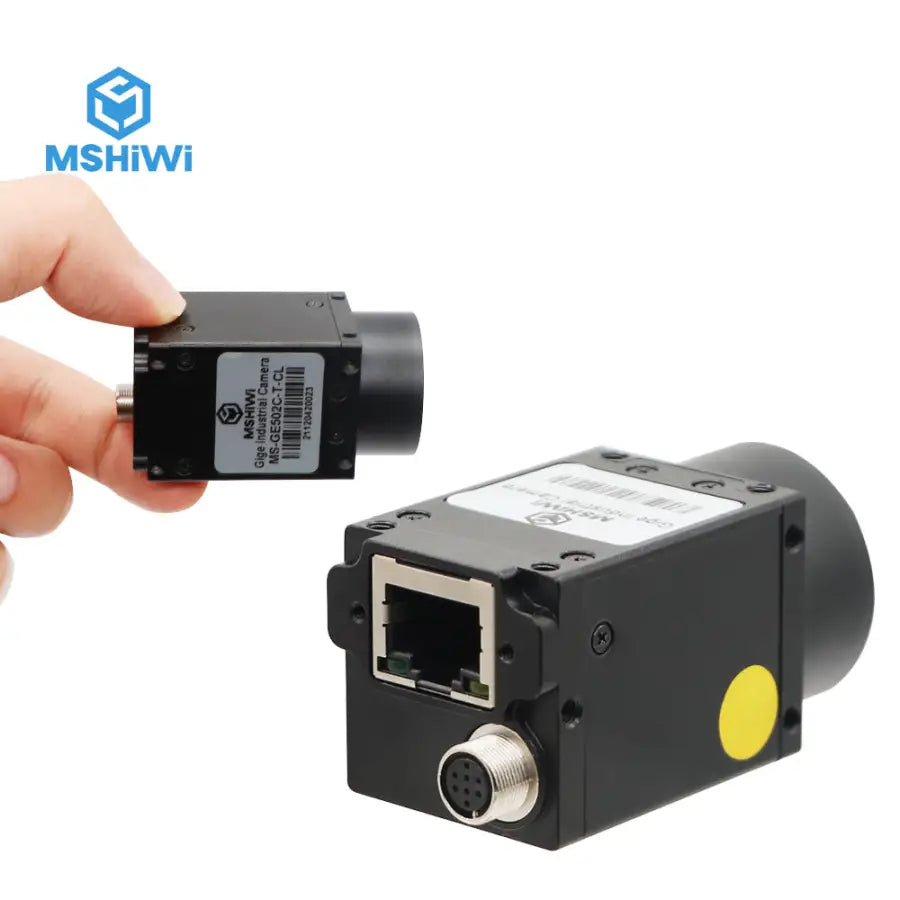

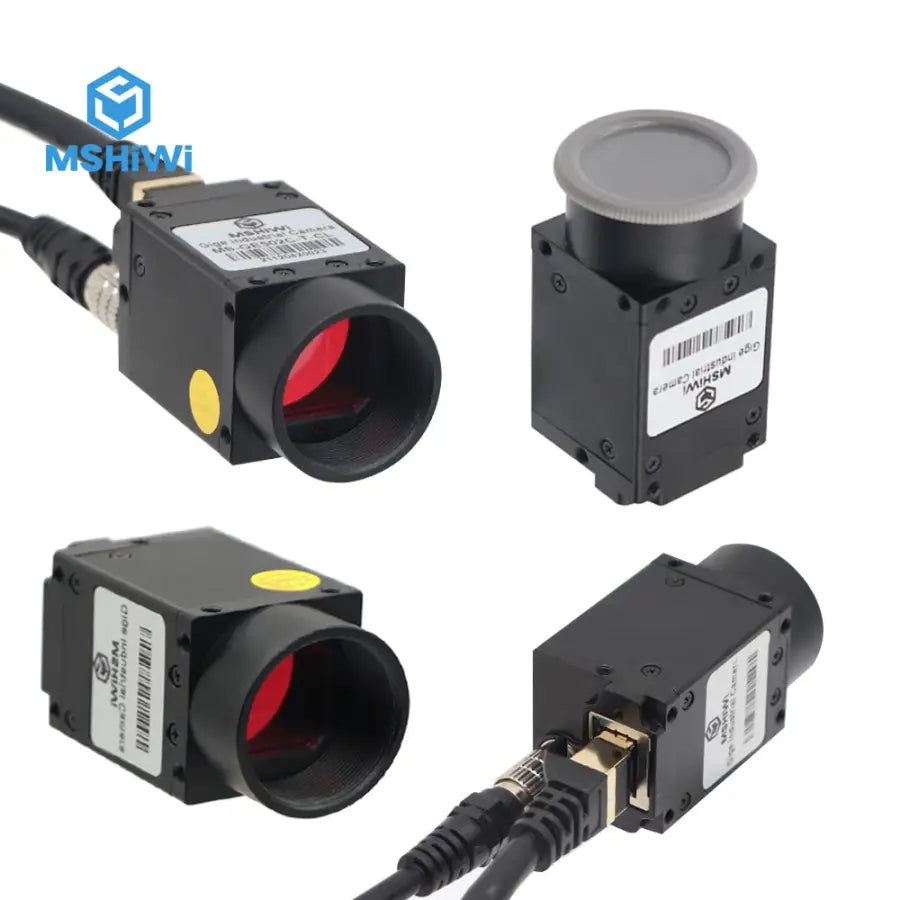

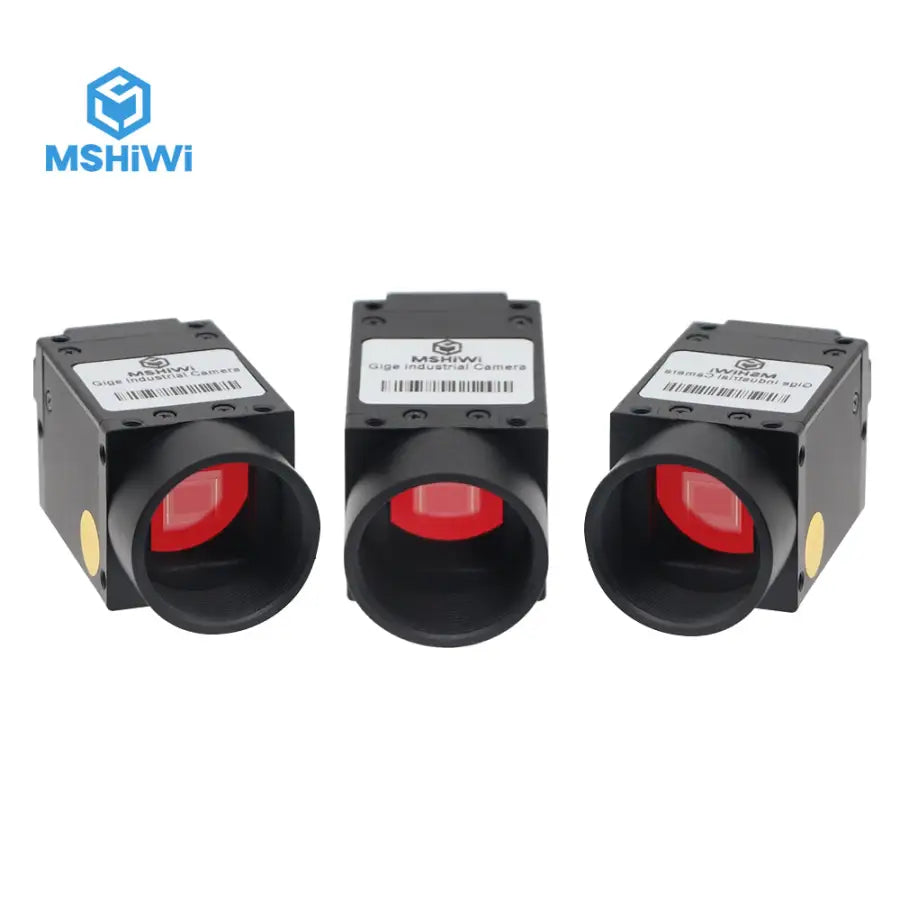

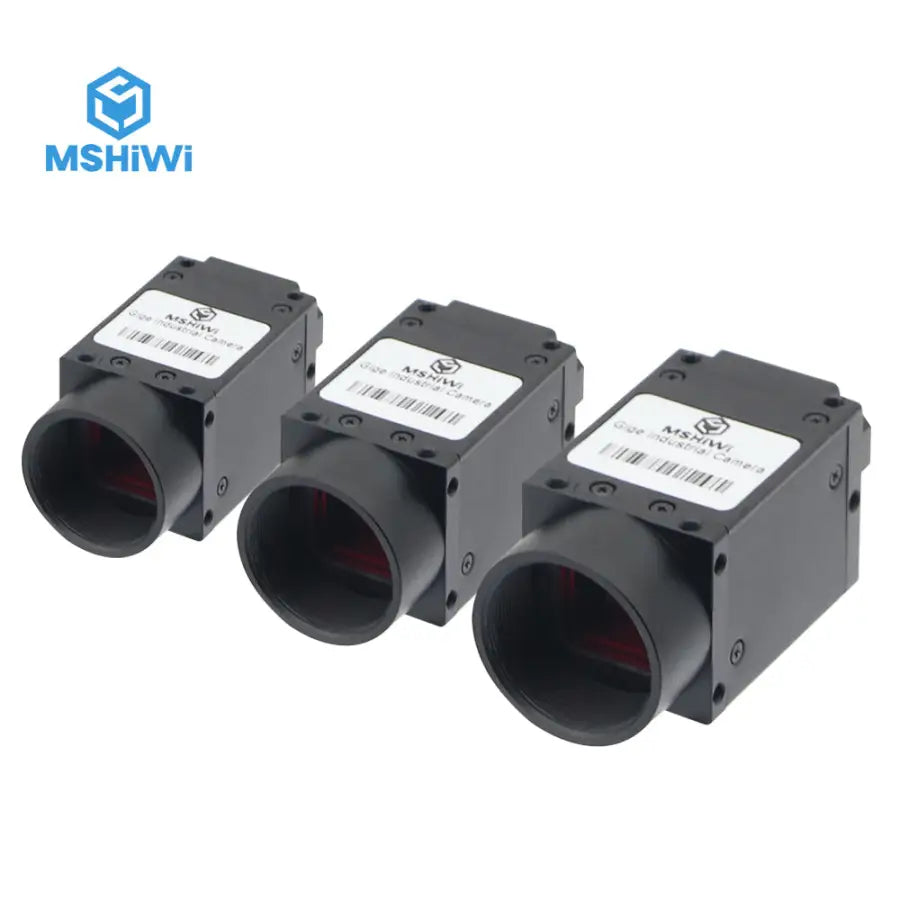

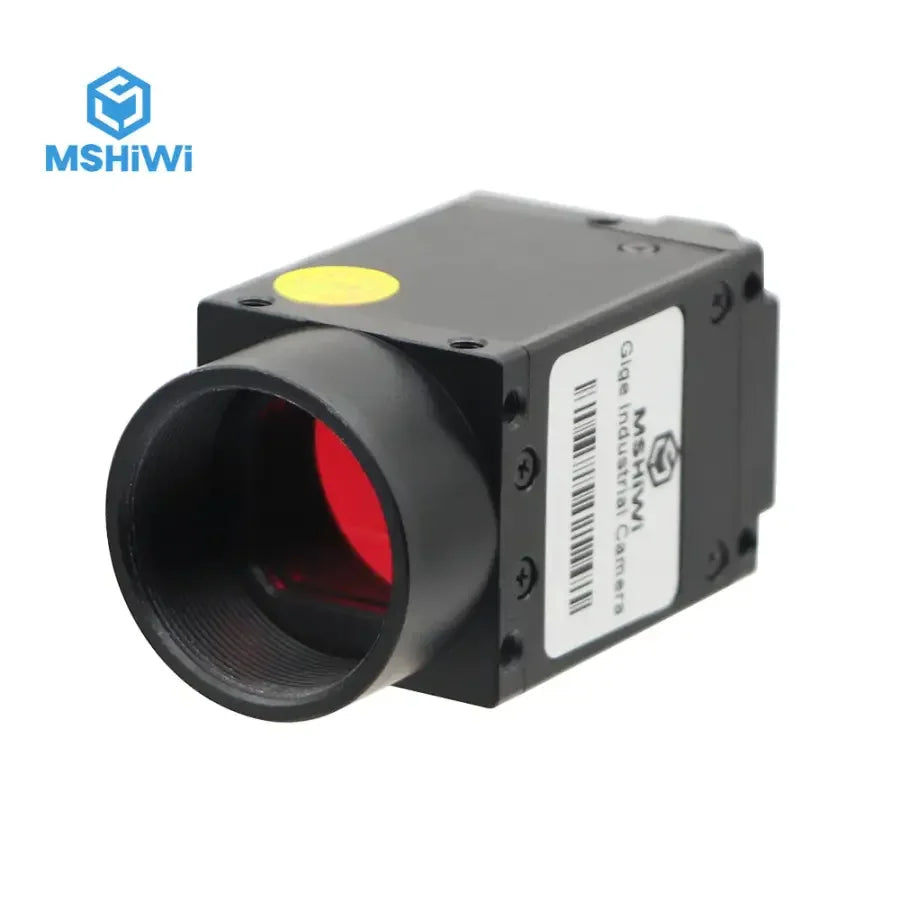

GigE Vision Industrial Camera, 2.3MP, 1/1.2" CMOS, Color, 40FPS

Name: GigE Vision Industrial Camera, 2.3MP, 1/1.2" CMOS, Color, 40FPS
Brand: PHONEFIX
SKU: HW064
Price: 380.0 USD
Availability: InStock

Save $178.90

PHONEFIXSKU: HW064

Option: Color

Variant

Price:

Login to view price

Shipping calculated at checkout

Stock:

In stock

Quantity:

Share this product

1920X1200 (2.3 Megapixel), is a best choice for machine vision applications, with format 1/1.2" CMOS, 40fps maximum frame rate, Gigabit Ethernet interface, GigE vision industrial camera is a best choice for machine vision system with a resolution of 1920X1200 (2.3 Megapixel), suitable for various visual applications such as mobile phone screen detection, defect detection, electronic components manufacturing, wafer positioning applications and so on.

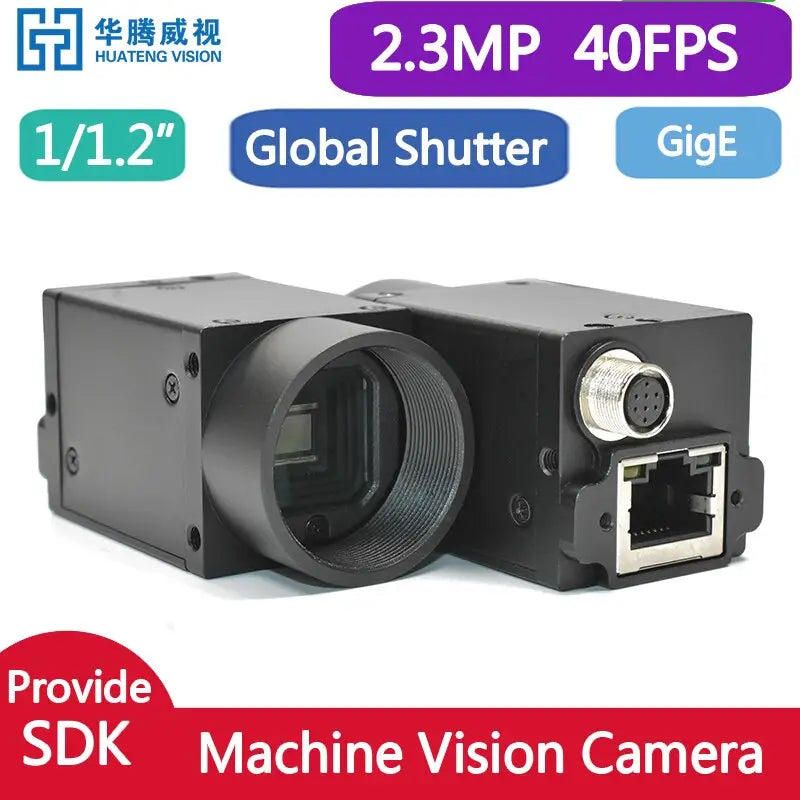

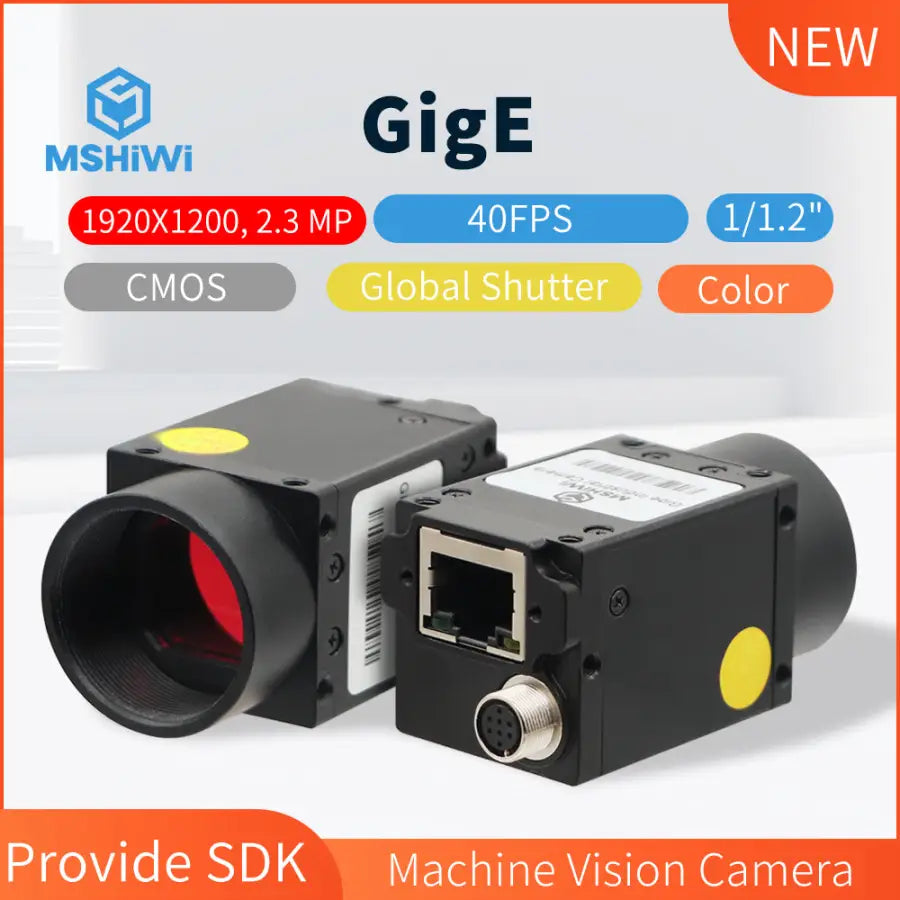

2.3MP GigE Color Global Shutter Camera

GigE Series Features:

1) Support 100 meters transmission or POE (optional).

2) Compatible with gige vision standard.

3) With hardware image processing acceleration.

4) Support multiple cameras to work at the same time.

5) Data packet retransmission technology to ensure reliable data transmission.

6) Provide SDK, easy to use and convenient.

7) Support external trigger and flash.

8) SDK supports Windows and Linux systems.

9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:

1) Camera parameter archive is saved as a file.

2) Camera name can be modified to easily distinguish multiple cameras.

3) With a maximum of 16K bytes of data storage.

4) Support 8bit, 24bit, 32bit image format output.

5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

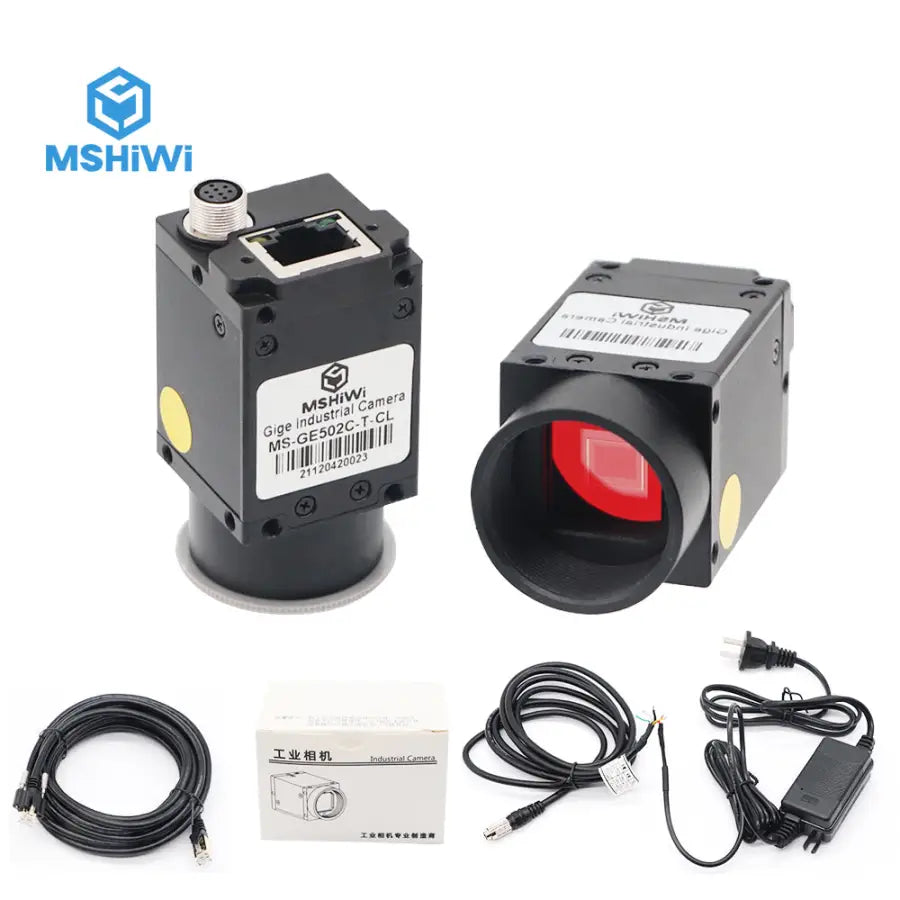

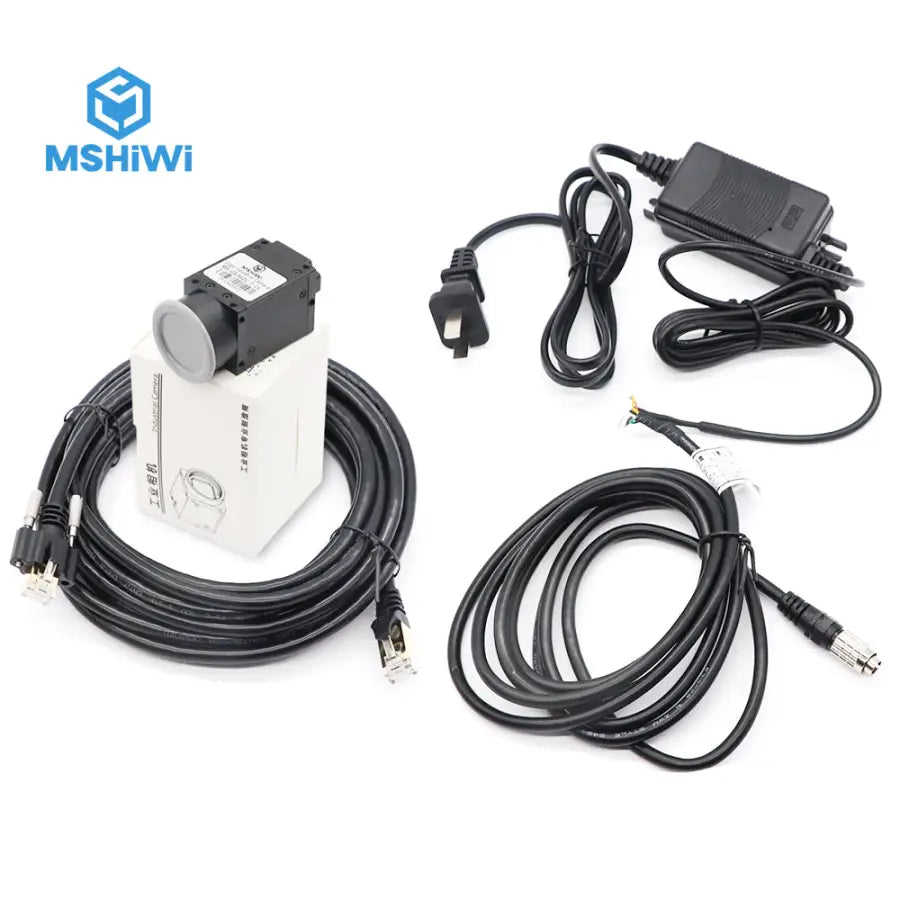

Package incluede:

1 x Industrial Camera (No Include Lens)

1 x Trigger line

1 x 5 Meters Gigabit Ethernet Cable

1 x 12V Power Supply

Industrial Camera Parameters：

Model	HT-GE231GC-T-CL

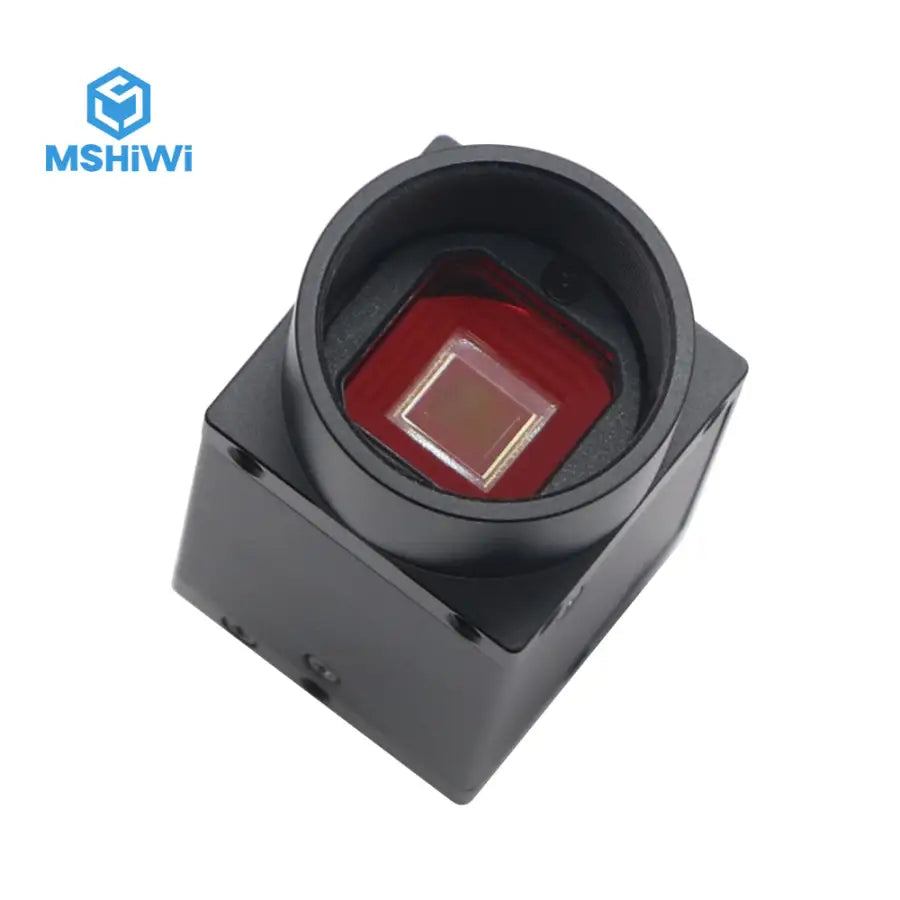

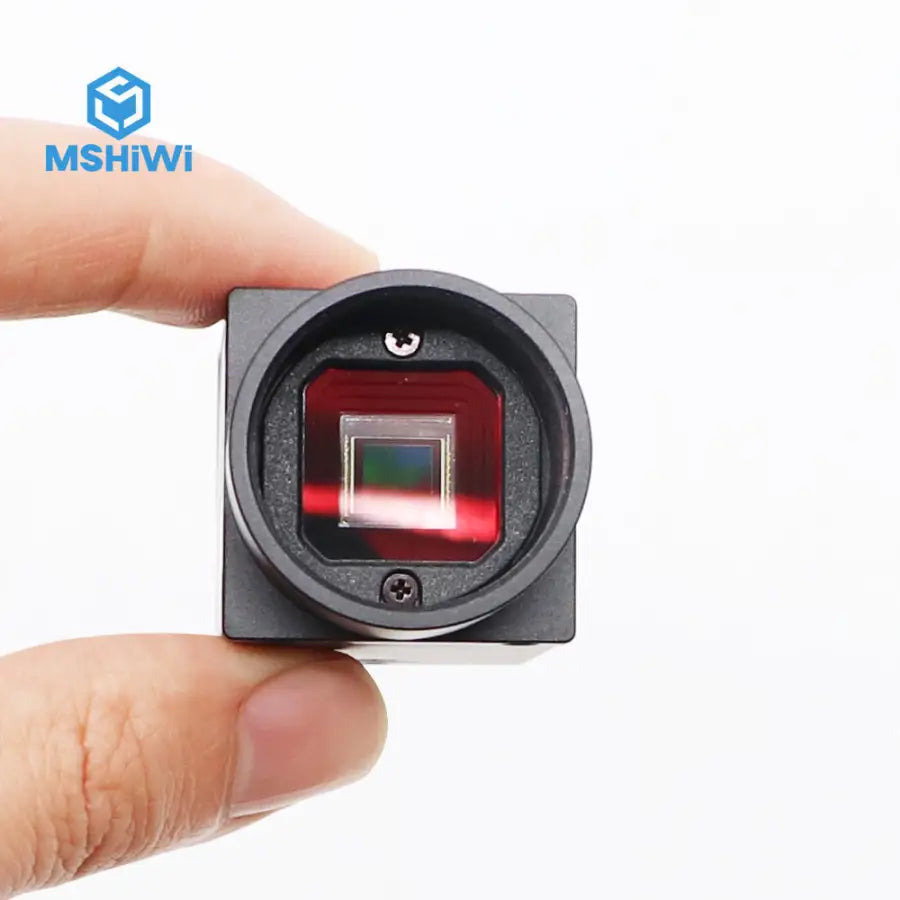

Sensor	1/1.2" CMOS
Shutter Type	Global Shutter
Camera Type	Color
Pixel Size	5.86*5.86μm
Effective Pixels	2.3 MP
Resolution @FPS
	1920X1200@40FPS

Pixel Bit Depth	12bit
Sensitivity	1016mV/ 1/30s

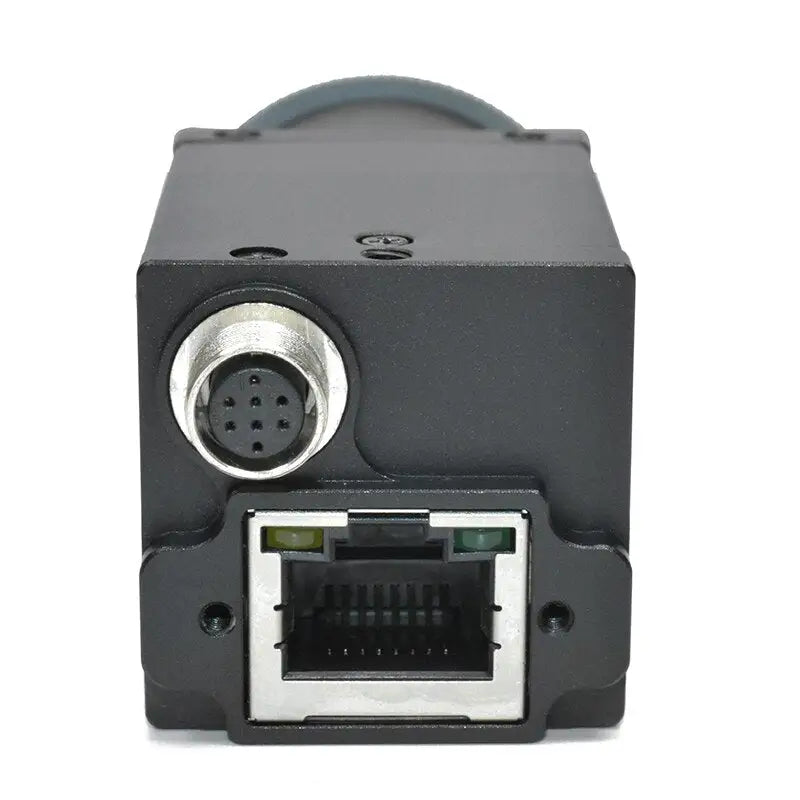

GPIO	6-pin Hirose Connector
Acquisition	Continuity/Soft Trigger/Hard Trigger
Maximum Gain (multiple)	64
Exposure Time (ms)	0.02~41943
Filters	650nm Infrared Filter
Frame Buffer	32M Bytes
Custom Data	2K Bytes
Video Output Format	Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48
Visual Standard Protocol	GigE Vision 、GenICam
Lens Interface	C Mouth

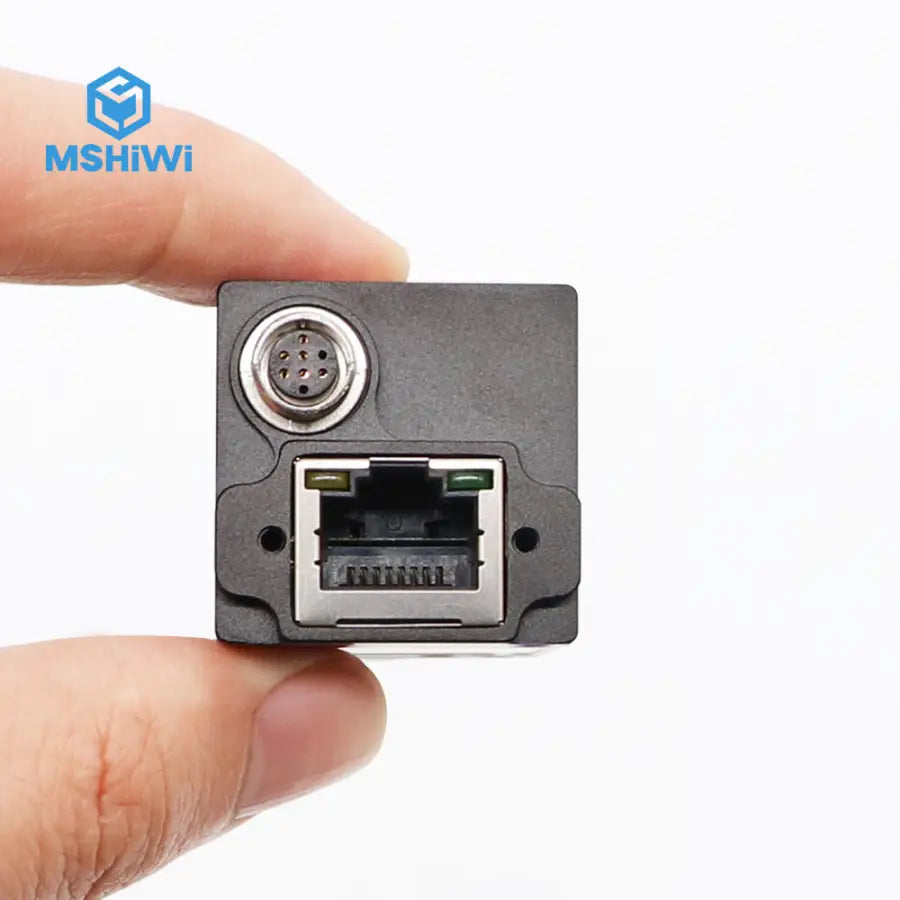

Data Interface	RJ45 Gigabit Ethernet interface
Power Supply	12V(Optional POE Power Supply)
Power	<2.5W

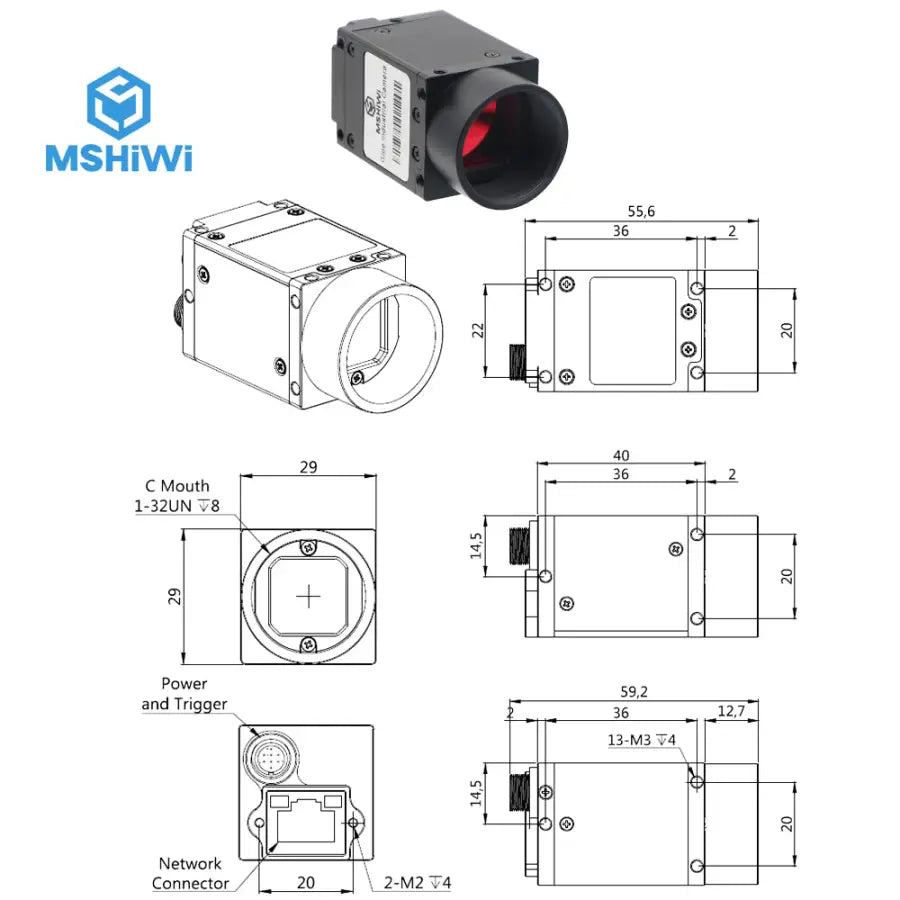

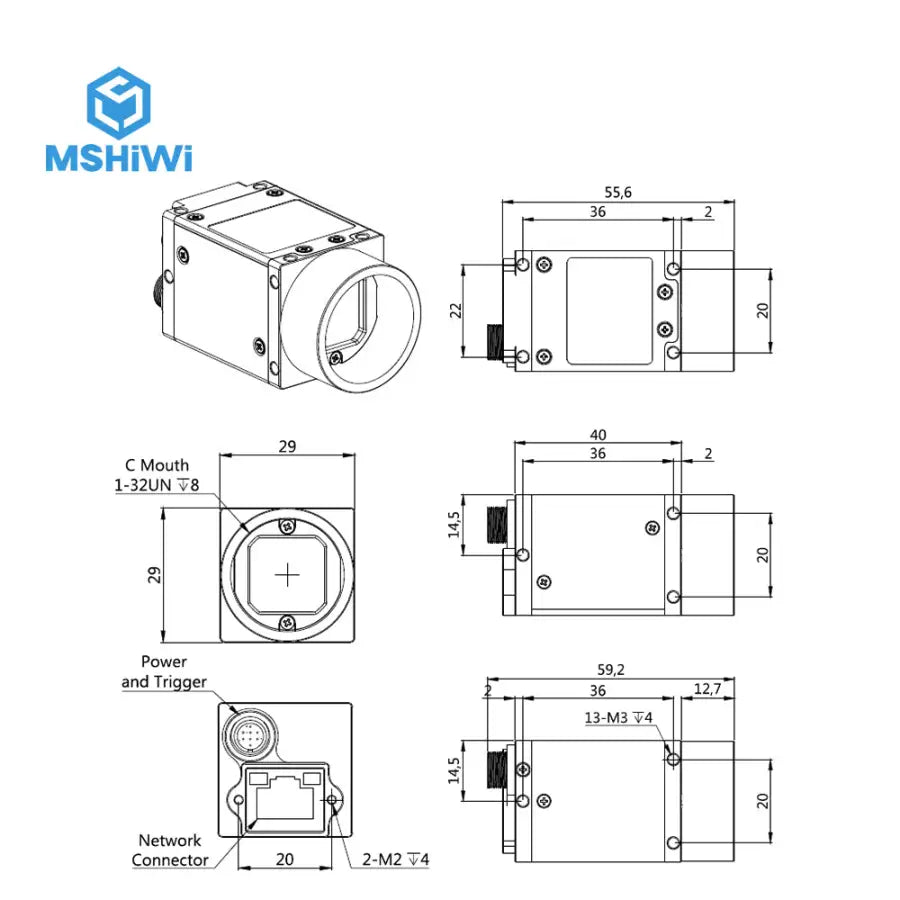

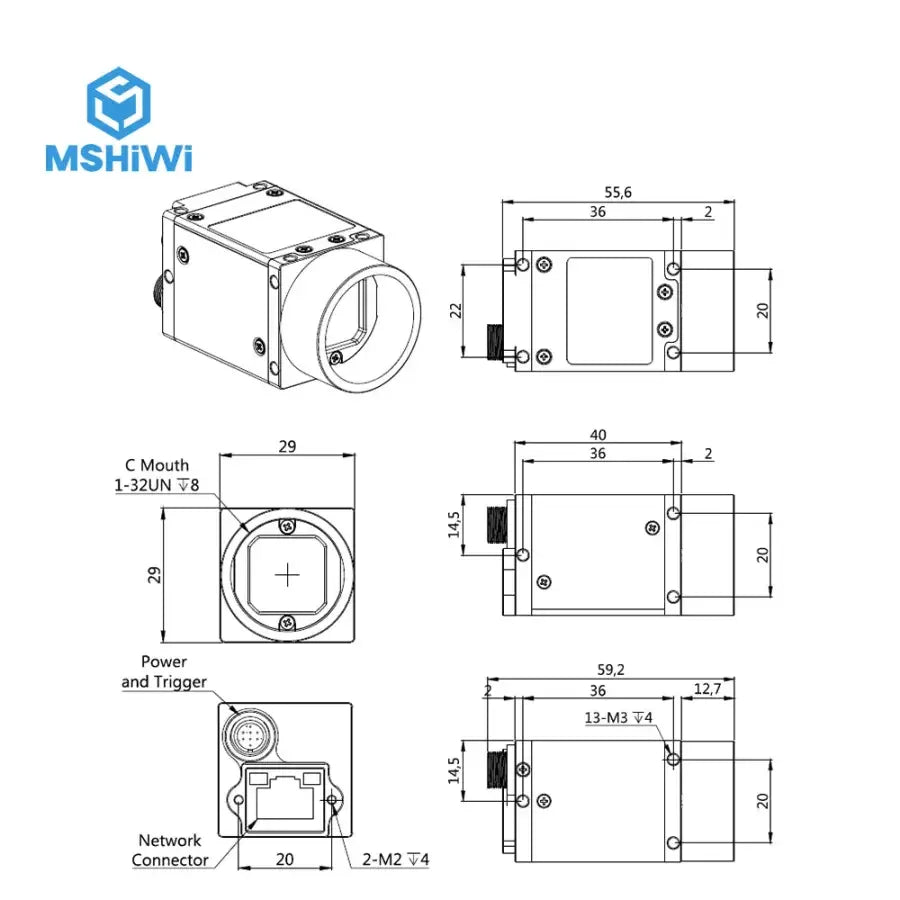

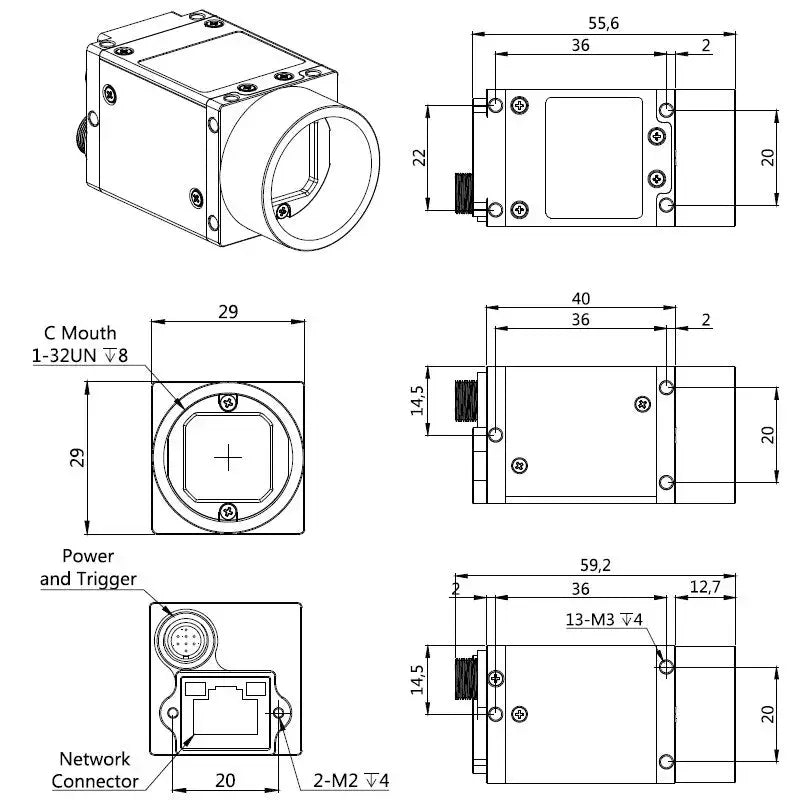

Dimensions	29(mm)X29(mm)X40(mm)
Weight	< 75g
Operating Temperature	0~50 Degrees
Operating System	Support WIN7/8/10 32&64 System; PC Linux System
Driver	Directshow; Halcon; Labview; OCX; TWAIN Component
Programming Ianguage	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV
Other Functions	Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
