GVM H3 3 in1 Intelligent Soldering Station 2S Rapid Heating Automatic sleep Compatible T245/T210/T115 Handles for Mobile Phone PCB Tablet BGA IC repair. 80W GVM H3 Intelligent Welding Station Automatic Sleep Welding Rework Station Suitable for electronic repairs, such as welding workshops in electronics factories, electronic repairs, mobile phone repairs, etc. it easily solve various precision solder joints such as mobile phones and computers.
Features:

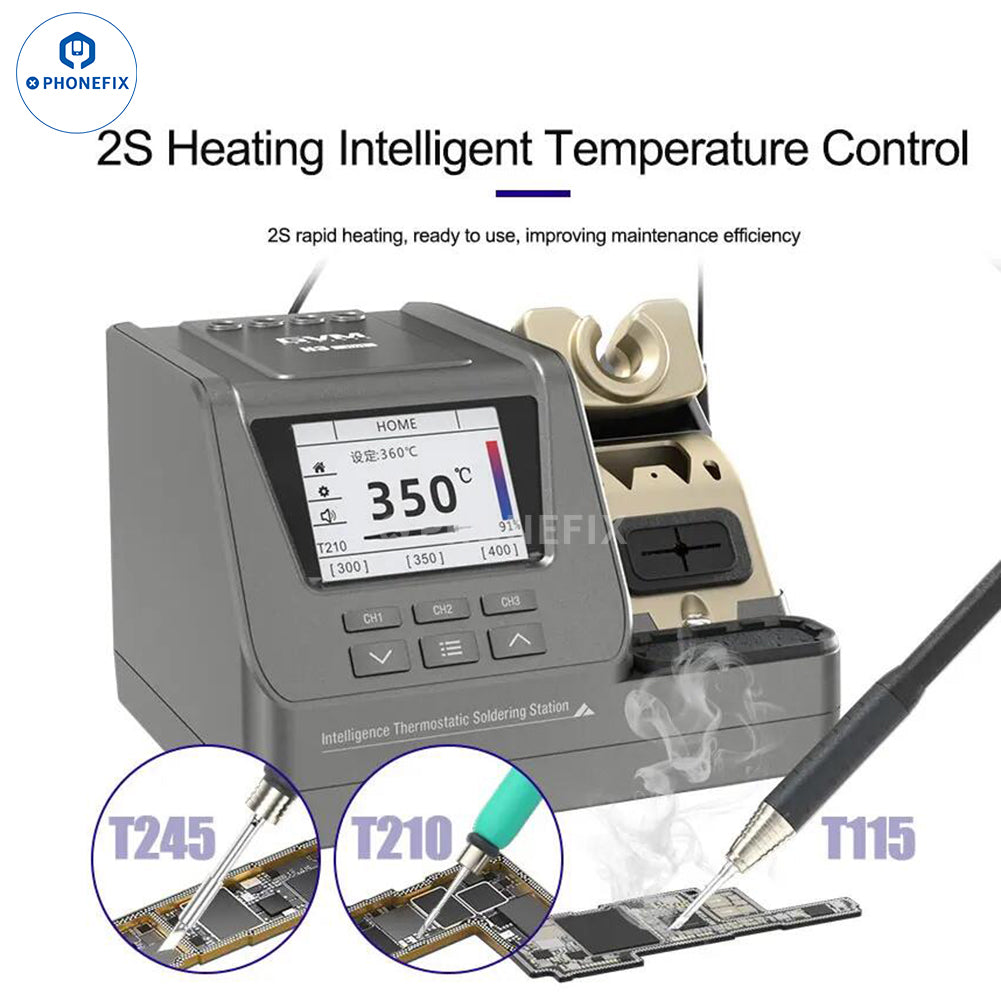

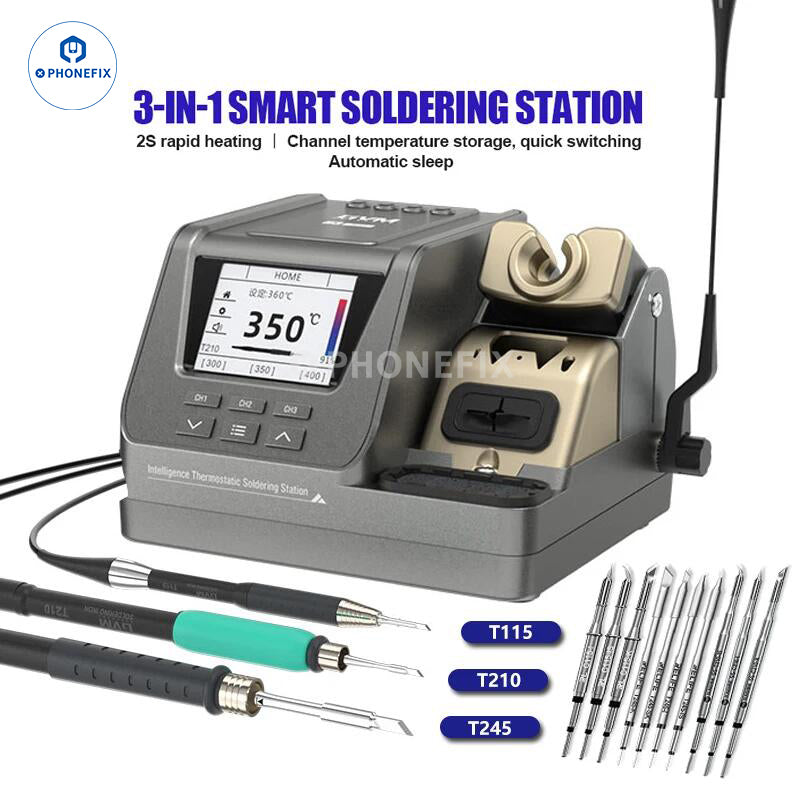

- GVM H3 3-in-1 smart soldering station, 2s rapid heating, channel temperature storage, quick switching, automatic sleep.
- Supports T245/T210/T115 handles, which can be widely used in various chip-level repairs, PCB manufacturing, mobile phone motherboard flying lead desoldering, etc.

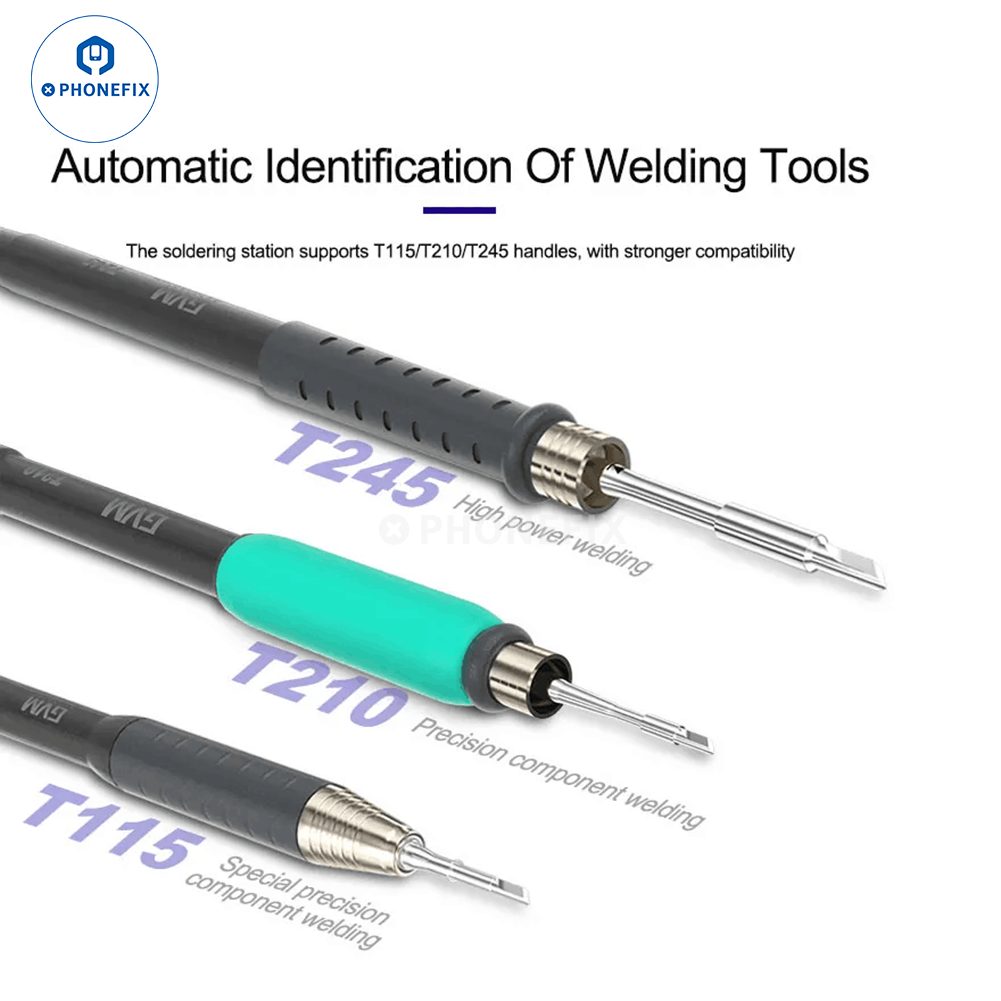

- Automatic identification of welding tools, the soldering station supports T115/T210/T245 handles, with stronger compatibility.

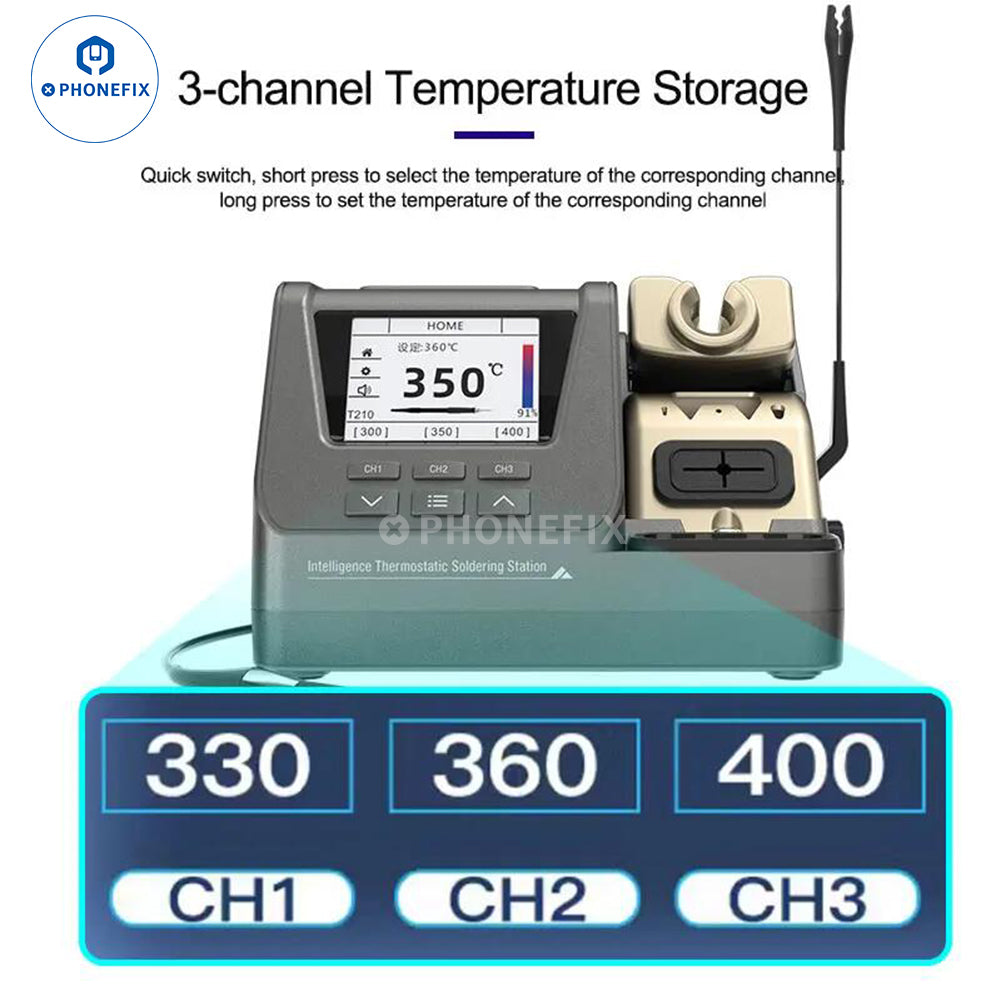

- 3-channel temperature storage, quick switch, short press to select the temperature of the corresponding channel, long press to set the temperature of the corresponding channel.

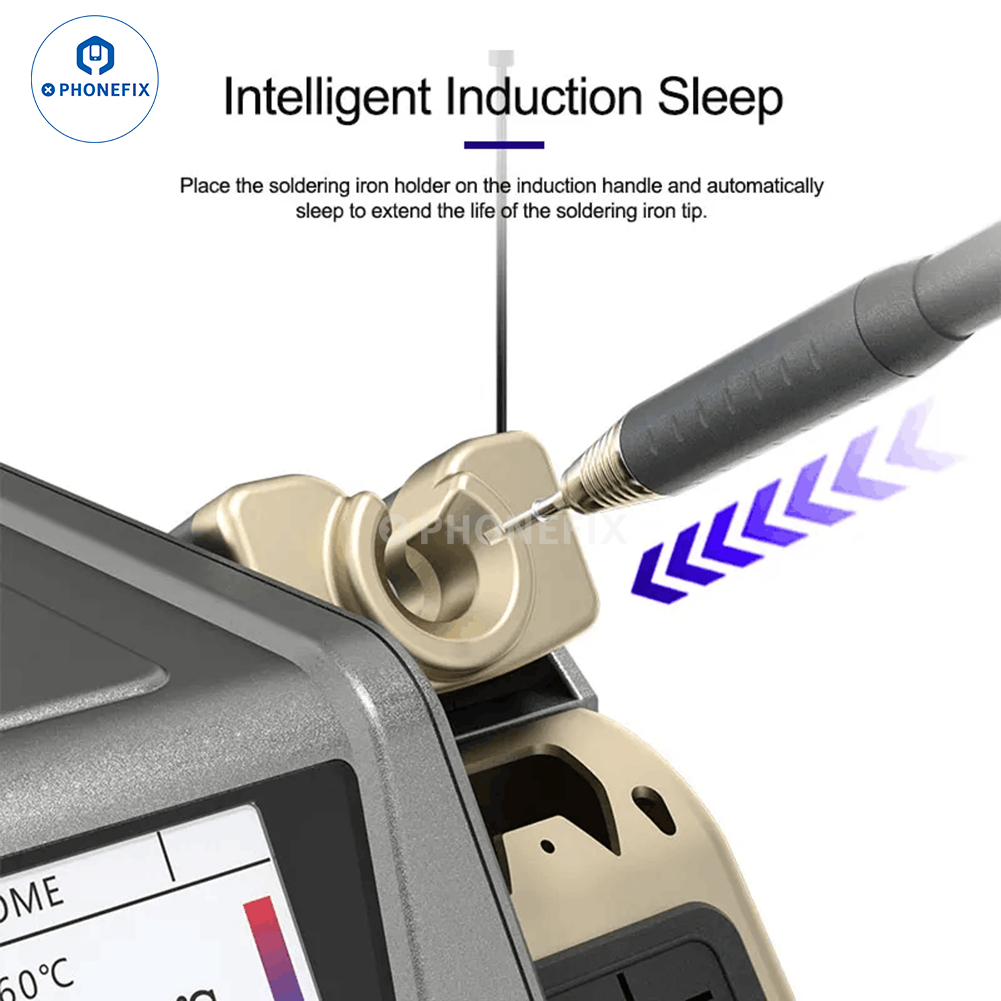

- Intelligent induction sleep, place the soldering iron holder on the induction handle and automatically sleep to extend the life of the soldering iron tip.

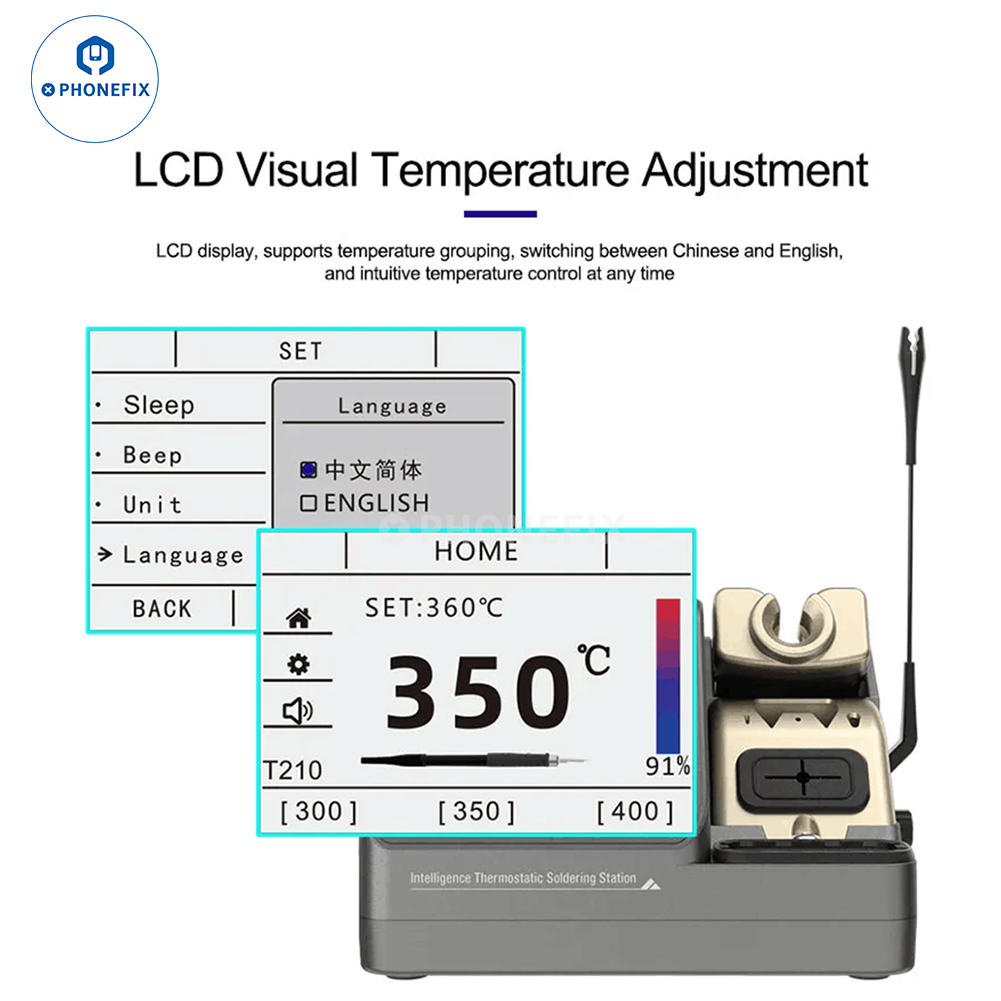

- With an LCD display, supports temperature grouping, switching between Chinese and English, and intuitive temperature control at any time.
- Adjustable stand, freely adjust the angle of the handle bracket for convenient operation.
- Built-in cleaning copper wire ball and sponge for easy cleaning of the soldering iron tip.
- Integrated host design with heating core storage, neat storage, and efficient work.

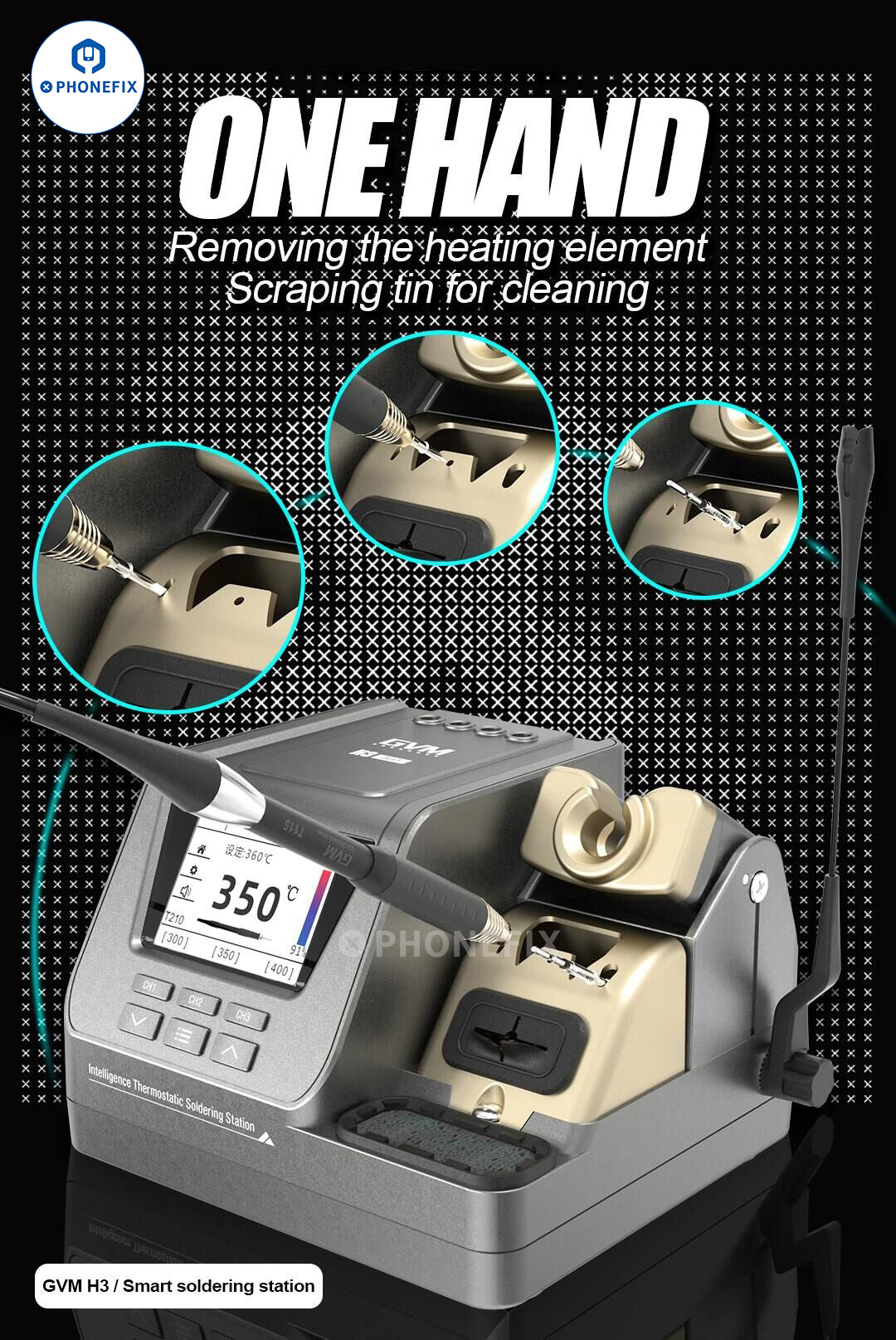

- The heating element can be removed with one hand.
- Organize the cable length to make it neater and more convenient.

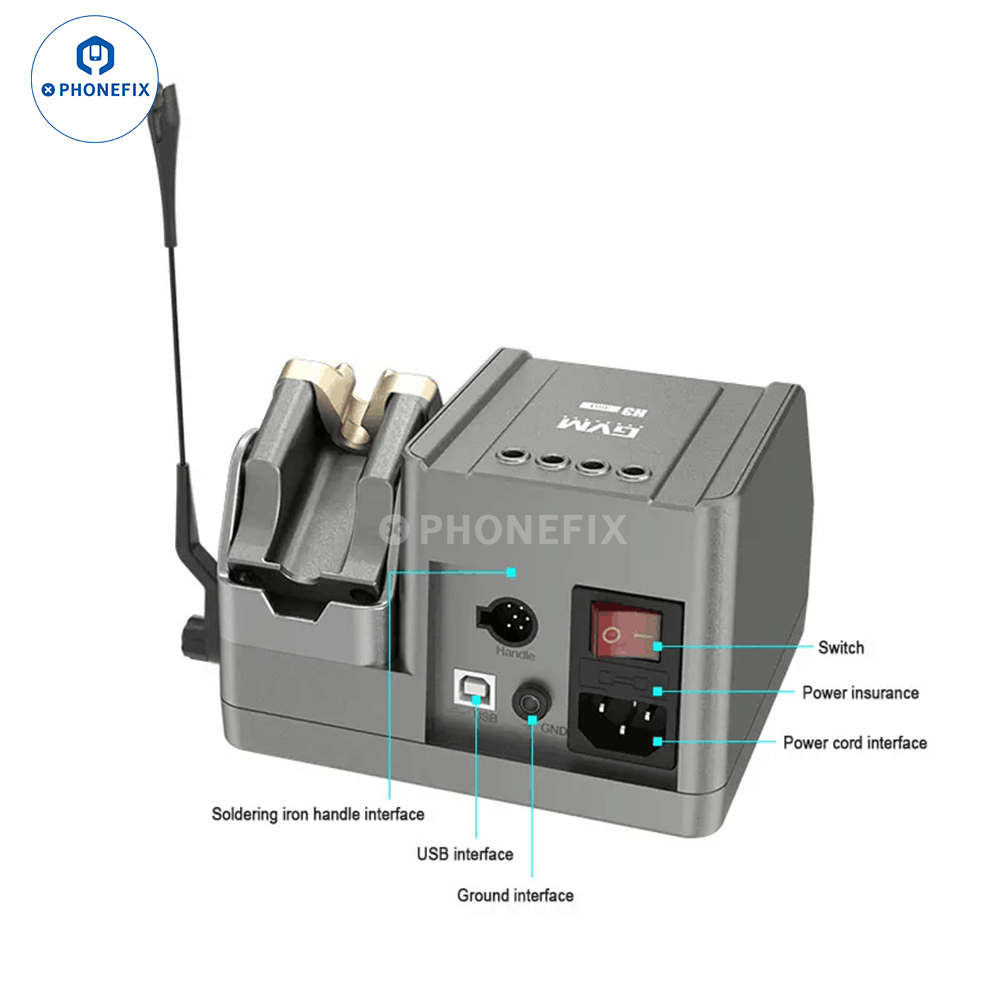

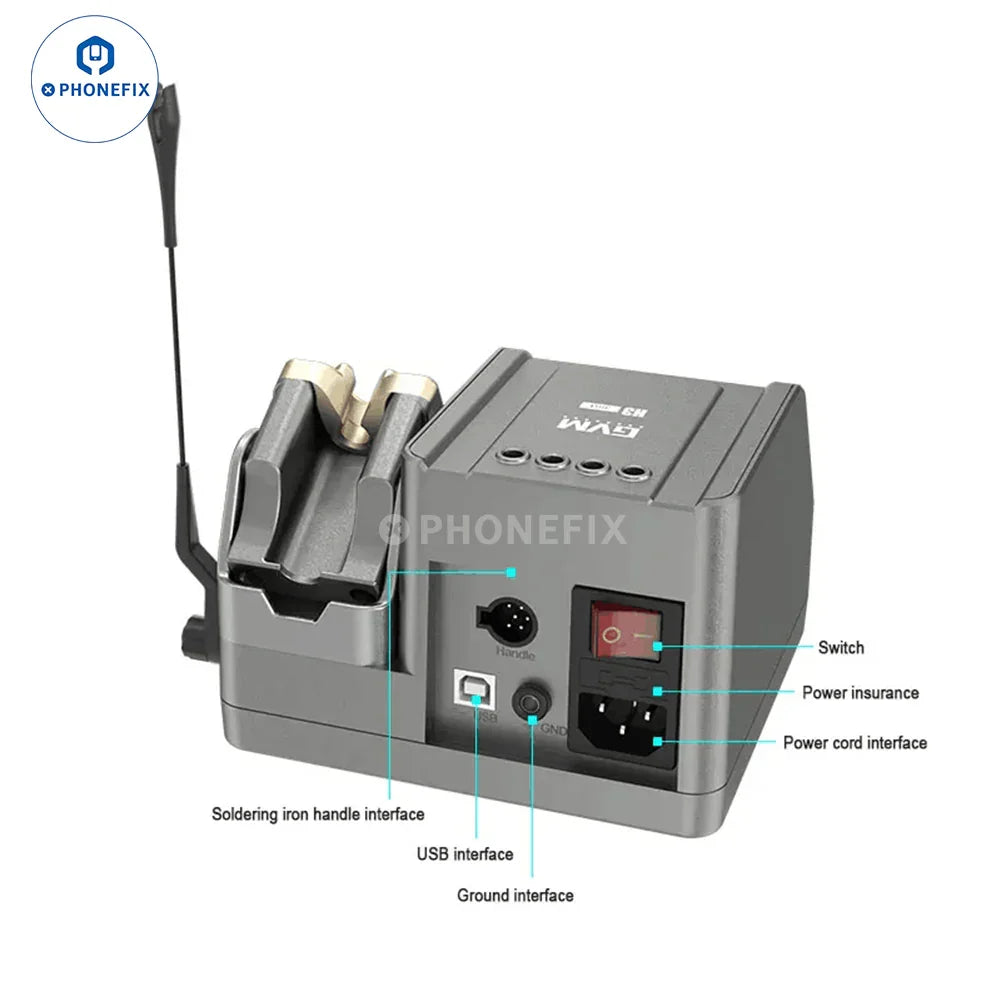

- With a USB connection port, a USB-linked computer assistant can display real-time temperature, set temperature, and optimize and upgrade soldering station firmware.
Specification:Brand: GVM.
Product Name: 3-in-1 smart soldering station.
Model: GVM H3.
Net Weight: ≈1650g.

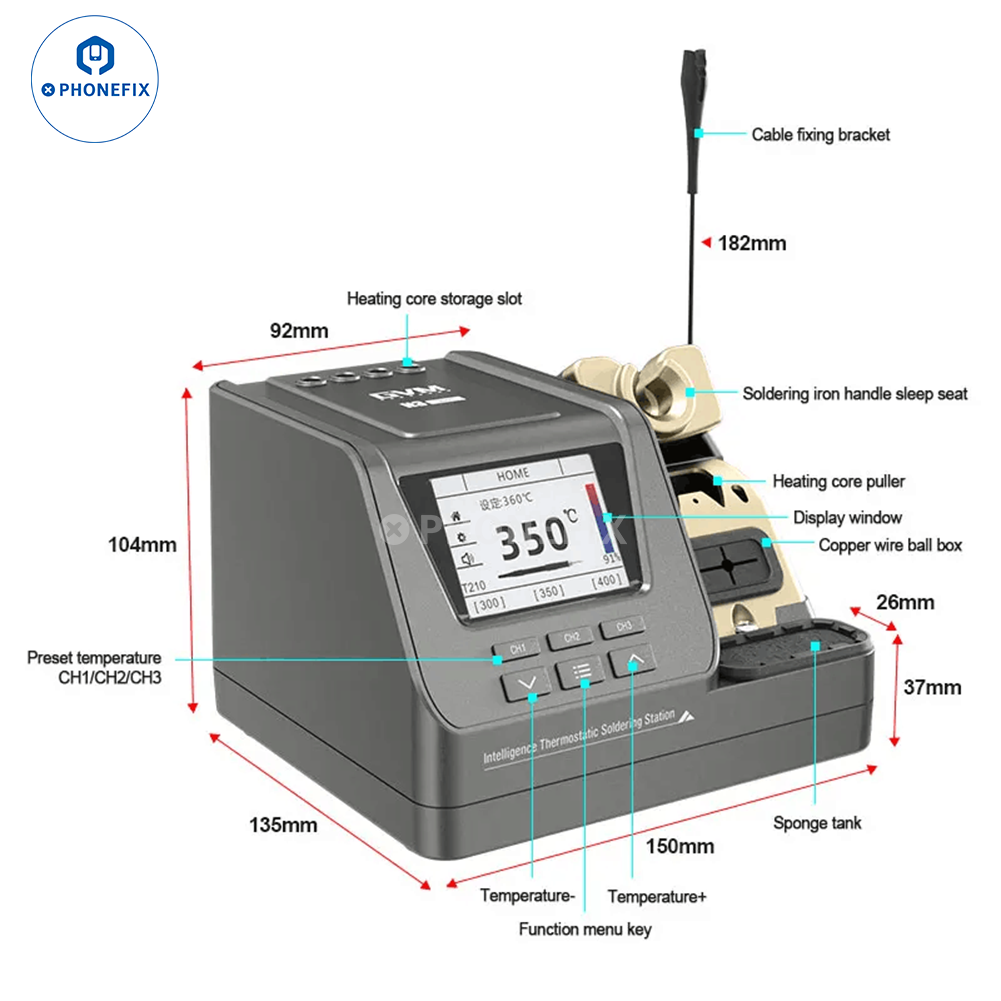

Host Size: 150*135*104mm.
T245 Handle Wire Total Length: ≈1288mm.
T210 Handle Wire Total Length: ≈126mm.
T115handle Wire Total Length: ≈126mm.
T245 Heating Core: 100*4.8mm.
T210 Heating Core: 30*3.5mm.
T115 Heating Core: 44.5*2.8mm.
Package Size: 190*170*165mm.
Rated Working Voltage: AC 110V/220V.
Rated Power: 80W.
Temperature Range: 100-480°C/212-900℉.
Temperature Range Accuracy: ±5°C/40℉.
Temperature Stability: ±1°C/30℉.
Supported Handle Types: 115/210/245.
Temperature Adjustment Step: ±5°C/10℉.
Delayed Sleep: 0-180s, the delayed sleep function is canceled by default.
Display Resolution: 240*320PX (LCD color screen).
System Language: Chinese-English bilingual switching.
Working Conditions: 0~40℃, Humidity<80%.
Storage Conditions: Temperature-20~80℃, Humidity <80%.

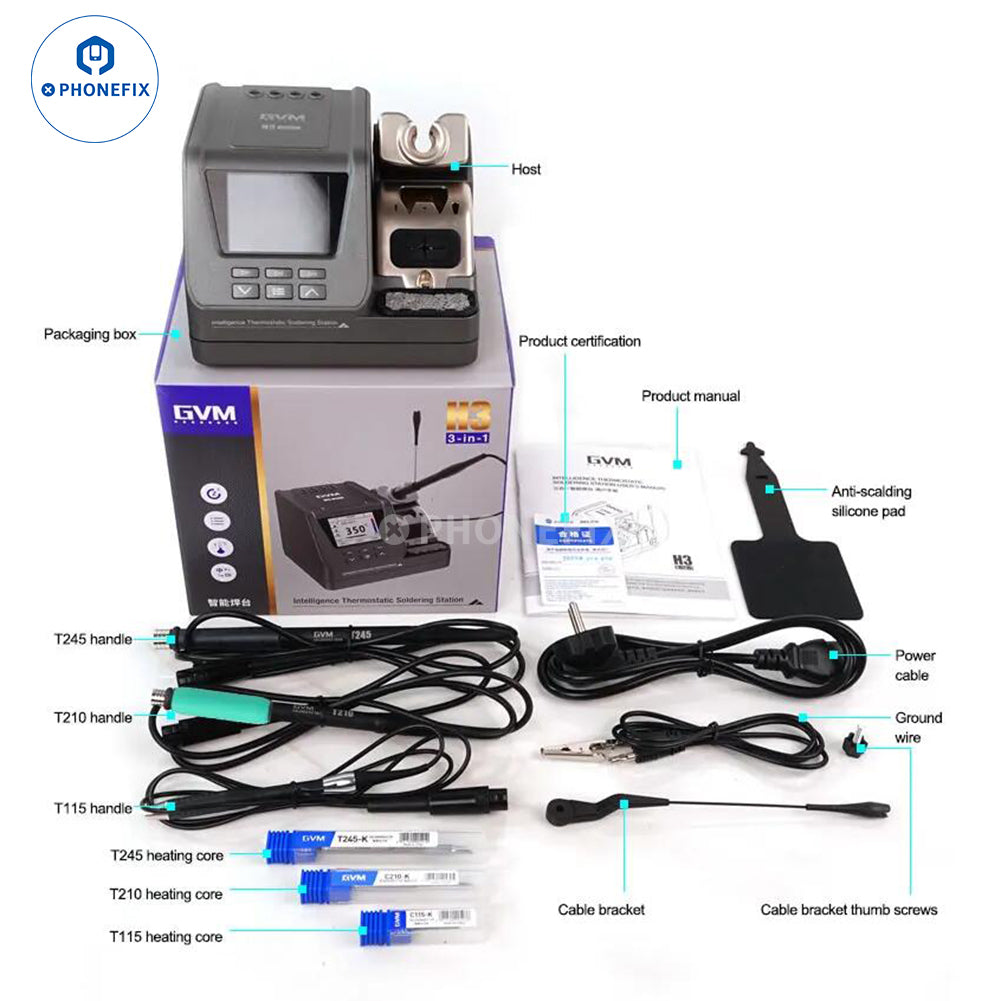

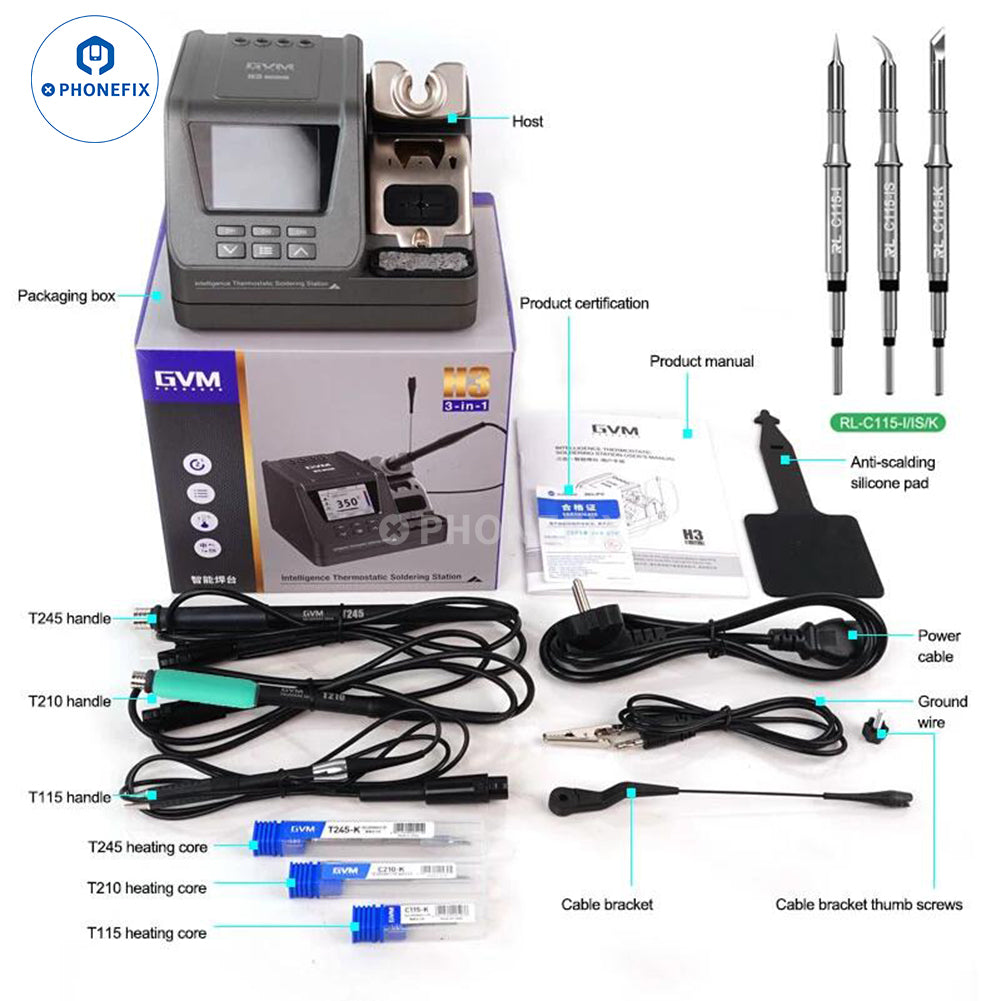

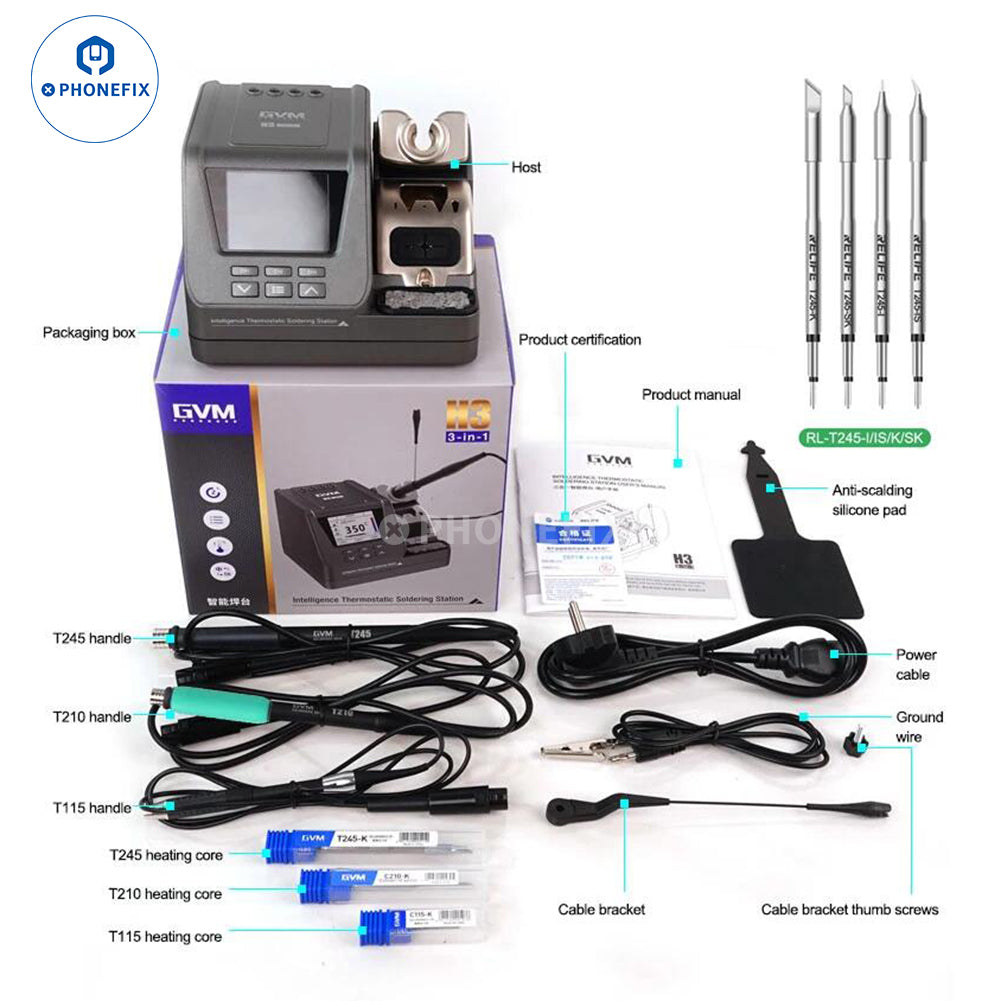

Package includes:1 x Soldering Host
1 x T245 Soldering Iron Tip(K)
1 x T210 Soldering Iron Tip(K)
1 x T115 Soldering Iron Tip(K)
1 x T245 Handle
1 x T210 Handle
1 x T115 Handle
1 x Cleaning Sponge
1 x Copper Wire Ball
1 x Cable Bracket Hand Screw
1 x Cable Bracket
1 x Anti-scalding Silicone Pad
1 x Ground Wire
1 x Power Cord
