5MP H300 HDMI industrial microscope camera for mobile phone soldering repair, digital electronic HD industrial microscope camera for binocular / trinocular microscope, Microscope digital camera for phone welding soldering repair Tool.
H300 HDMI Industrial Video Microscope Camera For Cell Phone Soldering Repair
Function :

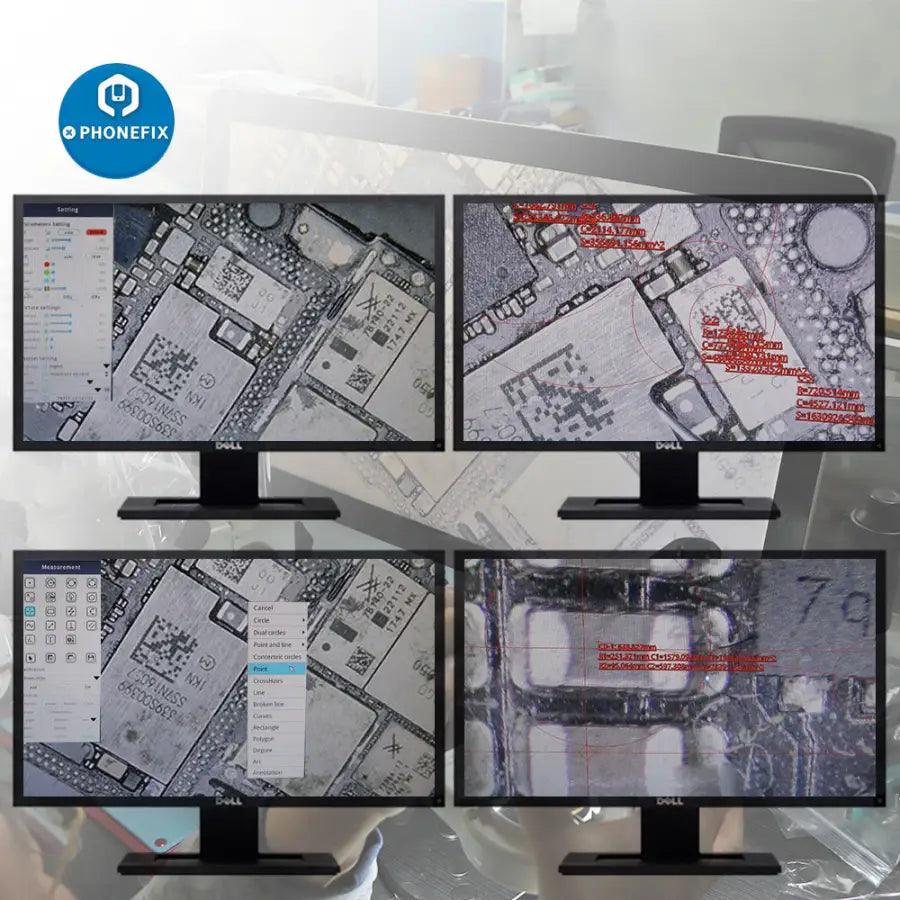

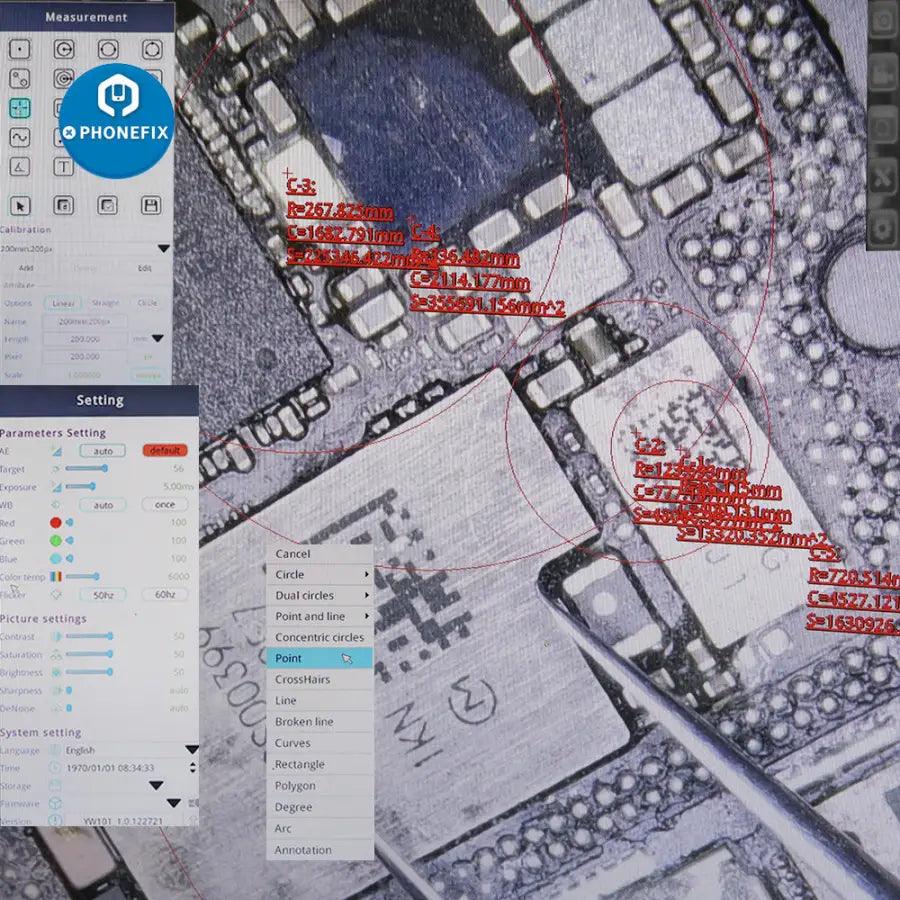

- Basic function: Image capture, Video, Measurement, Image contrast
- Image adjustment: Exposure, Color temperature, White balance
- Camera function: Mirror, Image freeze, Flip, Wide dynamic, Zoom in, Zoom
- Grid: 8 sets of vertical/horizontal lines, line color and size can
- Resolution: 1920*1080
- Language：Support Simplified Chinese, Traditional Chinese, English, German, French, Japanese
- Storage：Can save in the USB stick or external SD card, and also can format it.
Operate Step :
- HDMI connects to monitor
- USB connects to mouse and USB stick(or external card reader)
- Connect DC-12V power, and the LED will turn on and camera will auto turn on. Image will display.
- Move the mouse to the left or bottom, the menu will occur.
- Parameter sets based on your requirements.
- After setting, move the mouse away and the menu disappears.
Specification :
- Category: HDMI industrial camera
- Model: H300
- Sensor: IMX335
- Effective pixel: 5M
- Resolution: 1920*1080@60FPS
- Output: HDMI
- Pixel size: 2μm*2μm
- Power: DC-12V/1A
- Size: 50*50*58mm
- Weight: 0.2kg
- Accessory: DC-12V/1A power
Packing List :

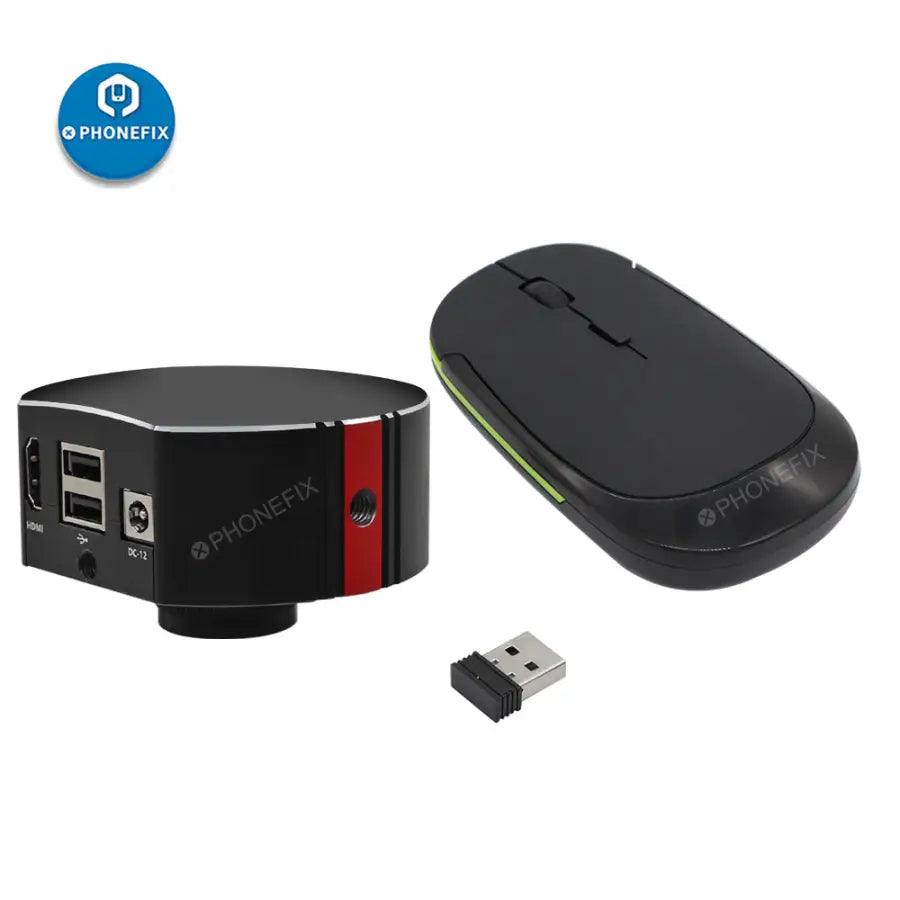

- 1pc x HD Camera
- 1pc x Mouse
- 1pc x Bluetooth
- 1pc x Power Adapter
