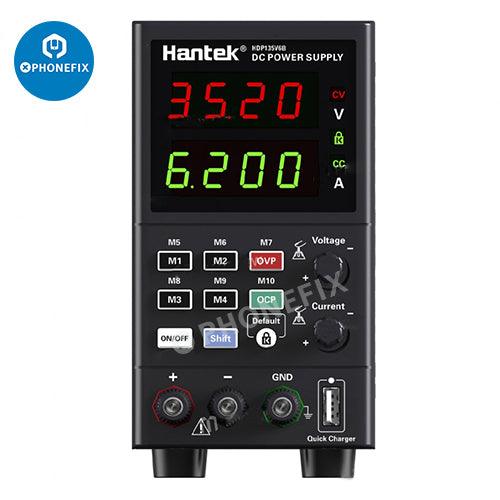

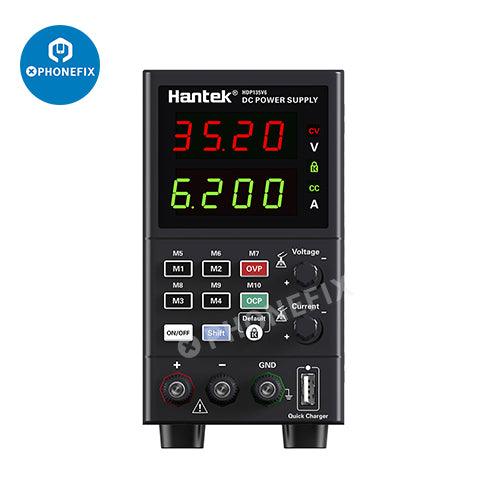

Hantek 35V HDP135V6 Series Adjustable DC Power Supply Digital LED Lab Bench Voltage Regulator Stabilizer Switching Power Supply for Phone Repair.
HDP135V6 HDP135V6S HDP135V6A HDP135V6B:
- Four-digit display voltage and current, resolution up to 10mV/1mA.
- Standard USB quick charge function, supports a variety of quick charge protocols.

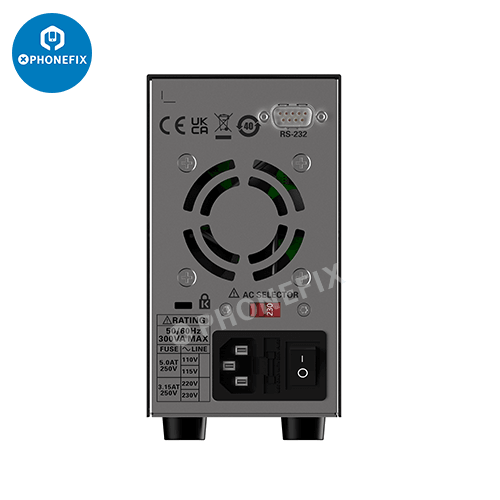

- Storage functions for up to 10 groups; AC input voltage 230/115V switch, universal.
- Fully isolated serial port, software supports multiple power supply control, easy to set up measurement and control or aging system.
- Over voltage, over current, overload, overheating, short circuit protection functions.
- Low noise temperature control fan, quiet and durable: 35V/6A output is stable and pure.

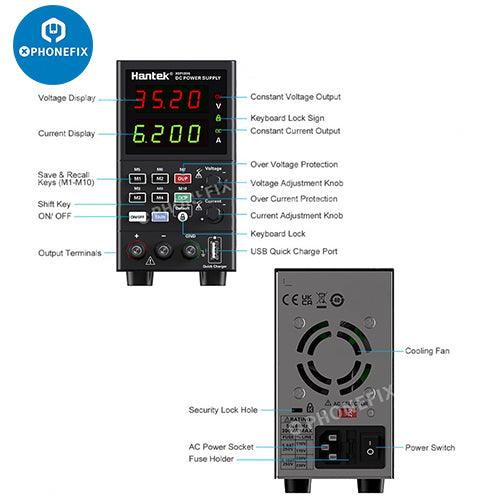

- On/Off output control, one-button panel lock function to prevent disoperation.
- It is an ideal power supply for laboratory, production line and home appliance maintenance.
Features:
Small size, high power, full protection
- Ultra-thin body, abundant power, stable performance.
- Over voltage, over current, overload, overheating, short circuit protection functions.
- Constant voltage (CV)/ constant current (CC) automatic switch.
- It can be used as a constant voltage source or constant current source.

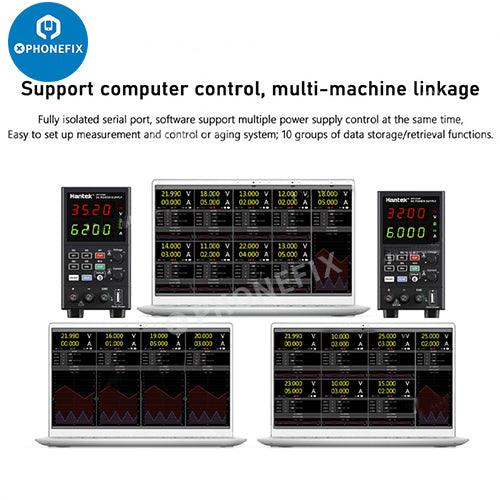

Support computer control, multi-machine linkage
- Fully isolated serial port, software supports multiple power supply control at the same time.
- Easy to set up measurement and control or aging system.
- 10 groups of data storage/retrieval functions.

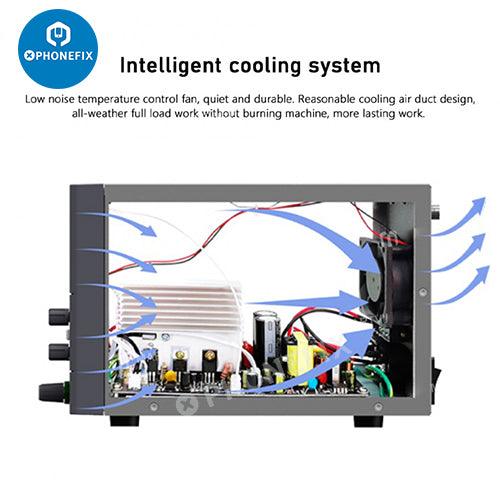

Intelligent cooling system
- It has a low noise temperature control fan, quiet and durable.
- Reasonable cooling air duct design, all-weather full load work without burning machine, more lasting work. 230V/115V switchable input, universal.
Low ripple, low noise
- 10mVrms Low ripple low noise.
- 10mV/1mA reading resolution, high voltage/current output accuracy.

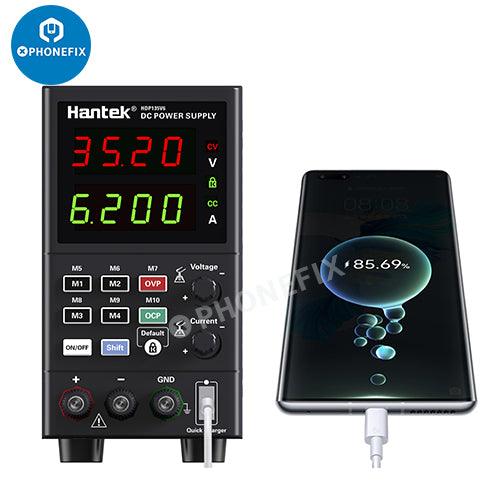

USB quick charging function
- Automatic recognition of fast charging protocol and adjustment of output voltage and current.
- 5V/ 3.4A, 9V/2.0A, 12V/1.5A can provide a maximum of 18 W output power.
- DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick Charge Protocol AFC.
Specification:
- Load Regulation: ≤0.1%+5mV
- Line Regulation: ≤0.01%+5mV
- Set Resolution: 10mV
- Set Accuracy: ≤0.1%+1 digits
- Readback Resolution: 10mV
- Readback Accuracy: ≤0.1%+1 digits
- Ripple: 10mVrms
- Load Regulation: ≤0.2%+3mA
- Line Regulation: ≤0.2%+3mA
- Set Resolution: 1mA
- Set Accuracy: ≤0.2%+3mA
- Readback: 1mA
- Resolution Readback Accuracy: ≤0.2%+3 digits
- Ripple: 5mArms
- OVP: 0~35.2V ±0.2%FS
- Maximum Voltage: 35.2V ±0.2%
- OCP: 0~6.2A ±0.2%FS
- Maximum Current: 6.2A ±0.2%
- Output Voltage Range: 5V~12V
- Output Power: Maximum:18W
- Supported Quick Charging Protocol: Compatible with DCP, QC2.0/QC3.0, FCP, AFC
- Cooling: Air cooling
- Working Temperature: -10~40℃; Humidity: ≤80% RH
- Storage Temperature: -20~60℃; Humidity: ≤80% RH

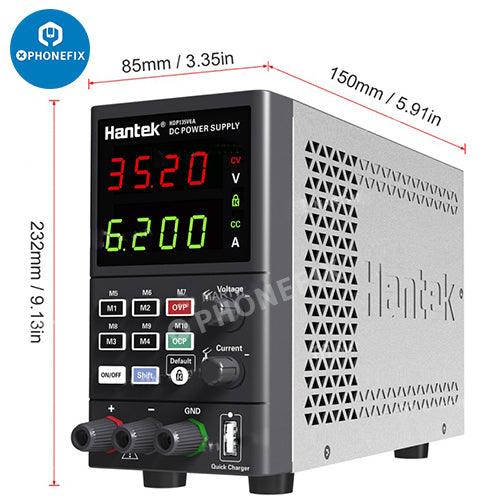

- Item Size: 85*150*232mm
- Item Weight: 1594g
- Package Size: 28.5*21.5*14cm
- Package Weight: 2050g

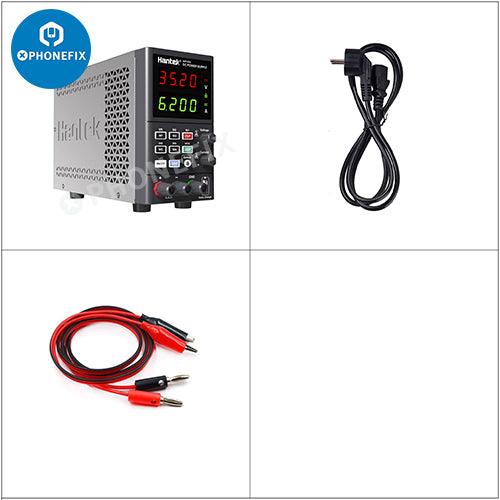

Package includes:
- 1 x Power Supply
- 2 x Test Lines with Alligator Clip
- 1 x Power Cord
