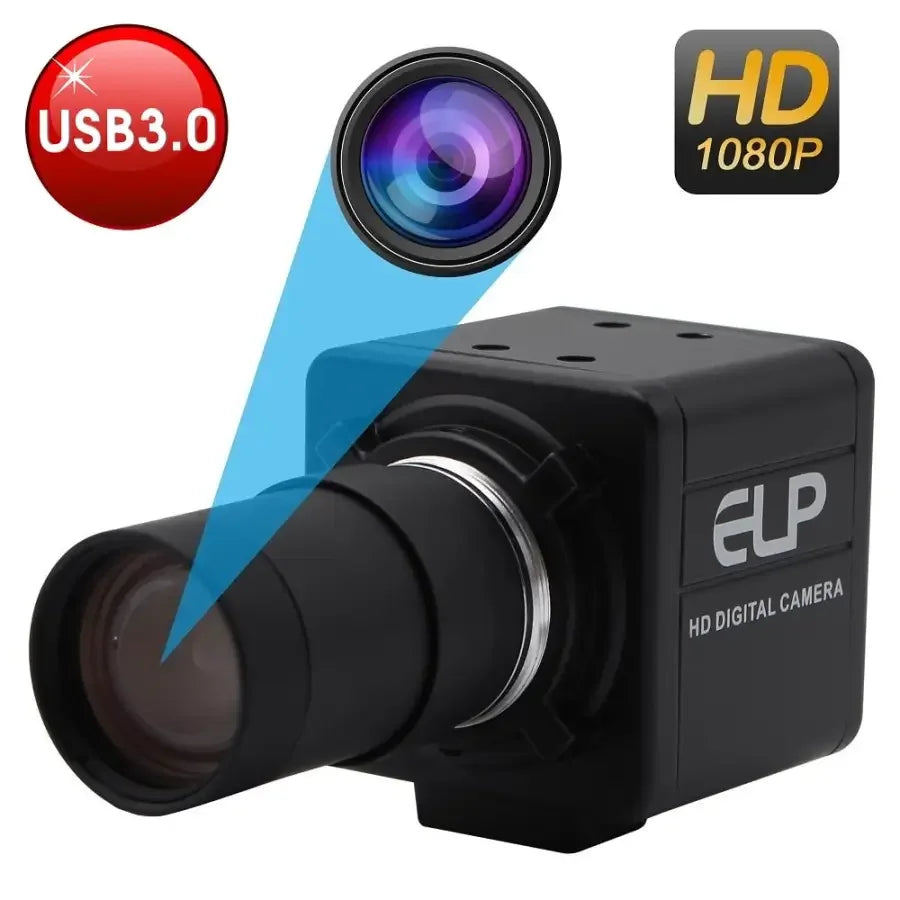

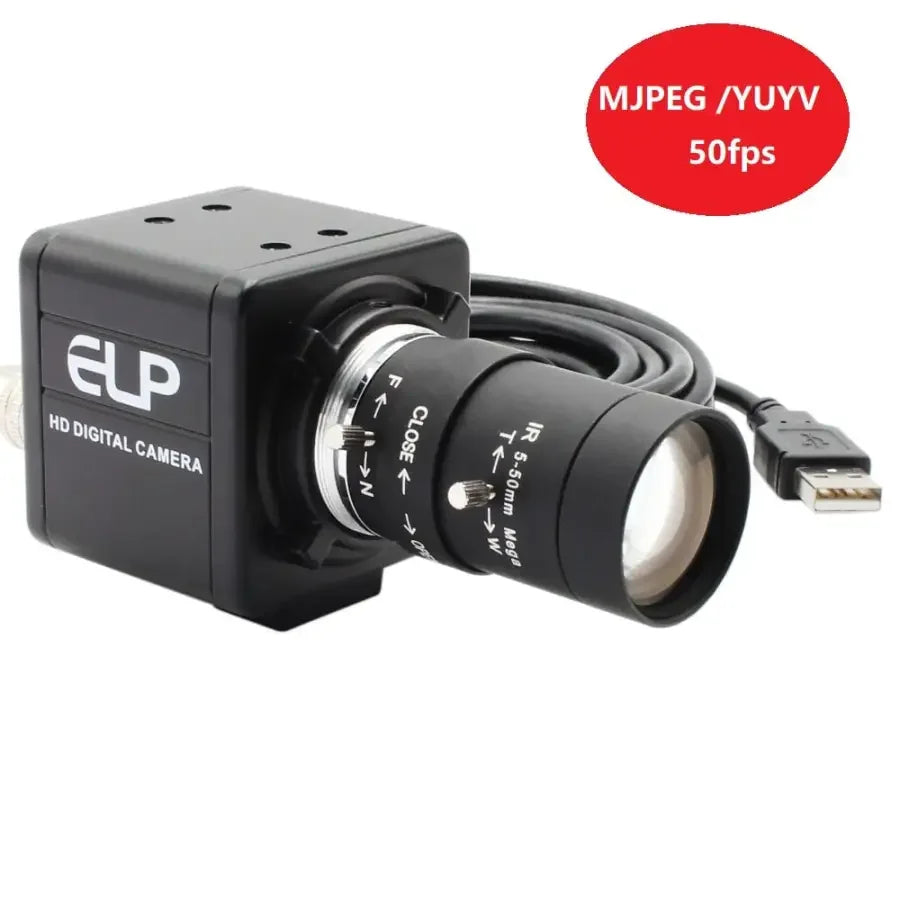

HD 1080P USB 3.0 Webcam MJPEG 50fps High Speed Varifocal Computer PC WebCamera for Live Broadcast Video Calling Conference Work
Package includes:
1) 1PC 2mp usb3.0 camera with 2.8-12/5-50mm varifocal CS lens optional

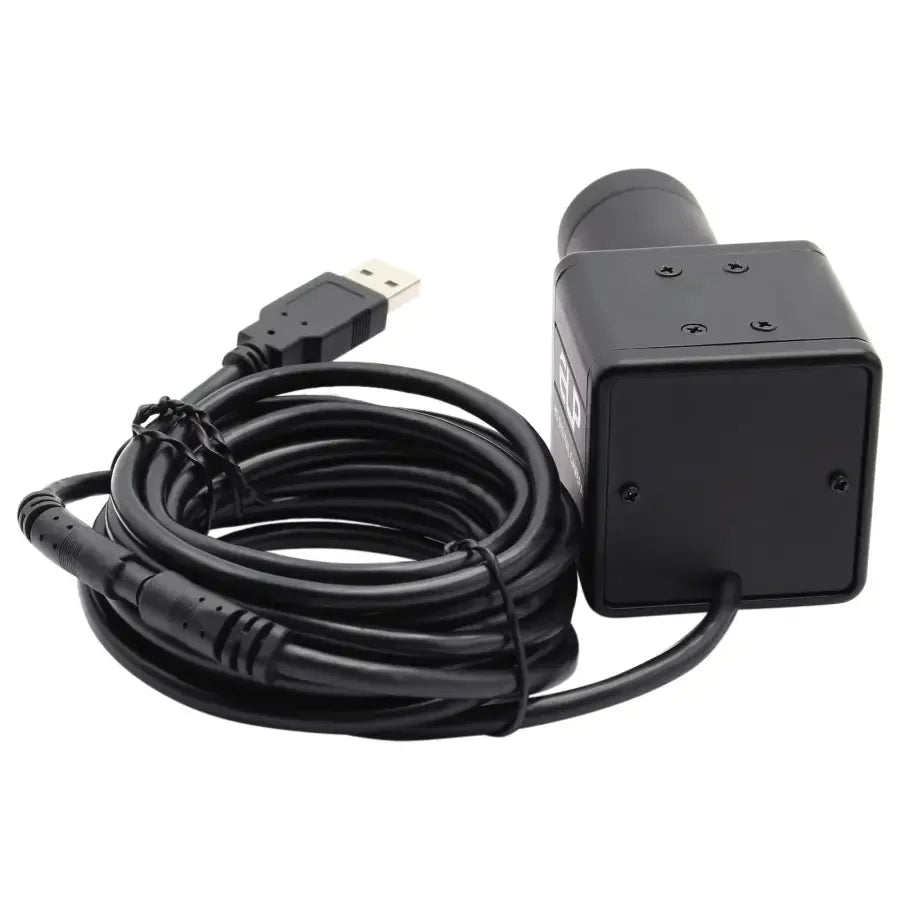

2) 1PC 3m usb cable
Features:
*2.0Megapixel USB 3.0 Camera

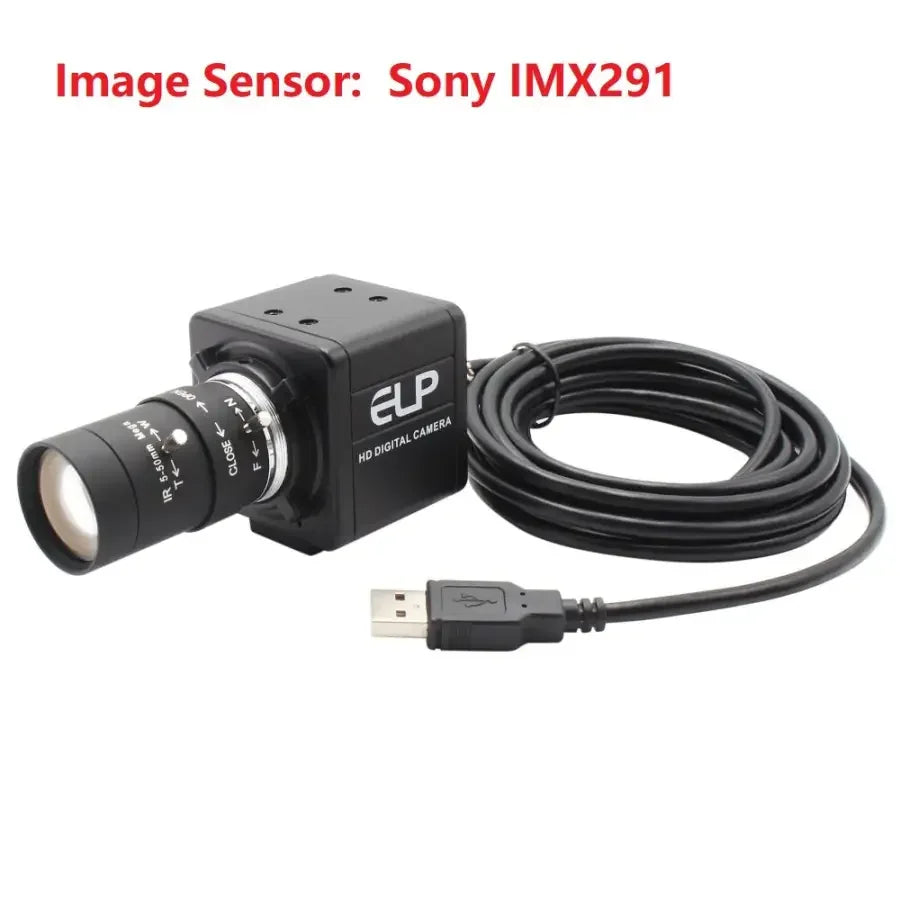

*High quality 1/2.8 SONY IMX291 Color CMOS Sensor
*High speed USB 3.0 interface.
*High frame rate- deliver MJPEG /YUY2 50 fps in 1080 /720P /480P resolution.
*Super small outline 38*38mm and thin profile for embedded applications.

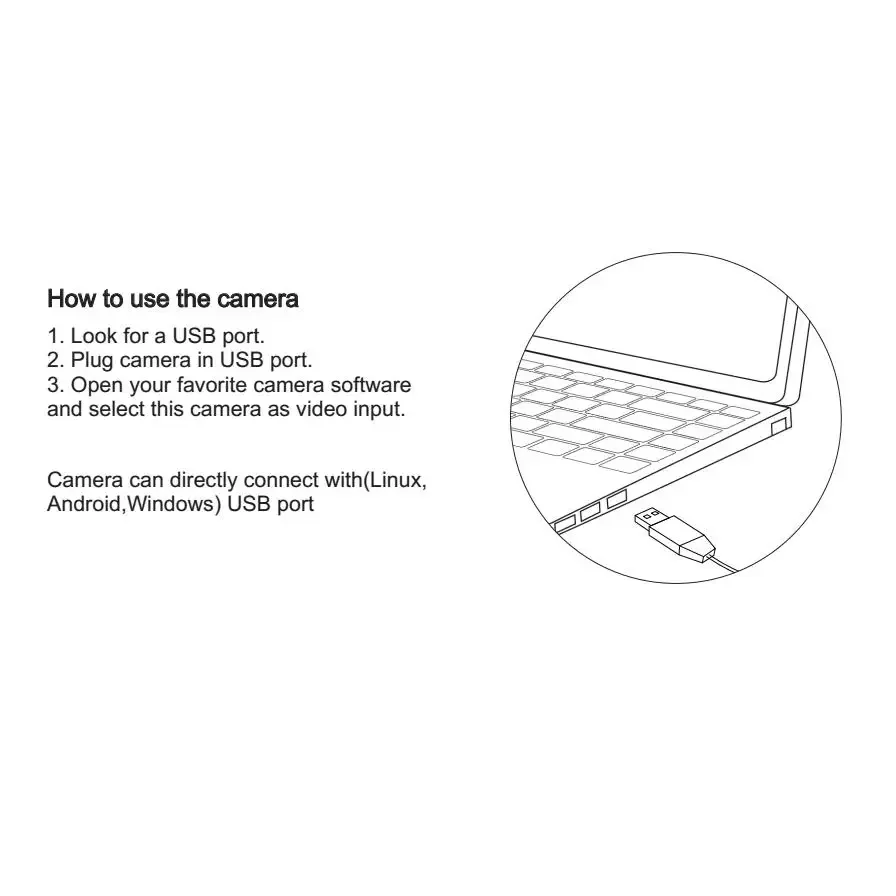

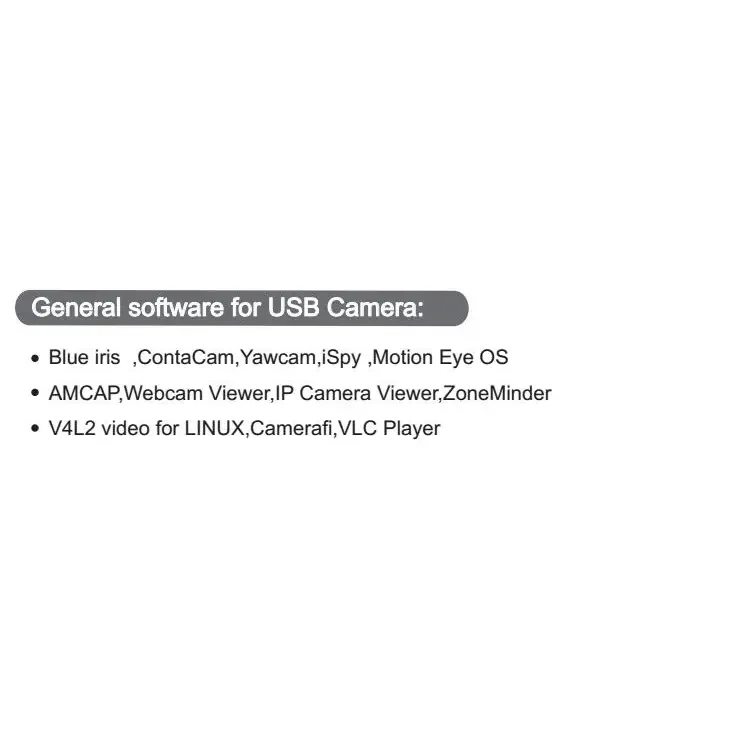

UVC compliance for use in OS Windows,Linux, Android
*Operating system request : Win8 or above , Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later , Android 4.0 or above with UVC

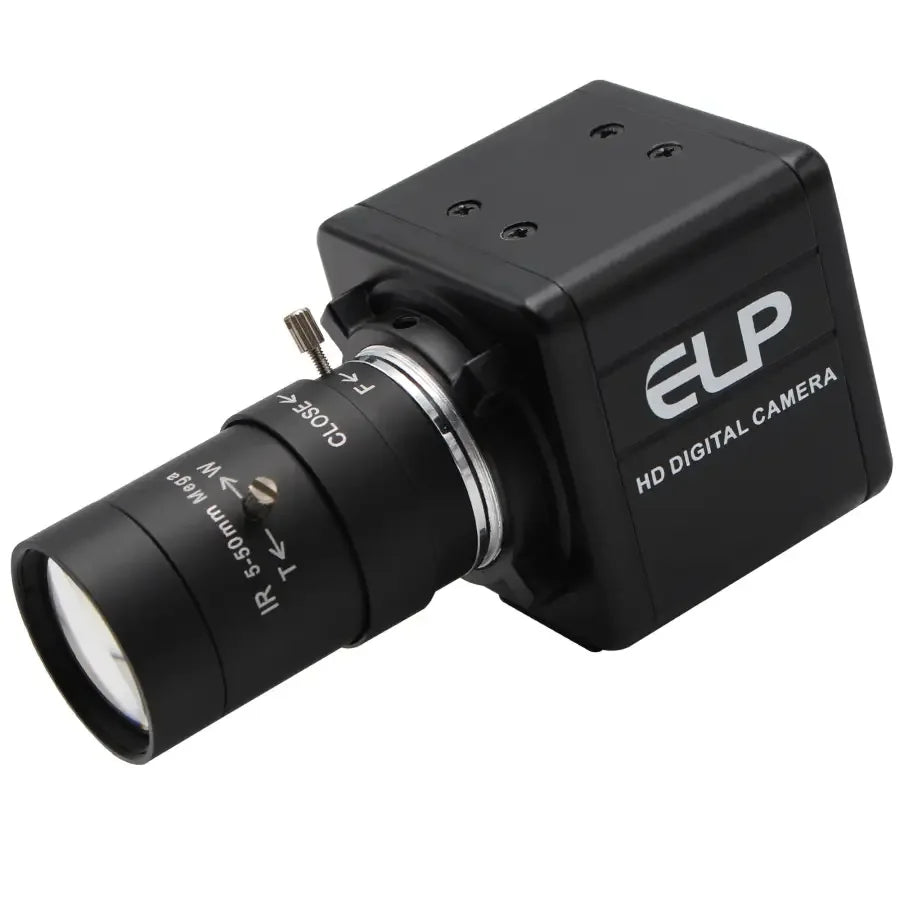

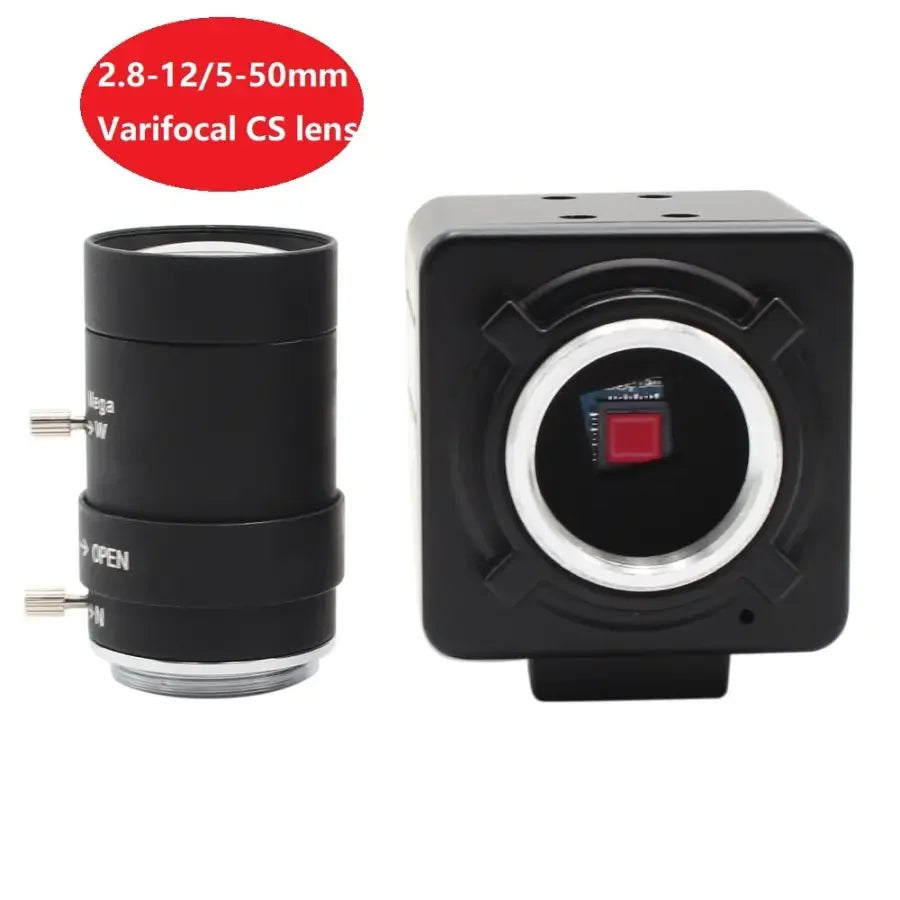

*2.8-12/5-50mm varifocal lens optional

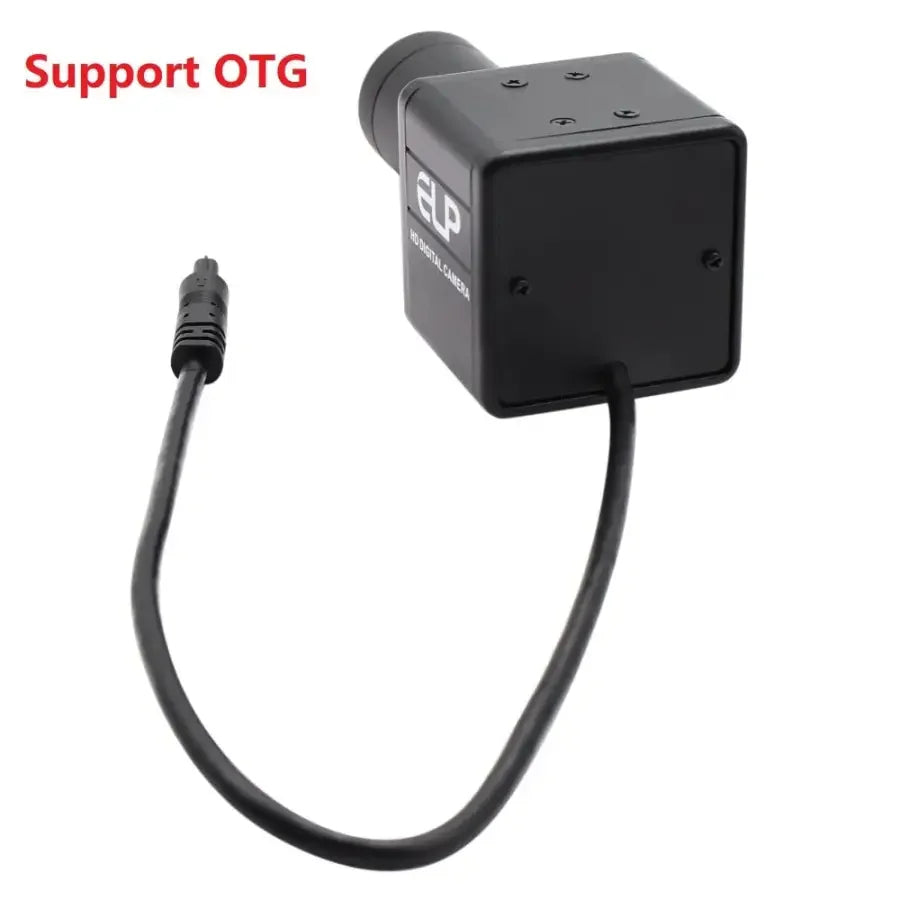

*OTG Support
Specifications
|
Model
|
ELP-SUSB1080P01-MFV
|
|
Sensor
|
IMX291
|
|
Lens Size
|
1/2.8 inch
|
|
Pixel Size
|
2.9µm X 2.9µm
|
|
Max. Resolution
|
1920(H)X1080(V)
|
|
Compression format
|
MJPEG / YUV2(YUYV)
|
|
Resolution & frame
|
1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps
1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps
640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps
|
|
S/N Ratio
|
40dB
|
|
Dynamic Range
|
65dB
|
|
Sensitivity
|
1900mV/lux-sec@550nm
|
|
Mini illumination
|
0. 01lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB3.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class(UVC)
|
|
AEC
|
Support
|
|
AEB
|
Support
|
|
AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|
2.8-12/5-50mm varifocal lens optional
|
|
Power supply
|
USB BUS POWER
|
|
Operating Voltage
|
DC5V
|
|
Working current
|
170mA~210mA
|
|
Working temperature
|
0-70 degree
|
|
Board size /Weight
|
38*38mm
|
|
Cable
|
Standard 1M
|
|
Operating system request
|
Win8 or above
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
|
Applications:
Used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
