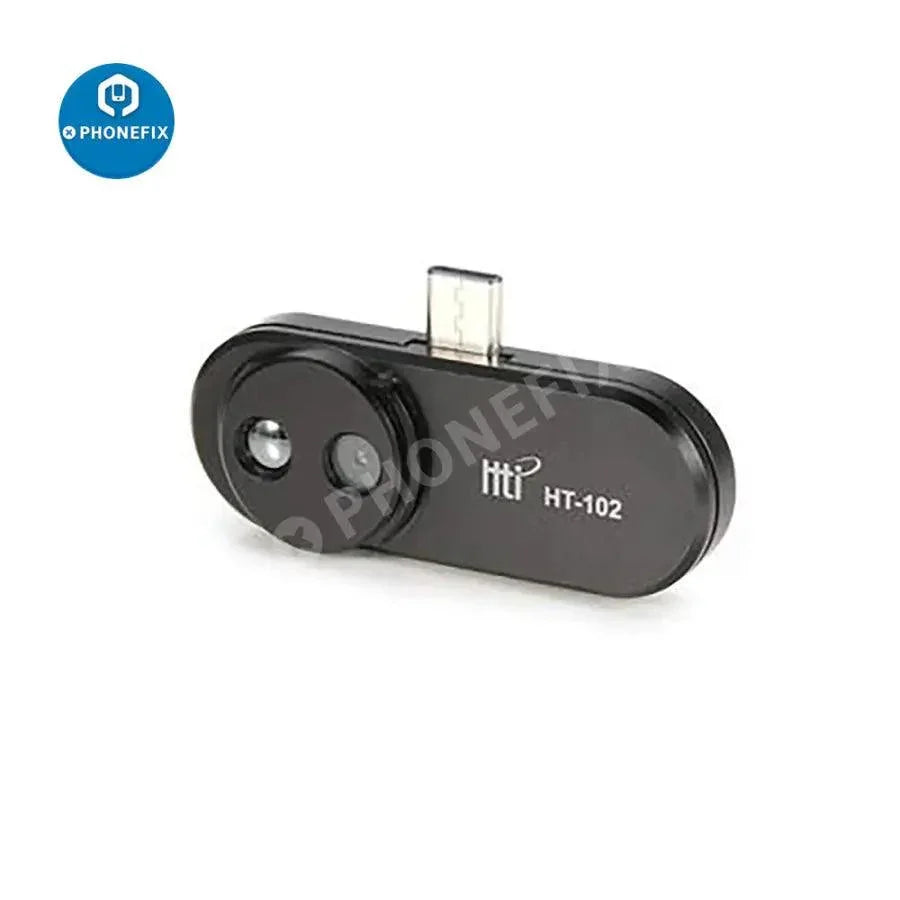

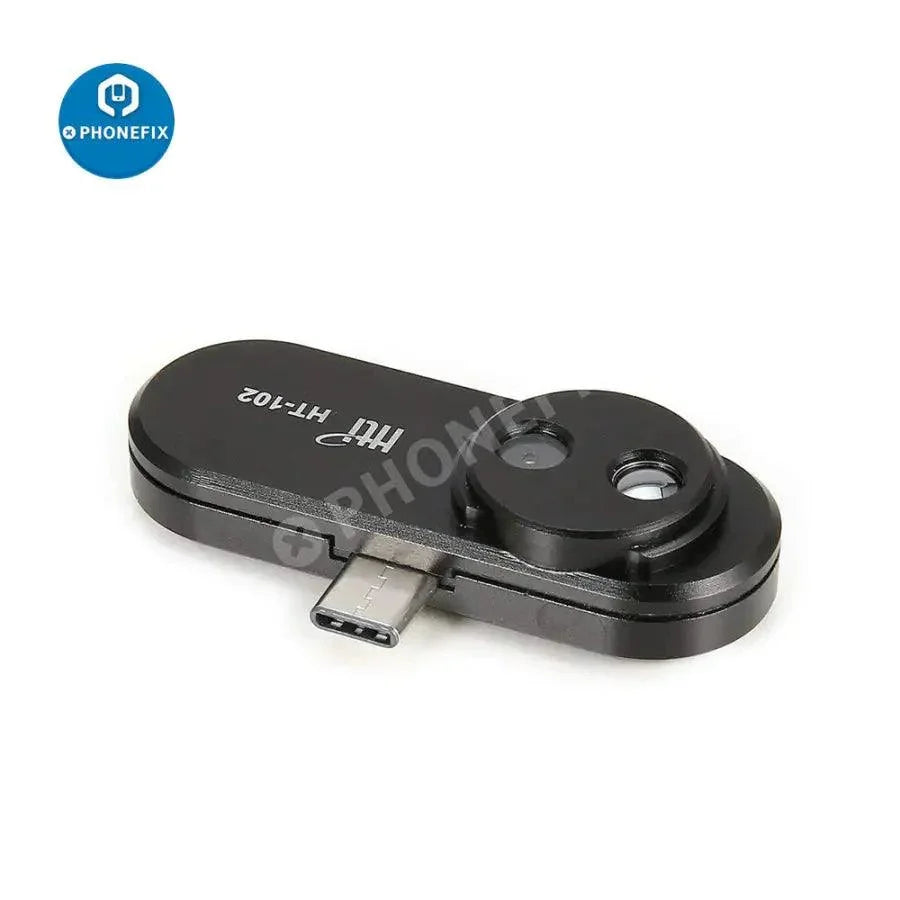

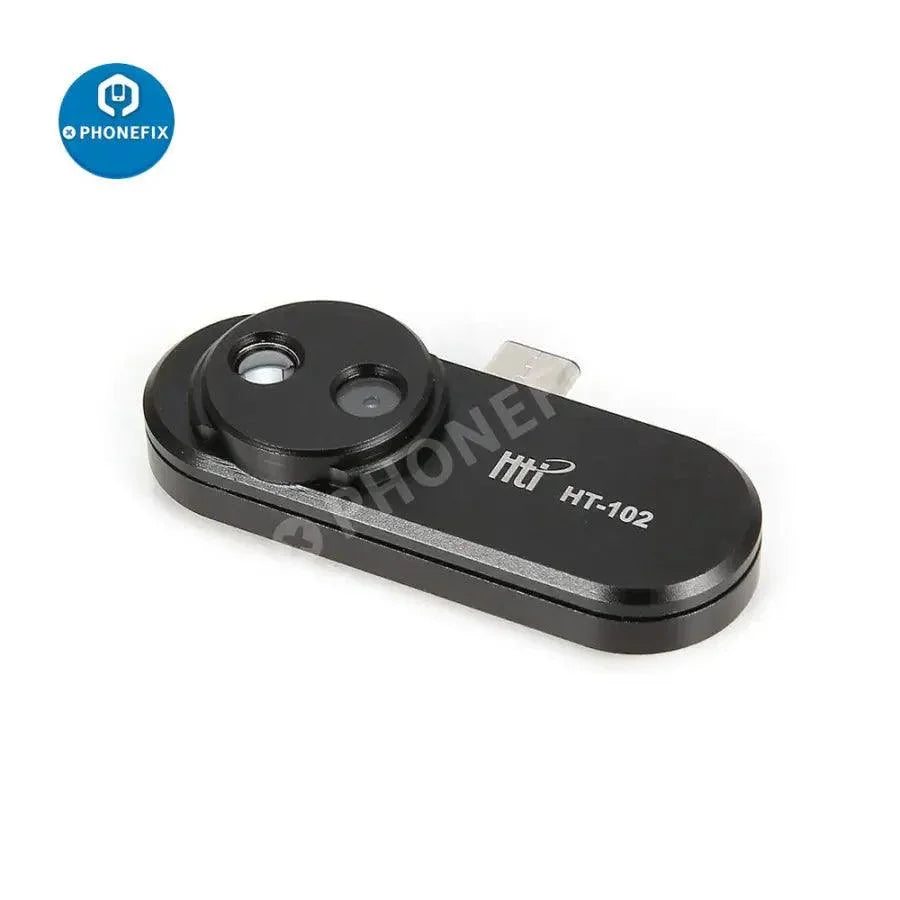

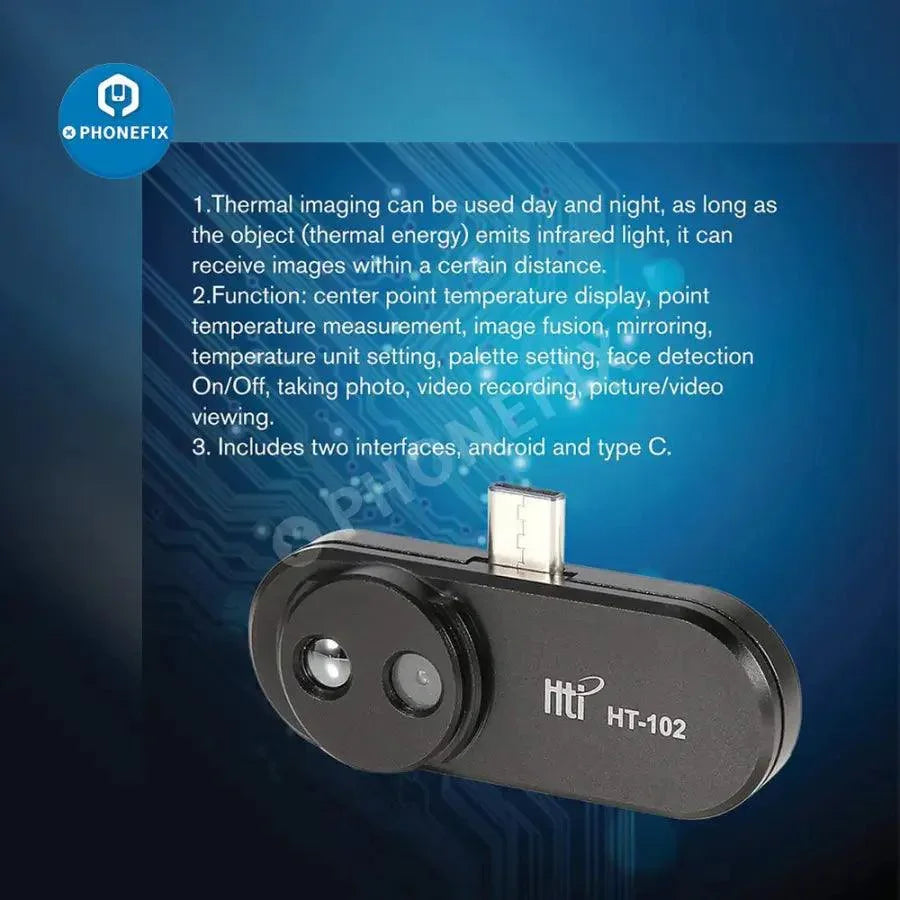

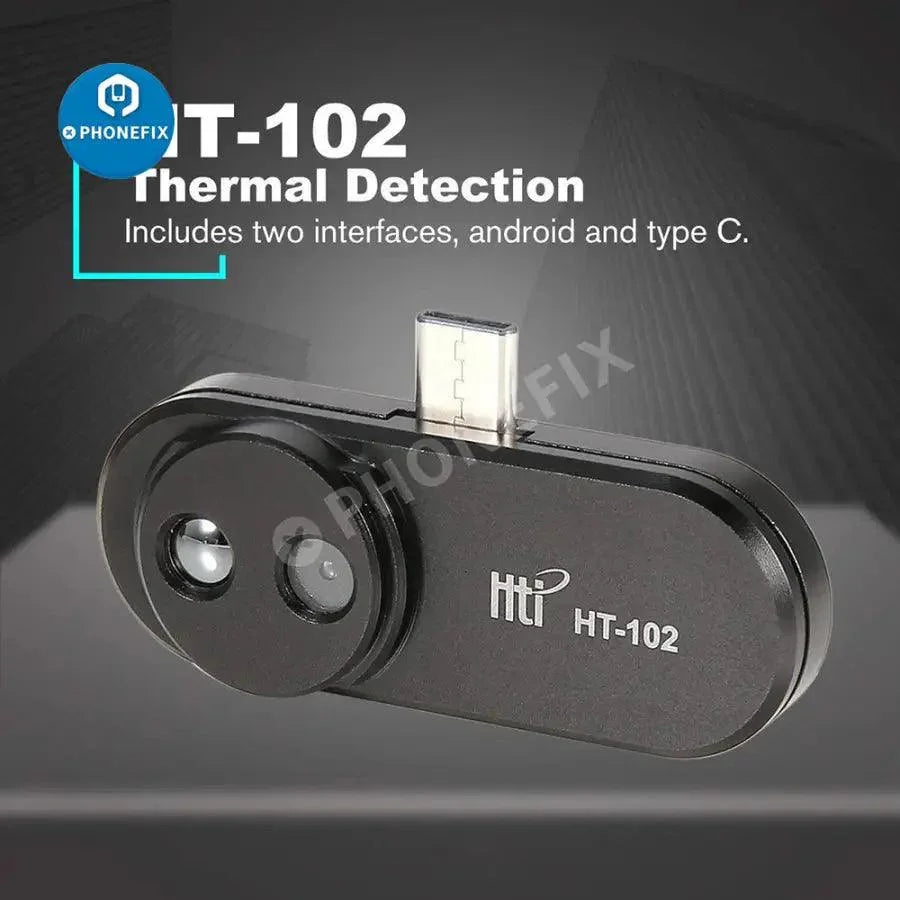

HTI HT-102 Thermal Imaging Camera – Smartphone Thermal Camera with Type-C & Micro USB. 32×32 infrared resolution and 640×480 visible light camera, it offers both thermal and visible image fusion, making it ideal for electronics repair, PCB inspection, building diagnostics, and HVAC maintenance. -20°C to 300°C range, image fusion, photo/video, point temperature measurement.
Specification:
Model: HTI HT-102
Product Type: Smartphone Thermal Imaging Camera
Thermal Resolution: 32 × 32 pixels
Visible Light Resolution: 640 × 480 pixels
Temperature Range: -20°C to 300°C
Accuracy: ±3°C or ±5% of reading
Resolution (Temperature): 0.1°C / 0.1°F
Frame Rate: 9Hz
Power Supply: Powered by Android device
Interface: Type-C + Micro USB (dual interface)
Working band: 8-14μm
Horizontal viewing angle / vertical viewing angle: 43°±1°/ 43°±1°
Image format: png
Video format: mp4
Frame rate: gHz
Focal length: fixed
Operation temperature range: 0℃ to 35℃
Storage temperature range: -20℃ to 60℃
Power supply: power supply from external devices, such for Android phones

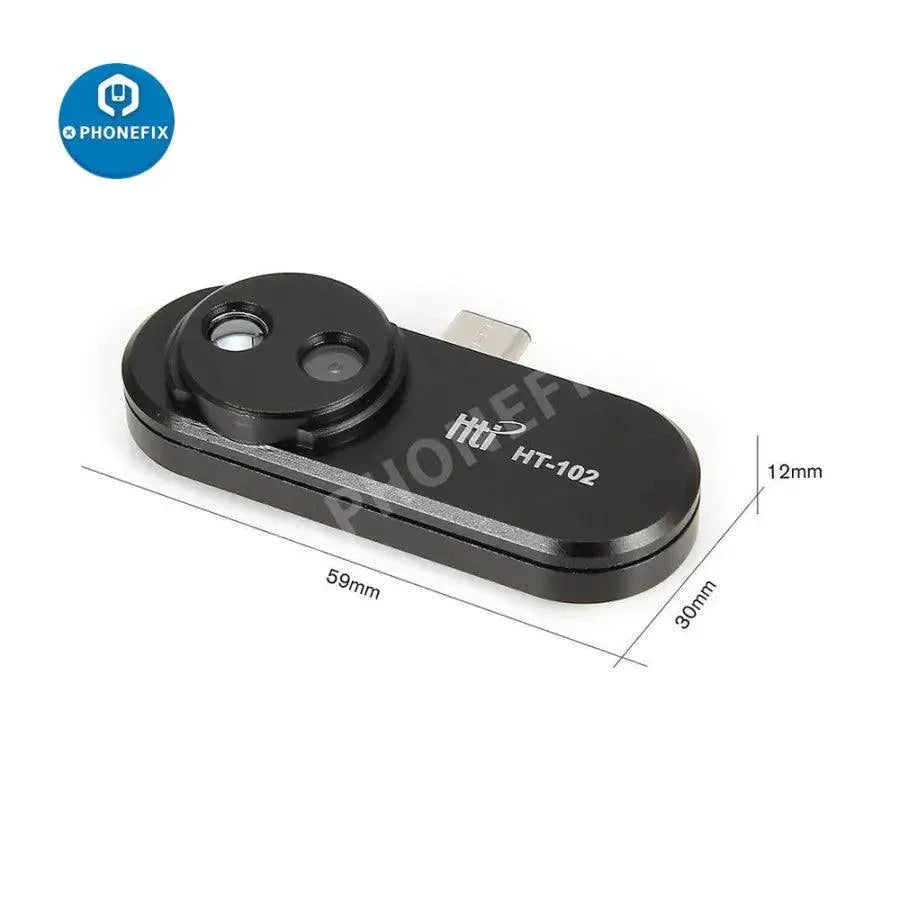

|Size: 59 x 30 x 12mm
