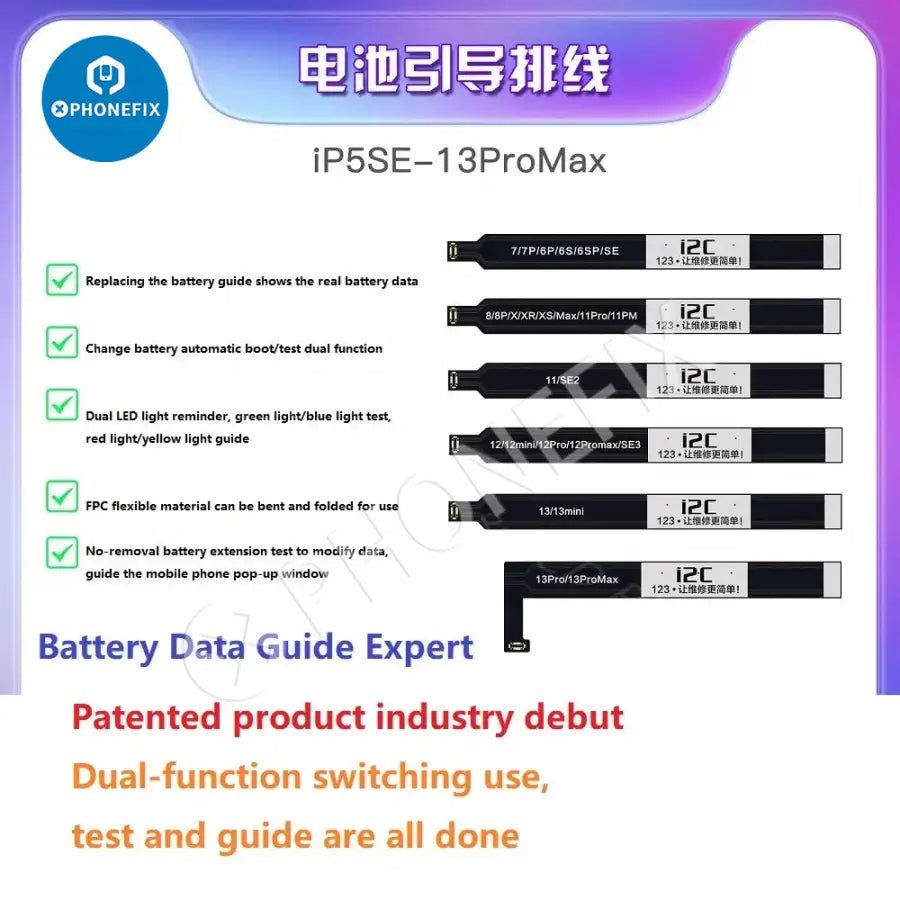

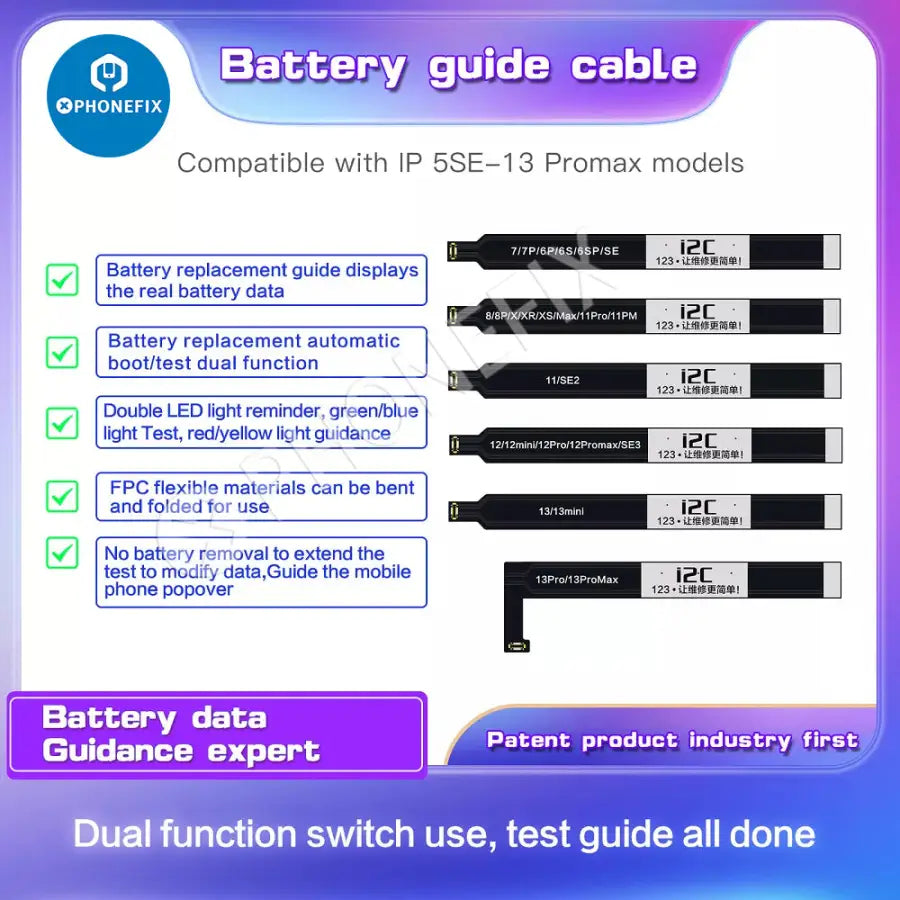

Dual-function switching use, test and guide are all done

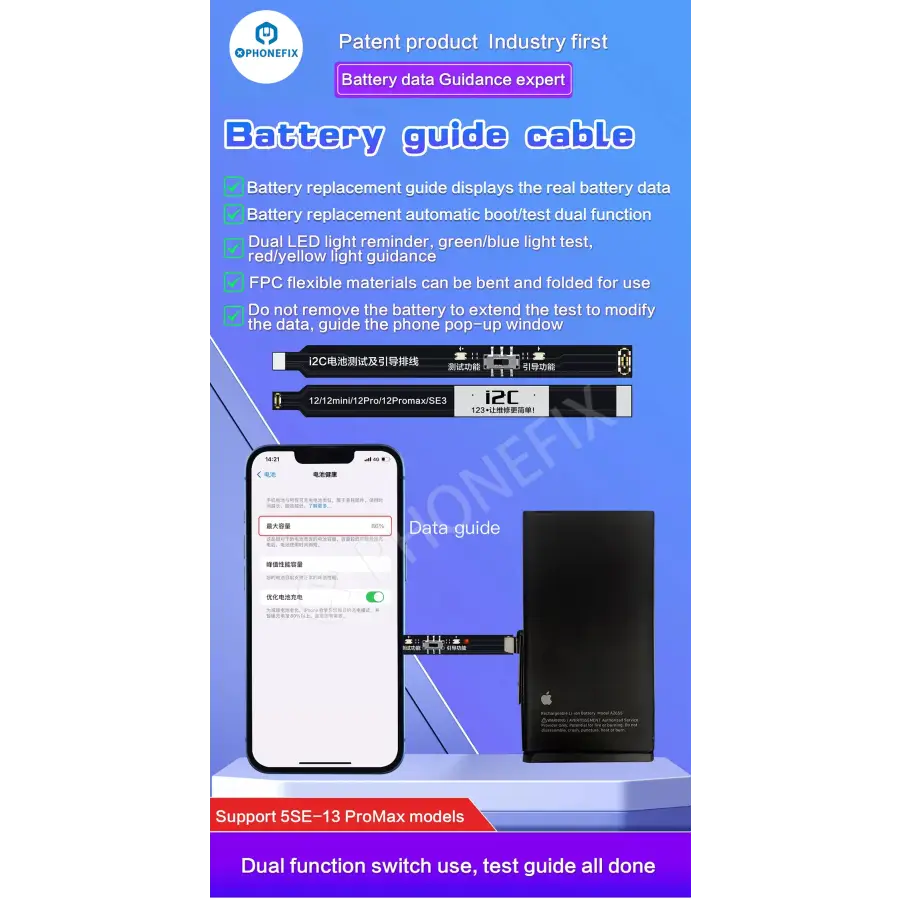

Replacing the battery guide shows the real battery data
Change battery automatic boot/test dual function
Dual LED light reminder, green /blue test, red light/yellow light guide
FPC flexible material can be bent and folded for use
No-removal battery extension test to modify data, guide the mobile phone pop-up window
Support 5SE-13Pro Max models

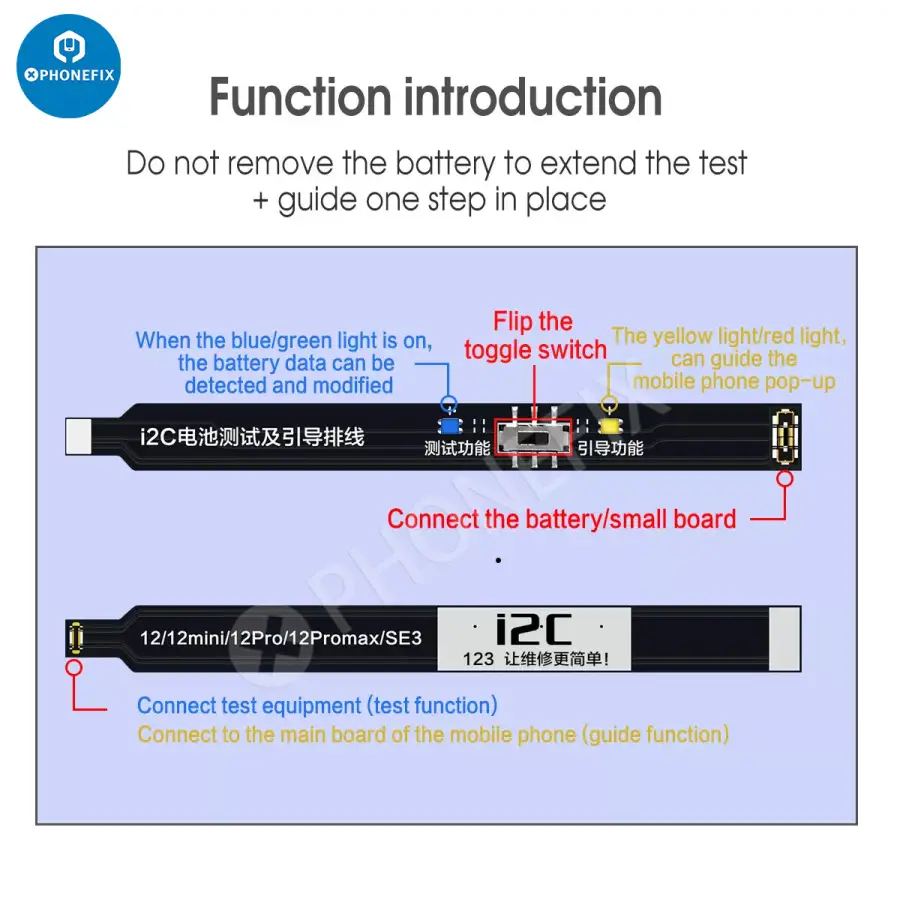

No-removal battery extension test + guide in one step
1. Blue/green light on - Can detect and modify battery data
2. Yellow/Red light on - Bootable mobile phone popup
After the battery data modification is completed, move the toggle switch to the "boot function" end.
Fasten the other end of the cable to the motherboard, the yellow light or red light is on to turn on the power.
After booting, there will be a pop-up prompt to shut down, remove the test guide cable.
The operation can be completed by connecting the battery cable to the motherboard and turning it on.

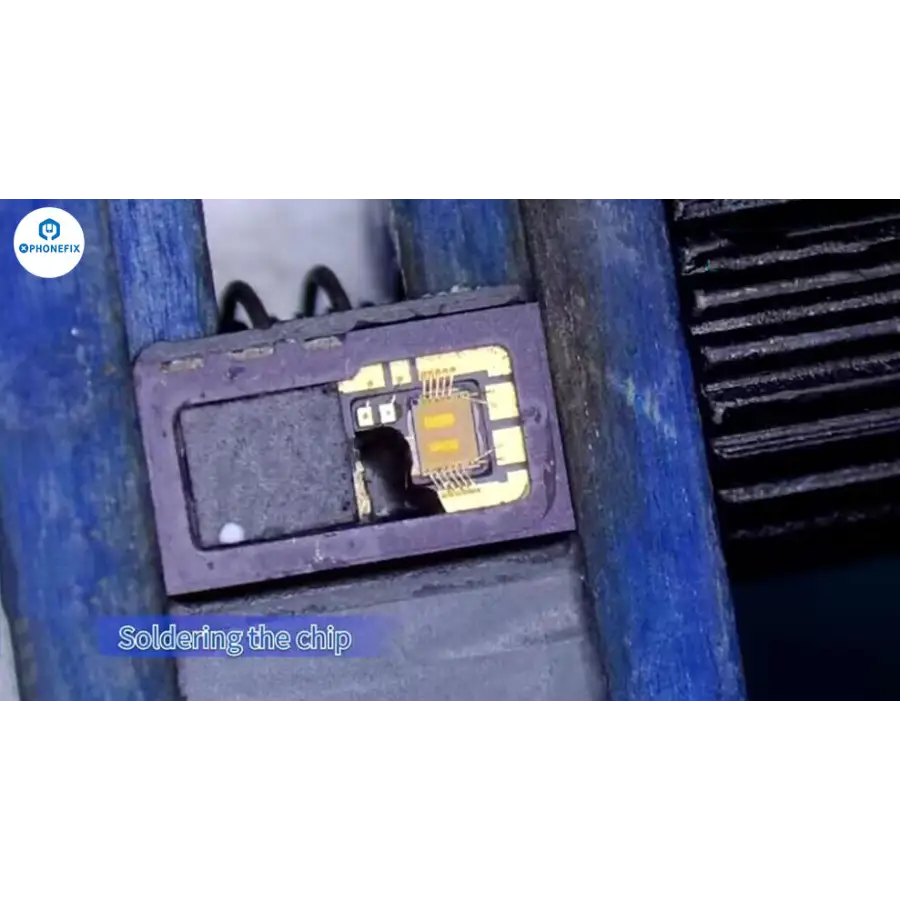

(Remarks: Models below 11 can directly modify the data. Models above 11 need to install a small external board to modify the data. After modifying the data, it needs to be installed and used together, and cannot be removed.)
Test function usage scenarios
Battery extension test + data modification and writing
Snap one end of the battery guide cable to the corresponding socket of the battery.
The other end is buckled on the detection and reading device.
Move the toggle switch to the "test function" end, and the blue or green light turns on to detect and modify battery data.
Support multiple models

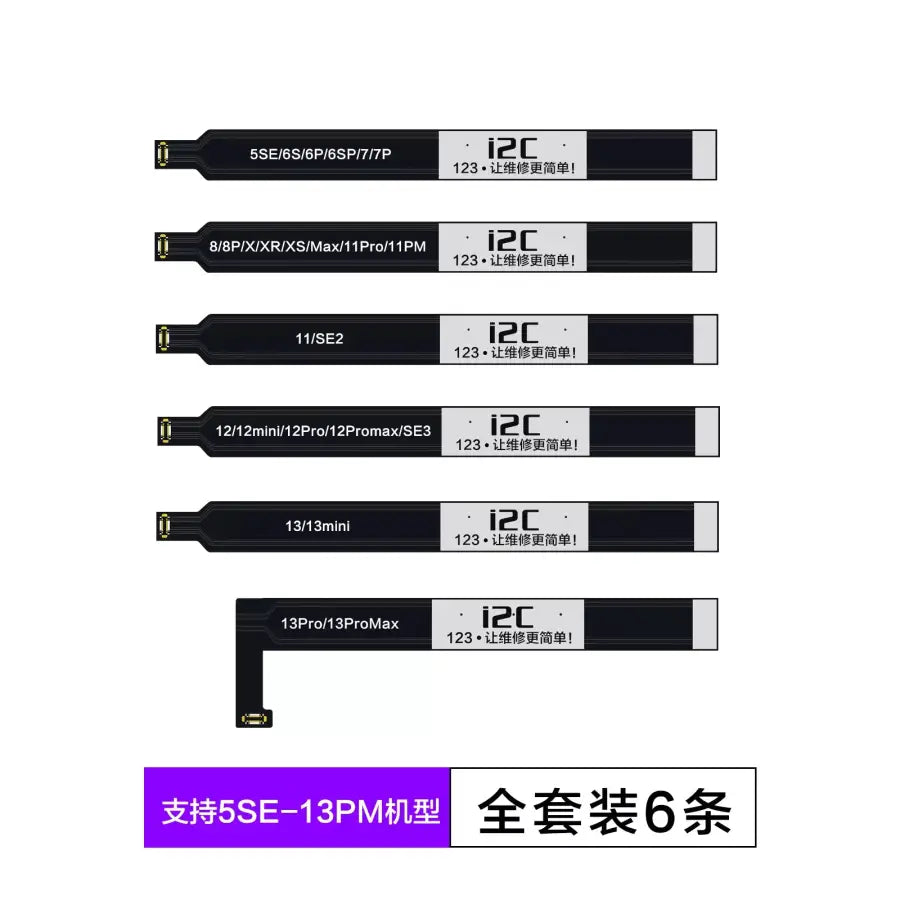

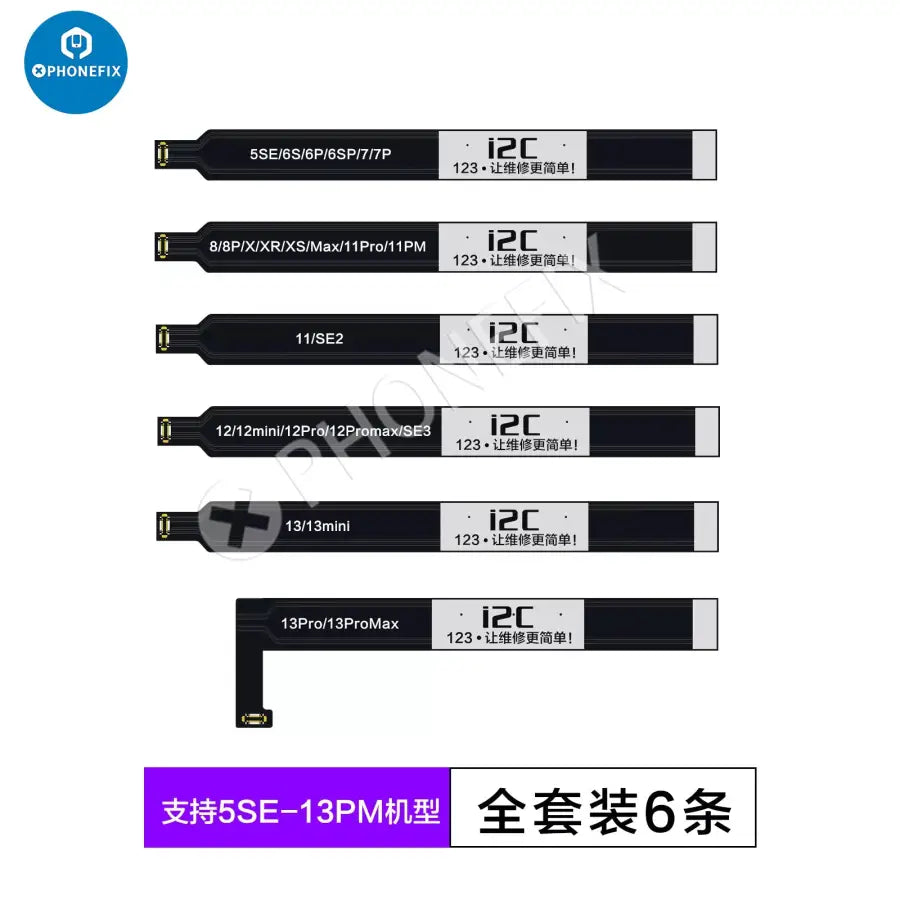

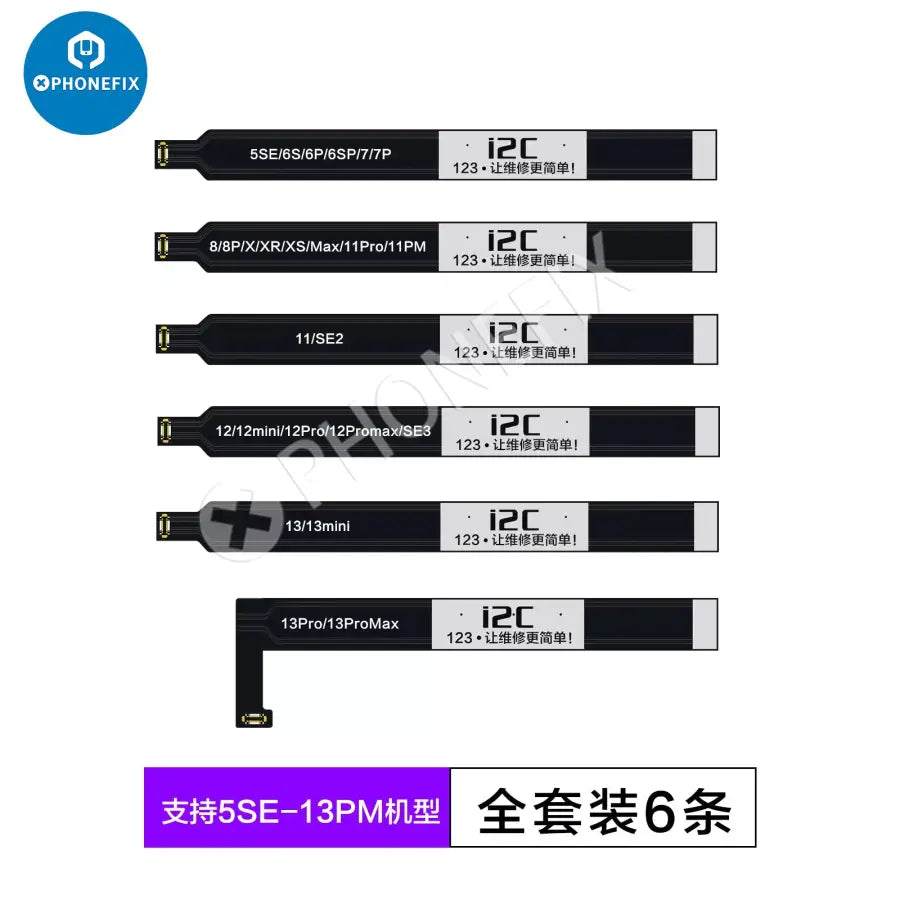

Support 5SE-13PM models, 6 types of cables can be done

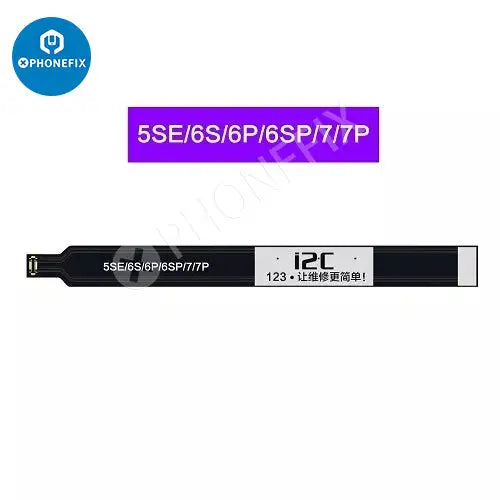

Support 5SE/6P/6S/6SP/7/7P models

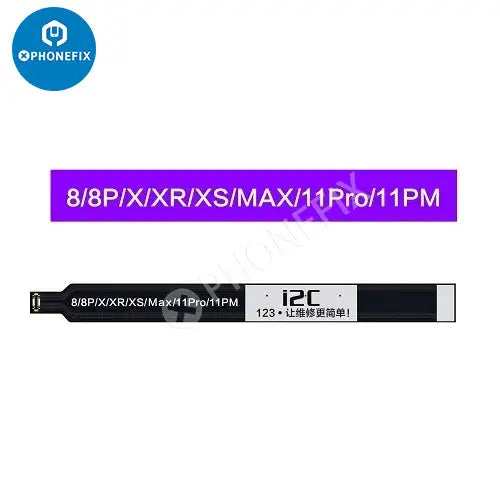

Support 8/8P/X/XR/XS/XSMax/11Pro/11PM models

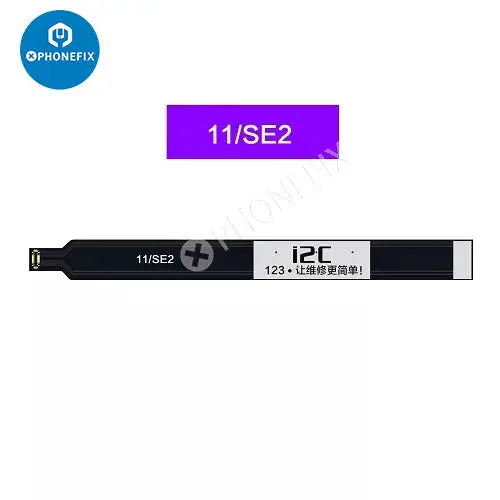

Support 11/SE2 models

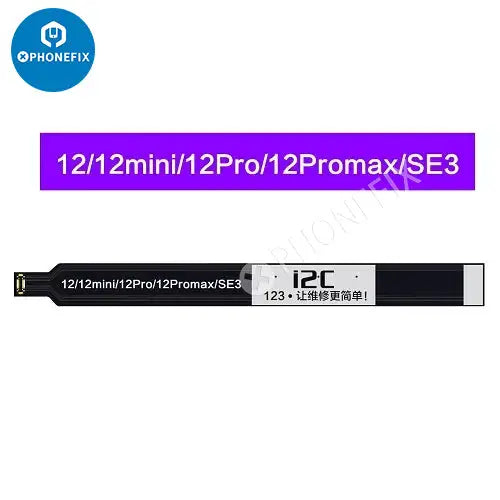

Support 12/12mini/12Pro/12PM/SE3 models

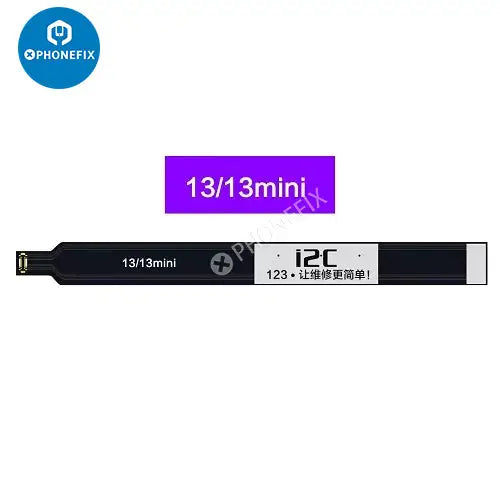

Support 13/13mini models

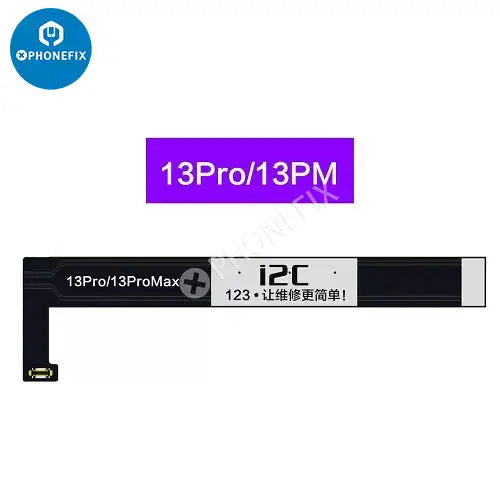

Support 13Pro/13PM models
