I2C C09 Lite Smart Digital Multimeter is designed for professional repair technicians, electrical engineers, and advanced DIY users. Featuring a dual-CPU industrial architecture with 100-pin high-speed ADC sampling, it delivers faster response, higher accuracy, and more stable measurements than conventional multimeters. 2.8-inch IPS HD color screen. With automatic component recognition, auto range operation, and patented automatic capacitor discharge. The PC live cast function enables real-time screen mirroring for live teaching and demonstrations, while OTA firmware updates keep the device continuously optimized. It is suitable for mobile phone motherboard repair, electrical installation, automotive electronics, industrial equipment maintenance, teaching labs, and more.
Features:
1. Dual-CPU industrial architecture: the measurement CPU independently handles high-speed data acquisition and high-precision A/D conversion, while the main CPU manages system control, display, and storage, ensuring fast, stable, and precise measurements.
2. 2.8-inch IPS full-view HD color screen with 320×240 resolution and 500cd/m² brightness, clearly readable even in bright sunlight.
3. Auto range recognition automatically identifies and measures resistors, voltage, capacitors, and other components without manual range switching.
4. Patented automatic capacitor discharge automatically detects and safely discharges capacitors, preventing high-voltage shock risks.
5. Supports PC live casting via Type-C data cable for synchronized measurement display, ideal for teaching demos and live repair streaming.
6. Built-in 1000mAh lithium battery with Type-C charging, approx. 11 hours of battery life, and online firmware upgrade for continuous optimization.
Product Parameters:
Brand: i2C
Product Name: Smart Multimeter
Model: C09 Lite
Display: 2.8-inch IPS HD Color Screen, 320×240 Resolution, 500cd/m² Brightness
Sampling: 100-Pin High-Speed ADC Sampling
Architecture: Dual-CPU Industrial Architecture
DC Voltage (VDC): 10mV~1000V, Accuracy ±(0.8%+3)
AC Voltage (VAC): 10mV~750V, Accuracy ±(1.0%+3)
DC Current (mA): 0.01mA~600mA, Accuracy ±(1.0%+8)
DC Current (10A): 0.001A~10A, Accuracy ±(2.0%+8)
AC Current (mA): 0.03mA~600mA, Accuracy ±(1.2%+8)
AC Current (10A): 0.030A~10A, Accuracy ±(2.5%+8)
Duty Cycle: 0.1%~99.9%, Accuracy ±(0.1%+5)
Resistance: 0.1Ω~60MΩ, Accuracy ±(0.8%+3)
Capacitance: 0.01nF~60mF, Accuracy ±(4%+10)
Temperature: -40°C~1000°C, Accuracy ±(1.5%+5)
Frequency: 10Hz~6MHz, Accuracy ±(0.1%+5)
Battery Capacity: 1000mAh
Charging Method: Type-C Charging
Battery Runtime: Approx. 11 Hours

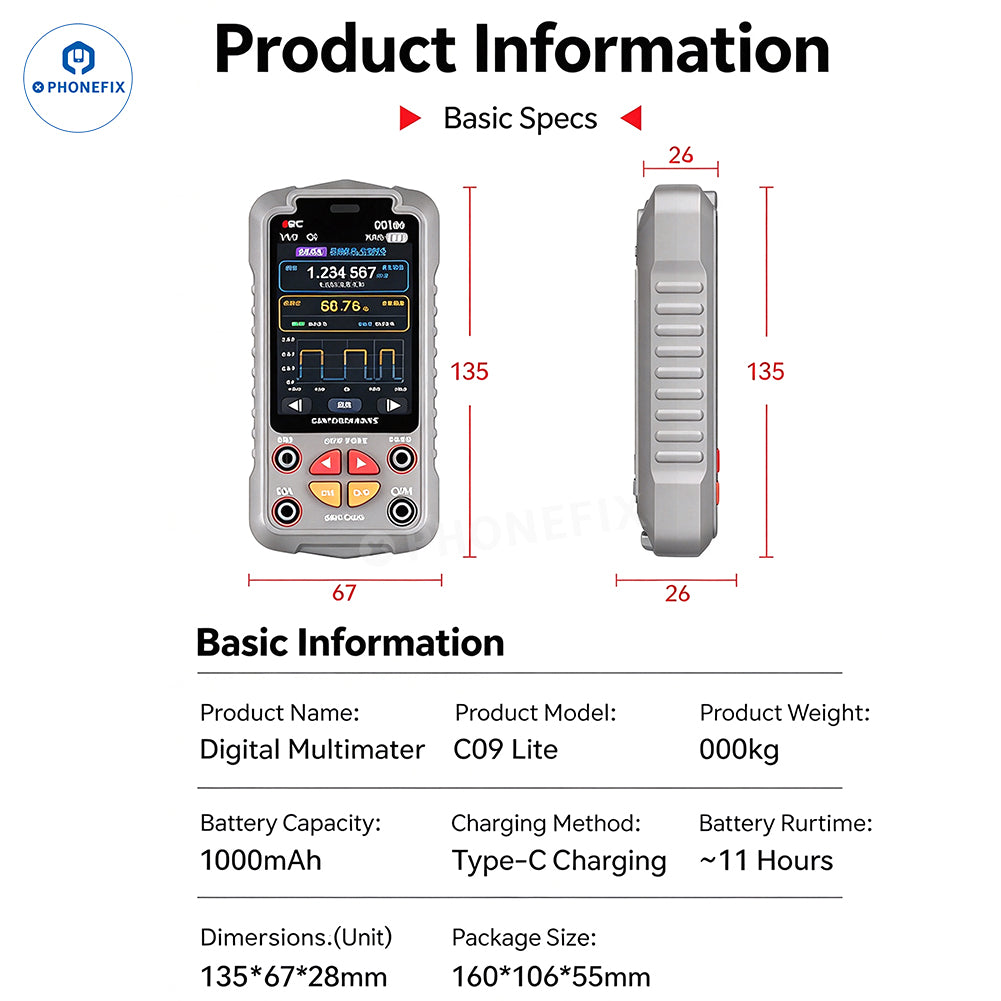

Product Dimensions: 135×67×28mm
Package Size: 160×106×55mm

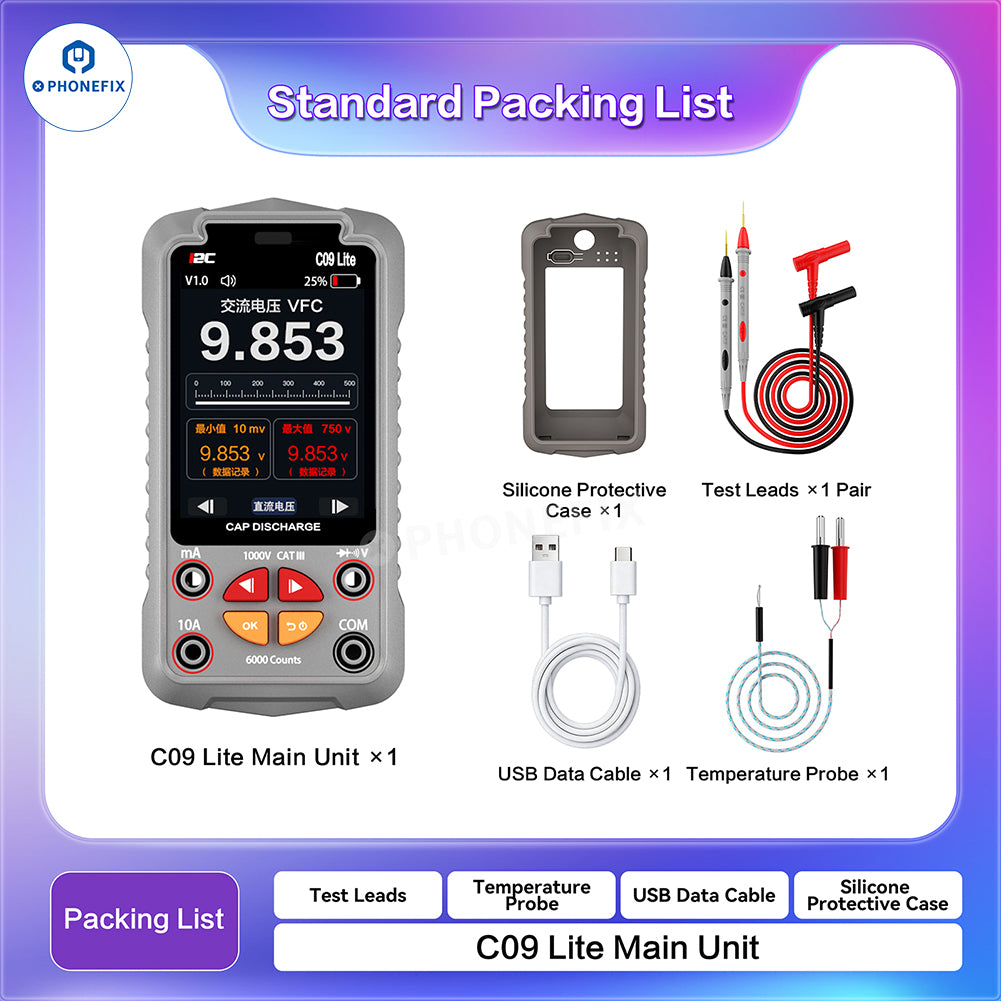

Packing List: C09 Lite Digital Multimeter ×1, Test Probes ×1, TM Wire (Opt.) ×1, PC Data Cable ×1, Protective Sleeve ×1, Warranty Card ×1
