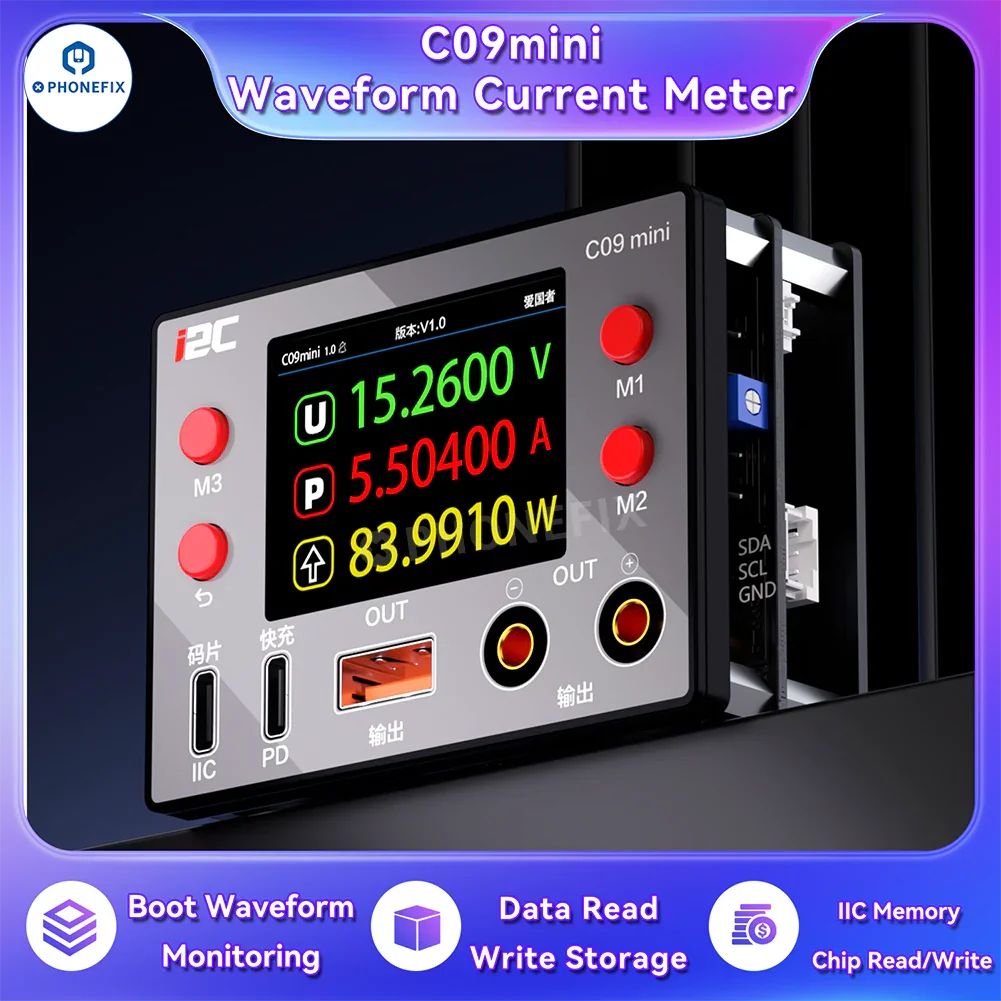

i2C C09mini Waveform Ammeter supports iPhone 5-17 Pro Max IIC baseband chip read/write, Power-on current waveform monitoring, Android boot log analysis, charging data analysis, Type-C PD fast charging, and supports mobile phones, iPads, Switches, drones, and other devices. i2C C09 Mini Ammeter offers waveform, PWM Pointer Meter, and digital display modes, and supports screen mirroring from a computer.
Option:

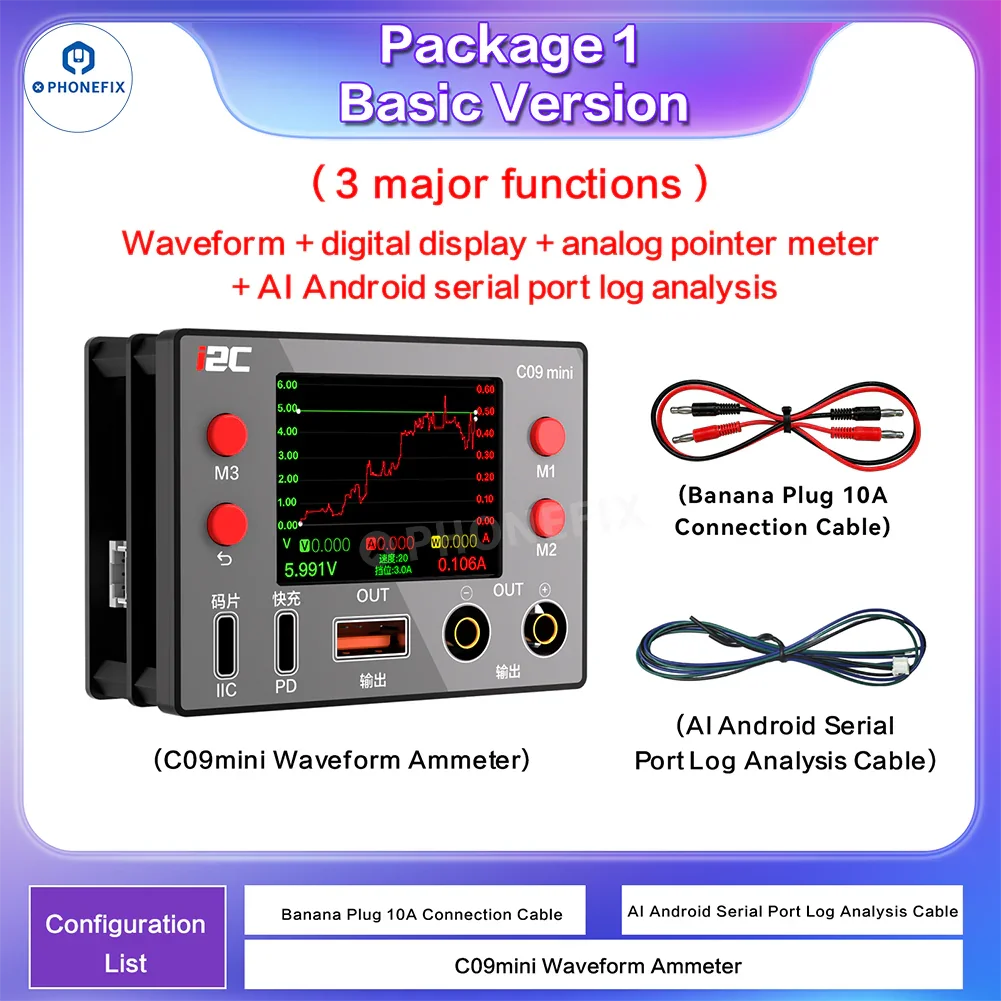

1. Package 1: Basic Edition.

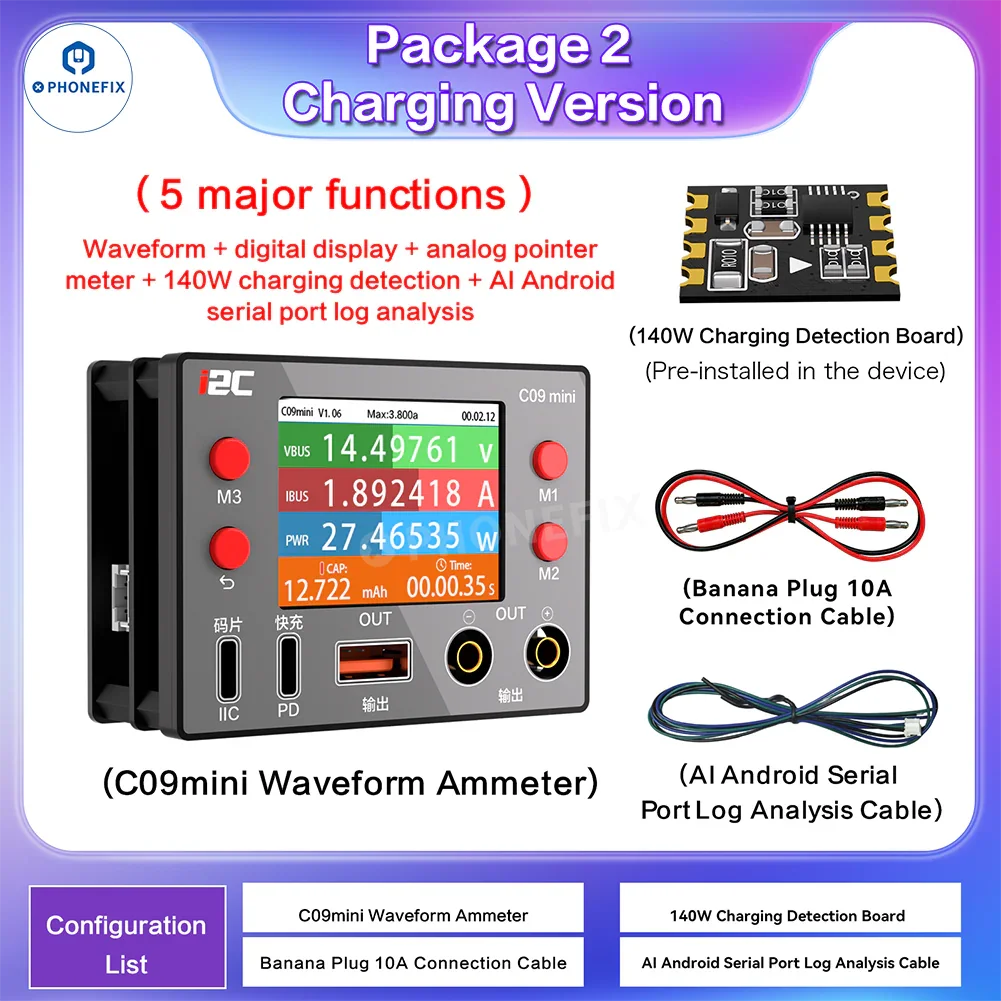

2. Package 2: Charging Edition.

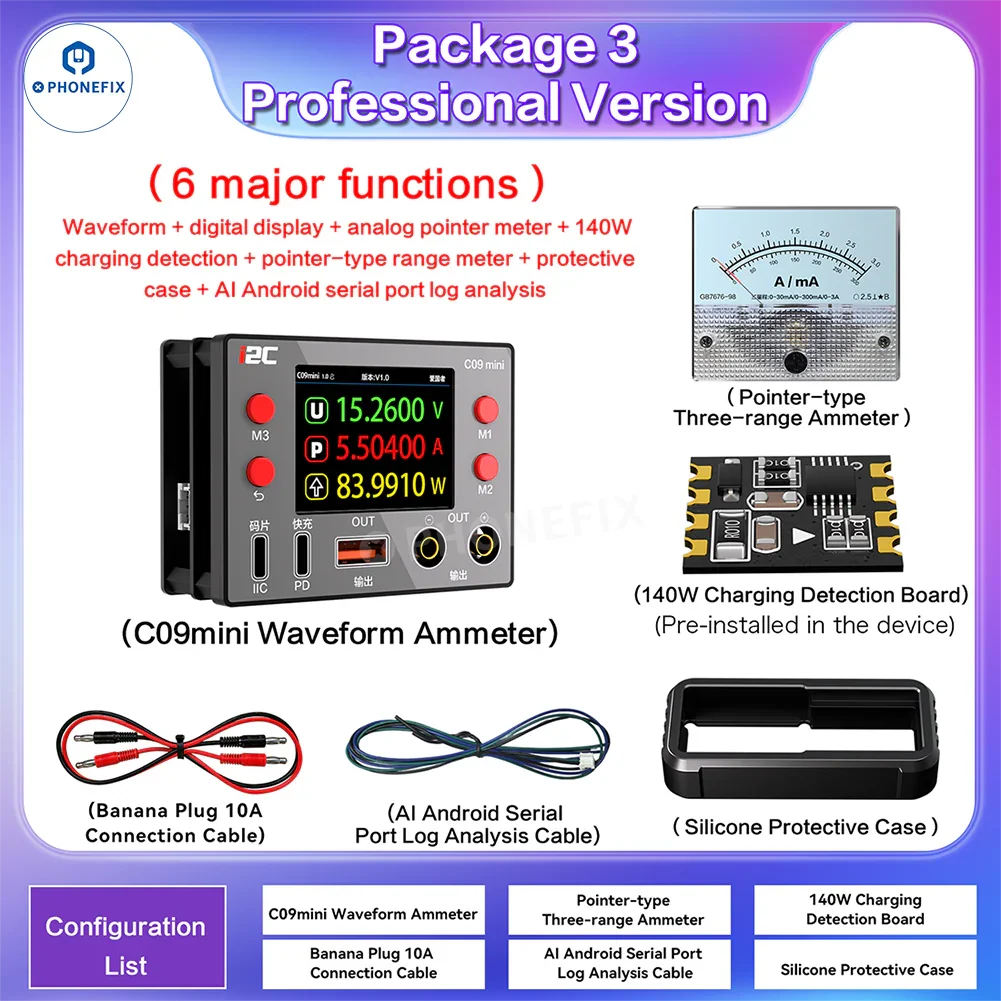

3. Package 3: Professional Edition.
Features:

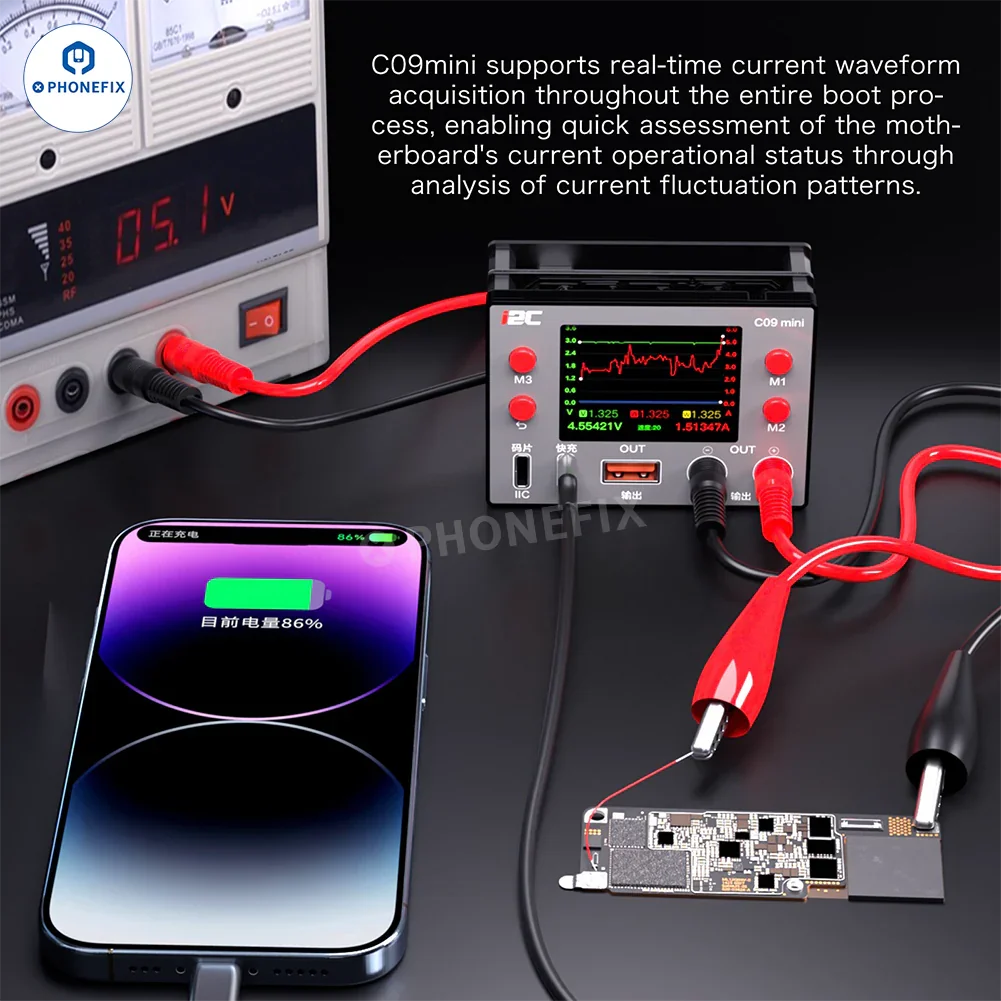

1. Startup Current Waveform Monitoring: Real-time monitoring of current fluctuations during device startup, quickly determining the motherboard's operating status.

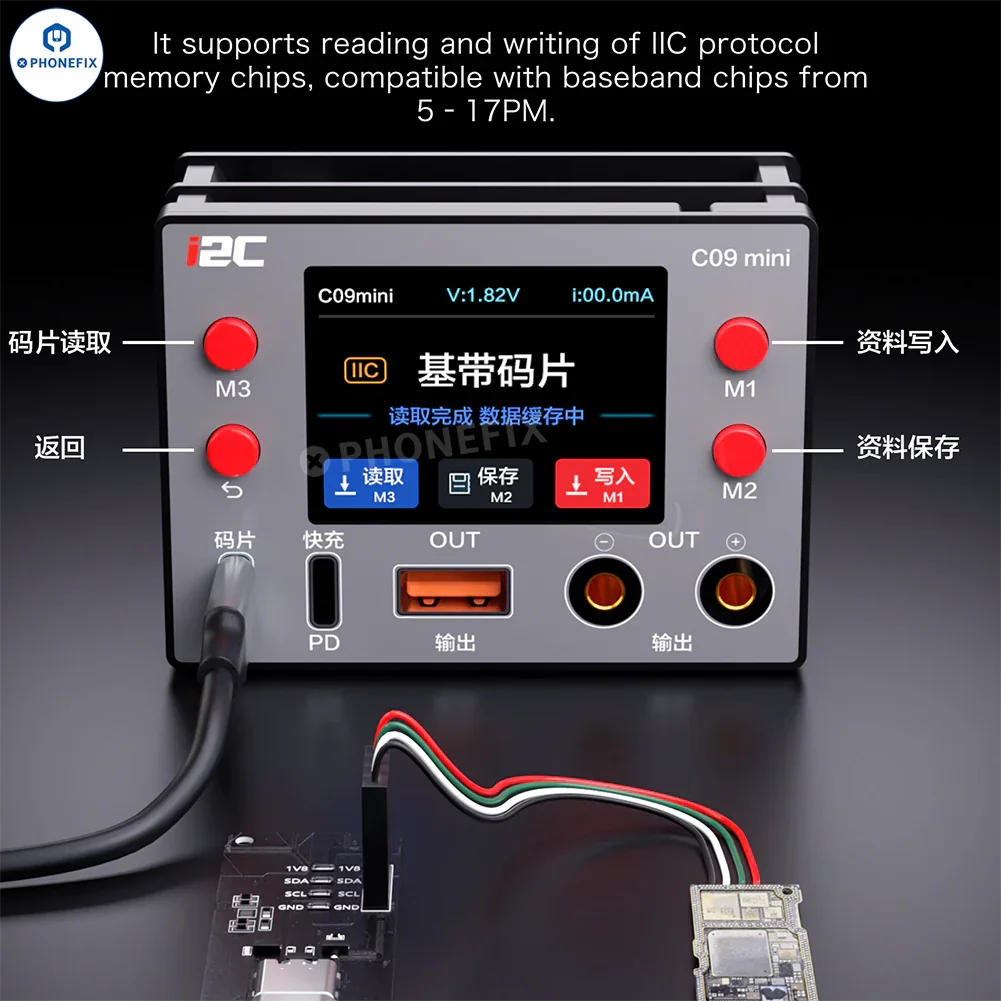

2. IIC Chip Read/Write Function: Supports reading and writing to IIC protocol chips, compatible with 5-17PM baseband chips, eliminating the need for computer operation and improving repair efficiency.
3. PWM Mechanical Pointer Meter: A mechanical pointer meter designed specifically for technicians, featuring three current ranges: 30mA, 300mA, and 3A, accurately displaying the current.

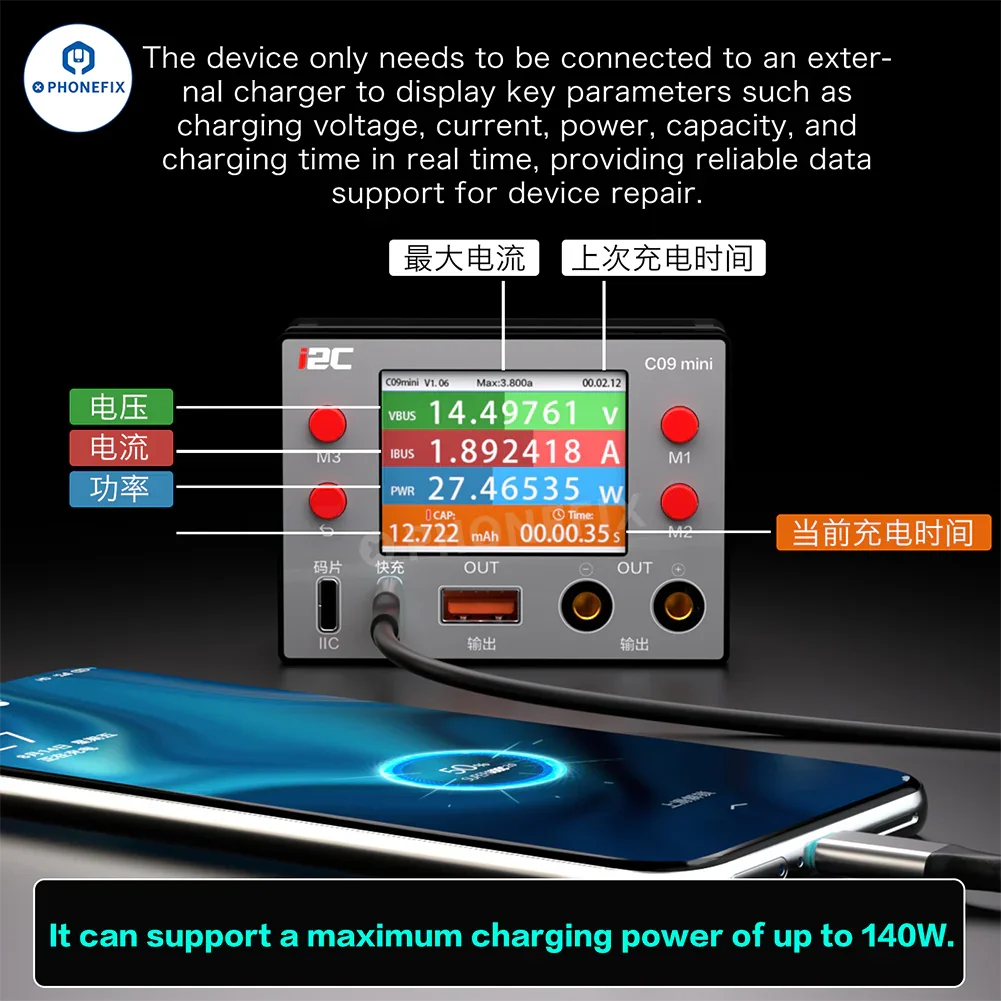

4. Precise Display of Charging Parameters: Supports displaying key data such as charging voltage, current, power, capacity, and charging time.

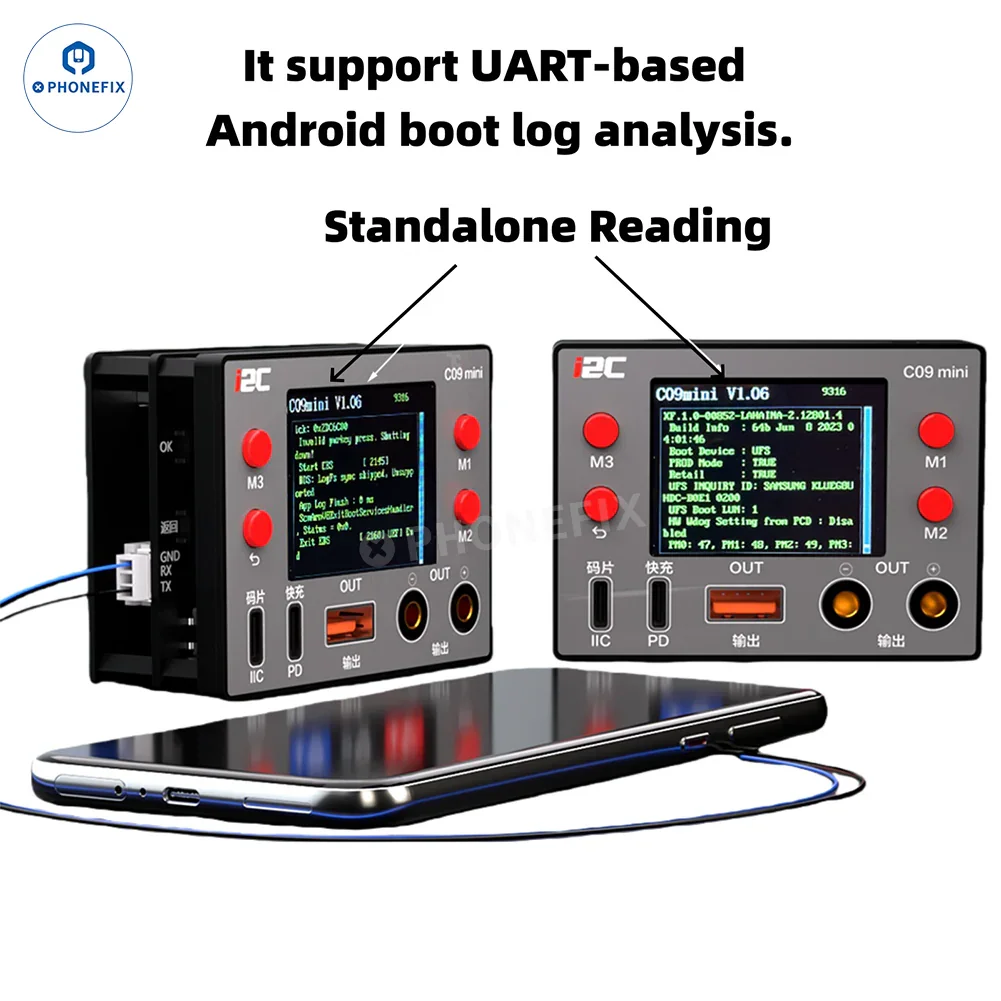

5. AI Intelligent Analysis: Built-in AI intelligent analysis automatically converts log files to Chinese and provides fault analysis and maintenance suggestions.
6. Large Font Numeric Display: Three display modes are switchable for easy and intuitive viewing of the current status.
7. Independent Operation Without a Computer: Can independently complete data reading, writing, and storage without a computer, improving maintenance efficiency.
8. Cross-Device Integration: Supports computer screen projection, transforming the device into a workstation for enhanced operational convenience.
Product parameters:
Name: i2C C09-mini Waveform Current Meter
Input voltage DC: 0-36V
Detection current: 0-8A
Protection voltage: <60V
Protection current: <15A
Banana plug output-voltage and current: 40V 8A
USB output voltage and current: 20V 2A
Voltage resolution: 1mv
Current resolution: 0.1ma
Product size: 56x76x27.3mm
Current accuracy: 100 microamps
Screen size: 2.0 inches
Screen resolution: 320x480
Device power supply: 5V 2A
Two-channel voltage measurement: 0-36V
