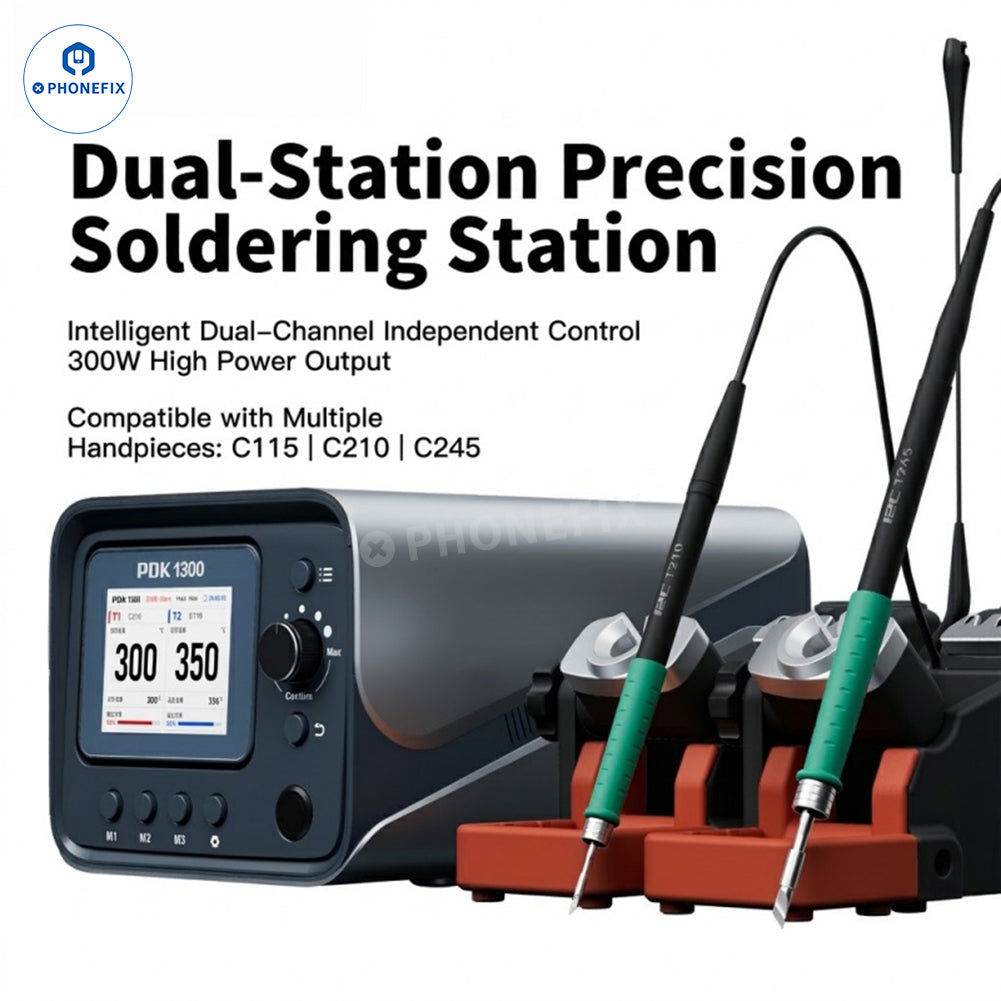

i2C PDK1300 300W Dual-Channel Precision Soldering Station compatible with C115 C210 and C245 soldering iron tips for mobile phone repair, microscopic board-level repairs and other electronics soldering. Equipped with a 2.8-inch adjustable IPS HD screen, intelligent handle auto-recognition, auto-sleep, rapid heating and fast tinning, for precision micro-soldering. Ideal for mobile phone repair shop and electronics welding. Suitable for routine standard repairs and troubleshooting of mobile phone, laptop, and tablet motherboards.
Option:
1. PDK1300 Kit A(C210+C245 Handle Set).
2. PDK1300 Kit B(C210+C245+C115 Handle Set).
Features:

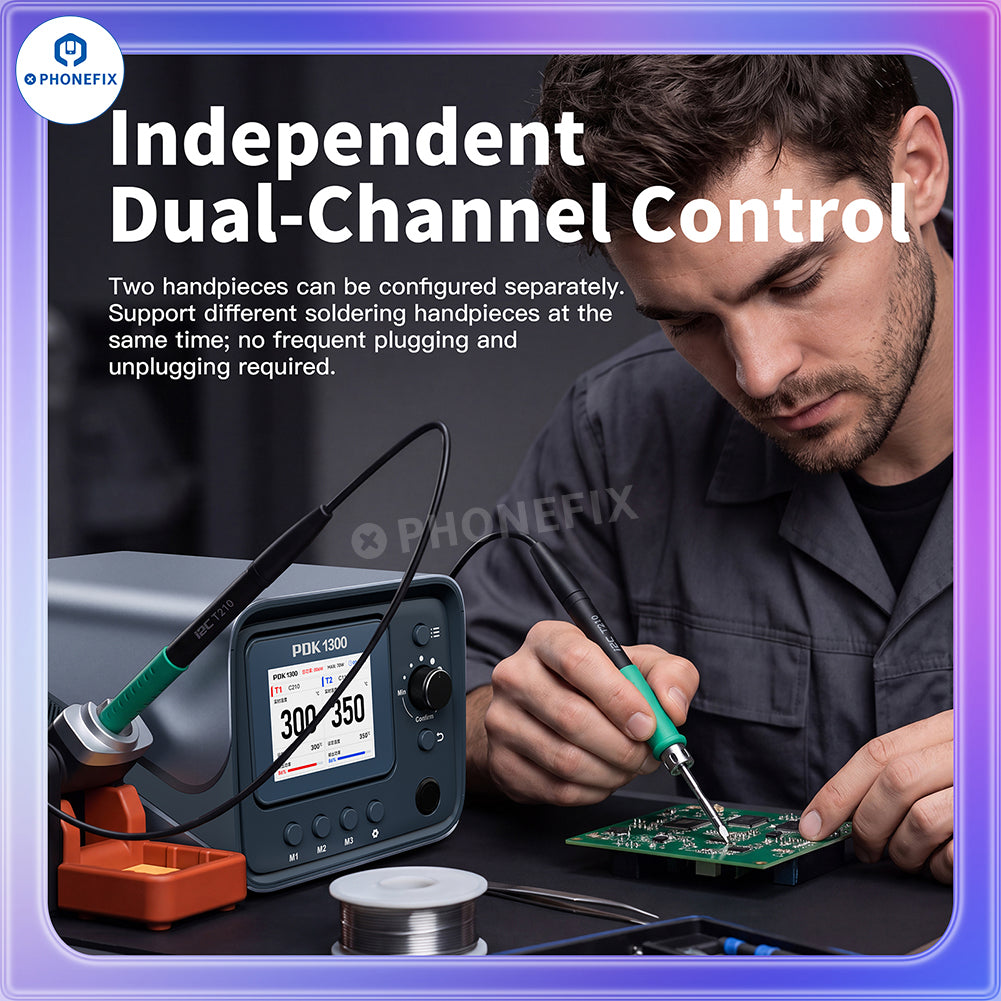

1. Independent Dual-Channel Temperature Control: Both channels operate independently, allowing for the simultaneous use of different handles without the need for frequent swapping.
2. Intelligent Handle Recognition: Automatically identifies the connected handle type and loads preset parameters—simply plug and play for a streamlined setup.

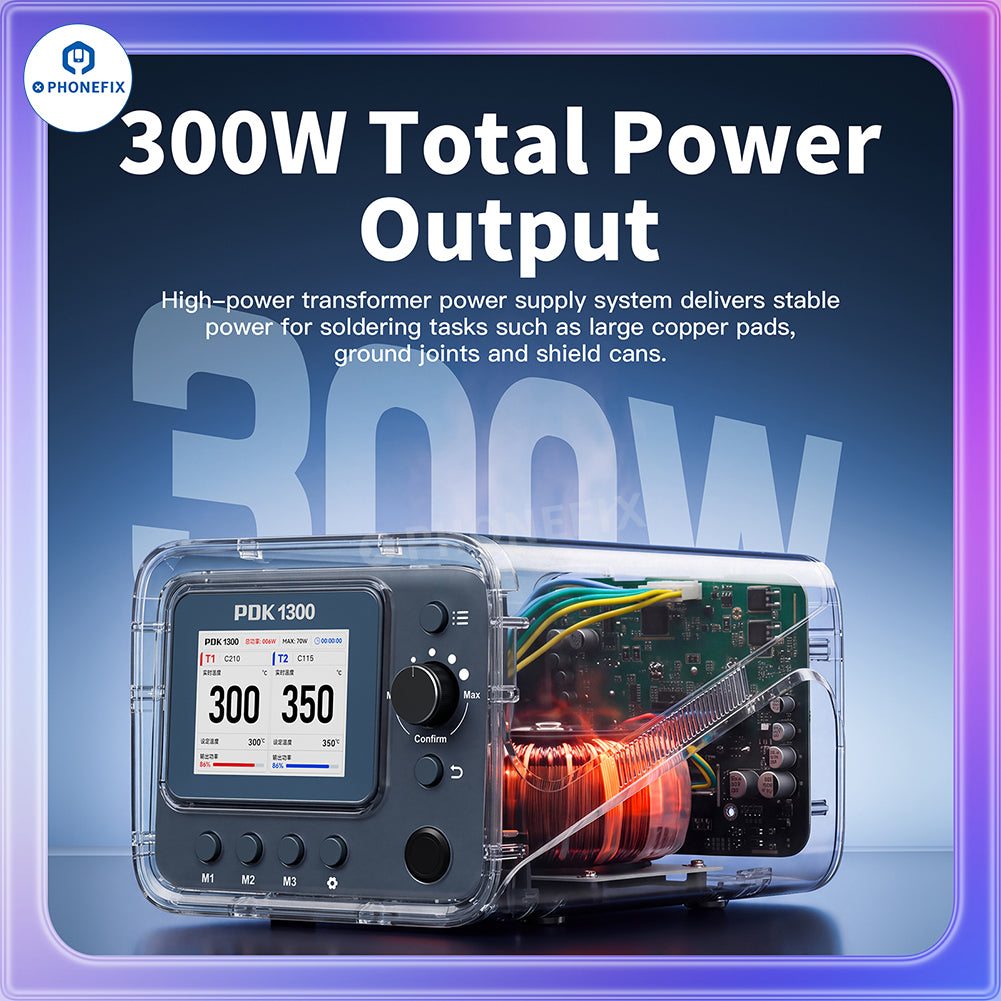

3. Powerful 300W Output: Delivers rapid thermal recovery and stable heat supply, easily handling high-thermal-load scenarios such as large solder pads.
4. Intelligent Sleep Mode for Extended Lifespan: Handles automatically enter sleep mode when placed in their stands and heat up instantly upon being picked up, helping to slow down the oxidation of soldering tips.

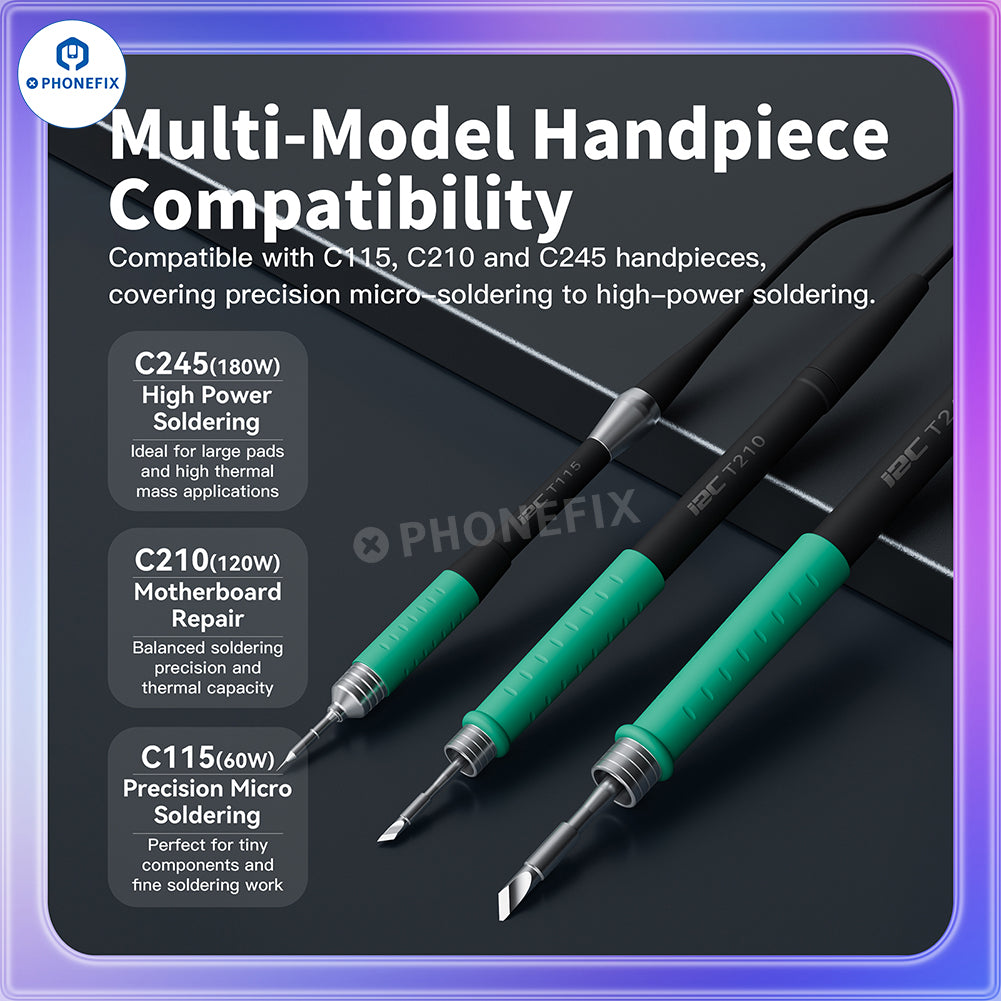

5. Full Compatibility with Three Handle Types: Supports C115 (60W), C210 (120W), and C245 (180W) handles to meet diverse soldering requirements.
6. 2.8-inch Adjustable-Angle Display: Features an intuitive interface with shortcut keys and a control knob, ensuring clear visibility of system status and a user-friendly, minimalist operation.
Product Specifications
Product Name: Dual-Channel Soldering Station
Model: PDK1300
Compatible Handpieces: C115 / C210 / C245
Housing Material: Aluminum Alloy
Dimensions: 226mm (L) × 157mm (W) × 130mm (H)
Weight: Approx. 5.9 kg
Temperature Range: 90°C – 450°C (194°F – 842°F)
Standby Temperature Stability: ±5°C (±41°F)
Temperature Accuracy: 5%
Temperature Calibration: ±20°C (±68°F)
Tip-to-Ground Voltage / Resistance: <2mV – 5mV
Peak Power: 300W
Rated Power: 180W (C245) / 120W (C210) / 60W (C115)
Input Power: AC 100–120V / AC 220–240V (50/60Hz)
Output Specifications: 23V/6A, 23V/6A, 12V/2A
Grounding Fuse: T-2A
Operating Ambient Temperature: 0°C – 40°C (32°F – 104°F)
Package Contents

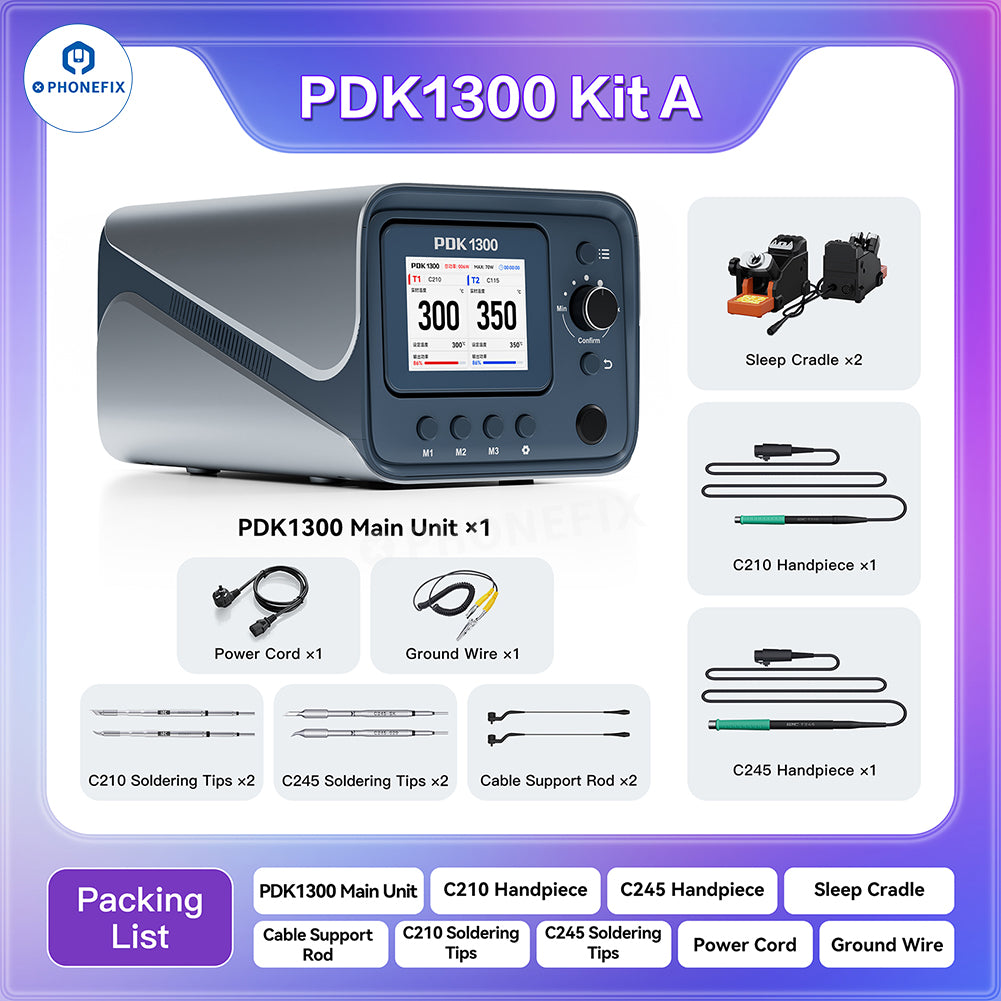

· PDK1300 Kit A:
Sleep Cradle x2
PDK1300 Main Unit x1
C210 Handpiece x1
Power Cord x1
Ground Wire x1
C245 Handpiece x1
C210 Soldering Tips x2
C245 Soldering Tips x2
Cable Support Rod x2

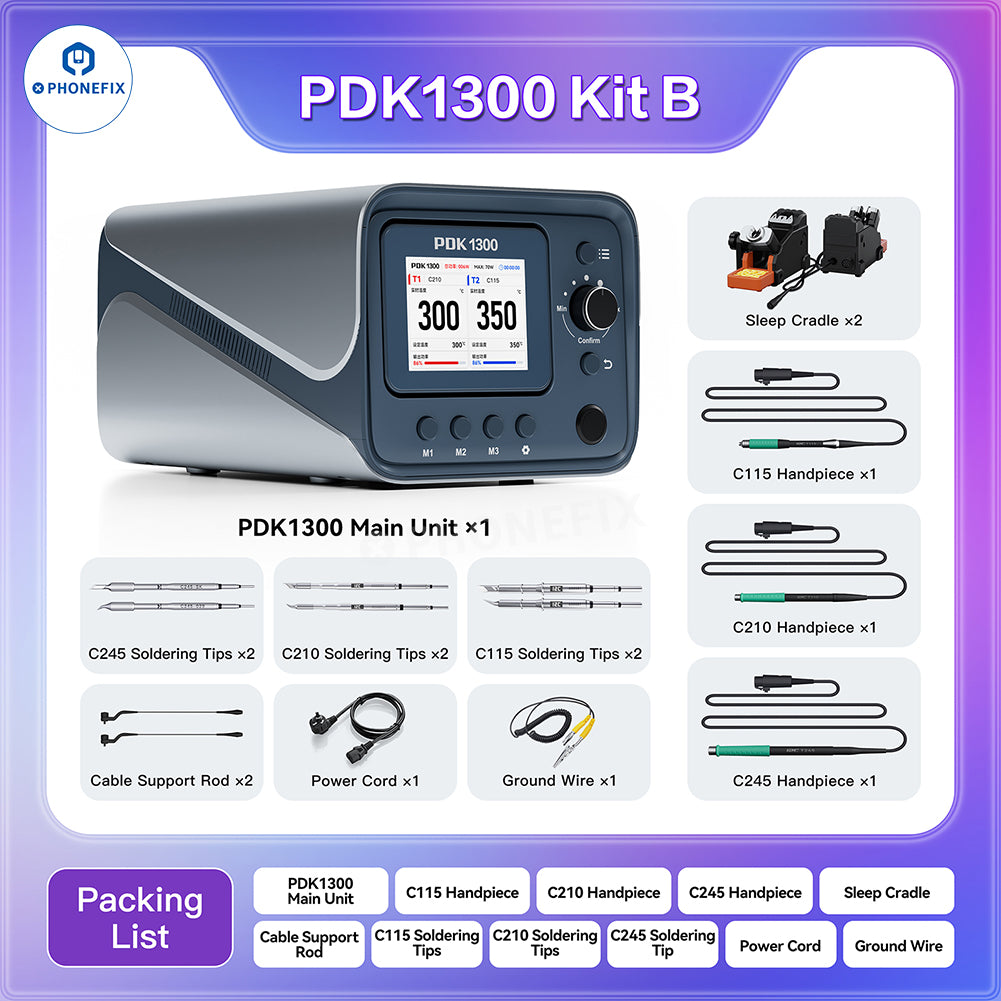

· PDK1300 Kit B:
PDK1300 Main Unit x1
Sleep Cradle x2
C115 Handpiece x1
C210 Handpiece x1
C245 Soldering Tips x2
C210 Soldering Tips x2
C115 Soldering Tips x2
Cable Support Rod x2
Power Cord x1
Ground Wire x1
C245 Handpiece x1
