Original ICFRIEND Mipi Nb Max box + UFS 4 in 1 Socket UFS BGA 153,UFS 254,UFS 297 Adapter + E-MATE eMMC 13 in 1 Adapter. MiPi NB-Max is a tool intended for reading and writing user data on UFS and eMMC chips.
ICFRIEND MiPi NB-MAX eMMC UFS CHIP PROGRAMMER + MIPITESTER + BGA SOCKET ADAPTERS
ICFRIEND MiPi NB-MAX Box is compatible with the following models of Cell phones:
LG/Samsung/Huawei/ZTE/Lenovo/Oppo/Vivo
Features:
- Read / Write eMMC and UFS memory chips
- Supports ISP (In-System Programming)
- UFS / UMCP / ISP - Data transfer speed
- UFS/UMCP
- UFS 2.0 / 2.1 / 3.0 / 3.1 supported
- HS-G2 high speed mode
- 80-130 MB/s (writing) / 100-180 MB/s (reading)
- for 100 MB higher speed you need to use USB 3.0 + high speed SSD
- UFS ISP
- Flying Line Mode PWM-G1 6-15MB/s (reading / writing)
- EMMC/EMCP - Data transfer speed
- EMMC 4.5 / 5.0 / 5.1 supported
- HS200 80-120MB/s (write) / 120MB/s (read)
- EMMC ISP 5-15MB/s (read / write)
- Upgrade NAND / PCIE / NVME / NOR / SPI / I2C Flash
- Supports UFS/UMCP dedicated descriptors, attributes, flags and other chip initialization and advanced settings
- LUN cutting
- Read / Write / Specify boot area
- Read / Write EMMC/EMCP User Area and BOOT1/2
- Read / Write advanced RPMB, GPP
- Enhanced Area settings
- Voltage output (VCC, VCCQ) 1.1 V - 3.3 V + intelligent short circuit protection
- Supported BGA:
- UFS BGA 254
- UFS BGA 153
- eMMC BGA 153-169
- eMMC BGA 254
- eMMC BGA 221
- eMMC BGA 162-186

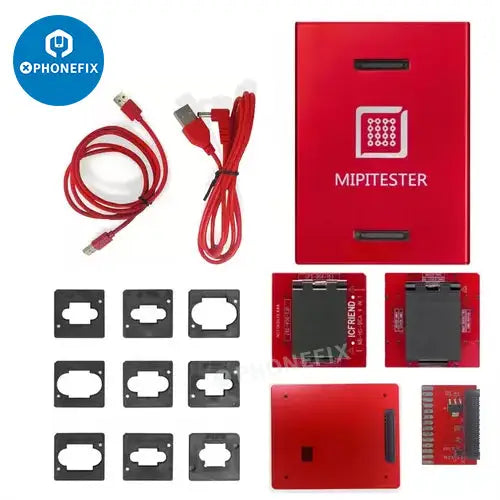

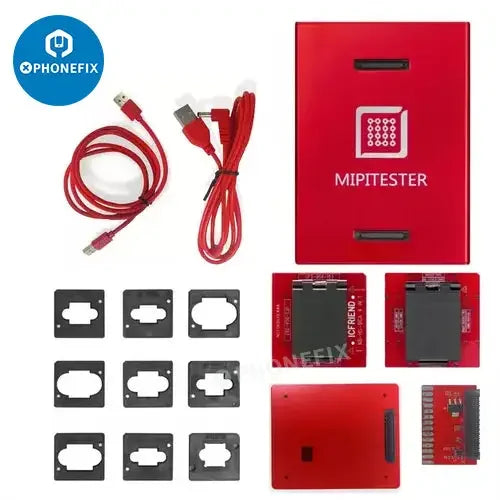

Package Content:1x MiPi Tester Box

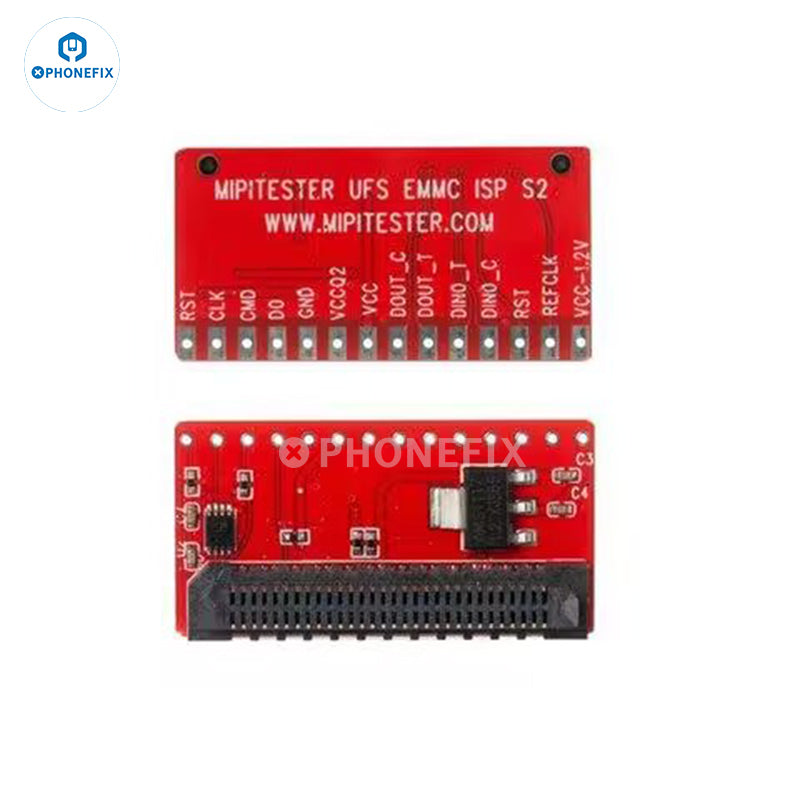

1x ISP Adapter
1x USB 3.0 Cable
1x USB 5V Cable

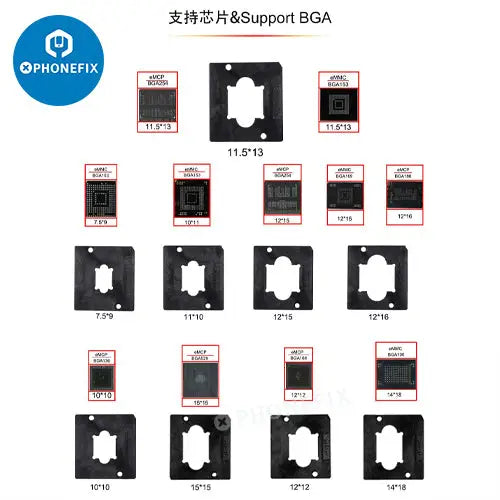

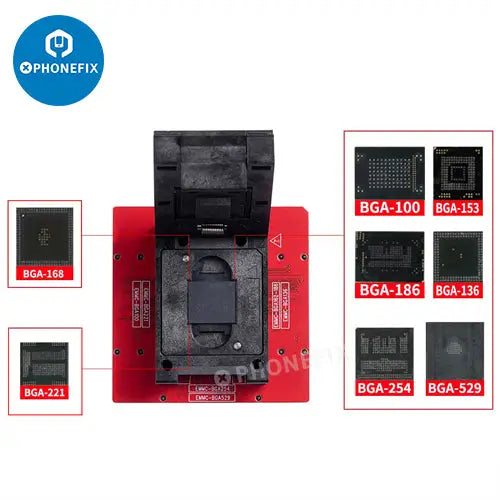

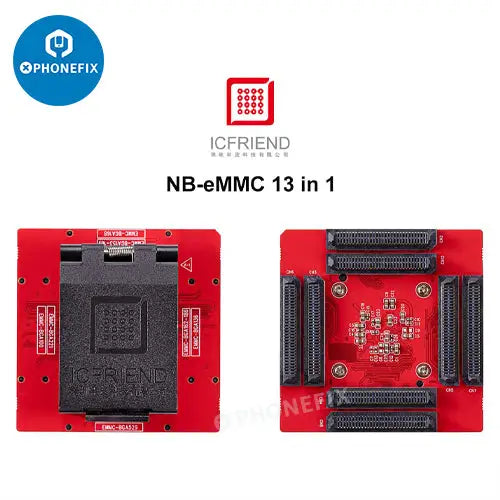

NB-EMMC-BGA 13 in 1 set:eMMC-BGA221
eMMC-BGA529
eMMC-BGA162-186
eMMC-BGA136
eMMC-BGA168
eMMC-BGA153
eMMC-BGA169
eMMC-BGA100
eMCP-BGA254
eMCP-BGA186
eMCP-BGA136
eMCP-BGA529
eMCP-BGA168

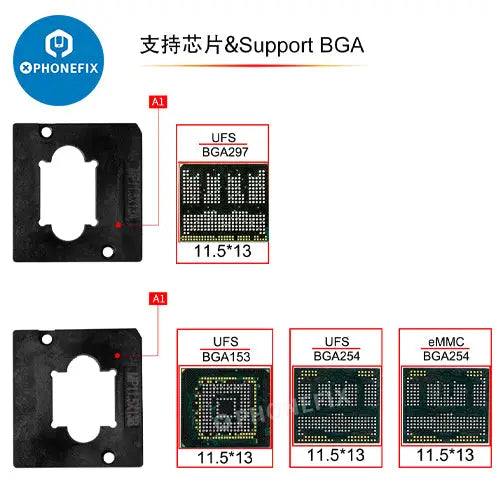

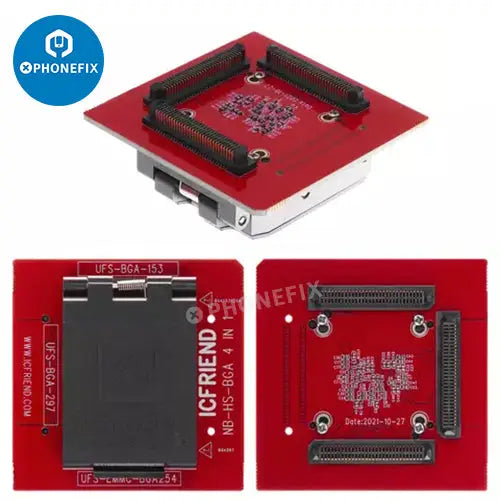

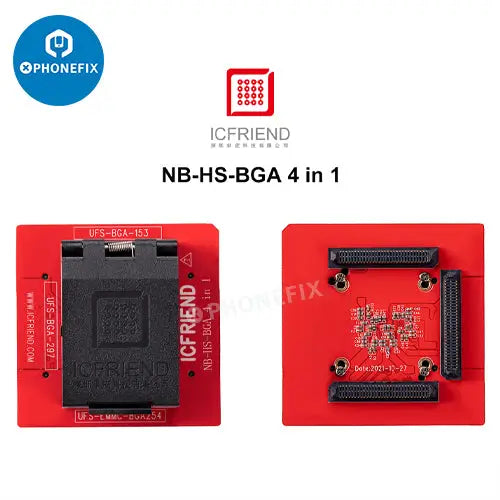

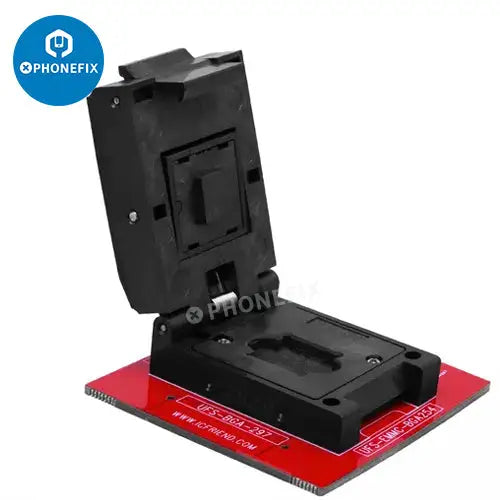

NB-HS-BGA 4 in 1 set:UFS-BGA-297
UFS-eMMC-BGA254
UFS-153

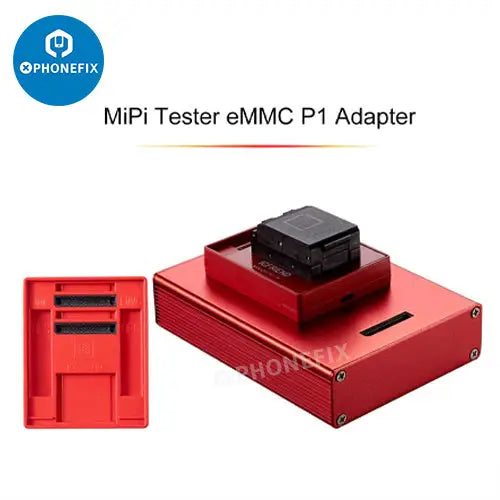

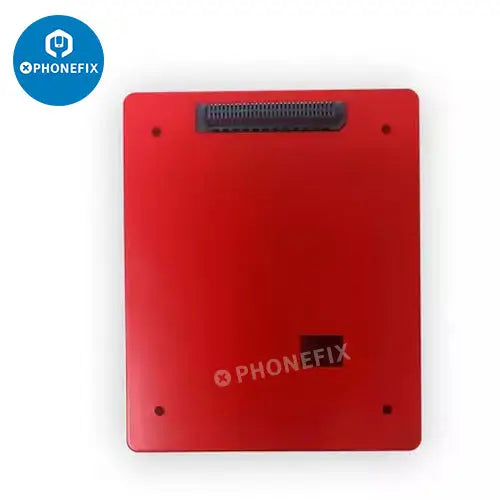

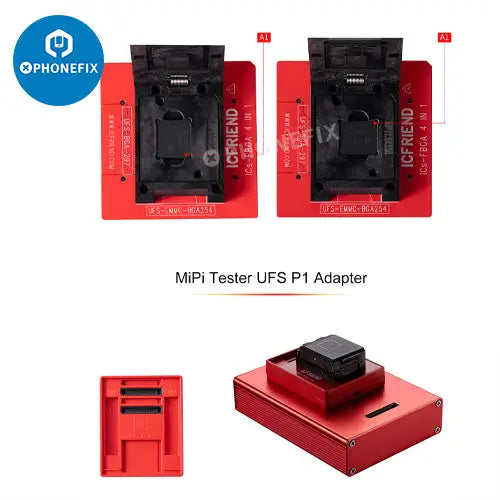

1x EMMC UFS P1 Adapter
Official website: https://En.MiPitester.compls use the lastest software, download link: https://mega.nz/folder/j0UChb5a#u0VzDbf3I-KQ-uMiU4BrPA
