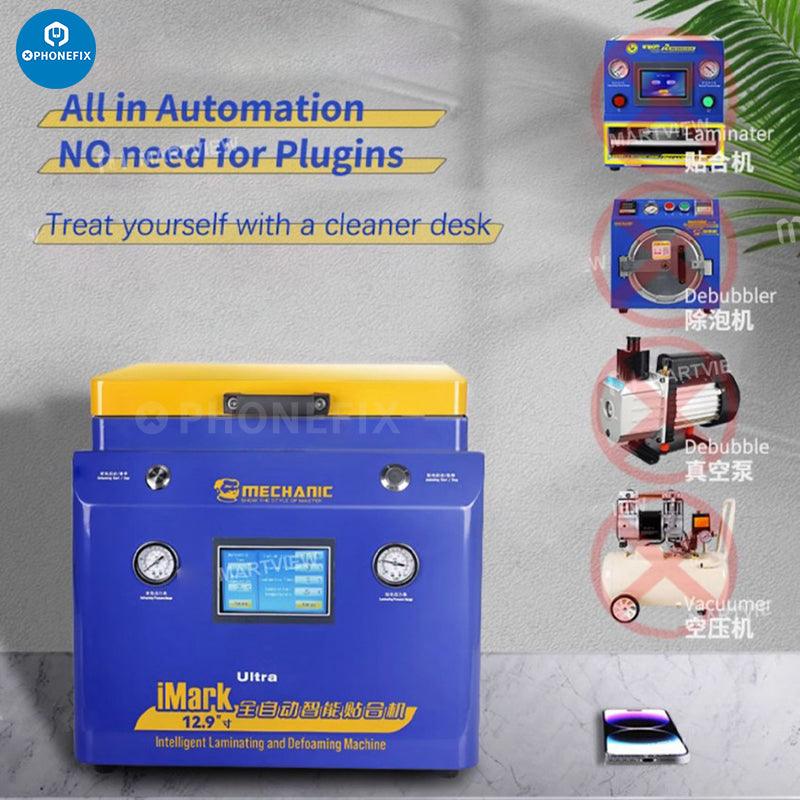

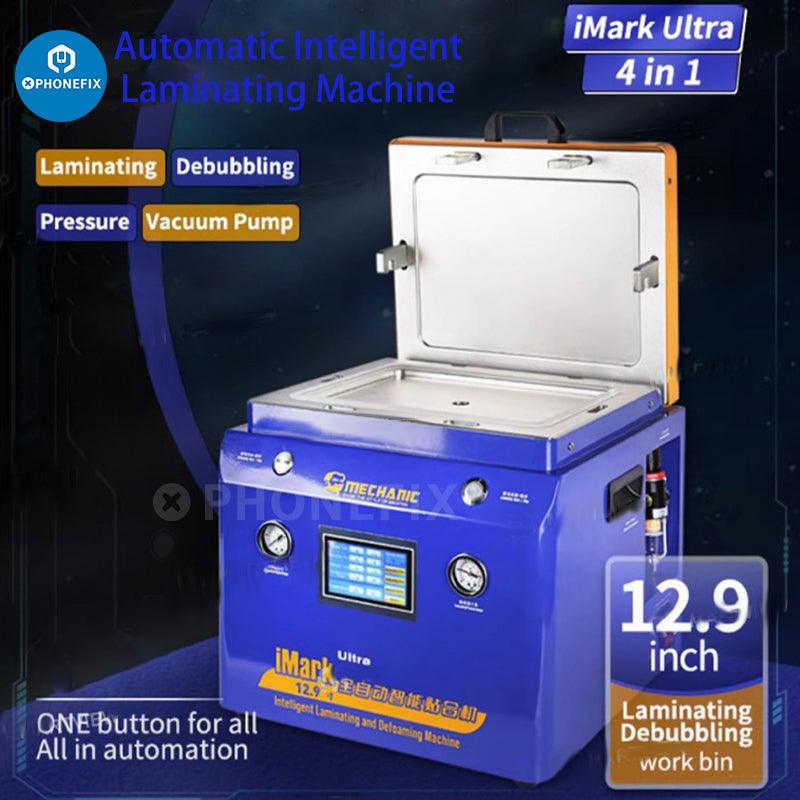

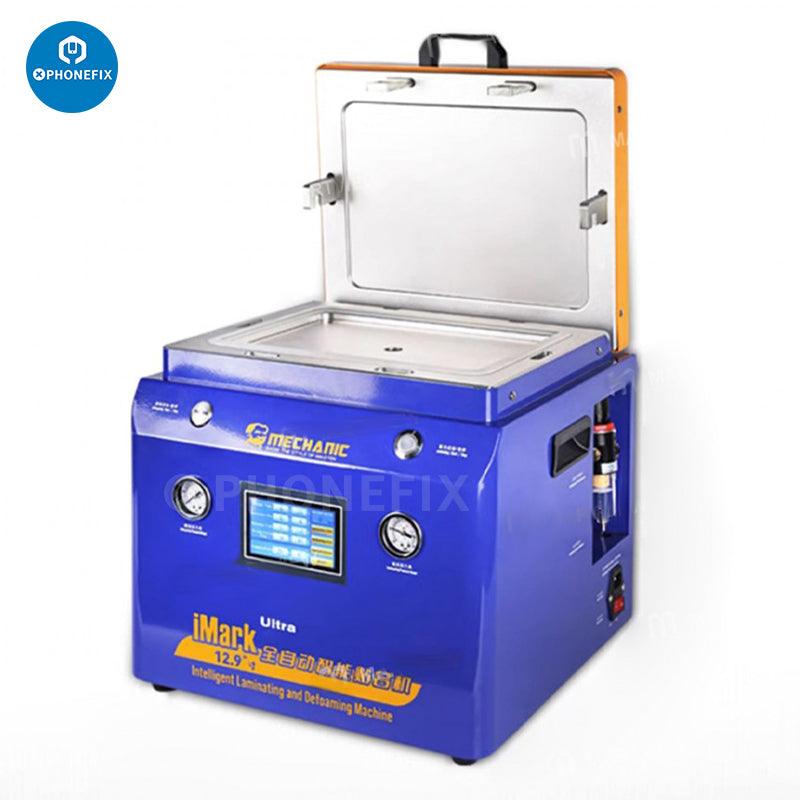

4 In 1 Mechanic iMark X Ultra Automatic Laminating/Debubbling/Pressure/Vacuum Compressor Intelligent Machine for Smart Phone Tablet Devices LCD Laminator Bubble Remover Screen Refurbishing Machine.
Features:
- Automatic intelligent lamington machine, support laminating for flat screen removes the bubble for the cover of flat screen operation easier and more stable.
- Laminating/Debubbling/Pressure/Vacuum Pump, 4 Functions in one, one button for all, all in automation.
- One-button starts for laminating and defoaming at the same time, it is a good helper for repairing the screen of repair phone.
- Designed for different laminating needs operation is faster and more efficient.
- Precise control temperature, lamination time, and defoaming time, vacuum time, and adjustable at any time.
- Support laminating for 12.9-inch most phones/pads, remove the bubble for the cover of LCD screen operation easier and more stable.
- Set a 50-degree constant temperature in the laminating place, laminating the mobile screens within the 12.9-inch size.
- Multi-safe lock debubble door, multi-safety bin door lock, double, lock to seal, ensure your experience.
Specification:
- Name: Laminating Debubbling Pressure Vacuum 4-in-1 Automatic Intelligent Machine
- Model: Mechanic iMark X Ultra
- Application: Screens below 12.9-inch size
- Voltage: 110V /220V
- Power: 350W
- Laminate Debubble Bin: 120*220mm
- Product size: 330*280*350mm
- Package size: 490*485*500mm
- Net weight: 44kg
Operation method:
- Turn on the power and press the power switch.
- Select the appropriate operating language on the display screen.
- Select the desired "operation mode" in the program and press the "Start" button to start running. (Note: The start button is also the stop button.)
- Cover plate fitting/flat plate fitting/straight screen fitting.
- The steps for setting parameters are the same. Click on Settings (the parameters have been set at the factory and generally do not need to be adjusted).
- If you need to click on the parameter you want to change, a keyboard will pop up, enter the parameter well and confirm.
- After setting it, click back.
Notice:

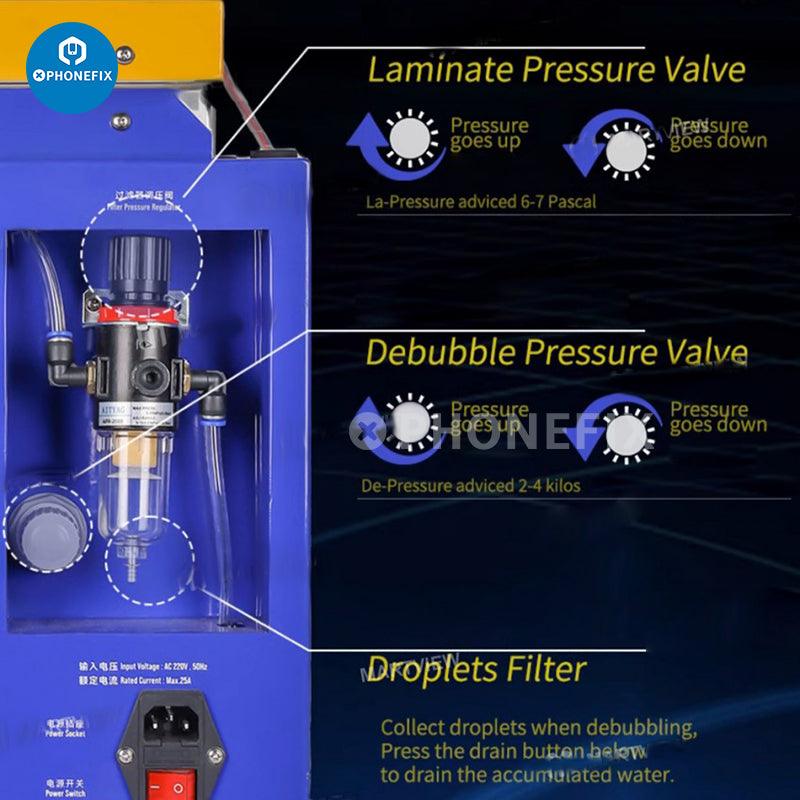

- When closing the cabin door, gently press it with your hand. If the cabin door leaks, it will cause a low vacuum value, and the set vacuum value may not be reached during operation, causing the equipment to not fit properly
- If the equipment does not fit properly, first check whether the cabin door is closed properly and whether the sealing rubber ring is intact without air leakage. If you hear a sound of air leakage inside the machine, open the back cover and check to see if the air pressure pump and air pipe are properly connected for air leakage
Package includes:
- 1 x iMark X Ultra
- 1 x Power Cable
