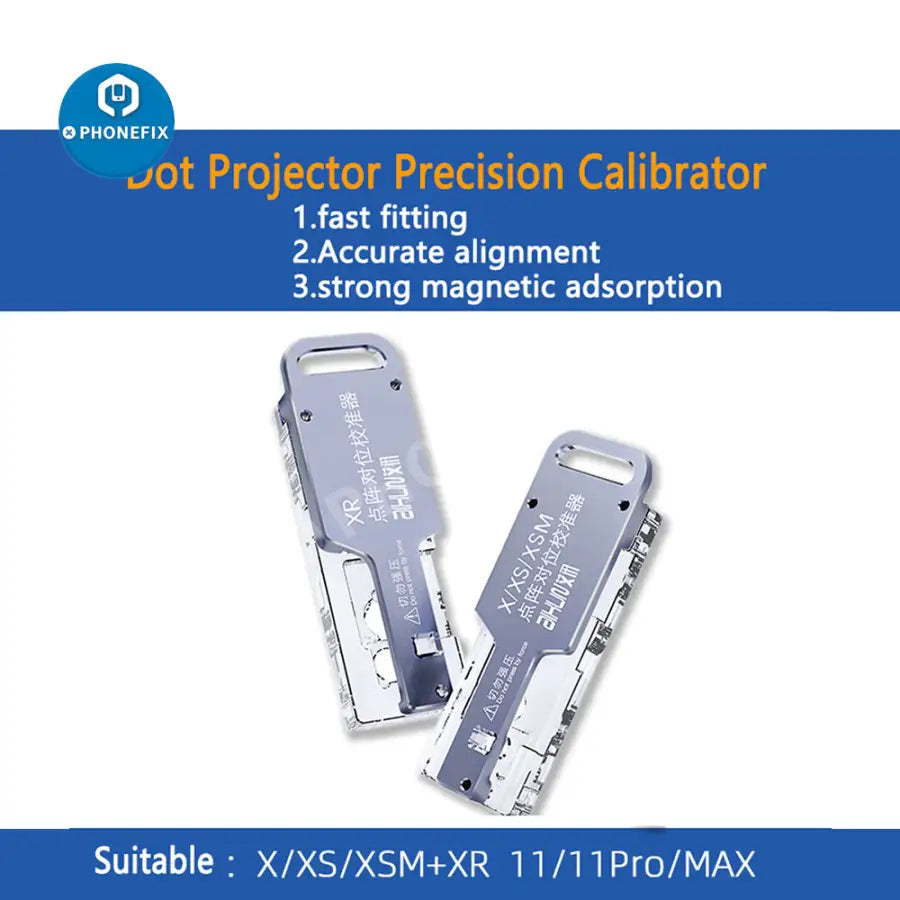

1. Precise alignment and quick fit.
2. Reset test of iron frame deformation.
3. Realize the standardized maintenance of dot projector alignment.
4. Standard positioning, magnetic reset.
5. Transparent polymer materials.

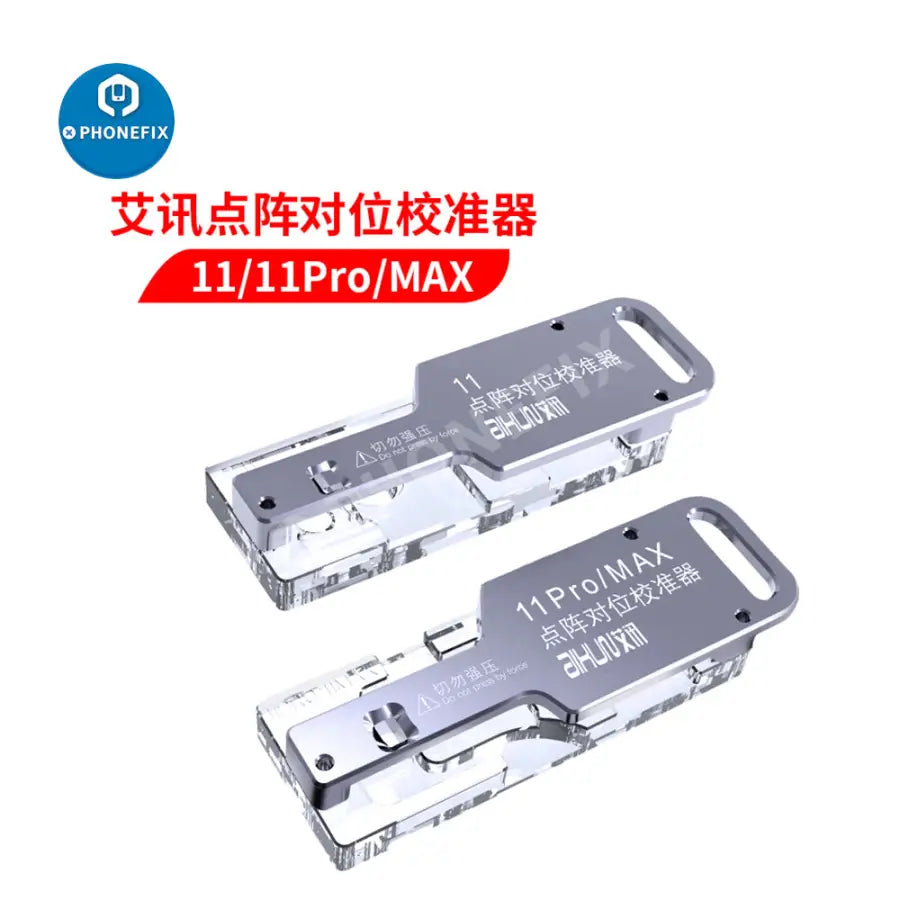

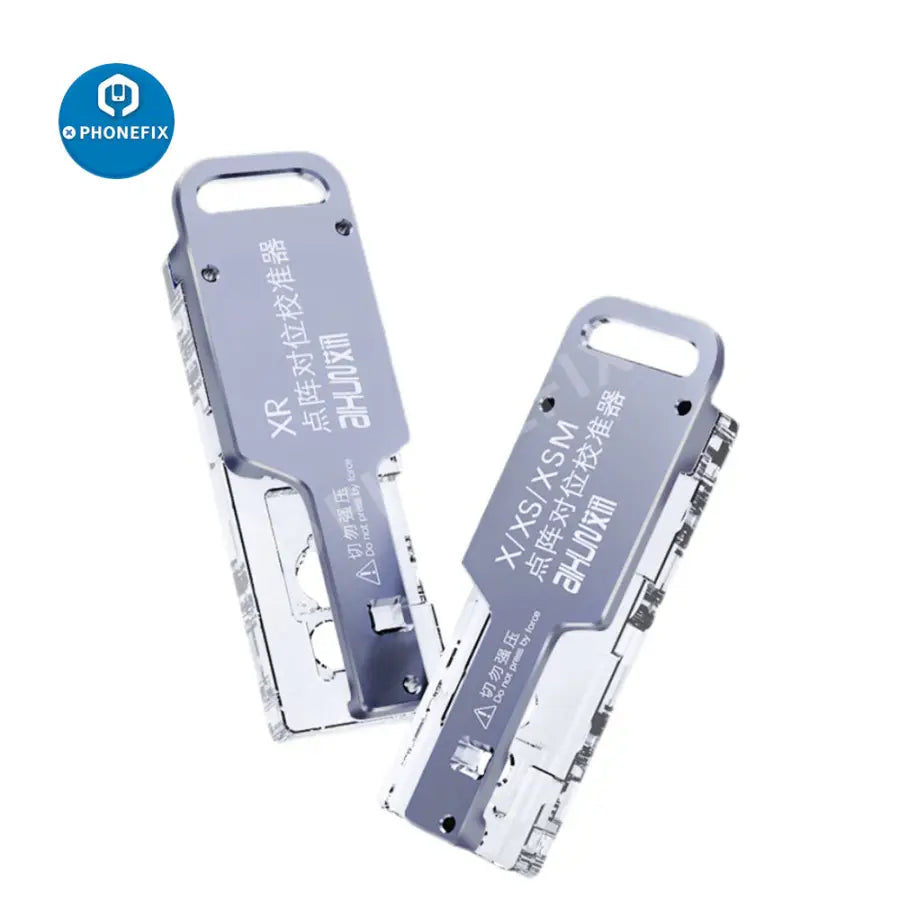

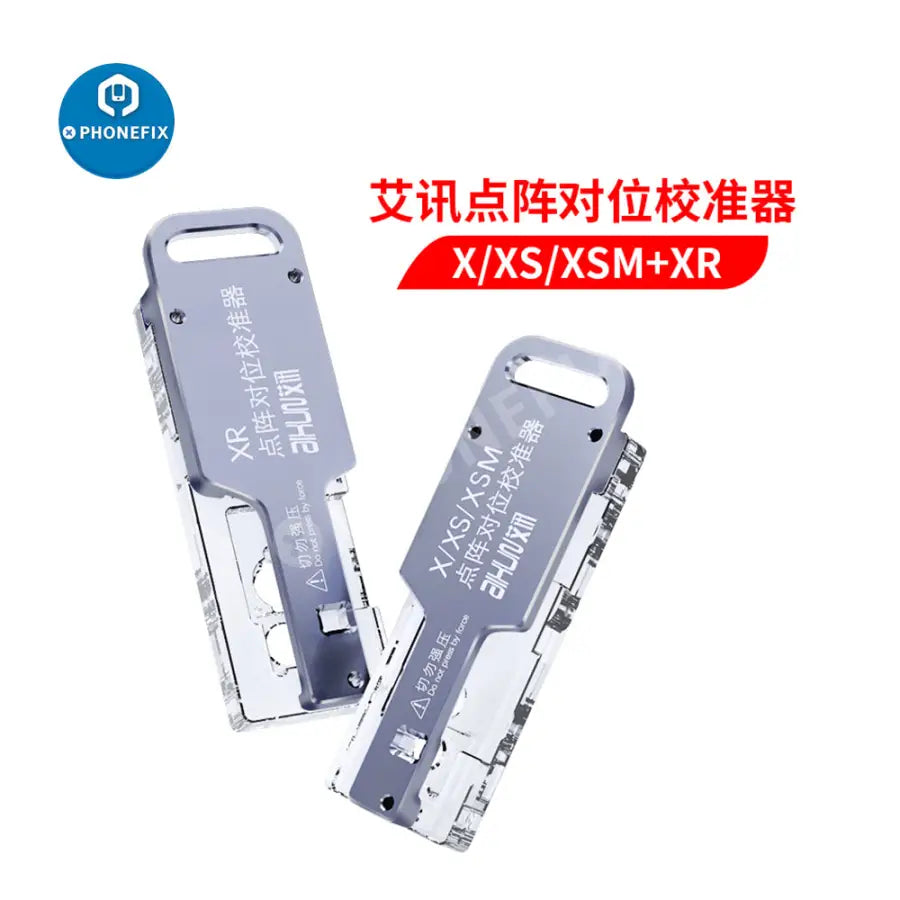

6. Suitable: X/XS/XSM+XR 11/11Pro/MAX

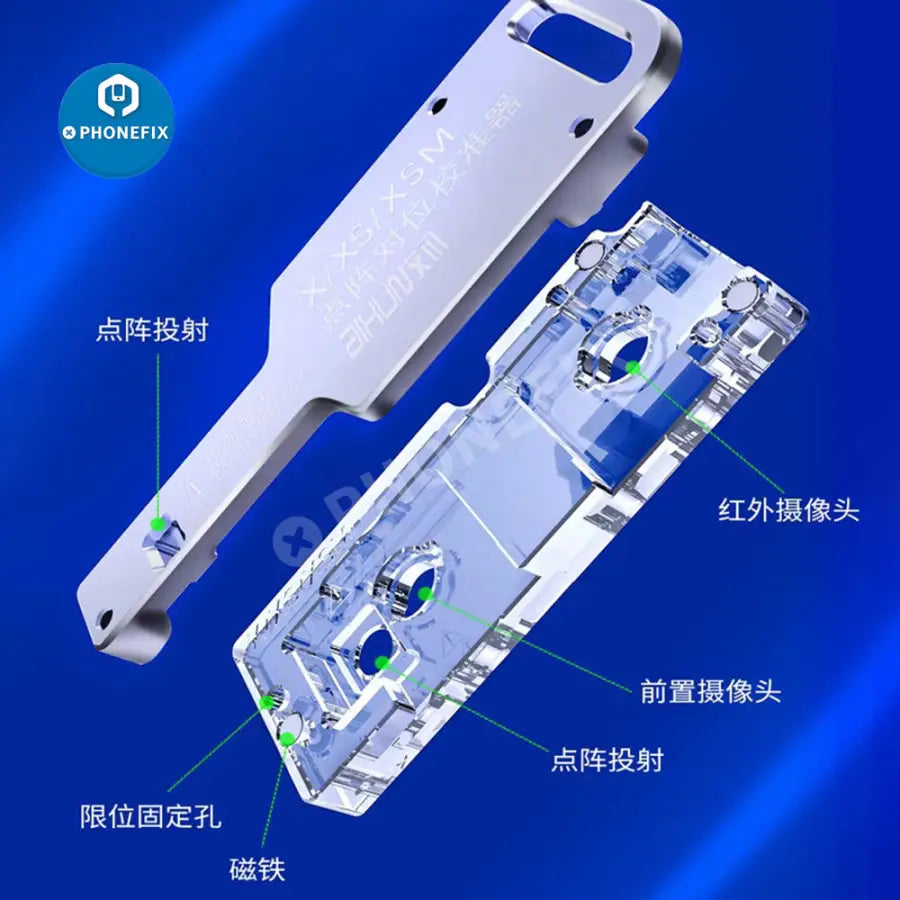

Step 01: Buckle the face ID module. Put the corresponding dot projector face lD module into the alignment calibrator base.
Step 02: Put on the top cover Built In strong magnetic adsorption, fix it more firmly and align accurately.
Step 03: Adjust the dot projector flex cable Move the cable slightly to complete alignment. Do not force the module.
After alignment, there ls no gap between the cover plates.

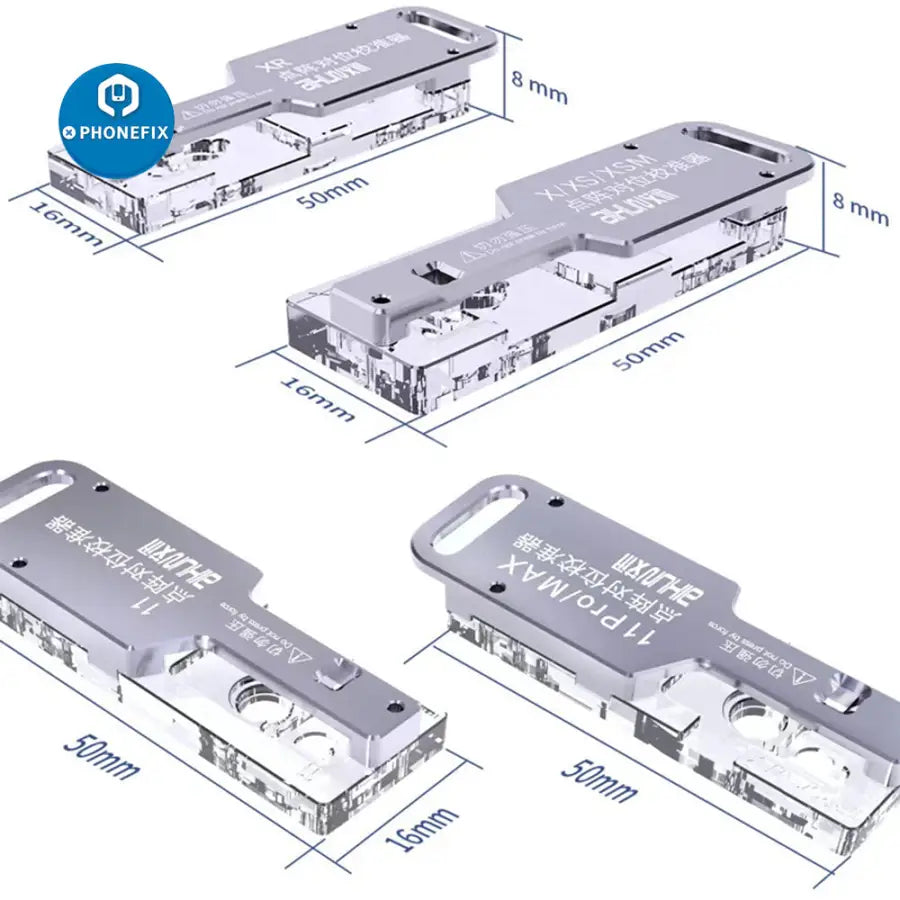

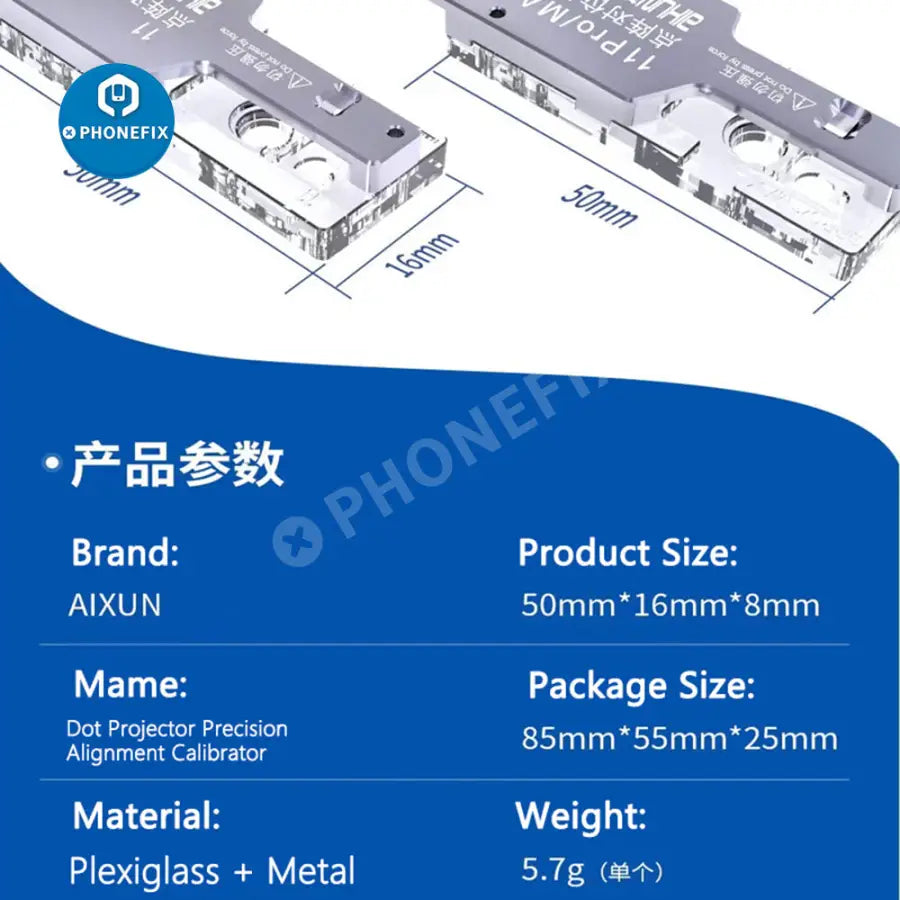

Product Size: 50mm*16mm*8mm
Package Size: 85mm*55mm*25mm
For X XS XR XSMAX, For 11 11pro 11Pro Max, X-11Promax Full set
