JCID V1S Pro programmer replaces JC Pro1000s for iPhone iPad repair. Strongest JCID V1S Pro programmer with different functional modules for iPhone 6-17 Pro Max repair, such as iPhone Nand flash programming, iPhone Face ID, battery, screen true tone repair, ect.
JCID 12-15PM front/rear camera and Radar read/write module for iPhone 12/13/14/15 series front camera and rear camera repair.
JCID 13/14Pro Series Screen True Tone Repair Adaptor Has Been Released! JCID V1SE/V1SPro Screen True Tone Repair Board Fixes iPhone 13Pro/13 Pro Max/14Pro/14 Pro Max True Tone Function With/Without Original Screen.
JCID V1S Pro 11 Series Non-Removal Nand Read Write Module was released on August 2: JCID V1S Pro 11 Series Non-Removal Nand Read Write Module supports reading and writing iPhone 11/11Pro/11 Pro Max Nand Flash data without dismantling, copying data quickly and flawlessly. Read, write and backup iPhone 11 series Nand flash SYSCFG data without dismantling.

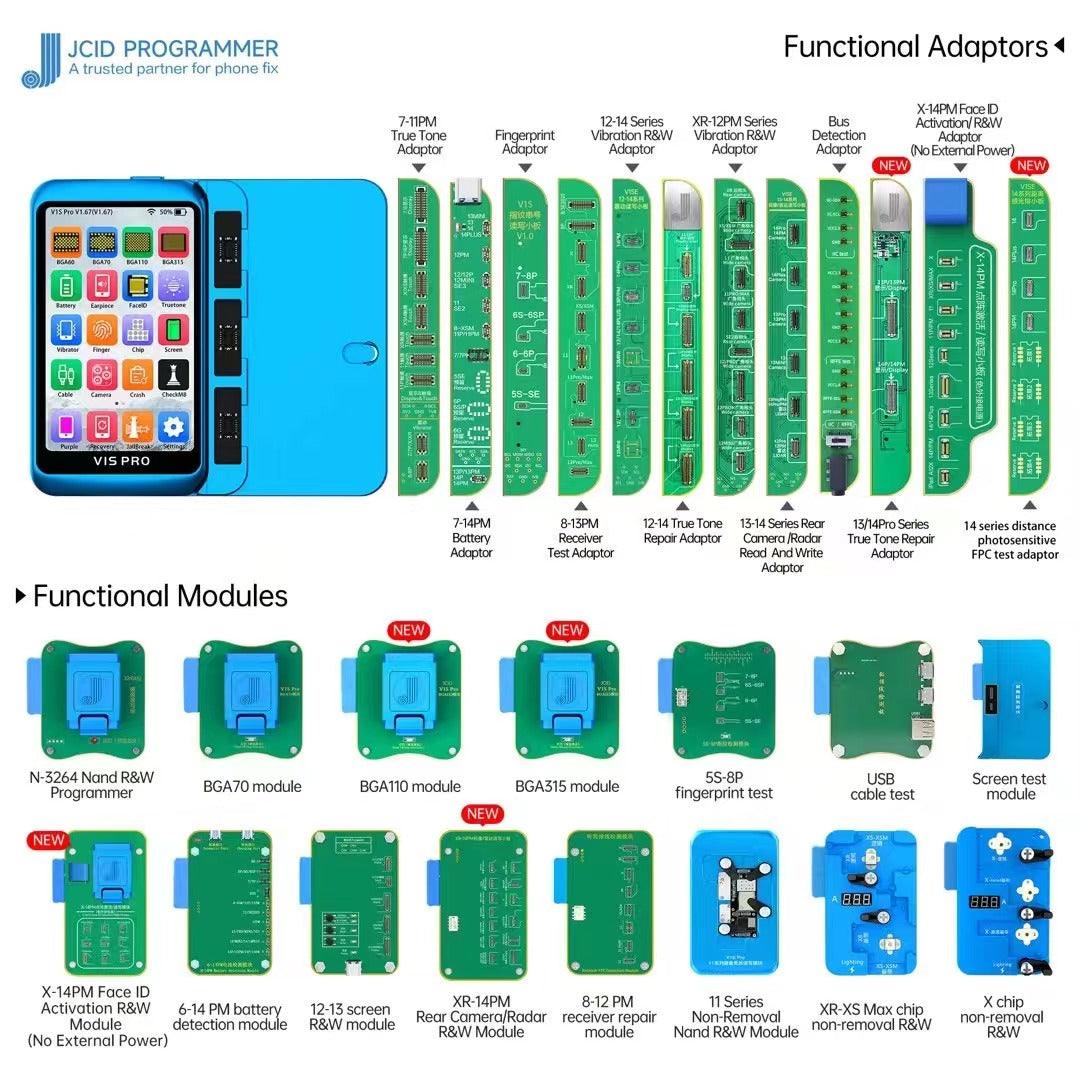

Most JC Pro1000S modules and V1S/V1SE boards can be used on the V1S PRO Programmer.
JCID V1S PRO Main Features:
1. For iPhone 6-14 Pro Max BGA315 BGA110 BGA70 BGA60(32/64bit) NAND memory chip read and write formatting.
2. DFU purple screen without disassembly for iPhone 6-X iPad iPod.
3. Unbinding WiFi without restoring.
4. Modify the syscfg data.
5. Read and write iPhone screen information, one-click repair iPhone true tone.
6. Read and write iPhone battery information and fix it with one click, calibrate battery health data, solve battery pop-up problems.
7. Read and write the iPhone fingerprint serial number and fix it with one click.
8. Read and write iPhone dot projector data, fix iPhone Face ID issues.
9. More modules and features will be released in the future.

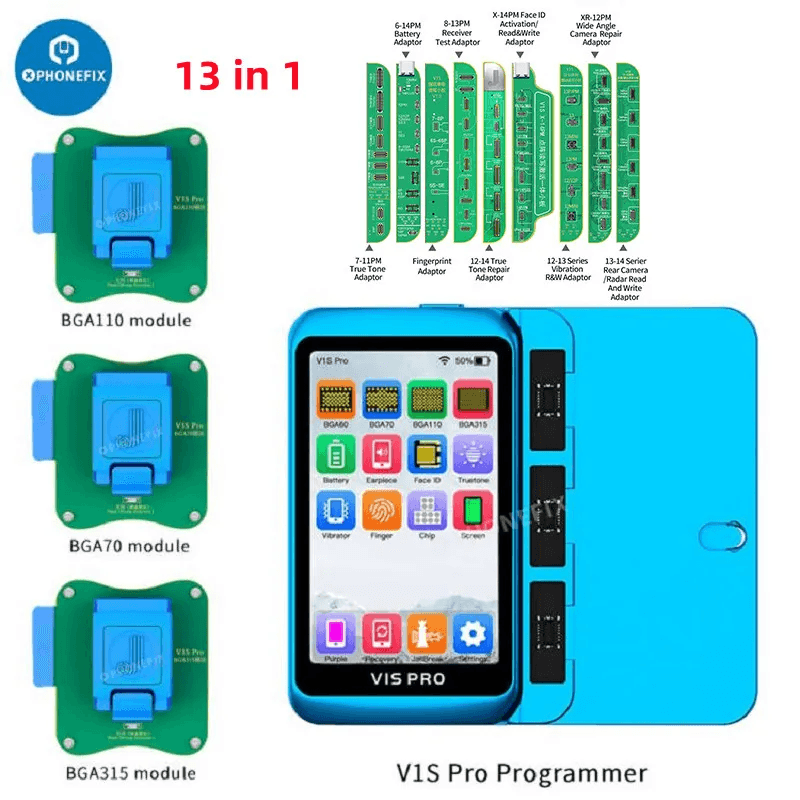

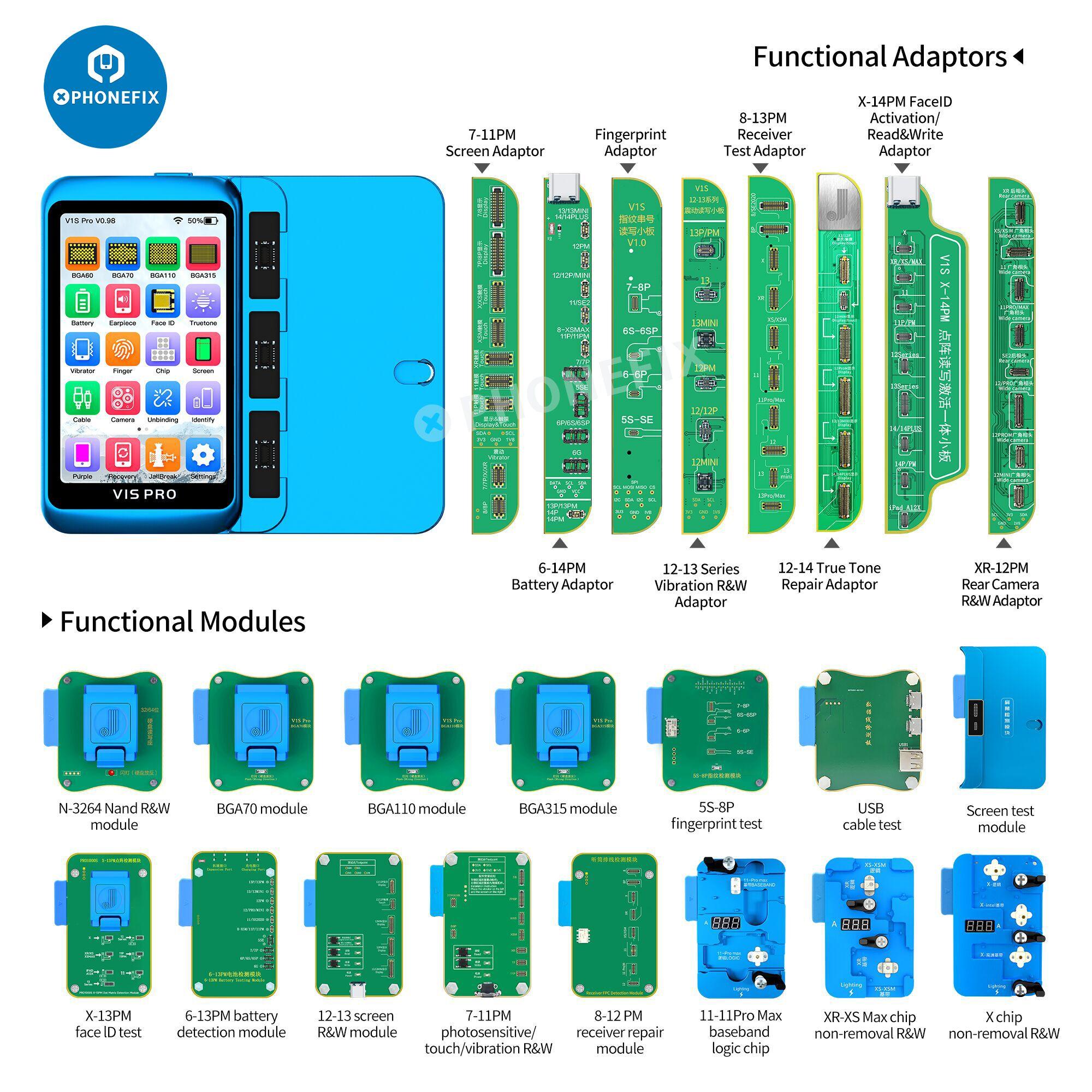

Option:

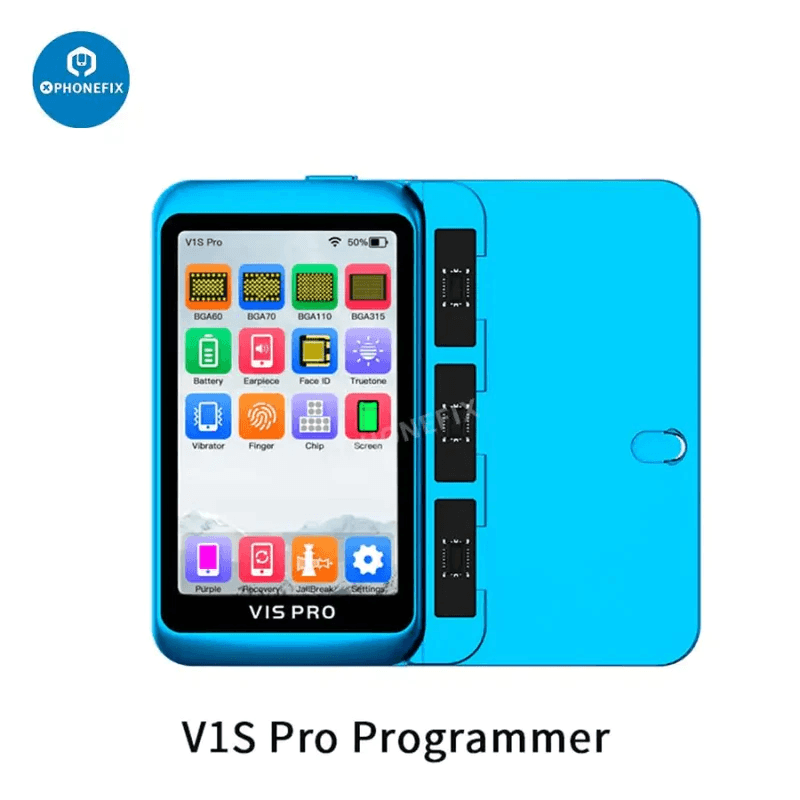

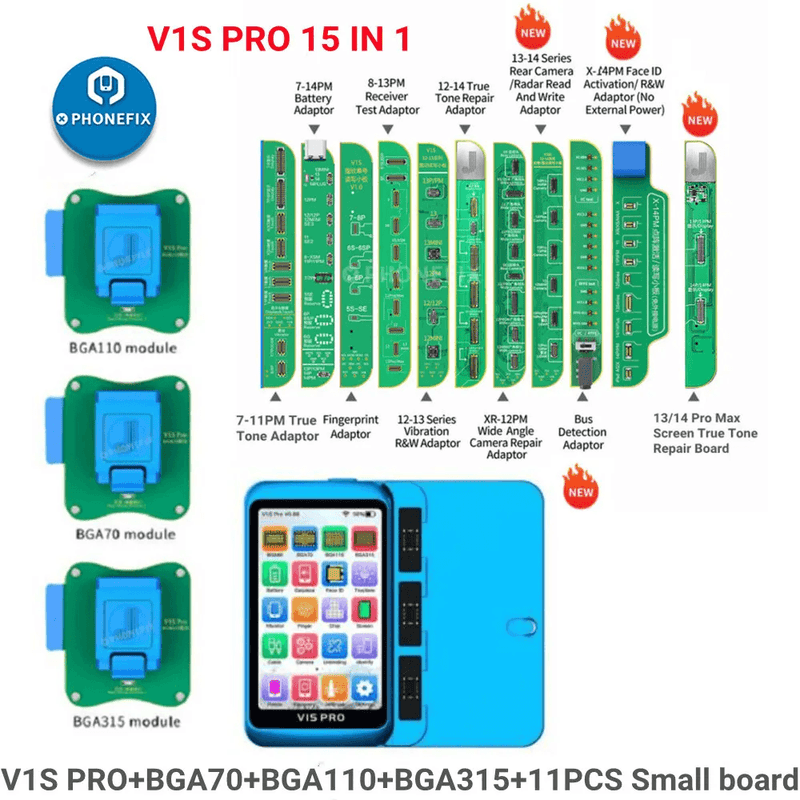

1. JCID V1S PRO main unit.

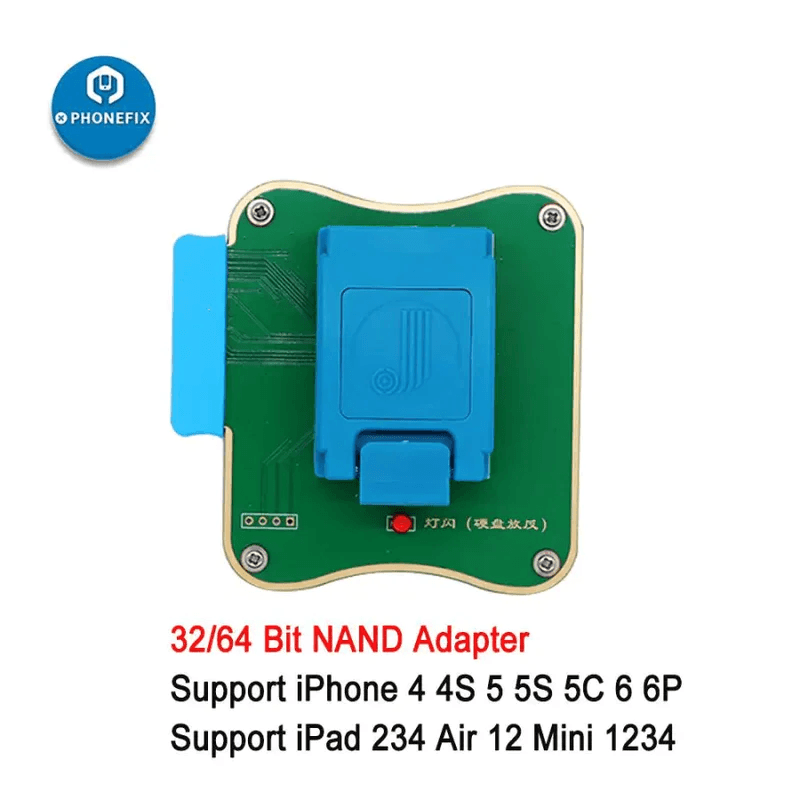

2. BGA60 module: for iPhone 6/6P iPad 32/64 bit Nand flash.

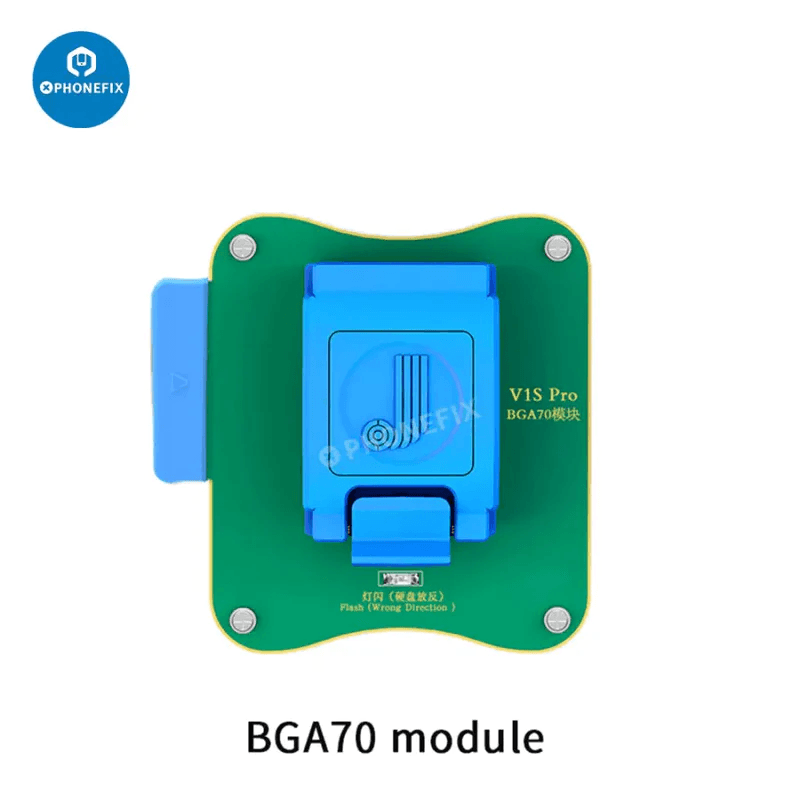

3. BGA70 module: for iPhone 6S-7 Plus Nand flash.

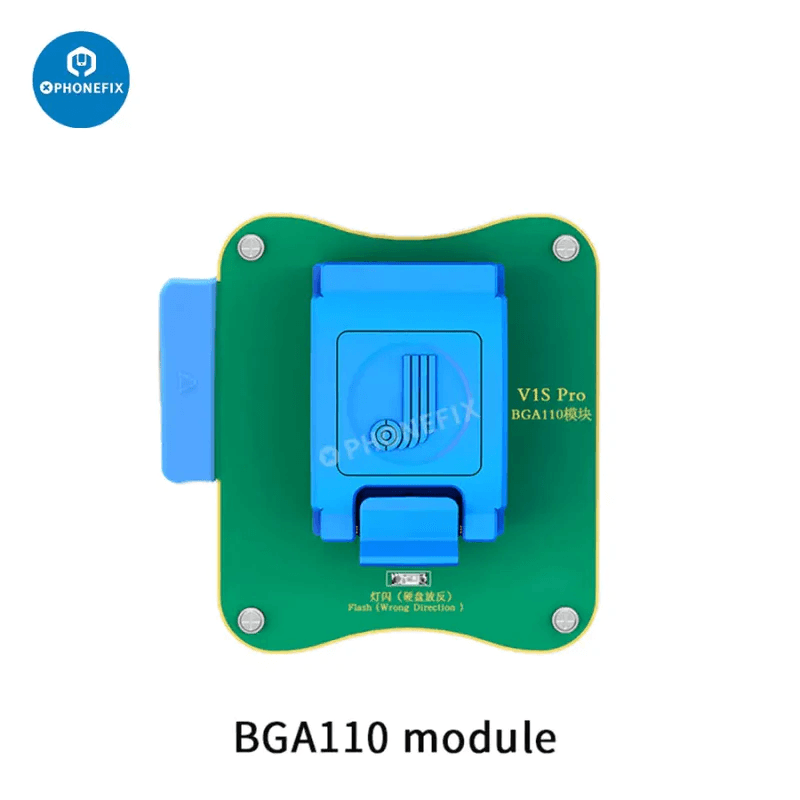

4. BGA110 module: for iPhone 8-13 Pro Max Nand flash.

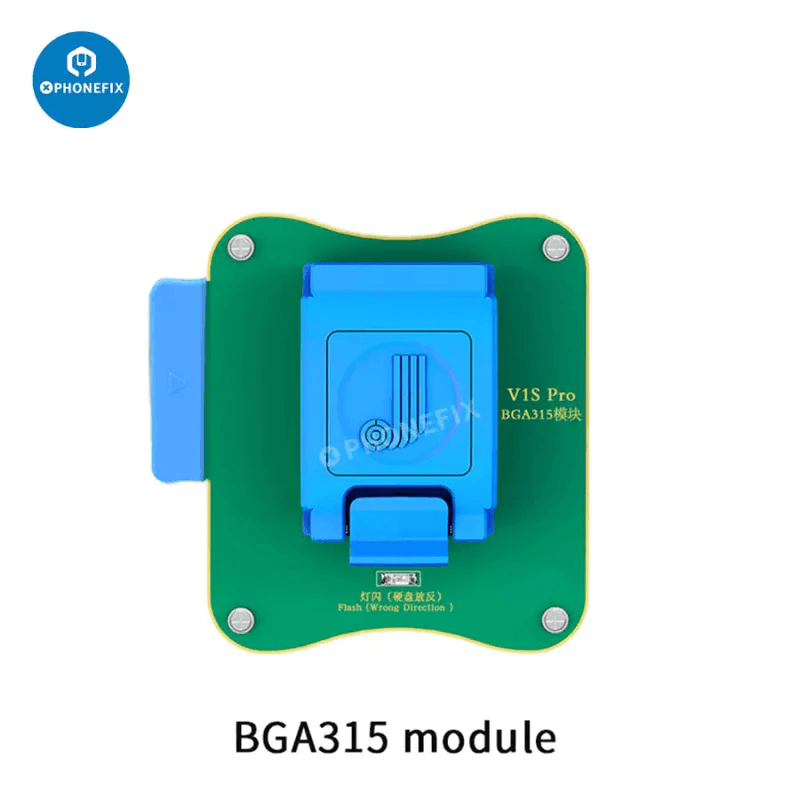

5. BGA315 module: for iPhone 14 series Nand flash.

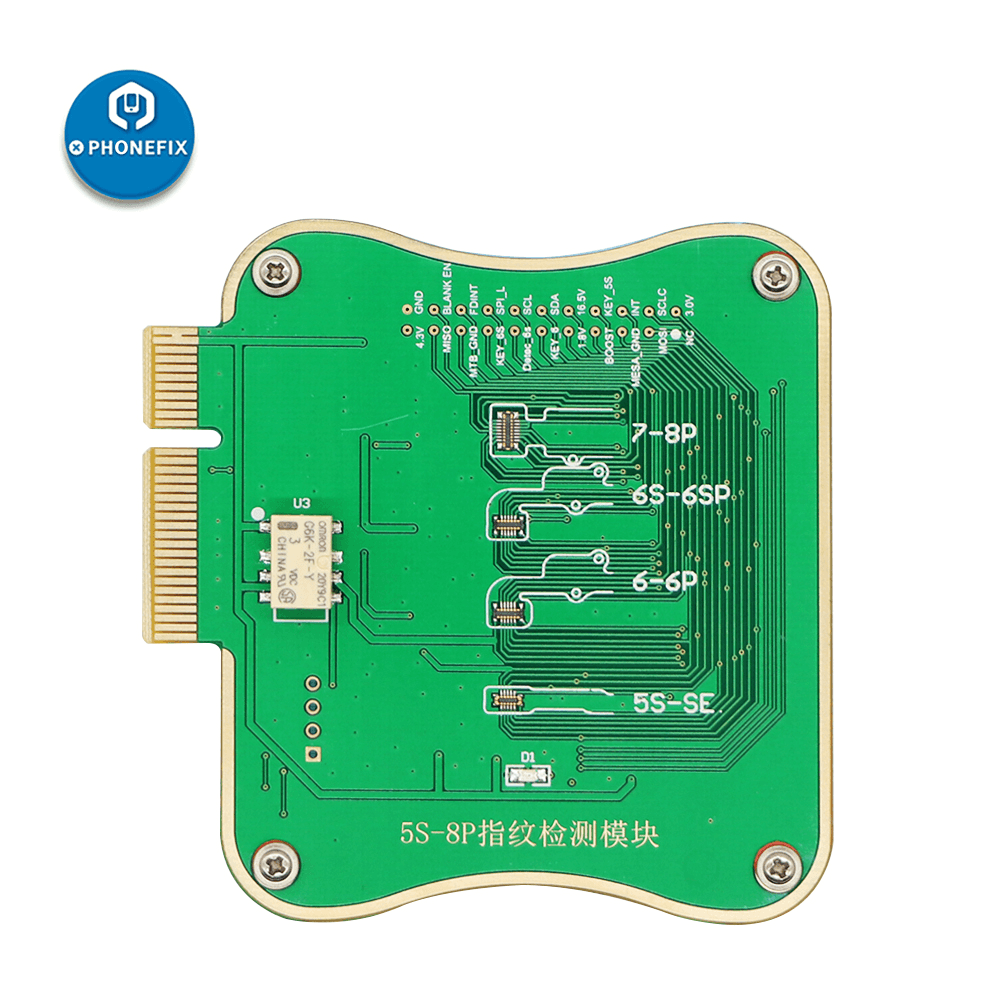

6. FPT-1 fingerprint module: for iPhone 5S-8 Plus home button fingerprint SN read write.

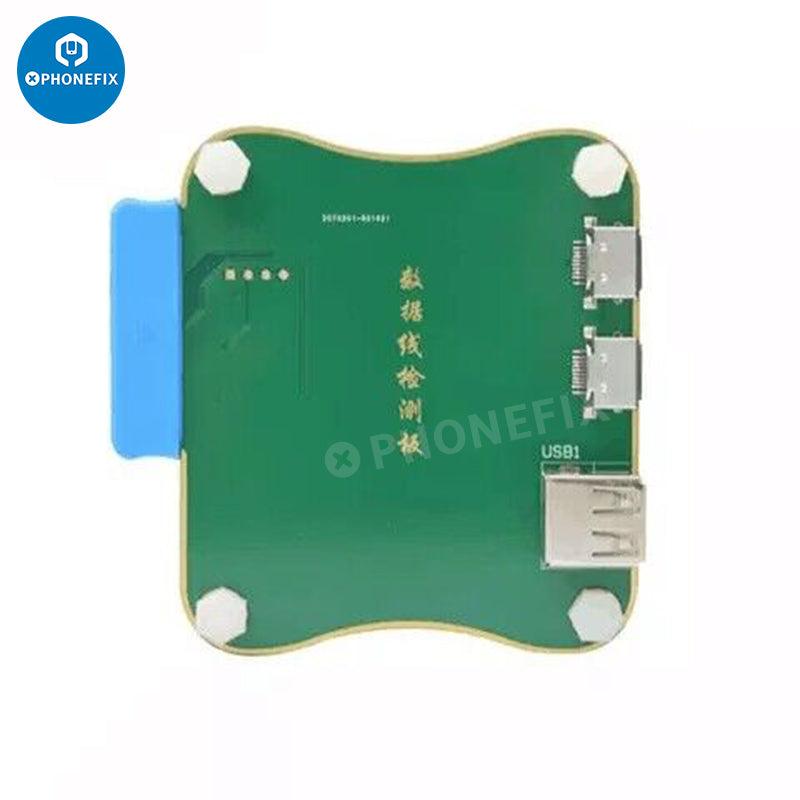

7. CBL-1 lightning cable module: to identify if the MFI Lightning cable is original or imitation.

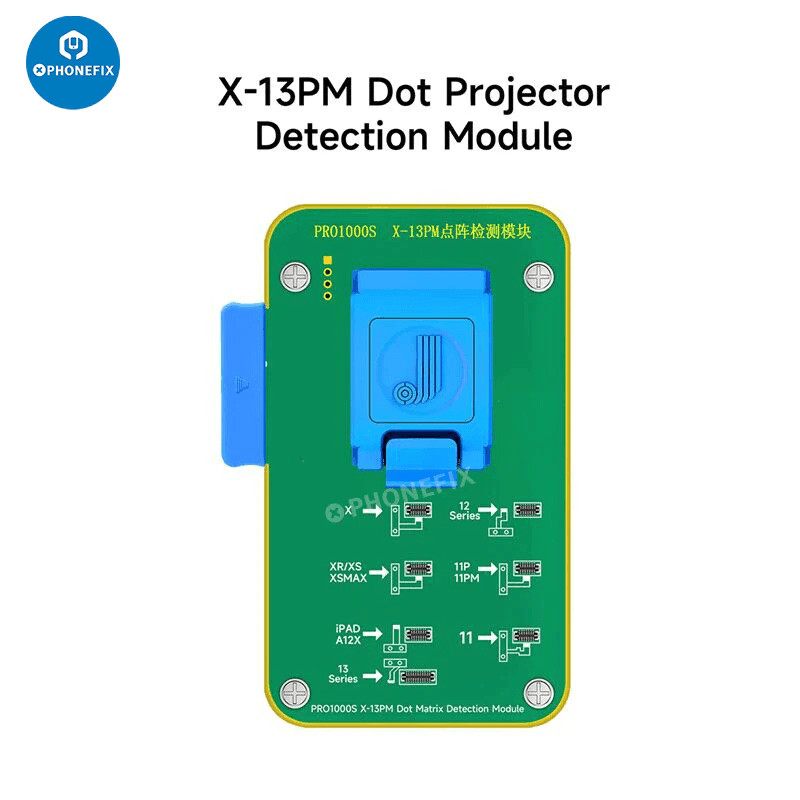

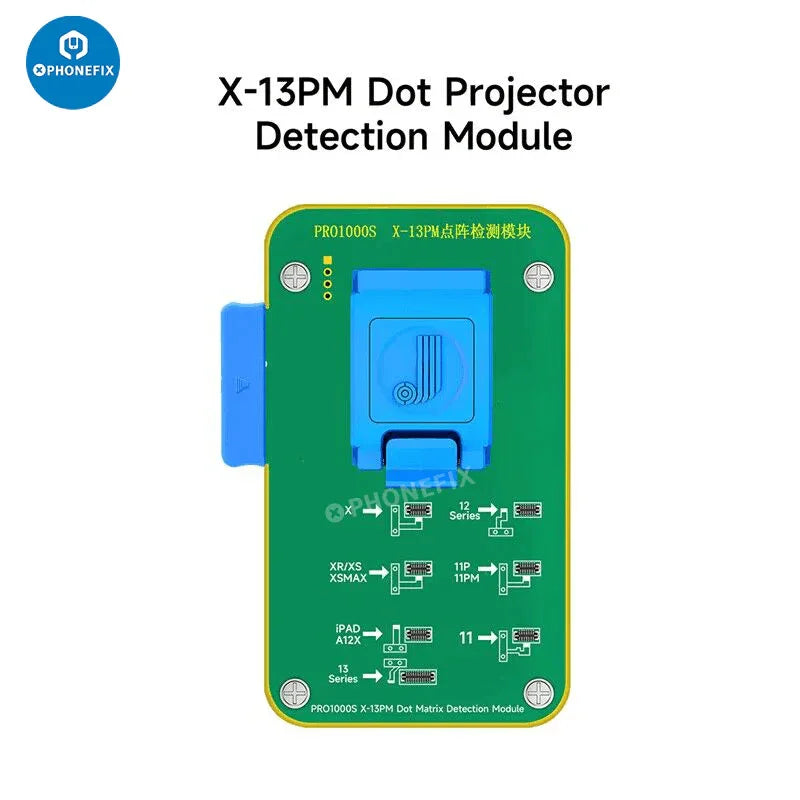

8. Dot projector module: for iPhone X-13 Pro Max dot projector Face ID.
9. JCID 8-15PM Battery Internal Resistance Detection Module for iPhone 8-15 Pro Max Battery Cells Read and Write.

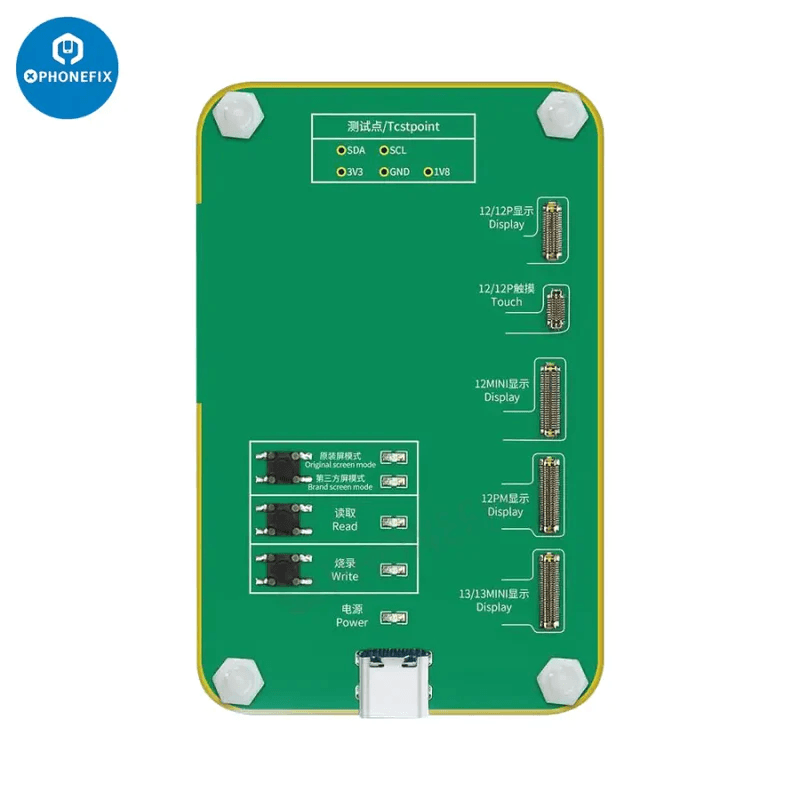

10. Screen module: for iPhone 12-13 screen true tone repair (discontinued).

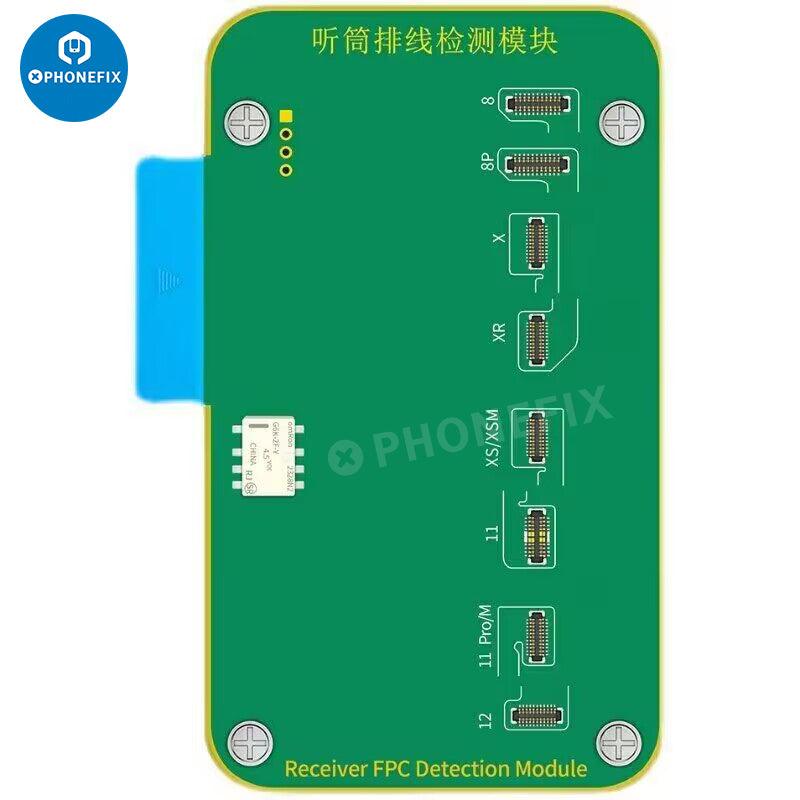

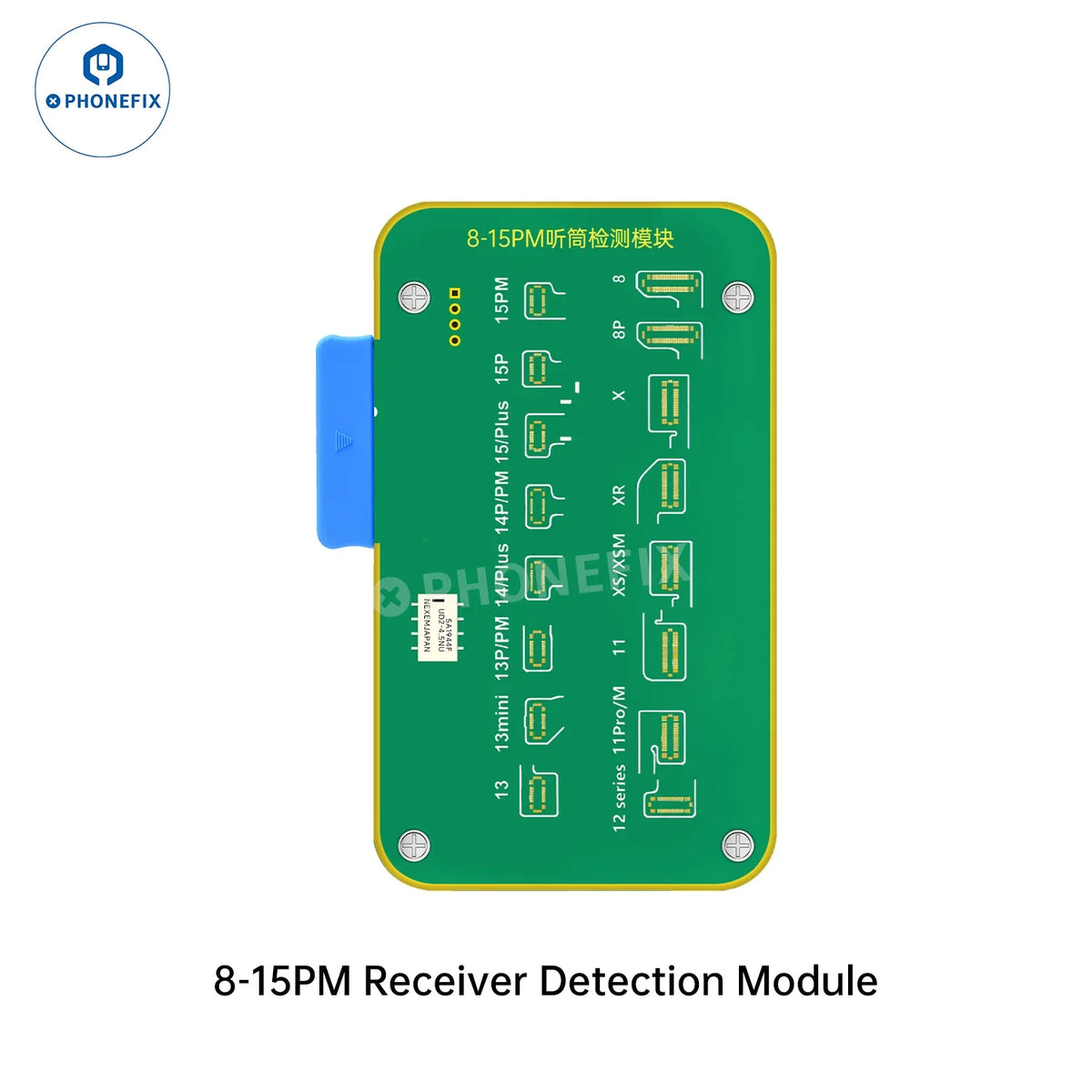

11. Receiver module: for iPhone 8-15 Pro Max receiver FPC repair.

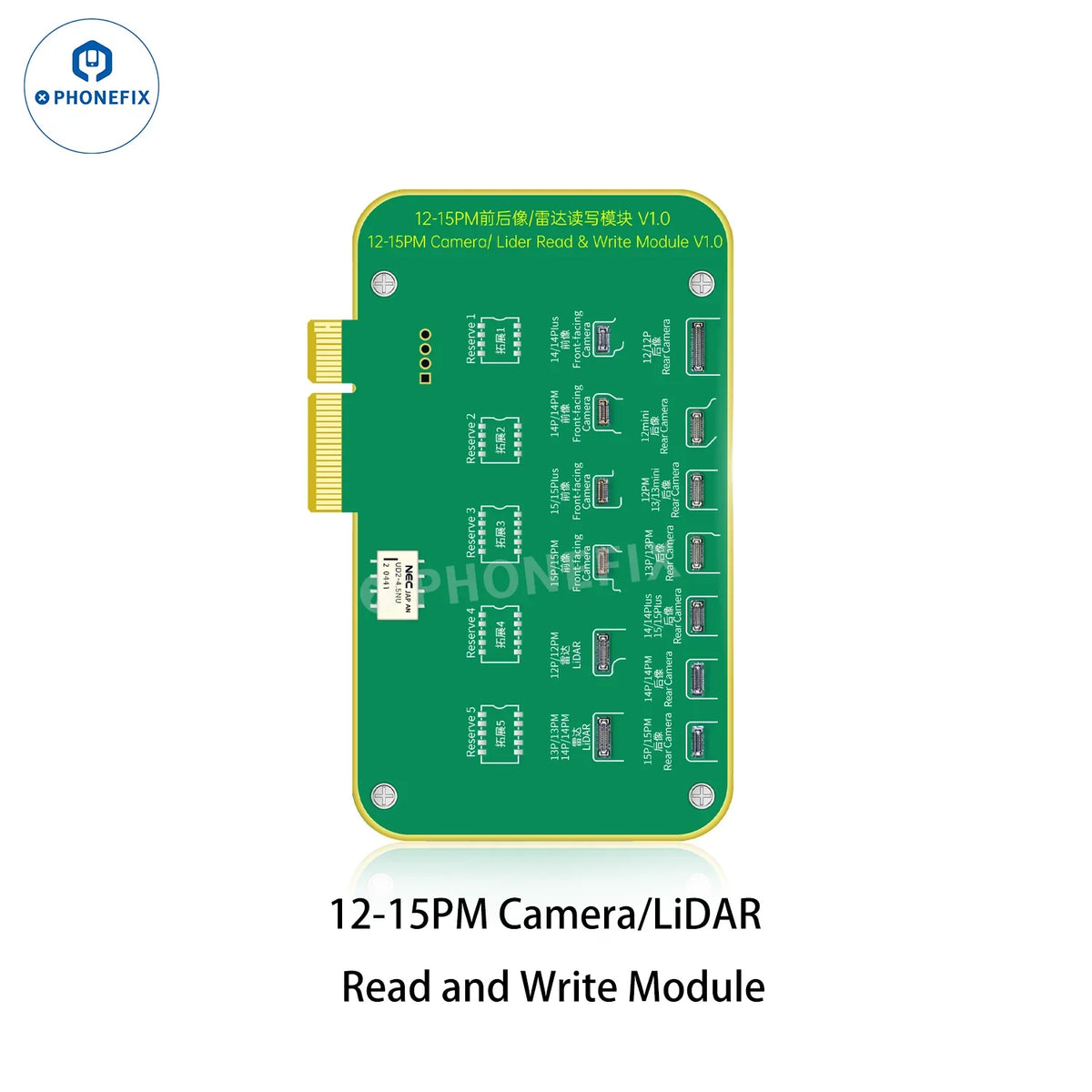

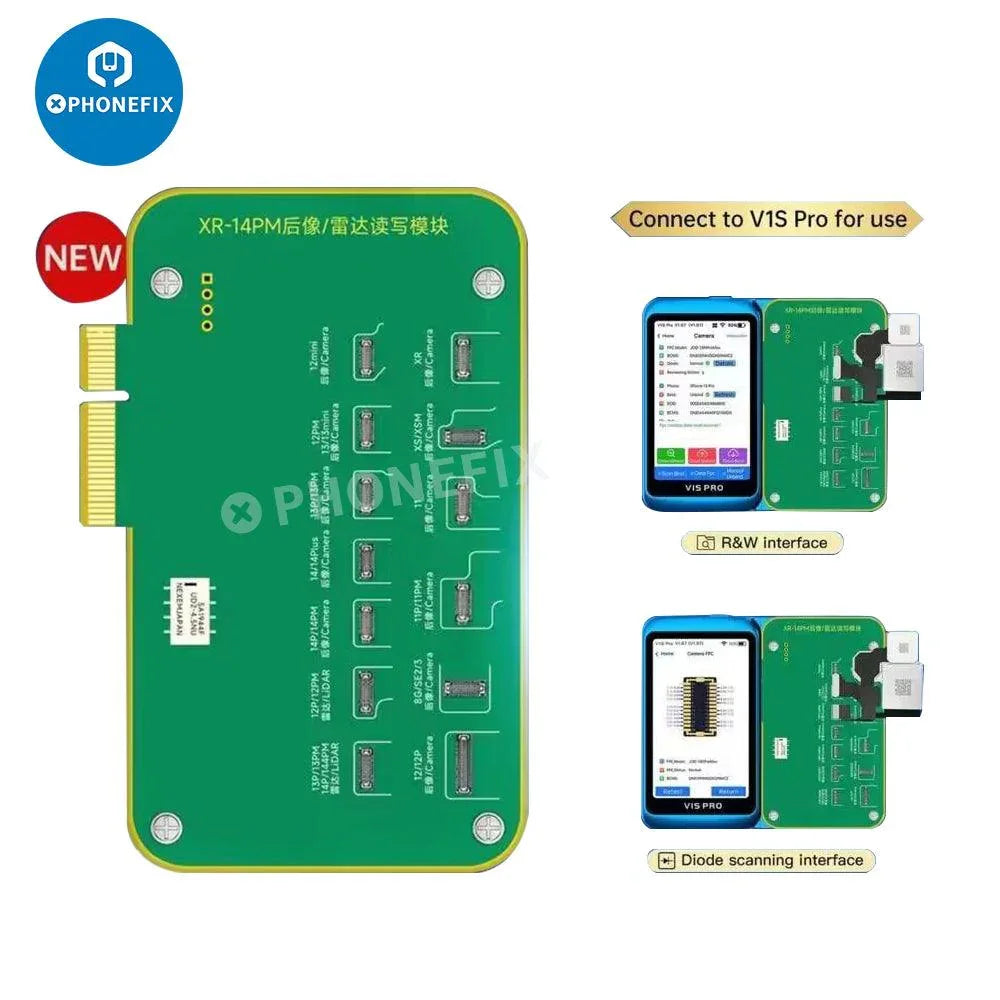

12. JCID 12-15PM front/rear camerr and Radar read/write module for iPhone 12/13/14/15 series front camera and rear camera repair.

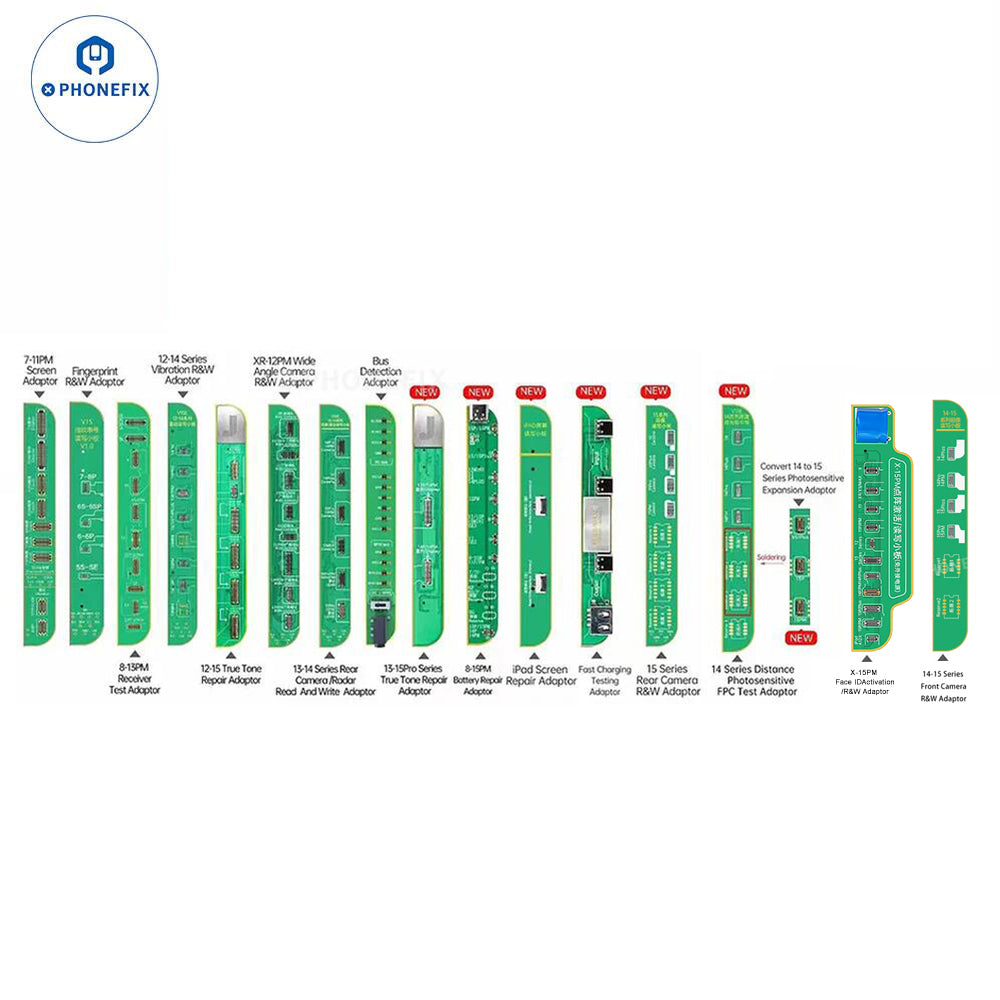

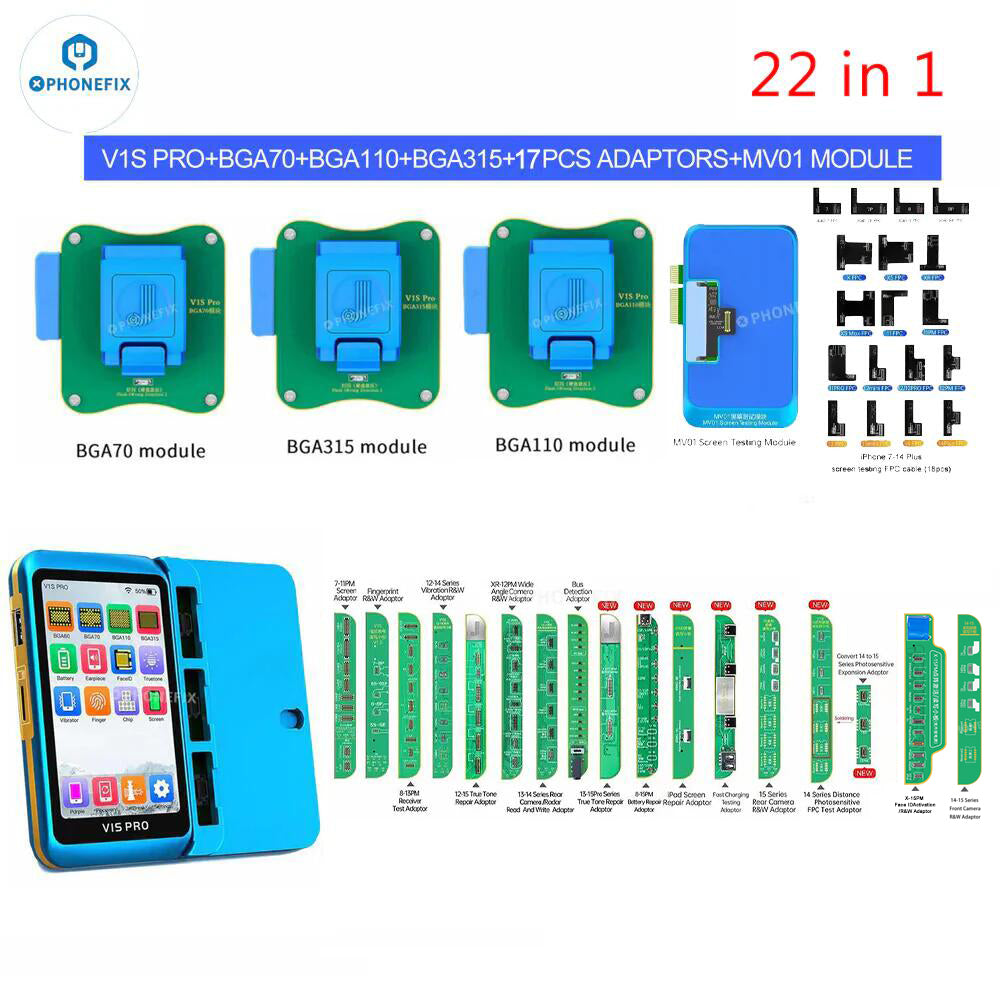

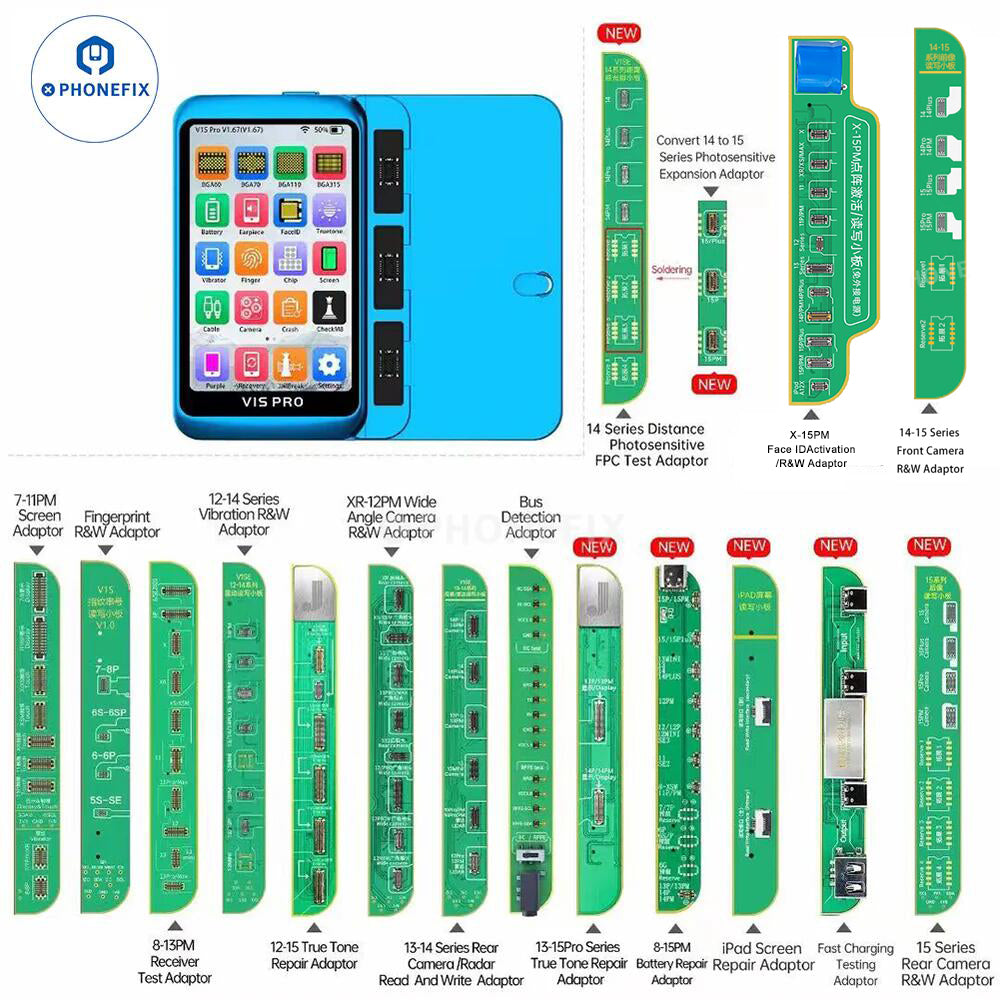

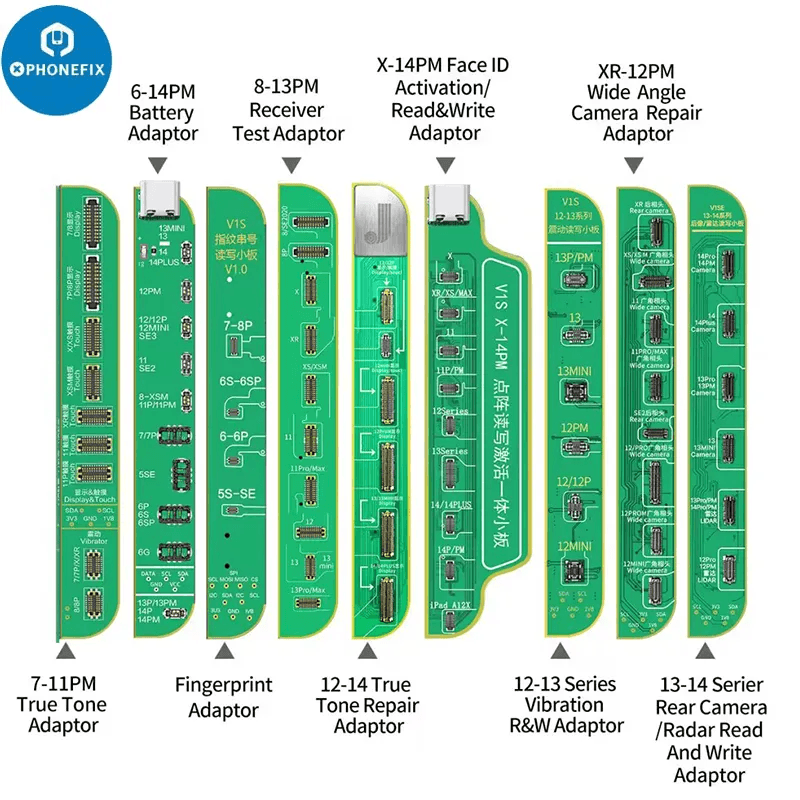

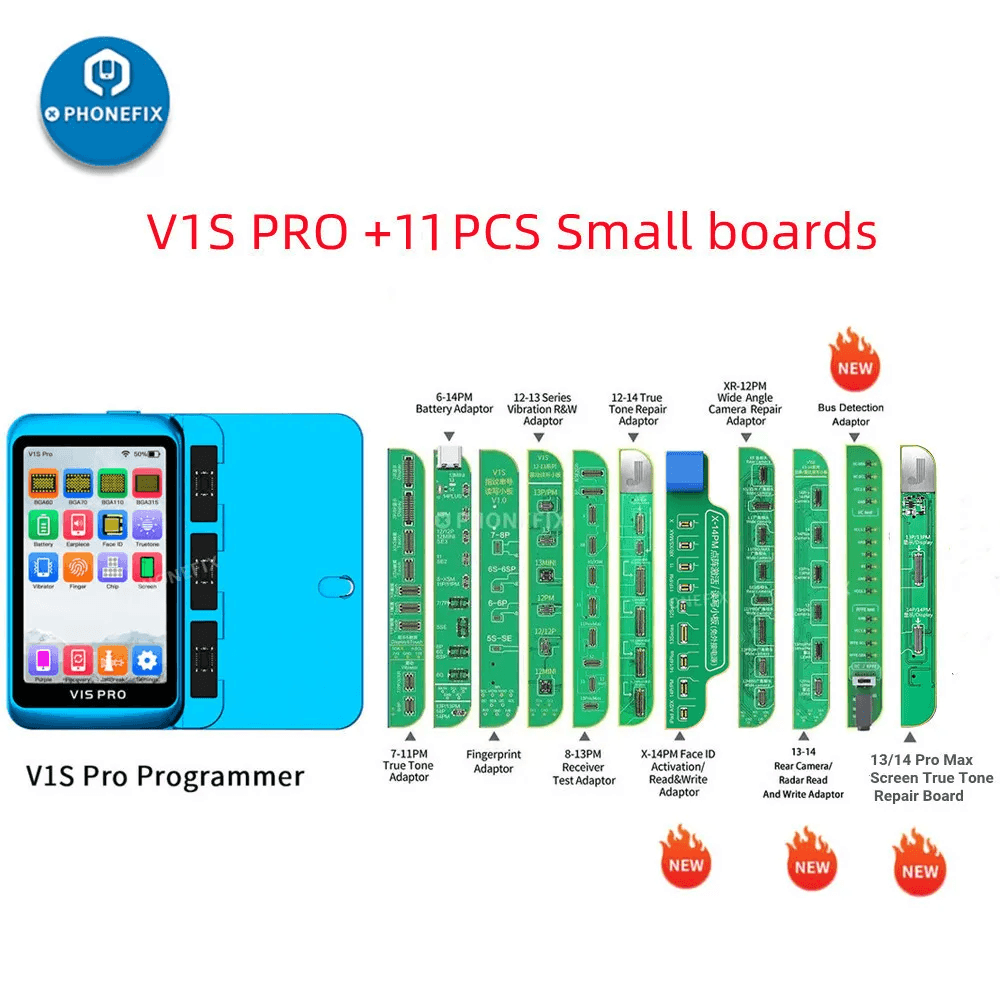

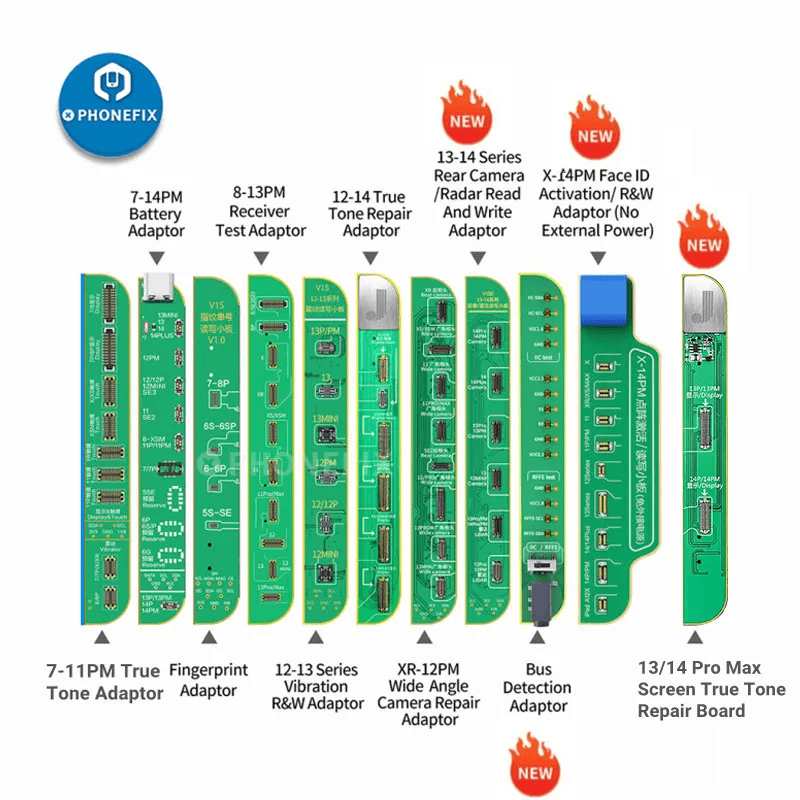

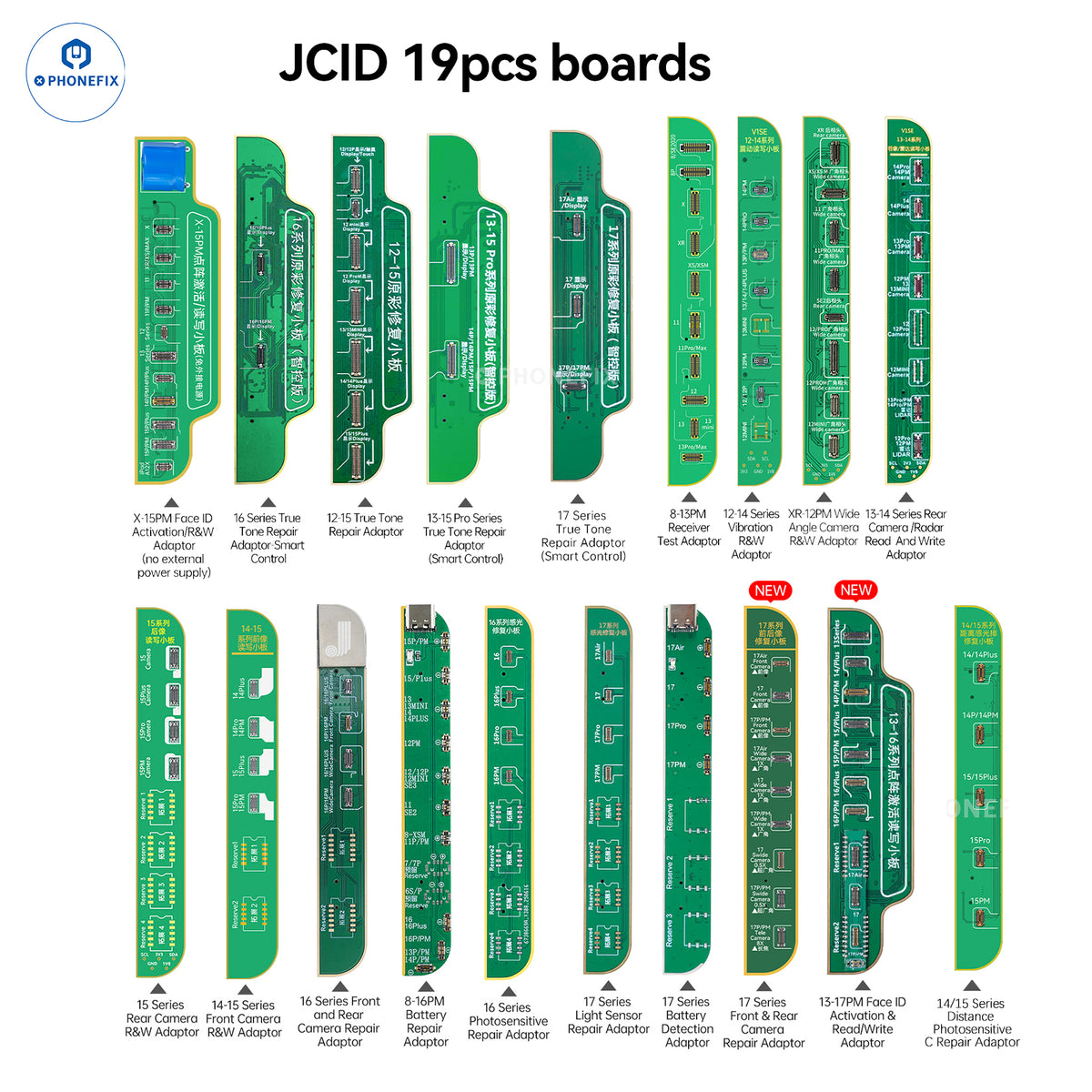

13. 17PCS Small Board List:
- JC screen true tone repair board for iPhone 7-11 Pro Max.
- JC screen true tone repair board for iPhone 12/12 mini/12 Pro/12 Pro max/13/13 mini/14/14 Plus/15/15 Plus. (non-original/original screen).
- JC 13/14Pro Screen True Tone Repair Adaptor for iPhone 13 Pro/13 Pro Max/14 Pro/14 Pro Max/15 Pro/15 Pro Max. (non-original/original screen).

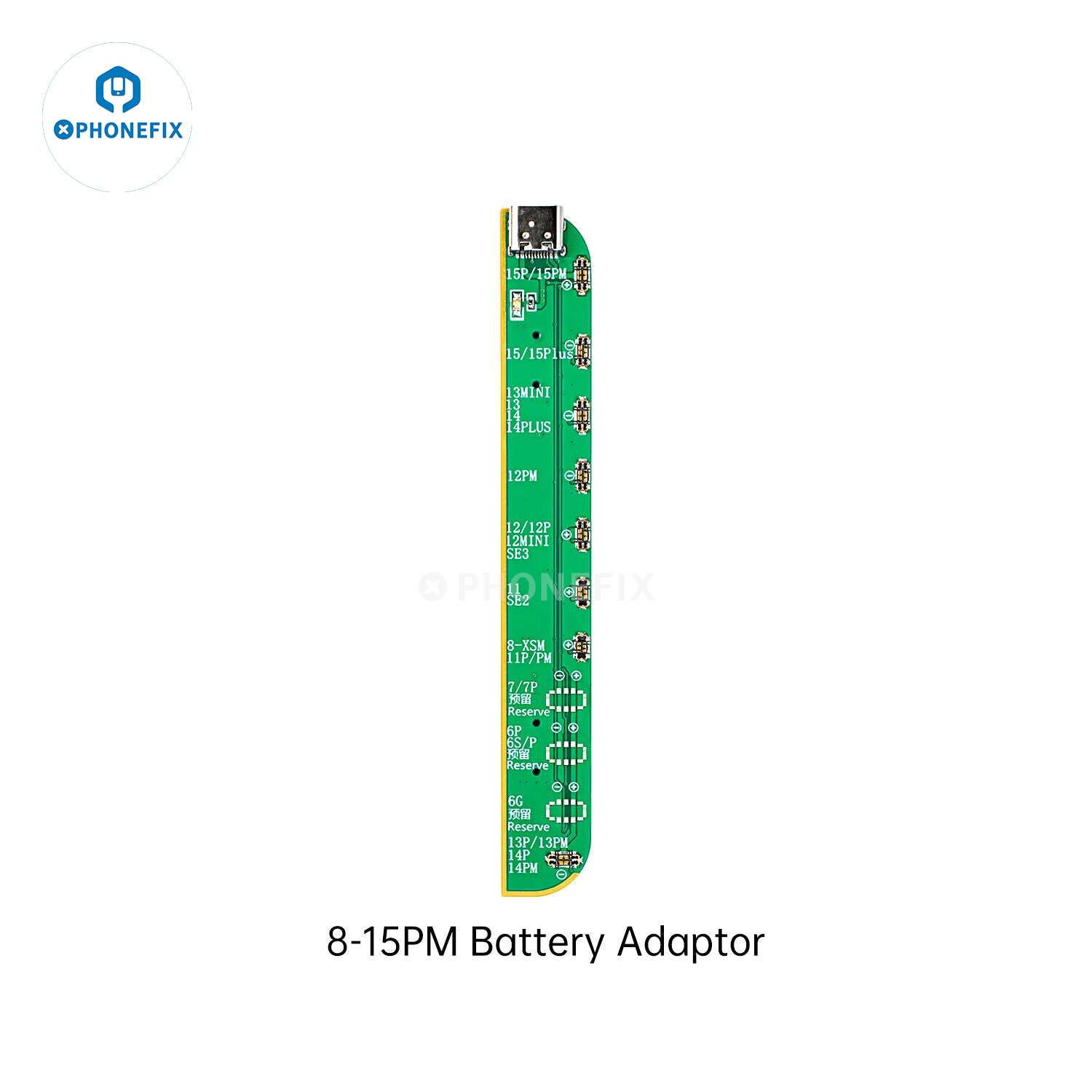

- JC battery board for iPhone 8-15 Pro Max.
- JC Face ID activation/read/write board for iPhone X-15 Pro Max (no external power supply). - Newly released!
- JC receiver FPC board for iPhone 8-13 Pro Max.
- JC receiver FPC board for iPhone 14/14Plus/14Pro/14 Pro Max.
- JC Convert 13 to 15 series Photosensitive receiver FPC adaptor.
- JC rear camera board for iPhone XR-12 Pro Max wide angle camera repair.

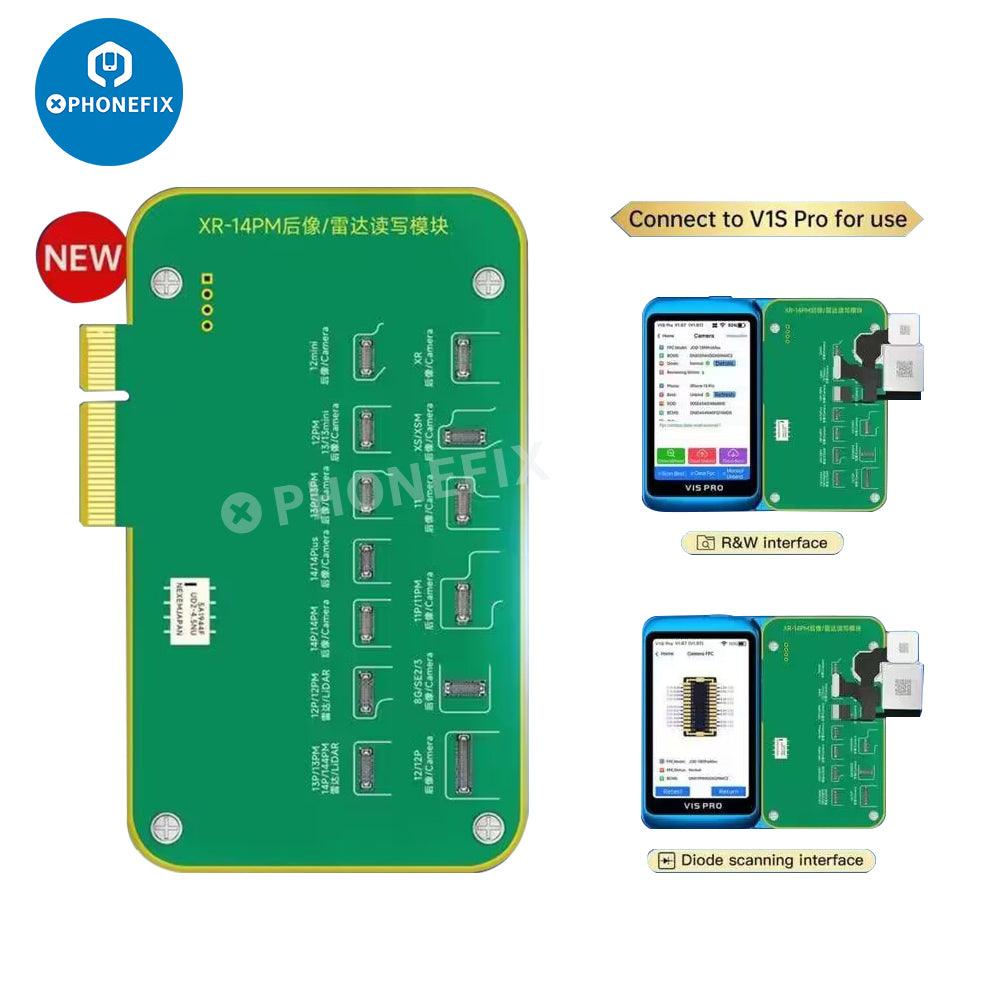

- JC 13-14 rear camera radar Read And Write Adapter for iPhone 13-14 Pro Max camera.
- JC iPhone 12-14 series vibration read write adaptor.
- JC fingerprint board for iPhone 5S-8P. (V1S PRO software will open this function soon).

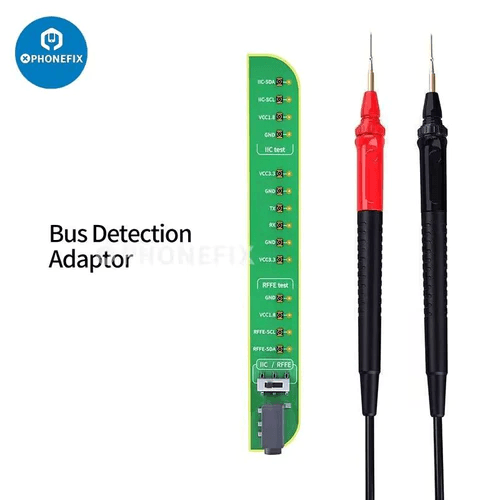

- JC bus detection adaptor.

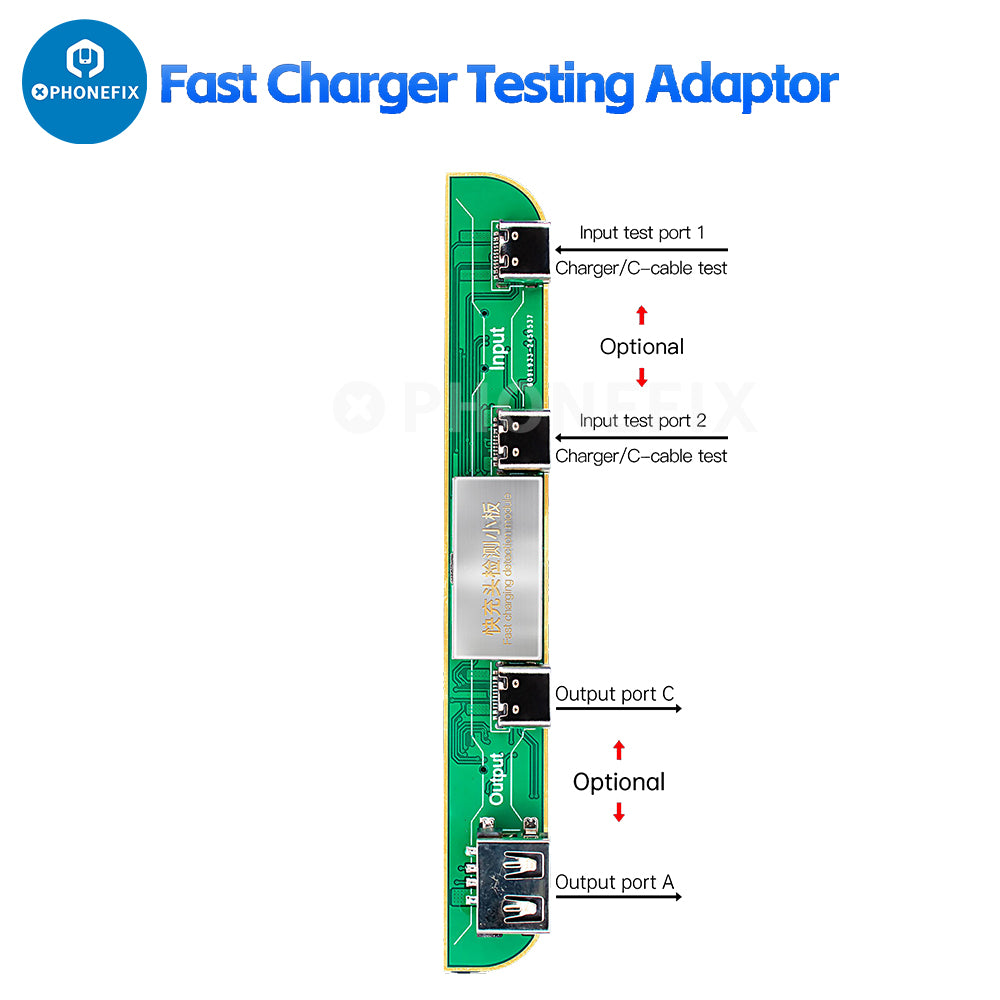

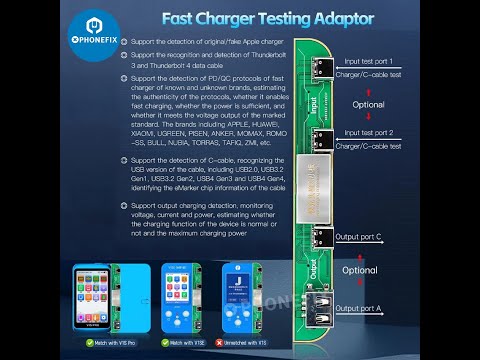

- JC fast charger testing adaptor.
- JC iPad screen repair adaptor with 4pcs FPC cable.
- JC iPhone 15 series read camera read and write adaptor.
- JC 14-15 series front camera read-write adaptor. - Newly released.

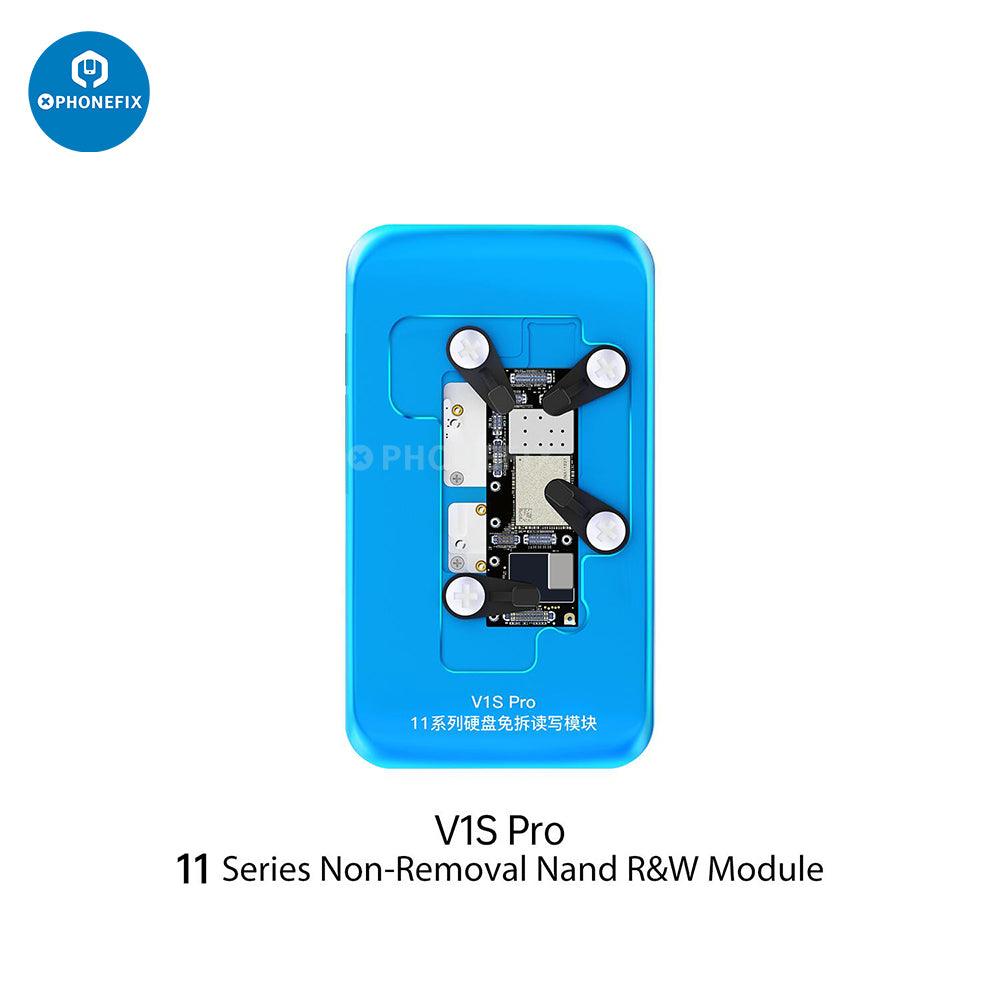

13. JC V1S Pro 11 Series Non-Removal Nand Read Write Module.

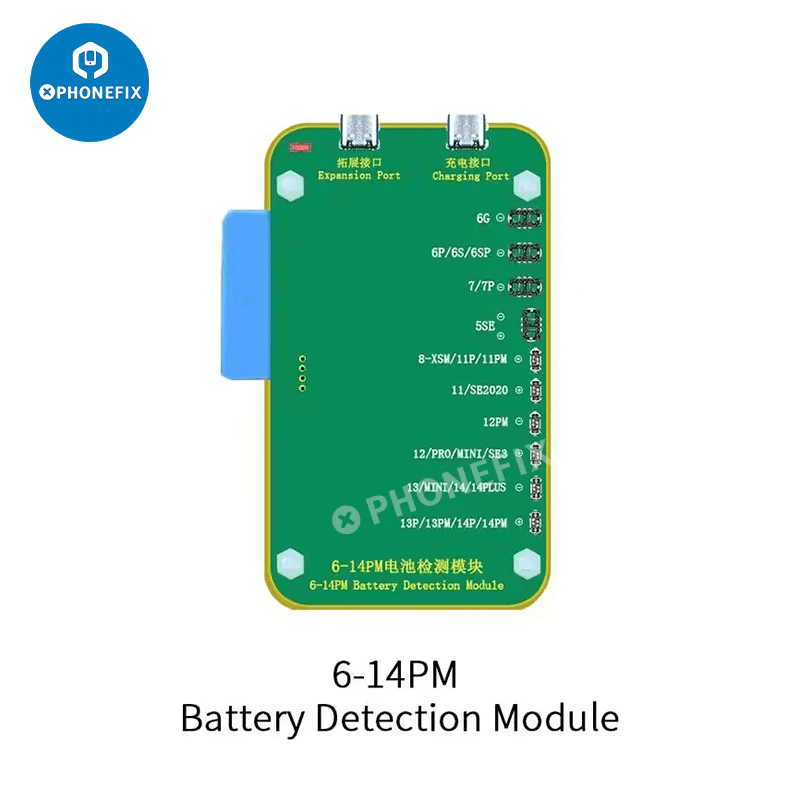

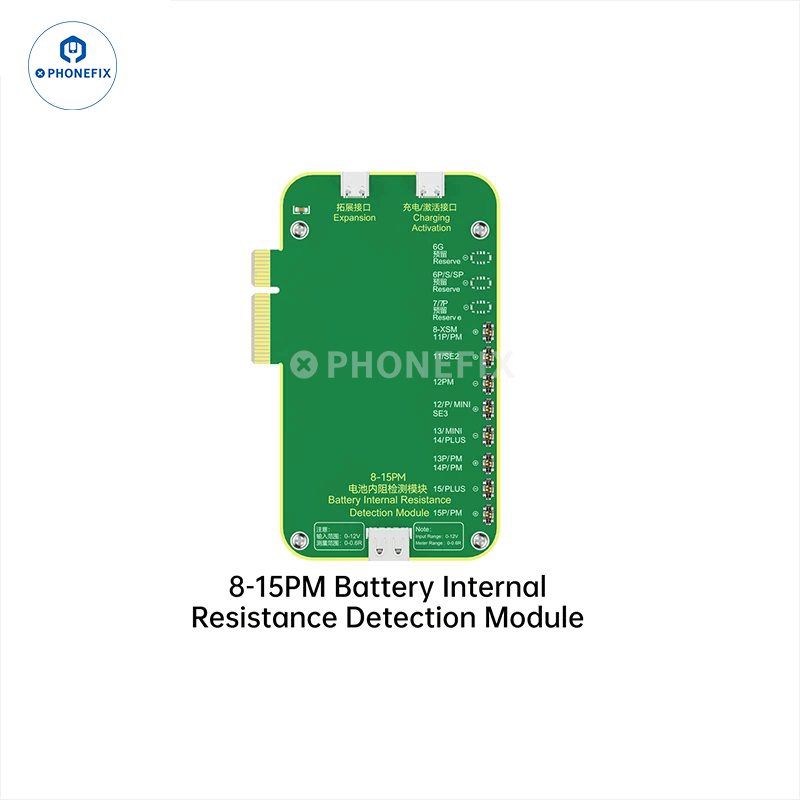

JCID 8-15PM Battery Internal Resistance Detection Module for iPhone 8/X/11/12/13/14/15 Pro Max Battery Cells Read and Write.
New JCID 8-15PM battery module:
1. Support iPhone 8-15 Pro Max battery and battery cell internal resistance test and battery data reading and writing.
2. Reserved iPhone 6/6S/7 series battery port, users can weld the corresponding battery FPC connector by themselves.
3.Support various types of battery and battery cell internal resistance test (lithium ion, nickel metal hydride, lithium manganese, lead acid and other battery internal resistance test).
4.Support DC 0-12V voltage, internal resistance measurement range 0-0.6.
5. High-precision four-terminal sensing, four solid wires, standard USB alligator clip.
6.Connect to JCID V1SPro for use.

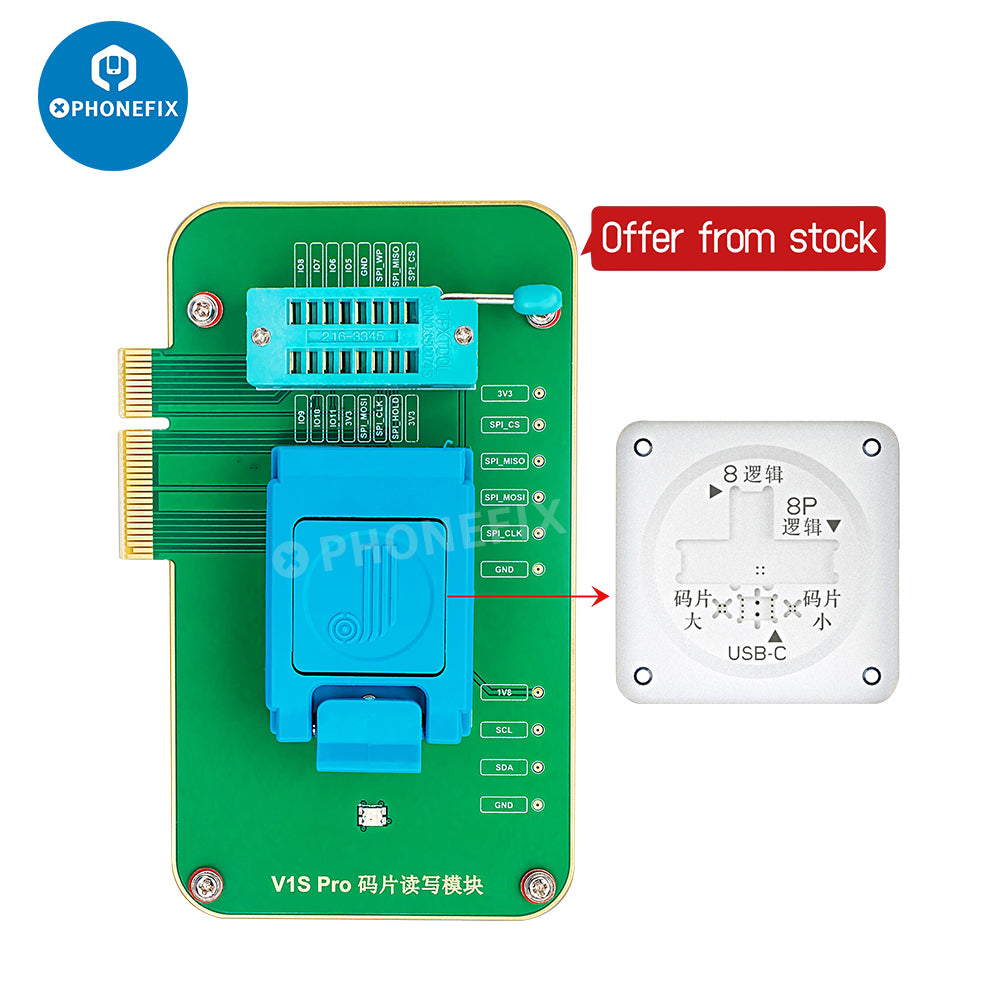

V1S Pro iPhone EEPROM Chip Read & Write Module:
Support SPI chip reading and writing via wire jumping without dismantling
Support IIC chip reading and writing via wire jumping without dismantling
Support 6-X logic chip reading and writing, no need to distinguish 1 pin, support recognition in any direction
Support 6-15PM baseband chip reading and writing. no needto distinquish 1 pin, support recoanition in anv direction
Support 15 series (and iPad) USB-C chip (also known asU2 chip) reading and writing
Support BIOS chip reading and writing (Note: the adaptor socket of the corresponding chip needs to be purchased separately, and reading and writing through the blue locking socket)
Note: If you only want to select a specific board, please go to this link: V1SE.
