JTXTOOLS KJ-04 KJ-05 Precision Repair Fixture is designed for mobile phone motherboard and chip-level repair. JTX KJ-04 press-type quick chip holder with 3D suspended clamping, built-in spring, and synthetic stone heat-resistant panel. Firmly secures chips for hot-air glue removal and precision repair. JTX KJ-05 3D clamp fixture with 4 adjustable sliders, dual-axis inner grip, and synthetic stone body. Securely holds phone motherboards for heat dissipation and precision chip-level repair.

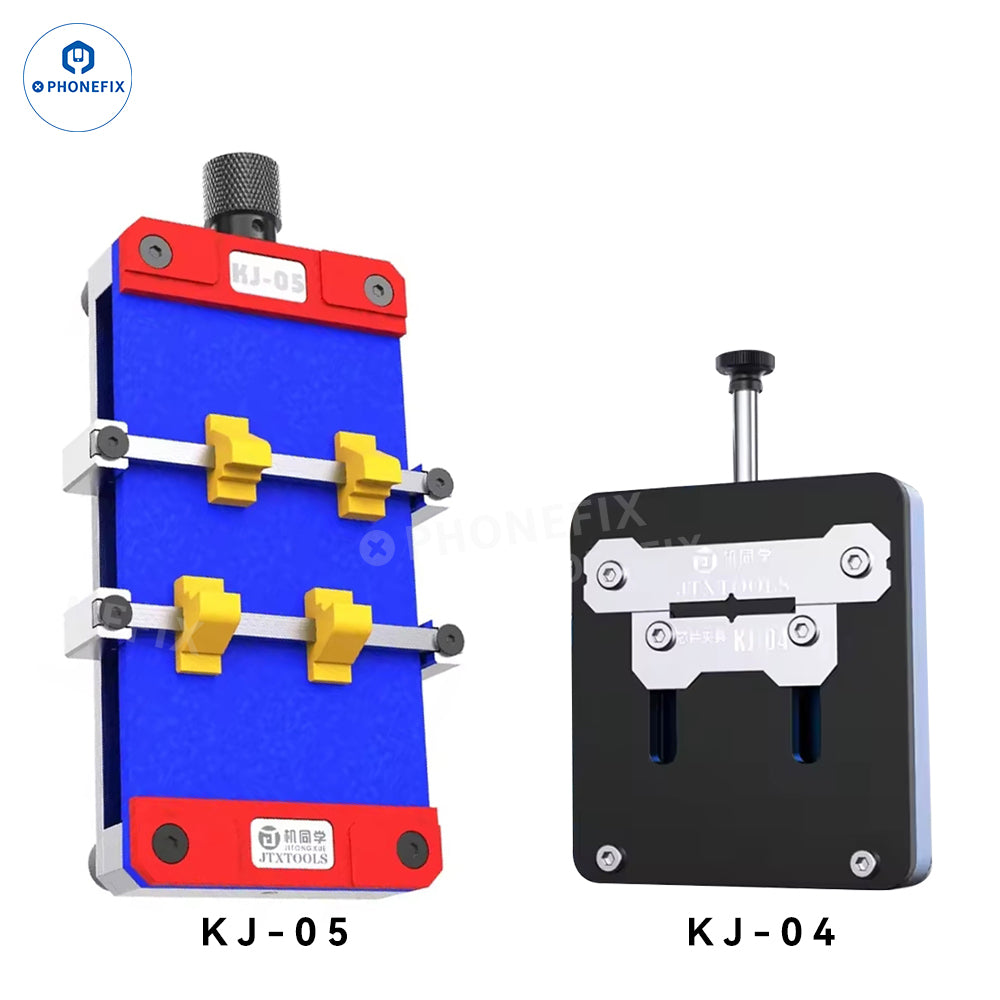

Option:

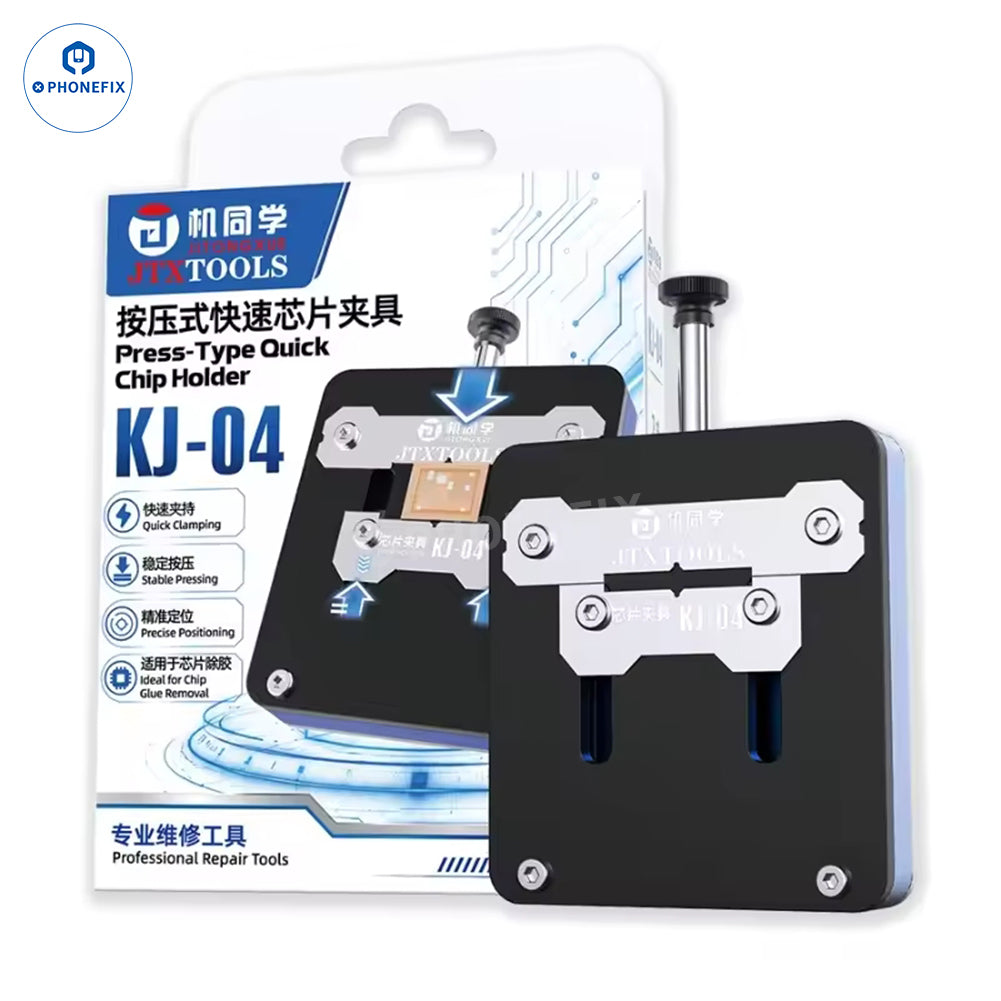

KJ-04 fixture: Press-Type Quick Chip Holder
KJ-05 fixture: 3D Mainboard Fixture
JTX KJ-04 Press-Type Quick Chip Holder Features:

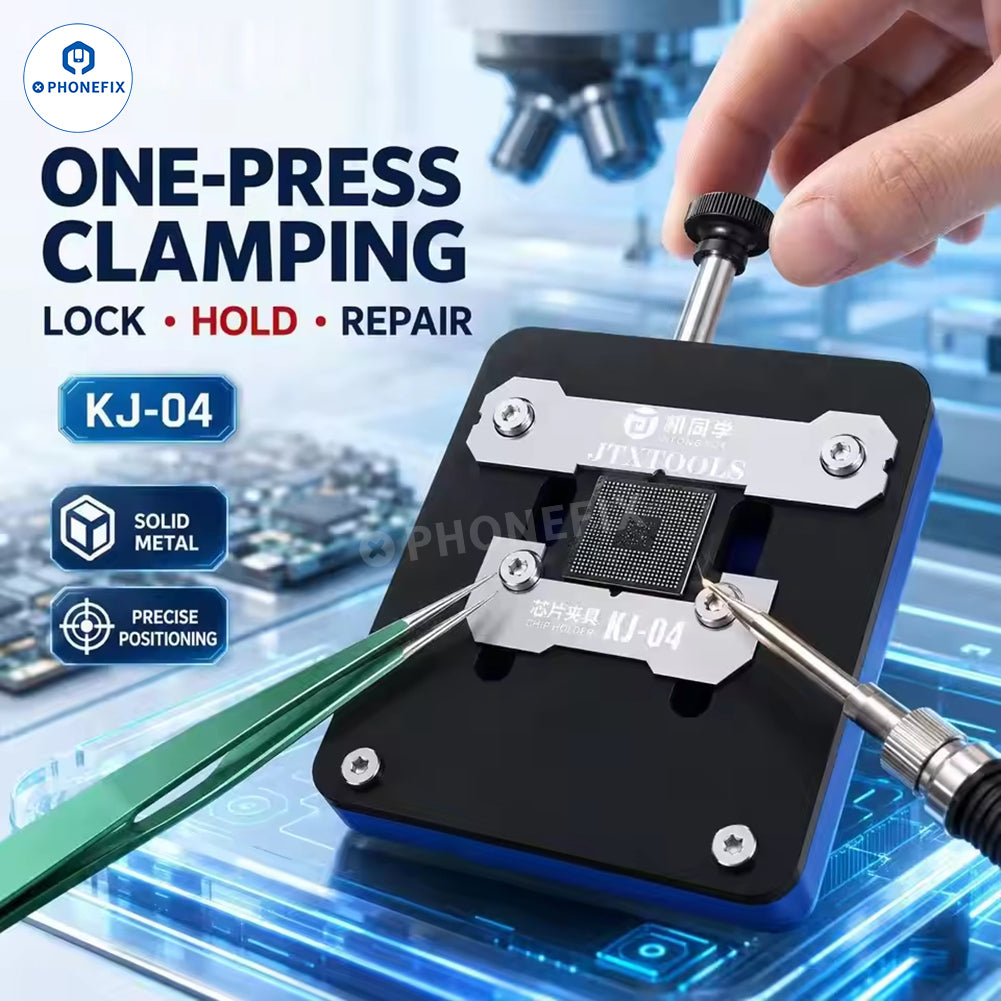

1. Press-Type Quick Clamping. Clamp by pressing; no repeated knob turning, faster and easier operation.
2. 3D Suspended Clamping. Upgraded suspension height lifts the chip for easier heating and cleaner operation.
3. Built-in Spring Mechanism. Spring-assisted holding keeps the chip stable during heating and glue removal.
4. Synthetic Stone Heat-Resistant Panel. Non-heat-absorbing, reduces heat loss, and concentrates rework energy.

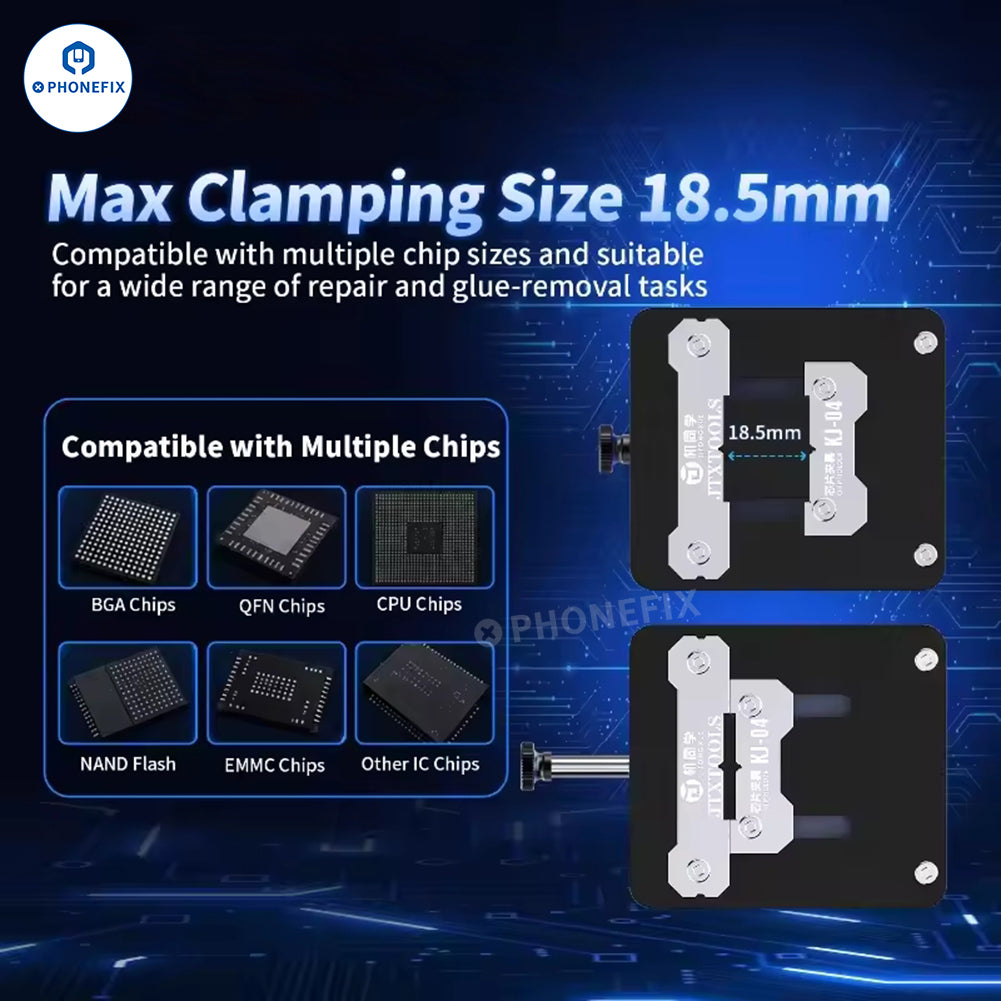

5. Max Clamping Size 18.5mm. Compatible with BGA, QFN, CPU, NAND Flash, EMMC, and other IC chips.
6. Solid Metal Structure. Robust frame and precision clamp; anti-rust and anti-deform against flux and solder.

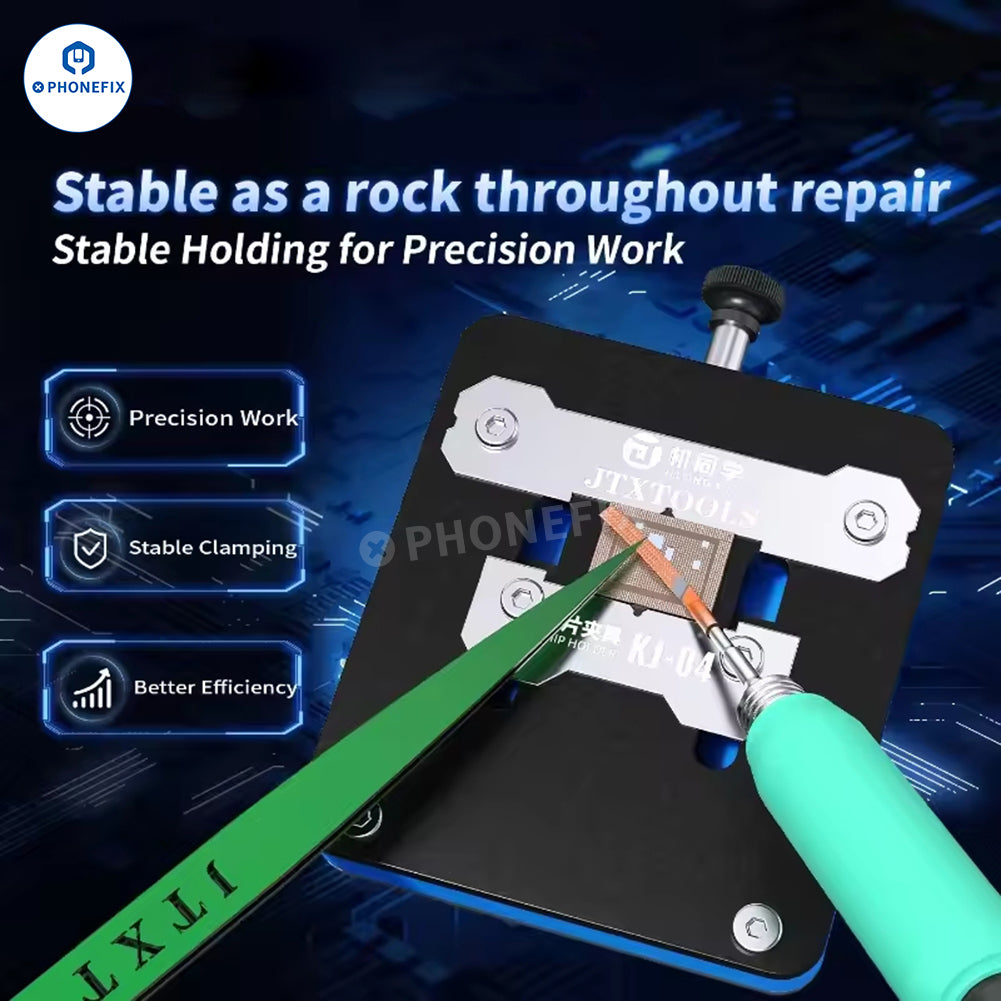

7. Stable Under Heat. Firmly holds the chip during hot-air rework, ensuring precise and reliable chip-level repair.
8. Professional Glue Removal. Secures chips for safe, efficient heating and glue removal.

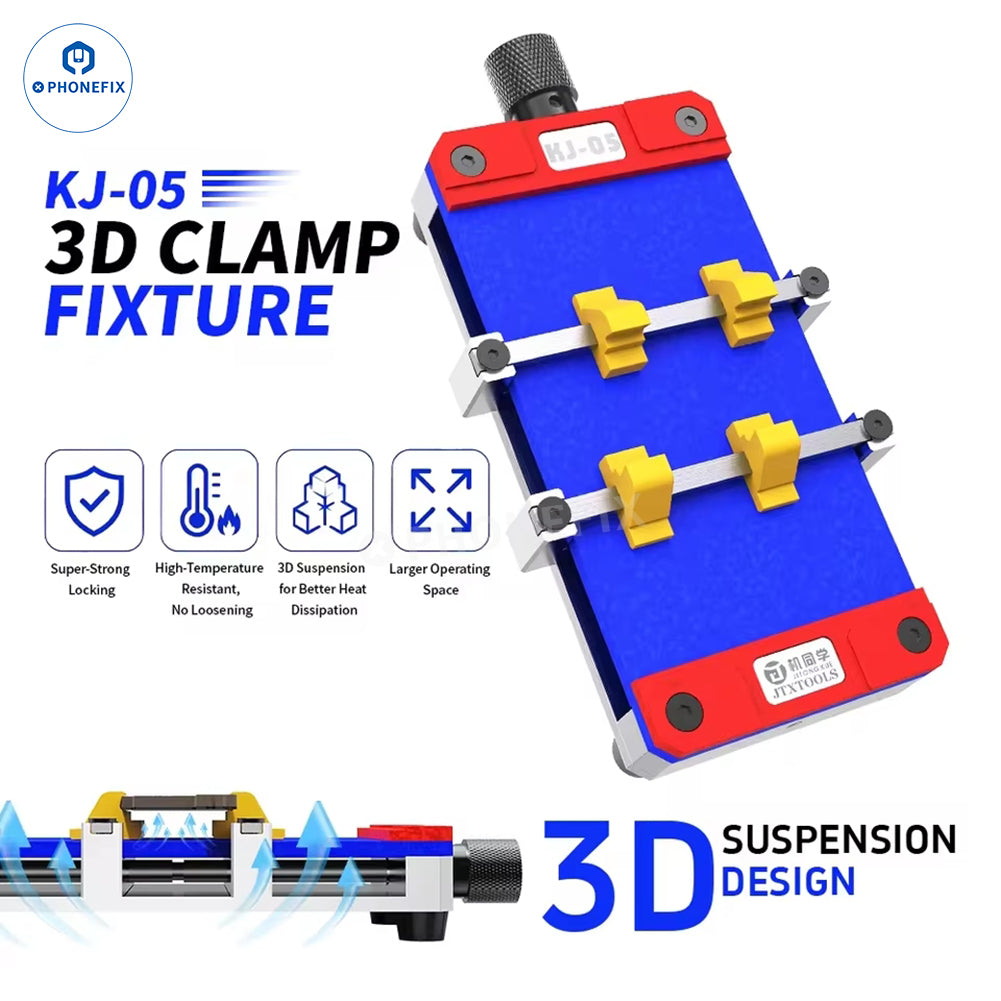

JTX KJ-05 3D Clamp Fixture Features:
1. 3D Suspended Clamping. Lifts the mainboard for easier heating, cleaner operation, and more convenient maintenance.

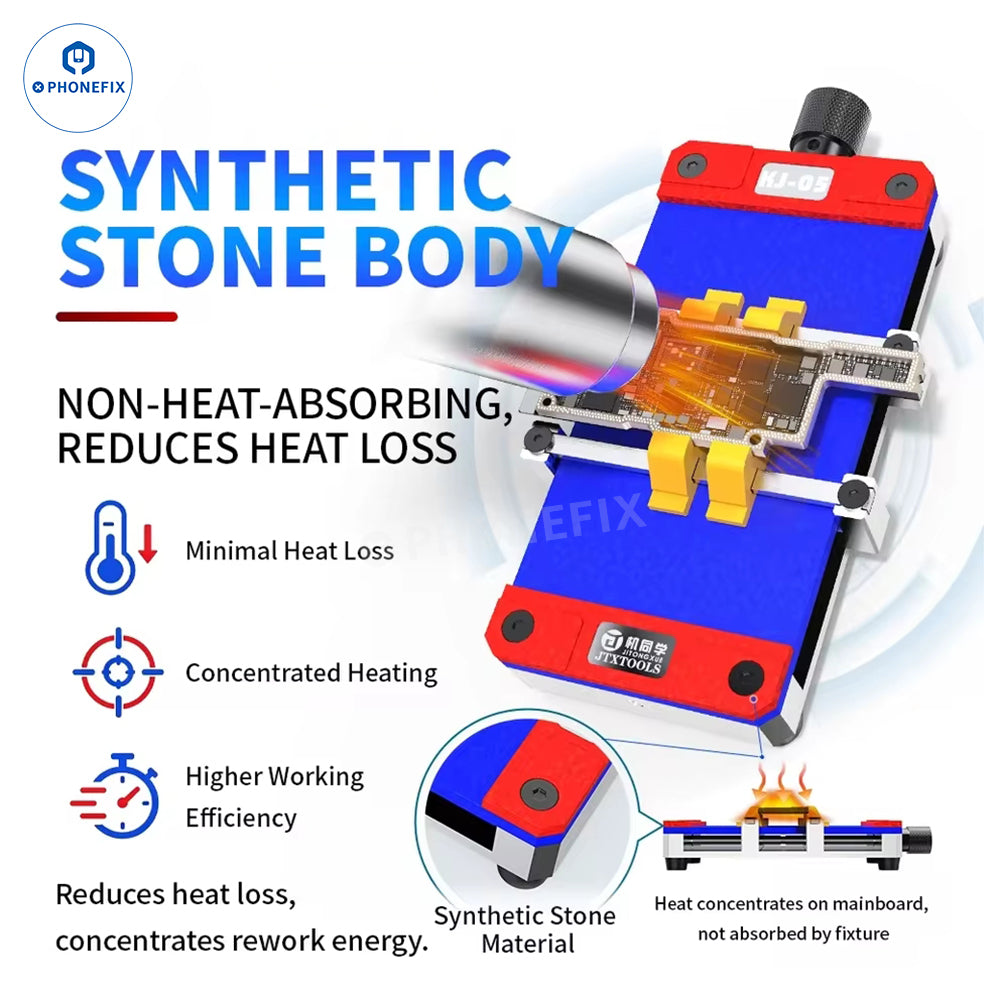

2. Synthetic Stone Body. Non-heat-absorbing, reduces heat loss, and concentrates rework energy on the mainboard.
3. 4 Adjustable Sliders. Free positioning and fast adjustment; fits various mainboard shapes and sizes.

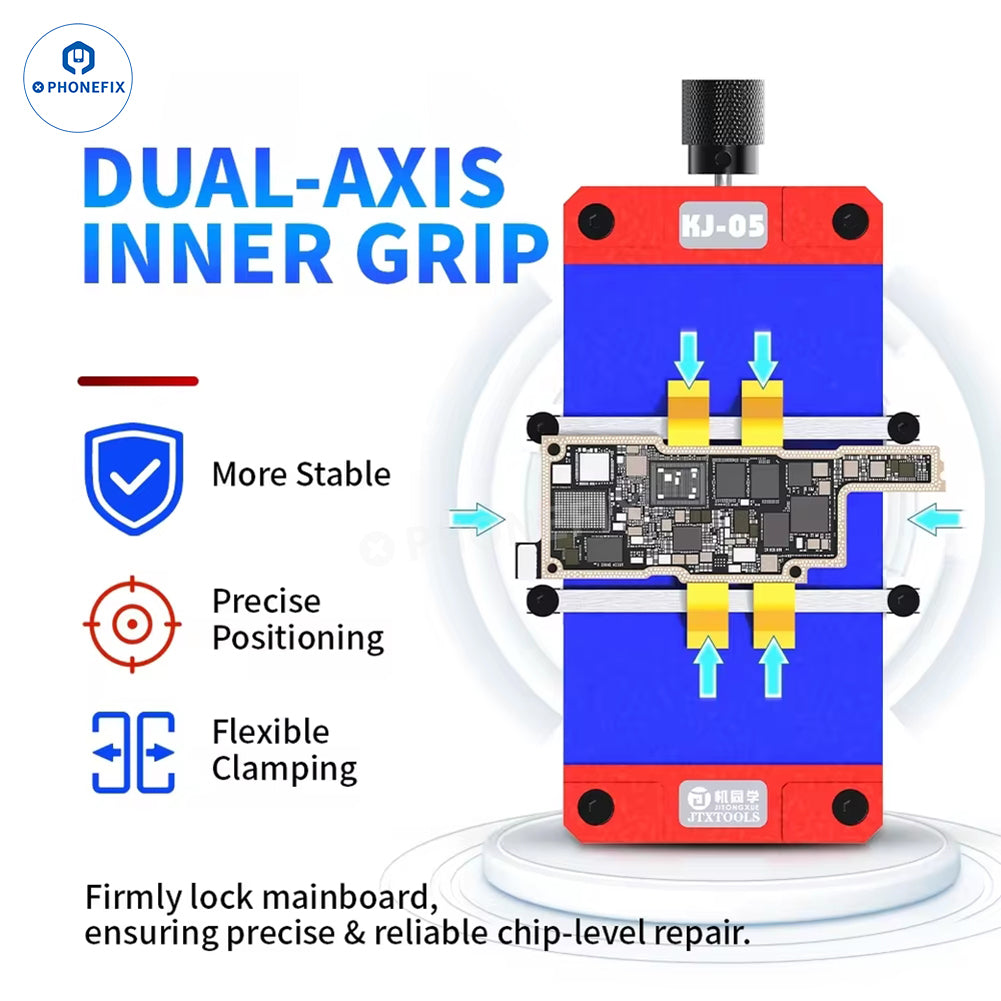

4. Dual-Axis Inner Grip. Firmly locks the mainboard for precise and reliable chip-level repair.
5. Strong Hold Under Heat. Super-strong locking, high-temperature resistant; no loosening or shifting during hot-air rework.
6. Better Heat Dissipation. 3D suspension design provides more bottom-side clearance and better back-side heat dissipation.
7. Larger Operating Space. Upgraded suspension height offers more room for convenient repair work.

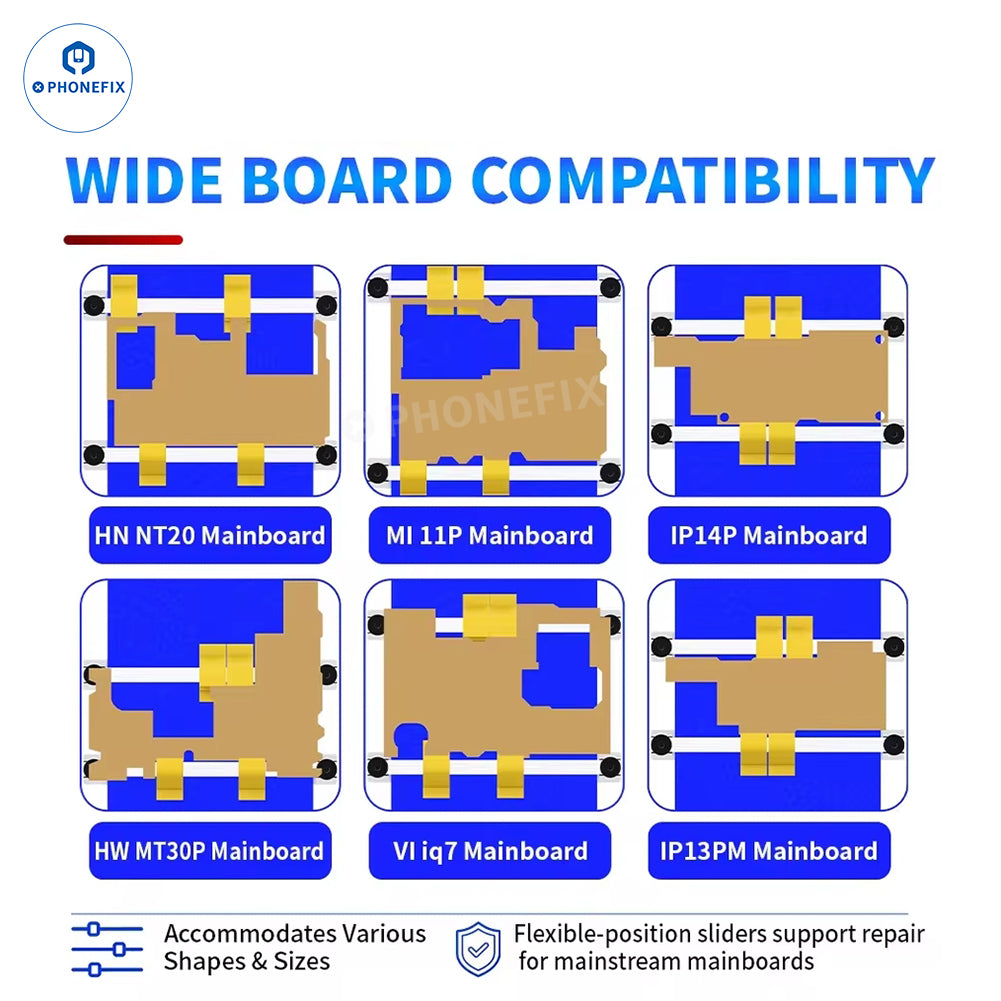

8. Wide Board Compatibility. Accommodates various mainboard shapes and sizes, including HN NT20, MI 11P, IP14P, HW MT30P, VI iq7, and IP13PM mainboards.
9. Retail-Ready Packaging. Professional presentation with retail-friendly packaging for enhanced brand image
KJ-04 Product Parameters:
Brand: JTXTOOLS
Product Name: Press-Type Quick Chip Holder
Model: KJ-04
Maximum Clamping Size: 18.5mm
Compatible Chips: BGA, QFN, CPU, NAND Flash, EMMC, and other IC chips
Material: Solid Metal
Application: Chip glue removal, tinning, soldering, and other precision repair
KJ-05 Product Parameters:
Brand: JTXTOOLS
Product Name: 3D Mainboard Fixture
Model: KJ-05
Material: Synthetic Stone
Clamping Method: Dual-Axis Inner Grip, 3D Suspension
Compatible Mainboards: HN NT20, MI 11P, IP14P, HW MT30P, VI iQ7, IP13PM, etc.
Packaging: Retail-Ready Packaging
