kaisi LCD Screen Separator Heating Platform 110/220V Glass Removal Smooth Plate Screen Separator lcd repair machine

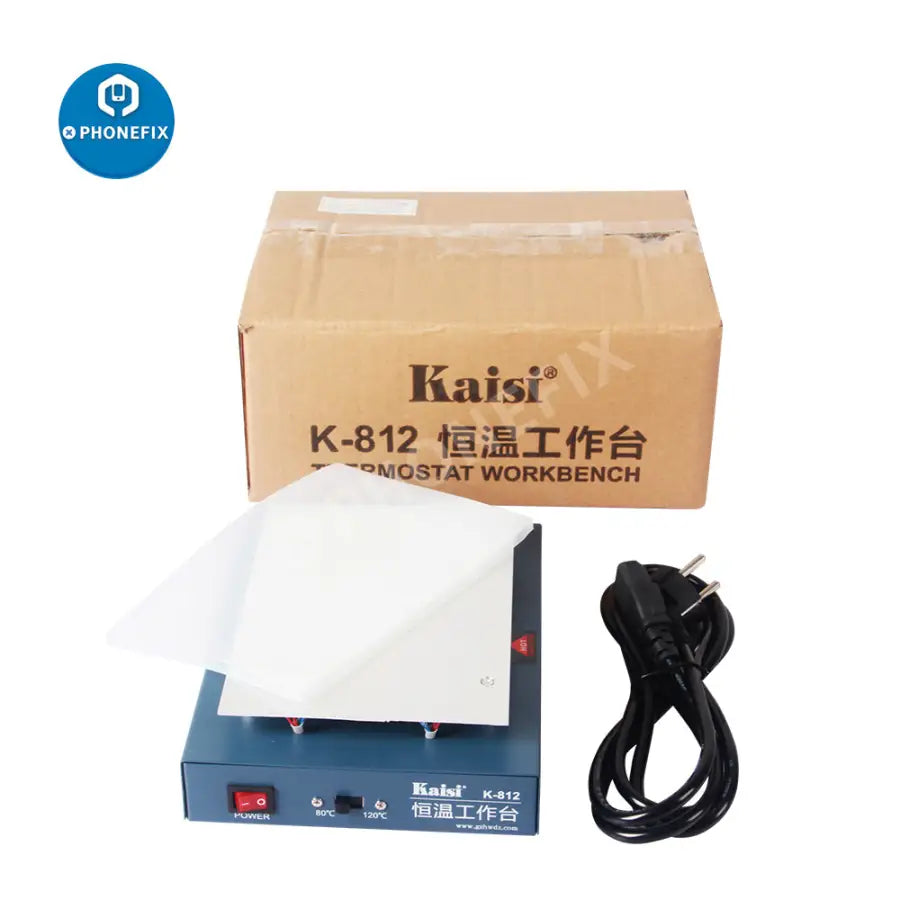

Package Included:
- 1 x Heating Platform
- 1 x Power Charger
- 1 x Silicone Pad
- 1 x Package Box
Features:
- Auto heating metal plate, maximum temperature is 120 centigrade.
- Safety power system inside, avoiding the electric leakage problem.
- Anti static body material, prevent the LCD and the flex cable being damaged from the static.

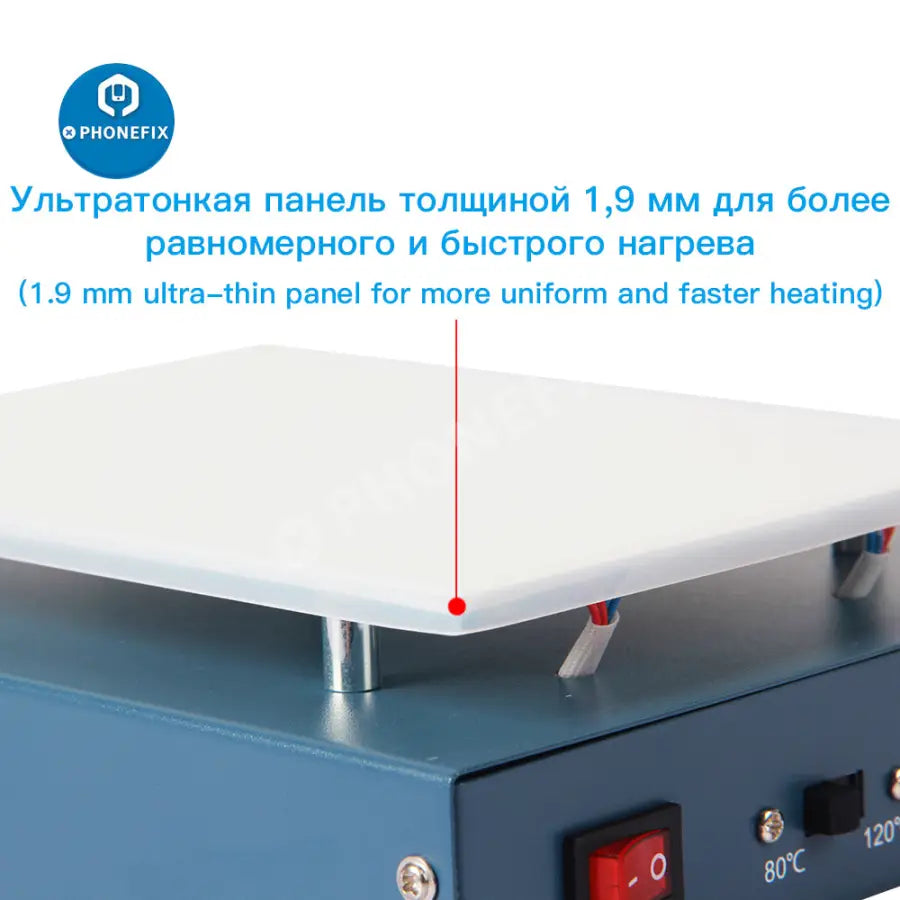

- Smooth metal plate to hold the touch-screen without any damaged.
- Temperature should be set to 80 centigrade to 100 centigrade, when you do the job on for iP and for galaxy series.
- Please do not set the temperature to more than 120 degrees, because it may damage the screen.
- With LED display, you can get the clearly Tempreture information on it.
- Application Range: Separation the different cover plate, LCD and so on.
Specifications:

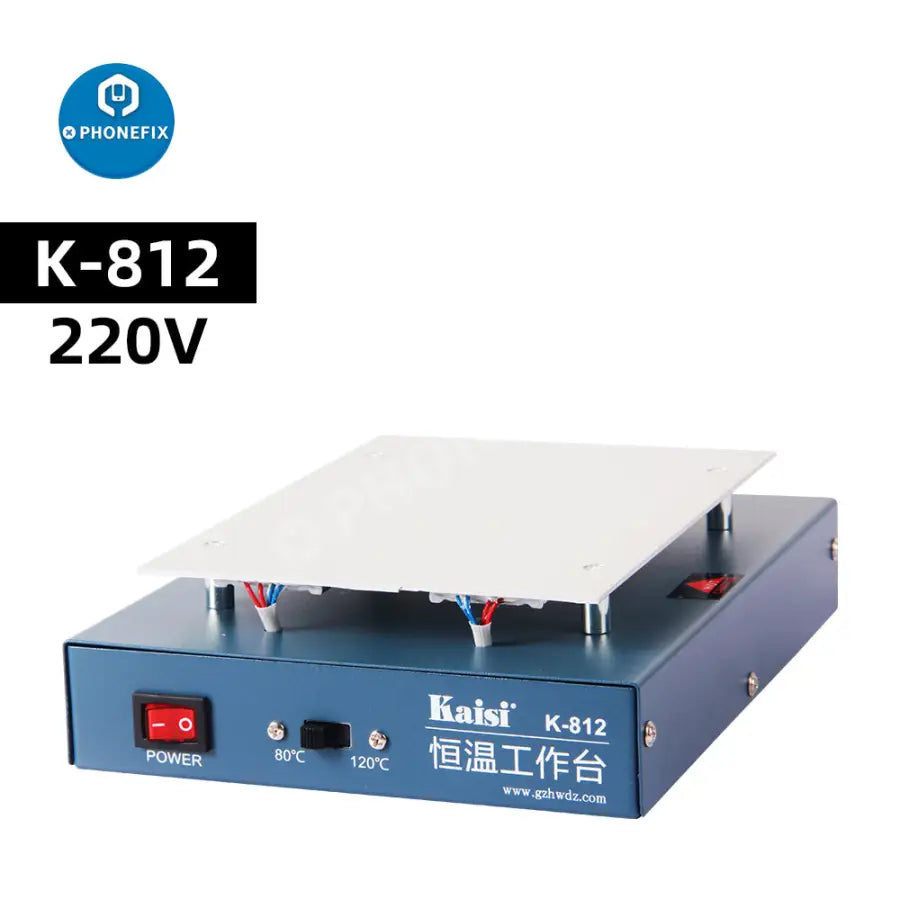

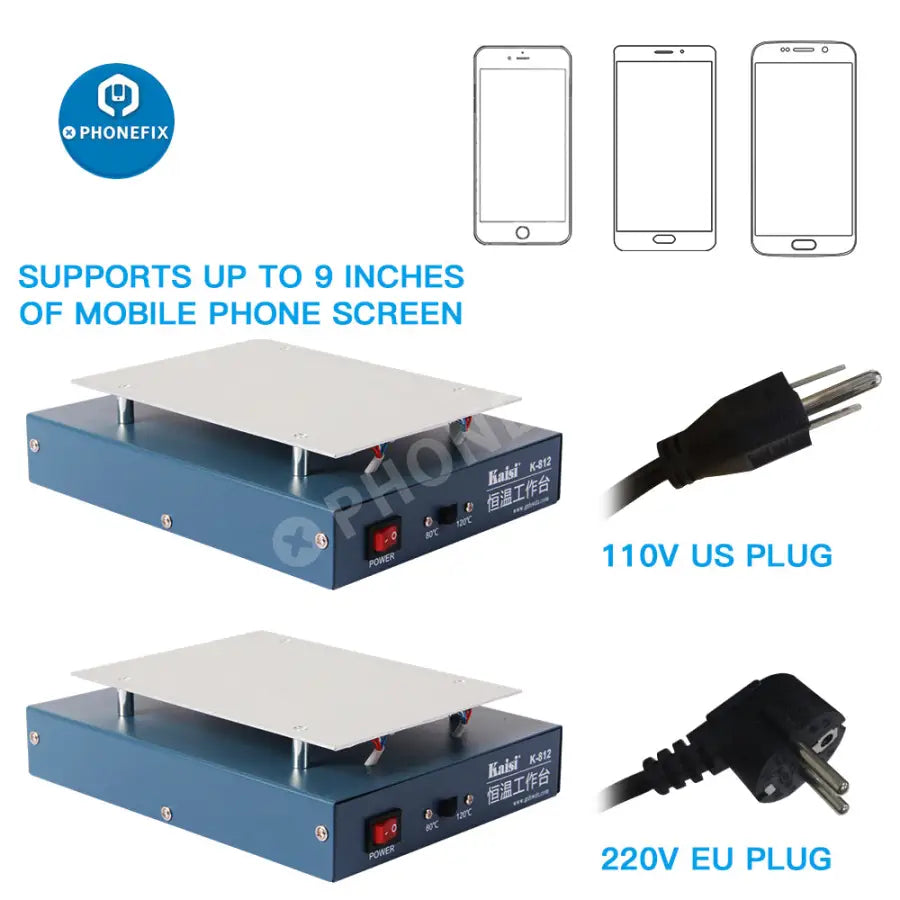

- Plug Type: 110V US Plug, 220V EU Plug
- Note: Please kindly leave us a PAYPAL NOTE specifying your favorite plug type, otherwise we will send it in Random.
- Color: Blue
- Material: Metal

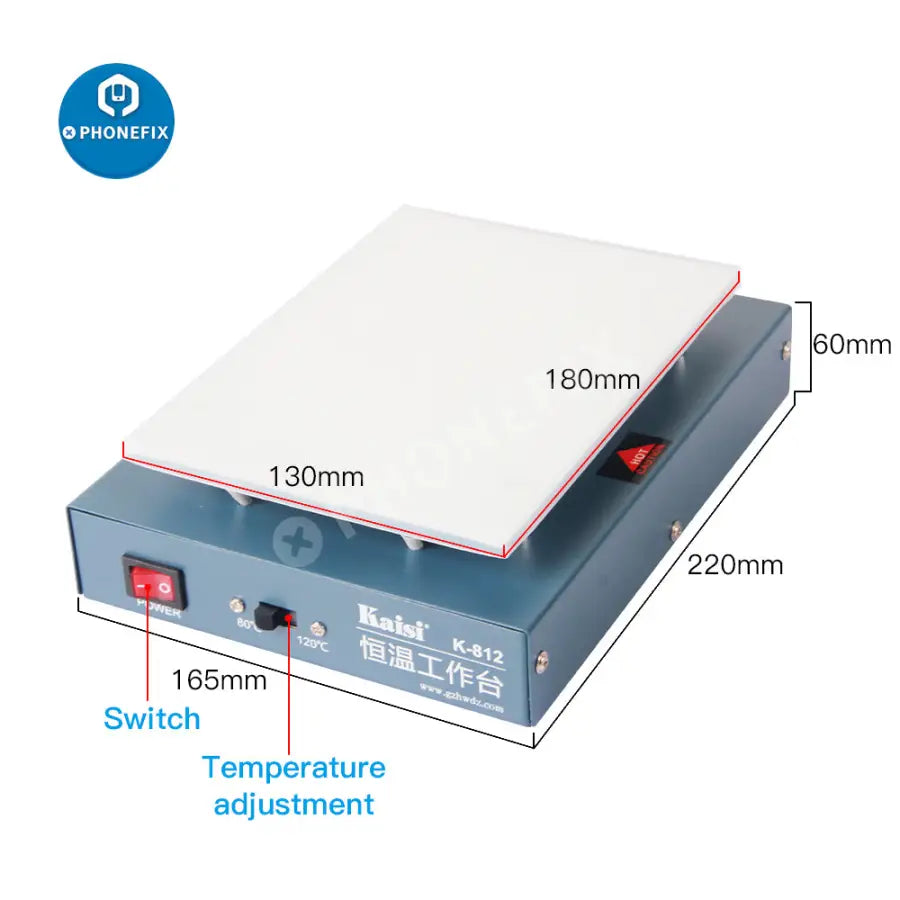

- Size: Approx. 220 x 165 x 60mm/8.6x 6.4x 2.3''
- Heating Plate Size: Approx. 180x 130mm/7.0x 5.1''

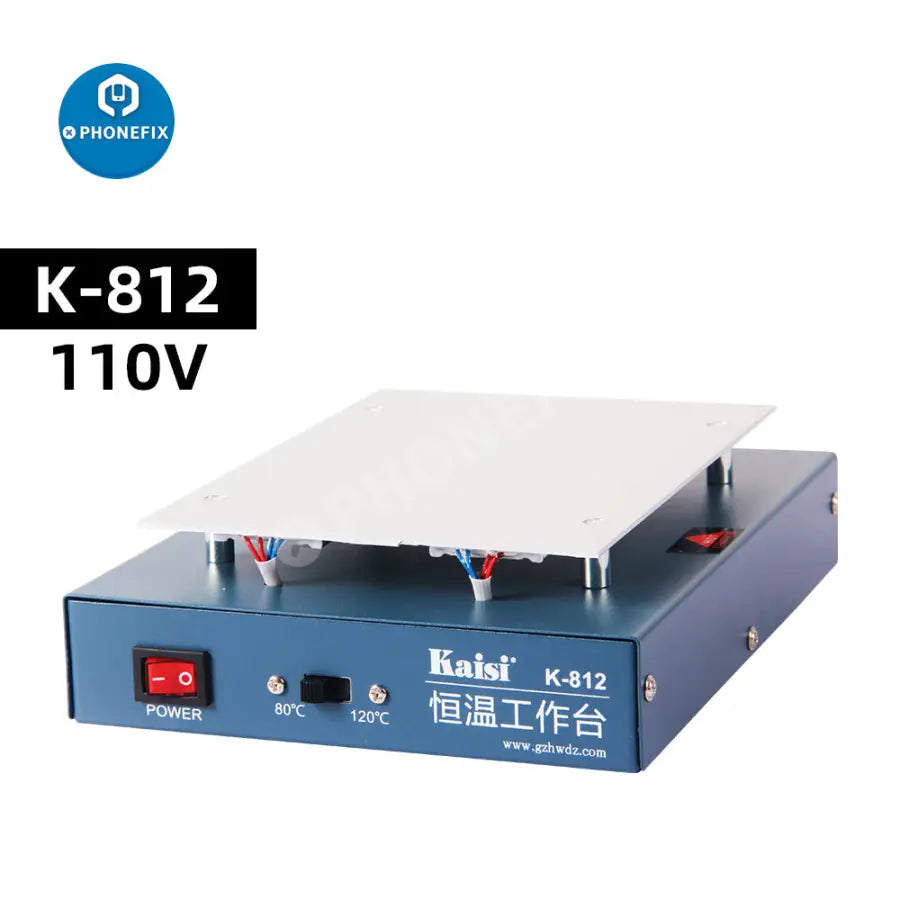

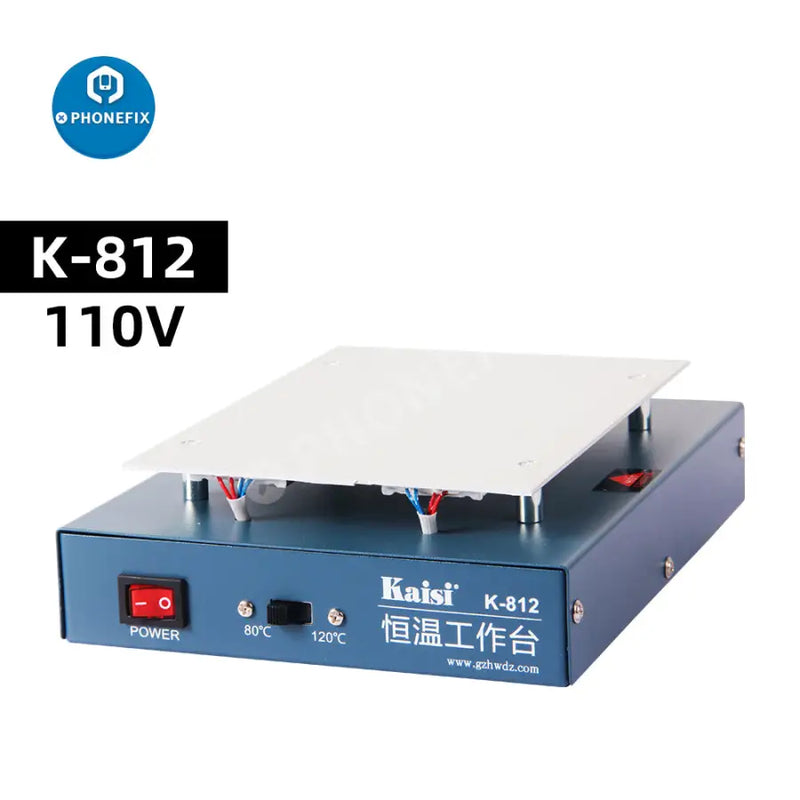

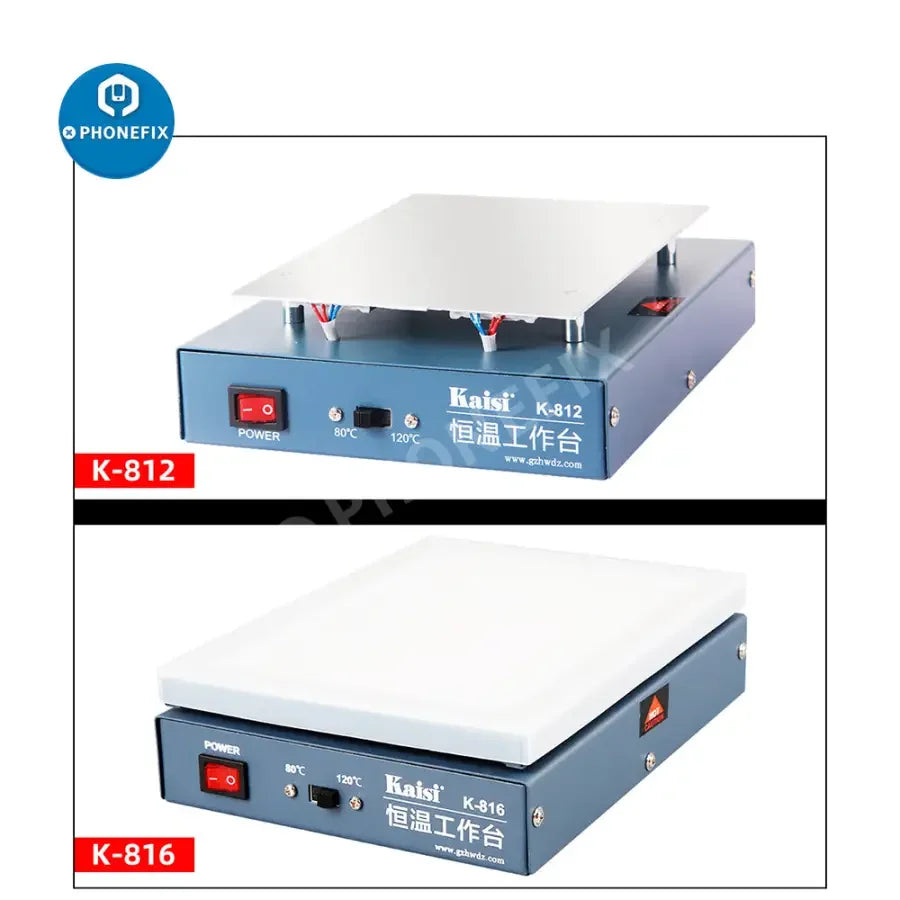

- Model: Kaisi K-812
- Voltage: AC 110/220V 50-60Hz
- Power: 270W
- Working Tempreture: 0-55 degrees, <90%RH non-condension
- Compatible With: For 7" or below LCD or LED screen assembly
Operation Steps:
- Step 1: Put your LCD with touch-screen on the metal plate, LCD side above.
- Step 2: Turn on the machine and wait for the metal plate become 80-100 degree.
- Step 3: Press the button and put the non-slip mat on the plate then put the LCD on it.
- Step 4: Start to separate the LCD off the glass with a core, then right and left movement with the core in between the LCD and the glass, please notice you must using gentle power and keep the core stay on the LCD surface, so that it will avoid the touch-screen be damaged.
