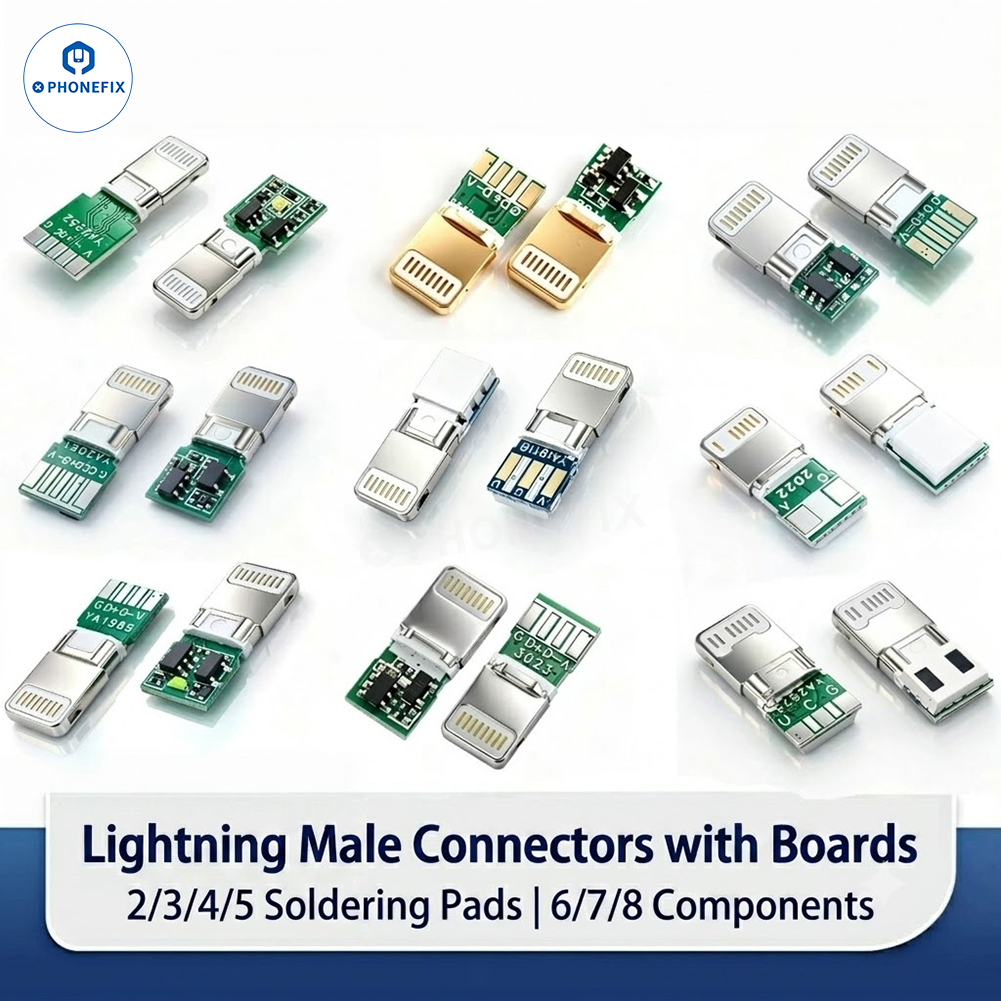

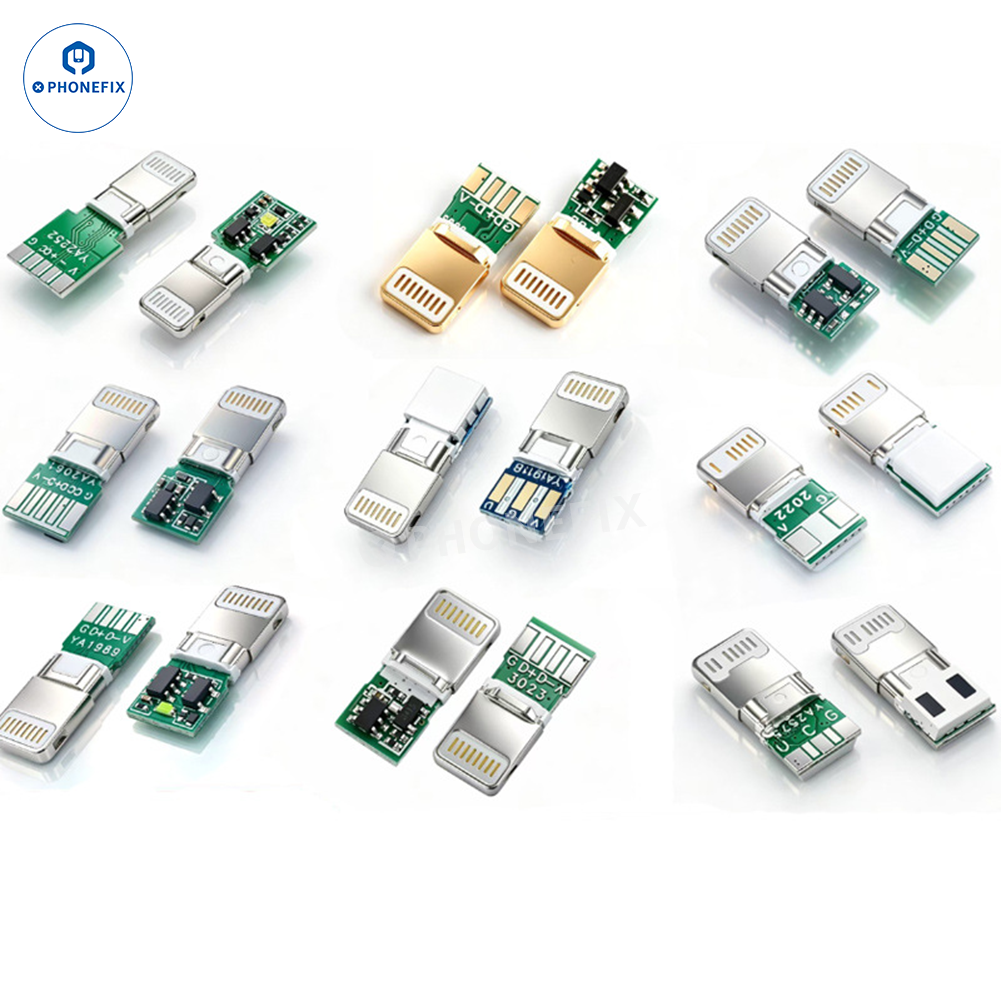

Lightning 8-Pin Male Connector with PCB features an integrated PCB structure, supporting PD fast charging, data transmission, and automatic wake-up. It is available in various specifications, including 2-pin, 3-pin, 4-pin, 5-pin, 6P, 7P, and 8P options. Versions with wake-up functionality, anti-static features, breathing light, tail light, U-shaped anti-breakage shell, and extended rubber coating are available to suit different application needs. Suitable for Apple device charging cable production, repair, and DIY assembly.
Feature
1. Supports 22W/27W PD fast charging for higher charging efficiency and simultaneous charging and data transmission, meeting daily connectivity needs.
2. Available in 2-pin, 3-pin, 4-pin, and 5-pin versions to suit different product designs.
3. Some models support automatic wake-up or wake-up function for more stable connections.
4. Selected models are equipped with ESD anti-static design to improve connector reliability.
5. Employs a one-piece or rubber-coated shell design to enhance bending resistance and lifespan.
6. Optimized power input protection effectively improves safety and stability during fast charging.
7. Uses a soldering-type installation method, suitable for data cable production, repair, and DIY assembly.

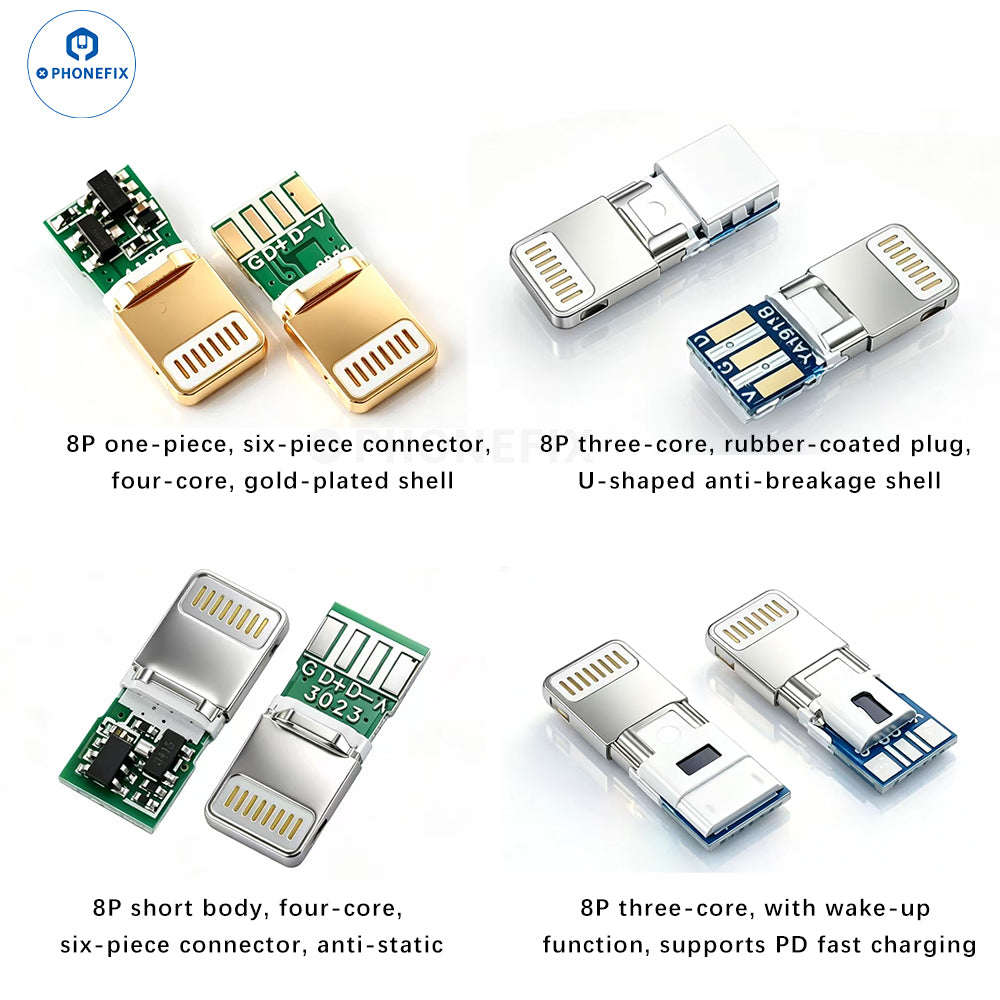

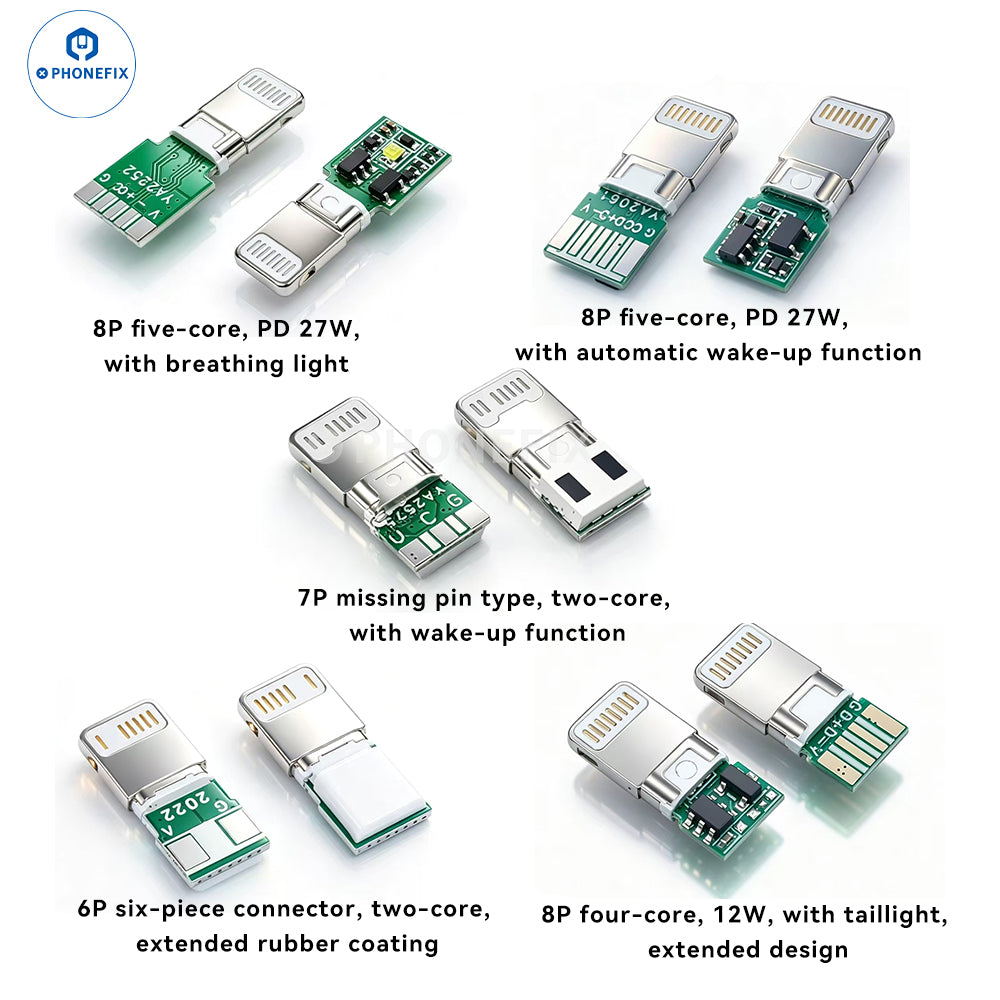

Options:
1. 7P missing pin type, two-core, with wake-up function
2. 8P short body, four-core, six-piece connector, anti-static
3. 8P three-core, rubber-coated plug, U-shaped anti-breakage shell
4. 6P six-piece connector, two-core, extended rubber coating
5. 8P five-core, PD 27W, with breathing light
6. 8P three-core, with wake-up function, supports PD fast charging
7. 8P five-core, PD 27W, with automatic wake-up function
8. 8P four-core, 12W, with taillight, extended design
9. 8P one-piece, six-piece connector, four-core, gold-plated shell
